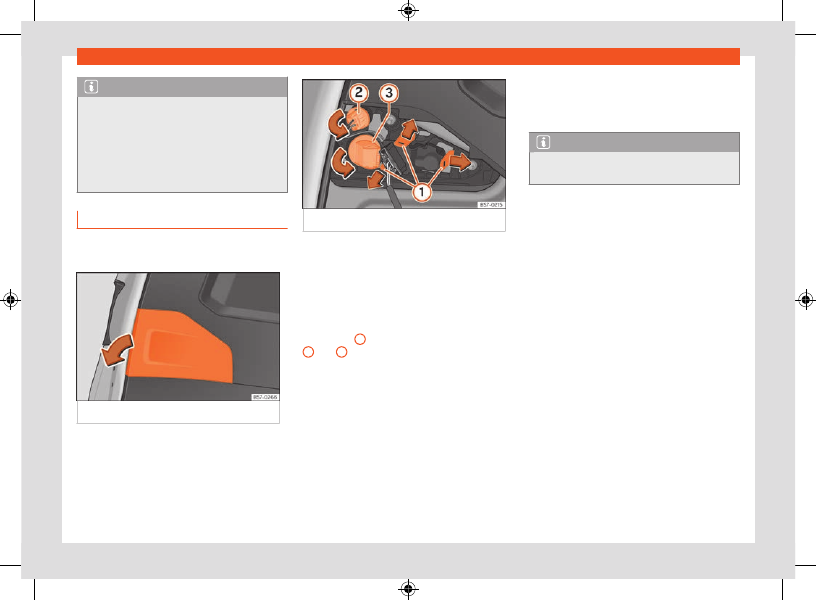

Fig. 201

●

Unlock the securing tabs from the bulb holder

Fig. 202

, or turn the bulb holder to the left

and

●

Remove the bulb holder from its location.

●

Lightly press the defective bulb into the bulb

holder, then turn it to the left and remove it.

●

Fit the new bulb, pressing it into the bulb

holder and turn it to the right as far as it will
go.

●

Use a cloth to remove any fingerprints from

the glass part of the bulb.

●

Check that the new bulb works properly.

●

Carry out the same actions in reverse order

for assembly and pay special attention to plac-
ing the bulb holder, ensuring that the tabs are
properly secured.

Note

Only the turn signal and reverse bulbs can be
changed.

300

Checking and refilling levels

Checking and refilling
levels

Engine compartment

Working in the engine compartment

The engine compartment of the vehicle is a
dangerous area. You should only perform works
in the engine compartment if you have good
knowledge of the necessary operations and the
general safety measures, and if you have ade-
quate tools, means and operating fluids. Works
performed inadequately, could lead to serious
injuries

. In this case, seek a specialised

workshop to perform all the works. SEAT rec-
ommends visiting a SEAT dealership for this.
Before performing any work in the engine com-
partment, always park the vehicle on level and
firm ground, taking all necessary safety pre-
cautions.

WARNING

Any accidental movement of the vehicle dur-
ing maintenance work could cause serious
injuries.

●

Never perform works underneath the vehi-

cle without having first immobilised it to pre-
vent it from moving. When working under the
vehicle with the wheels on the ground, the
vehicle must be on a level surface and the
wheels must be locked.

●

If work must be performed underneath the

vehicle, take the extra precaution of support-
ing it safely using suitable assembly support.
The jack is not suitable for this purpose and
may not withstand, which could lead to seri-
ous injuries.

●

The Start-Stop system must be switched

off manually.

WARNING

The engine compartment of any vehicle is a
dangerous area in which serious injuries can
be caused!

●

When performing any type of work, always

ensure you are extremely cautious, and bear
in mind the general safety measures. Never
put yourself at risk.

●

Never perform works in the engine com-

partment if you do not have solid knowledge
of the necessary operations. If you are un-
sure of what needs to be done, seek a speci-
alised workshop to perform the works. Works
performed inadequately, could lead to seri-
ous injuries.

●

Never open or close the bonnet if you

see steam or coolant escaping from the en-
gine compartment. Steam or hot coolant can
cause severe burns. Always wait until you
stop hearing or seeing the steam or coolant
discharging from the engine compartment.

●

Before opening the bonnet, always wait for

the engine to cool down.

●

Touching hot engine or exhaust system

components could result in skin burns.

●

Turn off the ignition and keep the vehicle

key in a safe place at a safe distance from
the vehicle to prevent the ignition from being
turned on and the combustion engine started
by mistake.

●

Always keep children away from the en-

gine compartment and never leave them un-
supervised.

●

When the motor is hot, its cooling system is

pressurised. Do not open the expansion tank
cap, hot coolant may splash out and cause
severe burns and other injuries.

–

Turn the coolant expansion tank cap

slowly and very carefully anticlockwise
while pressing it down slightly.

–

Always protect your face, hands and

arms from the hot coolant and steam with
a large thick cloth.

●

When refilling operating fluids, ensure they

do not spill onto the components of the en-
gine or onto the exhaust system. These liq-
uids could cause a fire.

Checking and refilling levels

301

Engine compartment

WARNING

The electrical system is under high voltage
and can cause electrical shocks, burns, seri-
ous injuries and even death!

●

Never short circuit the electrical system.

The 12-volt battery could explode.

●

To reduce the risk of electric shock and se-

rious injury, never touch the electrical wires
of the ignition system while the engine is run-
ning or when starting.

WARNING

There are rotating parts in the engine com-
partment which could cause serious injury.

●

Never insert your hand in the radiator fan

or around that area. All the rotor blades can
cause serious injuries. The fan activates de-
pending on the temperature and can switch
on automatically, even if the ignition is off.

●

If any work has to be done during engine

start-up or when it is running, take into ac-
count that the rotating parts (e.g. the poly-
V belt, alternator and the radiator fan) and
the high-voltage ignition system pose a fatal
hazard. Always act with extreme care.

–

Ensure that no part of your body, or any

jewellery or tie, loose clothing, loose long
hair can become trapped in the rotating
parts. Before performing works in the en-
gine compartment, remove any jewellery
or tie you may be wearing, tie up your hair
if it is long and gather any loose clothing.

–

Do not press the accelerator pedal while

not paying attention. Always do so with ex-
treme care. The vehicle could move, even if
the electronic parking brake is activated.

●

Do not leave objects in the engine com-

partment, e.g. rags or tools.

WARNING

The operating fluids and some materials of
the engine compartment are highly flamma-
ble and could cause a fire and serious inju-
ries!

●

Never smoke in the vicinity of the engine

compartment.

●

Never perform works close to unprotected

flames or sparks.

●

When you must perform works on the on-

board 12 volt electrical system, bear in mind
the following:

–

Always disconnect the 12 volt battery.

Ensure the vehicle is unlocked when dis-
connecting the 12-volt battery, otherwise
the anti-theft alarm will trigger.

–

Never perform works in the vicinity of

heating elements, water boilers or unpro-
tected flames.

●

Always have a fire extinguisher close-by,

ensuring it is operational and had been
checked.

NOTICE

When refilling or changing the operating flu-
ids, ensure you pour the correct fluids into
their corresponding filler caps. Using the
wrong operating fluids can lead to serious
malfunctions and motor damage.

For the sake of the environment

Operating fluids that overflow from the ve-
hicle contaminate the environment. There-
fore, check underneath the vehicle on a reg-
ular basis. If there are marks left by operat-
ing fluids on the ground, consult a special-
ised workshop and request the vehicle be
checked. If any operating fluid leaks out, dis-
pose of it in the correct manner.

Preparing the vehicle for work in the
engine compartment

Before performing works in the engine com-
partment, always perform the following opera-
tions in the order indicated

1. Place the vehicle on level and firm ground,

taking all necessary safety precautions.

2. Press the brake pedal and keep it pressed

until the ignition is switched off.

3. Apply the electronic parking brake.
4.

Manual transmission:

place the gear lever

in neutral.

302

Checking and refilling levels

Automatic transmission:

move the selector

lever to position

5. Switch the ignition off

derneath the instrument panel

page 132

6. Remove the vehicle key from the vehicle

and store it outside to avoid inadvertently
starting the engine.

7. Wait for the engine to cool down suffi-

ciently.

8. Always keep other people away from the

engine compartment.

9. Immobilize the vehicle so that it cannot

move.

WARNING

For your own safety, do not ignore this impor-
tant check list, otherwise this could cause
accidents and serious injuries.

●

Always follow the indications on the check

list and always bear in mind the general
safety measures.

Opening and closing the bonnet

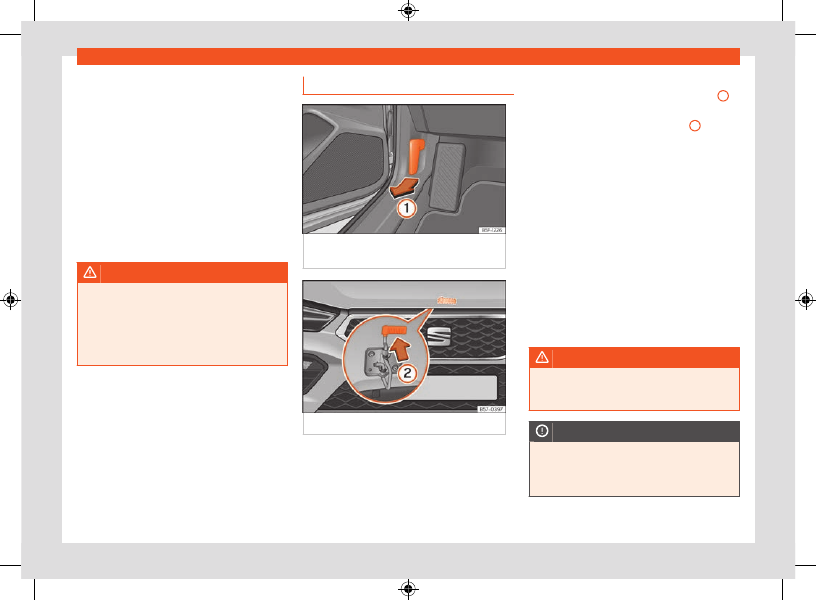

Fig. 203

Release lever in the driver's footwell

area.

Fig. 204

Lever under the bonnet.

Opening the bonnet

The bonnet is released from inside the vehicle.
Before opening the bonnet, make sure that the
windscreen wiper arms are in place against the
windscreen.

●

Open the door and pull the lever that is un-

Fig. 203

●

To lift the bonnet, press the release catch un-

der the bonnet upwards

Fig. 204

. The

arrester hook under the bonnet is released.

●

The bonnet can be opened. Release the bon-

net stay and secure it in the fixture designed for
this in the bonnet.

Closing the bonnet

●

Slightly lift the bonnet.

●

Release the bonnet stay and replace it in its

support.

●

At a height of approximately 20 cm let it fall

so it locks.
If the bonnet does not close, do not press
downwards. Open it again and let it fall as
mentioned above.

WARNING

Make sure that the bonnet is properly closed.
If it opens when driving, it can cause an acci-
dent.

NOTICE

To avoid damage to the bonnet and to the
windscreen wiper arms, only open it when
the windscreen wipers are in place against
the windscreen.

Checking and refilling levels

303

Cooling system

Fluids and consumables

Introduction

All fluids and consumables, such as engine
coolant or vehicle batteries, are subject to con-
tinuous development. For this reason, whenever
a fluid or consumable needs to be replaced,
please contact a specialist workshop.
SEAT dealers always promptly receive informa-
tion about any modifications.

WARNING

If unsuitable fluids and consumables are
used or used improperly, accidents, injuries,
burns and severe poisoning can occur.

●

Only store operating fluids in their original

containers, tightly closed.

●

Never store operating fluids in empty food

cans, bottles or other empty containers, as
they could be ingested by somebody.

●

Keep all fluids and consumables out of

reach of children.

●

Always read and observe the information

and warnings given on containers of operat-
ing fluids.

●

When using products that emit harmful va-

pours, always work outdoors or in a well-ven-
tilated area.

NOTICE

Use only appropriate operating fluids. Never
confuse operating fluids. This could result in
serious malfunctions and motor damage!

For the sake of the environment

Leakages of operating fluids can contami-
nate the environment. If any operating fluid
leaks, collect it in an appropriate container
and dispose of it properly and in an environ-
mentally friendly manner.

Cooling system

Introduction

Only carry out work on the motor cooling sys-
tem yourself if you are familiar with the neces-
sary operations and the generally applicable
safety measures, and if you have the appro-
priate tools, equipment and operating fluids.
Works performed inadequately could lead to
serious injuries . In this case, seek a specialised
workshop to perform all the works. SEAT rec-
ommends visiting a SEAT dealership for this.

WARNING

Engine coolant is toxic!

●

Only store coolant in its original container,

tightly closed and in a safe place.

●

Never store motor coolant in empty food

cans, bottles or other empty containers, as it
could be ingested by another person.

●

Always keep motor coolant out of reach of

children.

●

Ensure that the coolant fluid additive per-

centage is correct, taking into account the
lowest ambient temperature expected in the
location where the vehicle is to be used.

●

When the outside temperature is very low,

the coolant could freeze and the vehicle
could be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold.

For the sake of the environment

Coolants and additives can contaminate the
environment. If any operating fluid leaks out,
collect it and dispose of it properly and in an
environmentally friendly manner.

Coolant specifications

The factory fitted motor cooling system is filled
with a mixture of specially treated water and at
least 40% coolant additive G12evo (TL-VW 774
L).

304

Checking and refilling levels

Get information from a specialist workshop
about which coolant is suitable for your vehicle.
SEAT recommends visiting a SEAT dealership
for this.
To protect the engine cooling system, the ad-
ditive percentage should

always

be at least

40%. If more antifreeze protection is required
for climatic reasons, the additive proportion
can be increased. However, it should only be
increased up to a maximum of 55 %, otherwise
the antifreeze protection would be reduced and
the cooling effect would be impaired.
The G12evo (TL-VW 774 L) can be recognised
by its lilac colouring. This mixture of water
and additive not only provides antifreeze pro-
tection down to -25°C (-13°F), but also pro-
tects the light alloy parts of the cooling system
against corrosion, prevents limescale build-up
and considerably raises the boiling point of the
coolant.
When topping up the coolant, a mixture of

dis-

tilled water

and at least 40% of the appropri-

ate coolant additive should be used for opti-
mum corrosion protection

page 304

WARNING

If the vehicle’s cooling system does not have
sufficient antifreeze protection, the engine
could fail and this could result in serious in-
jury.

●

Ensure that the coolant fluid additive per-

centage is correct, taking into account the
lowest ambient temperature expected in the
location where the vehicle is to be used.

●

When the outside temperature is very low,

the coolant could freeze and the vehicle
could be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold.

NOTICE

Never mix the original additives for the
G12evo coolant (TL-VW 774 L) with motor
coolant fluid not authorised by SEAT.

●

If the fluid in the expansion tank does not

have a pink colour (resulting from mixing the
lilac additive with distilled water), but is, for
example, brown, the suitable coolant may
have been mixed with another unsuitable
one. The coolant must be changed as soon
as possible if this is the case! Otherwise se-
rious malfunctions or damage to the engine
and the cooling system could occur!

For the sake of the environment

Motor coolant and its additives can pollute
the environment. If any operating fluid leaks
out, collect it and dispose of it properly and
in an environmentally friendly manner.

Check and refill the coolant

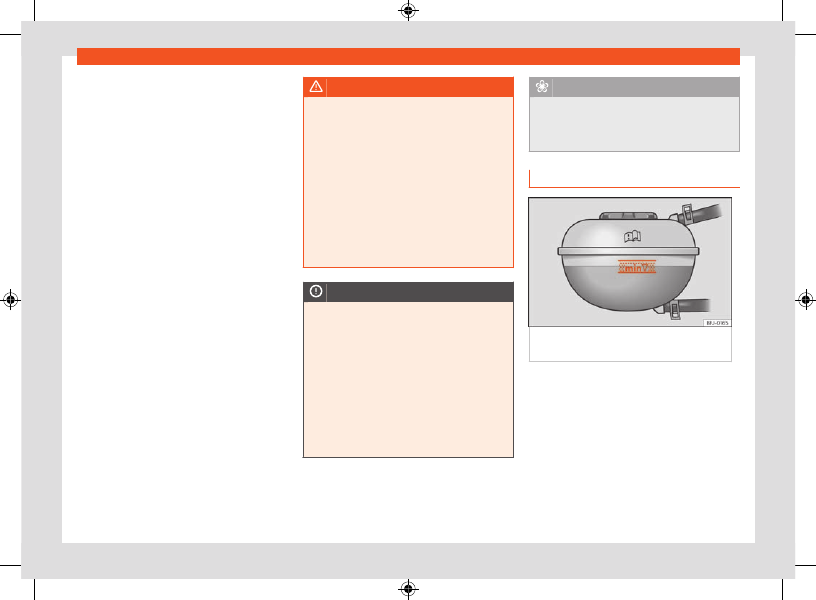

Fig. 205

In the front compartment: marking on

coolant expansion tank.

Checking and refilling levels

305

Cooling system

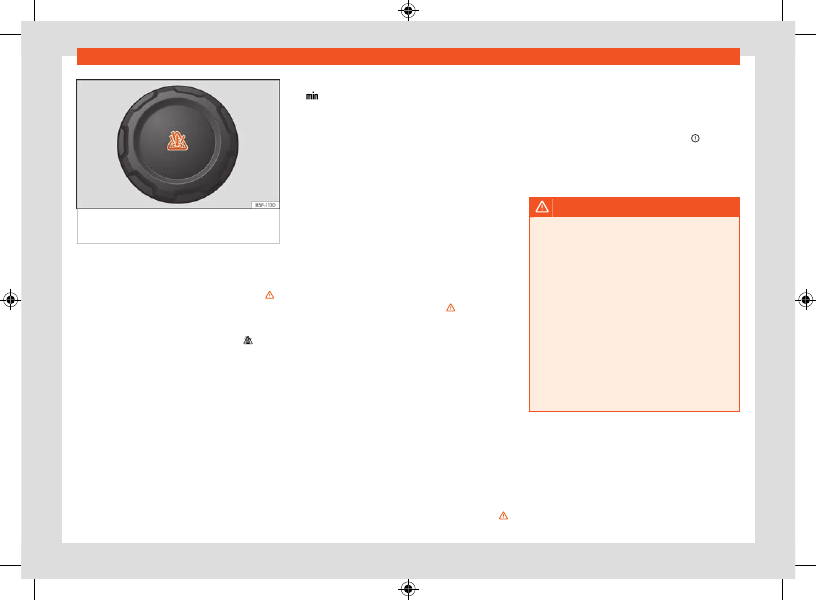

Fig. 206

Front compartment: coolant

expansion tank cap.

Previous steps

●

Park the vehicle on a firm, flat surface.

●

Wait until the engine has fully cooled

●

Open the front bonnet.

●

The motor coolant expansion tank can be

recognised by the symbol on the cap

Fig. 206

Check the level

When the vehicle is delivered (new vehicles),
the coolant may be above the marked area.
This is normal. It is not necessary to suck the
coolant out.

●

When the engine is cold, check the coolant

level using the side marking on the expansion
tank

Fig. 205

. The coolant level should be

between the marks.

●

If the level is below the minimum level mark

(

) on the tank, top up with coolant. When the

motor is warm, the coolant level may be slightly
above the upper mark.

Topping up the fluid

When the motor coolant level is too low, the
coolant warning light comes on. In this case,
immediately seek assistance from specialist
personnel.
If the coolant level is too low and there is no
workshop nearby, note the following:

●

Always protect your face, hands and arms

from hot coolant or steam by placing a suitable
cloth over the cap of the motor coolant expan-
sion tank.

●

Carefully unscrew the cap

●

Only top up with

fresh

coolant according to

SEAT specifications

page 303

●

Only top up with coolant if there is still some

coolant left in the expansion tank; otherwise the
motor could be damaged! If you do not see any
coolant in the expansion tank,

do not continue

driving

and seek specialist assistance.

●

If there is still some coolant left in the expan-

sion tank, top up with coolant up to the tank’s
upper mark and check the level the next day.
If the level drops

again

, go to a workshop and

request a check of the cooling system.

●

The coolant level must be between the marks

on the expansion tank

Fig. 205

Never ex-

ceed the top edge of the marked area

●

Screw the cap on tightly.

●

If engine coolant with the recommended

specifications is not available in an emergency,
do not use any other coolant additive! In this
case, top up with

distilled water

only.

Next, ensure that the recommended additive is
topped up as soon as possible in the correct
proportion

page 303

WARNING

Steam and hot motor coolant can cause se-
vere burns.

●

Never open the front bonnet if you see or

hear steam or coolant escaping from the
front compartment. Always wait until you can
no longer see or hear steam or coolant es-
caping. Touching hot parts can result in skin
burns.

●

Before opening the front bonnet, please

note the following:

–

Apply the electronic parking brake.

–

Always keep children away from the front

compartment and never leave them unat-
tended.

306

Checking and refilling levels

●

When the motor is hot, its cooling system is

pressurised. Do not open the expansion tank
cap, hot coolant may splash out and cause
severe burns and other injuries.

–

Turn the cap slowly and very care-

fully anticlockwise while pressing it down
slightly.

–

Always protect your face, hands and

arms from the hot coolant and steam with
a large thick cloth.

NOTICE

Only use distilled water! Other types of wa-
ter contain chemical substances that could
cause significant corrosion damage. If you
have added non-distilled water, have all of
the motor cooling system fluid changed im-
mediately by a specialist workshop.

●

When topping up the, do not fill over the

upper edge of the marked area

Fig. 205

Otherwise, when the temperature rises the
excess fluid will be expelled from the motor
cooling system and could cause damage.

●

If the system leaks a lot of coolant, only

refill once the motor has

cooled down com-

pletely

. If there is a significant loss of cool-

ant, there may be leaks in the cooling sys-
tem. Immediately go to a specialist workshop
to have the system checked. This could result
in motor damage.

●

Do not add coolant if the expansion tank

is completely empty! Air may have got into
the cooling system. Do not continue driving
and seek assistance from specialist person-
nel. This could result in motor damage.

●

When changing the operating fluids, make

sure that you pour the correct fluids into the
correct filler necks. Using the wrong operat-
ing fluids can lead to serious malfunctions
and motor damage.

Brake fluid

Check and refill the brake fluid

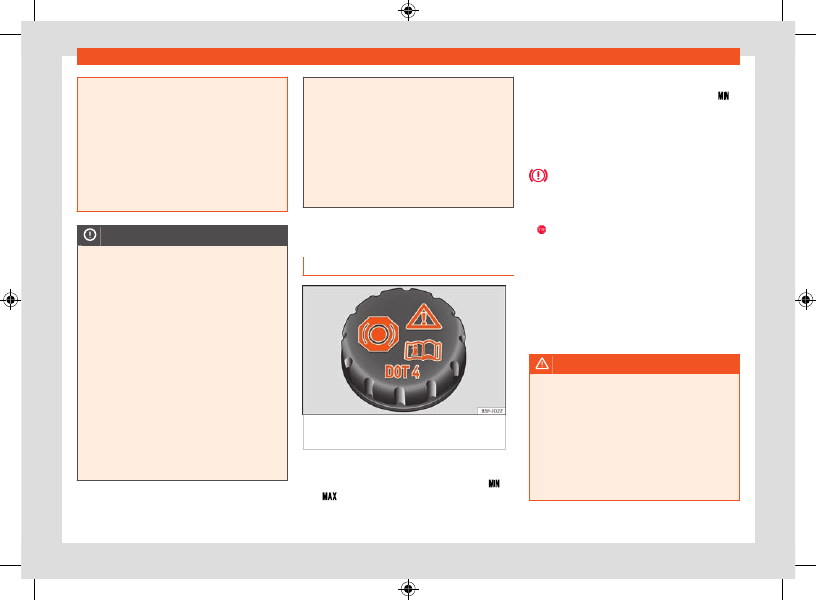

Fig. 207

Engine compartment: brake fluid

reservoir cap.

Checking the brake fluid level

The brake fluid level must be between the
and

markings.

However, if the brake fluid level goes down no-
ticeably in a short time, or drops below the
mark, there may be a leak in the brake system.
Seek specialist assistance. A warning light on
the instrument panel display monitors the brake
fluid level.

Brake fluid level

The control lamp lights up red.
Brake fluid level is too low.

●

Stop driving!

●

Check the brake fluid level.

●

If the brake fluid level is too low, seek special-

ist assistance.

Changing brake fluid

We recommend that you have the brake fluid
changed by a Technical Service.

WARNING

If the brake fluid level is low or unsuitable/old
brake fluid is used, the brake system may fail
or braking power may be reduced.

●

Check the brake system and the brake fluid

level regularly!

●

When the brake fluid is used and brakes

are subjected to extreme braking forces,
bubbles of vapour form in the brake system.
These bubbles can significantly reduce brak-

Checking and refilling levels

307

Windscreen washer reservoir

ing power, notably increasing braking dis-
tance, and could result in the total failure of
the brake system.

●

Be sure to always use the correct brake

fluid. Only use brake fluid that expressly
meets the VW 501 14 standard.

●

You can buy VW 501 14 standard brake

fluid in a SEAT dealership or a SEAT Offi-
cial Service. If none is available, use only
high-quality brake fluid that meets DIN ISO
4925 CLASS 4 standards, or USA Standards
FMVSS 116 DOT 4.

●

The replacement brake fluid must be new.

●

Brake fluid should be stored in the closed

original container in a safe place out of
reach of children. Risk of poisoning!

NOTICE

Brake fluid should not come into contact with
the vehicle paintwork, as it is abrasive.

Note

Brake fluid is an environmental pollutant.
Collect any spilt service fluids and allow a
professional to dispose of them.

Windscreen washer reser-
voir

Checking the level of the window
washer tank and refilling it

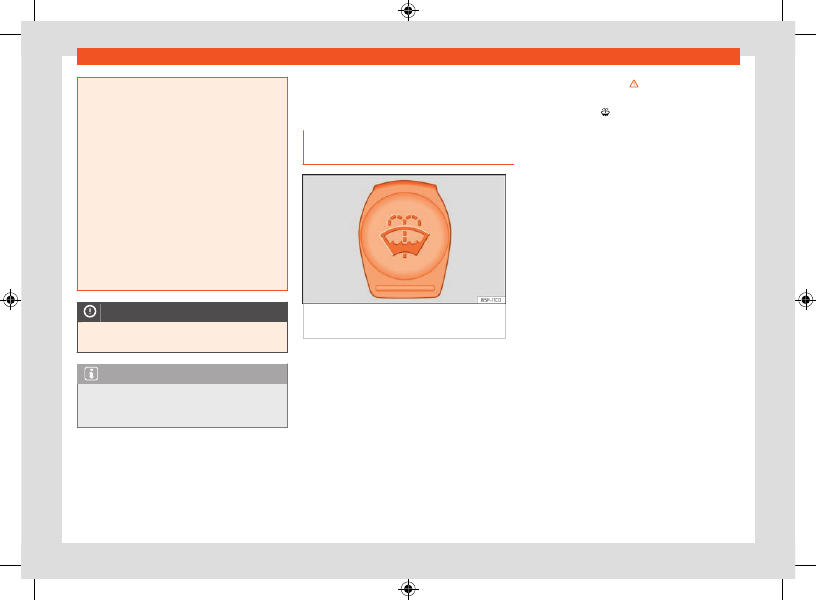

Fig. 208

In the engine compartment: blue cap

of the windscreen washer tank.

Check the water level in the windscreen washer
reservoir regularly and top up as required.
The window washer tank contains liquid deter-
gent for the windscreen and rear window.
There is a sieve in the filler neck of the washer
fluid tank. When filling the tank, this sieve re-
tains large dirt particles so that they do not
reach the nozzles. Do not remove the sieve ex-
cept for cleaning. If the sieve is damaged or
not fitted, these dirt particles could enter the
system during filling and clog the windscreen
washer nozzles.

●

Raise the bonnet

on page 300

●

The windscreen washer reservoir is marked

with the symbol on the cap.

●

Check if there is enough fluid in the tank.

Plain water is not enough to clean the wind-
screen and headlights. We recommend that
you always add a product to the windscreen
washer fluid.

Recommended windscreen wipers

●

For the hottest seasons we recommend sum-

mer G 052 184 A1 for clear glass. Proportions of
the mixture in the washer fluid tank: 1:100 (1 part
concentrate per 100 parts water).

●

All year round, G 052 164 A2 for clear glass.

Approximate proportion of the winter mixture,
up to -18°C (0°F): 1:2 (1 part concentrate per
2 parts water); otherwise, a 1:4 proportion of
mixture in the washer fluid tank.

The capacity of the windscreen washer tank is
approximately 3 litres.

308

Checking and refilling levels

NOTICE

If the water from the windscreen washer
does not contain enough anti-freeze, it may
freeze on the windscreen and rear window,
reducing forward and rear visibility.

●

In winter, ensure the windscreen washer

contains enough anti-freeze.

●

In cold conditions, you should not use the

windscreen wiper system unless you have
warmed the windscreen with the ventilation
system. The antifreeze could freeze on the
windscreen and reduce visibility.

NOTICE

Never mix an unsuitable antifreeze or other
similar additives with the windscreen washer
water. A greasy layer may be formed on the
windscreen which will impair visibility.

●

Use clean water with a window cleaner

recommended by SEAT.

●

If necessary, add a suitable antifreeze to

the water in the reservoir.

NOTICE

●

Do not mix cleaning products recommen-

ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.

●

When topping up service fluids, make ab-

solutely certain that you fill the fluids into
the correct reservoirs. Using the wrong fluids
could cause serious malfunctions.

●

Lack of window washer fluid causes the

view through the windscreen to be obscured.

Engine oil

General notes

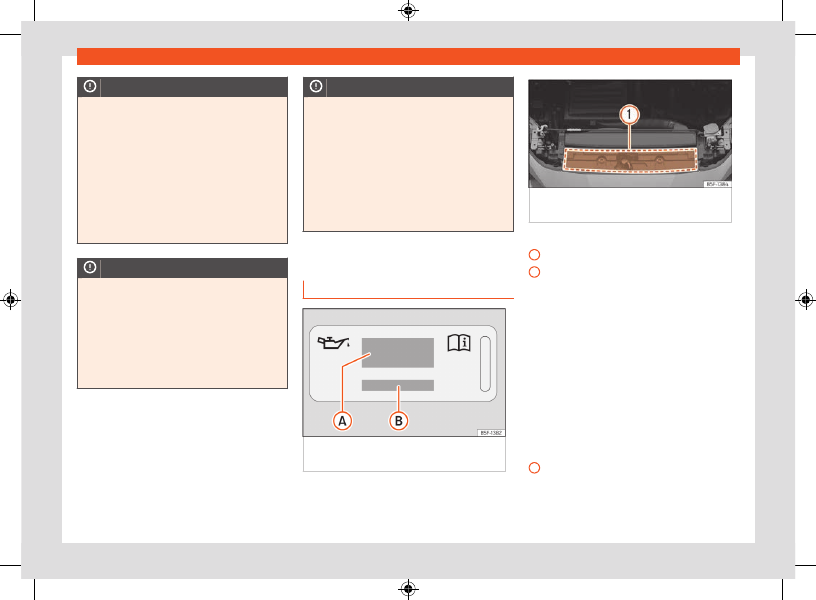

Fig. 209

In the engine compartment: engine

oil label

Fig. 210

In the engine compartment: area

where the engine oil label is located

Key to the

Fig. 209

Information about the engine oil standard.
Information about engine oil viscosity.

The engine comes with a special, multi-grade
oil that can be used all year round.
Because the use of high-quality oil is essential
for the correct operation of the engine and its
long useful life, when topping up or changing
oil, use only those oils that comply with VW
standards.

For vehicles with an engine oil label

If the engine oil has to be topped up, use one
of the oils shown on the label

Fig. 209

. The

label with the prescribed standard is located at
the front of the engine compartment

Fig. 210

. If you use the recommended engine oil, you

can top up the oil as often as necessary.

Checking and refilling levels

309

Engine oil

–

For vehicles without an engine oil label

Contact a specialised workshop or SEAT of-
ficial service for information about the corre-
sponding standard.

If the engine oil level is too low

If the recommended engine oil is not availa-
ble,

in the event of an emergency

you can

change the oil

once

with a maximum of 0.5 l of

the next oil until the next oil change:

Petrol engines:

standard VW 504 00,

ACEA C3, ACEA C4, API SN or IL-
SAC GF-6A.

Diesel engines:

standard VW 507 00,

ACEA C3, ACEA C4 or API CK-4.

SEAT recommends changing the oil at a speci-
alised workshop. SEAT recommends an Official
SEAT Service.

NOTICE

SEAT recommends the use of engine oils
approved according to the appropriate VW
standard. Use of engine oils that do not meet
these quality requirements can cause engine
damage.

SEAT recommends the use of Original SEAT
Spare Part engine oils.

Engine oil additives

No type of additive should be mixed with the
engine oil. The deterioration caused by these
additives is not covered by the warranty.

NOTICE

0.5 l of engine oil of one of the indicated en-
gine oil standards may be used, only in the
event of an emergency and in exceptional
cases.

NOTICE

Take the following into account if you have
refilled with an engine oil different to those
specified in the aforementioned standards,
or by your SEAT technical service centre:

●

There is no way of completely avoiding the

danger of causing damage to the engine and
particulate filter.

●

You can continue driving with the vehicle if

the refill was no more than 0.5 l of engine
oil. Go to a specialised workshop as soon
as possible and request an oil change. Oth-
erwise, there is a danger of engine damage.

●

If you have topped up more than 0.5 l of

engine oil, drive with the engine at low load
levels and within the medium RPM range as a
maximum. Do not drive at more than 80 km/h
and do not travel more than 300 km (approx-
imately). Go to a specialised workshop as
soon as possible and request an oil change.
Otherwise, there is a danger of engine dam-
age.

●

You are responsible for the risk of possible

damage to the vehicle (engine, exhaust sys-
tem). If in doubt, do not start the engine and
request assistance from the technical serv-
ice centre.

●

Do not start the engine if you have topped

up with a fluid other than engine oil. Request
assistance from the technical service centre.
Danger of engine damage!

Note

Before a long trip, we recommend finding an
engine oil that conforms to the correspond-
ing VW specifications and recommend keep-
ing it in the vehicle. This way, the correct en-
gine oil will always be available for a top-up
if needed.

●

If the label showing the engine oil specifi-

cations is missing

Fig. 209

, please con-

tact a specialist workshop.

310

Checking and refilling levels

Checking and topping up the engine
oil level

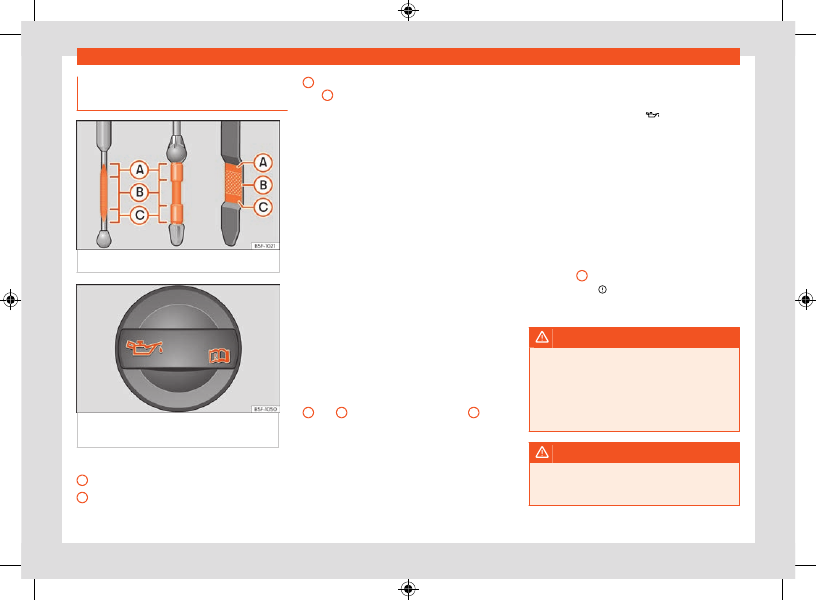

Fig. 211

Engine oil dipstick.

Fig. 212

Oil filler cap cover in the engine

compartment.

Key to the

Fig. 211

Do not top up oil in any case.
You can add oil but keep the level in that
zone.

The oil level is too low. Add oil up to zone

Before opening the bonnet, read and observe
the warnings

Check the oil level

The engine oil dipstick indicates the level of the
oil.

●

Park the vehicle in a horizontal position.

●

Briefly run the engine at idle speed until the

operating temperature is reached and then
stop.

●

Wait for about two minutes.

●

Locate the oil level dipstick. It can be recog-

nized by its coloured upper end.

●

Pull out the dipstick. Wipe the dipstick with a

clean cloth and insert it again, pushing it in as
far as it will go.

●

Then pull it out again and check the oil level

Fig. 211

. Top up with engine oil if necessary.

The oil should leave a mark between the areas

and

. It must never exceed zone

Depending on how you drive and the conditions
in which the vehicle is used, oil consumption
can be up to 0.5 l/1000 km. Oil consumption
is likely to be higher for the first 5,000 km. For
this reason the engine oil level must be checked
at regular intervals, preferably when filling the
tank and before a journey.

Topping up engine oil

●

Locate the engine oil filler cap. It can be

recognized by the symbol

on the cover

Fig. 212

●

Unscrew cap from the oil filler mouth

Fig. 212

●

Carefully add oil in small quantities (no more

than 0.5 l).

●

To avoid adding too much oil, whenever you

add a certain amount, wait about 2 minutes
and recheck the oil level

page 310

●

If necessary, add some more oil.

●

When the oil level reaches at least zone

Fig. 211

, carefully screw on the engine

oil filler cap

Engine oil specification

page 308

WARNING

Any work carried out in the engine compart-
ment or on the engine must be carried out
cautiously.

●

When working in the engine compart-

ment, always observe the safety warnings

page 300

WARNING

Oil is highly inflammable! Ensure that no oil
comes into contact with hot engine compo-
nents when topping up.

Checking and refilling levels

311

Engine oil

NOTICE

If the oil level is above zone

, do not start

the engine. This could result in damage to
the engine and catalytic converter. Contact
a Technical Service.

For the sake of the environment

Under no circumstances should the oil level
be above zone

. Otherwise oil can be

drawn in through the crankcase breather and
leak into the atmosphere via the exhaust sys-
tem.

Note

Engine oil change

We recommend that you have the engine oil
changed by a Technical Service.

WARNING

Only change the engine oil yourself if you
have the specialist knowledge required!

●

Before opening the bonnet, read and ob-

serve the warnings

page 300

●

Wait for the engine to cool down. Hot oil

may cause burn injuries.

●

Wear eye protection to avoid injuries, such

as acid burns, caused by splashes of oil.

●

When removing the oil drain plug with your

fingers, keep your arm horizontal to help pre-
vent oil from running down your arm.

●

Wash your skin thoroughly if it comes into

contact with engine oil.

●

Engine oil is poisonous! Used oil must be

stored in a safe place out of the reach of
children.

NOTICE

No additives should be used with engine
oil. This could result in engine damage. Any
damage caused by the use of such additives
would not be covered by the factory war-
ranty.

For the sake of the environment

●

We recommend that you change the en-

gine oil and the filter at a technical service
centre.

●

Never pour oil down drains or into the

ground.

●

Use a suitable container when draining the

used oil. It must be large enough to hold all
the engine oil.

Troubleshooting

Engine oil pressure too low

The indicator lamp lights up red.

Do not carry on driving!

Switch off the en-

gine. Check the engine oil level.

●

If this warning lamp

starts to flash, and

is accompanied by

three audible warnings

switch off the engine and check the oil level. If
necessary, add more oil

page 310

●

If the warning lamp

flashes although the

oil level is correct,

stop driving

. Do not even

run the engine at idle speed! Seek professional
assistance.

Engine oil level too low

The indicator lamp lights up yellow.

312

Checking and refilling levels

●

Check the engine oil level as soon as possible

page 310

●

Change the oil as soon as you have the op-

portunity to do so.

Fault in the oil level sensor

The control lamp flashes yellow.

●

Have the check done by a specialised work-

shop.

●

Until then it is advisable to check the oil level

every time you refuel.

12-volt battery

Introduction

The 12 volt battery is located in the engine
compartment. Its status is checked and, if nec-
essary, it is replaced as part of maintenance
work.

All work on batteries requires specialist knowl-
edge. Please refer to a SEAT Official Service
or a workshop specialising in batteries: risk of
burns or exploding battery!

The battery must not be opened!

Never try to

change the fluid level of the battery. Otherwise
explosive gas is released from the battery that
could cause an explosion.

Battery warning indications

Wear protective goggles.

Battery acid is extremely corrosive. Wear
protective gloves and eye protection.
Rinse any splashes of electrolyte with

plenty of water.

Fires, sparks, open flames and smoking
are prohibited.

The battery should only be charged in a
well-ventilated zone. Risk of explosion!

Keep children away from acid and the
battery.
Always follow the instruction manual.

If the vehicle is not used for long periods

The vehicle has a system for monitoring
the current consumption when the engine
is left unused for extended periods of time

page 315

. Some functions, such as the in-

terior lights, or the remote door opening, may
be temporarily disabled to prevent the battery
from running flat. These functions will come
back on as soon as the ignition is switched on
and the engine started.

WARNING

Working on the 12-volt battery and electri-
cal system can cause severe burns, fire and
electric shock. Always read and observe the
following warnings and safety precautions
before working on the battery:

●

Before working on the 12-volt battery,

switch off the ignition and all electrical con-
sumers and disconnect the negative cable
from this battery.

●

Always keep children away from the 12-volt

battery electrolyte and the battery itself.

●

Always wear eye protection and protective

gloves.

●

The battery electrolyte is very corrosive It

can cause skin burns and blindness. When
handling the 12-volt battery, protect your
hands, arms and face in particular from acid
splashes

●

Do not smoke while working and never

work in the vicinity of naked flames or sparks.

●

Avoid sparks caused by electrostatic dis-

charges, just like when handling electric ca-
bles and devices.

●

Never short the battery terminals.

●

Never use damaged 12-volt batteries. They

could explode. If the 12-volt battery is dam-
aged, replace it immediately.

●

Never use a frozen 12 volt battery. When

the battery is discharged, it may freeze at
temperatures close to 0°C (+32 °F). If the 12-
volt battery is frozen, replace it immediately.

Checking and refilling levels

313

12-volt battery

Yellow or colourless:

Black:

NOTICE

Do not expose the 12-volt battery to direct
sunlight for a prolonged period of time.

●

Ultraviolet rays can damage the battery

casing.

NOTICE

If the vehicle is not to be used for a long pe-
riod of time, protect the 12-volt battery from
frost.

●

The battery may freeze and, as a result,

suffer irreparable damage.

Note

After starting the engine with a deeply dis-
charged or newly replaced 12-volt battery,
or after a jump start, some system settings
(time, date, personalised comfort settings
and programs) may be incorrectly set or de-
leted. Check and correct these settings once
the battery is sufficiently charged.

Note

During the winter, the starting power may
be reduced, and if necessary, the battery
should be charged.

Check the electrolyte level

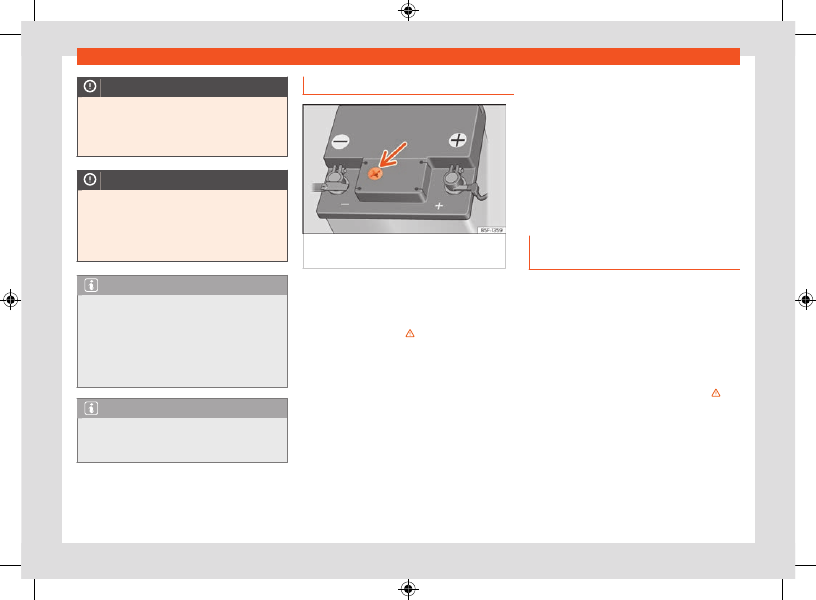

Fig. 213

Sight glass on the top of the 12 volt

battery (schematic representation).

Battery access

The 12 volt battery is located in the engine
compartment.

●

Raise the bonnet

●

Lift the cover that protects the front of the

battery.

Check the level

The electrolyte level should be checked regu-
larly in high-mileage vehicles, in hot countries
and in older batteries.

●

Check the colour display in the sight glass on

the top of the battery

Fig. 213

●

If there are air bubbles in the window, tap the

window gently until they disperse.

The “magic eye” indicator, located on the top
of the battery changes colour, depending on
the charge state and electrolyte level of the
battery.
There are two different colours:

The battery's electrolyte

level is too low. Go to a specialised work-
shop to have the battery checked and re-
placed if necessary.

The battery’s electrolyte level is correct.

Charging, replacing, disconnecting
and connecting the 12-volt battery

If you suspect that the 12-volt battery is dam-
aged or defective, have it checked by a quali-
fied specialist workshop.

Charging the 12-volt battery

Contact a specialist workshop for charging the
12-volt battery, as the battery model fitted in
the vehicle in the factory uses a technology
that requires limited voltage charging

SEAT recommends visiting a SEAT dealership
for this.

Replacing the 12-volt battery

The 12-volt vehicle battery has been designed
to suit its location and has special safety fea-
tures. If a 12 volt battery needs to be replaced,
the replacement battery must be installed by
a qualified technician. SEAT recommends visit-

314

Checking and refilling levels

ing a SEAT dealership. Component information
regarding size, maintenance, power and safety
characteristics to be met can be obtained from
a qualified technician, who should have the
necessary documentation and technical equip-
ment. SEAT recommends visiting a SEAT deal-
ership.
The degassing hole of the 12 volt battery must
always be on side of the negative pole. The
degassing hole on the side of the positive pole
must always be sealed.
Only use maintenance-free 12 volt batteries
that comply with the TL 825 06 and VW 7 50 73
standards. These standards must be dated Oc-
tober 2014 or later.
The 12 volt battery must always be replaced
by a qualified technician, as the vehicle's elec-
tronic system must also be adjusted as part
of the replacement. In addition, the battery pa-
rameters relating to operational safety can only
be determined with the original battery. Only a
qualified technician has both the right technol-
ogy to make the adjustment and the correct
replacement batteries.
The use of unsuitable batteries will invalidate
the approval.
Vehicles with Start-Stop functions (

page 136

) are fitted with a special battery.

Therefore, it must only be replaced with a bat-
tery of the same specifications.

Disconnecting the 12-volt battery

If the 12 volt battery is to be disconnected from
the vehicle's electrical system, please note the
following:

●

Switch off all electrical consumers.

●

Before disconnecting the battery, unlock the

vehicle, otherwise the alarm will be triggered.

●

First disconnect the negative cable and then

the positive cable

Connecting the 12-volt battery

●

Switch off all electrical consumers before re-

connecting the 12 volt battery.

●

First reconnect the positive cable and then

the negative one

After connecting the 12 volt battery and switch-
ing on the ignition, several control lamps may
light up. These lamps go out after a short dis-
tance at a speed of approx. 15 to 20 km/h (10
to 12 mph). If the warning lights do not go out,
visit a specialist workshop and have the vehicle
checked.
If the 12-volt battery has been disconnected for
a long period of time, it is likely that the next
service is not correctly indicated or calculated

page 16

. In this case it will be necessary

to take into account the maximum maintenance
intervals allowed

page 334

Vehicles with a “Keyless Access” system

page 70

: If the ignition cannot be switched

on after connecting the 12 volt battery, lock and

unlock the vehicle from the outside. Then try to
switch on the ignition again. If the ignition does
not work, seek professional assistance.

WARNING

Attaching the 12-volt battery incorrectly or
using unsuitable batteries may result in short
circuits, fire and serious injury.

●

Use only maintenance-free 12 volt batter-

ies with an anti-spill system with the same
properties, specifications and dimensions as
the factory-fitted battery.

WARNING

Charging the 12-volt battery creates a highly
explosive mixture of detonating gases.

●

Only charge the 12-volt battery in a well-

ventilated place.

●

Never charge a 12-volt battery that is fro-

zen or has thawed. When the battery is dis-
charged, it may freeze at temperatures close
to 0°C (+32°F).

●

If the 12-volt battery has frozen, have it re-

placed without fail.

●

A short circuit may occur if the wires are

incorrectly connected to the poles. First con-
nect the positive cable and then the negative
one.

Checking and refilling levels

315

Energy management

NOTICE

●

Never connect or disconnect the 12-volt

battery when the ignition is switched on or
the engine is running. Also, never use a 12-
volt battery that does not meet the vehicle's
battery specifications. The electrical system
or certain electronic components could be
damaged and electrical malfunctions could
occur.

●

Never connect accessories that supply

power, such as solar panels or battery
chargers, to the 12-volt socket or cigarette
lighter, to charge the 12-volt battery. This
could damage the vehicle's electrical sys-
tem.

For the sake of the environment

●

The battery may contain toxic substances,

such as sulphuric acid and lead. Dispose of
the 12 volt battery in accordance with the
applicable regulations.

●

Electrolyte can contaminate the environ-

ment. If any operating fluid leaks out, collect
it and dispose of it properly.

Troubleshooting

Alternator fault

The control lamp lights up in

RED

The vehicle battery stops charging from the al-
ternator. You should immediately drive to the
nearest specialised workshop.

You should avoid using electrical equipment
that is not absolutely necessary because this
will drain the battery.

12 volt battery

The indicator lamp lights up

YELLOW

. The fol-

lowing message is displayed:

Low level of the 12 V vehicle bat-
tery. Charge while driving

Starting capacity may be limited. If this driver
message goes out after a certain amount of
time, the vehicle's battery has recharged while
driving and reached a sufficient level. If the
driver message does not go out, take the vehi-
cle to a specialized workshop.

Energy management

Optimisation of the starting capacity

The power management controls the distribu-
tion of electrical energy and thus helps to en-
sure that there is always enough power availa-
ble to start the engine.
If a vehicle with a conventional electrical sys-
tem is left parked for a long time, the battery
will gradually lose its charge because certain
electrical devices, such as the electronic gear-
box lock continues to draw current even when
the ignition is off. In some cases there may not
be enough power available to start the engine.

Your vehicle is equipped with an intelligent
power management system to control the dis-
tribution of electrical energy. This significantly
improves reliability when starting the engine,
and also prolongs the useful life of the battery.
The main functions incorporated in the power
management system are

battery diagnosis

residual current management

and a

dy-

namic power management system

Battery diagnosis

The battery diagnosis function constantly reg-
isters the condition of the battery. Sensors de-
tect the battery voltage, battery current and
battery temperature. This enables the system to
calculate the current power level and charge
condition of the battery.

Residual current management

The residual current management reduces
power consumption while the vehicle is parked.
It controls the supply of power to the various
electrical devices while the ignition is switched
off. The system takes the battery diagnosis
data into consideration.
Depending on the power level of the battery,
switch off the individual electrical devices one
after the other to prevent the battery from los-
ing too much charge and to ensure that the
engine can be started reliably.

316

Checking and refilling levels

Dynamic power management

While the vehicle is moving, this function distrib-
utes the available power to the various elec-
trical devices and systems according to their
requirements. The power management ensures
that on-board systems do not consume more
electrical power than the alternator can sup-
ply, and thus maintains the maximum possible
battery power level.

Note

●

Neither is the power management system

able to overcome the given physical limits.
Please remember that the power and useful
life of the battery are limited.

●

When there is a risk that the vehicle will not

start, the alternator power failure or low bat-
tery charge level warning lamp will be shown

page 315

Flat battery

Starting ability has first priority. Short trips, city
traffic and low temperatures all place a heavy
load on the battery.
In these conditions a large amount of power is
consumed, but only a small amount is supplied.
The situation is also critical if electrical devices
are in use when the engine is not running. In this
case power is consumed when none is being
generated.

In these situations you will be aware that the
power management system is intervening to
control the distribution of electrical power.

When the vehicle is parked for long periods

If you do not drive your vehicle for a period
of several days or weeks, the power manage-
ment will gradually shut off the electrical devi-
ces one by one or reduce the amount of cur-
rent they are using. This limits the amount of
power consumed and helps to ensure reliable
starting even after a long period. Some conven-
ience functions, such as remote vehicle open-
ing, may not be available under certain circum-
stances. These functions will be restored when
you switch on the ignition and start the engine.

With the engine switched off

For example, if you listen to the sound system
with the engine switched off the battery will run
down.
If the energy consumption means there is a risk
that the engine will not start, a text will be dis-
played in vehicles with a driver information sys-
tem.
This driver indicator tells you that you must start
the engine so that the battery can recharge.

When the engine is running

Although the alternator generates electrical
power, the battery can still become discharged
while the vehicle is being driven. This can occur

when a lot of power is being consumed but only
a small amount supplied, especially if the bat-
tery is not fully charged initially.
To restore the necessary energy balance, the
system will then temporarily shut off the elec-
trical devices that are using a lot of power, or
reduce the current they are consuming. Heat-
ing systems in particular use a large amount of
electrical power. If you notice, for instance, that
the seat heating or the rear window heater is
not working, they may have been temporarily
switched off or regulated to a lower heat out-
put. These systems will be available again as
soon as sufficient electrical power is available.
You may also notice that the engine runs at
a slightly faster idling speed when necessary.
This is quite normal, and no cause for concern.
The increased idling speed allows the alterna-
tor to meet the greater power requirement and
charge the battery at the same time.

Wheels and tyres

317

Important information about wheels and tyres

Wheels and tyres

Important information
about wheels and tyres

General notes

●

When driving with

new tyres

, be especially

careful during the first 600 km (300 miles).

●

If you have to drive over a kerb or similar ob-

stacle, drive very slowly and as near as possi-
ble at a right angle to the obstacle.

●

Check from time to time if the tyres are

damaged (punctures, cuts, cracks or dents).
Remove any foreign objects embedded in the
treads.

●

Damaged wheels and tyres must be replaced

immediately.

●

Keep grease, oil and fuel off the tyres.

●

Replace any missing valve caps as soon as

possible.

●

Mark the wheels before taking them off so

that they rotate in the same direction when put
back.

●

When removed, the wheels or tyres should be

stored in a cool, dry and preferably dark place.

Low profile tyres

Low profile tyres have a wider tread, a larger
wheel diameter and a lower sidewall height.
Therefore, its driving behaviour is more agile.

Low profile tyres may deteriorate more quickly
than standard tyres, for instance due to
strong knocks, potholes, manhole covers and
kerbs. Correct tyre pressure is very important

page 319

To avoid damage to tyres and wheels, drive
with special care when driving on roads in poor
condition.
Visually check your wheels every 3000 km.
If the tyres or rims have received a heavy im-
pact or have been damaged, have a special-
ised workshop check whether or not it is neces-
sary to change the tyre.
Low profile tyres may deteriorate more quickly
than standard tyres.

Concealed damage

Damage to tyres and rims is often not readily
visible. If you notice unusual

vibration

or the

car

pulling to one side

, this may indicate that

one of the tyres is damaged. Reduce speed im-
mediately if there is any reason to suspect that
damage may have occurred. Inspect the tyres
for damage. If no external damage is visible,
drive slowly and carefully to the nearest speci-
alised workshop and have the car inspected.

Foreign objects inserted in the tyre

●

Do not remove foreign bodies if they have

penetrated through the tyre wall!

●

If the vehicle comes with a tyre mobility sys-

tem, where necessary seal the damaged tyre
as shown in section

page 331

. Use a spe-

cialised workshop for repair or replacement.
SEAT recommends visiting a SEAT dealership
for this.
The sealant at the lower part of the tyre tread
wraps around the foreign body and provision-
ally seals the tyre.

Tyres with directional tread pattern

An arrow on the tyre sidewall indicates the di-
rection of rotation on single drive tyres. Always
note the direction of rotation indicated when
mounting the wheel. This makes sure that opti-
mal use is made of tyre properties in terms of
aquaplaning, grip, excessive noise and wear.

Subsequent fitting of accessories

If you wish to change or fit wheels, rims or
wheel trims, we recommend that you consult
with a SEAT Official Service for advice regard-
ing current techniques.

Speed symbols

The speed rating indicates the maximum speed
permitted for the tyres.

max. 150 km/h (93 mph)

318

Wheels and tyres

COC =

certificate of conformity.

Q
R
S
T
U
H
V
Z
W
Y

max. 160 km/h (99 mph)
max. 170 km/h (106 mph)
max. 180 km/h (112 mph)
max. 190 km/h (118 mph)
max. 200 km/h (124 mph)
max. 210 km/h (130 mph)
max. 240 km/h (149 mph)
max. 240 km/h (149 mph)
max. 270 km/h (168 mph)
max. 300 km/h (186 mph)

WARNING

●

New tyres do not have maximum grip dur-

ing the first 600 km. Drive particularly care-
fully to avoid possible accidents.

●

Never drive with damaged tyres. This may

cause an accident.

●

If you notice unusual vibrations or if the ve-

hicle pulls to one side when driving, stop the
vehicle immediately and check the tyres.

●

Never use old tyres or those with an un-

known history of use.

New wheels and tyres

It is best to have all wheels and tyres serviced
by a specialised workshop. There they have the
required knowledge, the special tools and the
corresponding spare parts.

●

Even winter tyres lose their grip on ice. If you

have installed new tyres, drive the first 600 km
carefully and at a moderate speed.

●

All four wheels must be fitted with tyres of the

same type, size (rolling circumference) and, if
possible, tread pattern.

●

When changing tyres, do not change just one;

change at least two on the same axle.

●

If you want to equip your vehicle with a com-

bination tyres and rims that are different to
those fitted in the factory, inform your special-
ised workshop before purchasing them

The sizes of the rims and tyres approved for
your vehicle are listed in the vehicle documen-
tation (e.g. EC Certificate of Conformity or
COC document

). The vehicle documentation

varies depending on the country of residence.
If the type of spare wheel is different form the
normal wheels — e.g. in the case of winter tyres
or particularly wide tyres — the spare wheel
should only be used temporarily in the event
of a puncture, and the vehicle should be driven
with care. Refit the normal road wheel as soon
as possible.

In vehicles with four-wheel drive, the 4 wheels
must be fitted with tyres of the same brand,
type and tread so that the traction system is
not damaged by a difference in the number of
turns of the wheels. Therefore, in the event of
a puncture, only a spare wheel with the same
perimeter as normal tyres should be used.

Manufacturing date

The manufacturing date is also indicated on
the tyre sidewall (or on the inside face of the
wheel):

DOT ... 2220 ...

it means, for example, that the tyre was manu-
factured in the 22nd week of 2020.

WARNING

●

Use only combinations of tyres and rims,

as well as suitable wheel nuts, approved
by SEAT. Otherwise the vehicle may be dam-
aged, causing an accident.

●

For technical reasons it is not possible to

use wheels of other vehicles; in some ca-
ses not even wheels from the same vehicle
model should be used.

●

Always ensure that the tyres you have

chosen have adequate clearance. When se-
lecting replacement tyres, do not rely en-
tirely on the nominal tyre size marked on the
tyre, since the nominal tyre size can differ
significantly depending on the manufacturer.

Wheels and tyres

319

Important information about wheels and tyres

Lack of clearance can damage the tyres or
the vehicle and, as a result, endanger road
safety. Accident hazard!

●

Only use tyres that are over 6 years old in

an emergency, and drive with due care.

●

The fitting of tyres with run-flat properties

is not permitted on your vehicle! Prohibited
use can cause accidents or can damage
your vehicle.

●

If decorative hubcaps are subsequently fit-

ted, make sure that they allow enough air in
to cool the braking system. Accident hazard!

●

Models with aerodynamic wheel rims

and/or with bolt-on plastic elements (more
closed design) increase the likelihood of ice
and snow accumulating on the inside. This
should be taken into account, depending on
the driving situations, as snow or ice accu-
mulated in the wheels can cause vibration in
the vehicle when it drives at over 40 km/h. It
is advisable to remove ice and snow from the
inside of the wheels using hot water.

●

If you drive on dirt or gravel tracks, the

likelihood of stones becoming trapped inside
wheel rims with plastic elements increases
when driving at high speed or in a sporty
manner. If you see that there are stones trap-
ped between the aluminium wheel rim and
the insert, you can attempt to remove them
using pressurised water.

For the sake of the environment

Old tyres must be disposed of according to
the laws in the country concerned.

Note

●

A SEAT Service Centre should be consul-

ted to find out whether wheels or tyres of
different sizes to those originally fitted by
SEAT can be fitted, and to find out about the
combinations allowed between the front axle
(axle 1) and the rear axle (axle 2).

●

Never mount used tyres if you are not sure

of their “previous history”.

Note

When 245/40 R19 or 245/35 R20 tyres are
fitted, the corresponding deflector must also
be installed.

Tyre life

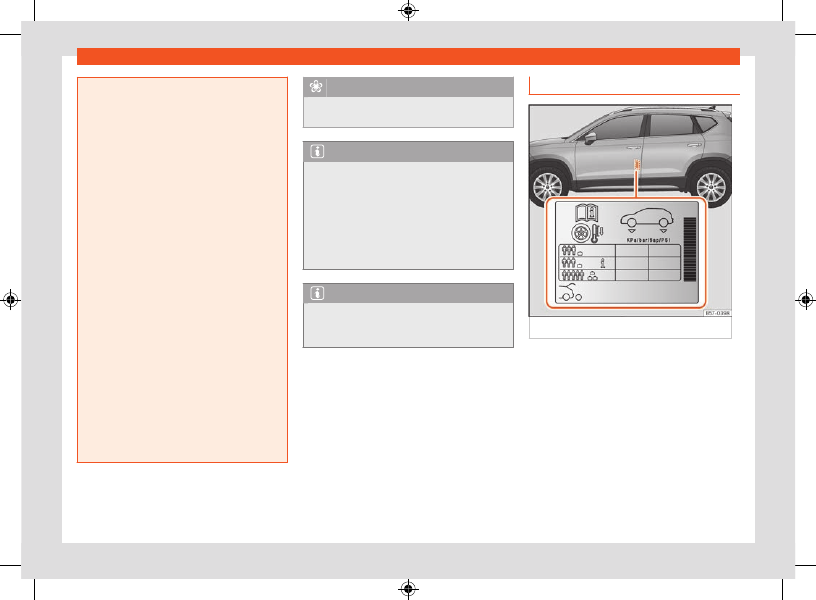

Fig. 214

Location of the tyre pressure sticker.

Correct inflation pressures and sensible driving
habits will increase the useful life of your tyres.

●

Check tyre pressure at least once a month,

and also prior to any long trip.

●

The tyre pressure should only be checked

when the tyres are cold. Do not reduce the
pressure of warm tyres.

●

Adjust tyre pressure to the load being carried

by the vehicle

●

In vehicles with a tyre pressure indicator, save

the modified tyre pressure

page 329

320

Wheels and tyres

●

Avoid fast cornering and hard acceleration.

●

Inspect the tyres for irregular wear from time

to time.

Tyre pressure

The values of the tyre pressure are shown on
the sticker label located on the read frame of
the front left door

Insufficient or excessive pressure greatly re-
duces the useful life of the tyres and adversely
affects vehicle performance and ride. Correct
inflation pressures are very important, espe-
cially at

high speeds

The tyre pressure must be adjusted according
to the load the vehicle is carrying. If the vehicle
is going to be fully loaded, increase the tyre
pressure to the maximum load value shown on
the sticker label

Do not forget the spare wheel when checking
the tyre pressures: Keep this spare wheel infla-
ted to the highest pressure required for the road
wheels.
In the case of a minimised temporary spare
wheel (125/70 R16 or 125/70 R18) inflate to a
pressure of 4.2 bar as indicated on the tyre
pressure label

Depending on the vehicle, tyre pressure can
be adjusted to medium load to improve driv-
ing comfort (tyre pressure

When driving with comfort tyre pressure fuel
consumption may increase slightly.

Driving style

Fast cornering, heavy acceleration and hard
braking (squealing tyres) all increase tyre wear.

Wheel balance

The wheels on new vehicles are balanced.
However, certain circumstances may lead to
imbalance (run-out), which is detected as vi-
brations in the steering wheel.
Unbalanced wheels should be rebalanced, as
they otherwise cause excessive wear on steer-
ing, suspension and tyres. A wheel must also be
rebalanced when a new tyre is fitted or if a tyre
is repaired.

Incorrect wheel alignment

Incorrect running gear alignment causes ex-
cessive tyre wear, impairing the safety of the
vehicle. If you notice excessive tyre wear, you
should check wheel alignment at a SEAT Offi-
cial Service.

WARNING

Unsuitable handling of the wheels and tyres
may lead to sudden tyre pressure losses, to
tread separation or even to a blow-out.

●

The driver is responsible for ensuring that

all of the vehicle tyres are correctly inflated
to the right pressure. The recommended tyre
pressure is indicated on the label

●

Check tyre pressures regularly and ensure

they are maintained at the pressures indica-
ted. Tyre pressure that is too low could cause
overheating, resulting in tread detachment
or even burst tyres.

●

Tyre pressure should be that indicated on

the label when the tyres are cold at all times

●

Regularly check the cold inflation pressure

of the tyres. If necessary, change the tyre
pressure of the vehicle tyres while they are
cold.

●

Regularly check your tyres for damage and

wear.

●

Never exceed the maximum permitted

speed or loads specified for the type of tyre
fitted on your vehicle.

For the sake of the environment

Under-inflated tyres will increase fuel con-
sumption.

Wheels and tyres

321

Important information about wheels and tyres

Follow the regulations of the country you are driving in.

Tread wear indicators

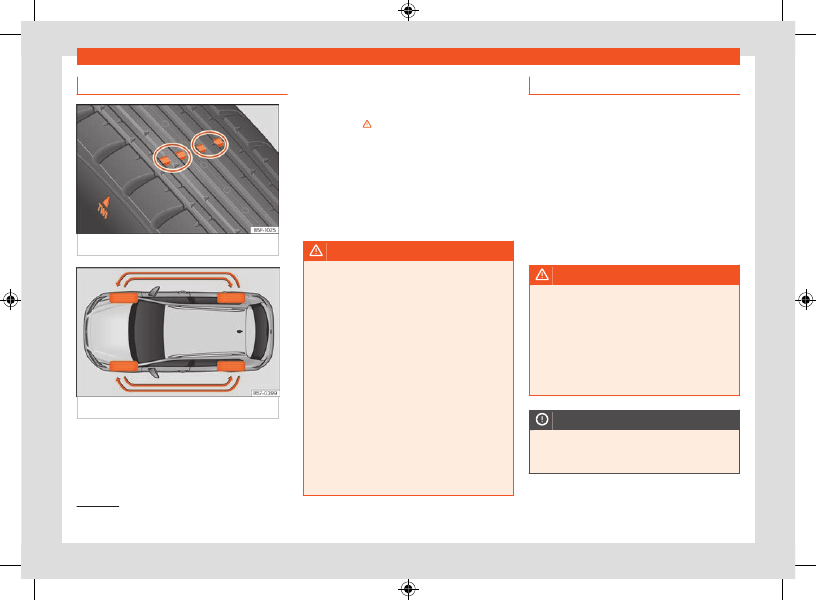

Fig. 215

Tyre profile: tread wear indicators.

Fig. 216

Interchanging tyres.

Wear indicators around 1.6 mm high can be
found on the base of the original tyre treads,
ordered at regular intervals and running across
the tread

Fig. 215

. The letters “TWI” or trian-

gles on the sidewall of the tyre mark the posi-
tion of the wear indicators.

The minimum permitted profile depth

have

been reached when the tyres have worn down
to the wear indicators. Replace the tyres with
new ones

Changing wheels around

In order to wear the wheels in a uniform manner,
it is recommended to interchange them regu-
larly according to the diagram

Fig. 216

. The

useful life of all the tyres will then be about the
same time.

WARNING

The tyres must be replaced at the latest
when the tread is worn down to the tread
wear indicators. Failure to follow this instruc-
tion could result in an accident.

●

Particularly in difficult driving conditions

such as wet or icy roads. It is important that
the tyre tread be as deep as possible and be
approximately the same on the tyres of both
the front and the rear axles.

●

The scant driving safety due to insufficient

tread depth is particularly evident in vehicle
handling, when there is a risk of “aquaplan-
ing” in deep puddles of water and when driv-
ing through corners, and braking is also ad-
versely affected.

●

The speed has to be adapted accordingly,

otherwise there is a risk of losing control over
the vehicle.

Wheel nuts

The

wheel bolts

and rims have been designed

to be part of an assembly. When installing
different wheels (for instance alloy wheels or
wheels with winter tyres) it is important to use
the correct wheel bolts with the right length
and correctly shaped bolt heads. This ensures
that wheels are fitted securely and that the
brake system functions correctly.
The wheel bolts must be clean and turn easily.
A special adapter is required to turn the anti-
theft wheel bolts

page 326

WARNING

Wheel nuts should never be greased or oiled.

●

Use only wheel bolts which belong to the

wheel.

●

If the prescribed torque of the wheel bolts

is too low, they could loosen whilst the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged.

NOTICE

See

page 328

to find out the recommen-

ded tightening torque for wheel nuts for steel
and alloy rims.

322

Wheels and tyres

COC =

certificate of conformity.

Winter tyres

●

Winter tyres must be fitted

on all four

wheels.

●

Only use winter tyres that are approved for

your vehicle.

●

Please note that the maximum permissible

speed for winter tyres may be lower than for
summer tyres.

●

Also note that winter tyres are no longer ef-

fective when the

tread

is worn down.

●

After fitting the wheels you must always

check the tyre pressures. When doing so, take
into account the correct tyre pressures lis-
ted on the rear of the front left door frame

page 319

In winter road conditions winter tyres will con-
siderably improve vehicle handling. The design
of summer tyres (width, rubber compound,
tread pattern) gives less grip on ice and snow.
This applies particularly to vehicles equipped
with

wide section tyres

or with

high speed

tyres

(code letters H, V or Y on the sidewall).

Only use winter tyres of the correct type ap-
proved for your vehicle. The sizes of these tyres
are specified in the vehicle's documents (e.g.
EC Certificate of Conformity or COC

). The ve-

hicle documentation varies depending on the
country of residence.
Winter tyres lose a great deal of their properties
when the

tread

is worn down to a depth of

4 mm.

The performance of winter tyres is also severely
impaired by

ageing

, even if the tread is still

much deeper than 4 mm.
A code letter indicating the speed limit is stam-
ped on all winter tyres

page 317

In the infotainment system's

Vehicle settings

menu, a speed warning can be set in the

Tyres

menu.
Vehicles capable of exceeding these speeds
must have an appropriate

sticker

attached so

that it is visible to the driver. Suitable stickers are
available from the SEAT Official Service and
specialised workshop. Please note the regula-
tions to this effect in your country.
“All-weather” tyres can also be used instead of
winter tyres.

Using winter tyres with V-rating

Please note that the generally applicable
240 km/h (149 mph) speed for winter tyres
with the letter V is subject to

technical restric-

tions; the maximum permissible speed for
your vehicle may be significantly lower

. The

maximum speed limit for these tyres depends
directly on the maximum axle weights for your
car and on the listed weight rating of the tyres
being used.
It is best to contact a SEAT Official Service to
check the maximum speed which is permissible
for the V-rated tyres fitted on your car on the
basis of this information.

WARNING

Exceeding the maximum speed permitted for
the winter tyres fitted on your car can cause
tyre failure, resulting in a loss of control of
the vehicle – risk of accident.

For the sake of the environment

When winter is over, change back to summer
tyres at an appropriate moment. In tempera-
tures above +7°C (+45°F), performance will
be improved if summer tyres are used. Rolling
noise, wear and energy consumption will all
be reduced.

Snow chains

Snow chains

are only permitted on the front

wheels

, even on

4-wheel drive

vehicles.

●

Check that they are correctly seated after

driving for a few yards; correct the position if
necessary, in accordance with the manufactur-
er's fitting instructions.

●

Keep your speed below 50 km/h (30 mph).

●

If there is a danger of being trapped despite

having fitted the chains, it is best to disable the
traction control (TCS) in the ESC

page 153

Snow chains will improve

braking ability

as well

traction

in winter conditions.

Wheels and tyres

323

Changing a wheel

For technical reasons, the use of snow chains
is only permitted on the following rim and tyre
combinations:

Tyres

Wheel rim

Chains

215/60 R16

6Jx16 VAS 43

Max. link
15 mm

215/55 R17

7Jx17 VAS 45

215/50 R18

7Jx18 VAS 45

225/55 R17

7Jx17 VAS 45

Max. link 9 mm

225/50 R18

7Jx18 VAS 45

225/45 R19

8Jx19 VAS 45

Other dimensions do not allow chains

Remove any central wheel trims before fitting
snow chains.

WARNING

The use of unsuitable or incorrectly fitted
chains could lead to serious accidents and
damage.

●

Always the appropriate snow chains.

●

Observe the fitting instructions provided by

the snow chain manufacturer.

●

Never exceed the maximum permitted

speeds when driving with snow chains.

NOTICE

●

Remove the snow chains to drive on roads

without snow. Otherwise they will impair ve-
hicle handling, damage the tyres and wear
out very quickly.

●

Wheel rims may be damaged or scratched

if the chains come into direct contact with
them. SEAT recommends the use of covered
snow chains.

Changing a wheel

Introduction

Only change a wheel yourself if you are famil-
iar with the necessary operations and safety
measures, if you have the necessary tools and if
the vehicle is parked safely.

Preliminary actions

●

Stop the vehicle on a level surface and in a

safe place, as far away from road traffic as
possible.

●

Apply the electronic parking brake.

●

Switch on the hazard warning lights.

●

Manual transmission:

engage 1st gear.

●

Automatic transmission:

switch on the parking

lock

●

If towing a trailer, unhitch the trailer from your

vehicle.

●

Lay out the on-board tools

page 286

and

the wheel to be changed.

●

Follow the legal provisions of each country

(reflective vest, warning triangles, light beacon,
etc.).

●

Get all occupants out of the vehicle and

keep them out of the danger zone (e.g. behind
the guard rail).

WARNING

●

Always observe the above steps and pro-

tect yourself and other road users.

●

If you change the wheel on a slope, block

the wheel on the opposite side of the car with
a stone or similar to prevent the vehicle from
moving.

324

Wheels and tyres

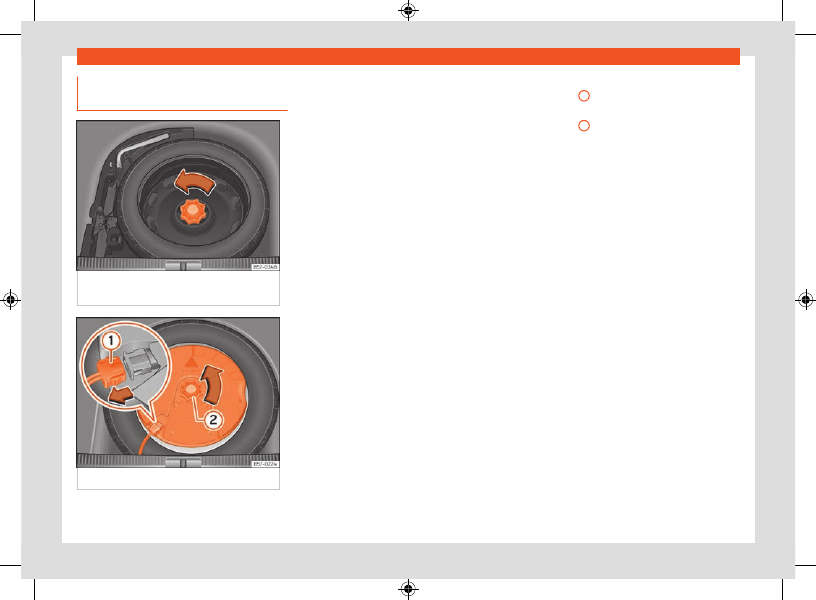

Location and use of the temporary
spare wheel

Fig. 217

In the luggage compartment: raised

load floor.

Fig. 218

In the boot: remove the subwoofer.

The temporary spare wheel is stored under the
floor panel in the luggage compartment and is
attached by a thumbnut.
The temporary spare wheel has been designed
to be used for short periods of time. Have the
tyres checked and replaced as soon as possi-
ble at a SEAT Official Service or at a special-
ised workshop.
The spare wheel must not be switched for a
spare wheel from another vehicle.

Removing the temporary spare wheel

●

Lift and hold up the floor panel to remove the

temporary spare wheel

page 261

●

Turn the thumb wheel anticlockwise

Fig. 217

●

Take out the temporary spare wheel.

Getting the spare wheel out of vehicles fit-
ted with the optional sound system (with
subwoofer)

To remove the spare wheel, you must first re-
move the subwoofer.

●

Vehicles without a variable floor in the lug-

gage compartment:

pull the floor of the lug-

gage compartment (carpet) upwards to get it
out.

●

Vehicles with a variable luggage compart-

ment floor:

lift and secure the floor storage

compartment as explained in

page 261

●

Disconnect the subwoofer’s speaker cable

Fig. 218

●

Turn the securing wheel anti-clockwise

Fig. 218

●

Remove the subwoofer speaker and the

spare wheel.

●

When re-mounting the spare tyre, place the

subwoofer on the base of the wheel rim with
care. When doing so, the tip of the “FRONT”
arrow on the subwoofer should point forward.

●

Reconnect the speaker cable and firmly

rotate the securing wheel clockwise so that
the subwoofer system and wheel are firmly in
place.

Chains

For technical reasons, snow chains must not be
used on the temporary spare wheel.
If you have a puncture on one of the front
wheels when using snow chains, fit the tempo-
rary spare wheel in place of one of the rear
wheels. Fit the snow chains on the rear wheel
that you have removed and replace the punc-
tured front wheel with this wheel.

Wheels and tyres

325

Changing a wheel

WARNING

●

After fitting the temporary spare wheel,

check the tyre pressures as soon as possible.
Failure to do so may cause an accident. The
tyre pressure is listed on the back of the left
front door frame

page 319

●

Do not drive at over 80 km/h (50 mph)

when the temporary spare wheel is fitted on
the vehicle: risk of accident!

●

Never travel more than 200 km using a

temporary spare wheel.

●

Avoid heavy acceleration, hard braking

and fast cornering: risk of accident!

●

Never use more than one temporary spare

wheel at the same time, risk of accident.

●

No other type of tyre (normal summer or

winter tyre) may be fitted on the compact
temporary spare wheel rim.

●

If you are driving using the spare wheel,

the ACC system could automatically switch
off during the journey. Switch off the system
when starting off.

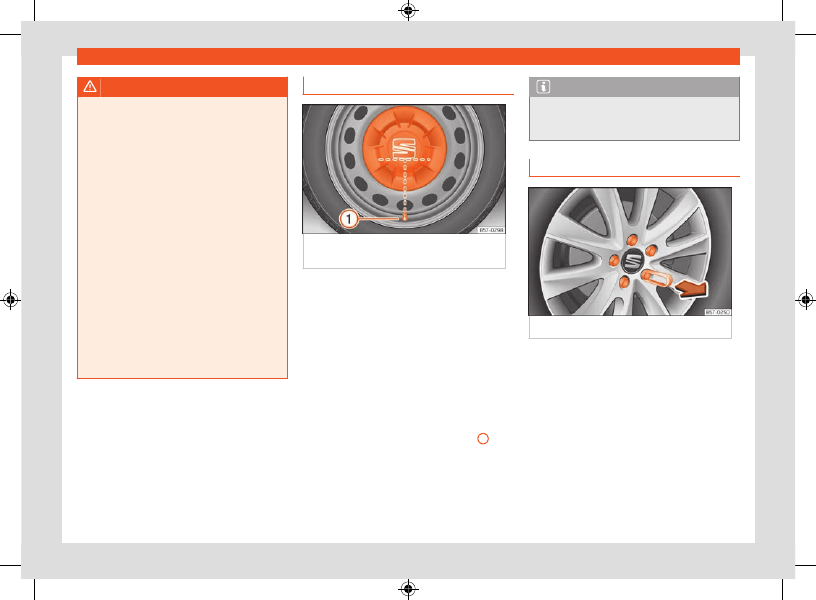

Wheel central trim

Fig. 219

Correct positioning of the central

wheel trim for steel rims.

The central trims must be removed for access
to the wheel bolts.

Removing

●

Attach the wire hook (vehicle tools

page 286

) to one of the recesses of the

central wheel trim and remove it.

Fitting

●

Fit the central wheel trim onto the rim. The

bottom of the “S” of the SEAT badge should
align with the inflation valve

Fig. 219

●

Press the central trim firmly until it locks in

with an audible click.

Note

There is also a valve mark on the back of the
central wheel trim that indicates the correct
alignment.

Wheel bolt caps

Fig. 220

Wheel: wheel bolts with caps.

Removal

●

Fit the plastic clip (vehicle tools

Fig. 187

)

over the cap until it clicks into place

Fig. 220

●

Remove the cap with the plastic clip.

The caps protect the wheel bolts and should be
remounted after changing the tyre.
The

anti-theft wheel locking bolt

has a spe-

cial cap. This only fits on anti-theft locking bolts
and is not for use with standard wheel bolts.

326

Wheels and tyres

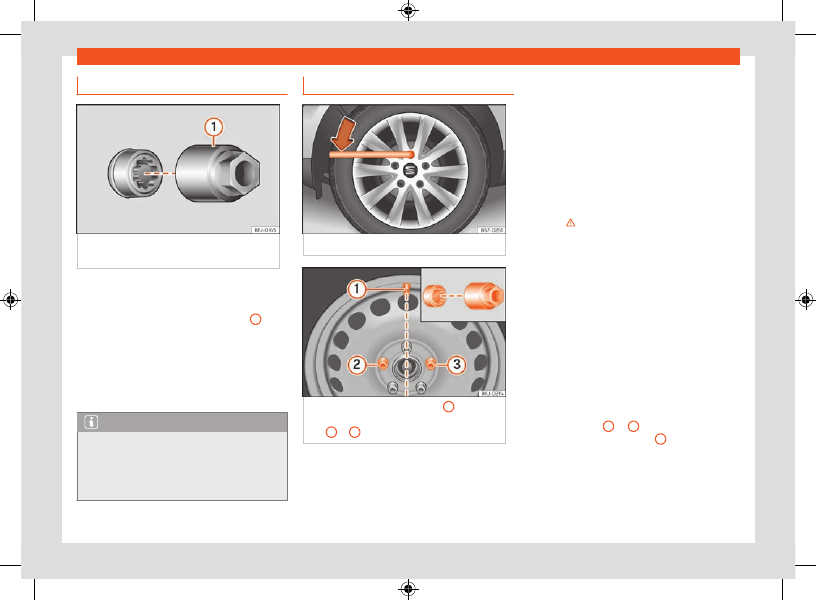

Anti-theft wheel nuts

Fig. 221

Anti-theft wheel bolt with cap and

adapter.

Loosening the anti-theft wheel bolt

●

Remove the wheel trim or hub cap.

●

Insert the special adapter

Fig. 221

(ve-

hicle tools

page 286

) onto the anti-theft

wheel bolt and push it on as far as it will go.

●

Insert the wheel brace (vehicle tools) onto

the adapter as far as it will go.

●

Remove the wheel bolt

page 326

Note

Make a note of the code number of the anti-
theft wheel bolt and keep it in a safe place,
but not in your vehicle. If you need a new
adapter, you can obtain it from the SEAT Offi-
cial Service, indicating the code number.

Loosening wheel nuts

Fig. 222

Tyre change: slacken the wheel bolts.

Fig. 223

Tyre change: tyre valve

and the

correct position for the anti-theft wheel locking
bolt

Use only the wheel wrench belonging to the car
to loosen the wheel bolts.
Loosen the wheel bolts only about one turn be-
fore raising the vehicle with the jack.

If the wheel bolt is very tight, carefully push on
the end of the wheel wrench with your foot.
Hold on to the vehicle for support and take care
not to slip during this operation.

Loosening wheel nuts

●

Fit the box spanner into the bolt as far as it will

Fig. 222

●

Hold the wrench at the end and rotate

the bolt approximately

one

turn anticlock-

wise

Important information about wheel bolts

Factory-fitted rims and wheel bolts are spe-
cially matched during construction. Therefore, if
different rims are fitted, the correct wheel bolts
with the right length and heads must be used.
This ensures that wheels are fitted securely and
that the brake system functions correctly.
In certain circumstances, you should not even
use wheel bolts from vehicles of the same
model.

On wheels with integral hubcaps, the anti-theft
wheel locking bolt must be screwed in the posi-
tions

Fig. 223

, taking as reference

the position of the tyre valve

. Otherwise it

will not be possible to mount the hubcap.

Wheels and tyres

327

Changing a wheel

WARNING

If the wheel bolts are not properly tightened,
they could come loose while driving and
cause an accident, serious injury and loss of
vehicle control.

●

Use only wheel bolts which correspond to

the rim in question.

●

Never use different wheel bolts.

●

Wheel bolts and threads should be clean,

free of oil and grease, and it should be possi-
ble to screw them easily.

●

To loosen and tighten wheel bolts, only

use the wheel wrench that came with the car
from the factory.

●

The wheel bolts should only be loosened

slightly (about one turn) before raising the
vehicle with the jack. Risk of accident!

●

Never apply grease or oil to wheel bolts or

to the wheel hub threads. Even if the bolts
have been tightened to the prescribed tor-
que, they could come loose while driving.

●

Never loosen the screwed joints of wheel

rims with bolted ring trims.

●

If wheel bolts are tightened below the

prescribed torque, the bolts and rims could
come loose while driving. If tightening torque
is too high, the wheel bolts or threads can be
damaged.

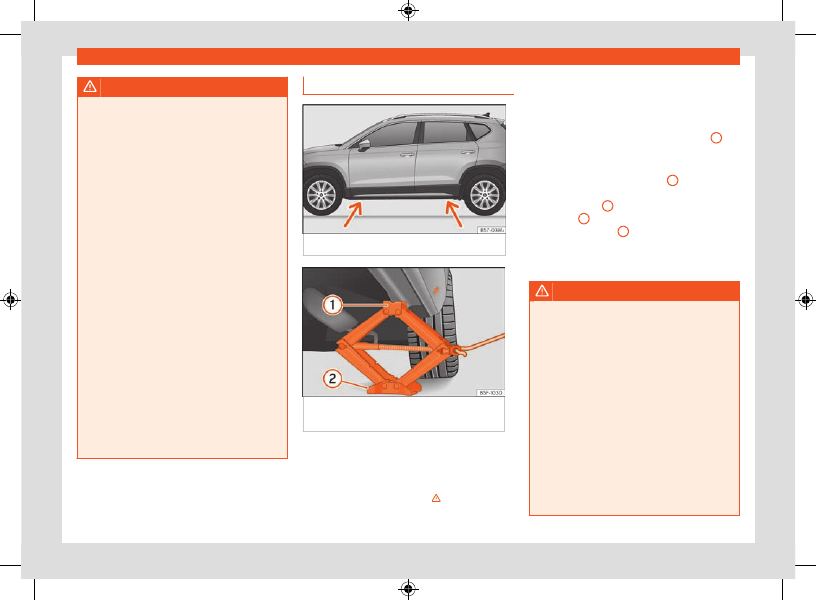

Raise the vehicle

Fig. 224

Jack position points.

Fig. 225

Crossbar: mounting the jack on the

vehicle.

●

Rest the jack (vehicles tools) on firm ground.

If necessary use a large, strong board or similar
support. If the surface is slippery (for example
tiles) place the jack on a rubber mat or similar
to prevent it from slipping

●

Look on the strut for the mark of the jack sup-

port point (sunken area) closest to the wheel to
be changed

Fig. 224

●

Turn the jack crank handle, located below the

strut support point, to raise it until the tab

Fig. 225

is below the housing that is provi-

ded.

●

Align the jack so that the tab

“grips” onto

the housing provided on the cross member and
the mobile base

is resting on the ground. The

base plate

should fall vertically with respect

to the support point

●

Continue turning the jack until the wheel is

slightly lifted off the ground.

WARNING

The factory-supplied jack is only designed
for changing wheels on this model. On no
account attempt to use it for lifting heavier
vehicles or other loads. Risk of injury.

●

Make sure the jack remains stable. If the

surface is slippery or soft, the jack could slip
or sink, respectively, with the consequent risk
of causing injuries.

●

Lift the vehicle using only the jack supplied

from the factory. Other jacks, even those ap-
proved for other SEAT models could slip, with
the consequent risk of injury.

●

Place the jack only at the support points

provided on the strut and align it. Otherwise,
the jack could slip because it does not have
sufficient grip on the vehicle: risk of injury!

328

Wheels and tyres

●

You should never place a body limb such as

an arm or leg under a raised vehicle that is
solely supported by the jack.

●

If you have to work underneath the vehicle,

you must use suitable stands additionally to
support the vehicle, there is a risk of acci-
dent!.

●

Never raise the vehicle if it is tilting to one

side or the engine is running.

●

Never start the engine when the vehicle is

raised. The vehicle may come loose from the
jack due to the engine vibrations.

NOTICE

●

The vehicle must not be raised on the

crossbar. Place the jack only at the support
points provided on the strut and align it. Oth-
erwise, the vehicle may be damaged.

●

Any type of load or weight applied to the

external trim/door will (stepped on, fitting
the jack, resting heavy objects, etc.) can
cause damage to it. SEAT accepts no re-
sponsibility for any damages caused by im-
proper use of the external trim or body.

Removing and installing a wheel

Change the wheel after loosening the wheel
bolts and raising the vehicle with the jack.
When removing/fitting the wheel, the rim may
hit and damage the brake disc. For this reason,
please take care and get a second person to
assist you.

Taking off the wheel

●

Unscrew the bolts with the wheel wrench and

place them on a clean surface.

●

Remove the wheel.

Putting on the spare wheel

Check the direction of rotation of the tyre

page 328

●

Place the spare wheel or temporary spare

wheel into position.

●

Screw in the wheel bolts and tighten them a

little with the wheel wrench.

●

Use the appropriate adapter to tighten the

anti-theft wheel bolts.

●

Carefully lower the vehicle using the jack.

●

Use the wheel spanner to tighten all of the

wheel nuts clockwise. Tighten the bolts in diag-
onal pairs (not in a circle).

●

Put the caps, trim or full hubcap back on.

The wheel bolts should be clean and turn
easily. Before fitting the spare wheel, inspect
the wheel condition and hub mounting surfa-
ces. These surfaces must be clean before fitting
the wheel.

Tightening torque of the wheel nuts

The prescribed tightening torque for wheel
bolts for steel and alloy wheels is

140 Nm

. After

changing a wheel, have the tightening torque
checked immediately with a torque wrench that
is working perfectly.

Before checking

tightening torque, have any

rusty wheel bolts that are difficult to screw re-
placed and clean the wheel hub threads.
Never apply grease or oil to wheel bolts or to
the wheel hub threads. Even if the bolts have
been tightened to the prescribed torque, they
could come loose while driving.

Tyres with directional tread pattern

Tyres with directional tread pattern have been
designed to operate best when rotating in only
one direction. An arrow on the tyre sidewall in-
dicates the direction of rotation on tyres with
directional tread. Always observe the indicated
direction of rotation in order to guarantee opti-
mum grip and help avoid aquaplaning, exces-
sive noise and wear.
If the tyre is mounted in the opposite direction
of rotation, drive with extreme caution, as the
tyre is no longer being used correctly. This is
of particular importance when the road surface
is wet. Change the tyre as soon as possible or
remount it with the correct direction of rotation.

Works after changing a wheel

●

Replace the hub caps or wheel bolt caps

(depending on equipment).

●

Return all tools to their proper storing loca-

tion.

Wheels and tyres

329

Tyre pressure monitor system

●

If the replaced wheel does not fit in the spare

wheel housing, store it safely in the luggage
compartment

page 259

●

Check the tyre pressure of the newly moun-

ted tyre as soon as possible.

●

In vehicles fitted with a tyre pressure indica-

tor, adjust the pressure and store it in memory

page 329

●

Have the tightening torque of the wheel nuts

checked as soon as possible with a torque
wrench

page 328

. Meanwhile, drive care-

fully.

●

Have the flat tyre replaced as quickly as pos-

sible.

Tyre pressure monitor sys-
tem

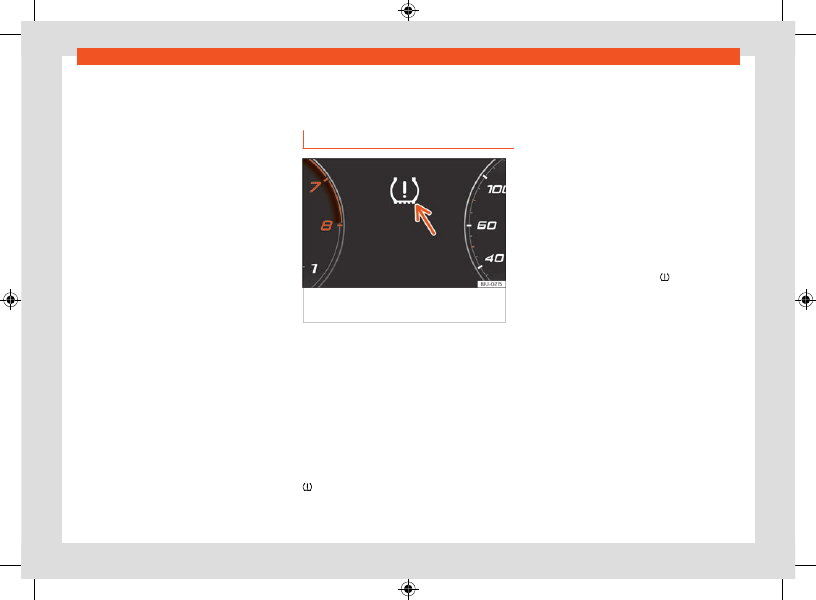

Tyre pressure monitor indicator

Fig. 226

Instrument panel: warning of loss of

tyre pressure.

The tyre pressure monitoring system compares
the individual speeds of each wheel and thus
the dynamic radius with the help of the ABS
sensors.
If the rolling circumference of one or more
wheels has changed, the tyre pressure monitor-
ing indicator will indicate this on the instrument
panel through a warning lamp and a warning to
the driver

Fig. 226

. When only one specific

tyre is affected, its position within the vehicle
will be indicated.

Loss of pressure: Check left tyre

pressure!

Wheel tread change

The wheel diameter changes when:

●

Tyre pressure is changed manually.

●

Tyre pressure is insufficient.

●

The tyre structure is damaged.

●

The vehicle is unbalanced because of a load.

●

The wheels on an axle are subject to a heav-

ier load (e.g. with a heavy load).

●

The vehicle is fitted with snow chains.

●

The temporary spare wheel is fitted.

●

The wheel on one axle is changed.

There may be a delay in the reaction of the tyre
pressure monitoring indicator or it may not
indicate anything under certain circumstances
(e.g. sporty driving, snow-covered or unpaved
roads, or when driving with snow chains).

Calibrate the tyre pressure monitoring indi-
cator

After changing the tyre pressure or replacing
one or more wheels, the tyre pressure moni-
toring indicator must be recalibrated. Do the
same, for example, when the front and rear
wheels are swapped.
It should be calibrated with the vehicle stopped
and its tyres cold. If calibrated while the tyres
are hot, the pressure check and calibration pro-
cedure should be repeated when cold before
the next trip.

330

Wheels and tyres

●

Switch the ignition on.

●

Save the new inflation pressure in the Info-

tainment system: function button

> Vehi-

cle status > Tyres

;

OR:

> External

settings > Tyres

page 34

The tyre pressure loss indicator uses the
ABS sensors to compare the turns of each
wheel and, therefore, their tread circumferen-
ces, among other aspects. After a long journey
with varied speeds the programmed values are
collected and monitored.
With the wheels under very heavy loads, the
tyre pressure must be increased to the total
recommended tyre pressure before the calibra-
tion

Fig. 226

WARNING

When the tyres are inflated at different pres-
sures or at a pressure that is too low then a
tyre may be damaged resulting in a loss of
control of the vehicle and a serious or fatal
accident.

●

If the lamp lights up, reduce speed im-

mediately and avoid any sudden turning or
braking manoeuvres. Stop when possible,
and check the tyre pressure and status.

●

The tyre pressure loss indicator only works

correctly if all the tyres are at the correct
pressure when cold, and it is subsequently
calibrated according to the described pro-
cedure.

●

If a tyre has not been punctured and it does

not have to be changed immediately, drive to
the nearest specialised workshop at a mod-
erate speed and have the tyre checked and
inflated to the correct pressure.

Note

●

Driving for the first time with new tyres at

a high speed can cause them to slightly ex-
pand, which could then produce an air pres-
sure warning.

●

If excessively low tyre pressure is detected

with the ignition on, an audible warning will
sound. In the event that there is a fault in the
system, an audible warning will sound.

●

Driving on unpaved roads for a long pe-

riod of time, or sporty driving, may tempora-
rily deactivate the system. The control lamp
shows a fault, but disappears when road
conditions or the driving style change.

●

Do not only rely on the tyre pressure moni-

toring system. Regularly check your tyres to
ensure that the tyre pressure is correct and
that the tyres are not damaged due to punc-
ture, cuts, tears and impacts/dents. Remove
objects from the tyres only when they have
not pierced the tyres.

●

The tyre pressure monitoring indicator

does not function when there is a fault in the
ESC or ABS

page 151

Troubleshooting

Low tyre pressure

The control lamp switches on yellow.
The inflation pressure of one or more wheels is
much lower than the value set by the driver, or
the tyre has structural damage. In addition, a
audible warning sounds and a text message is
displayed on the instrument panel screen.

●

Stop the vehicle!

Stop the vehicle safely

as soon as possible.

●

Check all tyres and pressures.

●

Replace any damaged tyres.

Fault in the tyre pressure loss indicator

The control lamp flashes for approximately 1
minute and then lights up permanently in yel-
low.

●

If the tyre is inflated correctly, switch the igni-

tion off and on again.

●

Re-calibrate the tyre pressure monitoring sys-

tem

page 329

●

If the fault continues, go to a specialised

workshop.
