Renault Captur (2023 year). Manual in english - page 1

EXTERIOR

Rear view mirrors ➥ 1.90

Electric windows ➥ 3.20

Wiper ➥ 1.101 and ➥ 1.106

Demisting ➥ 3.5 and ➥ 3.11

Key/Remote control ➥ 1.2

Map ➥ 1.6

Locking/unlocking the doors

➥ 1.16

Bodywork maintenance ➥ 4.16

Tyres ➥ 5.12

Lights: operation ➥ 1.93

Lights: replacement ➥ 5.15

L

Filling up with fuel/LPG ➥ 1.108

0.2

CarManuals2.co

PASSENGER COMPARTMENT

Adjusting your driving po-

Passenger compartment storage/fit-

sition ➥ 1.23

tings ➥ 3.29

Rear bench seat ➥ 3.35

Rear headrests ➥ 3.34

Front seats ➥ 1.21

Front headrests ➥ 1.92

Child safety ➥ 1.37

Luggage compartment stor-

age/fittings ➥ 3.39

0.3

CarManuals2.co

DRIVER’S POSITION

Trip computer controls

Instrument panel ➥ 1.58

➥ 1.71

Exterior lighting ➥ 1.93

Multimedia screen

➥ 3.17

Cruise control ➥ 2.98

Stop and Go adaptive cruise

control ➥ 2.103

Heated seat(s) ➥ 1.21

Speed limiter ➥ 2.94

Heating/Air conditioning

GPL Command ➥ 4.2

system ➥ 3.5

Bonnet release ➥ 4.2

Gearstick ➥ 2.24

Steering wheel adjust-

Telephone charging zone

ment ➥ 1.88

➥ 3.29

Parking brake ➥ 2.25

Key ignition switch ➥ 2.4

Engine start/stop button

➥ 2.6

0.4

CarManuals2.co

DRIVING AIDS

ABS (anti-lock braking system)

Speed limiter ➥ 2.94

ESC (electronic stability control)

Braking assistance

Hill start assistance

Detection of road signs ➥ 2.90

➥ 2.46

Cruise control ➥ 2.98

AUTOHOLD ➥ 2.29

Stop and Go adaptive cruise con-

trol ➥ 2.103

Lane departure warning ➥ 2.51

Parking distance control ➥ 2.133

Lane Keeping Assist ➥ 2.56

Reversing camera ➥ 2.140

Active emergency braking ➥ 2.82

360° camera ➥ 2.73

Blind spot warning ➥ 2.62

Parking exit warning ➥ 2.142

Stop and Start ➥ 2.12

Assisted parking ➥ 2.146

Safe distance alert ➥ 2.69

Tyre pressure loss warning

➥ 2.40

0.5

CarManuals2.co

SAFETY ON BOARD

Inhibiting the front pas-

senger airbag ➥ 1.51

Front Airbags ➥ 1.28

Curtain Airbags ➥ 1.35

Side Airbags ➥ 1.35

Seat belts ➥ 1.23

0.6

CarManuals2.co

IDENTIFYING A VEHICLE - LABELS

Review of a vehicle identification

number ➥ 6.2

Vehicle identification

plate ➥ 6.2

Technical Information for the

emergency services ➥ 6.3

Engine identification ➥ 6.4

Tyre pressure labels

➥ 2.40

➥ 4.11

0.7

CarManuals2.co

THE ENGINE COMPARTMENT (routine maintenance)

Opening the bonnet

➥ 4.2

Brake fluid ➥ 4.8

Coolant level ➥ 4.8

Engine oil filler cap ➥ 4.5

Engine oil dipstick ➥ 4.4

Battery ➥ 4.13

Windscreen washer fluid

➥ 4.8

0.8

CarManuals2.co

BREAKDOWN RECOVERY

Replacing windscreen wiper

Puncture:

blade(s) ➥ 1.101

Tools ➥ 5.7

Emergency spare

wheel ➥ 5.2

Changing a wheel

➥ 5.10

Front towing point ➥ 5.36

Replacing the rear screen

wiper blade ➥ 1.106

Replacement of the direc-

tion indicator lights ➥ 5.16

Fuses ➥ 5.31

Rear towing point ➥ 5.36

0.9

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)

3

3

2

1

Driver’s responsibility

2

4

when parking or stopping

1

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

5

cient alone on your vehicle, even for

a short time.

5

They may pose a risk to themselves

or to others by starting the engine,

1 Locks all the opening elements.

activating equipment such as the

2 Unlocks all the opening elements.

electric windows or locking the

doors.

3 Driver’s door and ignition key.

Also, in hot and/or sunny weather,

5 Locking/unlocking the boot only.

please remember that the tempera-

Remote control with switchblade

ture inside the passenger compart-

key:

Advice

ment increases very quickly.

4 Locking/unlocking using the switch-

Avoid leaving the remote control in

RISK OF DEATH OR SERIOUS

blade key. To release the insert from

hot, cold or humid areas.

INJURY.

its housing, press button 4, it comes

out automatically. Press button 4 and

guide the insert back into its housing.

The key must not be used for any

function other than those described

in the handbook (removing the cap

from a bottle, etc.).

1.2

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL: use

The remote control A can be used to

Unlocking the doors

A

lock or unlock the doors and boot. It is

Pressing button 2 unlocks the doors

powered by a battery which can be re-

and tailgate.

placed. ➥ 5.22.

The hazard lights and side repeaters

2

flash once to indicate that the doors

Locking the doors

have unlocked and, on some vehicles,

1

2

Press locking button 1.

the door mirrors fold out automatically.

The hazard lights and side repeaters

Note: with the ignition on and the

1

flash twice to indicate that the doors

engine running ➥ 2.3, buttons on the

have locked and, on some vehicles,

remote control are not activated.

the door mirrors fold in automatically.

3

Pressing the 1 button twice locks the

vehicle and enables the closure of the

3

front, rear windows and sunroof (de-

pending on the vehicle).

Note: if a door or the boot is open or not

Locking/unlocking only the

properly shut, locking is not carried out.

boot

A beep sounds and the hazard warning

Press the button 3 to lock/unlock the

lights and side repeaters do not flash.

boot only.

Driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on

your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine,

activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside

the passenger compartment increases very quickly.

Depending on the vehicle, the door

RISK OF DEATH OR SERIOUS INJURY.

mirrors fold in/out automatically

when the vehicle is locked/unlocked

➥ 1.90

1.4

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL UNIT: deadlocking

If the vehicle is equipped with a dead-

locking function, this allows you to lock

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

1

To do this, press button 1 twice in quick

succession.

1

The hazard warning lights and side in-

dicator lights give two slow flashes and

three quick flashes to indicate locking.

Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked ➥ 1.90.

Never use deadlocking if

someone is still inside the

vehicle.

1.5

CarManuals2.co

CARD: general information (1/3)

Battery life

Make sure that the correct battery type

1

1

is being used, and that the battery is in

good condition and inserted correctly.

4

5

Its service life is approximately two

years: it should be replaced when the

message “Keycard Battery Low” ap-

2

2

pears on the instrument panel ➥ 5.24.

3

3

Remote engine start-up

(depending on vehicle)

Press button 5 to activate the remote

engine start-up. ➥ 2.6.

1 Unlocking the doors and tailgate.

The card is used for:

card operating range

- locking/unlocking the doors and tail-

2 Locking all doors and tailgate.

This varies according to the environ-

gate (doors, tailgate) and the fuel

ment: take care not to accidentally lock

3 Locking/unlocking the boot only.

filler flap (see the following pages);

or unlock the vehicle by inadvertently

4 Switching-on the lighting remotely,

- switching on the vehicle lighting re-

pressing the buttons on the card.

motely (refer to the following pages);

or, depending on the vehicle,

- automatic remote closing of the elec-

Note: if a door or the boot is open or not

5 Remote engine start-up.

tric windows ➥ 3.20;

properly shut, locking is not carried out.

– starting the engine ➥ 2.6.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

When the battery is flat, you can still

lock/unlock and start your vehicle.

➥ 1.16, ➥ 2.6.

1.6

CarManuals2.co

CARD: general information (2/3)

Interference

Interference by factors in the immediate

vicinity (external installations or the use

Advice

of equipment operating on the same

4

frequency as the card) may disrupt its

Avoid leaving the card in hot, cold or

operation.

humid areas.

Do not keep the card in a place

where it could be bent or dam-

Driver’s responsibility

aged accidentally, such as in a back

when parking or stopping

pocket of a garment.

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

They may pose a risk to themselves

Distance lighting function

or to others by starting the engine,

Pressing button

4 switches on

the

activating equipment such as the

dipped beam headlights and the exte-

electric windows or locking the

Replacement: need for an

rior lighting for approximately 20 sec-

doors, for example.

additional card

onds. This can be used, for example,

Also, in hot and/or sunny weather,

to identify the vehicle from a distance

If you lose your card or require an-

please remember that the tempera-

when parked in a car park.

other, you can obtain one from an

ture inside the passenger compart-

authorised dealer.

Pressing and holding the 4 button for

ment increases very quickly.

approximately two seconds activates

If a card is replaced, it will be neces-

RISK OF DEATH OR SERIOUS

the exterior lighting and a sound is

sary to take the vehicle and all its

INJURY.

emitted.

cards to an approved Dealer to ini-

tialise the system.

Note: pressing button 4 again switches

off the lighting.

You may use up to four cards per

vehicle.

1.7

CarManuals2.co

CARD: general information (3/3)

5

A

7

8

6

Fitting a strap 7

Insert the strap into the 8 component

and pass the end of the strap through

Slide the rear casing

5 downwards

the buckle.

while pressing on zone A.

Position the strap at the 6 opening and

close the cartridge.

Note: check that the diameter of the 7

strap cord fits the 6 opening.

1.8

CarManuals2.co

“HANDS-FREE” CARD: use (1/4)

Deactivating/activating the

«hands-free» mode

Depending on the vehicle, you can de-

activate/activate:

Never leave your vehicle

1

with the card inside.

- unlocking when approaching and

locking when moving away from the

vehicle;

Driver’s responsibility

- locking and unlocking by pressing on

when parking or stopping

the buttons on the door handle.

the vehicle

2

You can also disable/activate the sound

Never leave an animal,

signal that is emitted upon locking when

child or adult who is not self-suffi-

moving away from the vehicle ➥ 1.83.

cient alone in your vehicle, even for

a short time.

Depending on the vehicle, there are two

They may pose a risk to themselves

to three ways to unlock/lock the vehicle:

or to others by starting the engine,

activating equipment such as the

- “hands-free”, when approaching and

electric windows or locking the

moving away from the vehicle;

doors, for example.

- “hands-free”, using the 2 button on

Also, in hot and/or sunny weather,

the 1 handle of one of the front doors;

please remember that the tempera-

- using the card in remote control

ture inside the passenger compart-

mode.

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

Do not store the card anywhere it

may come into contact with other

electronic equipment

(computer,

phone etc.) as this could hinder its

operation.

1.9

CarManuals2.co

“HANDS-FREE” CARD: use (2/4)

5

3

4

Hands-free unlocking, when

Hands-free locking when

If the card has been within the detec-

tion area 3 for approximately 15 min-

approaching the vehicle;

moving away from the

utes, remote locking is disabled. To lock

With the card in access zone 3, the ve-

vehicle

the vehicle, press the 5 button on the

hicle will unlock. Unlocking is indicated

With the card on you, doors and lug-

card or, depending on the vehicle, the 2

by one flash of the hazard warning

gage compartment door closed, move

button on the handle 1.

lights and the indicator lights.

away from the vehicle: it will lock auto-

The vehicle cannot be remotely locked

matically once you have left the access

if the card is within the area 4.

zone 3.

Note: the distance at which the vehicle

locks depends on the surroundings.

To indicate that the vehicle has been

locked, the hazard warning lights

flash twice and then light up for ap-

Depending on the vehicle, the door

proximately four seconds, and a beep

mirrors fold in/out automatically

sounds in confirmation.

when the vehicle is locked/unlocked

➥ 1.90.

1.10

CarManuals2.co

“HANDS-FREE” CARD: use (3/4)

The hazard warning lights flash twice

to indicate that the vehicle is locked

and, depending on the vehicle, the door

mirrors automatically fold in.

1

Special features of the

unlocking system

Under certain circumstances, approach

unlocking is deactivated:

4

2

- after eight days of no use of the vehi-

cle;

- if the card remains close to the 3

area of the vehicle for approximately

five minutes after the vehicle has

“Hands-free” unlocking/

been locked;

Special features relating to

locking using button 2

- after several passes in the vicinity of

“hands-free” locking

(depending on the vehicle)

the 3 area of the vehicle and without

After locking in “hands-free” mode, you

the door being unlocked.

With the card in zone 3 and the vehi-

have to wait approximately three sec-

cle locked, press the button 2 on the

Use the remote control card or, depend-

onds to be able to unlock the vehicle

handle 1 of one of the two front doors:

ing on the vehicle, press the 2 button on

again. During these three seconds, the

the vehicle unlocks. Press the button 2

the door handle 1 to unlock the vehicle

door handles can be tried to make sure

also unlocks all the doors and the tail-

and reactivate hands-free mode.

that the vehicle is locked properly.

gate.

Note: if a door or the boot is open or not

The hazard lights and side repeaters

properly shut, locking is not carried out.

flash once to indicate that the doors

A beep sounds and the hazard warning

have unlocked and, on some vehicles,

lights and side repeaters do not flash.

the door mirrors fold out automatically.

Pressing the 2 button again locks the

vehicle.

1.11

CarManuals2.co

“HANDS-FREE” CARD: use (4/4)

Locking using the card

With the doors and boot closed, press

button 5: the vehicle locks.

7

The hazard warning lights flash twice

to indicate that the vehicle is locked

and, depending on the vehicle, the door

5

mirrors automatically fold in.

Pressing the 5 button twice locks the

6

vehicle and enables the closure of the

4

front and rear windows (depending on

the vehicle).

Note:

- the maximum distance at which the

vehicle locks depends on the sur-

Using the card as a remote

roundings;

If, while the engine is running, a door

is opened and closed, and the card is

control

- if a door or the boot is open or not

no longer in the zone 4, the message

properly shut, locking is not carried

Unlocking with the card

“Keycard Not Detected” indicates that

out. A beep sounds and the hazard

the card is not inside the vehicle. This

Press button 7.

warning lights and side repeaters do

will, for example, prevent you from driv-

The hazard lights and side repeaters

not flash.

ing away after dropping off a passenger

flash once to indicate that the doors

who has kept the card on them.

have unlocked and, on some vehicles,

the door mirrors fold out automatically.

The warning disappears when the card

is detected again.

Locking/unlocking only the

boot

Press the button 6 to lock/unlock the

boot only.

The card buttons are deactivated

when the engine is running.

1.12

CarManuals2.co

“HANDS-FREE” CARD: DEADLOCKING

If the vehicle is equipped with a dead-

locking function, this allows you to lock

1

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

To do this, press button 1 twice in quick

succession.

Locking is confirmed by two slow

flashes and three quick flashes of

the hazard warning lights and indicator

lights.

Special note: deadlocking is not pos-

sible if the hazard warning lights or the

side lights are lit.

Never use deadlocking if

someone is still inside the

Depending on the vehicle, the door

vehicle.

mirrors fold in automatically when

the vehicle is locked ➥ 1.90.

1.13

CarManuals2.co

OPENING AND CLOSING THE DOORS (1/2)

3

1

2

Opening the doors from the

Rear doors

Opening from the inside

outside

With the doors unlocked or the card on

Pull handle 3.

you, hold the 2 handle and pull towards

Front doors

Depending on the vehicle, it may be

you.

necessary to pull handle 3 twice: the

With the doors unlocked or the card on

first time to unlock the door, the second

you, hold the 1 handle and pull towards

time to open it.

you.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

1.14

CarManuals2.co

OPENING AND CLOSING THE DOORS (2/2)

Lights-on reminder buzzer

If you have switched off the ignition

and left the lights switched on, a re-

minder buzzer will sound when a door

is opened.

Door/tailgate open buzzer

Driver’s responsibility

when parking or stopping

When the vehicle is stationary, the 2

the vehicle

warning light appears on the instrument

Never leave an animal,

panel accompanied by a warning light

child or adult who is not self-suffi-

indicating which of the opening ele-

ments (door(s), luggage compartment)

4

cient alone on your vehicle, even for

a short time.

are open or incorrectly closed.

They may pose a risk to themselves

Once the vehicle reaches a speed

Child safety

or to others by starting the engine,

of approximately 6 mph (10 km/h), a

activating equipment such as the

warning light indicates if the door(s) or

Move lever 4 and check from the inside

electric windows or locking the

luggage compartment are open or not

that the doors are securely locked, to

doors.

properly closed, along with the mes-

prevent the rear doors being opened

Also, in hot and/or sunny weather,

sage “Tailgate open” or “WARNING:

from the inside.

please remember that the tempera-

Door Open” and a beep will sound for

ture inside the passenger compart-

around 40 seconds or until the door/

ment increases very quickly.

luggage compartment is closed.

RISK OF DEATH OR SERIOUS

INJURY.

1.15

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (1/4)

If the remote control or,

depending on the vehicle, the

2

card does not work

A

In some cases, the radio frequency

1

remote control or the card may not

work:

- card or radio frequency remote con-

trol battery worn or run flat, vehicle

battery flat etc;

- use of appliances operating on the

same frequency as the card (mobile

phone, etc.);

- vehicle located in a high electromag-

netic radiation zone.

It is then possible:

The card’s built-in key

- to use the radio frequency remote

control or the emergency key inte-

The 2 integrated key can be used to

grated in the card (depending on the

lock or unlock the driver’s door when

vehicle) to unlock the driver’s door;

the card is not working.

- to use the interior door locking/un-

locking control (refer to the following

Access with key 2

pages).

Slide the rear casing

1 downwards

while pressing on zone A.

1.16

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (2/4)

3

B

3

B

4

4

2

5

Using the key integrated in

Vehicles with key/remote

the card

control

- Pull handle 3;

Using the key

- press the cover B on the driver’s

- Pull handle 3;

door down;

- press the cover B on the driver’s

- insert the end of the key 2 in the

door down;

notch 4 at the bottom of the cover B;

- insert the end of the key 5 in the

- rotate it upwards to remove the

notch 4 at the bottom of the cover B;

cover B;

- rotate it upwards to remove the

- insert the key 2 into the lock of the

cover B;

driver’s door, lock or unlock.

- insert the key 5 into the lock of the

Once you are inside the vehicle, put the

driver’s door, lock or unlock.

key back in its casing in the card.

1.17

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (3/4)

6

5

Locking the doors manually

Interior locking/unlocking

door control

Turn screw 5 with the door open (using

the end of the key) and close the door.

Switch 6 controls the doors, the boot

This means that the doors are then

and the fuel filler flap simultaneously.

locked from the outside.

If a door or the tailgate is open or not

The doors may then only be opened

closed properly, the doors and tailgate

from the inside or by using the key in

lock/unlock quickly.

the driver’s door.

If transporting an object with the tail-

gate open, you can still lock the doors:

with the engine stopped, press and

hold switch 6 to lock the other doors.

1.18

CarManuals2.co

AUTOMATIC LOCKING WHEN DRIVING

NB: if a door is opened or closed, it

Operating faults

will automatically lock again when the

If you experience an operating fault

vehicle reaches a speed of 6 mph (10

(no central locking, the indicator light 1

km/h).

does not light up when trying to lock the

doors and luggage compartment etc.),

1

Activating/deactivating the

make sure that central locking has not

been deactivated by mistake and check

function

that the doors and luggage compart-

To activate: with the vehicle station-

ment are properly closed. If they are

ary and the engine running, press the 1

properly closed, contact an approved

switch until a beep sounds.

dealer.

To deactivate: with the vehicle station-

ary and the engine running, press the

switch 1 until you hear two beeps.

The function can also be activated and

Operating principle

deactivated via the multimedia screen

(depending on the vehicle). ➥ 1.83.

After the vehicle is started, the system

automatically locks the doors when you

are driving at approximately 6 mph (10

km/h) and over.

The door can be unlocked:

- by pressing the central door unlock-

ing switch 1;

- at a standstill, by opening a front

door from inside the vehicle.

Driver’s responsibility

If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

1.20

CarManuals2.co

FRONT SEATS (1/2)

5

4

3

After making adjustments,

2

make sure that the seat-

backs are correctly locked

in place.

1

Adjusting the seat position

Adjusting the seatback

For safety reasons, carry

To move the seat forwards or back

To tilt the seatback

out any adjustments

when the vehicle is not

Move the 1 switch forwards or back-

Activate the 2 switch forwards or back-

being driven.

wards or, depending on the vehicle,

wards, or depending on the vehicle, lift

lift and hold the 3 handle to unlock the

the 5 handle and tilt the seatback to the

We would advise you not to recline

seat. Release the handle once the seat

desired position. Release the handle at

the seatbacks too far to ensure that

is in the correct position and ensure

the desired position and make sure that

the effectiveness of the seat belts is

that the seat is locked.

it is locked.

not reduced.

To raise or lower the seat base

Nothing should be placed on the

floor (area in front of driver) as such

Move the 1 switch up or down or, de-

objects may slide under the pedal

pending on the vehicle, move the 4

during braking manoeuvres, thus

lever as many times as necessary up-

obstructing its use.

wards or downwards to the desired po-

sition.

1.21

CarManuals2.co

FRONT SEATS (2/2)

6

7

8

Central armrest 6

Heated seats

Operating faults

(depending on the vehicle)

With the ignition on:

When an operating fault is detected,

To adjust the position of the central arm-

the warning light of the 8 switch for the

- Pressing the switch 8 on the required

rest 6, slide it forwards or backwards.

seat concerned switches-off after ap-

seat for the first time activates the

proximately five seconds.

heating system on high. Both inte-

grated switch warning lights come

Consult an approved dealer.

To adjust the seat’s lumbar

on;

position

- pressing the switch for the second

Lower handle 7 to increase the support

time changes the heating to low. One

and lift it to decrease it.

integrated warning light comes on;

- pressing for the third time turns the

heating off.

1.22

CarManuals2.co

SEAT BELTS (2/5)

Locking

Unwind the belt slowly and smoothly

and ensure that buckle 3 locks into

catch 5 (check that it is locked by pull-

ing on buckle 3).

If the belt jams, allow it to return slightly

before attempting to unwind it again.

1

If your seat belt is completely jammed,

pull slowly, but firmly, so that just over

3 cm unwinds. Allow it to return slightly

3

before attempting to unwind it again.

4

If there is still a problem, contact an ap-

5

5

proved dealer.

2

Adjusting the seat belts

Unlocking

Sit with your back firmly against the

Press button 4 and the seat belt will be

seatback.

rewound by the inertia reel. Guide the

Shoulder strap 1 should be as close as

belt.

possible to the base of the neck but not

on it.

Lap belt 2 should be worn flat over the

thighs and against the pelvis.

The belt should be worn so that it is

as close as possible to your body, i.e.:

avoid wearing heavy clothing or keep-

ing bulky objects under the belts, etc.

1.24

CarManuals2.co

SEAT BELTS (3/5)

Driver’s seat belt reminder

It is accompanied by the 6 symbol which

ß

and, depending on the vehi-

appears for approximately 60 seconds

cle, front passenger seat belt re-

each time one of the rear seat belts is

minder

fastened or unfastened.

This appears on the central display

When the vehicle speed reaches or ex-

when the ignition is switched on and

ceeds 12 mph (20 km/h), if one of the

if the driver’s and/or front passenger’s

rear seat belts is or becomes unfas-

seat belt(s) (if the passenger seat is

tened during the journey:

occupied) is not fastened. Depending

on the vehicle, if the seat is occupied

- the ™

warning light flashes on

and one of these seat belts is not fas-

the central display;

tened or becomes unfastened while

6

and

the vehicle is moving at a speed over

approximately 12 mph (20 km/h), the

- a beep is emitted for 30 to 120 sec-

onds (depending on the version);

™

warning light flashes and a beep

and

sounds for approximately 120 seconds.

playback of 6 graphic:

- indicator green: seatbelt fastened;

- the 6 symbol is displayed for at least

Note: an object placed on the passen-

- indicator in red: the seat is occupied

approximately

60 seconds and

ger seat may activate the warning light

and the seat belt is not fastened;

the symbol for the seat concerned

in some cases, depending on the ve-

- indicator grey: seat not occupied.

changes to red.

hicle.

Depending on the vehicle, the ™

Always make sure that the rear pas-

Rear seat belt reminder (depending

warning light on the central display also

sengers are properly fastened and that

on the vehicle)

appears when the ignition is switched

the number of fastened seat belts in-

The 6 graphic is displayed on the in-

on, if a rear seat is occupied and the

dicated corresponds to the number of

strument panel when the ignition is

seat belt is not fastened. When the ve-

rear seats occupied.

switched on. This informs the driver of

the fastening status of each of the rear

hicle speed is less than approximately

Note: in some cases the alerts may be

seat belts every time:

activated if an object is placed on one

12 mph (20 km/h), the ™

warning

- the ignition is switched on;

of the rear seats, depending on the ve-

light on the central display appears

- a door is opened;

hicle.

when a rear seat belt is unfastened.

- fastening or unfastening of a rear

seat belt.

1.25

CarManuals2.co

SEAT BELTS (4/5)

7

9

9

8

10

10

12

11

11

13

Adjusting the height of the

Rear side seat belts 8

Rear centre seat belt

front seat belts

The belts are locked, unlocked and

Slowly unwind belt 9.

Use button 7 to adjust the seat belt

adjusted in the same way as the front

Click buckle 10 into black catch 11.

height so that the shoulder strap is worn

belts.

Fasten the tongue

12 in the red

as shown previously. Press the button 7

buckle 13.

and raise or lower the seat belt. Make

sure that the seat belt is locked in posi-

tion correctly after you have adjusted it.

Check that the rear seat

belts are positioned and

operating correctly each

Ensure that you always leave the

time the rear bench seat is

tongue 10 fastened in the buckle 11

moved.

even if no passenger is present in

the centre seat.

1.26

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)

Depending on the vehicle, they will con-

- Have the entire restraint

sist of:

system checked following

- seat belt inertia reel pretension-

an accident.

ers;

- No operation whatso-

- central seat belt pretensioners;

ever is permitted on any part

- chest-level load limiters;

of the system

(pretensioners,

airbags, computers, wiring) and

- airbags driver and passenger

the system components must not

front.

be reused on any other vehicle,

These systems are designed to act in-

even if identical.

dependently or together when the vehi-

-

Only qualified personnel from our

cle is subjected to a frontal impact.

2

Network may work on the airbags;

Depending on the severity of the

otherwise the system may trigger

1

impact, the system can trigger:

accidentally and cause injury.

-

seat belt locking;

Pretensioners

-

The electric trigger system may

only be tested by a specially

–

the seat belt inertia reel pretensioner

The pretensioners hold the seat belt

trained technician using special

(which engages to correct seat belt

against the body, holding the occupant

equipment.

slack);

more securely against the seat, thus in-

-

When the vehicle is scrapped,

-

lap seat belt pretensioners to hold

creasing the seat belt’s efficiency.

contact an approved dealer for

the occupant in their seat;

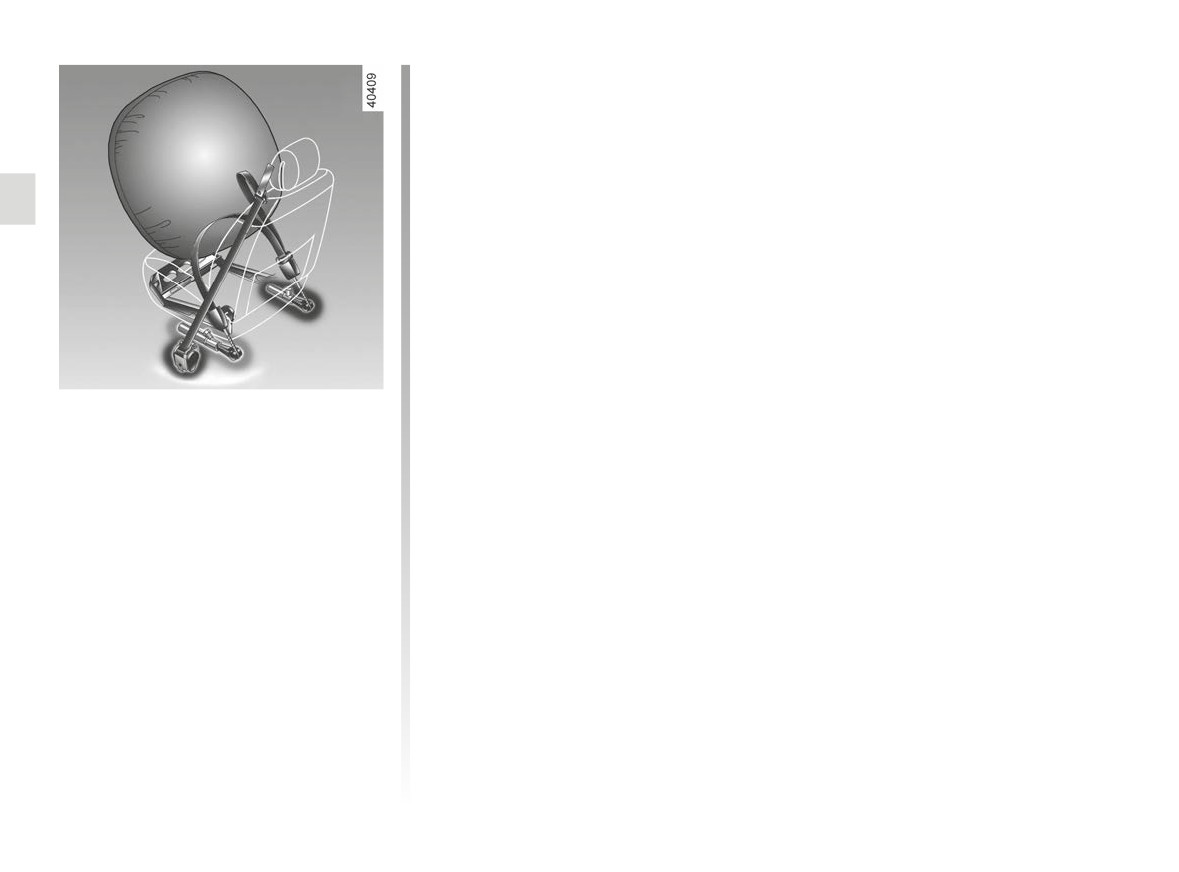

In the event of a severe frontal impact

disposal of the pretensioner and

-

the front airbag.

and if the ignition is switched on, the

airbags gas generators.

system may engage the following de-

pending on the force of the impact:

- the seat belt inertia reel preten-

sioner 1 which instantly retracts the

seat belt;

- the lap seat belt inertia reel preten-

sioner 2 on the front seats.

1.28

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)

Operating faults

å

This warning light comes on

when the engine is started and then

goes out after approximately three sec-

onds.

If it does not come on when the ignition

is switched on or if it stays on, there is a

fault in the system.

Contact your approved Dealer as soon

as possible.

Your protection will be reduced until this

fault is rectified.

Operation

This system is only operational when

the ignition is switched on.

In a severe frontal impact, the airbags

inflate rapidly, cushioning the impact

of the driver's head and chest against

the steering wheel and of the front pas-

senger against the dashboard. The air

bags then deflate immediately so that

the passengers are not in any way hin-

dered from leaving the vehicle.

1.30

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

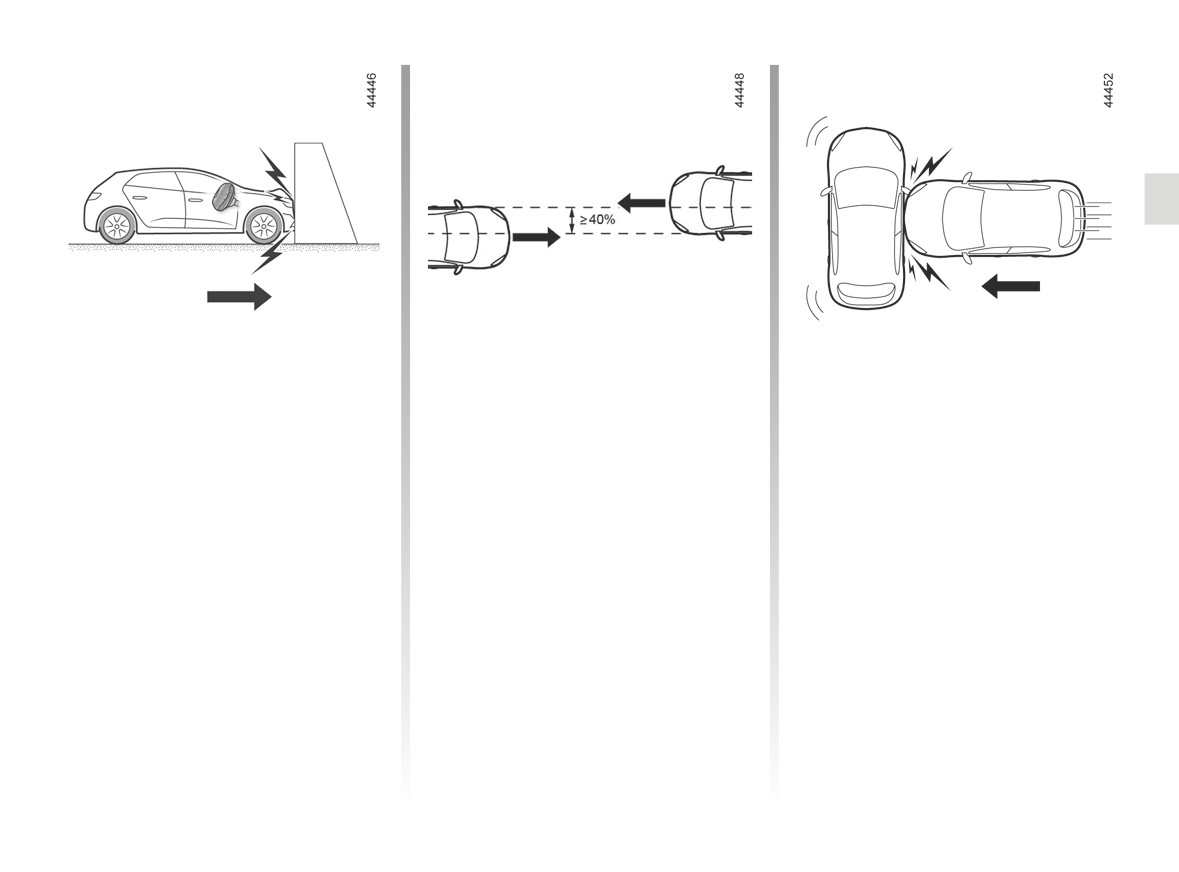

The following conditions will trigger

In a frontal impact with another vehi-

In a side impact with another vehicle

the pretensioners or airbags.

cle of an equivalent or higher category,

of an equivalent or higher category, at

with an impact area equal to or greater

an impact speed equal to or greater

In a frontal impact against a rigid

than 40%, where the speed of both ve-

than 31 mph (50 km/h).

(non-deformable) surface at an impact

hicles is equal to or greater than 25 mph

speed equal to or greater than 16 mph

(40 km/h).

(25 km/h).

1.31

CarManuals2.co

Content      ..      1       2         ..

//////////////////////////////////////////
