PARKING DISTANCE CONTROL (6/7)
System servicing/repairs
- In the event of an impact, the alignment of the sensors may be altered and their operation may consequently be affected.
Deactivate the function and consult an authorised dealer.
- Any work in the area where the sensors are located (repairs, replacements, etc.) must be carried out by a qualified profes-
sional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disrupt or damage the operation of the system, for example:
- poor weather conditions (rain, snow, hail, black ice, etc.);
- in the event of exposure to strong electromagnetic waves (under high-voltage lines, etc.);
- some types of noise (motorcycle, lorry, pneumatic drill etc.);
- fitting an unsuitable towing ball or hook.
Risk of false alarms or absence of warnings
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
2.124
CarManuals2.co
PARKING DISTANCE CONTROL (7/7)
Limitation of the system operation
- The area around the sensors must be kept clean and free of any modifications in order to ensure the proper operation of the
system.
- Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
- The system may not detect objects that are too close to the vehicle.
- The system may not provide a warning when the other vehicles or objects are travelling at a significantly different speed.
- During a change in trajectory, during a manoeuvre, the system may report obstacles with a delay.
- When the vehicle is towing a trailer, the rear Park Assist system must be deactivated.
Deactivating the function
You must disable the function if:
- the area around the sensors has been damaged (rear bumper);
- the vehicle is equipped with a towing device that is not recognised by the system (ball, hook, adapter, etc.).
2.125
CarManuals2.co
REVERSING CAMERA (1/3)
2
3
4
1
C
B
A

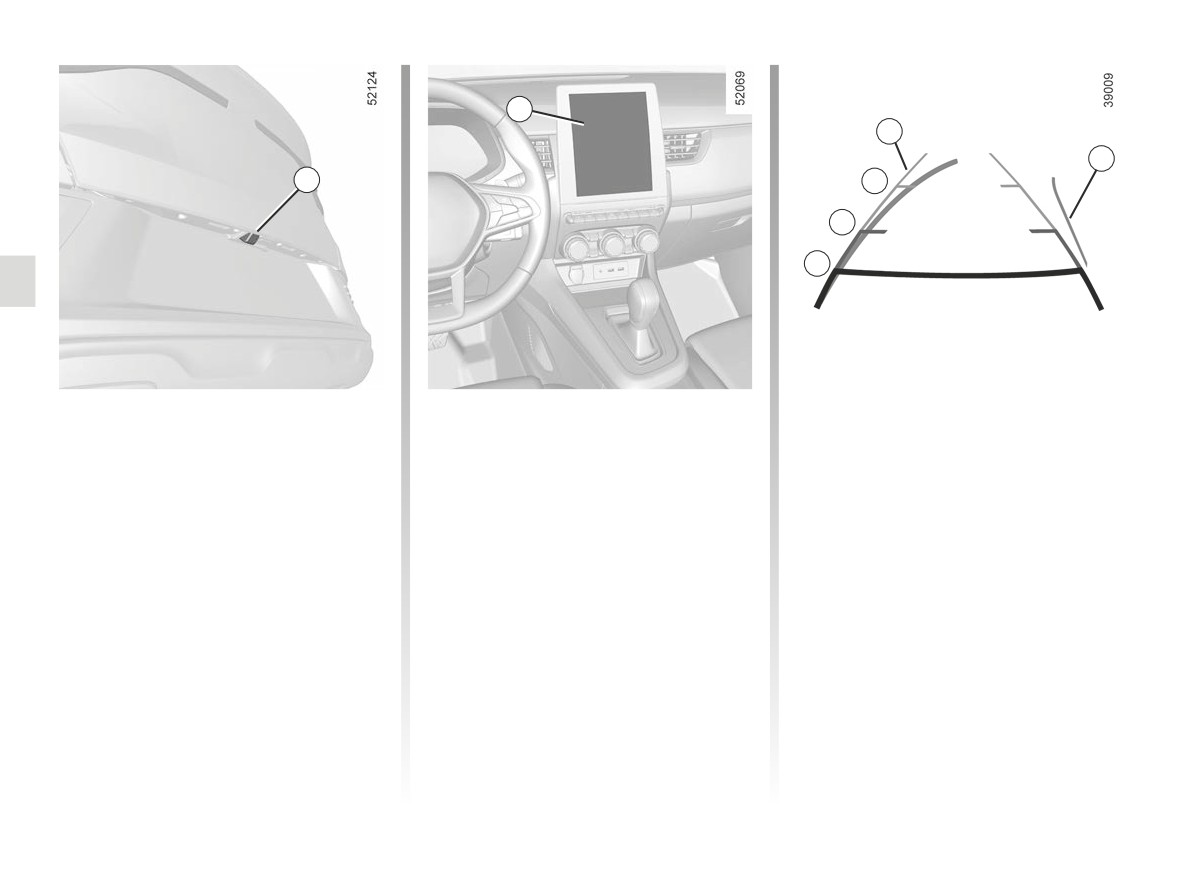

Operation
Fixed clearance gauge 3
4 moving guide line:
When the vehicle is reversing, the
The fixed clearance gauge comprises
This is shown in blue on the multime-
camera 1 on the luggage compart-
coloured markers A, B and C indicating
dia screen 2. It indicates the vehicle tra-
ment lid transmits a view of the area
the distance behind the vehicle:
jectory according to the position of the
surrounding the rear of the vehicle to
steering wheel.
- A(red) approximately 30 centimeters
the multimedia display 2 accompanied
from the vehicle;
by two guiding lines 3 and 4 (fixed and
Special feature
- B(yellow) approximately 70 centim-
mobile).
eters from the vehicle;
Make sure that the camera is not ob-
This system uses several guidelines for
- C(green) approximately 150 centim-
scured (by dirt, mud, snow, condensa-
its operation (mobile for trajectory and
eters from the vehicle.
tion etc.).
fixed for distance). When the red zone
is reached, use the bumper image to
This gauge remains fixed and indicates
stop accurately.
the vehicle trajectory if the wheels are
in line with the vehicle.
2.126
CarManuals2.co
REVERSING CAMERA (2/3)
2
The screen shows a reverse mirror
image.
The frames are a representation
projected on a flat surface. This in-
formation is to not be taken into ac-
count when superimposed on a
vertical object or an object on the
ground.
Objects which appear on the edge
of the screen may be deformed.
Settings
This function is an additional
In very bright light (snow, vehicle in
While the engine is running, from the
aid. It cannot, therefore,
sunshine, etc.), the camera vision
multimedia screen 2 you can add or
under any circumstances
may be adversely affected.
remove the guides and adjust the
replace the vigilance or the
camera image settings (brightness,
If the boot is open or poorly closed,
responsibility of the driver.
contrast etc.). Please refer to the mul-
the message
“WARNING: Boot
The driver should always be ready
timedia instructions for further informa-
Open” appears and the reversing
for sudden incidents while driv-
tion.
image could be disappeared.
ing: always ensure that there are
no small, narrow moving obstacles
(such as a child, animal, pushchair,
bicycle, stone, post, etc.) in the blind
spot when manoeuvring.
2.127
CarManuals2.co
REVERSING CAMERA (3/3)
H
F
G
D E
K J
H J K
3
D
E
3
F G

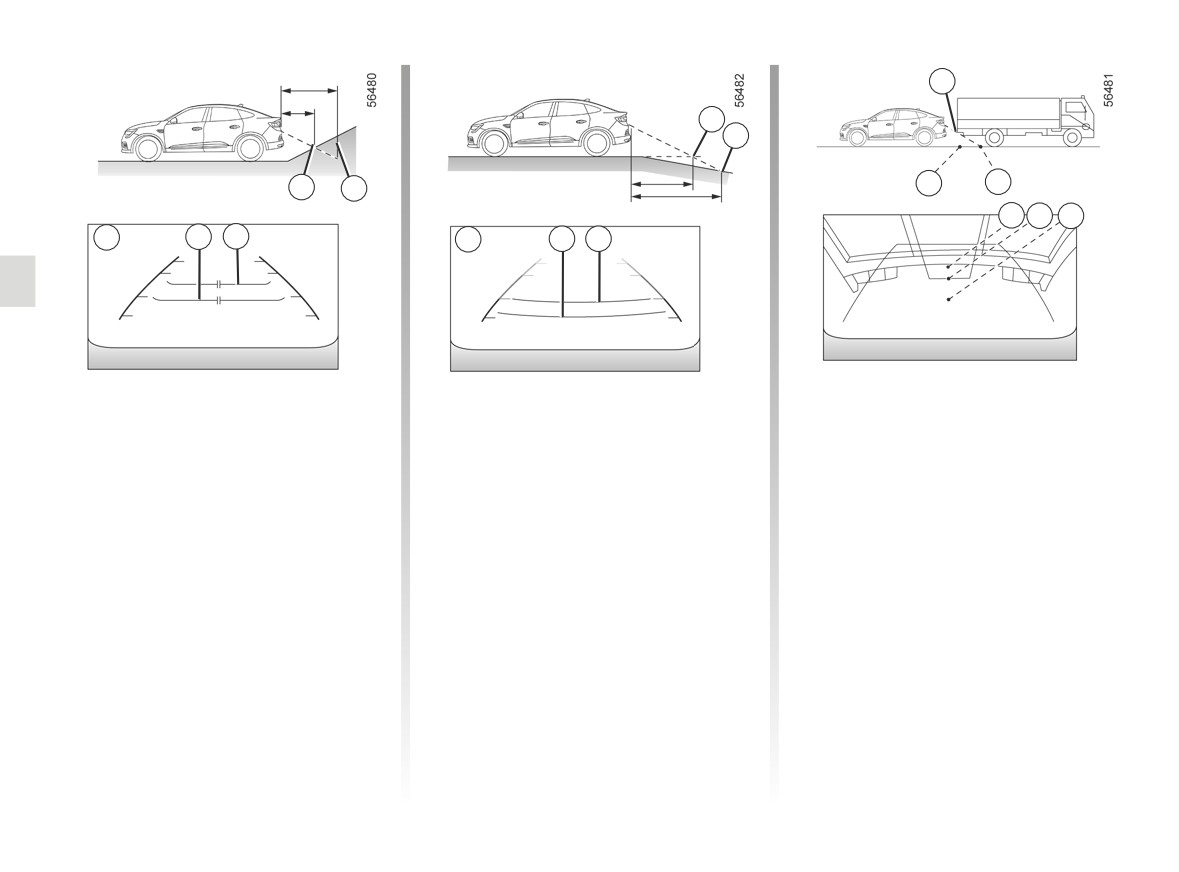

Difference between the
Reversing towards a steep downhill
Reversing towards a protruding
slope
object
estimated distance and
actual distance
The fixed guidelines 3 show the dis-
Position H seems further than posi-
tances as further than they actually are.
tion J on the screen. However, posi-
Reversing towards a steep uphill
tion H is at the same distance as posi-
Therefore, the objects shown on the
slope
tion K.
screen are actually closer on the slope.
The fixed guidelines 3 show the dis-
The trajectory indicated by the fixed
For example, if the screen displays an
tances as closer than they actually are.
and mobile guidelines do not take into
object at G, the actual distance of the
account the height of the object. So
The objects shown on the screen are
object is at F.
there is a risk that the vehicle may col-
actually further away on the slope.
lide with the object when reversing to-
For example, if the screen displays an
wards position K.
object at D, the actual distance of the
object is at E.
2.128
CarManuals2.co
PARKING EXIT WARNING (1/4)
A
B
B
B
B

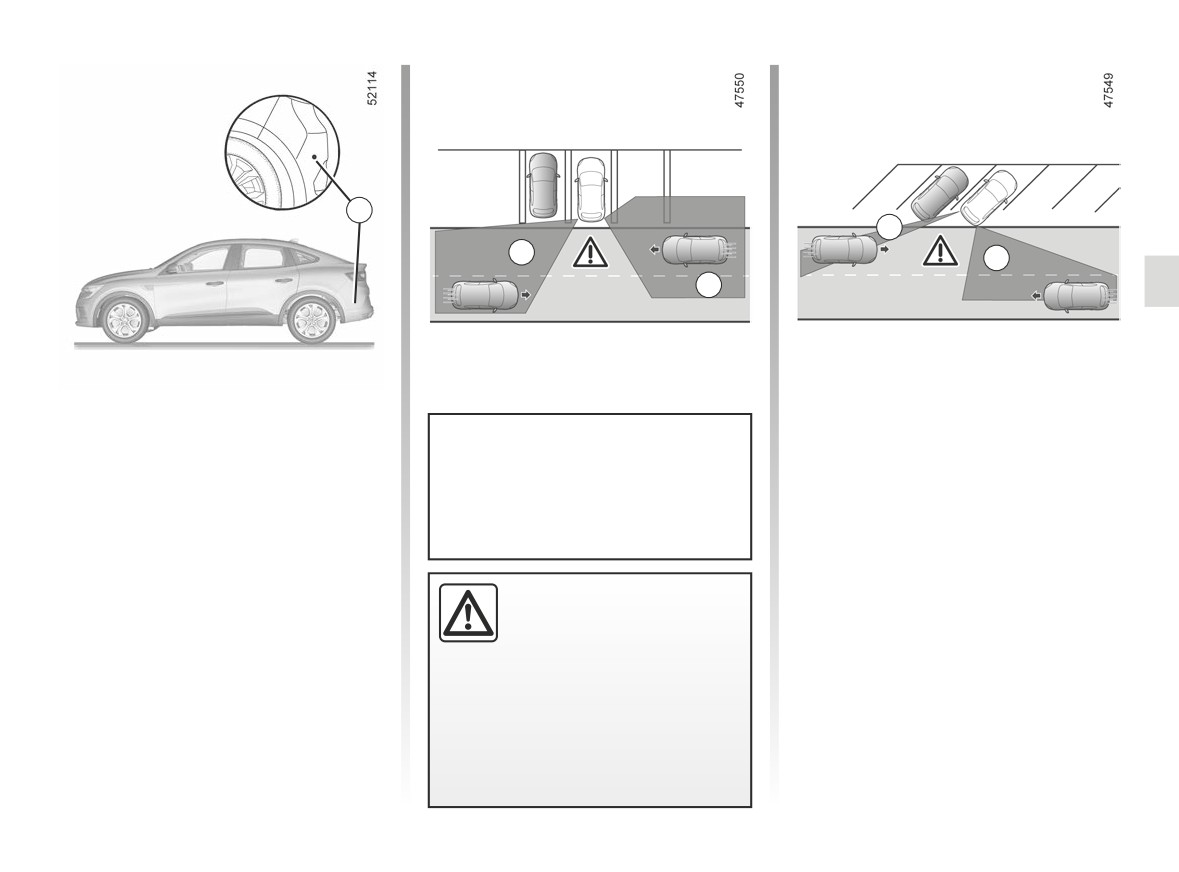

Using information from the radars in-
stalled on each side of the rear bumper
(area A), the system notifies the driver
The system’s detection capability
when another vehicle appears in the
depends on the vehicle’s surround-
detection zone B.
ings (static objects etc.) and the
The function is activated if:
condition of the bumper etc.
- reverse gear is engaged;
- the vehicle is stationary or driving at
a low speed.
This function is an addi-
tional driving aid. This func-
tion is not under any cir-
cumstances intended to
replace the due care and attention
of the driver, who should at all times
be in control of the vehicle.
2.129
CarManuals2.co
PARKING EXIT WARNING (2/4)
1
4
2
3

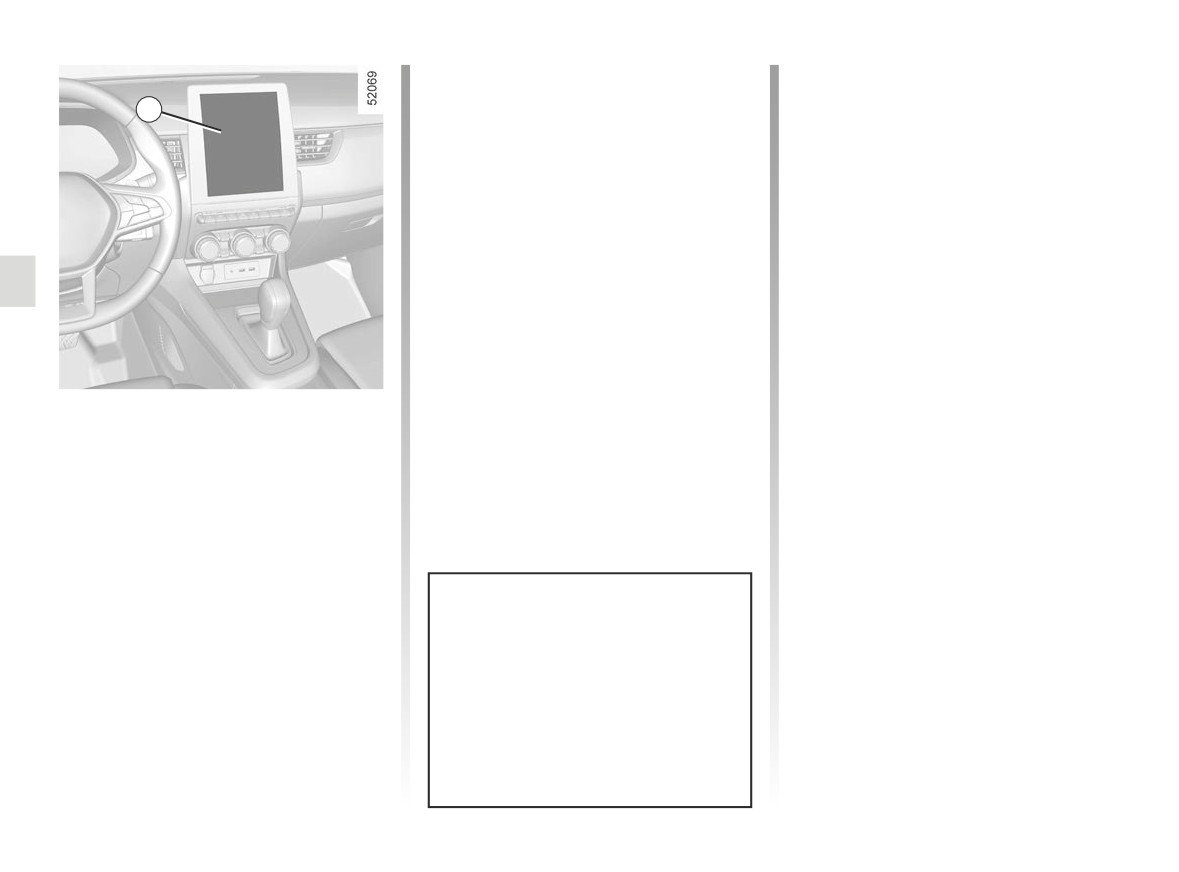

Activation/deactivation from
Operation

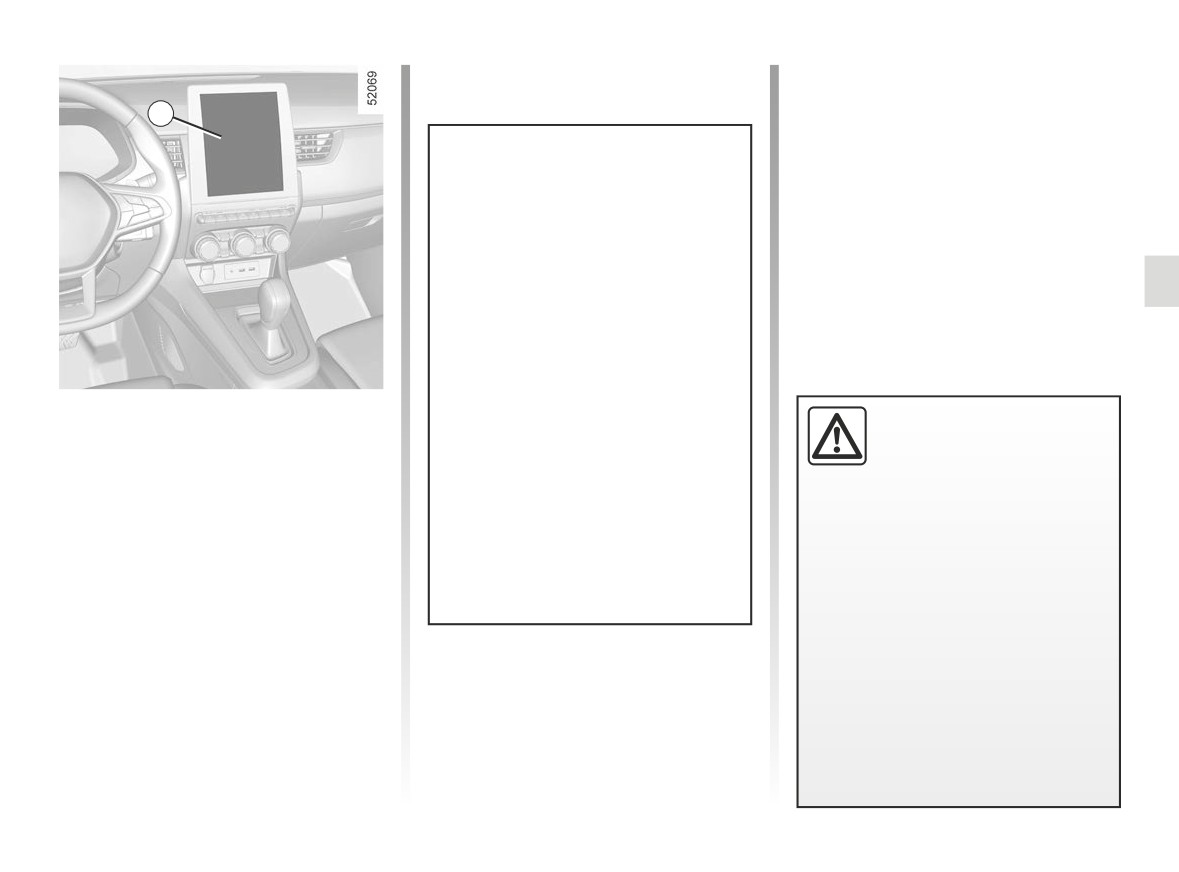

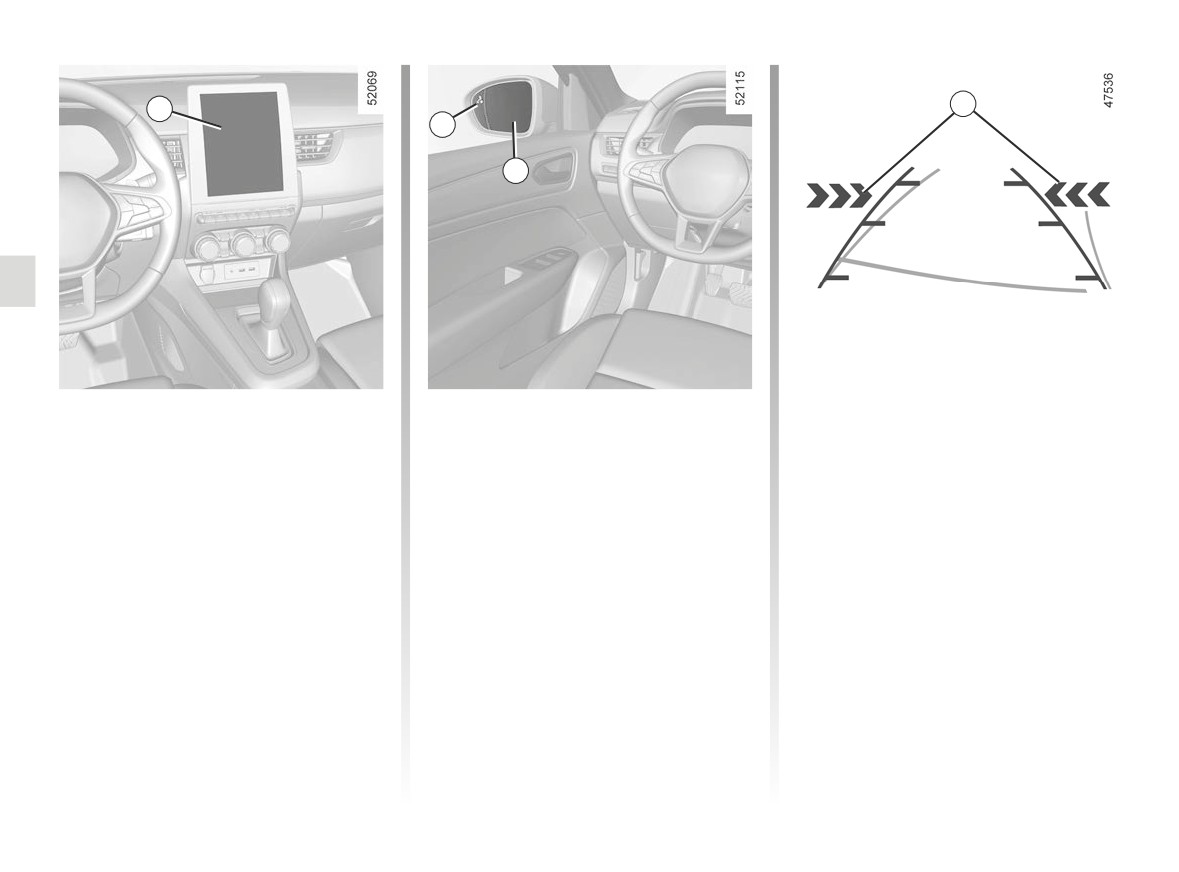

The indicators 4 on the multimedia
screen show you on which side the ap-
the multimedia screen 1
The function warns when a vehicle is
proaching vehicle has been detected.
To activate or deactivate the function,
in area B and approaching your vehicle
Note: clean the camera regularly so
refer to the multimedia instructions.
The indicator 2 is displayed on the door
that it is not obscured.
Select “ON" or “OFF".
mirror 3 on both side on which a vehicle
has been detected.
Indicators 2 and 4 are accompanied by
an audible signal when your vehicle is
Note: clean the rear view mirrors 3 reg-
reversing.
ularly so that the indicators 2 can be
seen.
2.130
CarManuals2.co
PARKING EXIT WARNING (3/4)
Operating faults
If the system detects a fault, the mes-
sage “Check Side radars” is displayed
on the instrument panel. Consult an ap-
proved dealer.
Limitation of the system operation
- The radar area should be kept clean and free of any modifications in
order to ensure the proper operation of the system.
- Small objects (motorcycles, bicycles, pedestrians etc.) moving towards to the
vehicle may not be recognised by the system.
Deactivating the function
You must disable the function if:
- the radar area A has been damaged (rear bumper);
Due to the presence of sensors
behind the bumper, it is advisable to
- the vehicle is fitted with a towbar that is not recognised by the system.
entrust any operation on the bumper
(repair, replacement, paintwork,
etc.) to a qualified professional.
2.131
CarManuals2.co
PARKING EXIT WARNING (4/4)
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care
and attention of the driver, who should at all times be in control of the vehicle.
The system should under no circumstances be taken to be an obstacle detector or an anti-collision system.
System servicing/repairs
- In the event of a impact, the position of the radars may be changed, affecting the function. Deactivate the function and con-
sult an authorised dealer.
- Any work in the area where the radars are located (repair, replacement, bodywork etc.) must be carried out by a qualified
professional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disrupt or damage the operation of the system, for example:
- a complex environment (underground car park, steel structures etc.) ;
- poor weather conditions (snow, heavy rain, hail, black ice etc.).
Risk of false alarms or absence of warnings
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
2.132
CarManuals2.co

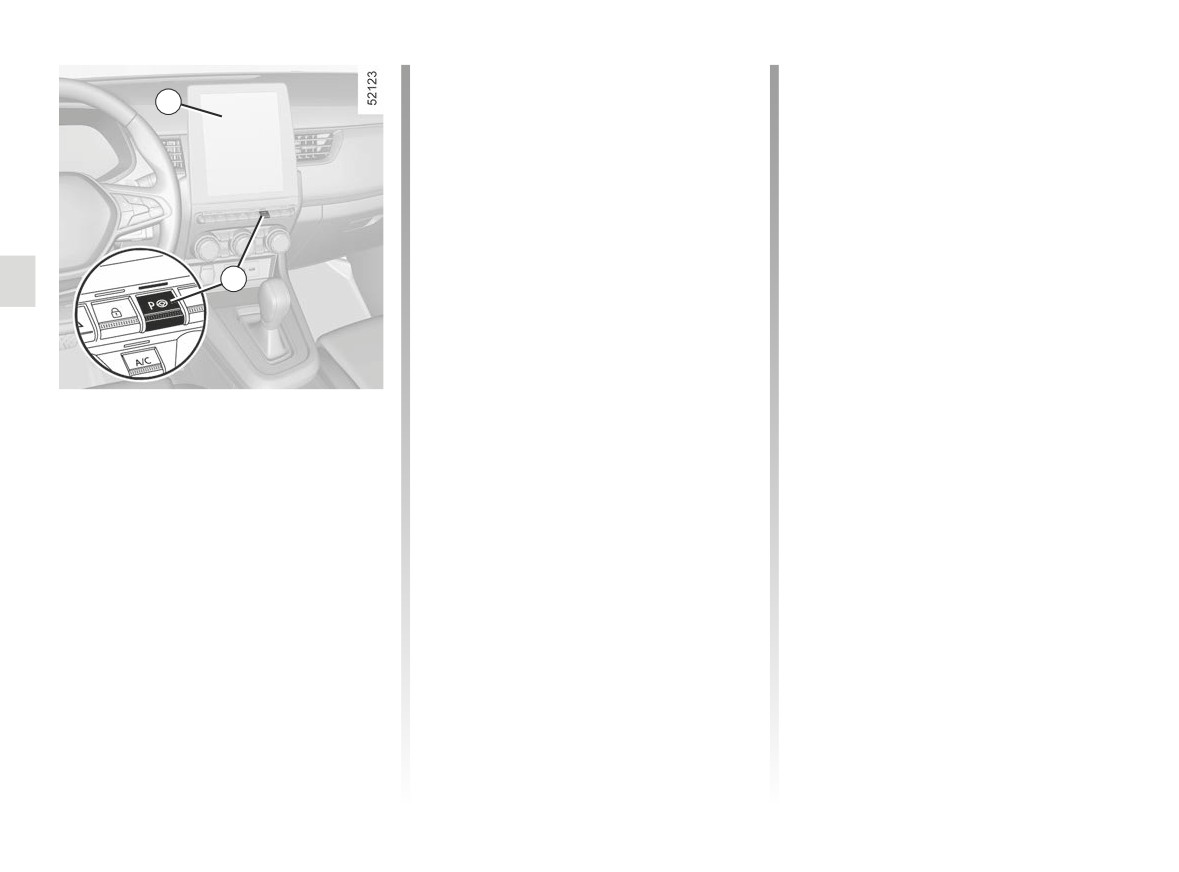

ASSISTED PARKING (1/5)
1
3
A
2

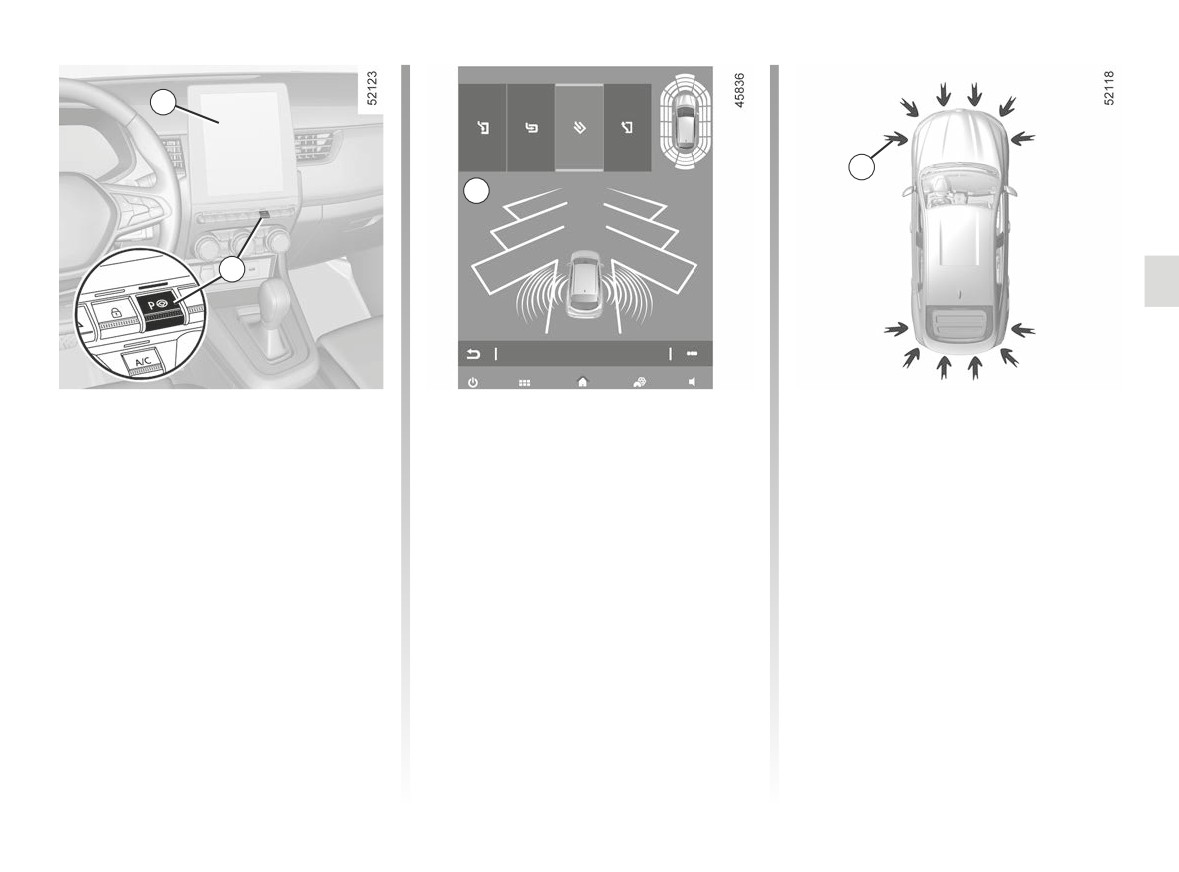

Using ultrasonic detectors as indicated
Switching on
Special features
by the 3 arrows installed in the vehicle
While the engine is running, vehicle
Ensure that the ultrasonic sensors indi-
bumpers, this function helps to find ac-
stationary or driving at less than ap-
cated by arrows 3 are not obscured (by
cessible parking spaces and assists in
proximately 19 mph (30 km/h):
dirt, mud, snow, etc.).
the parking manoeuvre.
- press switch 2. The warning light in-
Remove your hands from the steering
tegrated into the 2 switch lights up
wheel, you only control:
and the A display appears on the
- the accelerator pedal;
multimedia screen1;
- the brake pedal;
- set the direction indicator to the side
of the vehicle where you want to
- the gear lever.
park.
You can retake control at any time by
operating the steering wheel.
2.133
CarManuals2.co
ASSISTED PARKING (2/5)
Note: when starting the vehicle, or after
Operation
having successfully completed parallel
1
parking using the system, the default
Parking
manoeuvre proposed by the system is
As long as the vehicle speed is less
assistance in exiting a parallel parking
than 19 mph (30 km/h), the system
space. In other cases, the default ma-
searches for available parking spaces
noeuvre can be set from the multimedia
on the side of the vehicle chosen by the
screen 1. Please refer to the multime-
driver.
dia instructions for further information.
Note: if parking spaces are available
on the other side of the vehicle, set the
direction indicator to the other direc-
tion to enable the system to search for
spaces.
Once a space has been found, it is dis-
played on the multimedia screen, indi-
Choice of manoeuvre
cated by a small letter “P”. Drive slowly,
with the direction indicators activated
The system can perform four types of
on the side where the space is avail-
manoeuvres:
able, until the “Stop” message is dis-
- parallel parking;
played and a beep sounds.
- perpendicular parking;
- angle parking;
- moving out of a parallel parking
space.
From the 1 multimedia screen, select
the manoeuvre to carry out.
The system start up is accompa-
nied by activation of the parking dis-
tance control and, on those vehicles
equipped, the reversing camera to
help the driver visualise the ma-
noeuvre. ➥ 2.119, ➥ 2.126
2.134
CarManuals2.co
ASSISTED PARKING (3/5)
The space is then indicated on the mul-
- Release the steering wheel;
timedia screen by a capital letter “P”.
1
- carry out manoeuvres at the front
- Stop the vehicle;
and rear by following the instructions
shown on the multimedia screen 1
– select reverse gear.
and using the parking distance con-
trol system alerts.
The indicator light
lights up
on the instrument panel and a beep
Your speed should not exceed around
sounds.
4 mph (7 km/h).
- Release the steering wheel;
Once the vehicle is in a position to exit
2
- follow the instructions shown on the
the parking space, the
warning
multifunction screen 1.
light disappears from the instrument
Your speed should not exceed around
panel and a sound signal and message
4 mph (7 km/h).
appear on the multimedia screen 1 to
confirm that the manoeuvre is com-
Exiting a parallel parking space
plete.
Once the warning light
on the
instrument panel goes off and a beep

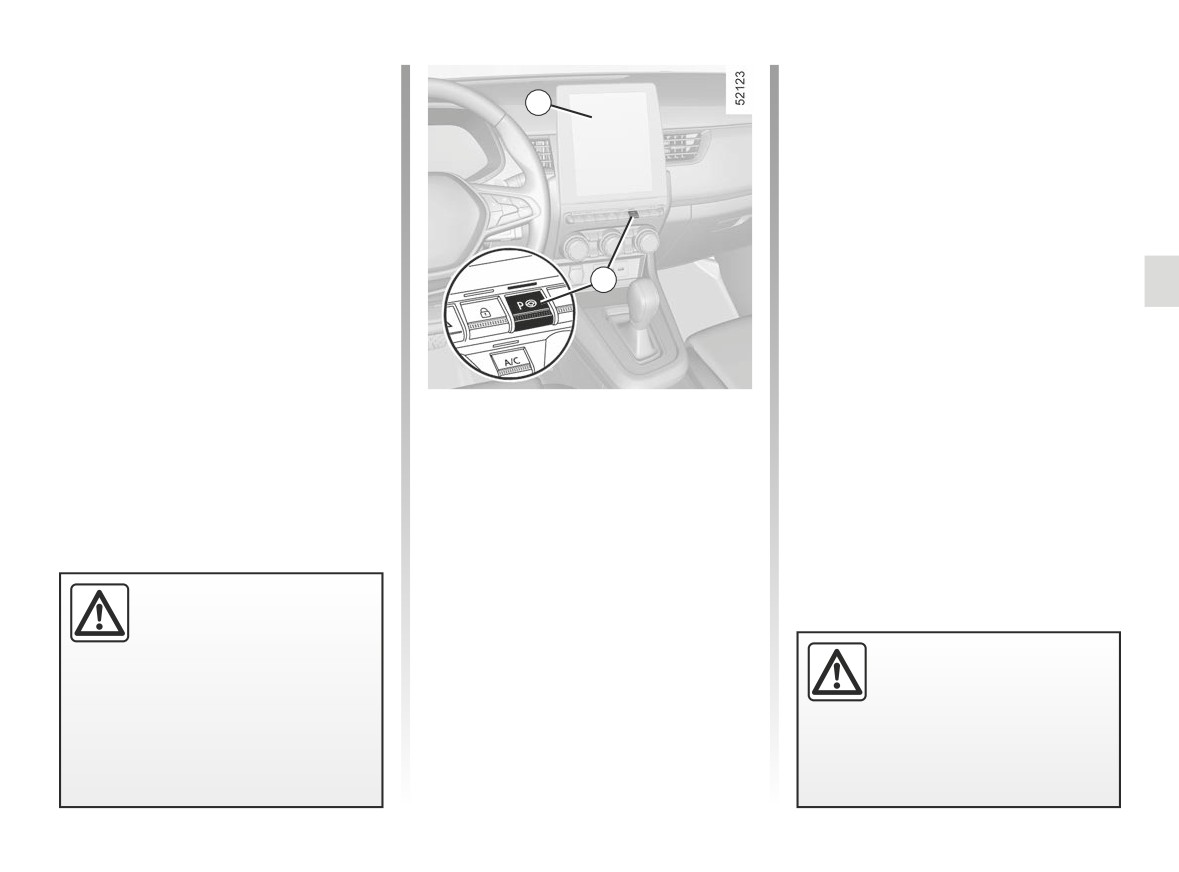

- Briefly press the 2 switch;
sounds, the manoeuvre has been com-
- Select the “Exit
pleted.
parallel parking space” mode;
- set direction indicator
to the side on which you wish
the vehicle to exit;
- press and hold the
switch 2 (around two seconds).
This function is an addi-
tional driving aid.
The indicator light
lights
up
Therefore, it can under no
on the instrument panel and a beep
When manoeuvring, the
circumstances replace the
sounds.
steering wheel may turn
driver’s vigilance and responsibility
quickly: do not put your
during manoeuvres (the driver must
hands inside, and make
always be ready to brake).
sure that nothing is caught inside.
2.135
CarManuals2.co
ASSISTED PARKING (4/5)
The warning light on the 2 switch turns
Cancelling the manoeuvre
1
off and the
warning light disap-
The manoeuvre is cancelled in the fol-
pears from the instrument panel and a
lowing cases:
sound signal confirms that the manoeu-
- the vehicle speed has exceeded 4
vre has been suspended. The reason
mph (7 km/h);
for suspending the manoeuvre will be
- by pressing switch 2;
displayed on the multimedia screen 1.
- you have performed more than ten
Make sure:
forwards/backwards movements in
- you have released the steering
one manoeuvre;
2
wheel;
- the parking distance control sensors
and
are dirty or blocked;
- that all doors and the boot are closed;
- the vehicle wheels have skidded;
and
- the manoeuvre has been suspended
- that no obstacles are in the way of
Suspending/Resuming the
for too long.
the direction of movement;
manoeuvre
The 2 switch warning light and the
and
The manoeuvre is suspended in the fol-
- that the engine is started.
warning light disappear from the
lowing circumstances:
If the warning light on the 2 switch
instrument panel and a sound signal
- you take control of the wheel;
flashes, this indicates that the system
confirms that the manoeuvre has been
is once again available to resume the
cancelled. The reason for cancelling
- the vehicle is stationary for too long;
manoeuvre.
the manoeuvre will be displayed on the
- an obstacle in the direction of move-
multimedia screen 1.
To resume the manoeuvre, press and
ment prevents the manoeuvre from
hold the 2 switch. The 2 switch warning
being completed;
- the engine stops;
light appears and
is displayed
on the instrument panel.
- a door or the luggage compartment
is opened.
Follow the instructions shown on the
multimedia screen 1.
2.136
CarManuals2.co
ASSISTED PARKING (5/5)
This function is an additional driving aid. This function is not under any circumstances intended to replace the due care
and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies
with the applicable traffic regulations in your location.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow
moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, towing equipment, etc.) in the blind spot when
manoeuvring.
System servicing/repairs
- In the event of an impact, the alignment of the sensors may be changed and their operation may consequently be affected.
Deactivate the function and consult an authorised dealer.
- Any work in the area where the sensors are located (repairs, replacements, exterior trim modifications, etc.) must be carried
out by a qualified professional.
Only an authorised dealer is qualified to service the system.
In the event of system disturbance
Certain conditions may disrupt or impair operation of the system, such as poor weather conditions (snow, hail, ice, etc.).
In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.
Risk of erroneous false alarms.
Limitations of the system operation
- The system cannot detect objects located in the sensor blind spots.
- Always visually check that the parking space proposed by the system is still available and contains no obstacles.
- The system should not be used when towing a trailer or when there is a towing or load carrying system on the vehicle or on
surrounding vehicles.
2.137
CarManuals2.co
AUTOMATIC GEARBOX, MANUAL LEVER (1/4)
Driving in automatic mode
1
Put lever 1 into position D.
In most road conditions you will en-
counter, you will not need to touch your
lever again: the gears will change au-
tomatically at the right time and at the
2
most suitable engine speed because
3
the automatic system takes into ac-
count the vehicle load and road contour
and adjusts itself to the particular driv-
ing style you have chosen.
Economical driving
4
When driving, always leave the lever
in position D, keeping the accelerator

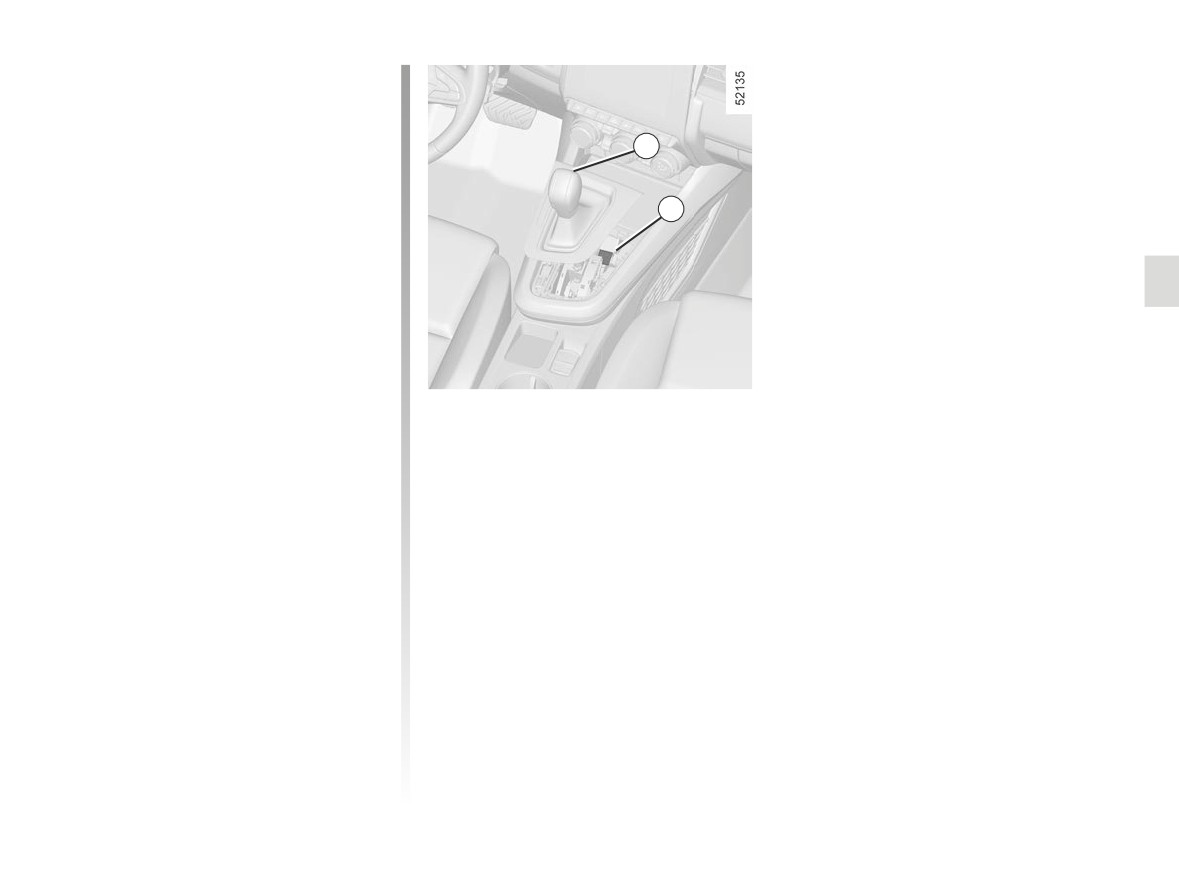

Selector lever 1
Operation
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
P: park
With gear lever 1 in position P, start the
speed.
engine.
R: reverse
To move out of position P, you must de-
Accelerating and overtaking
N: Neutral
press the brake pedal before pressing
Depress the accelerator pedal firmly
D: automatic mode
the unlocking button 2.
and fully.
The 4 display on the instrument panel
With your foot on the brake pedal
This will enable you to change down
shows the position engaged by the se-
(warning light 3 on the display goes
to the optimum gear within the
lector lever 1 or displays the gear en-
out), move the lever out of position P.
engine range.
gaged in manual mode.
Only engage D or R when the vehi-
Note: Press the 2 button to exit posi-
cle is stopped, with your foot on the
tion P or to shift from position D or N to
brake and the accelerator pedal re-
position R or P.
leased.
2.138
CarManuals2.co
AUTOMATIC GEARBOX, MANUAL LEVER (2/4)
Driving in manual mode
When driving in position D you can
switch to manual driving mode using

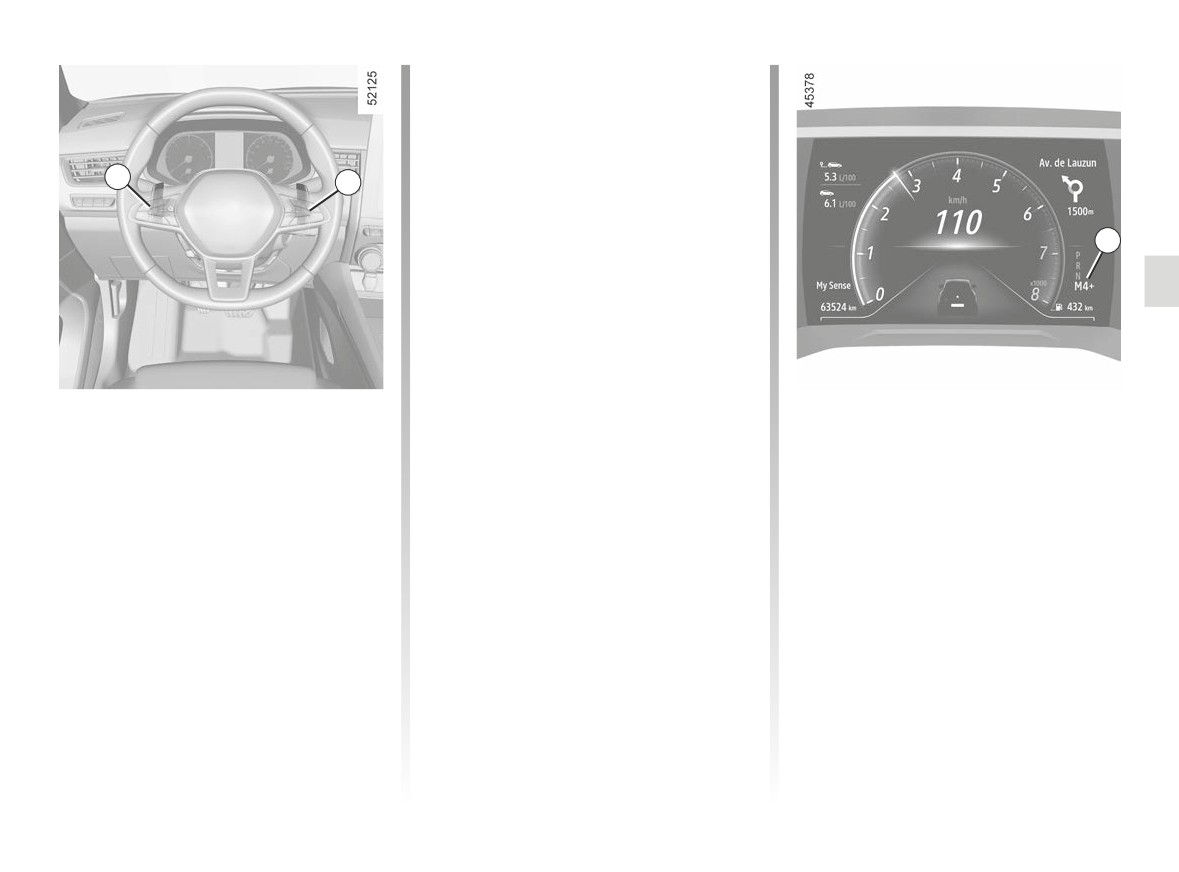

paddles 5 and 6 on the steering wheel.
Depending on the vehicle, two manual
5
6
driving modes are available:
- the
“temporary” manual mode
can be used to force gear shifting by
7
briefly pressing one of the two pad-
dles. the driving mode D and the
gear engaged appear on the instru-
ment panel.
Note: the gearbox returns to auto-
matic mode D automatically if the
gear engaged is no longer optimal to
Gear changing paddles 5
Note: return to automatic mode by
vehicle performance or if no action
pressing and holding the right-hand
and 6
was taken on a paddle for a certain
paddle. Automatic mode D is dis-
amount of time.
Depending on the vehicle, you can use
played on the instrument panel.
paddles 5 and 6 to shift gear when the
- permanent manual mode is acti-
In all situations:
lever is in position D.
vated by pressing and holding either
of the paddles. Driving mode M
- to move down through the gears,
5: Change to a lower gear.
and the gear engaged will appear
press the left-hand paddle;
6: Change to a higher gear.
on the 7 display on the instrument
- to move up through the gears, press
P, N and R are not accessible using the
panel.
the right-hand paddle.
paddles.
Note: push the center of the paddles,
not the upper end when using it.
2.139
CarManuals2.co
AUTOMATIC GEARBOX, MANUAL LEVER (3/4)
Special cases
Special circumstances
Parking the vehicle
In certain driving conditions
(result-
- If the road type or weather condi-
When the vehicle is stopped, move the
ing in, for example, engine protection,
tions
(steep uphill slopes, sudden
lever to position P while keeping your
operation of the Electronic Stability
downhill slopes, deep snow, sand
foot on the brake pedal: the gearbox is
Control programme: ESC etc.) the au-
or mud) make it difficult to stay in
in neutral and the drive wheels are me-
tomated system may change the gear
automatic mode, depending on the
chanically locked by the driveshaft.
automatically.
vehicle, it is advisable to switch to
Ensure that the electronic parking
manual mode using the paddles.
Likewise, to prevent incorrect manoeu-
brake is engaged.
This will prevent the automatic gear-
vres, a gear change may be refused by
box from changing gears repeatedly
the automatic system: in this case the
when climbing, and permit engine
gear display flashes for a few seconds
braking on long descents.
as a warning.
- In cold weather, to prevent the
engine from stalling, wait a few sec-
onds before moving the selector
Position P must only be engaged
lever from position P or N and en-
when the vehicle comes to a com-
gaging it in D or R.
plete stop.
An impact to the under-
side of the vehicle while
manoeuvring
(e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
When facing uphill, to remain
For safety reasons, do not
your vehicle checked by an ap-
stopped, do not keep your foot on
switch off the ignition before
proved Dealer.
the accelerator.
the vehicle has come to a
Risk of overheating the automatic
complete standstill.
gearbox.
2.140
CarManuals2.co
AUTOMATIC GEARBOX, MANUAL LEVER (4/4)
Maintenance period
Refer to the maintenance document
for your vehicle or consult an Approved
Dealer to check whether the automatic
8
gearbox requires scheduled mainte-
nance.
If it does not need to be serviced, there
9
is no need to top up the oil.
Operating faults
- when driving, if the message
“WARNING: Check Gearbox” ap-
pears on the instrument panel, it indi-
cates a failure.
Contact your approved Dealer as
When setting off, if the lever is stuck in
soon as possible;
P when you press the brake pedal (e.g.
battery fault), it is possible to manually
- when driving, if the message
release the lever to unblock the drive
“WARNING: Gearbox Overheating”
wheels. To do this, unclip the base of
appears on the instrument panel,
the gaiter and press the 9 button while
stop as soon as possible to let the
simultaneously pressing the 8 button
gearbox cool down and wait for the
on the lever to unlock the lever and shift
message to disappear;
to position N.
- Troubleshooting on a vehicle with
Contact an authorised dealer as soon
an automatic gearbox ➥ 5.30.
as possible.
2.141
CarManuals2.co

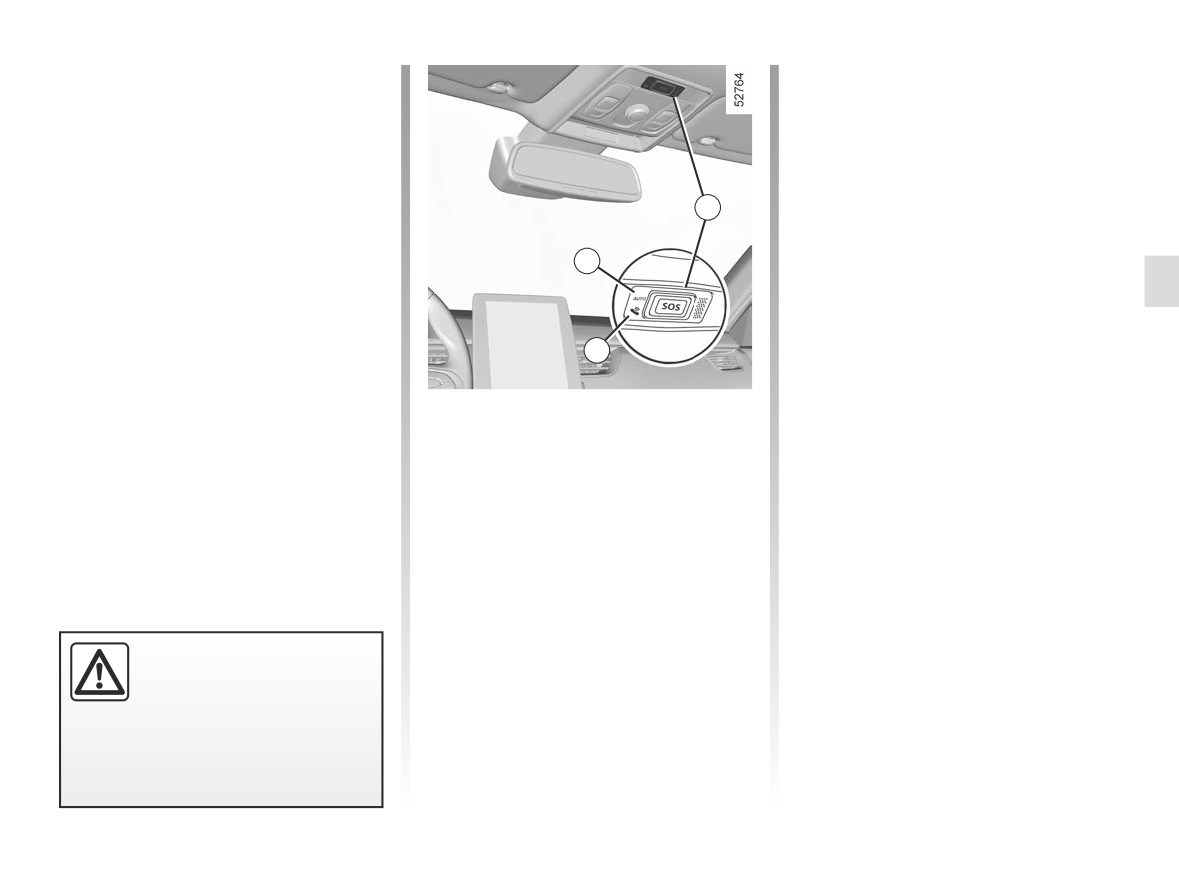

EMERGENCY CALL (1/3)
If the vehicle is equipped, the emer-
gency call function can be used to
call the emergency services (without
charge) automatically or manually in
the event of an accident or illness, re-
ducing the time it takes for the emer-
gency services to arrive.
3
Note: the emergency call operates:
- in countries covered by the associ-
2
ated telematics emergency services
and infrastructure compatible with
5
the system;
- depending on the network coverage
1
in the geographical region where the
4
vehicle is being driven.
1

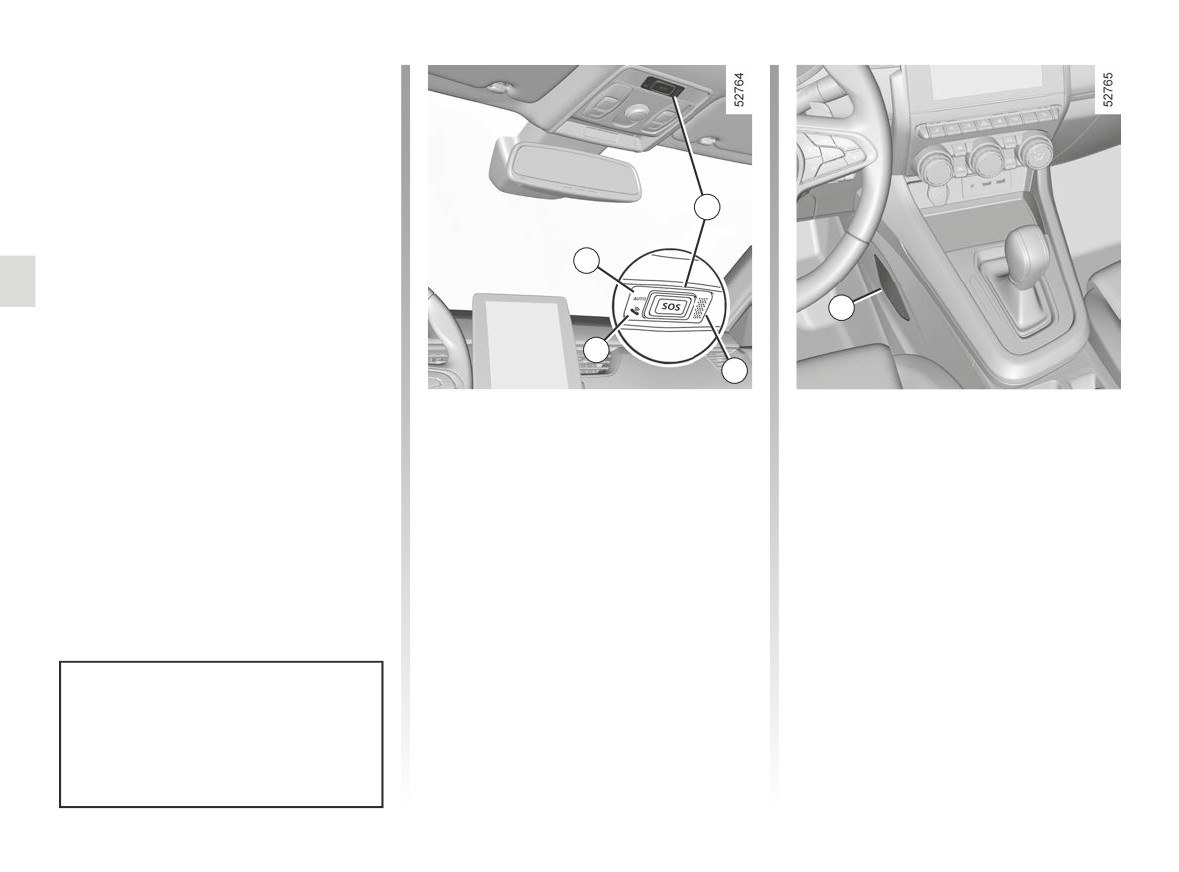

System operation warning light:
A call is always made as follows:
If you use the emergency call function
to report an accident which you have
– green: operational
- the call is set up with the emergency
witnessed, this implies stopping where
services;
(network available);
traffic conditions allow in order for the
- send data related to the incident (ve-
- off: non-operational
emergency services to locate your ve-
hicle identification plate, local time
hicle and therefore the location of the
(network unavailable);
of the call, last positions, direction of
reported accident.
the vehicle);
- red: operating fault;
In all cases, comply with local legisla-
- voice communication with the emer-
- green flashing: call in progress.
tion.
gency services;
2
Automatic mode warning light;
- if necessary, emergency assistance
3
SOS button;
is called.
4
Microphone;
Emergency call has two modes:
5
Speaker.
Use the emergency call only in the
– automatic mode;
event of an emergency you are in-
– Manual mode.
volved in, if you witness an accident
or if you feel ill.
2.142
CarManuals2.co
EMERGENCY CALL (2/3)

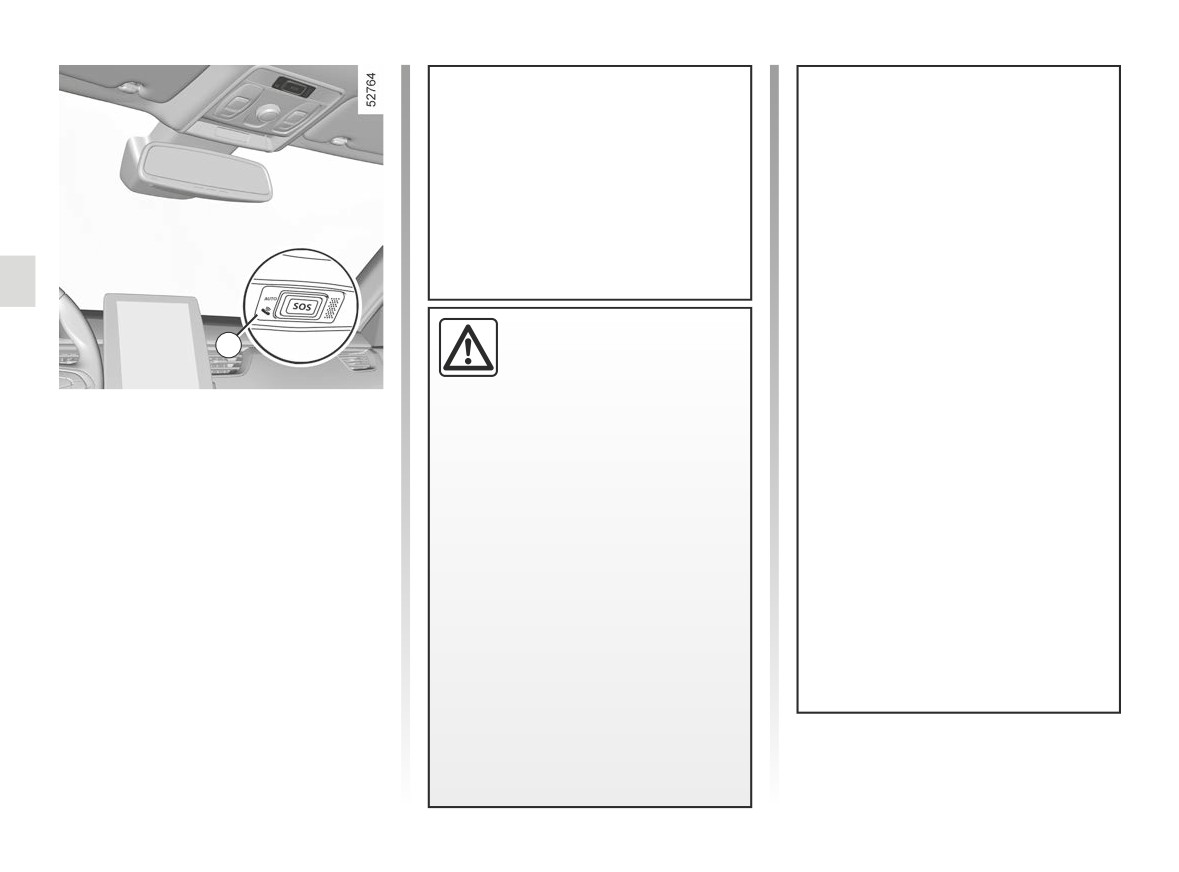

Automatic mode
In the event of unintended operation, it
is possible to cancel the call by press-
If the automatic mode 2 warning light
ing the 3 button for around two sec-
appears in green this confirms that the
onds, before the call is connected to
automatic system is activated.
the call centre.
The emergency call starts automati-
Once a call is established, only the call
cally in the event of an accident that
3
centre can end the call.
has required the activation of the pro-
tective equipment (seat belt pretension-
Test mode
ers, airbag etc.).
2
(depending on local laws)
Test mode is reserved exclusively for
Approved Dealers to check that the
emergency call feature is working prop-
1
erly.
To activate test mode:
Manual mode
- briefly press the 3 button three times;
The emergency call is carried out by:
- wait approximately 15 seconds;
- pressing and holding the 3 button for
- briefly press the 3 button three times.
at least three seconds;
Exit from test mode is automatic.
or
- pressing the
3 button five times
within ten seconds.
In the event of an acci-
dent, if the location and traf-
fic conditions permit, stay
close to the vehicle in order
to be able answer the call centre
quickly if necessary.
2.143
CarManuals2.co
EMERGENCY CALL (3/3)
The system operates with a dedi-
cated battery. The battery service
life is approximately four years
(the
1 warning light lights up in
red to warn you when approaching
Without the emergency call feature,
expiry).
the system is not trackable and will
Consult an approved dealer
not be under constant surveillance.
Data is automatically and constantly
erased, and the system stores only
the last three positions of the vehi-
To guarantee your safety
cle.
1
and the proper operation of
Data is only sent in the event of an
the system, any operation
emergency call. Data sent to the call
carried out on the battery
centre is treated according to the
Operating faults
(removal, disconnection, etc.) must
personal data protection laws appli-
In some cases, the emergency call may
be carried out by a qualified special-
cable in the country where you are
not work (e.g. low battery).
ist.
located. The system stores activity
When the system detects an operating
Risk of serious burns or electric
history data for 13 hours only.
fault, the 1 warning light turns red for
shocks.
The vehicle owner has the right of
over 30 minutes; consult an Approved
You must respect the replacement
access to their data. They can re-
Dealer as soon as possible.
intervals (without exceeding them)
quest that the data be corrected,
as stated in the maintenance docu-
deleted or locked.
ment.
The battery is a specific type.
Please ensure it is replaced with the
same type.
Call an approved Dealer.
2.144
CarManuals2.co
Section 3: Your comfort
Multi-Sense
3.2
Air Vents
3.3
Manual air conditioning, heating system
3.5
Automatic climate control
3.9
Air conditioning: information and advice on use
3.13
Multimedia equipment
3.15
Electric windows
3.18
Electric sunroof
3.20
Sun visor
3.23
Éclairage intérieur
3.24
Passenger compartment storage, fittings
3.26
Accessories socket
3.30
Rear headrests
3.31
Rear bench seat: functions
3.32
Luggage compartment
3.33
Rear parcel shelf
3.34
Luggage compartment storage
3.35
Transporting objects in the luggage compartment
3.36
Transporting objects: towbar
3.37
Roof bars, antenna
3.38
3.1
CarManuals2.co
MULTI-SENSE
The MULTI-SENSE system enables a
Eco mode
choice between three driving modes
Eco mode focuses on energy saving.
1
that can be used to control, depending
The steering is smooth, engine and
on the vehicle: driving, ambient lighting,
gearbox management enable fuel con-
comfort and engine sound:
sumption to be lowered. Air condition-
ing and heating are managed so that
- the Eco and Sport modes are pre-
they are used only when necessary.
configured and can be partially cus-
➥ 2.19.
tomised (ambient lighting, etc.);
- the My Sense mode is customisable.
2
Sport mode
The drive modes affect the:
This mode enables an increased re-
- power-assisted steering;
sponsiveness from the engine and the
gearbox. The steering is firmer.
- the response of the engine and gear-
box.
They also affect the:
My Sense mode
Using standard default vehicle settings,
Accessing the menu
- the lighting in the passenger com-
this mode can be used to manually con-
You can access MULTI-SENSE, de-
partment and of the instrument
figure driving, ambient lighting, comfort
pending on the vehicle:
panel;
and engine sound (depending on the

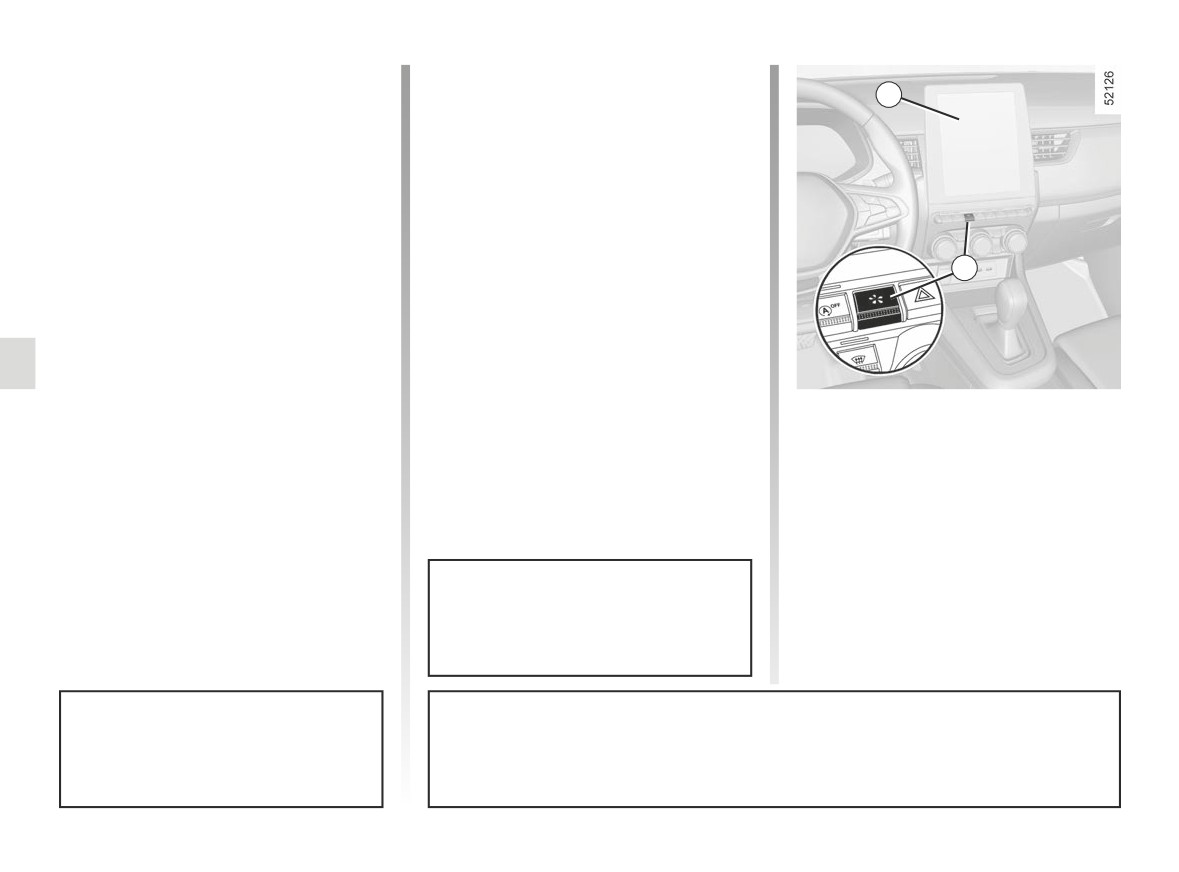

- from the multimedia screen 1;
- the information on the instrument
vehicle).
- using the 2 switch.
panel;
Please refer to the multimedia instruc-
- depending on the vehicle, the engine
tions for further information.
sound.
After the engine is switched off, the
vehicle will always restart in My
Sense mode.
In any mode, you can change the colour of the ambient lighting as well as the
Engine settings are specific to each
format of the information displayed on the instrument panel and multimedia
of the driving modes and cannot be
screen.
customised.
You can also reset to the default settings.
3.2
CarManuals2.co
AIR VENTS, air outlets (1/2)
3
2
1
2
4
1
5
6
7
5
5 Footwell heater outlets for front
passengers
1
Side air vents
6
Control panel
2 Demister outlets for side windows
8
7 Footwell heater outlets for rear
3 Windscreen demisting vents
passengers (depending on the
4
Centre air vents
vehicle)
8
Rear console air vents
3.3
CarManuals2.co
AIR VENTS, air outlets (2/2)
9
9
1
9
8
7
4
Central 4, side 1 and rear air
Rear seats
vents 8
(depending on vehicle)
Passenger footwell heater outlets 8.
Air flow
To close: move the cursor 9 towards the
outside of the vehicle beyond the resist-
ance point.
To open: move the cursor 9 towards the
inside of the vehicle.
Direction
Do not add anything to the
Move the cursor 9 to the desired posi-
vehicle’s ventilation circuit
tion.
(for example, to remove
bad odours).
Do not attach any objects to the air
vents (e.g. telephone mounting).
There is a risk of damage or of
fire.
Risk of damage.
3.4
CarManuals2.co
MANUAL AIR CONDITIONING, HEATING SYSTEM (1/4)
The air conditioning system is used
for:
2
3
4
5
1
6
- lowering the temperature inside the
passenger compartment;
- eliminating condensation more
quickly.

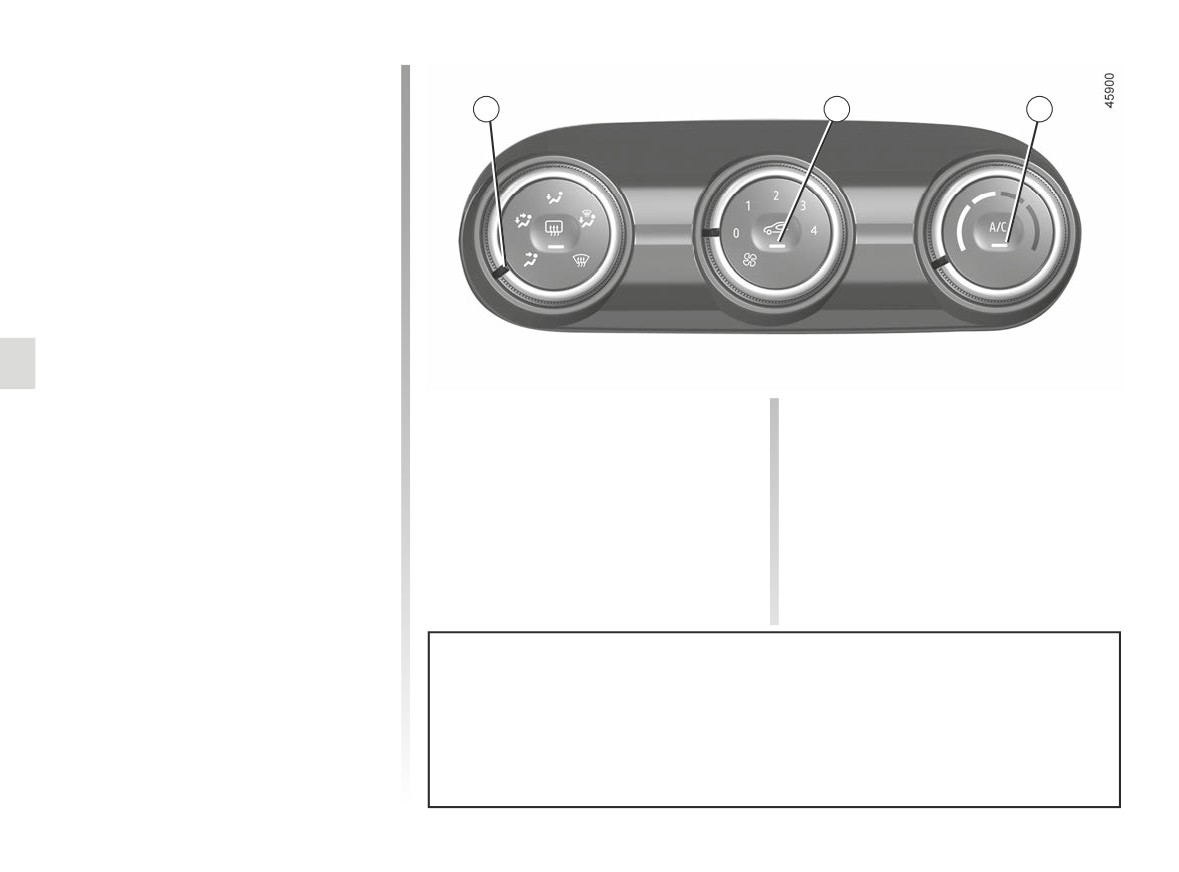

The controls
Switching air conditioning on
(depending on vehicle)
or off
1 Distribution of air in the passenger
The air conditioning is switched on (in-
compartment.
dicator light on) or off (indicator light off)
2 De-icing/demisting of the rear screen
using button 6.
and, depending on the vehicle, the
Activation is not possible if the 3 control
rear view mirrors.
is set to “0”.
3 Adjusting the ventilation fan speed.
4 Air recirculation.
5 Adjusting the air temperature.
6 Air conditioning.
3.5
CarManuals2.co
MANUAL AIR CONDITIONING, HEATING SYSTEM (2/4)

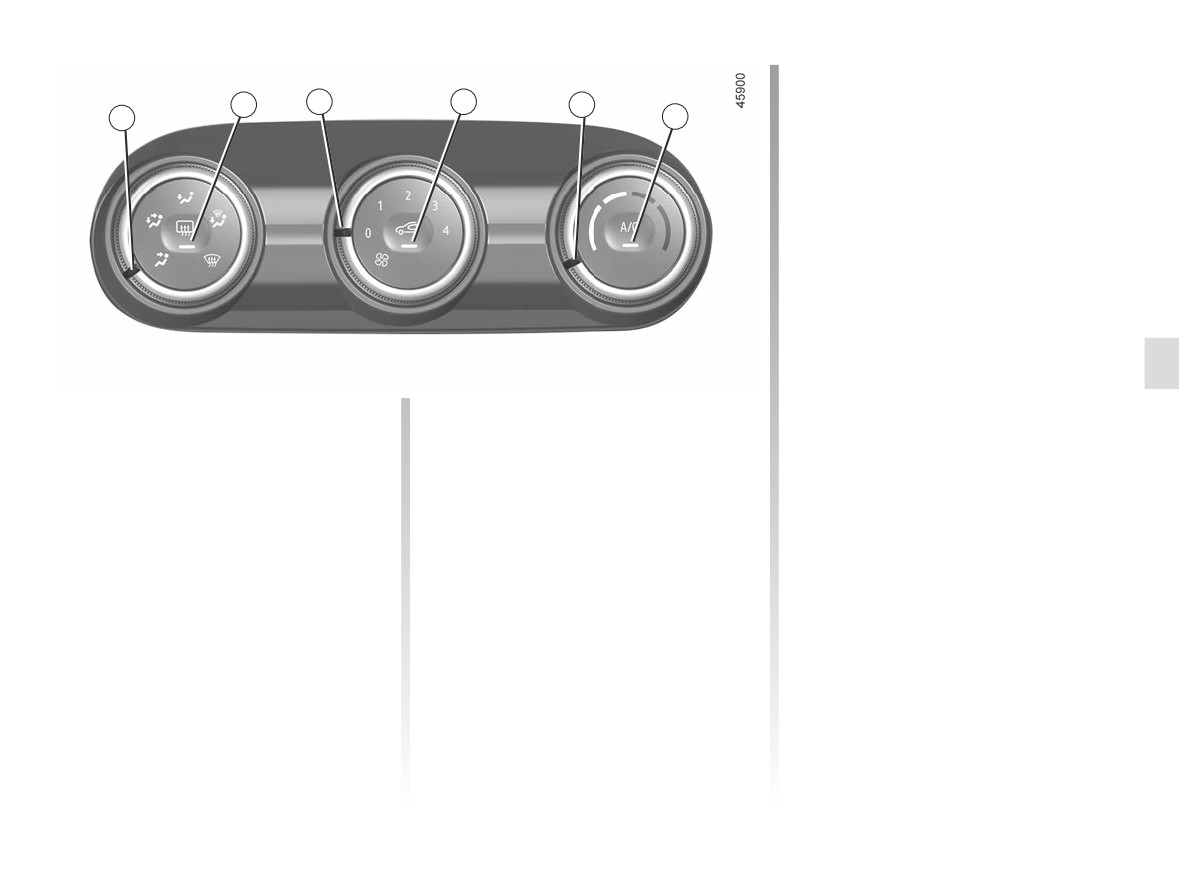

Distribution of air in the
passenger compartment
1
4
6
There are five air distribution options.
Turn control 1 to choose the distribution
option.
The air flow is directed to the
W
windscreen and the front side
window demisting vents.
The air flow is distributed be-
tween front side window de-
misting vents, the windscreen demist-
ing vents and the footwells.
The air flow is directed mainly
towards the footwells.
Switching the air
Air recirculation is for:
The air flow is directed towards
the dashboard air vents, the
recirculation on
- isolating the vehicle from the exter-
front footwells and, depending on the
nal atmosphere (driving in polluted
Press the 4 button: the integrated indi-
vehicle, the second row footwells.
areas, etc.);
cator light comes on. Under these con-
The air flow is mainly directed
ditions, air is taken from the passenger
- lowering the passenger compart-
J
to the dashboard air vents.
compartment and is recirculated, with
ment temperature as quickly as pos-
no air being taken from outside the ve-
sible.
hicle.
If the air conditioning is not activated (“A/C” light on the 6 switch off), prolonged
use of recirculated air may cause mist to form on the side windows and wind-
screen as well as other problems due to the presence of non-recirculated air in
the passenger compartment. We therefore advise you to return to normal mode
(external air) as soon as the air recirculation function is no longer required, by
pressing button 4 again.
3.6
CarManuals2.co
MANUAL AIR CONDITIONING, HEATING SYSTEM (3/4)
Adjusting the air temperature
1
3
5
Turn control 5 to obtain the desired
temperature. The further towards the
red the slide is, the higher the tempera-
ture will be.
When the air conditioning system is
used for long periods, it may begin to
feel cold. To increase the temperature,
turn control 5 to the right.
Adjusting the ventilation
The system is deactivated: the ventila-
tion speed is zero (vehicle stationary).
speed
You can, however, still feel a slight flow
Move control 3. The further the control
of air when the vehicle is moving.
is positioned to the right, the greater the
amount of air blown into the passenger
compartment. If you want to shut off the
flow of air, set the 3 control to “0”.
Use of the W
position on the 1
control leads automatically to the air
flowing out in order to prevent the
risk of misting on the windscreen.
3.7
CarManuals2.co
MANUAL AIR CONDITIONING, HEATING SYSTEM (4/4)
2
3
4
5
1
Rear screen de-icing/
Rapid demisting
demisting
Turn controls 1, 3 and 5 to positions
With the engine running, press
W
:
button 2. The operating tell-tale comes
- demisting;
on.
This function permits rapid demisting/
- blower at speed 3 or 4 ;
de-icing of the rear screen and de-icing
- maximum temperature.
of the door mirrors (on equipped vehi-
Press the 4 button to disable the air
cles).
recirculation (light off) and press the 2
To exit this function, press button 2
button to activate de-icing of the rear
When the air conditioning system
again. Warning light goes out.
screen (light on).
is turned off, the air recirculation
is automatically activated accord-
Demisting automatically stops.
ing to conditions like vehicle speed
to make the air more comfortable.
Pressing the 4 button will disable
this function.
3.8
CarManuals2.co
AUTOMATIC CLIMATE CONTROL (1/4)
Adjusting the ventilation
1
2
3
4
5
6
speed.
In automatic mode, the system uses
the most suitable amount of air to reach
and maintain the desired comfort level.
You can still adjust the ventilation
speed by turning control 1 to increase
or reduce the ventilation speed.
Adjusting the air temperature
Turn control 3 to obtain the desired
temperature.
8
7
Turning the control to the
right
in-
creases the temperature.
The controls
Automatic mode
(depending on the vehicle)
The automatic climate control system
1
Adjusting the ventilation fan speed.
guarantees comfort in the passen-
ger compartment and good visibility
2
“Clear View” function.
(except in the event of extreme condi-
3
Adjusting the air temperature.
tions), while optimising consumption.
4
Automatic mode.
The system controls the ventilation
speed, air distribution, air recirculation,
5
Air conditioning control.
and starting and stopping the air condi-
6
Distribution of air in the passenger
tioning and air temperature.
compartment.
AUTO: allows the selected comfort
7
Air recirculation.
level to be best attained, depending on
the exterior conditions. Press button 4.
8
De-icing/demisting of the rear screen
and, depending on the vehicle, the
rear view mirrors.
Any action on a button other than
the AUTO button triggers deactiva-
tion of automatic mode.
3.9
CarManuals2.co
|
||
|
|
|
