Renault Kangoo (2018 year). Manual - part 5

1.66

TRIP COMPUTER AND WARNING SYSTEM: journey parameters

(4/4)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

SPEED LIMITER

d) Cruise control/speed limiter programmed speed

(depending on vehicle). Please refer to the information on

“Cruise control/speed limiter” in Section 2.

70 KM/H

CRUISE CONTROL

70 KM/H

TIRES:SET TPW

SEt tP

e) Reset the tyre pressures
Please refer to the information on the “Tyre pressure loss warn-

ing” in Section 2.

TYRE PRESSURE

ACQUISITION

SEt PP

1.67

Information messages

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

Examples of messages

Interpretation of messages

« NO MESSAGE AVAILABLE »

f) Trip log

Successive display:
–

information messages (automatic lighting, etc.),

–

operating fault messages (check injection system, etc).

« BOOT OPEN »

Indicates that the tailgate has been left open.

« BATTERY MODE : ECONOMY »

Indicates that vehicle accessories have been switched off to preserve the battery.

« OIL LEVEL CORRECT »

Indicates that the oil level is correct when the ignition is switched on.

« AUTO LIGHTS DEACTIVATED »

Indicates that the automatic lights function is deactivated.

TRIP COMPUTER AND WARNING SYSTEM: information messages

1.68

These appear with the

warning light and mean that you should drive very carefully to an approved Dealer as

soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

warning light stays on. Examples of operating fault messages are given on the following pages.

Examples of messages

Interpretation of messages

« CHECK ESC »

Indicates a fault in the Electronic Stability Program and the traction control system

(see “Driver correction devices and aids” in Section 2).

« CHECK FUEL FILTER »

Indicates that there is water present in the diesel fuel.
Contact an approved Dealer as soon as possible.

« CHECK GEARBOX »

Indicates that a fault has occurred in the gearbox; contact an approved Dealer as

soon as possible.

« CHECK AUTO LIGHTS »

Indicates an automatic lighting operating fault; contact an approved Dealer.

« CHECK STEERING »

Indicates a power-assisted steering system operating fault.

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages

1.69

These appear with the

warning light and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually

or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpretation of messages

« INJECTION FAULT »

Indicates that the vehicle has a serious engine fault.

« ENGINE OVERHEATING »

Indicates that the engine is overheating.

« STEERING FAULT »

Indicates a fault in the vehicle’s power assisted steering.

« GEARBOX OVERHEATING »

Indicates that the gearbox is overheating.

« TYRE PUNCTURE »

Indicates that at least one wheel is punctured or severely underinflated.

TRIP COMPUTER AND WARNING SYSTEM: warning message

1.70

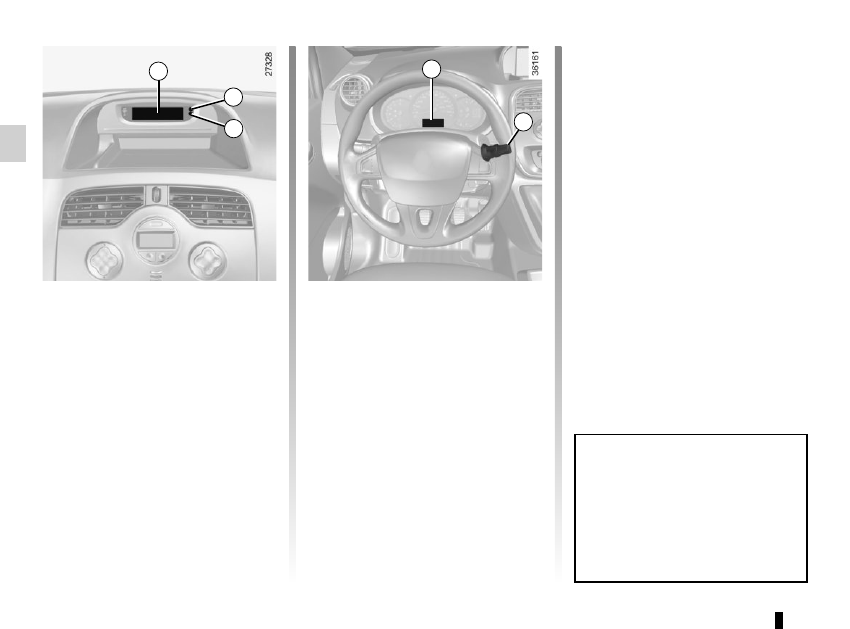

CLOCK AND EXTERIOR TEMPERATURE

(1/2)

Setting clock B
Display the “clock” page on the instru-

ment panel by pressing one of the but-

tons on stalk 3.
After two seconds, the hours and min-

utes start flashing.
Press and hold the bottom button to

enter the hour setting mode.
When only the hours flash, press the

top button to scroll through them.

With the ignition on, the time and, de-

pending on the vehicle, exterior tem-

perature are displayed.

Setting the time

Setting clock A
On equipped vehicles, adjustment but-

tons 1 and 2 are used to set the clock.
Press button 1 to adjust the hours and

button 2 to adjust the minutes.

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

Press and hold the bottom button to

enter the minute setting mode.
When only the minutes flash, press the

top button to scroll through them.
Confirm by pressing and holding the

bottom button on stalk 3.

1.71

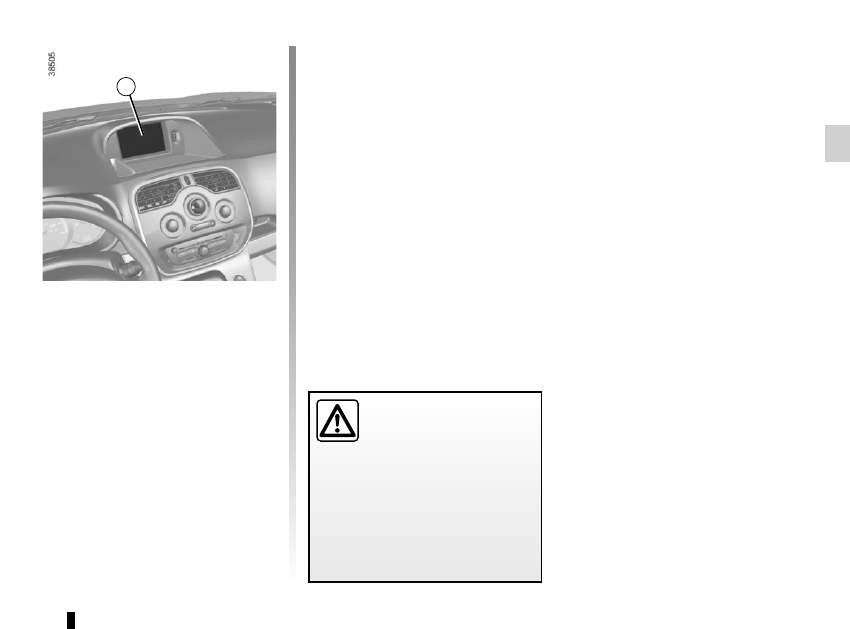

Resetting the clock C
Vehicles fitted with touch-screen

multimedia, navigation aid systems,

telephones, etc.
Refer to the separate instructions for

the function to understand the special

features of this equipment.

CLOCK AND EXTERIOR TEMPERATURE

(2/2)

Exterior temperature

If the vehicle is suitably equipped, when

the exterior temperature is between

-3°C and +3°C, the °C characters flash

(risk of black ice on the road).

Exterior temperature

indicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

1.72

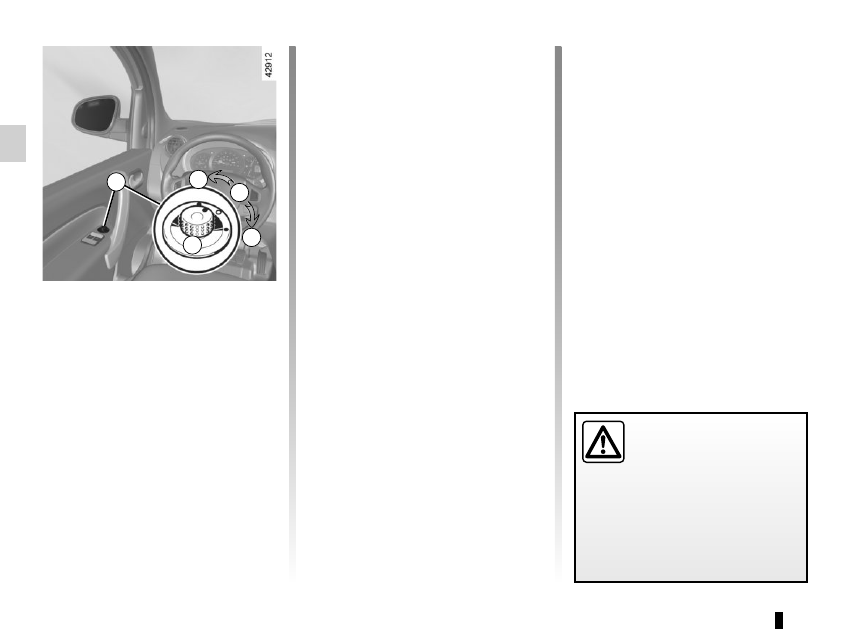

DOOR MIRRORS

(1/2)

Heated door mirrors

With the engine running, mirror de-icing

is activated with the rear screen de-ic-

ing/demisting.

Folding door mirrors

Move button 1 to position D to fold the

door mirrors in. To reset them for driv-

ing, return to position B.
If you fold the door mirrors in manually

before resetting them to driving posi-

tion B, you must first turn button 1 to

position D.

Door mirrors with electrical

adjustment

With the ignition on, turn button 1:
– position A to adjust the left-hand

door mirror;

– position C to adjust the right-hand

door mirror.

B is the inactive position.

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

1.73

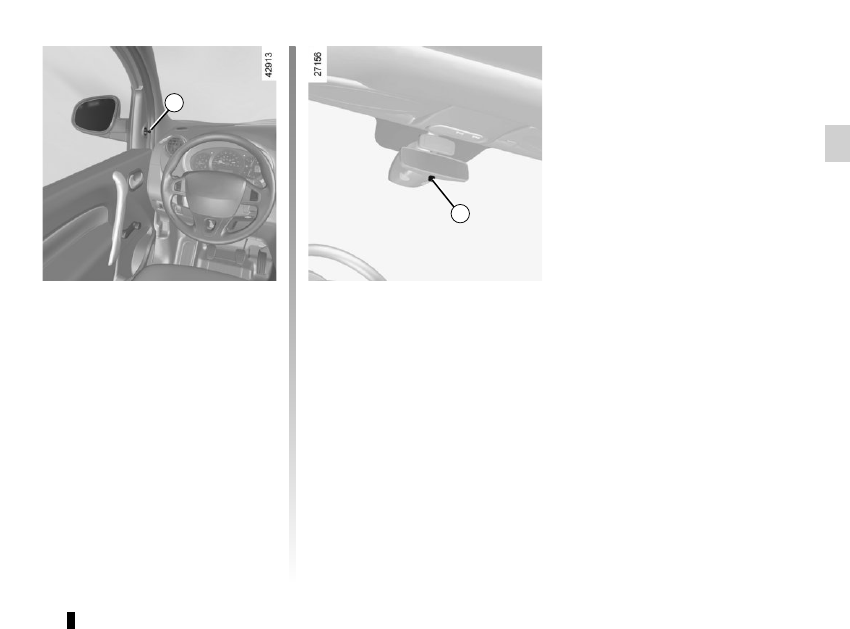

Interior rear view mirror

The interior rear-view mirror is adjust-

able.

Rear view mirror with lever 3
When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, depress the little lever located

behind rear view mirror 3.

Rear view mirror without lever 3
The rear-view mirror automatically

darkens when you are being followed

by a vehicle using main beam head-

lights or in very bright lighting.

DOOR MIRRORS

(2/2)

Door mirrors with manual

adjustment

To adjust the door mirror, move

switch 2.

1.74

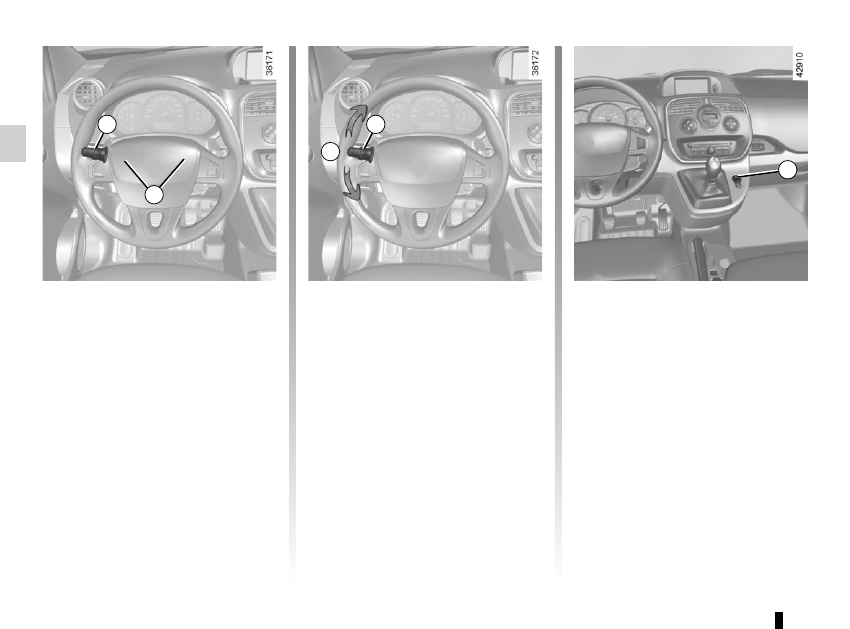

AUDIBLE AND VISUAL SIGNALS

Hazard warning lights

Pressing switch 3 illuminates

all four direction indicators and the

side-mounted indicator lights simul-

taneously. It must only be used in an

emergency to warn other drivers that

you have had to stop in an area where

stopping is prohibited or unexpected, or

that you are obliged to drive under spe-

cial conditions.
Depending on the vehicle, the hazard

warning lights may come on automati-

cally under heavy deceleration. You can

switch them off by pressing switch 3.

Horn

Press one of points 2.

Direction indicators

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn.
When driving on the motorway, the

steering wheel is not often turned

enough to return the stalk automatically

to 0.

There is an intermediate position in

which the switch may be held when

changing lanes.
You can also briefly place stalk 1 in the

intermediate position, causing the indi-

cator light to flash three times.
When the stalk is released, it automati-

cally returns to 0.

Headlight flasher

Pull stalk 1 towards you to flash the

headlights.

1.75

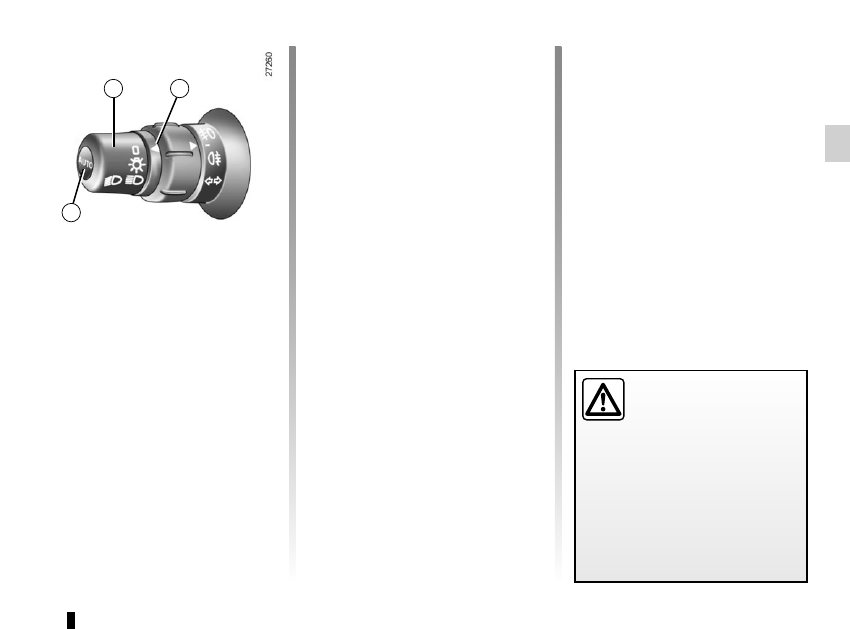

Main beam headlights

With stalk 1 in dipped beam headlights

position, move the stalk towards you.

The indicator light on the instrument

panel then lights up.
To return to the dipped beam head-

light position, pull the stalk towards you

again.

Side lights

Turn the end of stalk 1 until the

symbol is opposite mark 2.
The instrument panel will light up.

EXTERNAL LIGHTING AND SIGNALS

(1/3)

Before driving at night,

check that the electrical

equipment is operating cor-

rectly and adjust the head-

light beams (if your vehicle is not

carrying its normal load). As a gen-

eral precaution, check that the lights

are not obscured (by dirt, mud,

snow or objects being transported).

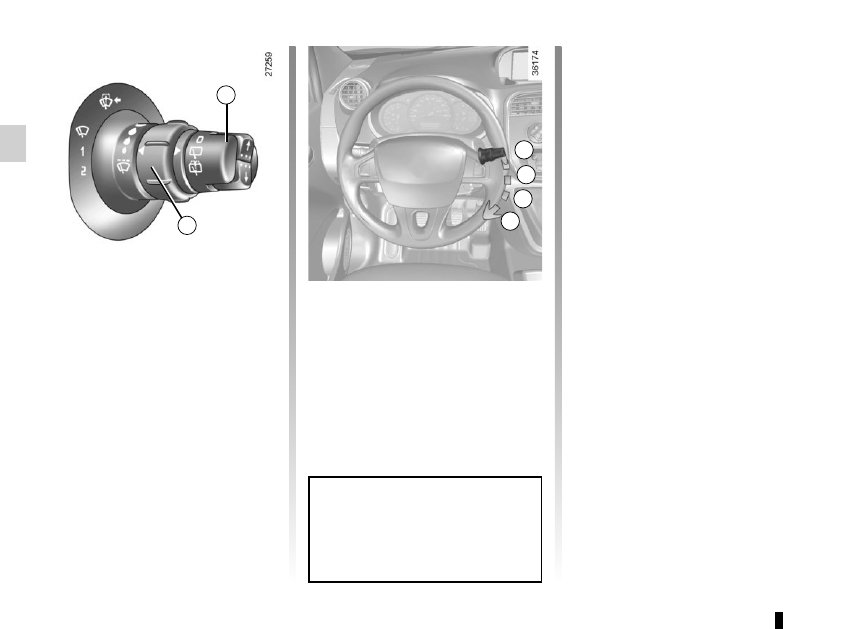

Dipped beam

headlights

Manual operation
Turn the end of stalk 1 until the symbol

is opposite mark 2. This indicator light

on the instrument panel comes on.

Automatic operation

(depending on vehicle)
With the engine running, the dipped

beam headlights are switched on or off

automatically depending on the level of

ambient light, without the need to oper-

ate stalk 1.

This function can be deactivated or re-

activated.
– To activate: with the ignition on and

the vehicle stationary, press and

hold button 3 for at least four sec-

onds. Depending on the vehicle, the

message “lights ON” appears on the

instrument panel.

– To deactivate: with the ignition on

and the vehicle stationary, press and

hold button 3 for at least four sec-

onds. Depending on the vehicle, the

message “lights OFF” appears on

the instrument panel.

1.76

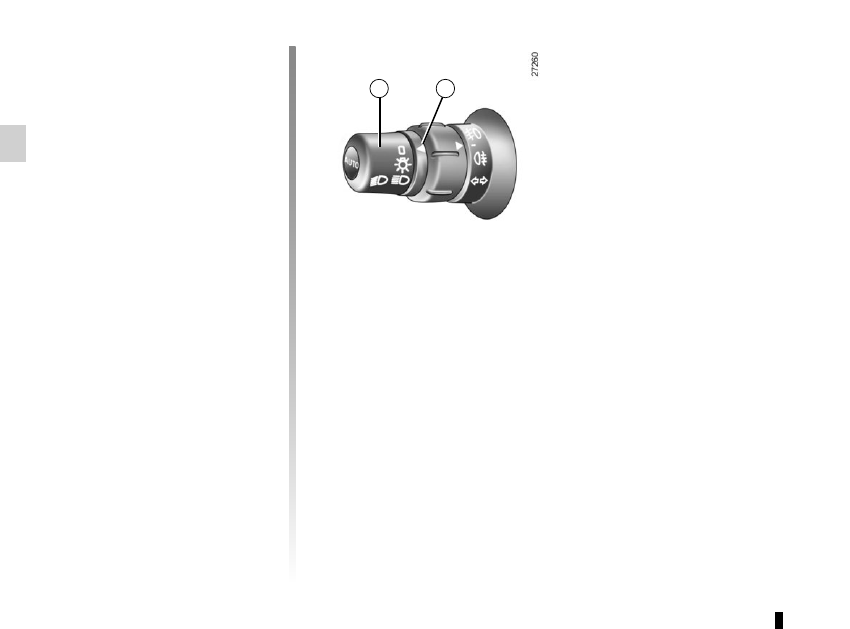

“See-me-home lighting”

function

(depending on vehicle)
This function (useful, for example,

when opening a gate, garage, etc.) en-

ables you to switch the dipped head-

lights on momentarily.
With the ignition off and the headlights

off, pull stalk 1 towards you: the dipped

beam headlights come on for approxi-

mately sixty seconds.
This action may be carried out no more

than four times for a maximum lighting

period of four minutes.
To switch off the lights before they

switch off automatically, turn the end of

stalk 1 then bring it back to position 0,

or switch on the ignition.

EXTERNAL LIGHTING AND SIGNALS

(2/3)

Switching off the lights

There are two possibilities:

– manually, move stalk 1 to its original

position;

– automatically, the lights are switched

off when the engine is stopped, the

driver’s door is opened or, depend-

ing on the vehicle, when the vehicle

is locked. In this case, the next time

the engine is started the lights will be

switched back on according to the

position of the ring 2.

1.77

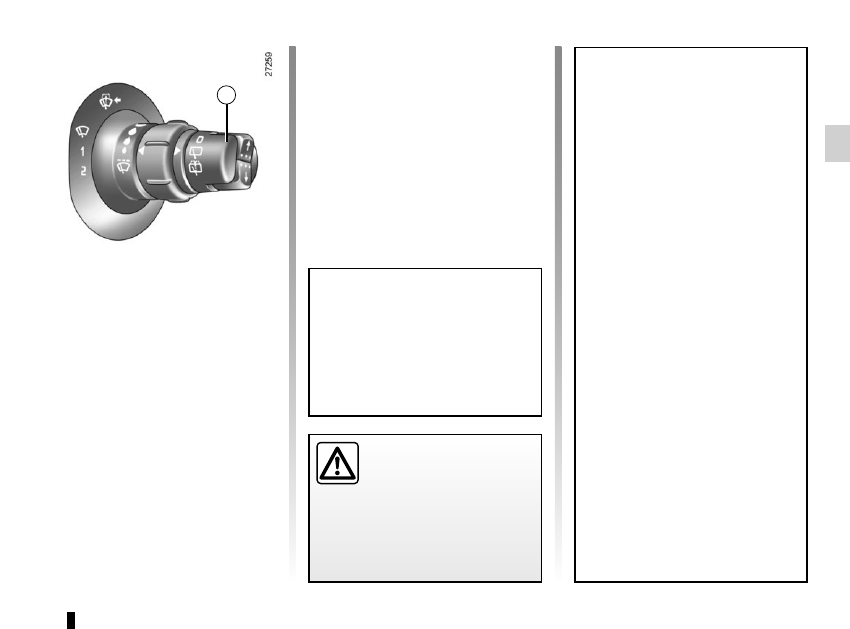

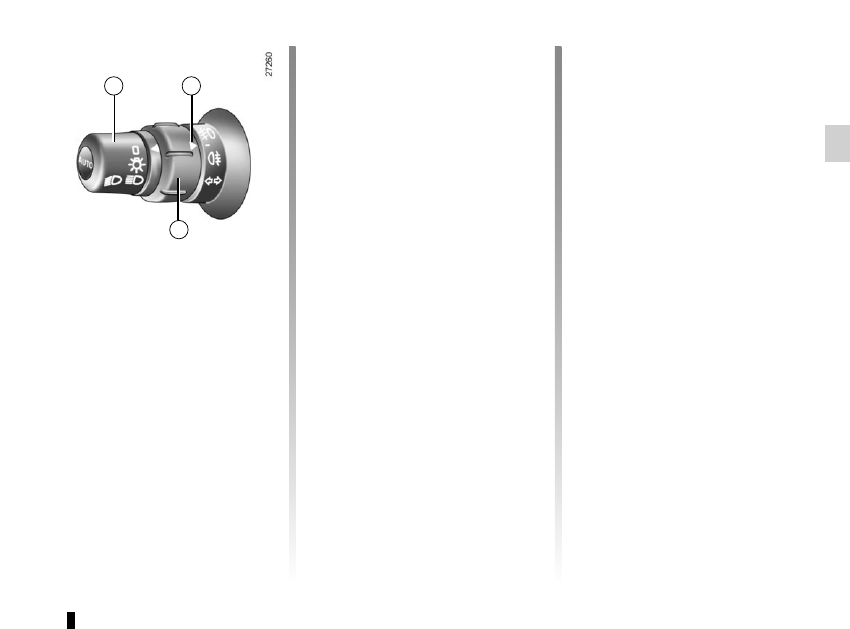

Rear fog light

The front fog lights and the

side lights or dipped beam headlights

must be on.
Turn ring 5 on stalk 1 until the symbol

is opposite mark 4, then release it. This

indicator light on the instrument panel

comes on.
To avoid inconveniencing other road

users, remember to switch off the rear

fog light when it is no longer needed.

Switching off the lights

Turn ring 5 again to position mark 4 op-

posite the symbol for the light you wish

to switch off.
Switching off the exterior lights or the

ignition switches off the front and rear

fog lights.

Front fog lights

(depending on vehicle)

The side lights or dipped beam head-

lights must be on.
Turn ring 5 on stalk 1 until the symbol

is opposite mark 4, then release it. This

indicator light on the instrument panel

comes on.

EXTERNAL LIGHTING AND SIGNALS

(3/3)

Lights-on reminder buzzer

A warning beep sounds when the dri-

ver’s door is opened to warn you that

the lights are still on.

1.78

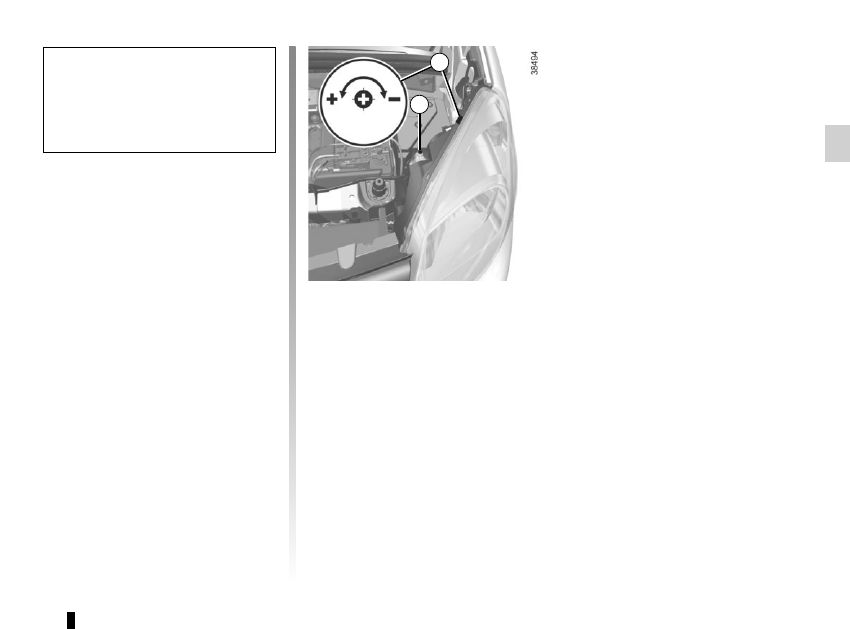

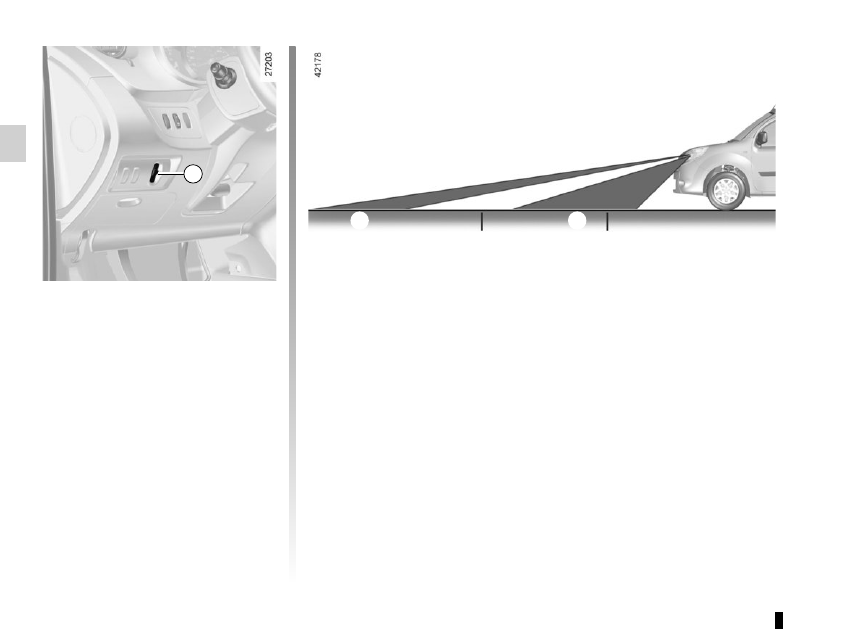

HEADLIGHT BEAM ADJUSTMENT

(1/2)

Control knob 1 is used to adjust the

height of the headlight beams accord-

ing to the load.
Turn control knob 1 downwards to

lower the headlights and upwards to

raise them.
Unladen, control knob 1 should be at 0.
When the vehicle is partially or com-

pletely laden, the headlight beam

should be set to light the road at be-

tween 50 and 100 metres. Then use

positions 1 to 4 on the control knob.

100 m

50 m

A Incorrect setting: the lights are set

too high and could dazzle other

drivers. Turn the control knob

downwards to lower the beam.

B Correct setting: the beam’s maxi-

mum range is between 50 and 100

metres.

1.79

HEADLIGHT BEAM ADJUSTMENT

(2/2)

Temporary adjustment

Open the bonnet and identify the mark-

ing B next to one of the front headlight

projectors.
For each headlight, using a screw-

driver, turn the screw 1 by a quarter

turn towards the - symbol to lower the

beams.
Return to the starting point once your

trip is over: turn the screw 1 by a quar-

ter turn towards the + symbol to raise

the beams.

When driving on the left in a left-

hand drive vehicle (or vice versa),

you must adjust your lights tempo-

rarily during your stay.

1.80

Windscreen wiper

With the ignition on, move stalk 1

around the steering wheel:

A Park

B Intermittent wiping

The wipers will pause for several

seconds between sweeps. It is

possible to change the time be-

tween sweeps by turning ring 2.

C Normal wiping speed

D Fast wiping speed

FRONT WINDSCREEN WASHER, WIPER

(1/2)

Special note
When the vehicle is being driven, the

wiping speed slows down whenever

the vehicle stops. For example, fast

wiping speed will slow to normal wiping

speed. As soon as the vehicle moves

off, wiping will return to the speed origi-

nally selected.
If stalk 1 is operated, it overrides and

cancels the automatic function.

If for any reason the wipers are

jammed (eg. frozen to windscreen

by ice, etc.), the system will auto-

matically cut the power supply to

the wipers.

Automatic wiper function

(depending on vehicle)
With the engine running, move stalk 1.

A Park

B Automatic wiper function

When this position is selected, the

system detects the presence of

water on the windscreen and trig-

gers wiping at a suitable wiping

speed. The triggering threshold

and the time between sweeps can

be adjusted by turning ring 2.

Note: in foggy weather or during

snowfalls, wiping is not automatically

triggered and remains under the

driver’s control.

C Normal wiping speed

D Fast wiping speed

1.81

Windscreen wiper

With the ignition on, pull stalk 1 to-

wards you.
A brief pull will trigger a single sweep

of the wipers, in addition to the wind-

screen washer.
A longer pull will trigger three sweeps

of the wipers followed, a few seconds

later, by a fourth, in addition to the wind-

screen washer.

FRONT WINDSCREEN WASHER, WIPER

(2/2)

Before any action on the

windscreen (washing the

vehicle, de-icing, cleaning

the windscreen, etc.) return

stalk 1 to position A (park).
Risk of injury and/or damage.

In freezing or snowy weather, ensure

they are not stuck to the windscreen

(including the central area located

behind the interior rear-view mirror)

and the rear screen before starting

the wipers (risk of motor overheat-

ing).

Efficiency of a wiper blade

Check the condition of the wiper

blades. How long they last depends

on you:
– it must remain clean: clean the

blade and the screen regularly

with soapy water;

– do not use it when the screen is

dry;

– free it from the screen when it has

not been used for a long time.

Replace wiper blades as soon as

their performance starts to diminish:

Approximately every year (refer to

the information on “Wiper blades” in

section 5).

Precautions for using the

wipers

– In freezing or snowy weather,

clear the screen before starting

the wipers (risk of motor over-

heating);

– ensure that no objects are ob-

structing the travel of the blade.

Content .. 3 4 5 6 ..
