5.6

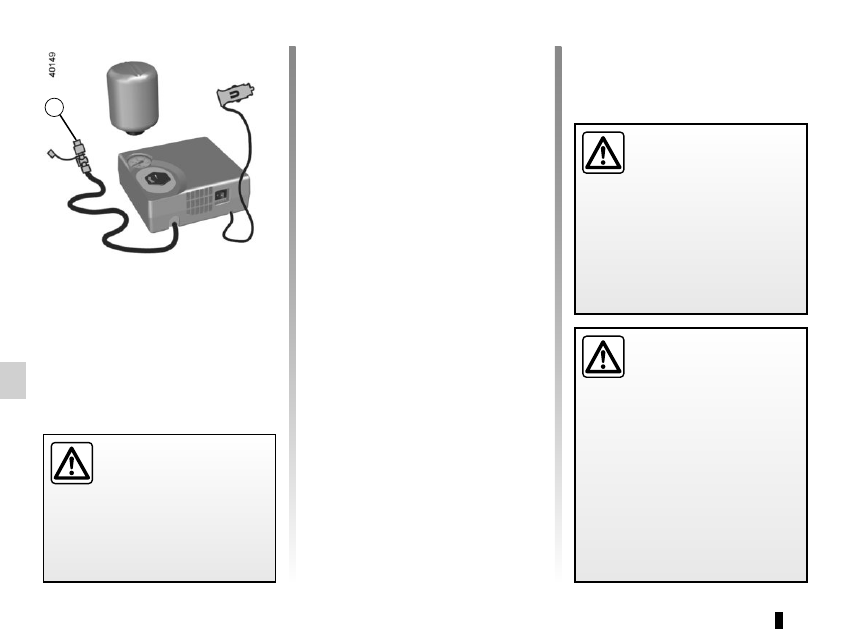

TYRE PRESSURE KIT

(3/3)

Once the tyre is correctly inflated,

remove the kit: slowly unscrew the in-

flation adapter 6 to prevent any repair

product from escaping and store the

container in plastic packaging to pre-

vent the product from escaping.

– Affix the driving recommendation

label to the dashboard where it can

easily be seen by the driver;

–  Put the kit away.
–  At the end of this initial inflation op-

eration, air will still escape from the

tyre. You must drive a short distance

in order to seal the hole.

–  Start immediately and drive at be-

tween 12 and 40 mph (20 and

60 km/h) in order to distribute the

product evenly in the tyre and, after

driving for 2 miles (3 km), stop and

check the pressure.

–  If the pressure is greater than 1.3 bar

but less than the recommended

pressure (refer to the label affixed to

the edge of the driver’s door), read-

just it. Otherwise, please contact an

authorised dealer: the tyre cannot be

repaired.

Precautions when using the

kit

The kit should not be operated for more

than 10 consecutive minutes.

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and may

lead to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

which you must affix in a prominent

position on the dashboard, reminds

you of this.

Depending on the country or local

legislation, a tyre repaired with the

inflation kit may need to be replaced.

6

5.7

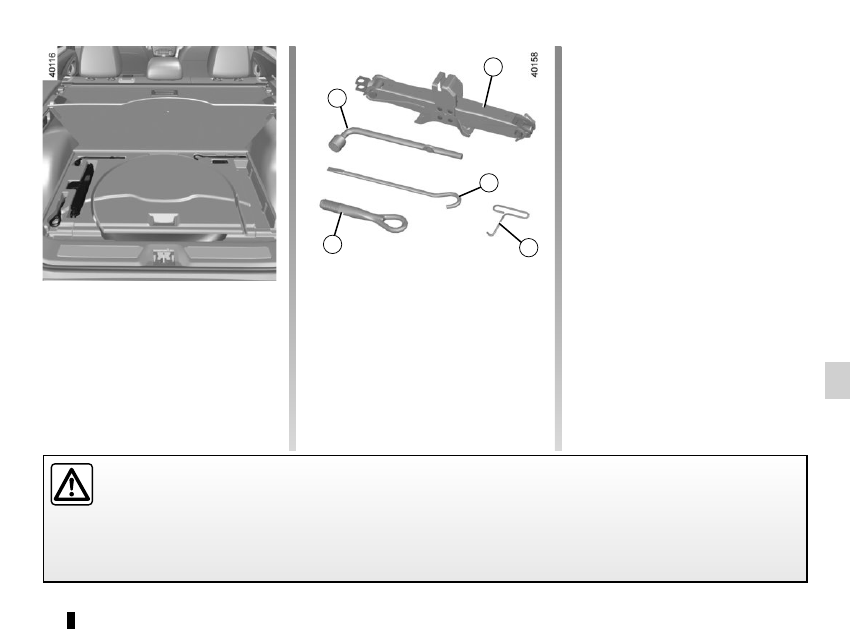

Jack 2

Fold it correctly before refitting it in its

housing (ensure that the wheelbrace is

correctly positioned).

Lever 3

This tightens or releases the tow eye 5.

Hubcap tool 4

This tool is used to remove the wheel

trims.

Tow eye 5

Please see “Towing: breakdown recov-

ery” in Section 5.

Wheelbrace 1

Locks or unlocks the wheel bolts and

tow eye 5.

The presence of the tools depends on

the vehicle.

The tools are located in a tray under the

boot carpet.

Lift the cover and remove them.

TOOLS

Do not leave the tools unsecured inside the vehicle as they may come loose under braking. After use, check that all the

tools are correctly clipped into the tool kit, then position it correctly in its housing: there is a risk of injury.

If wheel bolts are supplied in the tool kit, you must use these bolts only for the emergency spare wheel: refer to the

label affixed to the emergency spare wheel.

The jack is designed for wheel changing purposes only. Under no circumstances should it be used for carrying out repairs un-

derneath the vehicle or to gain access to the underside of the vehicle.

2

1

3

4

5

5.8

Remove the wheel trim using hubcap

tool  1 (located in the tool kit) by en-

gaging the hook in the opening near

valve 2.
To refit it, align it with valve 2. Push the

retaining hooks in fully, starting with

side  A near the valve, followed by B

and C, finishing at D opposite the valve.

WHEEL TRIMS - WHEEL

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then posi-

tion it correctly in its housing: risk of

injury.

1

2

A

B

D

C

5.9

Continue to crank the jack so that the

baseplate is correctly positioned (it

should be underneath the vehicle and

aligned with the jack head).

Switch on the hazard warn-

ing lights.
Keep the vehicle away from

traffic and on a level surface

where it will not slip.
Apply the parking brake and engage

a gear (first or reverse, or P for auto-

matic transmissions).

Ask all the passengers to leave the

vehicle and keep them away from

traffic.

CHANGING A WHEEL

(1/2)

Vehicles equipped with a jack

and wheelbrace

If necessary, remove the wheel trim.
Use the wheelbrace 1 to slacken off the

wheel bolts. Position it so as to be able

to push from above.
Crank up the jack 3 by hand to align

the jack head between the 2 jacking

points 2 closest to the relevant wheel.

If the vehicle is not equipped with a

jack or wheelbrace, you can obtain

these from your approved dealer.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

1

2

3

5.10

If you have a puncture, re-

place the wheel as soon as

possible.
A tyre which has been punc-

tured should always be inspected

(and repaired, where possible) by a

specialist.

CHANGING A WHEEL

(2/2)

Turn it a few times to lift the wheel off

the ground.
Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the

central hub and turn it to locate the

mounting holes in the wheel and the

hub.
Tighten the bolts, checking that the

wheel is correctly positioned on its hub.
Lower the jack.
With the wheel on the ground, tighten

the bolts fully and have the tightness of

the bolts checked and the emergency

spare wheel pressure checked as soon

as possible.

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then posi-

tion it correctly in its housing: risk of

injury.
If wheel bolts are supplied in the

tool kit, only use these bolts for the

emergency spare wheel: refer to the

label affixed to the emergency spare

wheel.
The jack is designed for wheel

changing purposes only. Under no

circumstances should it be used for

carrying out repairs underneath the

vehicle or to gain access to the un-

derside of the vehicle.

5.11

TYRES

(1/3)

Maintaining the tyres

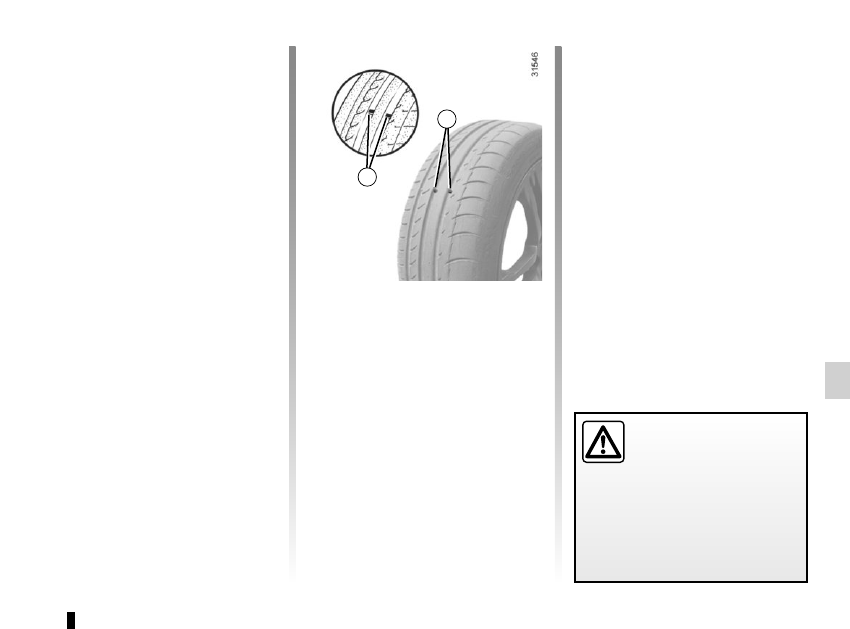

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have tread wear indica-

tors 1 which are indicators moulded

into the tread at several points.

The tyres are the only contact between

the vehicle and the road, so it is essen-

tial to keep them in good condition.

You must make sure that your tyres

conform to local road traffic regulations.

When the tread has worn down to the

wear warning strips, these strips will

become visible 2: it is then necessary

to replace your tyres because the tread

rubber is now only 1.6 mm deep at

most, resulting in poor road holding

on wet roads.
An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

2

1

5.12

TYRES

(2/3)

Tyre pressures

Adhere to the tyre pressures (including

the emergency spare wheel). The tyre

pressures should be checked at least

once a month and additionally before

any long journey (refer to the label af-

fixed to the edge of the driver’s door).

The pressures should be checked cold:

ignore higher pressures which may be

reached in hot weather or following a

high speed journey.
If the tyre pressures cannot be checked

when the tyres are cold, increase the

pressures from 0.2 to 0.3 bar (or 3 PSI).
Never deflate a hot tyre.

Special note

Depending on the vehicle, there may

be an adapter which needs to be posi-

tioned on the valve before air is added.

Vehicle fitted with a tyre pressure

monitoring system
In cases of under-inflation (puncture,

low pressure, etc.), warning light





lights up on the instrument panel.

Please refer to the information on the

“Tyre pressure monitoring system” in

Section 2.

Emergency spare wheel

Refer to the information on “Puncture”

and “Changing a wheel” in Section 5.

Incorrect tyre pressures

lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:
–  poor road holding,
–  risk of bursting or tread separa-

tion.

The pressure depends on the load

and the speed of use. Adjust the

pressure according to the condi-

tions of use (refer to the label affixed

to the edge of the driver’s door).

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and lead

to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

Changing a wheel
As the tyre pressure moni-

tor may take several min-

utes to correctly determine

the positions of the wheels and the

pressure values after driving, check

the tyre pressures following any op-

eration.

5.13

TYRES

(3/3)

Use in winter

Chains
For safety reasons, fitting snow

chains to the rear axle is strictly for-

bidden.
Chains cannot be fitted to tyres which

are larger than those originally fitted to

the vehicle.
Snow or Winter tyres
We would recommend that these be

fitted to all four wheels to ensure that

your vehicle retains maximum adhe-

sion.
Warning: These tyres sometimes have

a specific direction of rotation and a

maximum speed index which may be

lower than the maximum speed of your

vehicle.

Snow chains may only be

fitted to tyres of the same

size as those originally

fitted to your vehicle.

In all cases, we would recommend

that you contact an authorised

dealer who will be able to advise you

on the choice of equipment which is

most suitable for your vehicle.

Studded tyres
This type of equipment may only be

used for a limited period and as laid

down by local legislation. It is neces-

sary to observe the speed specified by

current legislation.
These tyres must, at a minimum, be

fitted to the two front wheels.

18” wheels and larger

cannot be fitted with

chains.
If you wish to use special

equipment, consult an approved

dealer.

Fitting new tyres

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.
They must: either have a load ca-

pacity and a speed capacity at

least equal to the original tyres,

or correspond to those recom-

mended by your authorised

dealer.
Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.
Risk of loss of control of the ve-

hicle.

5.14

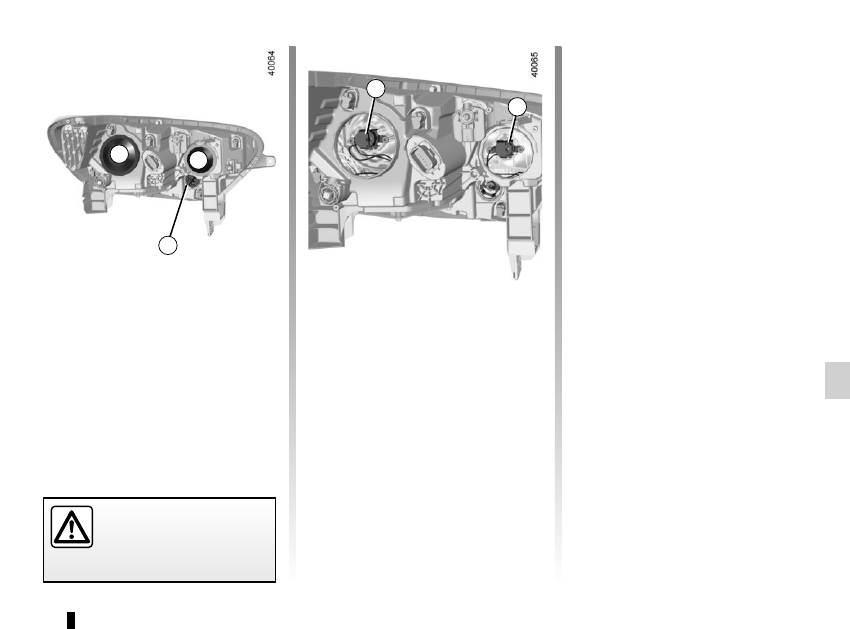

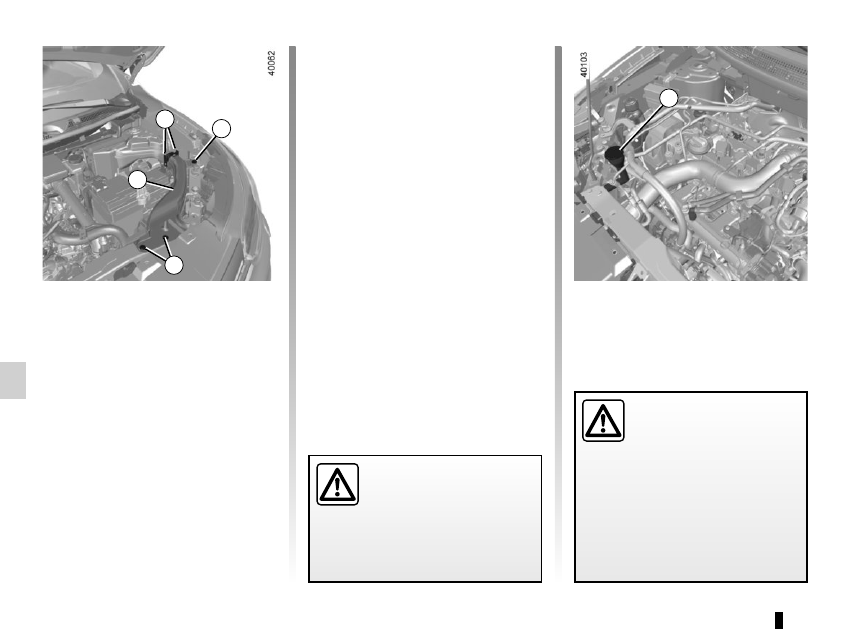

On the right-hand side of the vehicle,

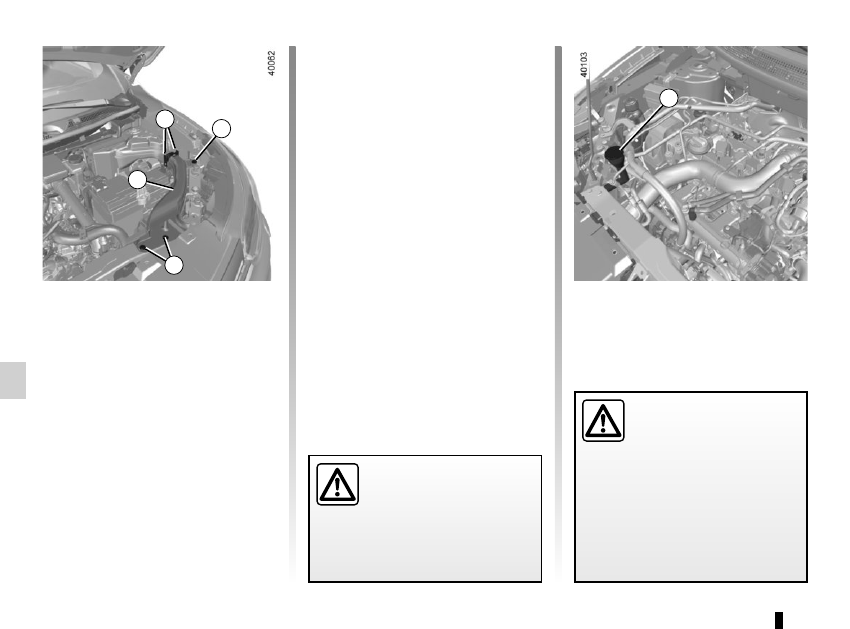

you will need to remove the filler neck 4

for the windscreen washer tank to

access the bulbs. To do this:

–  unscrew the funnel 4;

–  pull the funnel 4.

After replacing the bulbs, you must put

the air duct A back into position. To do

this, perform the above operation in re-

verse.

FRONT HEADLIGHTS: changing bulbs

(1/3)

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

Accessing the bulbs

On the left-hand side of the vehicle,

you will need to remove the air duct A

to access the bulbs. To do this:

–  remove the clips 3;

–  unscrew the bolt 2;

–  press the upper part of the fastening

clips 1 to release the air duct A;

–  slide the air duct A towards the front

of the vehicle to release it.

4

3

2

A

1

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The



 warning

light in the engine compartment re-

minds you of this.
Risk of injury.

5.15

FRONT HEADLIGHTS: changing bulbs

(2/3)

Halogen main beam headlight

To change the bulb:
– remove cover C;
–  turn the bulb holder a quarter turn 7;

–  remove the bulb.
Bulb type: H7.
It is essential to use anti-U.V. 55W

bulbs so as not to damage the plastic

on the headlights.
Do not touch the bulb glass. Hold it

by its base.
When the bulb has been changed,

make sure you refit the cover correctly.

6

7

Halogen dipped beam

headlight

To change the bulb:
– remove cover B;
–  turn the bulb holder a quarter turn 6;

–  remove the bulb.
Bulb type: H7.

C

B

Direction indicator lights

Turn the bulb holder 5 a quarter of a

turn and take out the bulb.
Bulb type: PY21W.
Once the bulb has been replaced,

check that it is properly secured.

5

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.16

Front fog lights 10

The front bumper needs to be removed;

consult an approved Dealer.
Type of bulb: H11.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

FRONT HEADLIGHTS: changing bulbs

(3/3)

To comply with local legislation, or

as a precaution, you can obtain an

emergency kit containing a set of

spare bulbs and fuses from an ap-

proved dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

LED dipped beam/main beam

headlights 9

Please see an authorised dealer.

Daytime running lights and

side lights 8

Please see an authorised dealer.

10

Additional lights

If you wish to fit fog lights to your ve-

hicle, please see an authorised dealer.

8

9

5.17

REAR AND SIDE LIGHTS: changing bulbs

(1/3)

Side lights and brake lights

Consult an approved Dealer.

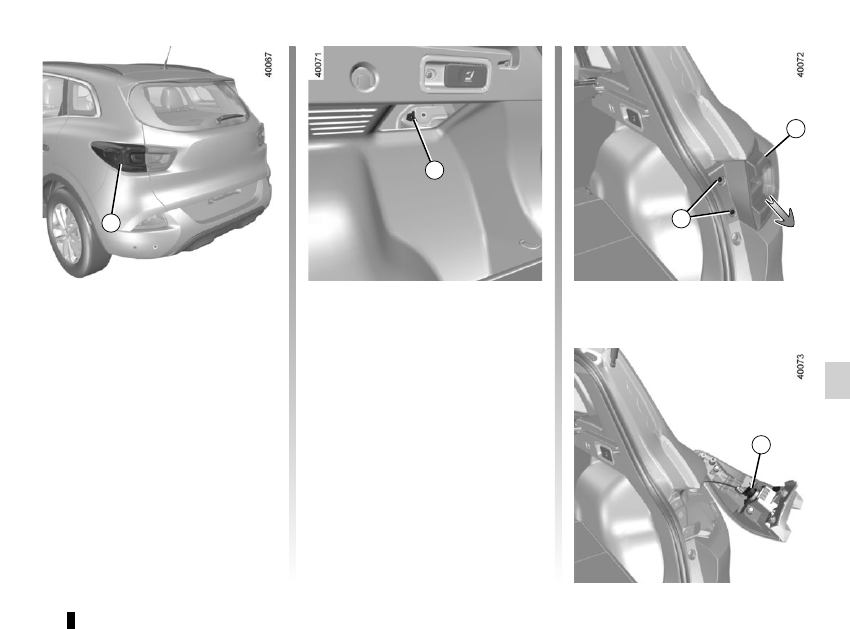

Direction indicators 1

Open the boot lid.
From inside the boot, unclip the cover

to access the screw 2 then unscrew it.
From the outside, undo the screws 3.
Pull on the outside A of the light and

remove the rear light unit.

1

Turn the bulb holder a quarter of a

turn 4.
Remove the bulb.
Bulb type: PY21.
Refit the bulb holder and push the unit

as far as it will go, until it locks into

place.
Check that the light is properly locked

in position.
Tighten screws 3.
Tighten the screw 2 and put the cover

back into position.

3

A

4

2

5.18

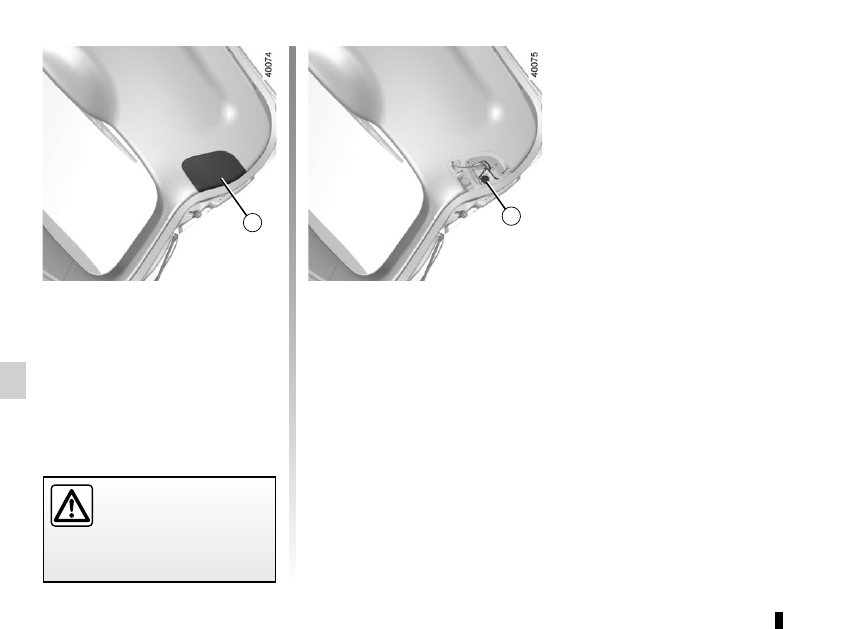

Reversing lights

From the boot, unclip the cover on the

interior trim of the boot lid 5 using a

screwdriver or similar tool.

Replace the bulb 6.
Bulb type: H21W.

Refitting
To refit, proceed in the reverse order,

taking care not to damage the wiring.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

REAR AND SIDE LIGHTS: changing bulbs

(2/3)

6

5

5.19

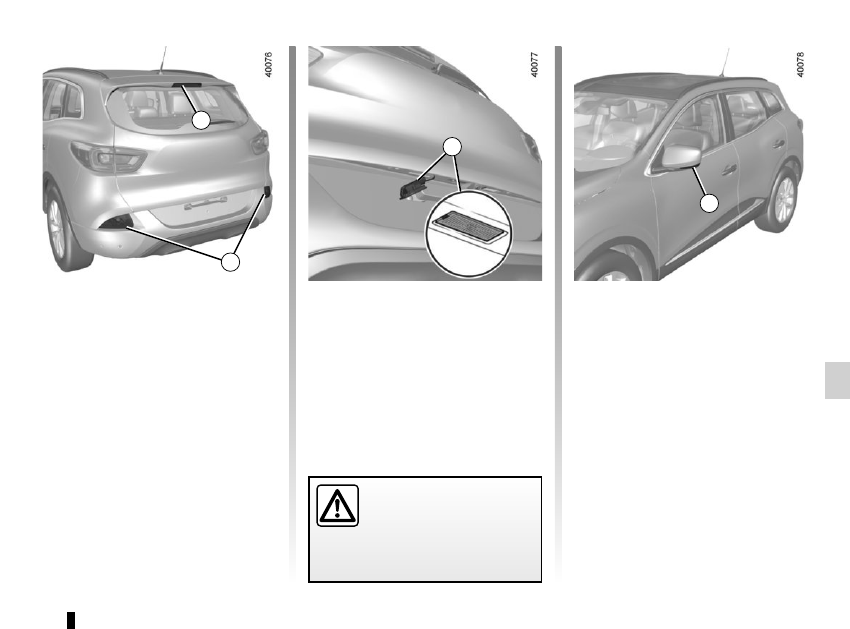

Number plate lights 9

–  Unclip the light 9 (using a tool such

as a flat-blade screwdriver).

–  remove the light cover to gain access

to the bulb.

Bulb type: W5W.

REAR AND SIDE LIGHTS: changing bulbs

(3/3)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

Side indicator lights 10

The wing mirror needs to be removed;

consult an authorised dealer.
Bulb type: W5W.

10

High level brake light 7

Consult an approved dealer.

Rear fog lights 8

The front bumper needs to be removed;

consult an authorised dealer.
Bulb type: P21W.

7

8

9

5.20

INTERIOR LIGHTING: changing bulbs

(1/2)

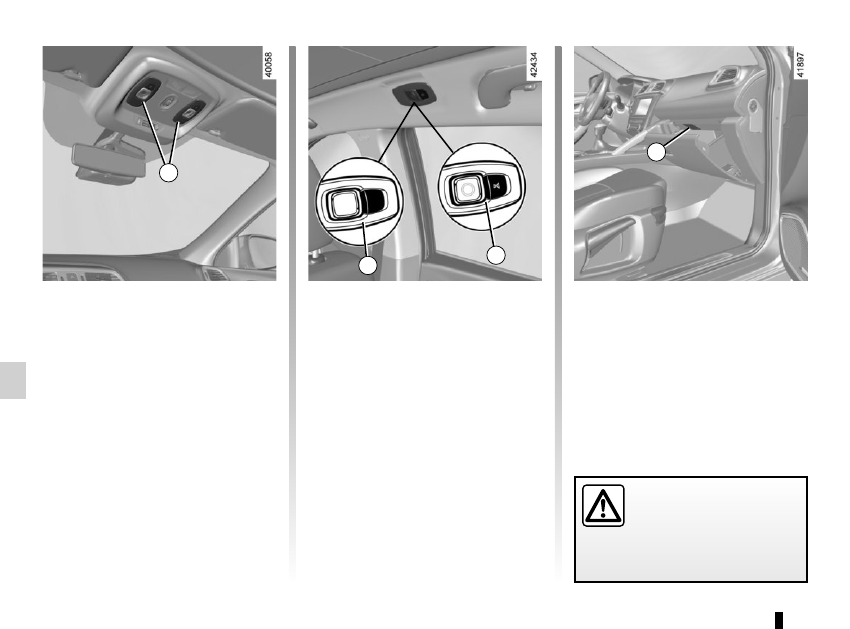

Map reading lights 1

Please consult an authorised dealer.

1

4

Glove box light 4

Using a flat-blade screwdriver or simi-

lar, unclip the light 4 by pressing the

tab located on one side of the light to

access the bulb.
Bulb type: W5W.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

Lights 2

(depending on vehicle)
Using a flat-blade screwdriver or simi-

lar, unclip the light 2 by pressing the

tab located on one side of the light to

access the bulb.
Bulb type: W5W.

Lights 3

(depending on vehicle)
Please consult an authorised dealer.

2

3

5.21

6

7

8

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5

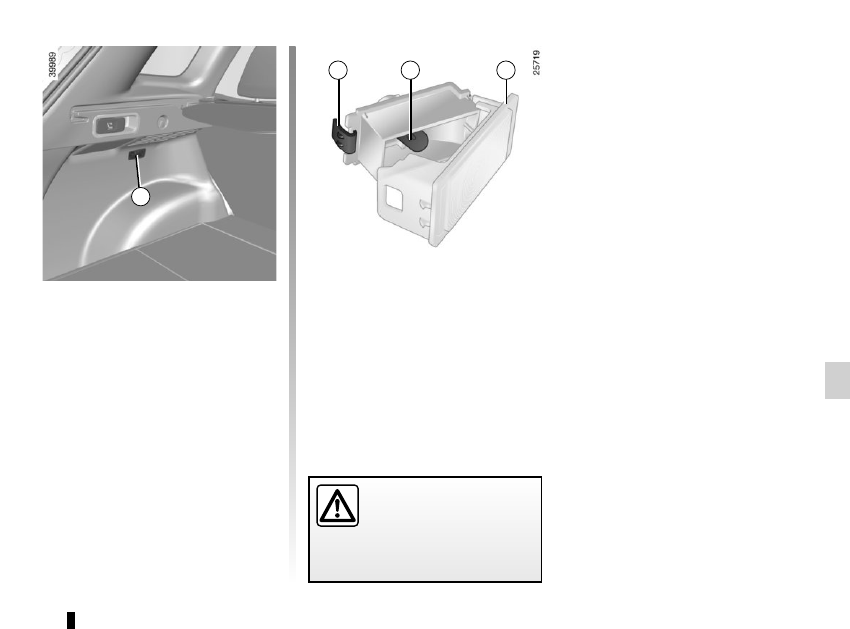

Luggage compartment light 5

Unclip light 5 by pressing the tabs on

each side (using a flat-blade screw-

driver or similar).
Disconnect the light.
Press tab 6 to release lens 8 and

access bulb 7.
Bulb type: W5W.

INTERIOR LIGHTING: changing bulbs

(2/2)
