Renault Kadjar (2018 year). Manual - part 15

4.10

Liquid

Screen wash product (product with

antifreeze in winter).

Checking the level

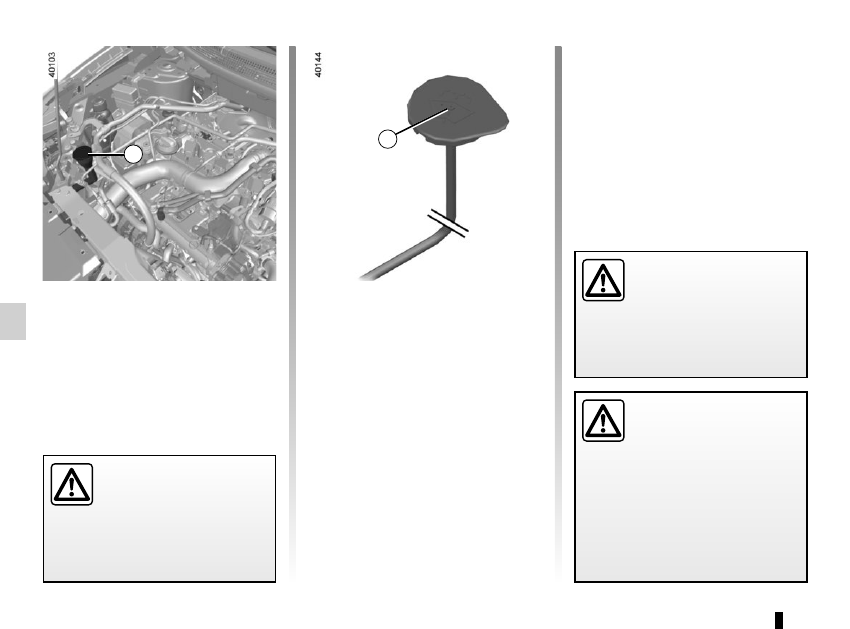

Use the “dropper cap”. To do this, plug

the hole 4 with your finger, remove the

cap then read the gauge built into the

cap.

Note: Regularly check the reservoir

level by topping up the liquid before

taking a trip.

Jets

To adjust the windscreen washer jets,

please consult an authorised dealer.

Filters

The replacement of filter components

(air filter, cabin filter, diesel filter, etc.)

is scheduled in the maintenance opera-

tions for your vehicle.
Replacement intervals for filter el-

ements: refer to the Maintenance

Document for your vehicle.



Windscreen washer

reservoir

Topping up

With the engine switched off, open the

cap 3. Fill until you can see the fluid,

then replace the cap.

LEVELS

(3/3)

/FILTERS

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The



warning

light in the engine compartment re-

minds you of this.
Risk of injury.

4.11

TYRE PRESSURE

(1/2)

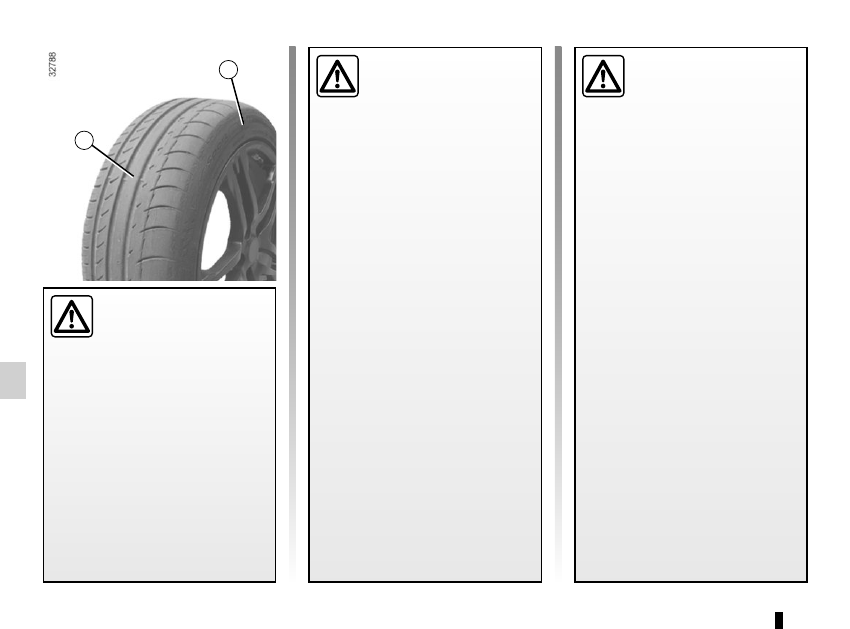

B: dimension of the tyres fitted to the

vehicle.

C: intended driving speed.
D: recommended pressure for optimis-

ing fuel consumption.

NB: driving comfort may be altered.

E: front tyre pressure.
F: rear tyre pressure.
G: tyre pressure for the emergency

spare wheel.

Vehicle fitted with a tyre pressure

monitoring system
In cases of under-inflation (puncture,

low pressure, etc.), warning light



lights up on the instrument panel.

Please refer to the information on the

“Tyre pressure monitoring system” in

Section 2.

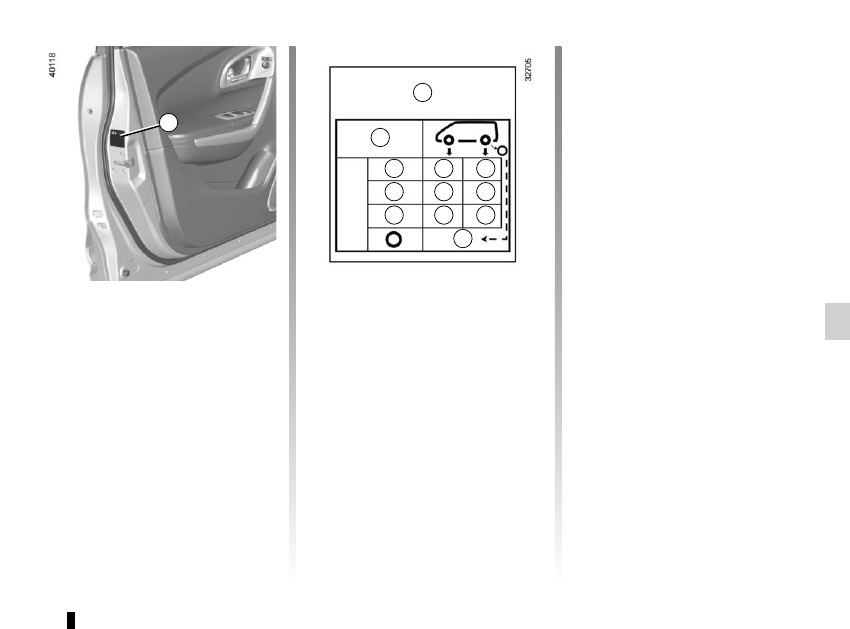

Label A

Open the driver’s door to read it.
Tyre pressures should be checked

when the tyres are cold.
If the tyre pressures cannot be checked

when the tyres are cold, increase the

pressures from 0.2 to 0.3 bar (or 3 PSI).

Never deflate a hot tyre.

4.12

TYRE PRESSURES (2/2)

Special note concerning fully laden

vehicles (Maximum Permissible All-Up

Weight) and towing a trailer: the maxi-

mum speed must be limited to 60 mph

(100 kph) and the tyre pressure in-

creased by 0.2 bar.
Please refer to the information on

“Weights” in Section 6.
Tyre safety and use of snow chains:

Refer to the information on “Tyres” in

Section 5 for the servicing conditions

and, depending on the version, the use

of chains.

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.
They must: either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or conform to those recom-

mended by an authorised dealer.
Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.
Risk of loss of control of the ve-

hicle.

4.13

BATTERY

(1/2)

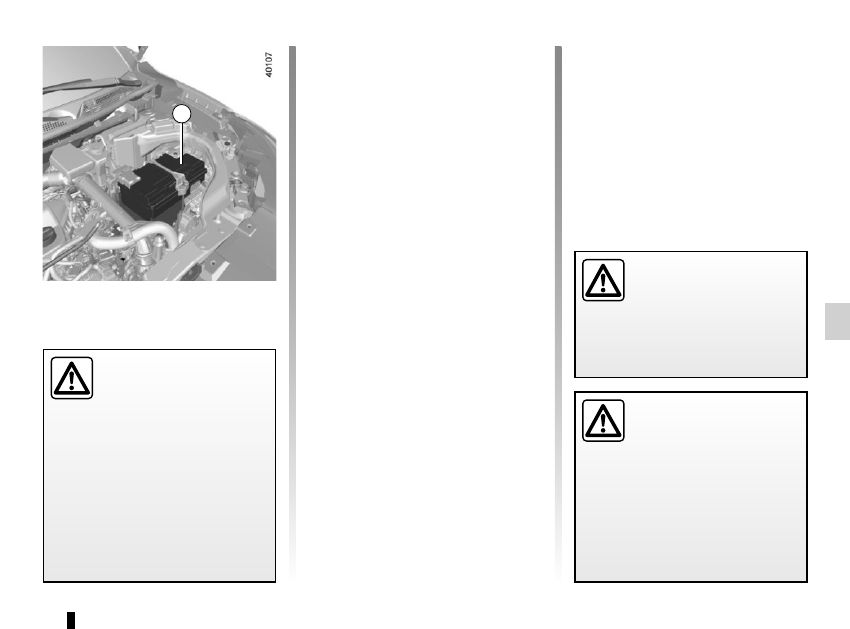

Battery 1 does not require any mainte-

nance. You should not open it or add

any fluid.

Handle the battery with care

as it contains sulphuric acid

which must not come into

contact with the eyes or

skin. If it does, wash the affected

area with plenty of cold water. If

necessary, consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.

Depending on the vehicle, a system

continuously checks the battery charge

status. If this decreases, the message

“Battery low start engine” is displayed

on the instrument panel. In this case,

start the engine. The message will go

off.
The charge status of your battery can

decrease especially if you use your ve-

hicle:
–  for short journeys;
–  for driving in town;
–  when the temperature drops;
–  after extended use of energy-con-

suming devices (radio, etc.) with the

engine switched off.

Before performing any

action in the engine com-

partment, the ignition must

be switched off (please see

the information on “Starting, stop-

ping the engine” in Section 2).

Please note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The



warning

light in the engine compartment re-

minds you of this.
Risk of injury.

4.14

Replacing the battery

As this operation is complex, we advise

you to contact an approved Dealer.

BATTERY

(2/2)

The battery is a specific

type, please ensure it is

replaced with the same

type. Consult an approved

dealer.

Label A

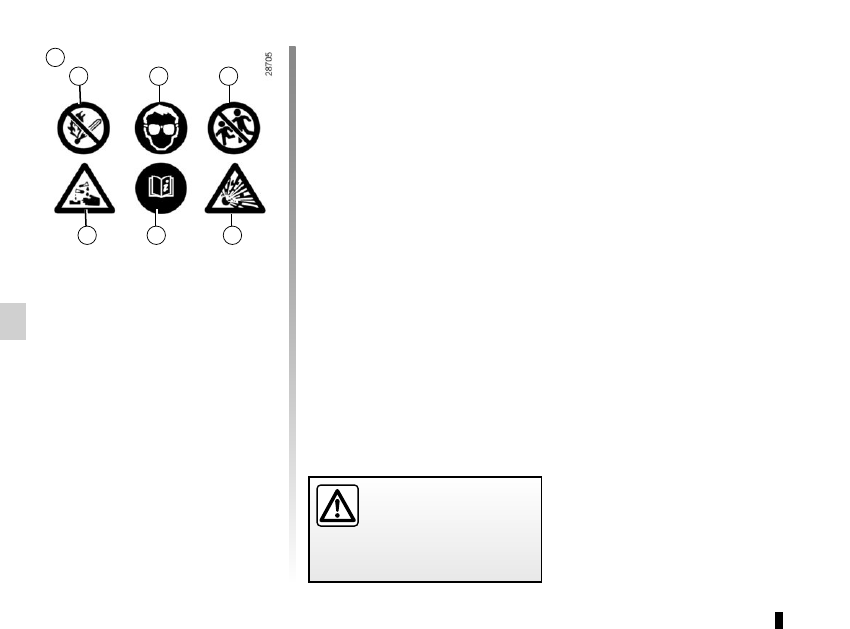

Observe the indications on the battery:

– 2 Naked flames and smoking are for-

bidden;

– 3 eye protection required;

– 4 keep away from children;

– 5 explosive materials;

– 6 refer to the handbook;

– 7 corrosive materials.

4.15

BODYWORK MAINTENANCE

(1/3)

You should

Wash your car frequently, with the

engine off, with cleaning products rec-

ommended by the manufacturer (never

use abrasive products). Rinse thor-

oughly beforehand with a jet:

–

spots of tree resin and industrial

grime;

–

mud in the wheel arches and under-

neath the body which forms damp

patches;

–

bird droppings, which cause a

chemical reaction with the paint that

rapidly discolours paintwork and

may even cause the paint to peel

off;

wash the vehicle immediately to

remove these marks since it is im-

possible to remove them by polish-

ing;

–

salt, particularly in the wheel arches

and underneath the body after driv-

ing in areas where the roads have

been gritted.

Remove any plant matter (resin, leaves,

etc.) from the vehicle regularly.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the exterior of the vehicle reg-

ularly.
Your vehicle has been treated with very

effective anti-corrosion products. It is

nevertheless subject to various outside

influences.

Corrosive agents in the atmosphere

–

atmospheric pollution (built-up and

industrial areas);

–

saline atmospheres (near the sea,

particularly in hot weather);

–

seasonal and damp weather condi-

tions (e.g. road salt in winter, water

from road cleaners, etc.).

Minor impacts

Abrasive action

Dust and sand in the air, mud, road grit

thrown up by other vehicles, etc.
You should take a number of minor pre-

cautions in order to safeguard your ve-

hicle against such risks.

Respect local regulations about wash-

ing vehicles (e.g. do not wash your ve-

hicle on a public highway).
Observe the vehicle stopping distances

when driving on gravelled surfaces to

prevent paint damage.
Repair, or have repaired quickly, areas

where the paint has been damaged, to

prevent corrosion spreading.
Remember to visit the body shop pe-

riodically in order to maintain your

anti-corrosion warranty. Refer to the

Maintenance Document.
If it is necessary to clean mechani-

cal components, hinges, etc., spray

them with products approved by our

Technical Department to protect them

after they have been cleaned.

We have selected special products

to care for your vehicle and you can

obtain these from the manufactur-

er’s accessory outlets.

4.16

BODYWORK MAINTENANCE

(2/3)

Degrease or clean using

high-pressure cleaning

equipment or by spray-

ing on products not ap-

proved by our Technical

Department:

–

mechanical components (e.g.:

engine compartment);

–

underbody;

–

parts with hinges (e.g.: inside the

doors);

–

painted plastic external fittings (e.g.:

bumpers).

Doing this could give rise to corrosion

or operational faults.

What you should not do

Wash the vehicle in bright sunlight or

freezing temperatures.
Do not scrape off mud or dirt without

pre-wetting.
Allow dirt to accumulate on the exterior.
Allow rust to form following minor im-

pacts.
Do not use solvents not approved by

our Technical Department to remove

stains as this could damage the paint-

work.
Do not drive in snow or muddy condi-

tions without washing the vehicle, par-

ticularly under the wheel arches and

body.

4.17

Using a roller type car wash

Return the windscreen wiper stalk to

the Park position (refer to the informa-

tion on the “Windscreen washer, wiper”

in Section 1). Check the mounting of

external accessories, additional lights

and mirrors, and ensure that the wiper

blades are secured with adhesive tape.
Remove the radio aerial mast if your

vehicle is fitted with this equipment.
Remember to remove the tape and refit

the antenna after washing.

Vehicles with a matte paint

finish

This type of paint requires certain pre-

cautions.

You should do the following
Wash the vehicle by hand using plenty

of water, using a soft cloth or a gentle

sponge.

Do not do the following
Use wax-based products (polishing).

Rub too hard.

Wash the vehicle in a roller-type car

wash.

Attach stickers to the paintwork (risk of

leaving marks).

Wash the vehicle

using a high-pressure

cleaning device.

BODYWORK MAINTENANCE

(3/3)

Cleaning the headlights

As the headlights are made of plastic

“glass”, use a soft cloth or cotton wool

to clean them. If this does not clean

them properly, moisten the cloth with

soapy water, then wipe clean with a soft

damp cloth or cotton wool.

Finally, carefully dry off with a soft dry

cloth.
Do not use cleaning products con-

taining alcohol or utensils (e.g.: a

scraper).

4.18

Glass instrument panel

(e.g. instrument panel, clock, exterior

temperature display, radio display, etc.)
Use a soft cloth (or cotton wool).

If this does not clean them properly,

use a soft cloth (or cotton wool) slightly

moistened with soapy water and then

wipe clean with another soft damp cloth

or cotton wool.

Finally, carefully dry off with a soft dry

cloth.
Do not use products containing alco-

hol and/or spray fluids on the area.

Seat belts

These must be kept clean.

Use products selected by our Technical

Department (Approved outlets) or

warm, soapy water and a sponge and

wipe with a dry cloth.

Detergents or dyes must not be used

under any circumstances.

INTERIOR TRIM MAINTENANCE

(1/2)

Textiles (seats, door trim, etc)

Vacuum-clean the textiles regularly.

Liquid stain
Use soapy water.
Dab lightly (never rub) with a soft cloth,

rinse and remove the excess.

Solid or pasty stain
Carefully remove the excess solid or

pasty material immediately with a

spatula (working from the edges to the

centre to avoid spreading the stain).

Clean as for a liquid stain.

Special instructions for sweets or

chewing gum
Put an ice cube on the stain to solidify

it, then proceed as for a solid stain.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the interior of the vehicle regu-

larly.
A stain should always be dealt with

swiftly.
Whatever type of stain is on the trim,

use cold (or warm) soapy water with

natural soap.
Detergents (washing-up liquid, pow-

dered products, alcohol-based prod-

ucts) should not be used.
Use a soft cloth.
Rinse and soak up the excess.

For further recommendations for

maintaining the interior, and/or for

any unsatisfactory results, please

see an authorised dealer.

4.19

You should not:

Position objects such as deodorants,

scents etc. near air vents as this could

damage your dashboard trim.

Use high-pressure

cleaning equipment or

sprays inside the pas-

senger compartment:

without careful use, this equipment

could impair the correct functioning

of the electrical or electronic compo-

nents in the vehicle, or have other

detrimental effects.

INTERIOR TRIM MAINTENANCE

(2/2)

Removal/replacing removable

equipment originally fitted in

the vehicle

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

side, etc.) and fit them with the compo-

nents supplied with the equipment (for

example, the driver mat should always

be fixed using the pre-fitted mounting

components).
With the vehicle stationary, always

ensure that nothing will impede driving

(anything obstructing the pedals, heel

wedged by the mat etc.).

4.20

5.1

Section 5: Practical advice

Puncture, emergency spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2

Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.7

Wheel trims - wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8

Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.9

Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11

Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14

Rear lights and side lights (replacing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.17

Interior lighting (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.20

RENAULT card: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22

Radio frequency remote control: batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.23

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.24

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.27

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.29

Wipers (replacing blades) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.30

Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32

Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.34

5.2

In case of puncture

Depending on the vehicle, a tyre infla-

tion kit or emergency spare wheel is

provided (refer to the following pages).

Special note
The Tyre Pressure Monitor function

does not check the emergency spare

wheel (the wheel replaced by the emer-

gency spare wheel disappears from the

instrument panel display).
Refer to the information on the “Tyre

pressure monitoring system” in

Section 2.

PUNCTURE, EMERGENCY SPARE WHEEL

(1/2)

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.

Vehicles fitted with an emergency spare wheel smaller than the

four other wheels:

– Never fit more than one emergency spare wheel to the same vehicle.

– As the punctured wheel is wider than the emergency spare wheel, the vehicle’s

ground clearance is reduced.

– Replace the emergency spare wheel as soon as possible with a wheel with the

same dimensions as the original.

– When this is fitted to the vehicle, which must only be a temporary measure, the

driving speed must not exceed the speed indicated on the label on the wheel.

– Fitting an emergency spare wheel may alter the way the vehicle usually runs.

Avoid sudden acceleration or deceleration and reduce your speed when cor-

nering.

– If you need to use snow chains, fit the emergency spare wheel to the rear axle

and check the tyre pressure.

5.3

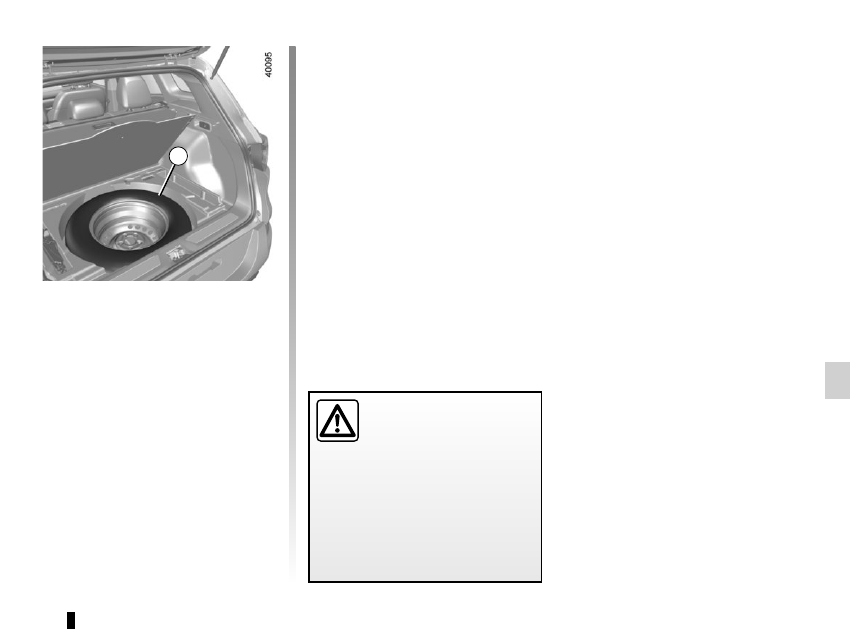

Emergency spare wheel A

To get to it:
– open the tailgate;

– Depending on the vehicle, lift up the

mobile floor;

– lift the boot carpet;

– remove the tool kit by lifting it by its

handles;

– unscrew the central mounting;

– remove the emergency spare wheel.
Note: Store the punctured wheel in the

storage bag provided, along with the

tool kit and put them in the boot.

PUNCTURE, EMERGENCY SPARE WHEEL

(2/2)

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.4

TYRE PRESSURE KIT

(1/3)

The kit is only approved for

inflating the tyres of the ve-

hicle originally equipped

with the kit.

It must never be used to inflate

the tyres of another vehicle, or any

other inflatable object (rubber ring,

rubber boat, etc.).
Avoid spillage on skin when han-

dling the repair product bottle. If

droplets do leak out, rinse them off

with plenty of water.
Keep the repair kit away from chil-

dren.
Do not dispose of the empty bottle

in the countryside. Return it to your

approved dealer or to a recycling or-

ganisation.
The bottle has a limited service

life which is indicated on its label.

Check the expiry date.
Contact an approved dealer to re-

place the inflation tube and repair

product bottle.

The kit repairs tyres when

tread A has been dam-

aged by objects smaller

than 4 mm. It cannot repair

all types of puncture, such as cuts

larger than 4 mm, or cuts in tyre

sidewall B.
Ensure also that the wheel rim is in

good condition.
Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

Do not attempt to use the

inflation kit if the tyre has

been damaged as a result

of driving with a puncture.

You should therefore carefully check

the condition of the tyre sidewalls

before any operation.
Driving with underinflated, flat or

punctured tyres can be dangerous

and may make the tyre impossible

to repair.
This repair is temporary.
A tyre which has been punctured

should always be inspected (and re-

paired, where possible) as soon as

possible by a specialist.
When taking a tyre which has been

repaired using this kit to be replaced,

you must inform the specialist.
When driving, vibration may be felt

due to the presence of the repair

product injected into the tyre.

5.5

TYRE PRESSURE KIT

(2/3)

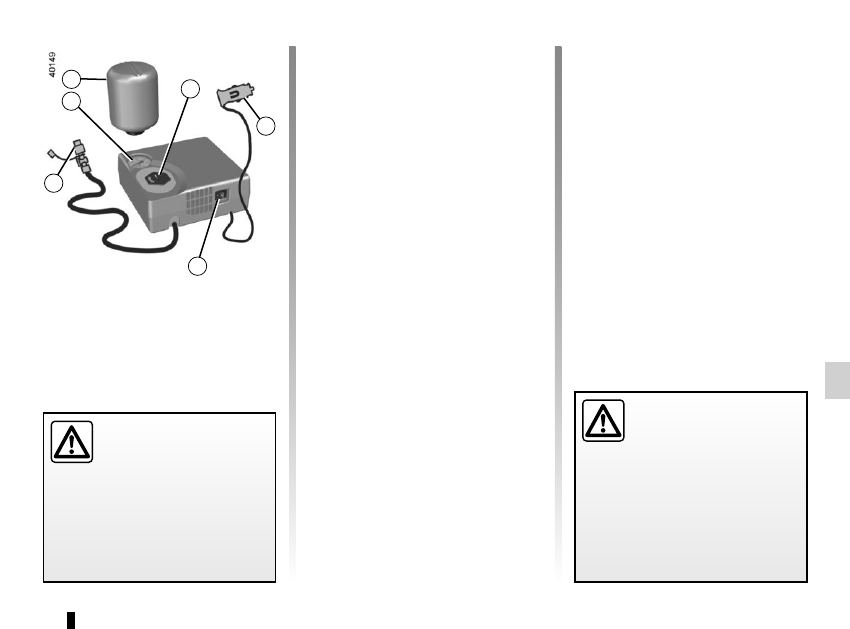

In the event of a puncture, use the kit

located in the boot, underneath the

boot carpet.

With the engine running and the

parking brake applied,
– Unscrew the cap from recess 3 on

the bottle;

– unscrew the bottle cap 2;
– screw the bottle 2 onto the compres-

sor at the bottle recess point 3;

– unscrew the valve cap on the rele-

vant wheel and screw the inflation

adapter 6 onto the valve;

– disconnect any accessories previ-

ously connected to the vehicle’s ac-

cessories sockets;

– the plug 4 must be connected to the

vehicle accessories socket;

– press switch 5 to inflate the tyre to

the recommended pressure (please

refer to the information in the section

on “Tyre pressure”);

Before using this kit, park

the vehicle at a sufficient

distance from traffic, switch

on the hazard warning

lights, apply the handbrake, ask all

passengers to leave the vehicle and

keep them away from traffic.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

– after a maximum of 10 minutes, stop

inflating and read the pressure (on

pressure gauge 1).
Note: while the container is empty-

ing (approximately 30 seconds), the

pressure gauge 5 will briefly indicate

a pressure of up to 6 bar. The pres-

sure will then drop.

– adjust the pressure: to increase it,

continue inflating with the kit.

If the recommended pressure of

1.8 bar cannot be achieved after

10 minutes, repair is impossible. Do

not drive the vehicle. Consult an au-

thorised dealer.

2
1

Content .. 13 14 15 16 ..
