Renault Kadjar (2018 year). Manual

1.18

Operating principle

After the vehicle is started, the system

automatically locks the doors when you

are driving at approximately 6 mph

(10 km/h) and over.

The door can be unlocked:

– by pressing the central door unlock-

ing switch 1

‡

– at a standstill, by opening a front

door from inside the vehicle.

NB: if a door is opened or closed, it

will automatically lock again when the

vehicle reaches a speed of 6 mph

(10 km/h).

RENAULT ANTI-INTRUDER DEVICE (RAID)

Driver’s responsibility
If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

Depending on the vehicle, you can

also deactivate/activate this function

from the instrument panel or, depend-

ing on the vehicle, from the multifunc-

tion screen.
Refer to “Vehicle settings customisation

menu” in Section 1, regarding the “Lock

doorswhen in motion” function.

Operating faults

If you find an operating fault (no au-

tomatic locking, the warning light 2

does not light up when trying to lock

the doors and boot, etc.), firstly check

that the doors and boot lid are properly

closed. If they are properly closed, con-

tact an authorised dealer.

Activating/deactivating the

function

To switch it on: with the vehicle at a

standstill and the engine running, press

the switch 1 on side

…

until a beep

sounds.
To deactivate: with the vehicle at a

standstill and the engine running, press

the switch 1 on side

‡

until two

beeps sound.

1.19

FRONT HEADRESTS

To raise the headrest

Pull the headrest upwards to the de-

sired height. Check that it is correctly

locked.

To lower the headrest

Press button 3 and guide the headrest

down to the desired height. Check that

it is correctly locked in place.

To raise the headrest

Raise the headrest to its highest po-

sition (tilt the seatback backwards if

necessary). Press button 3 and lift the

headrest to release it.

To refit the headrest

Check that the headrest rods are

clean 2.
The rod with a notch should be in-

serted into the slot 1 fitted with a lock-

ing button 3.
Insert the headrest rods into the holes

(tilt the seatback backwards if neces-

sary).
Press the 3 button and push in the

headrest as far as it will go, then adjust

it to the desired height. Check that

each rod 2 on the seatback is securely

locked.

The headrest is important

for safety. Ensure that it is in

place and in the correct po-

sition: the top of the head-

rest should be as close as possible

to the top of the head and there must

be a minimal distance between the

head and the headrest A.

1.20

To raise or lower the seat

base

Move lever 2 as many times as neces-

sary upwards or downwards.

To tilt the seatback

Lift the lever 3 and move the seatback

to the desired position.

To move the seat forwards or

backwards

Lift handle 1 to unlock. Release the

handle once the seat is in the correct

position and ensure that the seat is

locked.

FRONT SEATS WITH MANUAL CONTROL

(1/2)

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

We would advise you not to recline

the seatbacks too far to ensure that

the effectiveness of the seat belts is

not reduced.
Nothing should be placed on the

floor (area in front of driver) as such

objects may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

To adjust the lumbar support

on the driver’s seat

Lower handle 5 to increase the support

and lift to decrease it.

Heated seats

With the ignition on, press the switch 6

for the seat desired. The switch warn-

ing lights come on.
The system automatically decides

whether or not the heating is needed.

Pressing the button again lowers the

temperature. Pressing a third time

switches the heating off.

1.21

Table function

Depending on the vehicle, the passen-

ger seatback may be folded down onto

the seat base to create a table.

– Lower the headrest;

– move the seat back;

– Lift the lever 3 and tilt the seatback

forwards as far as possible;

– pull the handle 7 and fully lower the

seatback.

FRONT SEATS WITH MANUAL CONTROL

(2/2)

When the front seat is in

table position, the front pas-

senger air bag must be dis-

abled (see information on

“Child safety: activating/deactivat-

ing the front passenger air bag” in

Section 1).
Risk of serious injury caused by

items resting on the seatback table

which may be dislodged when the

air bag is deployed.
The label (on the dashboard) and

the markings (on the windscreen)

remind you of these instructions.

For your safety, attach any

transported objects when

the seat is in the table po-

sition.

When using the passenger seat in table

position, you must not use the two rear

seats immediately behind it.

Repositioning the seat

Make sure that nothing prevents the

seat from moving.

– Pull the handle 7 and raise the seat-

back, ensuring that it locks firmly in

place.

– Reposition the seat base.

Be sure to hold the seat-

back when placing it in the

flat position. Risk of injury.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

1.22

DRIVER’S SEAT WITH ELECTRIC CONTROLS

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

Make sure that the seatbacks are

correctly locked in place.
We would advise you not to recline

the seatbacks too far to ensure that

the effectiveness of the seat belts is

not reduced.
No object should be placed on the

floor (in front of the driver). such

objects may slide under the pedals

during sudden braking manoeuvres

and obstruct their use.

Adjusting the seat squab:

– To move the seat forwards or back

Move the switch 1 forwards or back-

wards.

– To raise or lower the seat base

Move the switch 1 up or down.

Adjusting the seatback:

To tilt the seatback, move the switch 2

forwards or backwards.

Heated seats

With the ignition on, press the switch 4

for the seat desired. The switch warn-

ing lights come on.
The system automatically decides

whether or not the heating is needed.

Pressing the button again lowers the

temperature. Pressing a third time

switches the heating off.

To adjust the seat’s lumbar

position

Lower the handle 3 to increase the sup-

port and lift to decrease it.

1.23

Always wear your seat belt when trav-

elling in your vehicle. You must also

comply with the legislation of the par-

ticular country you are in.

SEAT BELTS

(1/4)

Incorrectly adjusted or

twisted seat belts may

cause injuries in the event

of an accident.

Use one seat belt per person,

whether child or adult.
Even pregnant women should wear

a seat belt. In this case, ensure that

the lap belt is not exerting too much

pressure on the abdomen, but do

not allow any slack.

Before starting, first adjust your driv-

ing position, then ask all occupants

to adjust their seat belts to ensure

optimum protection.

Adjusting your driving

position

– Sit well back in your seat (having

first removed your coat or jacket).

This is essential to ensure your back

is positioned correctly;

– adjust the distance between the

seat and the pedals. Your seat

should be as far back as possible

while still allowing you to depress

the clutch pedal fully. The seatback

should be adjusted so that your arms

are slightly bent when you hold the

steering wheel;

– adjust the position of your head-

rest. For the maximum safety, your

head must be as close as possible to

the headrest;

– adjust the height of the seat. This

adjustment allows you to select the

seat position which offers you the

best possible view;

– adjust the position of the steering

wheel.

Adjusting the seat belts

Sit with your back firmly against the

seatback.
Shoulder strap 1 should be as close as

possible to the base of the neck but not

on it.
Lap belt 2 should be worn flat over the

thighs and against the pelvis.
The belt should be worn so that it is

as close as possible to your body, i.e.:

avoid wearing heavy clothing or keep-

ing bulky objects under the belts, etc.

1.24

SEAT BELTS

(2/4)

Locking

Unwind the belt slowly and smoothly

and ensure that buckle 3 locks into

catch 5 (check that it is locked by pull-

ing on buckle 3).
If the belt jams, allow it to return slightly

before attempting to unwind it again.
If your seat belt is completely jammed,

pull slowly, but firmly, so that just over

3 cm unwinds. Allow it to return slightly

before attempting to unwind it again.
If there is still a problem, contact an ap-

proved dealer.

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder

This lights up on the central display

when starting the engine then, if the

driver’s or front passenger’s seat belt

(if this seat is occupied) is not fastened

and the vehicle has reached approxi-

mately 12 mph (20 km/h), it flashes and

a bleep sounds for around 120 sec-

onds.

Note: an object placed on the passen-

ger seat base may activate the warning

light in some cases.
Rear seat belt reminder (depending

on vehicle)

Warning light

lights up on the

central display, accompanied by the

graphic 6 on the instrument panel for

approximately 30 seconds each time

the vehicle is started, a door is opened

or a rear seat belt is fastened or unfas-

tened.

Check that the rear passengers are

wearing seat belts and that the number

of seat belts shown as fastened cor-

responds to the number of rear seat

places occupied.
On the graphic 6:

– marker in green: seat belt fastened;

– marker in red: seat belt unfastened.

Unfastening

Press button 4 and the seat belt will be

rewound by the inertia reel. Guide the

belt.

1.25

SEAT BELTS

(3/4)

Check that the rear seat

belts are positioned and

operating correctly each

time the rear bench seat is

moved.

Rear seat belts 8

The belts are locked, unlocked and

adjusted in the same way as the front

belts.

Adjusting the height of the

front seat belts

Use button 7 to adjust the seat belt

height so that the shoulder strap is worn

as shown previously. Press the button 7

and raise or lower the seat belt. Make

sure that the seat belt is locked in posi-

tion correctly after you have adjusted it.

1.26

The following information applies to the vehicle’s front and rear seat belts.

– No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and

their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.

– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too

loosely may cause injury in the event of an accident.

– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around

them.

– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as

they show any signs of wear.

– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-

cured.

– Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-

jects).

SEAT BELTS

(4/4)

1.27

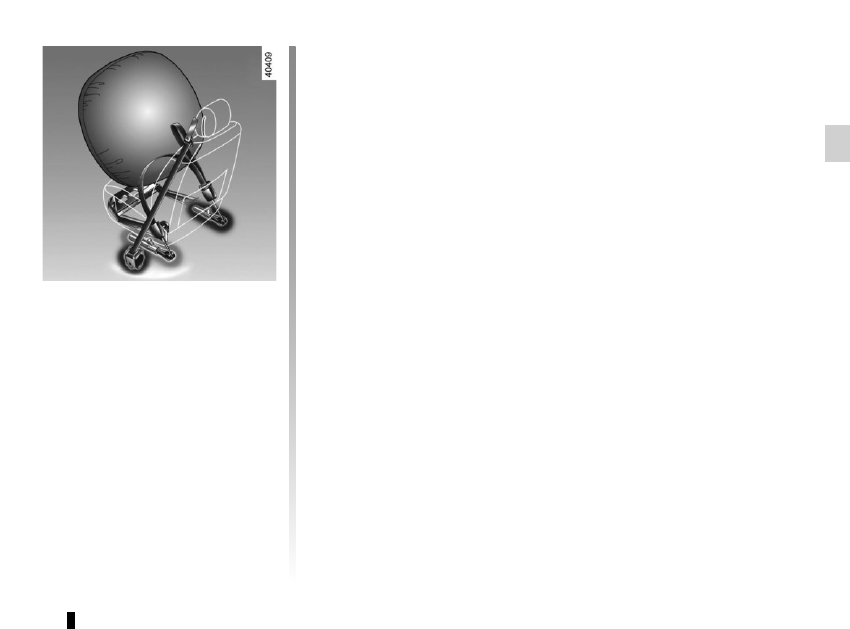

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(1/4)

Depending on the vehicle, they are

composed of:

– seat belt inertia reel pretension-

ers;

–  driver’s lap belt pretensioners;
–  chest-level load limiter;
–  airbags  driver and passenger

front.

These systems are designed to act in-

dependently or together when the vehi-

cle is subjected to a frontal impact.
Depending on the severity of the

impact, the system can trigger:
– seat belt locking;
– the seat belt inertia reel pretensioner

(which engages to correct seat belt

slack);

– the lap belt pretensioners to hold the

occupant in his seat;

– the front airbag.

Pretensioners

The pretensioners hold the seat belt

against the body, holding the occupant

more securely against the seat, thus in-

creasing the seat belt’s efficiency.
In the event of a severe frontal impact

and if the ignition is switched on, the

system may engage the following de-

pending on the force of the impact:
– seat belt inertia reel pretensioner 1

which instantly retracts the seat belt;

– the lap belt pretensioner 2 for the

driver only.

– Have the entire restraint

system checked following

an accident.

– No operation whatso-

ever is permitted on any part

of the system (pretensioners,

airbags, computers, wiring) and

the system components must not

be reused on any other vehicle,

even if identical.

– To avoid incorrect triggering of

the system which may cause

injury, only qualified personnel

from an approved dealer may

work on the pretensioner and air

bag system.

– The electric trigger system may

only be tested by a specially

trained technician using special

equipment.

– When the vehicle is scrapped,

contact an approved dealer for

disposal of the pretensioner and

airbags gas generators.

1.28

Load limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

driver and passenger front

Airbags

Fitted to the driver and passenger

sides.
The presence of this equipment is indi-

cated by the word “Airbag” on the steer-

ing wheel, dashboard (in area airbag A)

and, depending on the vehicle, a label

on the lower section of the windscreen.
Each airbag system consists of:
– an airbag and gas generator fitted on

the steering wheel for the driver and

in the dashboard for the passenger;

– an electronic unit for system monitor-

ing which controls the gas generator

electrical trigger system;

– a single

warning light on the

instrument panel.

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(2/4)

The airbag system uses py-

rotechnic principles. This

explains why, when the

airbag inflates, it will gener-

ate heat, produce smoke (this does

not mean that a fire is about to start)

and make a banging noise. In a situ-

ation where an airbag is required, it

will inflate immediately and this may

cause some minor, superficial graz-

ing to the skin or other problems.

1.29

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(3/4)

Operating faults

This warning light

will light up on

the instrument panel when the ignition

is switched on and then go out after a

few seconds.
If it does not light up when the ignition

is switched on, or comes on when the

engine is running, there is a fault in the

system.
Contact your approved Dealer as soon

as possible. Your protection will be re-

duced until this fault is rectified.

Operation
This system is only operational when

the ignition is switched on.
In a severe frontal impact, the airbags

inflate rapidly, cushioning the impact

of the driver's head and chest against

the steering wheel and of the front pas-

senger against the dashboard. The air-

bags then deflate immediately so that

the passengers are not in any way hin-

dered from leaving the vehicle.

1.30

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS

(4/4)

Warnings concerning the driver’s airbag

– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.

–  Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
–  The steering wheel must not be removed (except by qualified personnel from our Network).
–  When driving, do not sit too close to the steering wheel. Sit with your arms slightly bent (see the information on “Adjusting

your driving position” in Section 1). This will allow sufficient space for the air bag to deploy correctly and be fully effective.

Warnings concerning the passenger airbag

–  Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
–  Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
–  The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In

general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).

– The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure

the protection of the passenger in the event of an impact.

A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS

THE ADDITIONAL RESTRAINT SYSTEMS, IE. THE PASSENGER AIR BAG, ARE DEACTIVATED.

(refer to the information on “Child safety: deactivating/activating the front passenger airbag” in Section 1)

All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

1.31

METHODS OF RESTRAINT IN ADDITION TO THE REAR SIDE SEAT BELTS

Force limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

– Have the entire restraint

system checked following

an accident.

– No operation whatsoever

is permitted on any part of the

system (air bags, electronic con-

trol units, wiring) and the system

components must not be reused

on any other vehicle, even if iden-

tical.

– Only qualified personnel from

our Network may work on the air

bags; otherwise the system may

trigger accidentally and cause

injury.

1.32

Side Airbags

An airbag can be fitted to each front

seat and the rear side seats, which are

deployed on the side of the seat (door

side) to protect the occupants in the

case of a severe side impact.

Curtain Airbags

These are airbag fitted along the sides

of the vehicle in the ceiling which trigger

along the front and rear door side win-

dows to protect the passengers in case

of a severe side impact.

SIDE PROTECTION DEVICES

Warning relating to the side airbag
– Fitting seat covers: seats equipped with an airbag require covers spe-

cifically designed for your vehicle. Contact an approved Dealer to find out

if these covers are available. The use of any covers other than those de-

signed for your vehicle (and including those designed for another vehicle) may

affect the operation of the airbags and reduce your protection.

– Do not place any accessories, objects or even pets between the seatback, the

door and the internal fittings. Do not cover the seatback with any items such as

clothes or accessories. This may prevent the air bag from operating correctly

or cause injury when the airbag is deployed.

– No work or modification whatsoever may be carried out on the seat or internal

fittings, except by qualified personnel from an approved Dealer.

Depending on the vehicle, a mark-

ing on the windscreen informs you

of the presence of additional means

of restraint (air bags, pretensioners,

etc.) in the passenger compartment.

1.33

ADDITIONAL METHODS OF RESTRAINT

The airbag is designed to complement the action of the seat belt. Both the

air bags and seat belts are integral parts of the same protection system.

It is therefore essential to wear seat belts at all times. If seat belts are not

worn, the occupants are exposed to the risk of serious injury in the event

of an accident. It may also increase the risk of minor superficial injuries occurring

when the airbag is deployed, although such minor injuries are always possible

with air bags.
If the vehicle should overturn or in the event of a rear impact, however severe,

the pretensioners and airbags are not always triggered. Impacts to the underside

of the vehicle, e.g. from pavements, potholes or stones, can all trigger these sys-

tems.
– No work or modification whatsoever may be carried out on any part of the

airbag system (airbags, pretensioners, computer, wiring harness, etc.), except

by qualified Network personnel.

– To ensure that the system is in good working order and to avoid accidental trig-

gering of the system which may cause injury, only qualified Network personnel

may work on the airbag system.

– As a safety precaution, have the airbag system checked if your vehicle has

been involved in an accident, or is stolen or broken into.

– When selling or lending the vehicle, inform the user of these points and hand

over this handbook with the vehicle.

– When scrapping your vehicle, contact your approved Dealer for disposal of the

gas generator(s).

All of the warnings below are given so that the airbag is not obstructed in any

way when it is inflated and also to prevent the risk of serious injuries caused

by items which may be dislodged when it inflates.

Operating faults

This warning light comes on

when the engine is started and then

goes out after approximately three se-

conds.
If it does not come on when the ignition

is switched on or if it stays on, there is a

fault in the system.
Contact your approved Dealer as soon

as possible.
Your protection will be reduced until this

fault is rectified.

Renault Kadjar (2018 year). Manual - part 2
