Headlights (changing bulbs)

FrONT HEADLIgHTs: changing bulbs

(1/2)

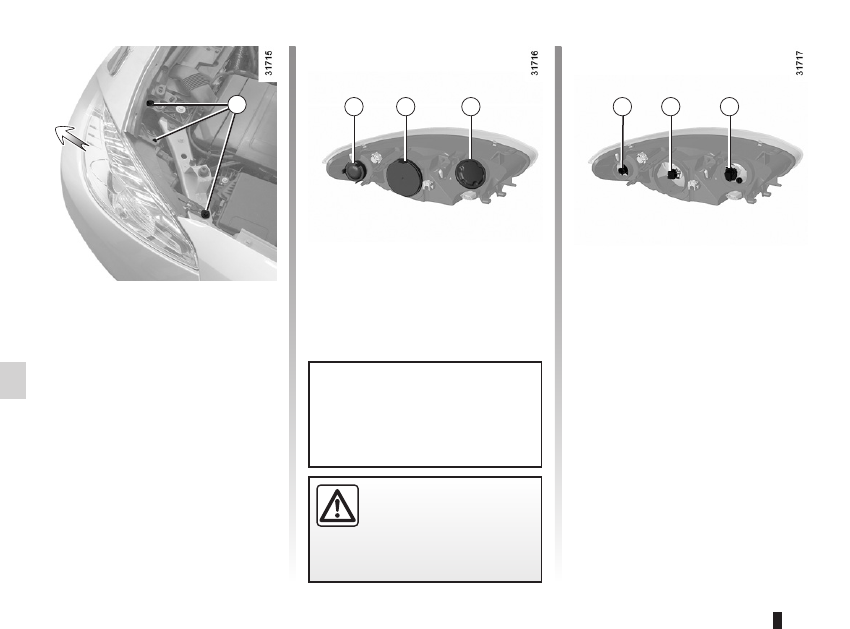

Direction indicators

Remove cover B, unscrew bulb

holder 2 a quarter of a turn and un-

screw the bulb a quarter of a turn.

Bulb type: PY21W.

The bulbs detailed below can be re-

placed. However, we recommend that

these be replaced by an approved

dealer if this proves difficult. After open-

ing the bonnet, unscrew the screws 1

using standard tools or, depending on

the vehicle, using the spanners pro-

vided in the tool kit.

Pull the headlight as far as possible in

the direction shown by the arrow.
Note: the headlight cannot be pulled

out completely. Avoid pulling too hard,

as this could damage the connections.

Obtain an emergency kit containing

a set of spare bulbs and fuses from

an approved Dealer.

Do not do any work under

the bonnet when the vehicle

is charging or when the igni-

tion is switched on.

lights:

dipped beam headlights ...................................(current page)

lights:

side lights .........................................................(current page)

lights:

main beam headlights ......................................(current page)

5.15

ENG_UD26810_4

Projecteurs avant : remplacement des lampes (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

FrONT HEADLIgHTs: replacing bulbs

(2/2)

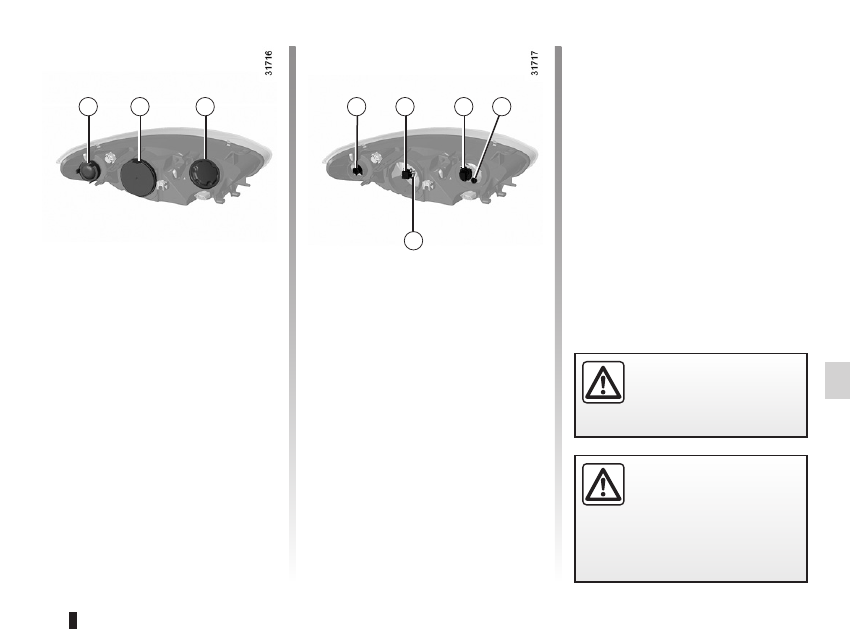

Dipped beam headlights C

Remove cover C, then unclip bulb con-

nector 3.

Press the top of clip 6, remove the as-

sembly from its housing and take out

the bulb.
Bulb type: H7.
It is

essential to use anti U.V. 55W

bulbs so as not to damage the plastic

on the headlights.

Do not touch the bulb glass.

When the bulb has been changed,

make sure you refit the cover correctly.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

main beam headlights

Unscrew cover D a quarter of a turn

and remove connector 4 with the bulb.
Remove the lamp from the connector.
Bulb type: H7.

side lights

Unscrew cover D a quarter of a turn,

pull bulb holder 5 and take out the bulb.
Bulb type: W5W.

bulbs

changing .........................................(up to the end of the DU)

fog lights ...............................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

fog lights .........................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

lights

additional ........................................(up to the end of the DU)

lights

fog lights .........................................(up to the end of the DU)

5.16

ENG_UD20077_2

Projecteurs avant Feux de brouillard avant additionnels (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

FrONT HEADLIgHTs: front fog lights, additional lights

Additional lights

If you wish to fit fog lights or long range

headlights to your vehicle, consult an

authorised dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

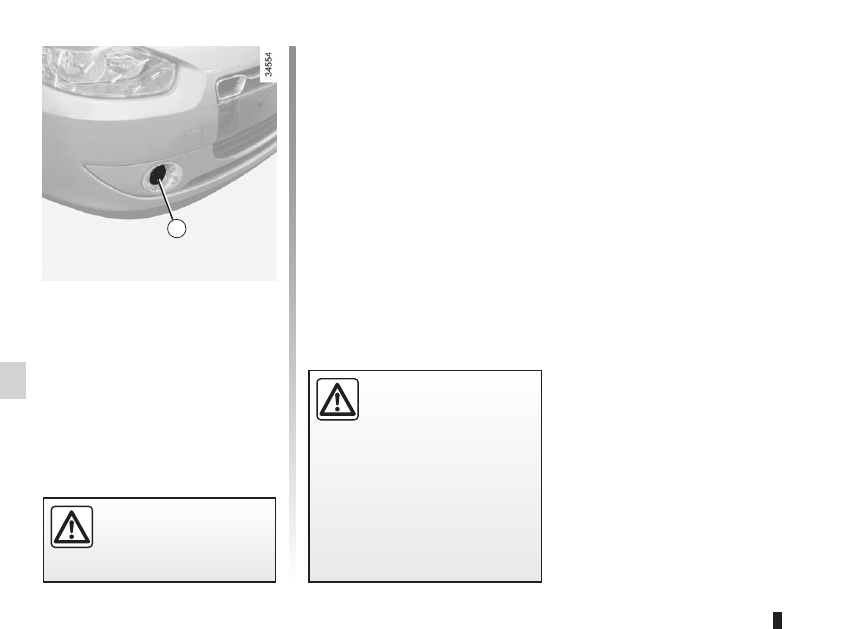

Front fog lights 1

However, because the front bumper

needs to be removed,

you are advised

to have your bulbs replaced by an

approved dealer.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

bulbs

changing .........................................(up to the end of the DU)

lights:

direction indicators ...........................................(current page)

lights:

brake lights ......................................................(current page)

lights:

side lights .........................................................(current page)

changing a bulb ....................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

5.17

ENG_UD23018_2

Projecteurs arrière et latéraux (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Rear lights (changing bulbs)

Direction indicator lights 4

Bulb type: PY21W.

side light and brake light 5

Bulb type: P21/5W.

Direction indicator lights/

brake and side lights

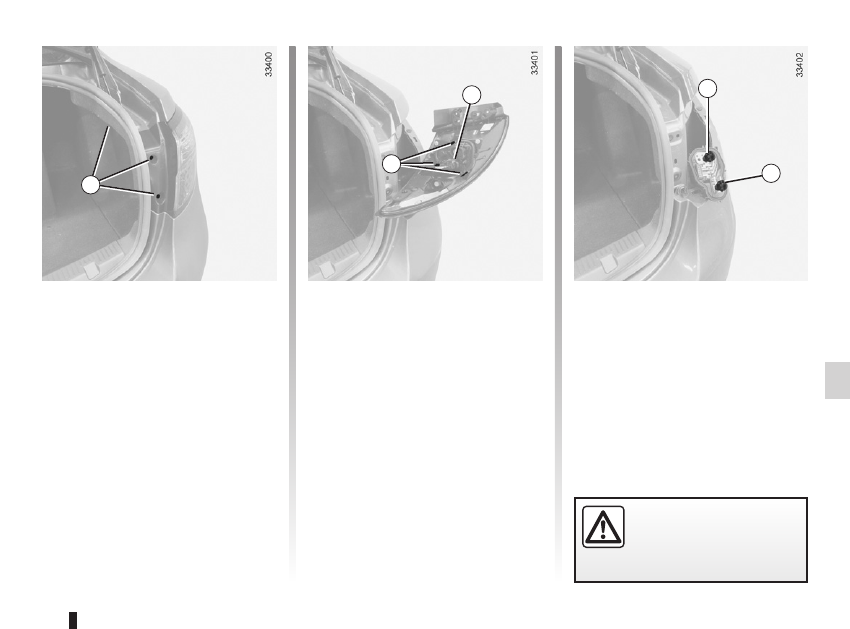

– Open the boot and unscrew bolts 1

using the rear lights key (refer to

the information on the “Tool kit” in

Section 5), then take out the light unit

by pulling it back.

– Release clips 3 to remove bulb

holder 2.

– Unscrew bulb holder 4 or 5 and re-

place the bulb.

Note: ensure that the cable is in place

before inserting the light unit.

rEAr LIgHTs AND sIDE LIgHTs: changing bulbs

(1/2)

refitting

To refit, proceed in the reverse order,

taking care not to damage the wiring.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

lights:

fog lights ..........................................................(current page)

lights:

reversing lights .................................................(current page)

lights:

number plate lights ..........................................(current page)

lights:

indicator lights ..................................................(current page)

lights:

brake lights ......................................................(current page)

5.18

ENG_UD23018_2

Projecteurs arrière et latéraux (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Indicator lights (changing bulbs)

rEAr LIgHTs AND sIDE LIgHTs: changing bulbs

(2/2)

reversing light or rear fog

light 7 or 8

Please see an authorised dealer.

High-level brake light 6

Consult an approved Dealer.

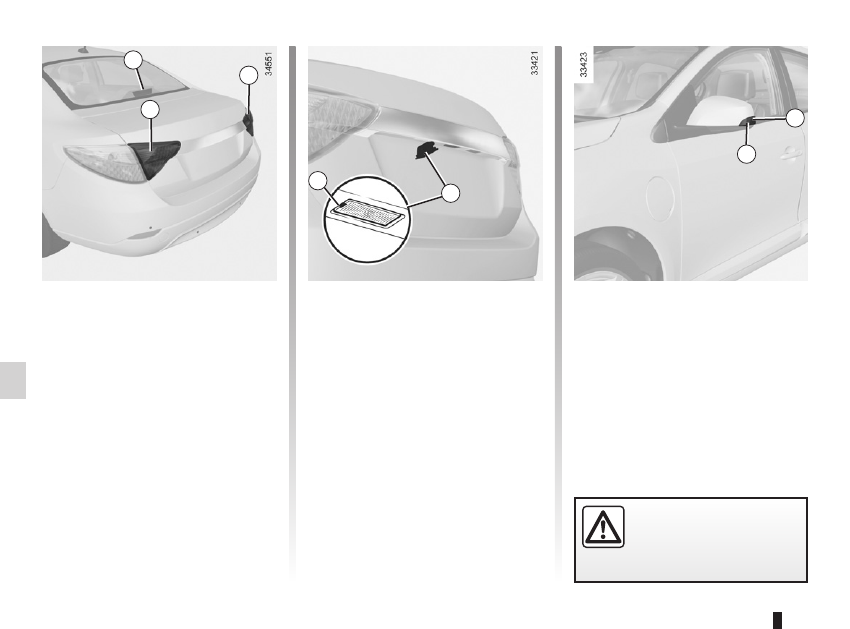

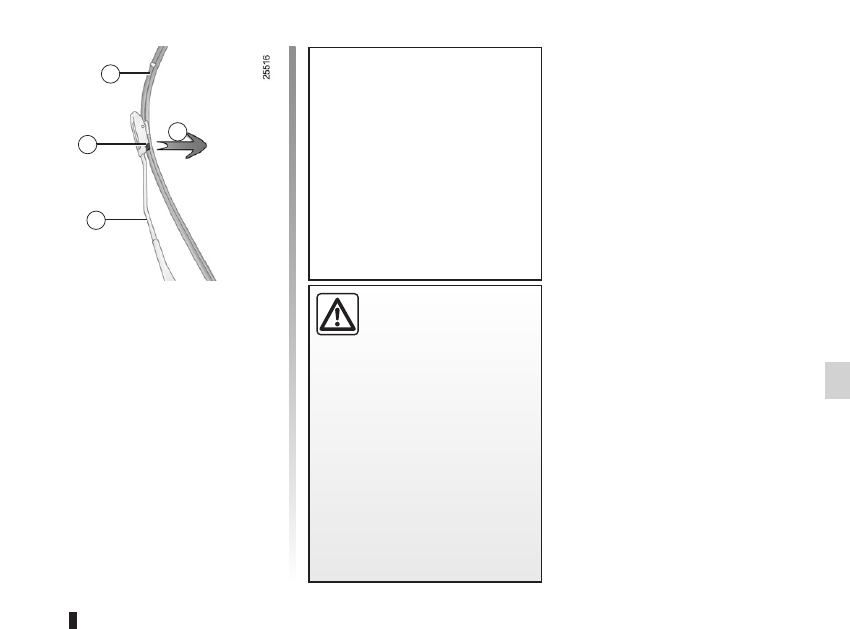

side indicator lights 11

– Unclip indicator light 11 (using a flat-

blade screwdriver type tool posi-

tioned at A to move the indicator light

towards the front of the vehicle);

– Turn the bulb holder a quarter of a

turn and take out the bulb.

Bulb type: W5W.

Number plate lights 10

– Unclip light 10 by pressing tab 9;
– remove the light cover to gain access

to the bulb.

Bulb type: W5W.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

courtesy light ........................................(up to the end of the DU)

lighting:

interior .............................................(up to the end of the DU)

5.19

ENG_UD20078_2

Eclairage intérieur : remplacement des lampes (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

Interior lights (changing bulbs)

INTErIOr LIgHTINg: changing bulbs

(1/2)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

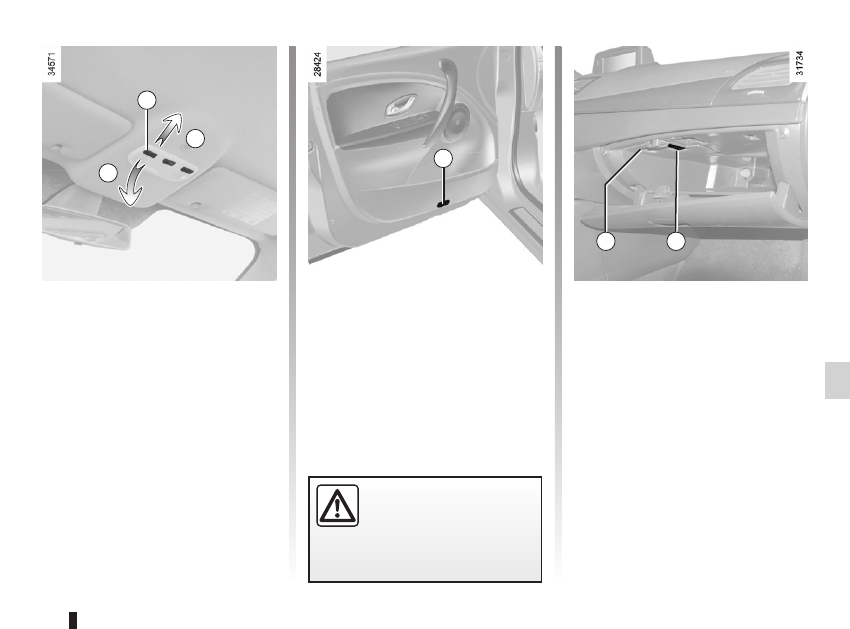

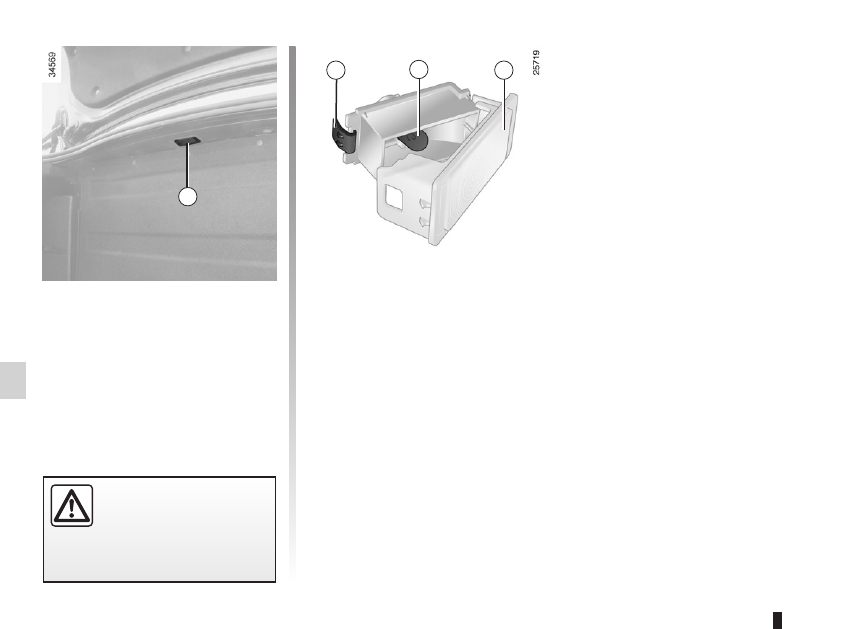

Courtesy light

– Position the 3 switches in the central

position;

– move the courtesy light backwards

(movement A) then tilt the front

downwards (movement B);

– when removing the courtesy light,

ensure that you do not pull the elec-

trical wires;

– unclip the lens 1;
Note: to remove the defective bulb, you

can use a flat-blade screwdriver or sim-

ilar.
Bulb type: W5W.

glove box light

Open the access cover 3, you can then

unclip the bulb holder more easily 4.
Bulb type: C5W.

Door lights

Unclip light 2 (using a flat-blade screw-

driver or similar).
Turn the bulb holder a quarter of a turn

and take out the bulb.
Bulb type: W5W.

5.20

ENG_UD20078_2

Eclairage intérieur : remplacement des lampes (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

INTErIOr LIgHTINg: replacing bulbs

(2/2)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

Luggage compartment light

Unclip the light 5 (using a tool such as a

flat-blade screwdriver).

Disconnect the light.
Press tab 6 to release the lens 8 and

access bulb 7.
Bulb type: W5W.

fuses .....................................................(up to the end of the DU)

5.21

ENG_UD22853_1

Fusibles (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Fuses

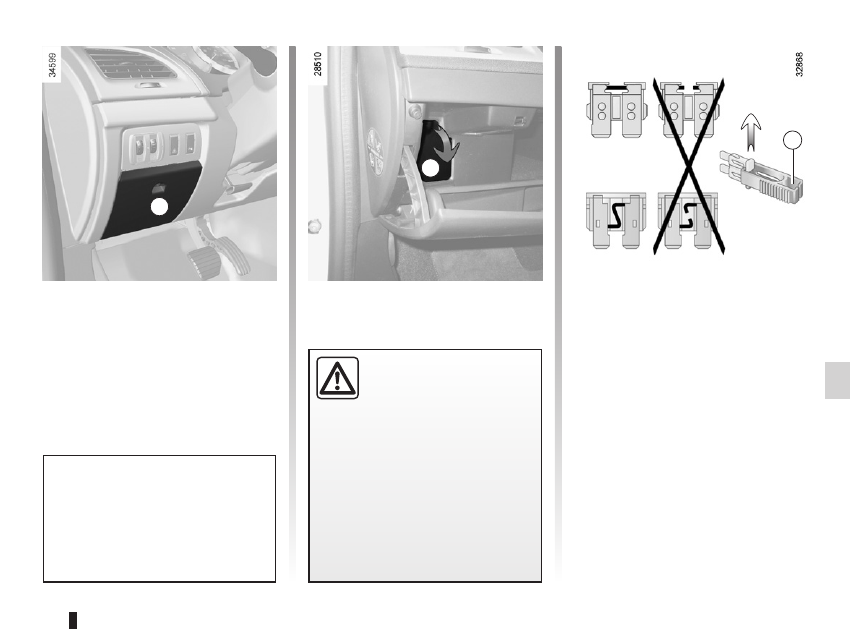

Fuse box

If any electrical component does not

work, check the condition of the fuses.
Unclip flap A for left-hand drive vehicles

or B for right-hand drive vehicles.

Tweezers 1

Remove the fuse using tweezers 1, lo-

cated at the back of cover A or B.
To remove the fuse from the tweezers,

slide the fuse to the side.
It is not advisable to use the free fuse

locations.

Check the fuse in question

and

replace it, if neces-

sary,

by a fuse of the same

rating.

If a fuse is fitted where the rating is

too high, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

FUsEs

(1/2)

In accordance with local legislation

or as a precautionary measure:
Obtain an emergency kit containing

a set of spare bulbs and fuses from

an approved Dealer.

5.22

ENG_UD22853_1

Fusibles (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

FUsEs

(2/2)

Some accessories are protected by

fuses located in the engine compart-

ment in fuse box C.
However, because of their reduced ac-

cessibility, we advise you to have your

fuses replaced by an approved Dealer.

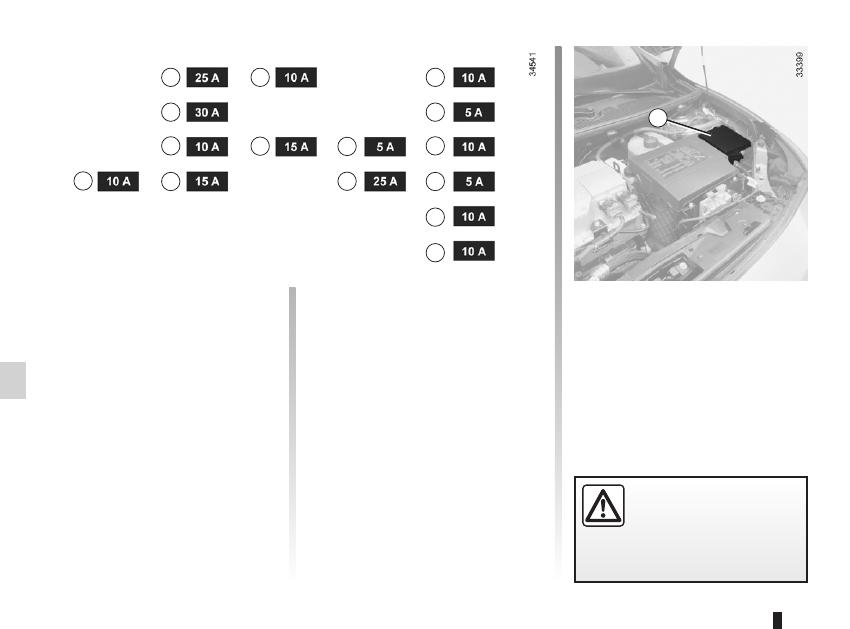

Allocation of fuses

(the presence of certain fuses depends

on the vehicle equipment level)
1 Brake lights;
2 Automatic door locking;
3 Driver’s electric window;
4 Passenger compartment unit;
5 Direction indicator lights;
6 Navigation system;

7 Rear screen wiper;
8 ABS/ESP;
9 Passenger electric window;
10 Windscreen washer;
11 Heated door mirrors;
12 Radio;
13 Traction battery;
14 Rear seat accessories socket;
15 Cigarette lighter.

Do not do any work under

the bonnet when the vehicle

is charging or when the igni-

tion is switched on.

12 volt battery .......................................(up to the end of the DU)

12 volt battery

breakdown recovery .......................(up to the end of the DU)

5.23

ENG_UD26165_2

Batterie : dépannage (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

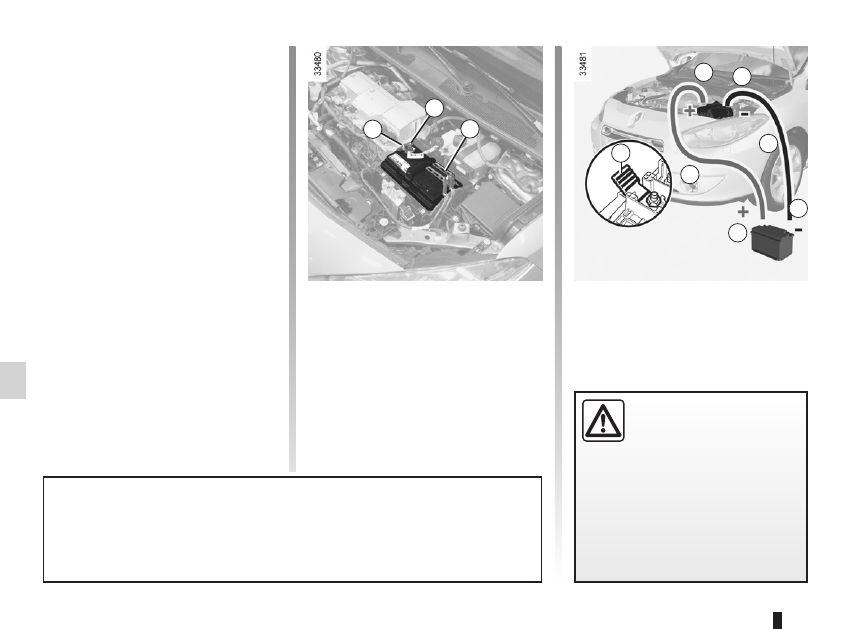

To avoid all risk of sparks:

– Switch off the vehicle ignition.

– Ensure that any electrical consumers

(courtesy lights, etc.) are switched

off before disconnecting or recon-

necting the battery.

– When charging, stop the charger

before connecting or disconnecting

the battery.

– Do not place metal objects on the

battery to avoid creating a short cir-

cuit between the terminals.

– Make sure that you reconnect the

battery terminals after refitting.

12 volt battery: troubleshooting

12 VOLT BATTErY: breakdown recovery

(1/2)

Connecting a battery charger

The battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Before disconnecting the battery, check

that:

– the ignition is switched off;

– the gear control should be in posi-

tion

P (please refer to the information

on the “Gear control” in Section 2;

– the charging cable is disconnected.

Special procedures may be

required to charge some

batteries. Contact your ap-

proved dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well-venti-

lated area. Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
The engine may be hot when car-

rying out operations in close prox-

imity. In addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Disconnect the leads connected to both

battery terminals,

starting with the

negative terminal.
Follow the instructions given by the

manufacturer of the battery charger

you are using.

Do not work on the 12 volt

battery (charging, replac-

ing, etc.):
– without switching off the

ignition;

– if your traction battery is charg-

ing.

Please refer to the information

on “Electric vehicle: charging” in

Section 1.
Risk of serious injury.

5.24

ENG_UD26165_2

Batterie : dépannage (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Attach positive lead A to mounting 1

attached to (+) terminal 2 then to

(+)

terminal 3 of the battery supplying

the current.
Attach the negative lead B to the

(– )

terminal 4 of the battery supplying

the current, then to the (–)

terminal 5

of the discharged battery.

starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.

The two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.

Switch off your vehicle ignition. Ensure

that there is no risk of contact between

the two vehicles (risk of short circuiting

when the positive terminals are con-

nected) and that the discharged battery

is properly connected.

Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.

12 VOLT BATTErY: breakdown recovery

(2/2)

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.
Risk of injury and/or damage to the

vehicle.

Do not use your electric vehicle to restart the 12 volt battery in a conventional

vehicle. The 12 volt electric power of an electric vehicle is not enough to perform

such an operation.

Risk of damage to vehicle

As soon as it starts, disconnect

cables A and B in reverse order (5 - 4

- 3 - 2).

battery (remote control) ........................(up to the end of the DU)

5.25

ENG_UD23947_3

Télécommande à radiofréquence : piles (L38 - X38 - X32 - B32 - Renault)

ENG_NU_914-4_L38e_Renault_5

Radio frequency remote control unit: battery

rADIO FrEqUENCY rEmOTE CONTrOL: battery

replacing the battery

Open the case at slot 1 using a coin,

and replace battery 2, observing the

polarity shown on the back of the cover.

Note: It is not advisable to touch the

electrical circuit in the key cover when

replacing the battery.
Do not touch the battery or the contact

strips with your fingers. Use a soft cloth.

Do not dispose of your used

batteries in the countryside.

Give them to an organisa-

tion that collects and recy-

cles used batteries.

Batteries can be obtained from your

approved Dealer.
These batteries should have a serv-

ice life of approximately two years.

When refitting, ensure that the cover

is correctly clipped into place.

accessories...........................................(up to the end of the DU)

5.26

ENG_UD19299_1

Accessoires (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

Accessories

ACCEssOrIEs

Electrical and electronic accessories

Before installing this type of accessory, make sure it is compatible with your vehicle. You can get advice from an au-

thorised dealer.

To install an accessory requiring intervention with the vehicle’s 12 V electrical circuit, please follow these instructions:

– disconnect the charging cord from the traction battery;

– switch off the ignition;

– disconnect the 12 V battery.

risk of serious injury.
Connect accessories with a maximum power of 120 watts only.

Fire hazard.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.

If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

Use of transmission/receiving devices (telephones, CB equipment etc.).

Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the

vehicle: it is advisable only to use equipment with an external aerial.

Furthermore, we remind you of the need to conform

to the legislation in force concerning the use of such equipment.

Fitting after-market accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-

larly. Do not lay one mat on top of another.

There is a risk of wedging the pedals

wiper blades .........................................(up to the end of the DU)

wipers

blades .............................................(up to the end of the DU)

5.27

ENG_UD19300_1

Balais d’essuie-vitres (L38 - X38 - Renault)

ENG_NU_914-4_L38e_Renault_5

Wipers (replacing blades)

WINDsCrEEN WIPEr BLADEs

replacing wiper blades 1

With the ignition on and the engine

switched off, lower the windscreen

wiper stalk completely: they stop

slightly away from the bonnet.

Lift wiper arm 3, pull tab 2 (move-

ment A) and push the blade upwards.
To refit

Slide the blade along the arm until it

clips on. Make sure that the blade is

correctly locked in position. Return the

windscreen wiper stalk to the park po-

sition.

Keep monitoring the condition of the

wiper blades. How long they last de-

pends on you:

– clean the blades and the wind-

screen regularly with soapy

water;

– do not use them when the wind-

screen is dry;

– free them from the windscreen

when they have not been used

for a long time.

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

– Check the condition of the wiper

blades.

They should be replaced as soon

as they become less efficient: ap-

proximately once a year.

When changing the blade, when it

has been removed, do not let the

wiper arm fall against the window:

risk of breaking the window.

towing

breakdown ......................................(up to the end of the DU)

towing

in the event of energy failure ..........(up to the end of the DU)

5.28

ENG_UD28878_1

Remorquage, dépannage (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Towing/breakdown

TOWINg, BrEAKDOWN

(1/3)

Choice of breakdown service

In the event of an energy fault

In the event of a fully discharged trac-

tion battery, any type of towing is per-

mitted:

towing on a flatbed truck or

towing on the road using the tow eye

(please see following pages).

All other cases
Only towing on a flatbed truck is per-

mitted.

Before repairs, insert the key in the igni-

tion to unlock the steering column. Turn

it to position

The regulations in force for breakdown

recovery must always be observed.

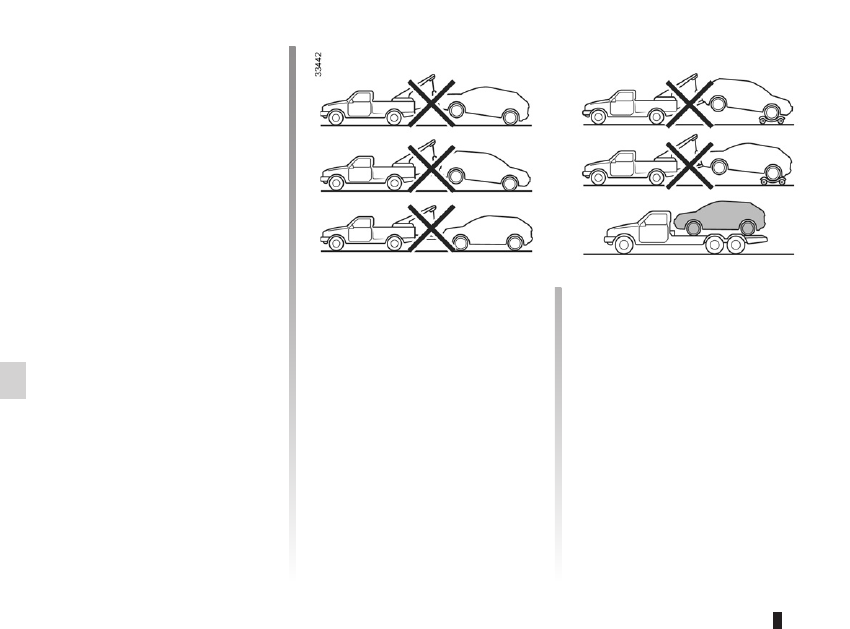

Towing on a flatbed truck

Breakdown recovery

must be per-

formed on a flat surface under all cir-

cumstances except where the vehicle

is immobilised following a full discharge

of the traction battery. In the event of a

total energy loss, please see the follow-

ing pages.

towing hitch............................................................(current page)

5.29

ENG_UD28878_1

Remorquage, dépannage (L38 électrique - Renault)

ENG_NU_914-4_L38e_Renault_5

Bring lever to position

In the event of an energy

fault: towing

In the event of a fully discharged trac-

tion battery:

– the warning light

Ṏ

flashes;

– needle 1 is in the lower section of the

reserve zone.

It is possible to recover on a flatbed

truck or tow the vehicle using the tow

eye, following the instructions below.

Before towing, insert the key in the

switch to unlock the steering column.

Turn it to position

The column is unlocked, the acces-

sory functions are supplied: the vehi-

cle lights can be used (hazard warn-

ing lights, brake lights etc.). The towed

vehicle’s lights must be switched on at

night.
The speed specified by current legis-

lation for towing must always be ob-

served.

TOWINg, BrEAKDOWN

(2/3)

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

If the lever is stuck in

even though you are de-

pressing the brake pedal,

the lever can be released

manually. To do this, insert a rigid

rod in the hole 3, press the rod and

unlocking button 2 located on the

lever simultaneously.

Content .. 8 9 10 11 ..
