Renault Duster (2016 year). Manual - part 11

4.12

TYRE PRESSURE

(1/2)

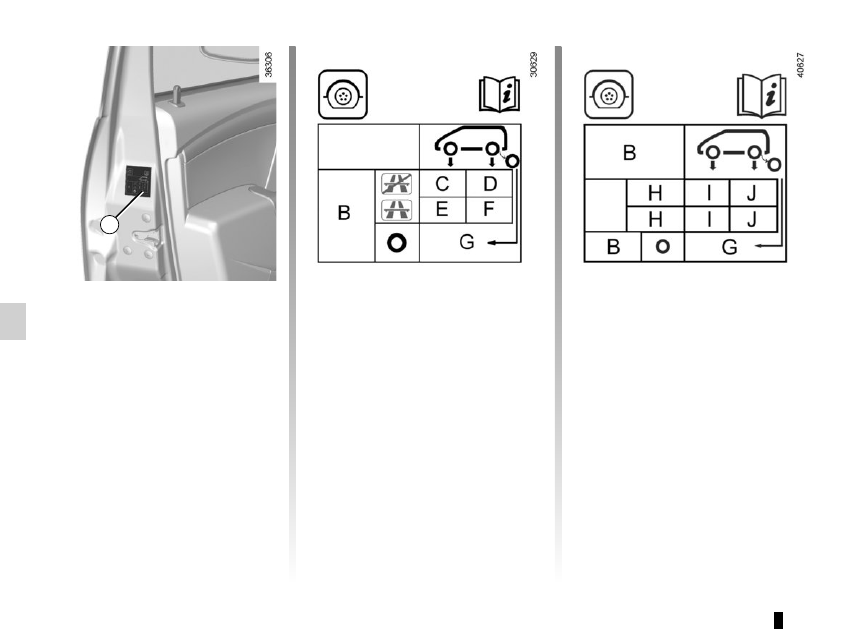

The presence and location of the infor-

mation on the label depends on the ve-

hicle.
B: dimension of the tyres fitted to the

vehicle.
C: tyre pressures for the front wheels

(non-motorway).
D: tyre pressures for the rear wheels

(non-motorway).
E: tyre pressures for the front wheels

(motorway).
F: tyre pressures for the rear wheels

(motorway driving).

Label A

To read it, open the driver’s door. Tyre

pressures should be checked when the

tyres are cold.
If the tyre pressures cannot be checked

when the tyres are cold, increase the

pressures from 0.2 to 0.3 bar (or 3 PSI).

Never deflate a hot tyre.

G: tyre pressure for the emergency

spare wheel.
H: intended driving speed.
I: tyre pressures for the front wheels.
J: tyre pressures for the rear wheels.

4.13

TYRE PRESSURES

(2/2)

Special note concerning fully laden

vehicles (Maximum Permissible All-Up

Weight) and towing a trailer: the maxi-

mum speed must be limited to 60 mph

(100 kph) and the tyre pressure in-

creased by 0.2 bar.
Please refer to the information on

“Weights” in Section 6.
Tyre safety and use of snow chains:

Refer to the information on “Tyres” in

Section 5 for the servicing conditions

and, depending on the version, the use

of chains.

Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the



warning light on

the instrument panel comes on. See

“Tyre pressure loss warning” paragraph

in chapter 2.

For your safety, please re-

spect the speed limit.
When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.
They must: either have a load ca-

pacity and speed rating at least

equal to those of the original

tyres, or conform to those recom-

mended by an authorised dealer.
Failure to heed these instructions

could endanger your safety and

affect your vehicle’s roadworthi-

ness.
Risk of loss of control of the ve-

hicle.

4.14

BATTERY

(1/2)

Battery 1 does not require any mainte-

nance. You should not open it or add

any fluid.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water and consult a

doctor, if necessary.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.

The charge status of your battery can

decrease especially if you use your ve-

hicle:
–  for short journeys;
–  for driving in town;
–  when the temperature drops;
–  after extended use of consumers

(radio etc.) with the engine switched

off.

Replacing the battery

As this operation is complex, we advise

you to contact an approved Dealer.

As the battery is specific

to the vehicle (presence of

a ventilation pipe to expel

corrosive and explosive

gases), make sure that it is replaced

with a battery that enables this pipe

to be connected. Please contact an

authorised dealer.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

4.15

BATTERY

(2/2)

Label A
Observe the indications on the battery:
– 2 Naked flames and smoking forbid-

den;

– 3 Wear eye protection;
– 4 Keep away from children;
– 5 Explosive substances;
– 6 Refer to the handbook;
– 7 Corrosive substances.

The engine may be hot

during operations in close

proximity. In addition, the

engine cooling fan may

start at any moment.
Risk of injury.

4.16

BODYWORK MAINTENANCE

(1/2)

You should

Wash your car frequently, with the

engine off, with cleaning products rec-

ommended by the manufacturer (never

use abrasive products). Rinse thor-

oughly beforehand with a jet:

–

spots of tree resin and industrial

grime;

–

mud in the wheel arches and under-

neath the body which forms damp

patches;

–

bird droppings, which cause a

chemical reaction with the paint that

rapidly discolours paintwork and

may even cause the paint to peel

off;

wash the vehicle immediately to

remove these marks since it is im-

possible to remove them by polish-

ing;

–

salt, particularly in the wheel arches

and underneath the body after driv-

ing in areas where the roads have

been gritted.

Remove any plant matter (resin, leaves,

etc.) from the vehicle regularly.

What you should not do

Do not degrease or clean mechani-

cal components (e.g. the engine com-

partment), underneath the body, parts

with hinges (e.g. inside the doors) and

painted plastic external fittings (e.g.

bumpers) using high-pressure clean-

ing equipment or by spraying on prod-

ucts not approved by our Technical

Department. Doing this could give rise

to corrosion or operational faults.
Wash the vehicle in bright sunlight or

freezing temperatures.
Do not scrape off mud or dirt without

pre-wetting.
Allow dirt to accumulate on the exterior.
Allow rust to form following minor im-

pacts.
Do not use solvents not approved by

our Technical Department to remove

stains as this could damage the paint-

work.
Do not drive in snow or muddy condi-

tions without washing the vehicle, par-

ticularly under the wheel arches and

body.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the exterior of the vehicle reg-

ularly.
Your vehicle has been treated with very

effective anti-corrosion products. It is

nevertheless subject to various outside

influences.

Corrosive agents in the atmosphere

–

atmospheric pollution (built-up and

industrial areas),

–

saline atmospheres (near the sea,

particularly in hot weather),

–

seasonal and damp weather condi-

tions (e.g. road salt in winter, water

from road cleaners, etc.).

Minor impacts

Abrasive action

Dust and sand in the air, mud, road grit

thrown up by other vehicles, etc.
You should take a number of minor pre-

cautions in order to safeguard your ve-

hicle against such risks.

4.17

Respect local regulations about wash-

ing vehicles (e.g. do not wash your ve-

hicle on a public highway).
Observe the vehicle stopping distances

when driving on gravelled surfaces to

prevent paint damage.
Repair, or have repaired quickly, areas

where the paint has been damaged, to

prevent corrosion spreading.
Remember to visit the body shop pe-

riodically in order to maintain your

anti-corrosion warranty. Refer to the

Maintenance Document.
If it is necessary to clean mechani-

cal components, hinges, etc., spray

them with products approved by our

Technical Department to protect them

after they have been cleaned.

BODYWORK MAINTENANCE

(2/2)

We have selected special products

to care for your vehicle and you can

obtain these from the manufactur-

er’s accessory outlets.

Using a roller type car wash

Return the windscreen wiper stalk to

the Park position (refer to the informa-

tion on the “Windscreen washer, wiper”

in Section 1). Check the mounting of

external accessories, additional lights

and mirrors, and ensure that the wiper

blades are secured with adhesive tape.

Remove the radio aerial mast if your

vehicle is fitted with this equipment.

Remember to remove the tape and refit

the antenna after washing.

Cleaning the headlights

As the headlights are made of plastic

“glass”, use a soft cloth or cotton wool

to clean them. If this does not clean

them properly, moisten the cloth with

soapy water, then wipe clean with a soft

damp cloth or cotton wool.

Finally, carefully dry off with a soft dry

cloth.
Cleaning products containing alco-

hol must not be used.

Vehicles with a matte paint

finish

This type of paint requires certain pre-

cautions.

Do not do the following
–

use wax-based products (polishing);

–

rub hard;

–

wash the vehicle in a roller-type car

wash;

–

wash the vehicle using a high-pres-

sure device;

–

attach stickers to the paintwork (risk

of leaving marks).

You should do the following
Wash the vehicle by hand using plenty

of water, using a soft cloth or a gentle

sponge.

4.18

Glass instrument panel

(e.g.: instrument panel, clock, exterior

temperature display, radio display, mul-

timedia or multifunction display etc.)
Use a soft cloth (or cotton wool).

If this does not clean them properly,

use a soft cloth (or cotton wool) slightly

moistened with soapy water and then

wipe clean with another soft damp cloth

or cotton wool.

Finally, carefully dry off with a soft dry

cloth.
Do not use products containing alco-

hol and/or spray fluids on the area.

Seat belts

These must be kept clean.

Use products selected by our Technical

Department (Approved outlets) or

warm, soapy water and a sponge and

wipe with a dry cloth.

Detergents or dyes must not be used

under any circumstances.

INTERIOR TRIM MAINTENANCE

(1/2)

Textiles (seats, door trim, etc)

Vacuum-clean the textiles regularly.

Liquid stain
Use soapy water.
Dab lightly (never rub) with a soft cloth,

rinse and remove the excess.

Solid or pasty stain
Carefully remove the excess solid or

pasty material immediately with a

spatula (working from the edges to the

centre to avoid spreading the stain).

Clean as for a liquid stain.

Special instructions for sweets or

chewing gum
Put an ice cube on the stain to solidify

it, then proceed as for a solid stain.

A well-maintained vehicle will last

longer. It is therefore recommended to

maintain the interior of the vehicle regu-

larly.
A stain should always be dealt with

swiftly.
Whatever type of stain is on the trim,

use cold (or warm) soapy water with

natural soap.
Detergents (washing-up liquid, pow-

dered products, alcohol-based prod-

ucts) should not be used.
Use a soft cloth.
Rinse and soak up the excess.

For further recommendations for

maintaining the interior, and/or for

any unsatisfactory results, please

see an authorised dealer.

4.19

You are strongly recom-

mended not to use high-

pressure or spray cleaning

equipment inside the pas-

senger compartment: use of such

equipment could impair the correct

functioning of the electrical or elec-

tronic components in the vehicle, or

have other detrimental effects.

INTERIOR TRIM MAINTENANCE

(2/2)

You should not:

You are strongly advised not to po-

sition objects such as deodorants,

scents, etc. near air vents, as this could

damage your dashboard trim.

Removal/replacing removable

equipment originally fitted in

the vehicle

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

side, etc.) and fit them with the compo-

nents supplied with the equipment (for

example, the driver mat should always

be fixed using the pre-fitted mounting

components).
With the vehicle stationary, always

ensure that nothing will impede driving

(anything obstructing the pedals, heel

wedged by the mat etc.).

5.2

Jack 4

To use the jack, undo nut 2. When refit-

ting, fold the jack before placing it in its

housing.

Tighten the nut to secure the jack.

TOOLS

Accessing the tools
The tools are located in the luggage

compartment. The presence of the vari-

ous tools depends on the vehicle.
Unclip the flap A by placing your hand

in the handle 1. Remove the flap.
After the using the tools, make sure you

close the flap A. properly.

Wheelbrace 5

This is used to tighten/loosen the wheel

bolts and, depending on the vehicle, to

access the emergency spare wheel.

Hubcap tool 3

This tool is used to remove the wheel

trims.

Do not leave the tools unsecured inside the vehicle as they may come

loose under braking. After use, make sure the tools are correctly posi-

tioned in their housings: risk of injury.

If wheel bolts are supplied in the tool kit, only use these bolts for the

emergency spare wheel: refer to the label affixed to the emergency spare wheel.

The jack is designed for wheel changing purposes only. Under no circumstances

should it be used for carrying out repairs underneath the vehicle or to gain access

to the underside of the vehicle.

5.3

PUNCTURE

(1/2)

Emergency spare wheel 4x2

version (2WD)

This is placed in cage 4 underneath

the vehicle.
To take out the emergency spare

wheel:
– Open the tailgate;

– undo bolt 2 using wheelbrace 1

(refer to the information on “Tools” in

this section);

– detach the holder 4 taking it by the

handle 5 (example A) or depending

on the vehicle, detach the holder 4

(example B);

– remove the emergency spare

wheel 3.

In the event of a puncture,

depending on the vehicle,

you will have:

An emergency spare wheel or tyre in-

flation kit (refer to the information on the

following pages).

If the emergency spare

wheel has been stored

for several years, have it

checked by your Dealer to

ensure that it is safe to use.

To store the wheel in the cage:
– Place the punctured tyre in the sub-

frame 4;

– to return the holder 4 to its initial po-

sition, proceed in reverse order and

tighten the bolt using the wheel-

brace 1 to refit the assembly;

– make sure it is correctly locked.

5.4

PUNCTURE

(2/2)

Emergency spare wheel 4x4

version (4WD)

This is located in the luggage compart-

ment.
To access it:
–  Open the tailgate;
–  fold the luggage compartment mat 6;
–  unscrew the central mounting 8;
– remove the emergency spare

wheel 7.

Note: ensure that the emergency spare

wheel or punctured wheel and the

wheel tray are correctly positioned so

that the luggage compartment carpet

can be properly fitted.

Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the warning light



lights up on the instrument panel. See

“Tyre pressure loss warning” in

Section 2.

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.

Vehicles fitted with an emergency spare wheel which is different to

the four other wheels:

– Never fit more than one emergency spare wheel to the same vehicle.

– Replace the emergency spare wheel as soon as possible with a wheel identi-

cal to the original one.

– When this is fitted to the vehicle, which must only be a temporary measure, the

driving speed must not exceed the speed indicated on the label on the wheel.

– Fitting an emergency spare wheel may alter the way the vehicle usually runs.

Avoid sudden acceleration or deceleration and reduce your speed when cor-

nering.

– If you need to use snow chains, fit the emergency spare wheel to the rear axle

and check the tyre pressure.

– The warning light



on the instrument panel flashes for several seconds,

then stays on.

5.5

TYRE INFLATION KIT

(1/4)

The kit is only approved

for inflating the tyres of the

vehicle initially fitted with the

kit. It must never be used to

inflate the tyres of another vehicle,

or any other inflatable object (rubber

ring, rubber boat, etc.).
Avoid spillage on skin when hand-

ling the repair liquid bottle. If drop-

lets do leak out, rinse them off with

plenty of water.
Keep the repair kit away from chil-

dren.
Do not dispose of the empty bottle

in the countryside. Return it to your

approved dealer or to a recycling or-

ganisation.
The bottle has a limited service

life which is indicated on its label.

Check the expiry date.
Contact an approved dealer to re-

place the inflation tube and repair

product bottle.

The kit repairs tyres when

tread A has been dam-

aged by objects smaller

than 4 mm. It cannot repair

all types of puncture, such as cuts

larger than 4 mm, or cuts in tyre

sidewall B.
Ensure also that the wheel rim is in

good condition.
Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

Do not attempt to use the

inflation kit if the tyre has

been damaged as a result

of driving with a puncture.

You should therefore carefully check

the condition of the tyre sidewalls

before any operation.
Driving with underinflated, flat or

punctured tyres can be dangerous

and may make the tyre impossible

to repair.
This repair is temporary
A tyre which has been punctured

should always be inspected (and re-

paired, where possible) as soon as

possible by a specialist.
When replacing a tyre repaired

using this kit, you must inform the

specialist. When driving, vibration

may be felt due to the presence of

the repair product injected into the

tyre.

5.6

TYRE INFLATION KIT

(2/4)

Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the warning light



lights up on the instrument panel. See

“Tyre pressure loss warning” in

Section 2.

Before using this kit, park the vehicle at a sufficient distance from traffic,

switch on the hazard warning lights, apply the handbrake, ask all passen-

gers to leave the vehicle and keep them away from traffic.

In the event of a puncture, use the kit C

located in the luggage compartment in

the 4x2 version or in the emergency

spare wheel tray under the luggage

compartment carpet in the 4x4 version.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

On 4x2 versions, unclip flap D.

5.7

For all vehicles, with the engine run-

ning and the handbrake applied,
– unroll the hose from the container;
– connect the compressor hose 3 to

the container’s inlet 8;

– depending on the vehicle, connect

the container 8 to the compressor

from the container recess 7;

– unscrew the valve cap on the rel-

evant wheel and screw on the con-

tainer’s inflation adapter 1;

– disconnect any accessories previ-

ously connected to the vehicle’s ac-

cessories sockets;

– adapter 2 must be connected to the

vehicle accessories socket;

– press switch 4 to inflate the tyre to

the recommended pressure (please

refer to the information in the section

on “Tyre pressure”);

– after a maximum of 15 minutes, stop

inflating and read the pressure (on

pressure gauge 5).

Note: while the container is empty-

ing (approximately 30 seconds), the

pressure gauge 5 will briefly indicate

a pressure of up to 6 bar. The pres-

sure will then drop.

– adjust the pressure: to increase

it, continue inflation with the kit; to

reduce it, press button 6.

If a minimum pressure of 1.8 bar is

not reached after 15 minutes, repair

is not possible; do not drive the ve-

hicle but contact an approved dealer.

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

Please be aware that a

poorly tightened or missing

valve cap can make the

tyres less airtight and lead

to pressure loss. Always use valve

caps identical to the original ones

and ensure they are tightly screwed

on.

TYRE INFLATION KIT

(3/4)

5.8

TYRE INFLATION KIT

(4/4)

Once the tyre is correctly inflated,

remove the kit: slowly unscrew the in-

flation adapter 1 to prevent any repair

product from escaping and store the

container in plastic packaging to pre-

vent the product from escaping.
– Affix the driving recommendation

label to the dashboard where it can

easily be seen by the driver;

– Put the kit away.
– At the end of this initial inflation op-

eration, air will still escape from the

tyre. You must drive a short distance

in order to seal the hole.

– Start immediately and drive at be-

tween 12 and 40 mph (20 and

60 km/h) in order to distribute the

product evenly in the tyre and, after

driving for 2 miles (3 km), stop and

check the pressure.

– If the pressure is greater than 1.3 bar

but less than the recommended

pressure (refer to the label affixed to

the edge of the driver’s door), read-

just it. Otherwise, please contact an

authorised dealer: the tyre cannot be

repaired.

Precautions when using the

kit

The kit should not be operated for more

than 15 consecutive minutes.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

which you must affix in a prominent

position on the dashboard, reminds

you of this.

Depending on the country or local

legislation, a tyre repaired with the

inflation kit may need to be replaced.

5.9

WHEEL TRIM/WHEELS

Central wheel trim with

visible wheel bolts

(example: wheel trim 1)
The bolts are directly accessible.

Central wheel trim with

visible wheel bolts

(example: wheel trim 2)
Remove it using the hubcap tool, by in-

serting the hook near a wheel bolt.
To put it back, position hooks 4 in rela-

tion to bolts 3.
Push in the wheel trim’s retaining

hooks.

Content .. 9 10 11 12 ..
