TRANSPORTING OBJECTS IN THE BOOT

(1/2)

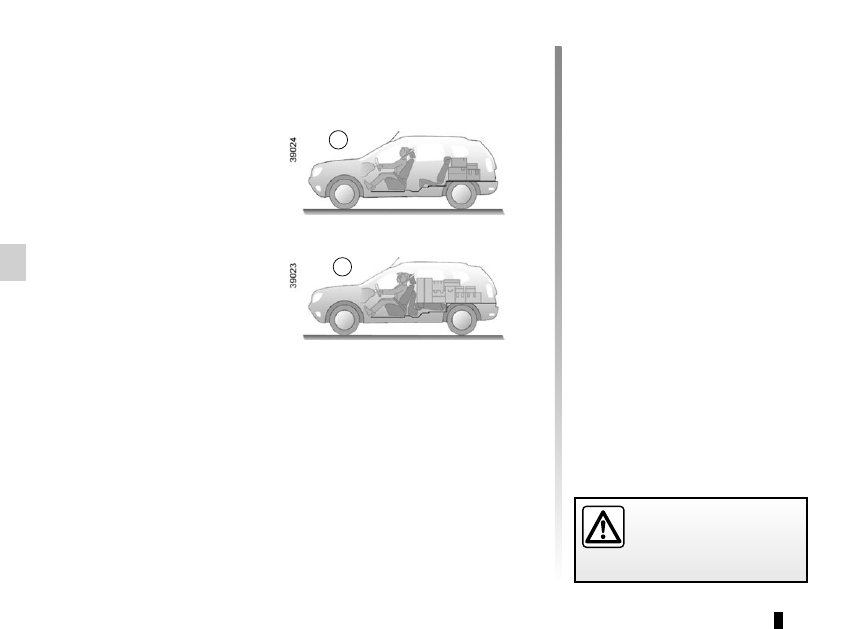

Always position the objects trans-

ported so that the largest surface is

against:

– the rear bench seatbacks, for

normal loads (eg: A);

– the front seats when the rear seats

are folded down. Refer to the infor-

mation on the “Rear bench seat:

functions” in this section (eg: B).

Always position the heaviest items di-

rectly on the floor.
Always place objects being trans-

ported so that the heaviest items are

resting against the back of the rear

bench seat.

Fasten the rear seat belts,

even if the seats are not oc-

cupied.

3.25

TRANSPORTING OBJECTS IN THE BOOT

(2/2)

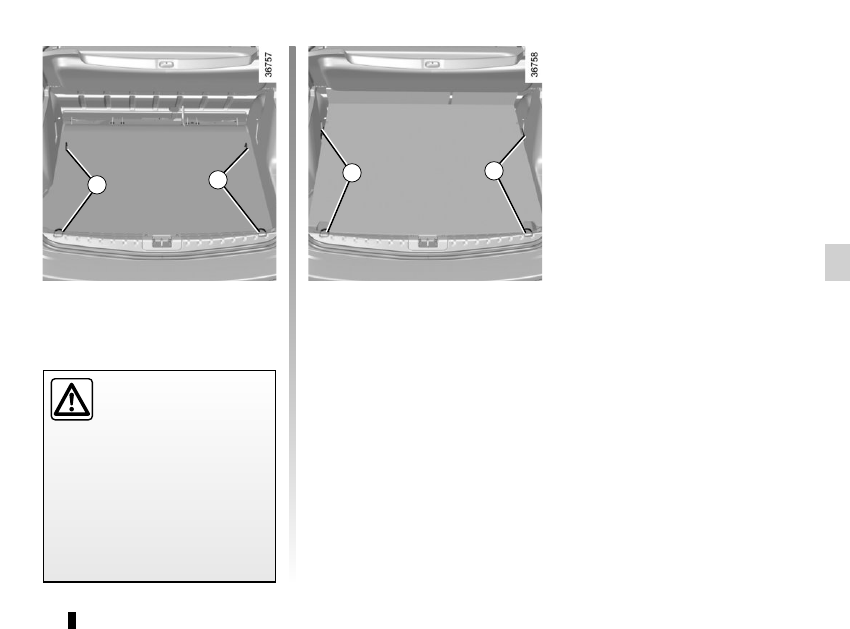

Always position the heavi-

est items directly on the

floor. Use the lashing

points 1 on the boot floor, if

these are fitted to the vehicle. The

luggage should be loaded in such a

way that no items will be thrown for-

ward and strike the occupants if the

driver has to brake suddenly.

3.26

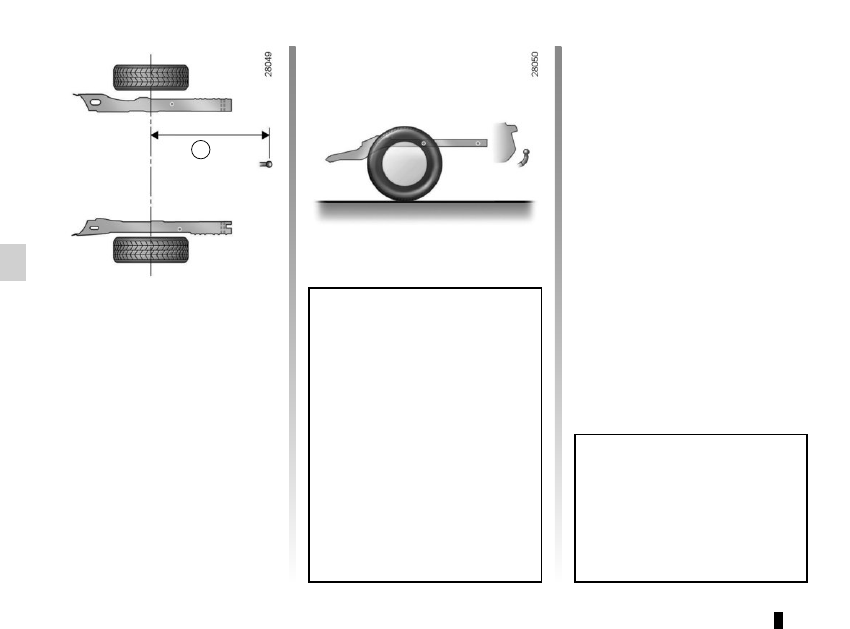

TRANSPORTING OBJECTS towing, attachments

Permissible nose weight, maxi-

mum permissible towing weight

braked and unbraked :

Refer to the information on “Weights”

in Section 6.
Choice and fitting of towing

equipment
Maximum weight of towing equip-

ment: 20 kg.

Refer to the manufacturer’s instruc-

tions for information on how to fit

and operate the towing equipment.

Please keep these instructions with

the rest of the vehicle documenta-

tion.

A = 950 mm maximum

If the towbar ball obscures the re-

gistration plate or the rear lights, it

should be removed when not in use.
In all cases, comply with local legis-

lation.

3.27

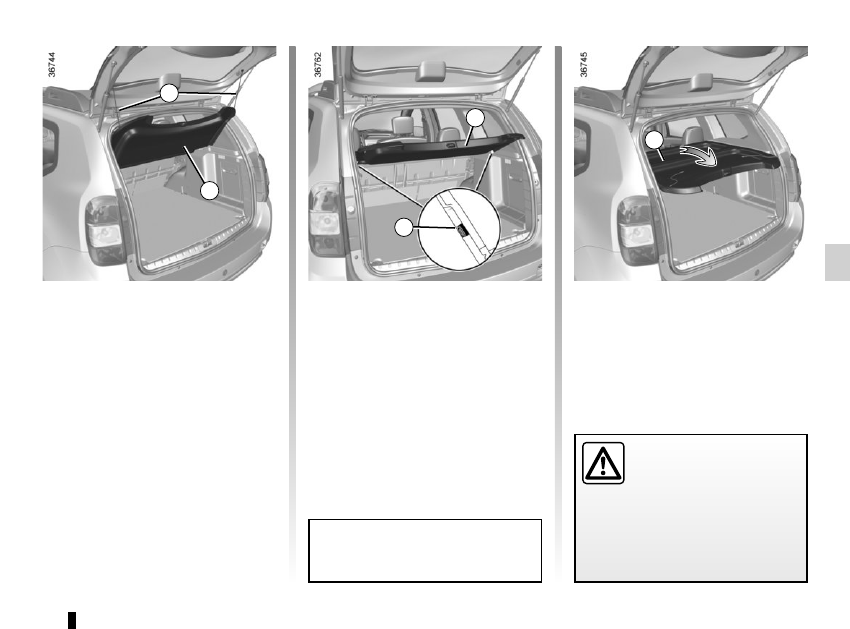

Lift the parcel shelf 2 to half height and

unclip the mountings 3 located on each

side of the parcel shelf.

REAR PARCEL SHELF

Do not place any objects,

especially heavy or hard

objects, on the parcel shelf.

These may pose a risk to

the vehicle occupants if the driver

has to brake suddenly or if the vehi-

cle is involved in an accident.

Maximum weight on rear parcel

shelf: 25 kg, evenly distributed.

The parcel shelf 2 is made up of two

rigid sections.

Removal

Unhook the two cords 1 from the boot

door.

Gently lift the parcel shelf 2 and pull it

towards you, holding it at each end.
To refit, proceed in the reverse order to

removal.

3.28

LONGITUDINAL ROOF BARS

For information on the range of

equipment adapted to your ve-

hicle, we advise you to consult

an approved Dealer. Refer to the

manufacturer’s instructions for in-

formation on how to fit and operate

the equipment.
Please keep these instructions with

the rest of the vehicle documenta-

tion.
Maximum permissible load on

roof rack: refer to the information

on “Weights” in Section 6.

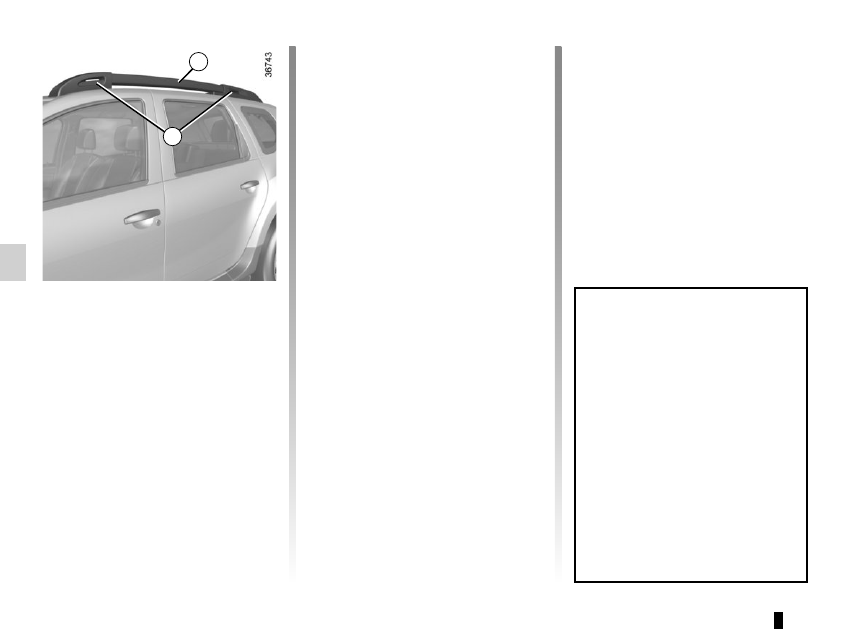

If fitted on the vehicle, you can trans-

port luggage or additional equipment

(bike racks, ski racks, etc):
– on a roof rack;
– on transverse roof bars which must

in turn be attached to roof bars fitted

lengthways 1;

– directly onto the longitudinal roof

bars.

It is forbidden to fit longitudinal roof

bars on vehicles which are not origi-

nally equipped with them.

If fitted to the vehicle, you can use the

mounting holes 2 of the longitudinal

bars to:
– use luggage restraint systems

(straps, cords, etc.);

– attach additional items without using

the transverse roof bars.

3.29

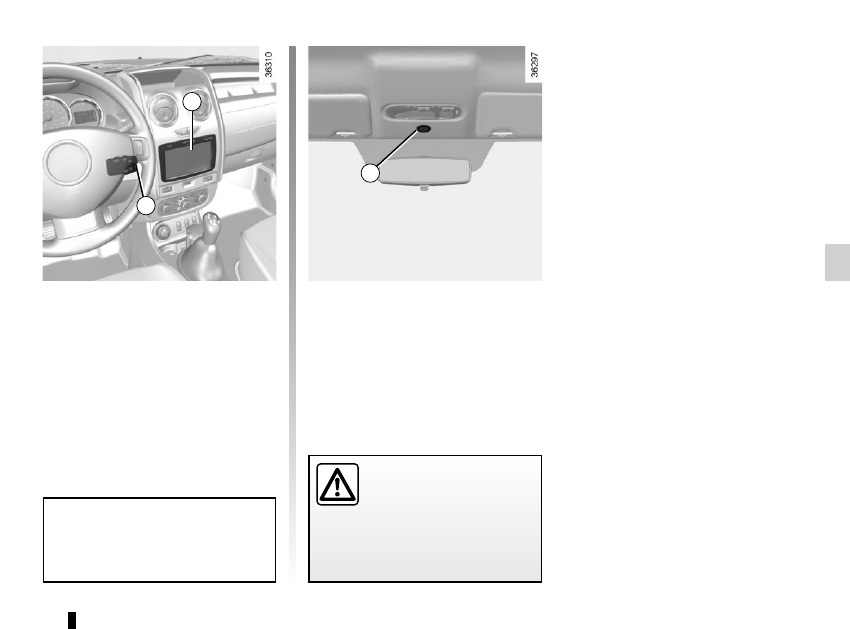

MULTIMEDIA EQUIPMENT

The presence and location of this

equipment depends on the vehicle’s

multimedia equipment.
1 Radio or navigation system
2 Steering column control;
3 Microphone.

Please refer to the instruction

manual for details of how it works.

Using the telephone
We remind you of the need

to conform to the legislation

in force concerning the use

of such equipment.

Hands-free telephone

integrated control

On equipped vehicles, use micro-

phone 3 and steering column control 2.

4.2

BONNET

(1/2)

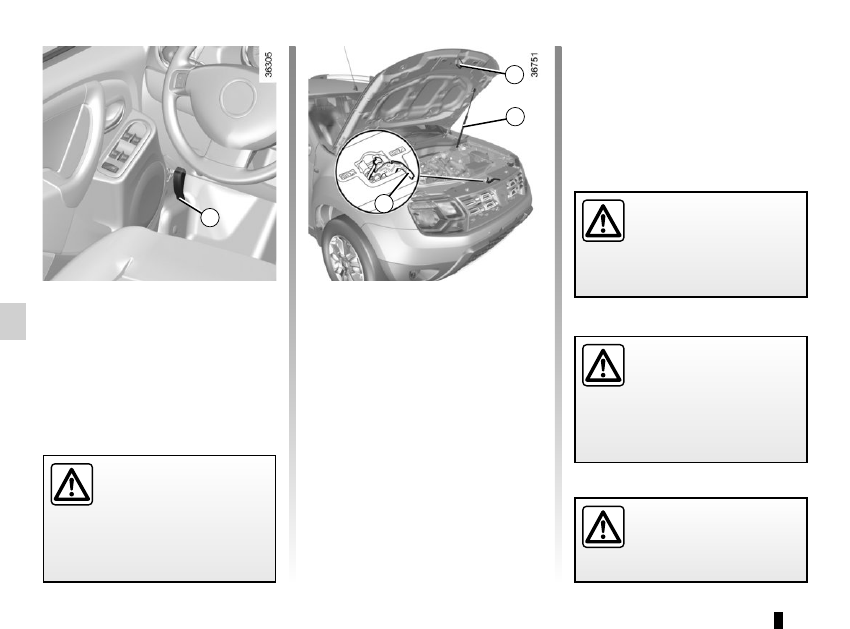

To open the bonnet, pull handle 1.

Unlocking the bonnet catch

To unlock, raise the bonnet slightly and

release hook 2 by pushing tab 4 to the

left.

Opening the bonnet

Lift the bonnet and guide it upwards; it

is held by strut 3.

Closing the bonnet

Check that nothing has been left in the

engine compartment.
To close the bonnet again, hold the

bonnet in the middle and lower it to

30 cm above the closed position, then

release it. It will latch automatically

under its own weight.

The engine may be hot

during operations in close

proximity. In addition, the

engine cooling fan may

come on at any moment.
Risk of injury.

Do not press down on the

bonnet: there is a risk that

the bonnet may accidentally

close.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

4.3

Make sure nothing is left

in the engine compartment

(cloth, tools, etc.).
Otherwise, this may lead to

engine damage or cause a fire.

In the event of even a slight

impact involving the radia-

tor grille or bonnet, have

the bonnet lock checked by

an approved Dealer as soon as pos-

sible.

Ensure that the bonnet is prop-

erly locked. Check that nothing is

preventing the catch from locking

(gravel, cloth, etc.).

BONNET

(2/2)

Never activate the remote

engine start-up function

or its programming before

opening the bonnet or when

it is open.
Risk of burns or serious injury.

4.4

ENGINE OIL LEVEL: general information

Reading the oil level

The oil level should be read with the ve-

hicle on level ground, after the engine

has been switched off for some time.

The dipstick must be used to read

the exact oil level and make sure

that the maximum level has not been

exceeded (risk of engine damage).

Refer to the following pages.

Exceeding the maximum

engine oil level
Under no circumstances

must the maximum fill

level B be exceeded: risk of damage

to the engine and catalytic con-

verter.
If the oil level exceeds the maximum

level, do not start your vehicle.

Contact an authorised dealer.

It is normal for an engine to use oil for

lubrication and cooling of moving parts

and it is normal to top up the level be-

tween oil changes.
However, contact your approved

Dealer if more than 0.5 litres is being

consumed every 600 miles (1,000 km)

after the running in period.
Oil change frequency: check the oil

level from time to time and certainly

before any long journey to avoid the

risk of damaging your engine.

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

In order to prevent splashback, it is

recommended that a funnel be used

when topping up/filling with oil.

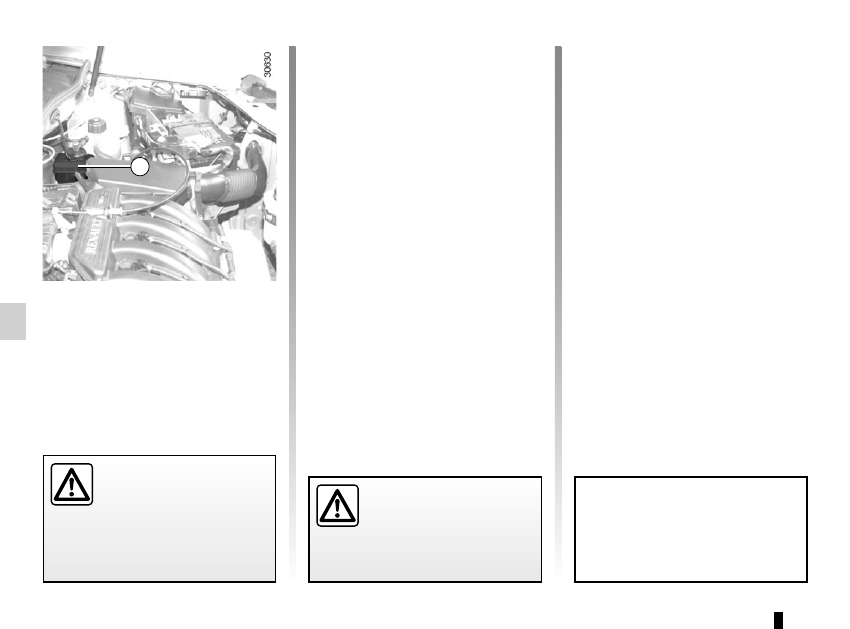

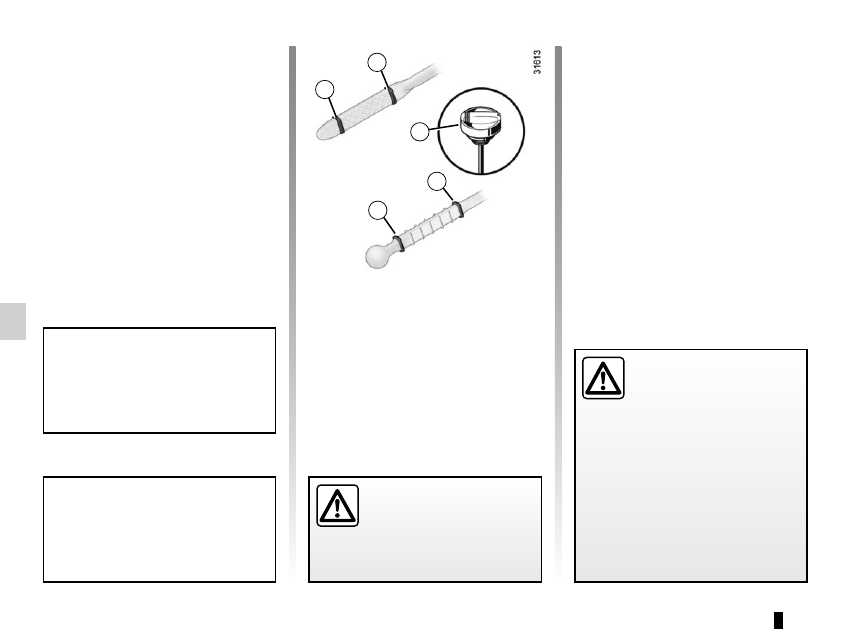

– remove the dipstick and wipe with a

clean, lint-free cloth;

– push the dipstick in as far as it will

go (for vehicles equipped with a cap-

type dipstick C, screw the cap in as

far as it will go);

– take out the dipstick again;
– read the level: it should never fall

below minimum mark A or exceed

maximum mark B.

Once the operation has been comple-

ted, ensure that the dipstick is pushed

in as far as it will go or that the “cap-

type dipstick” is completely screwed in.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

4.5

ENGINE OIL LEVEL: topping up, filling

(1/3)

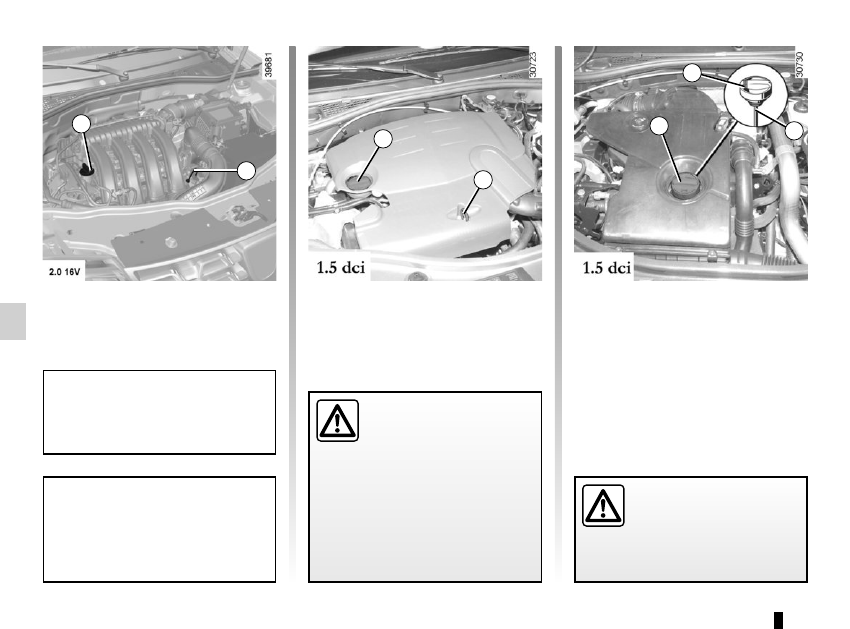

Topping up/filling

The vehicle must be parked on level

ground and the engine should be cold

(for instance, before the engine is

started up for the first time in the day).

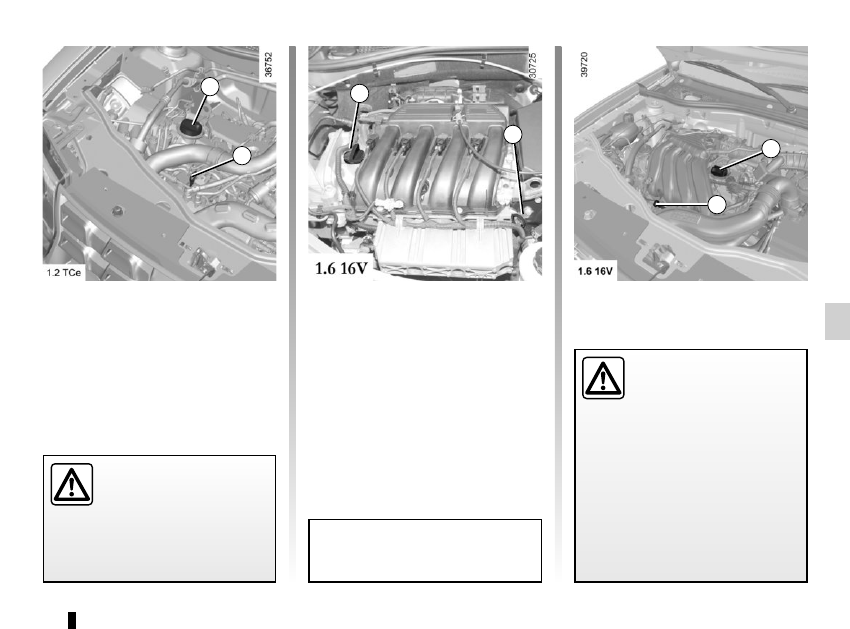

– Unscrew cap 1;

– top up the level (as a guide, the ca-

pacity between the minimum and

maximum reading on dipstick 2 is

between 1.5 and 2 litres, depending

on the engine);

– wait approximately 10 minutes to

allow the oil to flow into the engine;

– check the level using the dipstick 2

(as described above).

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go or that

the “cap-type dipstick” is completely

screwed in.

Do not exceed the MAX level and

do not forget to refit dipstick 2 and

cap 1.

The engine may be hot

during operations in close

proximity. In addition, the

engine cooling fan may

come on at any moment.
Risk of injury.

Exceeding the maximum

engine oil level
Under no circumstances

must the maximum fill level

be exceeded: risk of damage to the

engine and catalytic converter.
If the oil level exceeds the maximum

level, do not start your vehicle.

Contact an authorised dealer.

4.6

ENGINE OIL LEVEL: topping up, filling

(2/3)

Filling: take care when

topping up the oil that

no oil drips onto engine

components - risk of fire.

Remember to refit the cap securely

as there is a risk of fire if oil splashes

onto hot engine components.

If there is an abnormal or repeated

drop in the fluid level, please consult

an authorised dealer.

Engine oil change: if you

are changing the oil when

the engine is hot, be careful

not to scald yourself if the

oil overflows.

In order to prevent splashback, it is

recommended that a funnel be used

when topping up/filling with oil.

4.7

ENGINE OIL LEVEL: topping up, filling

(3/3)

Never run the engine in an

enclosed space as exhaust

gases are poisonous.

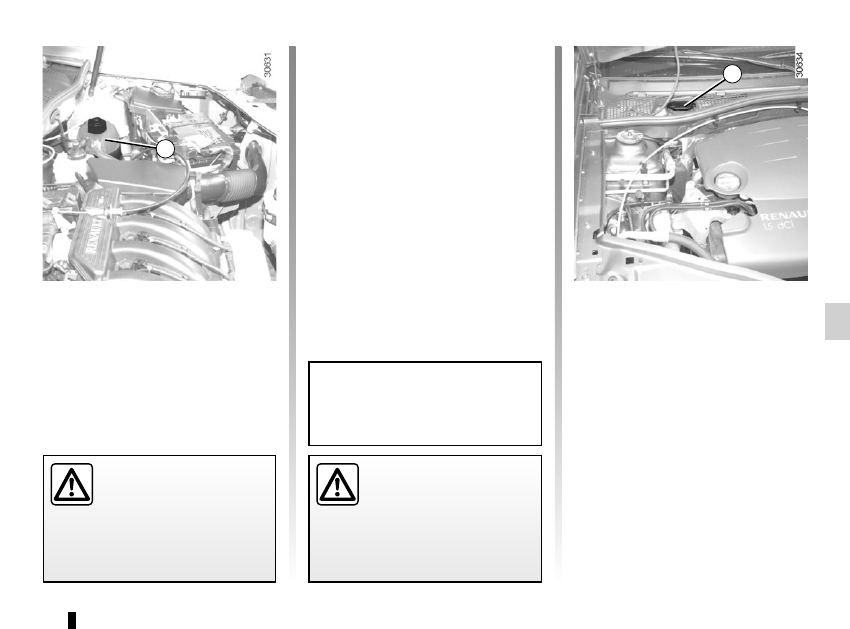

Resetting the alert after an oil

change

(depending on the vehicle)
If you change the oil yourself, you will

need to reset the oil change warning.

To do this, after switching on the igni-

tion, for ten seconds you must:

– Depress the accelerator pedal fully,

– with your foot on the accelerator, de-

press the brake pedal three times in

succession.

Reinitialisation is complete when the

indicator light goes out. If this is

not the case, repeat the operation.
Special case: if you change the oil

before the oil change interval exceeded

warning is displayed, it will also be nec-

essary to reset the display. In this case,

the

warning light comes on for

approximately 5 seconds to confirm the

reset.

The engine may be hot

during operations in close

proximity. In addition, the

engine cooling fan may

come on at any moment.
Risk of injury.

Exceeding the maximum

engine oil level
Under no circumstances

must the maximum fill level

be exceeded: risk of damage to the

engine and catalytic converter.
If the oil level exceeds the maximum

level, do not start your vehicle.

Contact an authorised dealer.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

Oil change

Service interval: refer to the

Maintenance Document for your vehi-

cle.

Oil change capacity

Please refer to the maintenance docu-

ment for your vehicle, or contact an au-

thorised dealer.

Always check the engine oil level using

the dipstick, as explained previously (it

should never fall below the minimum

level, or be over the maximum level on

the dipstick).

Engine oil grade

Refer to the Maintenance Document for

your vehicle.

4.8

LEVELS

(1/3)

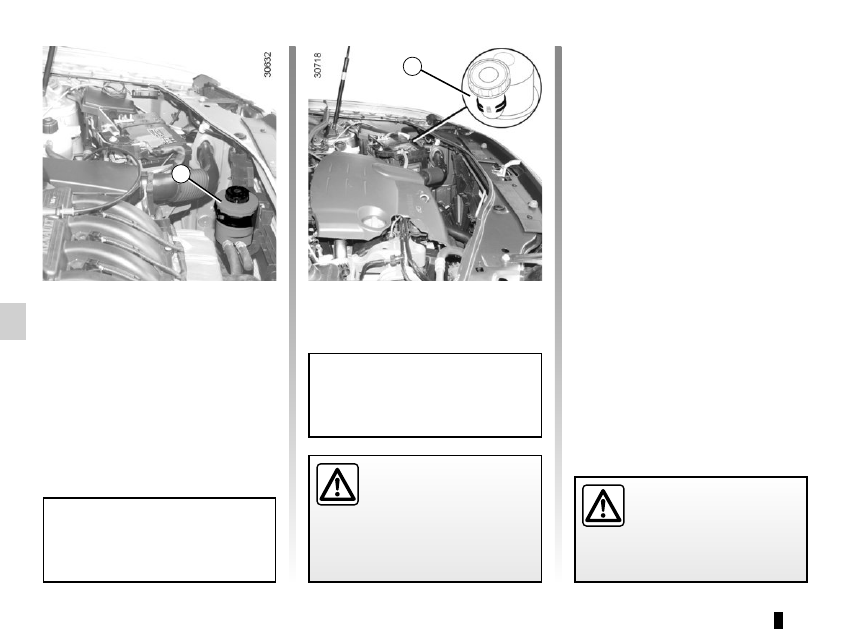

Brake fluid level

This should be checked frequently,

and immediately if you notice even the

slightest loss in braking efficiency.
The level should be read with the engine

switched off and on level ground.

Level
It is normal for the level to drop as the

brake shoes become worn, but it must

never drop lower than the “MINI” warn-

ing line shown on brake fluid reser-

voir 1.
If you wish to check the disc and drum

wear yourself, you should obtain the

document explaining the checking pro-

cedure from the manufacturer’s net-

work or web site.

Topping up
After any operation on the hydraulic cir-

cuit, a specialist must replace the fluid.
Only use fluids approved by our

Technical Department (and taken from

a sealed container).

Replacement intervals
Refer to the Maintenance Document for

your vehicle.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

4.9

LEVELS

(2/3)

Coolant level checking frequency
Check the coolant level regularly

(very severe damage is likely to be

caused to the engine if it runs out of

coolant).
If the level needs to be topped up, only

use products approved by our Technical

Department which ensure:
– protection against freezing;
– anticorrosion protection of the cool-

ing system.

Replacement intervals
Refer to the Maintenance Document for

your vehicle.

No operations should be

carried out on the cooling

circuit when the engine is

hot.

Risk of burns.

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Windscreen washer reservoir

Filling: Remove cap 3, fill until you can

see the fluid, then refit the cap.
This reservoir supplies the front and

rear screen washers.
Liquid: Special windscreen washer

fluid (anti-freeze product in winter).
Jets: to adjust the angle of the jets,

pivot the little ball using a pin.
Use products approved by the Technical

Department.

Coolant

With the engine switched off and on

level ground, the level when cold must

be between the MINI and MAXI marks

on reservoir 2.

Top this level up when cold before it

reaches the MINI mark.

4.10

LEVELS

(3/3)

Power-assisted steering fluid

reservoir 4 or 5

Level: for a correct level when cold,

with the engine switched off and on

level ground, it must be visible between

the “MINI” and “MAXI” marks on reser-

voir 4 or 5.
For maintenance operations on the

power-assisted steering, contact an ap-

proved dealer.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Consult an approved dealer at once

if you notice an abnormal or re-

peated drop in any of the fluid levels.

If you feel any variation in the ef-

fectiveness of the power-assisted

steering, consult an approved

dealer.

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

4.11

FILTERS

The replacement of filter elements (air

filter, passenger compartment filter,

diesel filter, etc.) is scheduled in the

maintenance operations for your vehi-

cle.
Replacement intervals for filter el-

ements: refer to the Maintenance

Document for your vehicle.

Passenger compartment filter

If your vehicle is not originally fitted with

a passenger compartment filter, it is

possible to have one retrofitted.
Contact an approved dealer.

The engine may be hot

when carrying out opera-

tions in close proximity. In

addition, the engine cooling

fan can come on at any moment.
Risk of injury.

Air filter

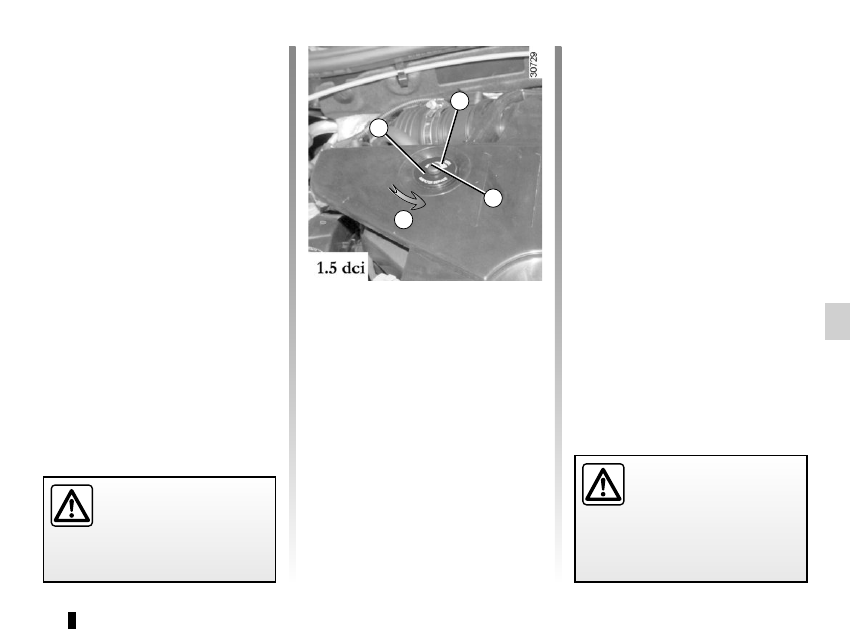

If fitted to the vehicle, clogging sensor 1

allows you to see the condition of the

air filter.
Replacement of the filter is scheduled

in the maintenance operations: refer to

your vehicle’s Maintenance Document

for your vehicle.
However, it must be checked regularly,

especially if you drive in dusty environ-

ments.

If clogging level indicator 2 reaches

100%, consult an approved dealer as

soon as possible to have the filter re-

placed.

Resetting the air filter clogging

sensor
Once the air filter has been replaced,

turn button 3 on the clogging sensor

fully (movement A).

Deactivate the Stop and

Start function for any opera-

tion performed in the engine

compartment.

Content .. 8 9 10 11 ..
