123

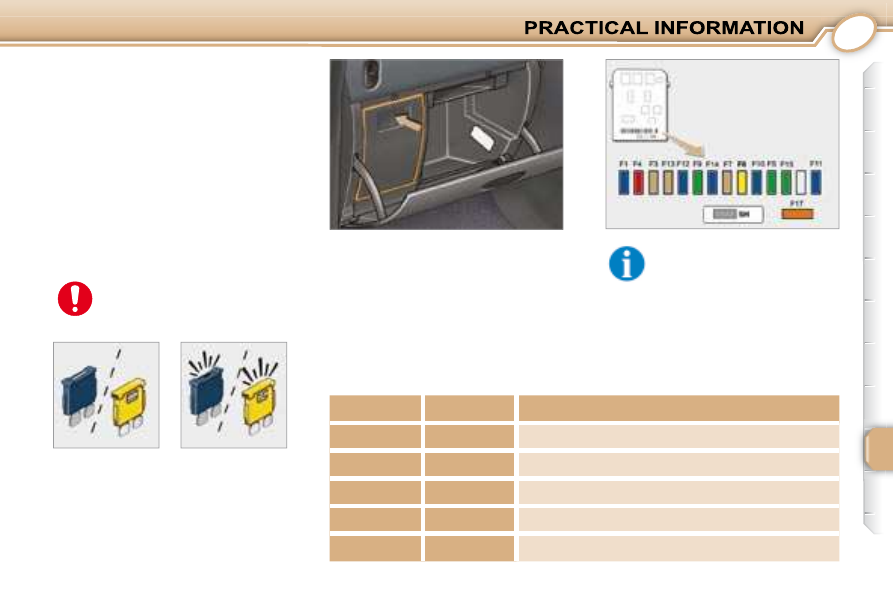

CHANGING A FUSE

The fuse boxes are located under the
fascia on the left-hand side (in the
glove box) and in the engine com-
partment next to the battery.

Correct

Removing and fitting a fuse

Before changing a fuse you must ﬁ nd

out the cause of the fault and have it
put right. The fuse numbers are indi-
cated on the fuse box.

Incorrect

* The maxi fuses provide

additional  protection  for
the  electrical  systems. All
work  must  be  carried  out
by a  PEUGEOT  dealer.

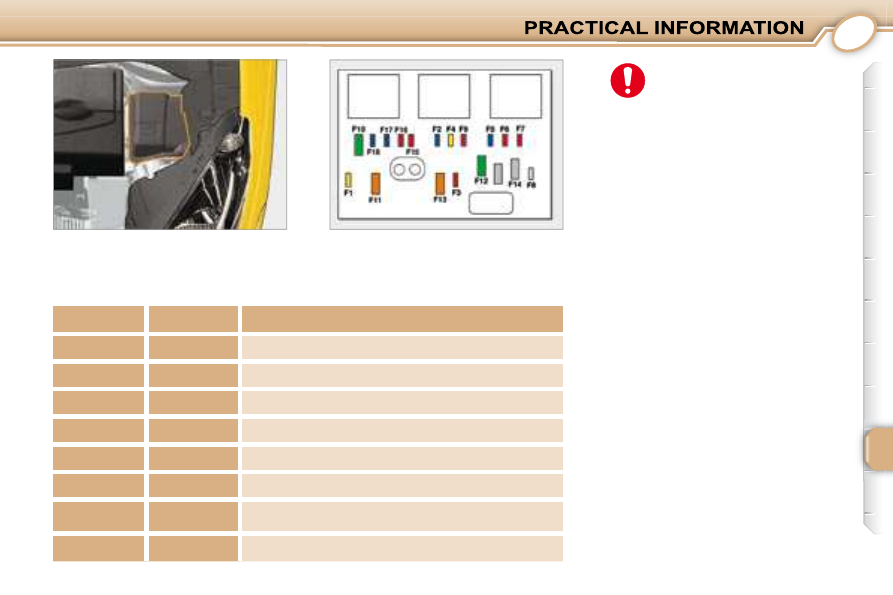

Fascia fuse box

 Open the glove box, then tilt the

cover to open it.

 Turn the lever a quarter of a turn,

then push and tilt the box to gain
access to the fuses.

  Always  replace  a  faulty
fuse  with  one  of  the  same
rating.

Fuse N°

Rating

Functions

FH1 *

Not used.

FH2 *

40 A

Trailer Fuse Box.

FH3 *

Not used.

FH4 *

20 A

Audio ampliﬁ er.

FH5 *

5 A

"Sesame" doors control unit.

123

CHANGING A FUSE

The fuse boxes are located under the
fascia on the left-hand side (in the
glove box) and in the engine com-
partment next to the battery.

Correct

Removing and fitting a fuse

Before changing a fuse you must ﬁ nd

out the cause of the fault and have it
put right. The fuse numbers are indi-
cated on the fuse box.

Incorrect

* The maxi fuses provide

additional  protection  for
the  electrical  systems. All
work  must  be  carried  out
by a  PEUGEOT  dealer.

Fascia fuse box

 Open the glove box, then tilt the

cover to open it.

 Turn the lever a quarter of a turn,

then push and tilt the box to gain
access to the fuses.

  Always  replace  a  faulty
fuse  with  one  of  the  same
rating.

Fuse N°

Rating

Functions

FH1 *

Not used.

FH2 *

40 A

Trailer Fuse Box.

FH3 *

Not used.

FH4 *

20 A

Audio ampliﬁ er.

FH5 *

5 A

"Sesame" doors control unit.

124

Fuse N°

Rating

Functions

15 A

Rear wiper.

5 A

Air bags and pre-tensioners control unit.

10 A

Diagnostic socket - Clutch switch - Steering wheel angle sensor -

Particle emission ﬁ lter pump.

30 A

Electric windows - Sunroof.

Not used.

5 A

Courtesy light - Glove box light.

20 A

Tyre under-inﬂ ation detection control unit - Folding of the electric mirrors - Alarm siren -

Multifunction display - Alarm control unit - Audio equipment - Audio/telephone.

30 A

Audio equipment - Lighter/12 V socket (100 W max.).

15 A

Steering wheel controls.

15 A

Diagnostic socket - Low current ignition switch - Motorised strikers.

15 A

Air bags and pre-tensioners control unit - Rain/brightness sensor.

5 A

ABS relay - Speed sensor - Engine Fuse Box - "2 Tronic" gear lever - Brake switch.

15 A

Parking assistance control unit - "Sesame" doors control unit and switches -
Instrument panel - Seat belt warning lights bar - Air conditioning control panel -
Headlamp adjustment - Hands-free kit.

30 A

Locking - Deadlocking - Unlocking.

40 A

Rear screen and exterior mirrors demisting.

PARC shunt.

125

Engine compartment fuse box

 Unclip the cover to gain access

to the fuses.

Your  vehicle's  electrical  sys-
tem  is  designed  to  operate
with  standard  or  optional
equipment.

Once the work has been carried out,
close the cover very carefully.

The  maxi  fuses  provide  addi-
tional protection for the electrical
systems.  All  work  must  be  car-
ried out by a  PEUGEOT  dealer.

Fuse N°

Rating

Functions

MF1 **

50 A

Fan assembly.

MF2 **

30 A

ABS/ESP control unit.

MF3 **

30 A

ABS/ESP control unit.

MF4 **

60 A

Built-in Systems Interface supply.

MF5 **

60 A

Built-in Systems Interface supply.

MF6 **

30 A

"2 Tronic" gearbox control unit.

MF7 **

80 A

Passenger compartment fuse box -
"Sesame" doors control unit.

MF8 **

80 A

Electric power steering.

Before installing

other electrical

equipment or accessories on your
vehicle, contact a PEUGEOT dealer.

Some electrical accessories or the

way in which they are ﬁ tted may have

damaging effects on the operation of
your vehicle (audio, control and elec-
trical load circuits).

  PEUGEOT  will  not  accept  responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions  resulting  from  the  installation
of auxiliary accessories not supplied
and not recommended by  PEUGEOT
and  not  installed  in  accordance  with
its  instructions,  in  particular  where
the equipment in question consumes
more than 10 milliamperes.

126

Fuse N°

Rating

Functions

20 A

Engine control unit and fan assembly control supply - Injection control unit (Diesel) -

Injection pump (Diesel) - Air heating solenoid valves (Diesel) - Air ﬂ ow sensor (Diesel).

15 A

Horn.

10 A

Front and rear wash-wipe pump.

20 A

Headlamp wash pump.

15 A

Fuel pump (petrol).

10 A

Power steering control unit - Water in diesel sensor - Vehicle speed sensor.

10 A

Switching and protection unit (Diesel) - Engine coolant level detector (Diesel).

25 A

Starter.

10 A

ABS/ESP control unit - ABS cut-off relay - Brake switch.

30 A

Engine control unit actuators (petrol: ignition coils, oxygen sensors, injectors,
purge canister and variable timing solenoid valves, controlled thermostat)

(Diesel: injection control unit, air ﬂ ow sensor, injection pump, diesel high pressure

regulator, EGR and Turbo pressure regulation solenoid valves) - Blow-by heaters -
Diesel heater.

40 A

Air blowers.

30 A

Windscreen wipers (low/high speed).

40 A

(Ignition positive) Built-In Systems Interface.

Not used.

10 A

Right main beam headlamp.

10 A

Left main beam headlamp.

15 A

Left dipped headlamp.

15 A

Right dipped headlamp.

127

CHANGING A WINDSCREEN
WIPER BLADE

  Changing a front wiper blade
      Lift the wiper arm.
     Unclip the blade and remove it.
     Fit the new blade.
     Push back the wiper arm.
  Note:

the shortest blade is ﬁ tted on

the right-hand wiper arm.

  Changing the rear wiper blade
      Lift the wiper arm.
     Unclip the blade and remove it.
     Fit the new blade.
     Push back the wiper arm.

ECONOMY MODE FUNCTION

After the engine has stopped, certain
functions  (doors,  windscreen  wipers,
electric windows, courtesy light, audio
equipment,  dipped  headlamps,  etc.)
can  only  be  used  for  a  cumulative
duration  of  thirty  minutes,  to  prevent
discharging of the battery.
Once  the  thirty  minutes  are  over,  a
message informing you of the switch
to  economy  mode  appears  on  the
multifunction  display  and  the  active
functions are put on standby.
These  functions  are  reactivated  auto-
matically next time the vehicle is driven.
To resume the use of these functions
immediately, start the engine and let
it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this pe-

riod will always be between ﬁ ve and

thirty minutes.
Note: if the telephone is being used
when economy mode starts, it will

still be possible to ﬁ nish the call.

A ﬂ at battery will prevent the

engine from starting.

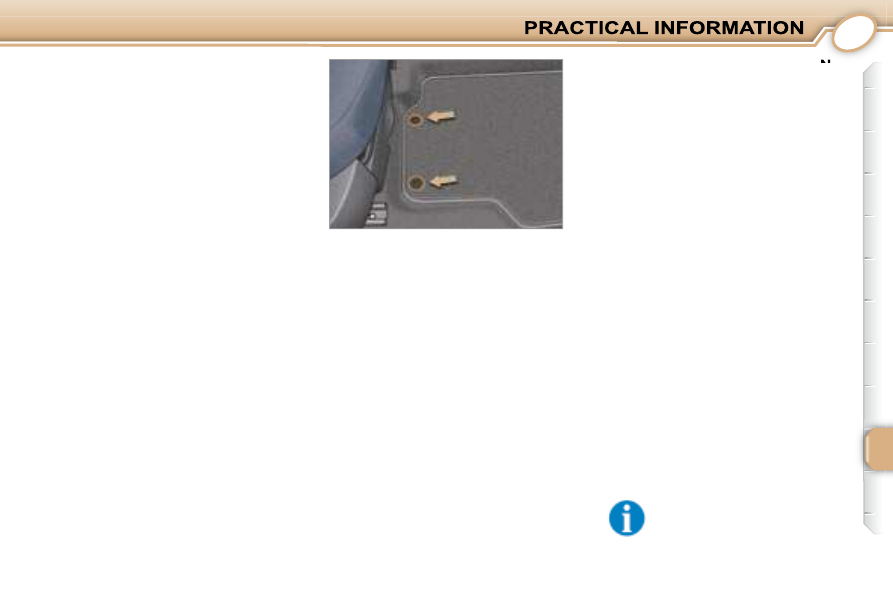

FITTING/REMOVING THE MAT

When removing the mat on the driv-
er’s side, push the seat as far back

as possible and remove the ﬁ xings.

When reﬁ tting, position the mat cor-

rectly on the pins and clip the ﬁ xings.

Check  that  the  mat  is  secured  cor-
rectly.
To  prevent  the  mat  from  becoming
caught under the pedals:
   -

only use mats suited to the ﬁ x-

ings already present in the ve-
hicle. It is imperative that these

ﬁ xings are used.

never ﬁ t one mat on top of an-

other.

Placing the wiper blades in the
special position
 Less than a minute after switch-

ing off the ignition, operate the
wipers stalk to position the wiper
blades in the centre of the wind-
screen.

  To  return  the  windscreen  wipers
to their normal position, switch on
the  ignition  and  operate  the  wip-
ers stalk.

128

BATTERY

The  batteries  contain  harm-
ful  substances  such  as  sul-
phuric  acid  and  lead.  They
must  be  disposed  of  in  ac-

cordance  with  regulations  and  must
never  be  discarded  with  household
waste.
Take  used  remote  control  and  vehi-
cle  batteries  to  a  special  collection
point.

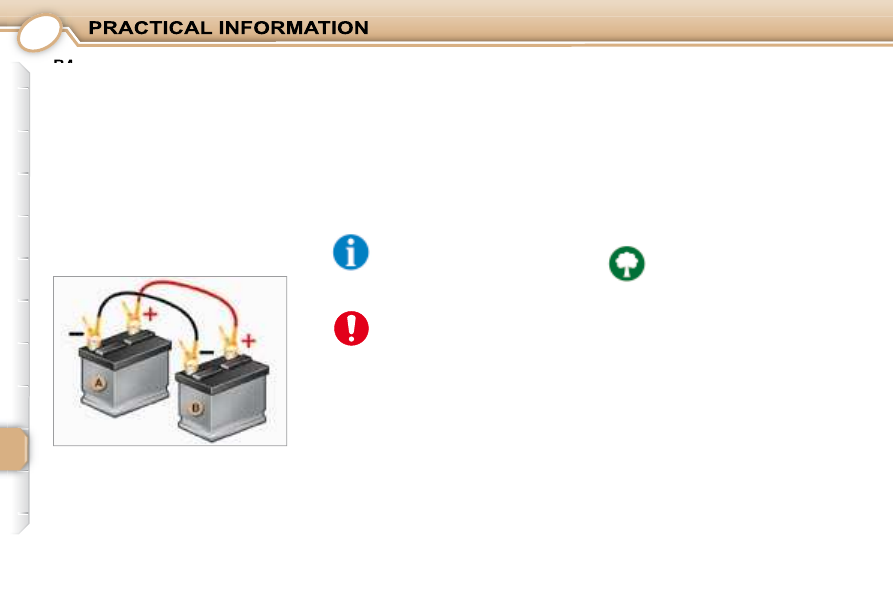

To start the vehicle from
another battery:

Connect the red cable to the positive
(+) terminals of the two batteries,

Connect the green or black ca-
ble to the negative (-) terminals
of the two batteries,

Operate the starter, let the en-
gine run,

Wait for the engine to return to
idle, then disconnect the cables.

Before

disconnecting

the

battery, you must wait for
2 minutes after switching off
the ignition.

Never disconnect a terminal when
the engine is running.
Never charge a battery without ﬁ rst

disconnecting the terminals.
Close  the  windows,  the  sunroof  and
the  doors  before  disconnecting  the
battery.  If  they  do  not  operate  nor-
mally  following  reconnection  of  the
battery,  they  must  be  reinitialised
(see  sections  "Sesame  doors"  and
"Sunroof").

After every reconnection of the battery:
-

switch on the ignition and wait
1 minute before starting to al-
low the electronic systems to be

initialised. If slight difﬁ culties are

experienced after this, please
contact a PEUGEOT dealer.

reinitialise the "2 Tronic" gearbox
(refer to the corresponding sec-
tion).

A. Flat battery
B. Slave battery

  It is advisable to disconnect
the  battery  if  the  vehicle  is
not  to  be  used  for  a  period
of more than one month.

To charge the battery using a
battery charger:

Disconnect the battery,

Follow the instructions for use
given by the battery charger
manufacturer,

Reconnect starting with the neg-
ative (-) terminal,

Check  that  the  terminals  and
connectors are clean. If they are
covered  with  sulphate  (white  or
greenish  deposit),  disconnect
them and clean them.

129

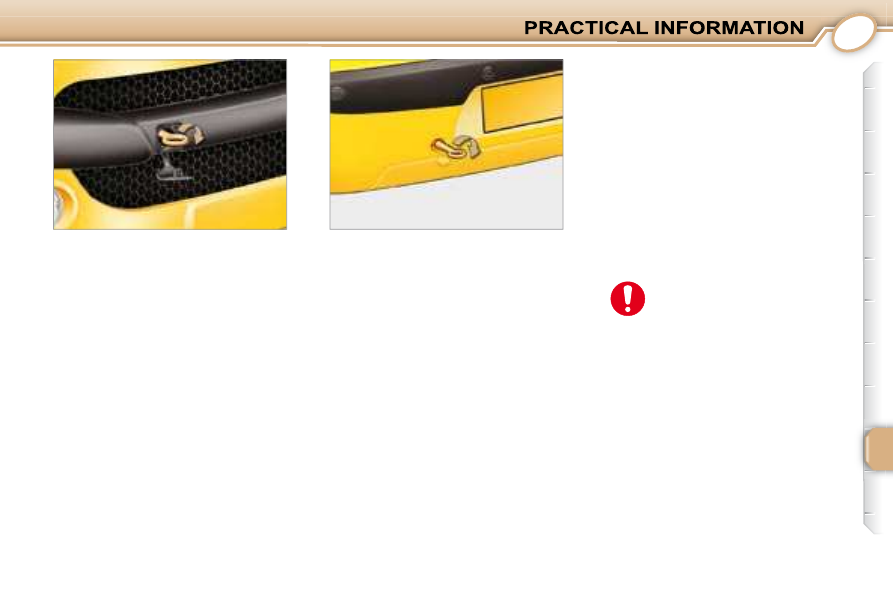

TOWING YOUR VEHICLE

From the rear:
 Unclip the side of the cover using

the ﬂ at part of the towing eye,

 Screw in the towing eye until it

locks.

When towing with the en-
gine switched off, there is no
braking assistance.

Special features of the
"2 Tronic" gearbox

When towing with four wheels on the
ground, the following rules must be
obeyed:
-

gear lever in position N ,

tow the vehicle at less than 30 mph
(50 km/h) over a maximum dis-
tance of 30 miles (50 km).

do not add oil to the gearbox.

From the front:
 Unclip the bottom of the cover,

using the ﬂ at part of the towing

eye.

 Screw in the towing eye until it

locks.

Lifting
(2 wheels only on the road)

It is preferable to raise the vehicle by
the wheels.
Never use the radiator crossmem-
ber.

Without lifting
(4 wheels on the road)

You should always use a towbar.
The removable towing eye is stored
in the tool case, located in the left
boot trim.

Vehicles fitted with a manual
gearbox (diesel version)

In the case of vehicles ﬁ tted with a

manual gearbox, the gear lever must
be in the neutral position.
Failure to observe this special condi-
tion  may  result  in  damage  to  certain
braking components and the absence
of  braking  assistance  the  next  time
the engine is started.

130

TOWING A TRAILER,
CARAVAN, BOAT, etc.

We  recommend  the  use  of  original
PEUGEOT   towbars  and  their  har-
nesses  that  have  been  tested  and
approved  from  the  design  stage  of

your vehicle and that the ﬁ tting of the

towbar is entrusted to a PEUGEOT
dealer.
If the towbar is not ﬁ tted by a PEUGEOT

dealer, it is imperative that it is ﬁ tted us-

ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer’s instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-

ing vehicle to more signiﬁ cant stress

and  its  driver  must  be  particularly
careful.
Air  density  decreases  with  altitude,
thus  reducing  engine  performance.
Above  1 000  metres,  the  maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.

  Cooling:  Towing a trailer on a slope
increases  the  temperature  of  the
coolant.
As  the  fan  is  electrically  controlled,
its cooling capacity is not dependent
on the engine speed.
On  the  contrary,  use  a  high  gear  to
lower  the  engine  speed  and  reduce
your speed.
The maximum towing load on a long
slope  depends  on  the  gradient  and
the outside temperature.
In all cases, pay attention to the cool-
ant temperature.
In  certain  cases  of  particularly  ardu-
ous  use  (towing  the  maximum  load
on a steep gradient in high tempera-
tures), switching off the air condition-
ing  permits  the  recovery  of  engine
power  and  therefore  an  increase  in
the towing capacity.
If  the  warning  light  comes  on,  stop
the vehicle and switch off the engine
as soon as possible.
  Tyres:   Check  the  tyre  pressures  of
the  towing  vehicle  and  of  the  trailer,
observing  the  recommended  pres-
sures.
  Braking:  Towing increases the brak-
ing distance.
  Lights:   Check  the  electrical  signal-
ling on the trailer.
  Side wind:  Take into account the in-
creased sensitivity to side wind.

FITTING ROOF BARS

When ﬁ tting transverse or longitudinal

roof bars, use the accessories recom-
mended by PEUGEOT and follow the

manufacturer’s ﬁ tting instructions.
For  further  information,  contact  a
PEUGEOT  dealer.
  Maximum  authorised  weight  on
the roof bars: 60 kg
Please  refer  to  national  legislation  in
order  to  comply  with  the  regulations
concerning the transportation of objects
which are longer than the vehicle.

Driving advice

  Distribution of loads:  Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle  and  the  nose  weight  approach-
es  the  maximum  permitted  without
exceeding it.

131

ACCESSORIES
FOR YOUR 1007

A  wide  range  of  accessories  recom-
mended  by   PEUGEOT   and  original
parts are offered by the Network.
They  all  beneﬁ t  from   PEUGEOT’s

recommendation.
These accessories and parts, having
been  tested  and  approved  for  reli-
ability  and  safety,  are  all  adapted  to
your  PEUGEOT  vehicle.

The ﬁ tting of electrical equip-

ment  or  accessories  which
are  not  recommended  by
PEUGEOT   may  result  in  a

failure of your vehicle’s electronic
system.
Please note this speciﬁ c warning.

You  are  advised  to  contact  a  repre-
sentative of the Marque to be shown
the  range  of  recommended  equip-
ment and accessories.
Depending  on  the  country  in  which
the vehicle is sold, it is compulsory to
have  a  safety  jacket,  warning  trian-
gle  and  spare  bulbs  available  in  the
vehicle.

"Protection":

anti-theft

alarm,  engraved  windows,
wheel  anti-theft  devices,
system  which  assists  with

the identiﬁ cation of a stolen

vehicle, ﬁ rst aid kit, warn-

ing triangle, high visibility
safety jacket, fog lamps kit,
snow chains, non-skid cov-
ers, audible rear parking
assistance.

"Touring":

central

arm-

rest, storage under the rear
shelf, mats * , boot tray, sun
blinds.
For leisure pursuits: roof
bars,

transportation

ac-

cessories (bicycle carrier,
ski carrier), roof box, child

seats and booster cushions, audio/
telephone console, cool box.

  "In-Car  Technology":   hands-
free kits, satellite navigation sys-
tems, CD changer, DVD player,
multimedia,  audio  equipment,
speakers, auxiliary audio socket
permitting  the  connection  of  a
portable  MP3  player  (compat-
ible with RD4), USB Box.

  "Styling":   seat  covers,  al-
loy  wheels,  wheel  trims,
spoiler,  styling  strips,  door
spoilers,

sill

protectors,

aluminium footrest, rear si-
lencer, exhaust tail pipe.

"Universal":

windscreen

wash ﬂ uid, interior and ex-

terior cleaning and mainte-
nance products.

You can obtain "Van" conver-
sion kits for conversion from
a private vehicle to a van.
You

can

obtain

other

"Cameleo" customising kits
from PEUGEOT dealers.
You will be offered either a

complete kit, like the original kit, or a
partial kit consisting of the vent trims
only.
Should  you  need  to  change  one  or
more elements of the Cameleo kit of
your  vehicle,  due  to  damage...,  you
will be offered replacement elements
from  the  exchange  kits  available  at
that time.

This  product  range  offered  by   PEUGEOT
Accessories  is  structured  around  5  catego-
ries:  PROTECTION  -  TOURING  -  IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.

* To prevent jamming under the

pedals:

ensure that the mat is positioned
and secured correctly,

never ﬁ t one mat on top of an-

other.

Trailer towbar which must be ﬁ tted by

the PEUGEOT network.

132

ENGINES AND GEARBOXES

Draining by gravity with oil ﬁ ller cap open.

  MODELS:
Model codes:
KM...

KFVC

NFUC

NFUC/P

PETROL ENGINES

1.4 litre

(75 bhp)

1.6 litre 16V

(110 bhp)

Cubic capacity (cm

)

1 360

1 587

Bore x stroke (mm)

75 x 77

78.5 x 82

EU standard maximum power (kW)

Maximum power engine speed (rpm)

5 400

5 800

EU standard maximum torque (Nm)

118

147

Maximum torque engine speed (rpm)

3 400

4 000

Fuel

Unleaded

Catalytic converter

Yes

Gearboxes

Manual

(5-speed)

Manual

(5-speed)

"2 Tronic"

(5-speed)

Oil capacities (in litres)

Engine (with cartridge replacement)

3.15 *

3.35 *

Gearbox-Final drive

133

ENGINES AND GEARBOXES

  MODELS:
Model codes:
KM...

8HZC

9HZC

DIESEL ENGINES

1.4 litre Turbo HDI

(70 bhp)

1.6 litre Turbo HDI 16V

(110 bhp)

Cubic capacity (cm

)

1 398

1 560

Bore x stroke (mm)

73.7 x 82

75 x 88.3

EU standard maximum power (kW)

Maximum power engine speed (rpm)

4 000

EU standard maximum torque (Nm)

160

240

Maximum torque engine speed (rpm)

2 000

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter

Yes

Gearboxes

Manual

(5-speed)

Manual

(5-speed)

Oil capacities (in litres)

Engine (with cartridge replacement)

3.8 *

3.75 *

Gearbox-Final drive

1.9

Draining by gravity with oil ﬁ ller cap open.

134

Fuel consumption indications correct at time of printing.

The consumption values were established in accordance with EC Directive 80/1268/CEE (as amended). They may vary

depending on the style of driving, trafﬁ c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle

and the use of the accessories.

CONSUMPTION

In accordance with EC Directive 80/1268/CEE (as amended)

Engines

Gearboxes

Model codes

KM...

Urban driving

mpg

(l/100 km)

Inter-urban

driving

(l/100 km)

Mixed driving

(l/100 km)

Emission
of CO

weight (g/km)

1.4 litre

Manual

KFVC

8.6

5.2

6.5

153

1.6 litre 16V

Manual

NFUC

9.2

5.5

6.9

163

"2 Tronic"

NFUC/P

8.6

5.4

6.6

156

1.4 litre Turbo

HDI

Manual

8HZC

5.8

4.1

4.7

124

1.6 litre Turbo

HDI 16V

Manual

9HZC

6.0

4.1

4.8

125

135

WEIGHTS AND TOWED LOADS (in kg)

The GTW and towed load values indicated are valid up to an altitude of 1 000 metres; the towed load mentioned must be

reduced by 10 % for each additional 1 000 metres.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) *** .

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the exterior temperature is above 37 °C, limit the towed load.
**

The weight of the braked trailer may be increased, within the limit of the GTW, if the GVW of the towing vehicle is reduced

by the same amount; warning, towing with a lightly loaded towing vehicle may reduce its road holding performance.

*** In accordance with current legislation in your country.

Petrol engines

1.4 litre

1.6 litre 16V

Gearboxes

Manual

"2 Tronic"

Model codes:

KFVC

NFUC

NFUC/P

Unladen weight

1 140

1 203

1 216

Kerb weight

1 215

1 278

1 291

Payload

339

328

305

Gross vehicle weight (GVW)

1 554

1 606

1 596

Gross train weight (GTW)

2 304

2 506

2 496

Braked trailer

(within the limit of the GTW)

750

900

Braked trailer **

(with load transfer within the limit

of the GTW)

987

1 090

1 137

Unbraked trailer

605

635

645

Recommended nose weight

136

WEIGHTS AND TOWED LOADS (in kg)

The GTW and towed load values indicated are valid up to an altitude of 1 000 metres; the towed load mentioned must be

reduced by 10 % for each additional 1 000 metres.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) *** .

High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when

the exterior temperature is above 37 °C, limit the towed load.

Diesel engines

1.4 litre Turbo HDI

1.6 litre Turbo HDI 16V

Gearboxes

Manual

Model codes: KM...

8HZC

9HZC

Unladen weight

1 168

1 273

Kerb weight

1 243

1 348

Payload

339

307

Gross vehicle weight (GVW)

1 582

1 655

Gross train weight (GTW)

2 482

2 555

Braked trailer

(within the limit of the GTW)

900

Braked trailer ** (with load transfer

within the limit of the GTW)

1 137

1 090

Unbraked trailer

620

650

Recommended nose weight

The weight of the braked trailer may be increased, within the limit of the GTW, if the GVW of the towing vehicle is reduced

by the same amount; warning, towing with a lightly loaded towing vehicle may reduce its road holding performance.

*** In accordance with current legislation in your country.

137

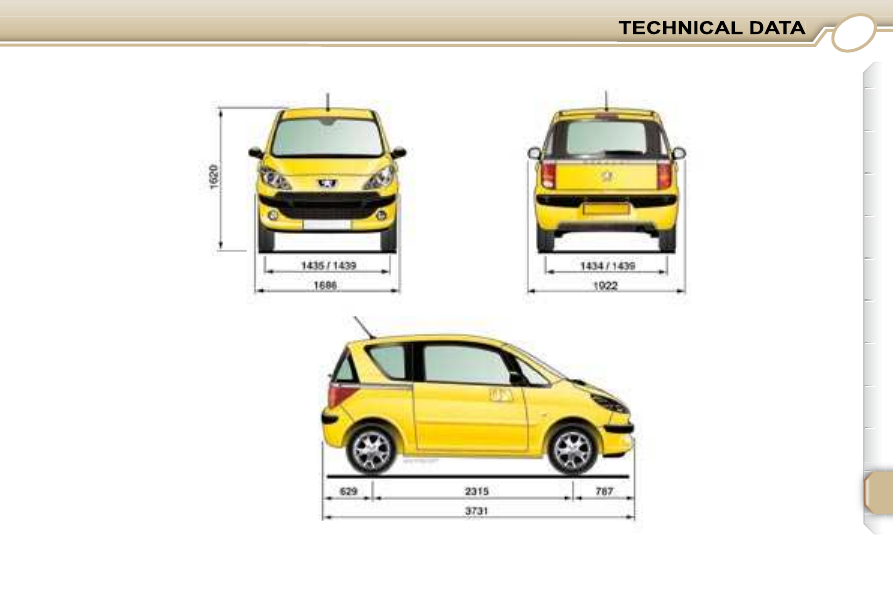

DIMENSIONS (in mm)

Content .. 7 8 9 10 ..
