TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

䊊

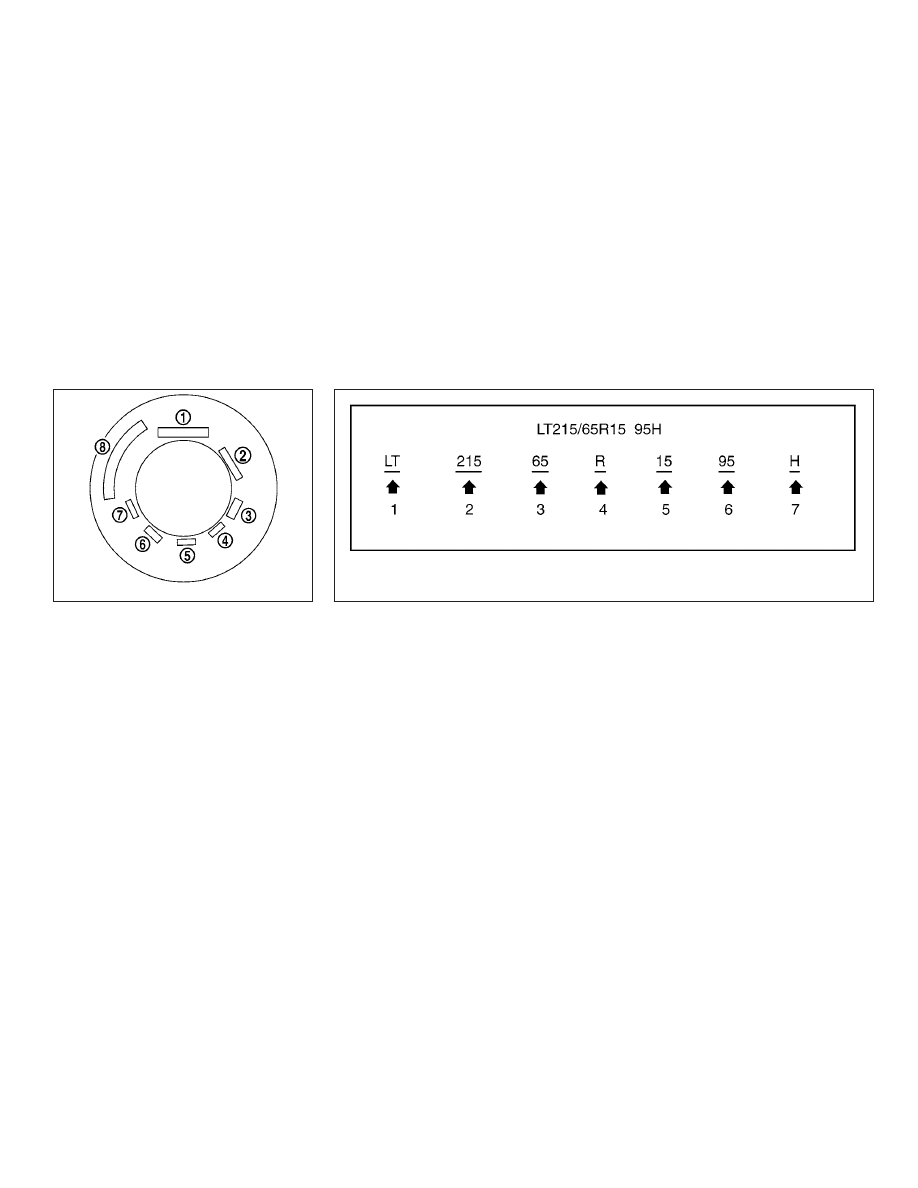

Tire size (example: LT215/65R15

95H)

1. LT: The “LT” indicates the tire is

designed for light truck vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

Example

WDI0394

Example

LDI2043

Do-it-yourself

8-39

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

䊊

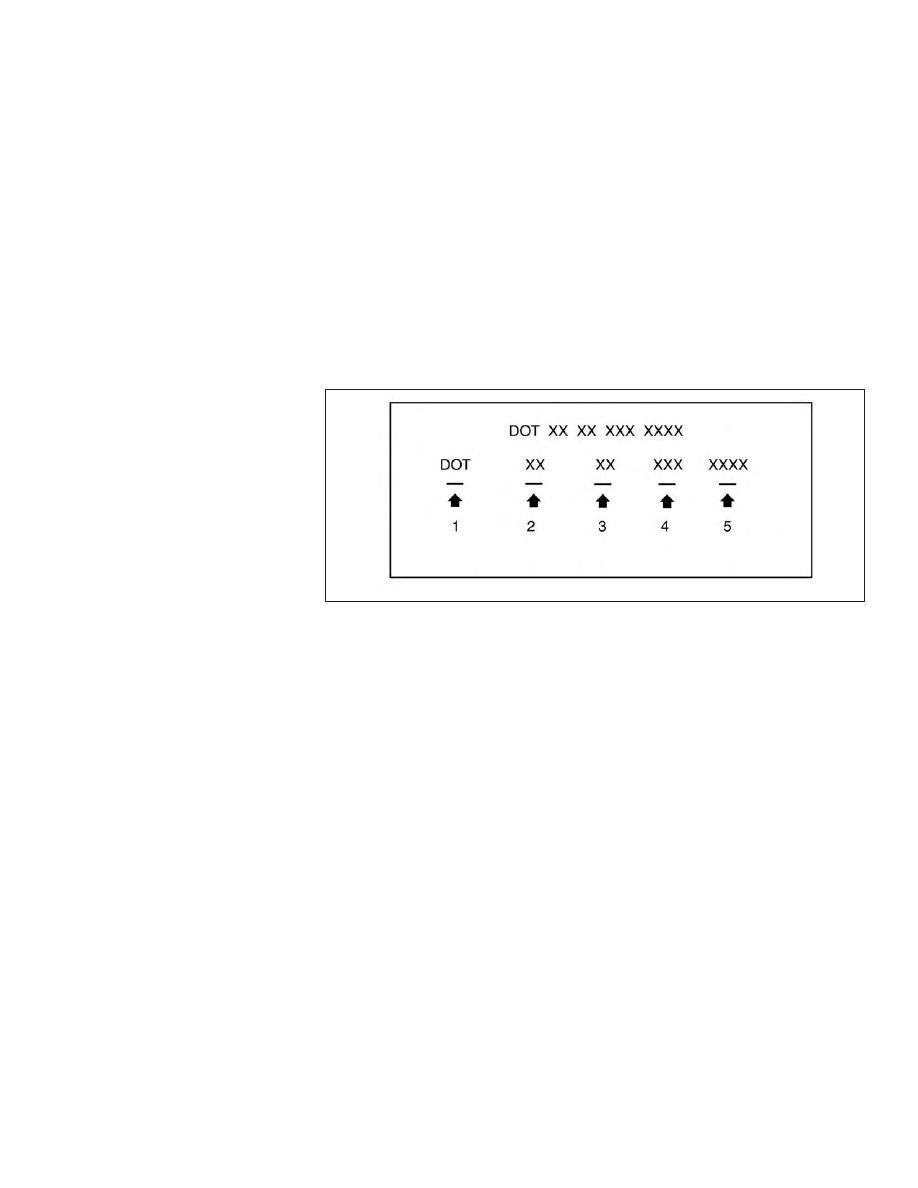

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “De-

partment

Transportation”.

The

symbol

can

placed

above, below or to the left or
right of the Tire Identification
Number.

2. Two-digit code: Manufacturer’s

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the

week and year the tire was built.
For example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing then
look on the other sidewall of the
tire.

Example

LDI2786

8-40

Do-it-yourself

䊊

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate
the materials in the tire, which in-
clude steel, nylon, polyester and oth-
ers.

䊊

Maximum permissible inflation

pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure.

䊊

Maximum load rating

This number indicates the maxi-
mum load in kilograms and pounds
that can be carried by the tire. When
replacing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.

䊊

Term of “tubeless” or “tube type”

Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).

䊊

The word “radial”

The word “radial” is shown if the tire
has radial structure.

䊊

Manufacturer or brand name

Manufacturer or brand name is
shown.

Other Tire-related Terminology

In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears

white

lettering

bears

manufacturer, brand, and/or model
name molding that is higher or
deeper than the same molding on
the other sidewall of the tire, or (2)
the outward facing sidewall of an
asymmetrical tire that has a particu-
lar side that must always face out-
ward when mounted on a vehicle.

TYPES OF TIRES

WARNING

∙ When changing or replacing tires, be

sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. A NISSAN dealer may be
able to help you with information
about tire type, size, speed rating and
availability.

∙ Replacement tires may have a lower

speed

rating

than

the

factory

equipped tires, and may not match
the

potential

maximum

vehicle

speed. Never exceed the maximum
speed rating of the tire.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the low tire
pressure warning system.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

Do-it-yourself

8-41

All season tires

NISSAN specifies All Season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S on the tire sidewall.
Snow tires have better snow traction than
All Season tires and may be more appropri-
ate in some areas.

Summer tires

NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating “M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy
or icy conditions, NISSAN recommends the
use of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rat-
ing to the original equipment tires. If you do
not, it can adversely affect the safety and
handling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.

If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.

For additional traction on icy roads, stud-
ded tires may be used. However, some U.S.
states and Canadian provinces prohibit
their use. Check local, state and provincial
laws before installing studded tires. Skid
and traction capabilities of studded snow
tires on wet or dry surfaces may be poorer
than that of non-studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited ac-
cording to location. Check the local laws
before installing tire chains. When installing
tire chains, make sure they are the proper
size for the tires on your vehicle and are
installed according to the chain manufac-
turer’s suggestions. Use only SAE class “S”
chains. Class “S” chains are used on ve-
hicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains
are designed to meet the minimum clear-
ances between the tire and the closest ve-

hicle suspension or body component re-
quired to accommodate the use of a
winter traction device (tire chains or
cables). The minimum clearances are de-
termined using the factory equipped tire
size. Other types may damage your vehicle.
Use chain tensioners when recommended
by the tire chain manufacturer to ensure a
tight fit. Loose end links of the tire chain
must be secured or removed to prevent
the possibility of whipping action damage
to the fenders or underbody. If possible,
avoid fully loading your vehicle when using
tire chains. In addition, drive at a reduced
speed. Otherwise, your vehicle may be
damaged and/or vehicle handling and
performance may be adversely affected.

Tire chains must be installed only on the
rear wheels and not on the front wheels.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

Use only the 2WD range when driving on
clear paved roads.

8-42

Do-it-yourself

CHANGING WHEELS AND TIRES

Tire rotation

NISSAN recommends rotating the
tires every 5,000 miles (8,000 km).

For additional information on tire re-
placing procedures, refer to “Flat tire”
in the “In case of emergency” section
of this manual.

As soon as possible, tighten the
wheel nuts to the specified torque
with a torque wrench.

Wheel nut tightening torque:

Non-XD models:

98 ft-lb (133 N·m)

XD models:

131 ft-lb (177 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.

WARNING

∙ Retighten the wheel nuts when

the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

∙ Do not include the spare tire in

the tire rotation.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

∙ After rotating the tires, do not

use the Easy-Fill Tire Alert to ad-
just the tire pressure. Instead
use a gauge to adjust the tires
to the correct pressure in accor-
dance with Tire and Loading In-
formation label.

CAUTION

To ensure proper operation of the
Easy-Fill Tire Alert system after a
tire rotation, re-set and register
the sensor to their new installed
locations. It is recommended that
you visit a NISSAN dealer for this
service.

WDI0258

Do-it-yourself

8-43

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

∙ Tires should be periodically in-

spected

for

wear,

cracking,

bulging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.

∙ The original tires have built-in

tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

∙ Tires degrade with age and use.

Have tires, including the spare,
over 6 years old checked by a
qualified

technician

because

some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

∙ Improper service of the spare

tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, it is recom-
mended that you visit a NISSAN
dealer for this service.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. Rec-
ommended types and sizes are shown in
“Wheels and tires” in the “Technical and con-
sumer information” section of this manual.

WARNING

∙ The use of tires other than those rec-

ommended or the mixed use of tires
of

different

brands,

construction

(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, Vehicle Dynamic
Control (VDC) system, ground clear-
ance,

body-to-tire

clearance,

tire

chain clearance, speedometer cali-
bration, headlight aim and bumper
height. Some of these effects may
lead to accidents and could result in
serious personal injury.

WDI0259

8-44

Do-it-yourself

∙ If

your

vehicle

was

originally

equipped with four tires that were the
same size and you are only replacing
two of the four tires, install the new
tires on the rear axle. Placing new tires
on the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and per-
sonal injury.

∙ If the wheels are changed for any rea-

son,

always

replace

with

wheels

which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear, de-
grade vehicle handling characteris-
tics, affect the VDC system and/or in-
terference with the brake discs. Such
interference can lead to decreased
braking efficiency and/or early brake
pad/shoe wear. For additional infor-
mation on wheel-off set dimensions,
refer to “Wheels and tires” in the
“Technical and consumer informa-
tion” section of this manual.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for this service.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ The TPMS sensor may be damaged if

it is not handled correctly. Be careful
when handling the TPMS sensor.

∙ When replacing the TPMS sensor, the

ID registration may be required. Con-
tact

NISSAN

dealer

for

registration.

∙ Do not use a valve stem cap that is not

specified by NISSAN. The valve stem
cap may become stuck.

∙ Be sure that the valve stem caps are

correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause

malfunction

loss

pressure.

∙ Do not install a damaged or deformed

wheel or tire even if it has been re-
paired. Such wheels or tires could
have structural damage and could fail
without warning.

∙ The

use

retread

tires

not

recommended.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.

Four-wheel drive models

CAUTION

Always use tires of the same type, size,
brand, construction (bias, bias-belted
or radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.

Do-it-yourself

8-45

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked
and corrected as necessary. It is recom-
mended that you visit a NISSAN dealer for
this service.

Wheel balance

Unbalanced wheels may affect vehicle
handling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.

∙ For additional information regarding

tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.

Care of wheels

∙ Wash the wheels when washing the ve-

hicle to maintain their appearance.

∙ Clean the inner side of the wheels when

the wheel is changed or the underside
of the vehicle is washed.

∙ Do not use abrasive cleaners when

washing the wheels.

∙ Inspect wheel rims regularly for dents

or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead.

∙ NISSAN recommends waxing the road

wheels to protect against road salt in
areas where it is used during winter.

Spare tire (FULL SIZE TEMPORARY
USE ONLY spare tire)

When replacing a wheel without the TPMS
such as the spare tire, the TPMS will not
function.

Your vehicle may be equipped with a full
size spare that is a different size or brand
than the tires originally installed on the ve-
hicle. This full size spare tire is intended for
temporary use only and should be re-
placed at the first opportunity.

Observe the following precautions if the
FULL SIZE TEMPORARY USE ONLY spare tire
must be used. Otherwise, your vehicle
could be damaged or involved in an acci-
dent:

WARNING

∙ The TEMPORARY FULL SIZE spare tire

should be used for emergency use
only. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.

∙ Drive carefully while the TEMPORARY

FULL SIZE spare tire is installed. Avoid
sharp turns and abrupt braking while
driving. The vehicle driving perfor-
mance may be affected when driving
on wet or snow covered roads.

∙ When the TEMPORARY FULL SIZE

spare is installed, the following sys-
tems may not work correctly:

– Tire Pressure Monitoring System

(TPMS)

– Vehicle

Dynamic

Control

(VDC)

System

8-46

Do-it-yourself

∙ Periodically check the TEMPORARY

FULL SIZE spare tire inflation pressure.
Always keep the TEMPORARY FULL
SIZE inflated to the pressure specifi-
cation shown on the Tire and Loading
Information label.

∙ With the TEMPORARY FULL SIZE spare

tire installed do not drive the vehicle
at

speeds

faster

than

mph

(80 km/h).

∙ When driving on roads covered with

snow or ice, the TEMPORARY FULL SIZE
spare tire should be used on the front
wheels and the original tire used on
the rear wheels. Use tire chains only
on the drive wheels.

∙ Do not use the TEMPORARY FULL SIZE

spare tire on other vehicles.

∙ Do not use 4WD when the TEMPO-

RARY FULL SIZE spare tire is installed

∙ Do not use more than one TEMPO-

RARY FULL SIZE spare tire at the same
time.

CAUTION

∙ Do not use tire chains on a TEMPO-

RARY FULL SIZE spare tire. Tire chains
will not fit properly and may cause
damage to the vehicle.

Do-it-yourself

8-47

Some day-to-day and regular mainte-
nance is essential to maintain your vehi-
cle’s good mechanical condition, as well as
it’s emissions and engine performance.

It is the owner’s responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.

As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in
the maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal
day-to-day operation. They are essential
for proper vehicle operation. It is your re-
sponsibility to perform these maintenance
procedures regularly as prescribed.

Performing general maintenance checks
requires minimal mechanical skill and only
a few general automotive tools.

These checks or inspections can be done
by you, a qualified technician or, if you pre-
fer, a NISSAN dealer.

SCHEDULED MAINTENANCE

The maintenance items listed in this sec-
tion are required to be serviced at regular
intervals. However under severe driving
conditions, additional or more frequent
maintenance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and corrected. It is rec-
ommended that you visit a NISSAN dealer
for this service.

NISSAN technicians are well-trained spe-
cialists who are kept up-to-date with the
latest service information through techni-
cal bulletins, service tips and in-dealership
training programs. They are completely
qualified to work on NISSAN vehicles be-
fore they work on your vehicle rather than
after they have worked on it.

You can be confident that a NISSAN deal-
er’s service department performs excellent
service to meet the maintenance require-
ments on your vehicle — in a reliable and
economical way.

During the normal day-to-day operation of
the vehicle, general maintenance should
be performed regularly as prescribed in
this section. If you detect any unusual
sounds, vibrations or smells, be sure to
check for the cause or have it checked
promptly. In addition, it is recommended
that you visit a NISSAN dealer if you think
that repairs are required.

When performing any checks or mainte-
nance work, closely observe the “Mainte-
nance precautions” in the “Do-it-yourself ”
section of this manual.

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

Additional information on the following
items with “ * ” is found in the “Do-it-
yourself ” section of this manual.

Outside the vehicle

The maintenance items listed here should
be performed from time to time, unless
otherwise specified.

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

9-2

Maintenance and schedules

Doors and engine hood: Check that the
doors and engine hood operate properly.
Also ensure that all latches lock securely.
Lubricate hinges, latches, latch pins, rollers
and links if necessary. Make sure that the
secondary latch keeps the hood from
opening when the primary latch is re-
leased.

When driving in areas using road salt or
other corrosive materials, check lubrica-
tion frequently.

Lights*: Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and in-
stalled securely. Also check headlight aim.

Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.

Tire rotation*: Tires should be rotated ev-
ery 5,000 miles (8,000 km).

Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in all
tires, including the spare, to the pressure
specified. Check carefully for damage, cuts
or excessive wear.

Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the
TPMS transmitter grommet seal, valve core
and cap when the tires are replaced due to
wear or age.

Wheel alignment and balance: If the ve-
hicle should pull to either side while driving
on a straight and level road, or if you detect
uneven or abnormal tire wear, there may
be a need for wheel alignment. If the steer-
ing wheel or seat vibrates at normal high-
way speeds, wheel balancing may be
needed.

For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.

Windshield: Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other dam-
age. Have a damaged windshield repaired
by a qualified repair facility.

Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.

Inside the vehicle

The maintenance items listed here should
be checked on a regular basis, such as

when performing scheduled maintenance,
cleaning the vehicle, etc.

Accelerator pedal: Check the pedal for
smooth operation and make sure the
pedal does not bind or require uneven ef-
fort. Keep the floor mat away from the
pedal.

Automatic transmission P (Park) posi-
tion mechanism: On a fairly steep hill
check that your vehicle is held securely
with the shift lever in the P (Park) position
without applying any brakes.

Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer
to stop, have your vehicle checked imme-
diately. It is recommended that you visit a
NISSAN dealer for this service.

Brakes: Check that the brakes do not pull
the vehicle to one side when applied.

Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjustment, it is recom-
mended that you visit a NISSAN dealer for
this service.

Maintenance and schedules

9-3

Seats: Check seat position controls such
as seat adjusters, seatback recliner, etc., to
ensure they operate smoothly and all
latches lock securely in every position.
Check that the head restraints/headrests
move up and down smoothly and the locks
(if so equipped) hold securely in all latched
positions.

Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Steering wheel: Check for changes in the
steering system, such as excessive free-
play, hard steering or strange noises.

Warning lights and chimes: Make sure all
warning lights and chimes are operating
properly.

Windshield wiper and washer*: Check
that the wipers and washer operate prop-
erly and that the wipers do not streak.

Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.

Under the hood and vehicle

The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel).

Battery*

(for

serviceable

batteries):

Check the fluid level in each cell. The fluid
should be at the bottom of the filler open-
ing. Vehicles operated in high tempera-
tures or under severe conditions require
frequent checks of the battery fluid level.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (Phone chargers, GPS, DVD
players, etc.).

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

Brake fluid level*: Make sure that the brake
fluid level is between the MIN and MAX lines
on the reservoir.

Engine coolant level*: Check the coolant
level when the engine is cold.

Engine drive belts*: Make sure the drive
belts are not frayed, worn, cracked or oily.

Engine oil level*: Check the level after
parking the vehicle on a level surface with
the engine off. Wait more than 10 minutes
for the oil to drain back into the oil pan.

Exhaust system: Visually inspect the ex-
haust pipes, muffler and hangers for leaks,
cracks, deterioration and damage. Tighten
connections or replace parts as necessary.
For additional information, refer to “Exhaust
gas (carbon monoxide)” in the “Starting and
driving” section of this manual.

Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
dripping from the air conditioner after use
is normal. If you should notice any leaks or if
fuel fumes are evident, check for the cause
and have it corrected immediately.

9-4

Maintenance and schedules

Power steering fluid level* and lines:
Check the level when the fluid is cold, with
the engine off. Check the lines for proper
attachment, leaks, cracks, etc.

Radiator and hoses Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks, defor-
mation, rot or loose connections.

Underbody: The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control dust. It
is very important to remove these sub-
stances from the underbody, otherwise
rust may form on the floor pan, frame, fuel
lines and exhaust system. At the end of
winter, the underbody should be thor-
oughly flushed with plain water, in those
areas where mud and dirt may have accu-
mulated. For additional information, refer
to the “Appearance and care” section of this
manual.

Windshield-washer fluid*: Check that
there is adequate fluid in the reservoir.

The following descriptions are provided to
give you a better understanding of the
scheduled maintenance items that should
be regularly checked or replaced. The
maintenance schedule indicates at which
mileage/time intervals each item requires
service.

Items marked with “*” are recommended
by NISSAN for reliable vehicle operation.
You are not required to perform mainte-
nance on these items in order to maintain
the warranties which come with your
NISSAN. Other maintenance items and in-
tervals are required.

When applicable, additional information
can be found in the “Do-it-yourself ” section
of this manual.

NOTE: NISSAN does not advocate the use
of non-OEM approved aftermarket flush-
ing systems and strongly advises against
performing these services on a NISSAN
product. Many of the aftermarket flushing
systems use non-OEM approved chemi-
cals or solvents, the use of which has not
been validated by NISSAN.

For recommended fuel, lubricants, fluids,
grease, and refrigerant, refer to “Recom-
mended fluids/lubricants and capacities”

in the “Technical and consumer informa-
tion” section of this manual.

EMISSION CONTROL SYSTEM
MAINTENANCE:

Drive Belts*: Check engine drive belts for
wear, fraying or cracking and for proper
tension. Replace any damaged drive belts.

Engine Air Filter: Replace at specified in-
tervals. When driving for prolonged periods
in dusty conditions, check/replace the filter
more frequently.

Engine Coolant*: Replace coolant at the
specified interval. When adding or replac-
ing coolant, be sure to use only Genuine
NISSAN Long Life Antifreeze/Coolant (blue)
or equivalent with the proper mixture. (For
additional information on the proper mix-
ture for your area, refer to Engine cooling
system” in the “Do-it-yourself ” section of
this manual or the Titan Diesel Owner’s
Manual.)

NOTE: Mixing any other type of coolant or
the use of non-distilled water may reduce
the recommended service interval of the
coolant.

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

Maintenance and schedules

9-5

Engine Oil and Oil Filter: Replace engine
oil and oil filter at the specified intervals. For
recommended oil grade and viscosity refer
to “Recommended fluids/lubricants and
capacities” in the “Technical and consumer
information” section of this manual.

Engine Valve Clearance* (gasoline en-
gine only): Inspect only if valve noise in-
creases. Adjust valve clearance if necessary.

Evaporative Emissions Control Vapor
Lines* (gasoline engine only): Check va-
por lines for leaks or looseness. Tighten
connections or replace parts as necessary.

Fuel Filter (diesel engine only): Replace
the fuel filter and drain the water at the
specified intervals.

Fuel Lines*: Check the fuel hoses, piping
and connections for leaks, looseness, or
deterioration. Tighten connections or re-
place parts as necessary.

CHASSIS AND BODY
MAINTENANCE:

Brake Lines and Cables: Visually inspect
for proper installation. Check for chafing,
cracks, deterioration, and signs of leaking.
Replace any deteriorated or damaged
parts immediately.

Brake Pads and Rotors: Check for wear,
deterioration and fluid leaks. Replace any
deteriorated or damaged parts immedi-
ately.

Exhaust System: Visually inspect the ex-
haust pipes, muffler and hangers for leaks,
cracks, deterioration, and damage. Tighten
connections or replace parts as necessary.

In-Cabin Microfilter: Replace at specified
intervals. When driving for prolonged peri-
ods in dusty conditions, replace the filter
more frequently.

Propeller Shaft(s): Check for damage,
looseness,

and

grease

leakage.

(4WD/AWD/RWD).

Steering Gear and Linkage, Axle and Sus-
pension Parts, Drive Shaft Boots: Check
for damage, looseness, and leakage of oil
or grease. Under severe driving conditions,
inspect more frequently.

Tire Rotation: Tires should be rotated ev-
ery 5,000 miles (8,000 km) according to the
instructions under “General maintenance”
in this section. When rotating tires, check
for damage and uneven wear. Replace if
necessary.

Transmission Fluid/Oil, Differential Oil,
Transfer Case Oil: Visually inspect for signs
of leakage at specified intervals.

Replace automatic transmission fluid at
specified intervals. (For diesel engine models)

If towing a trailer, using a camper or car-top
carrier, or driving on rough or muddy roads:

∙ Replace

the

differential

oil

every

20,000 miles (32,000 km) or 24 months.

∙ Replace the automatic transmission fluid

ever

30,000

miles

(48,000

km)

24 months. (For gasoline engine models)

Off-Road Maintenance: Check the follow-
ing items frequently whenever you drive
off-road through deep sand, mud or water:

∙ Brake pads and rotors

∙ Brake lines and hoses

∙ Differential, transmission and transfer

case oil

∙ Steering linkage

∙ Propeller shaft(s) and front drive shafts

∙ Engine air filter

∙ Clutch housing drain (4WD only)

9-6

Maintenance and schedules

Nissan Titan (2019 year). Manual - part 30
