Under some driving or climate conditions,
occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is nor-
mal and does not affect the function or
performance of the brake system.

Proper brake inspection intervals should
be followed. For additional information on
the appropriate maintenance schedule re-
garding brake inspections, refer to "Gaso-
line standard maintenance" or "Diesel
standard maintenance" in the "Mainte-
nance and schedules" section of this
manual.

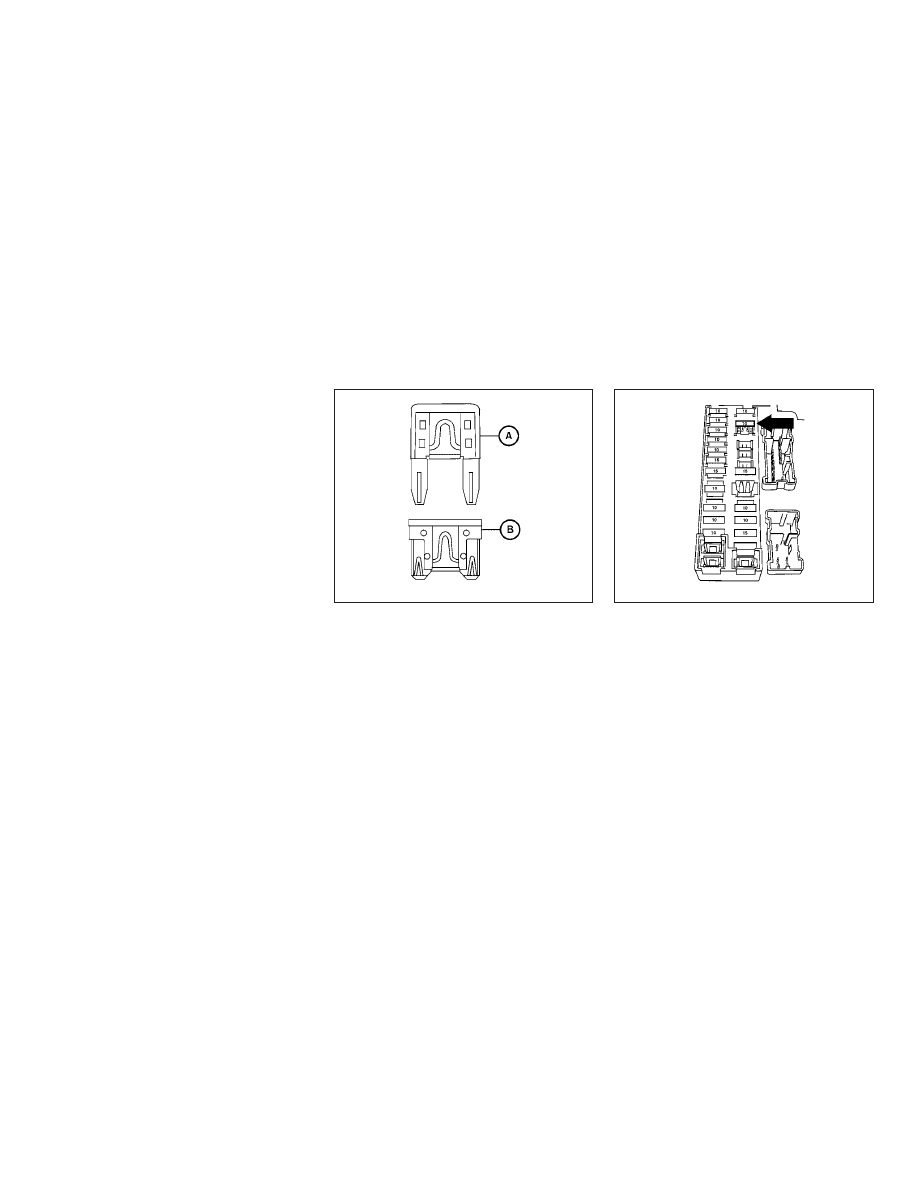

Two types of fuses are used. Type

䊊

and

䊊

are used in the fuse boxes in the engine

compartment. Type

䊊

is used in the pas-

senger compartment fuse box.

Type

䊊

fuses are provided as spare fuses.

They are stored in the passenger compart-
ment fuse box.

Type

䊊

fuses can be installed in the engine

compartment and passenger compart-
ment fuse boxes.

If a type

䊊

fuse is used to replace a type

䊊

fuse, the type

䊊

fuse will not be level with

the fuse pocket as shown in the illustration.
This will not affect the performance of the
fuse. Make sure the fuse is installed in the
fuse box securely.

Type

䊊

fuses cannot be used to replace

type

䊊

fuses.

LDI0455

LDI0457

FUSES

Do-it-yourself

8-23

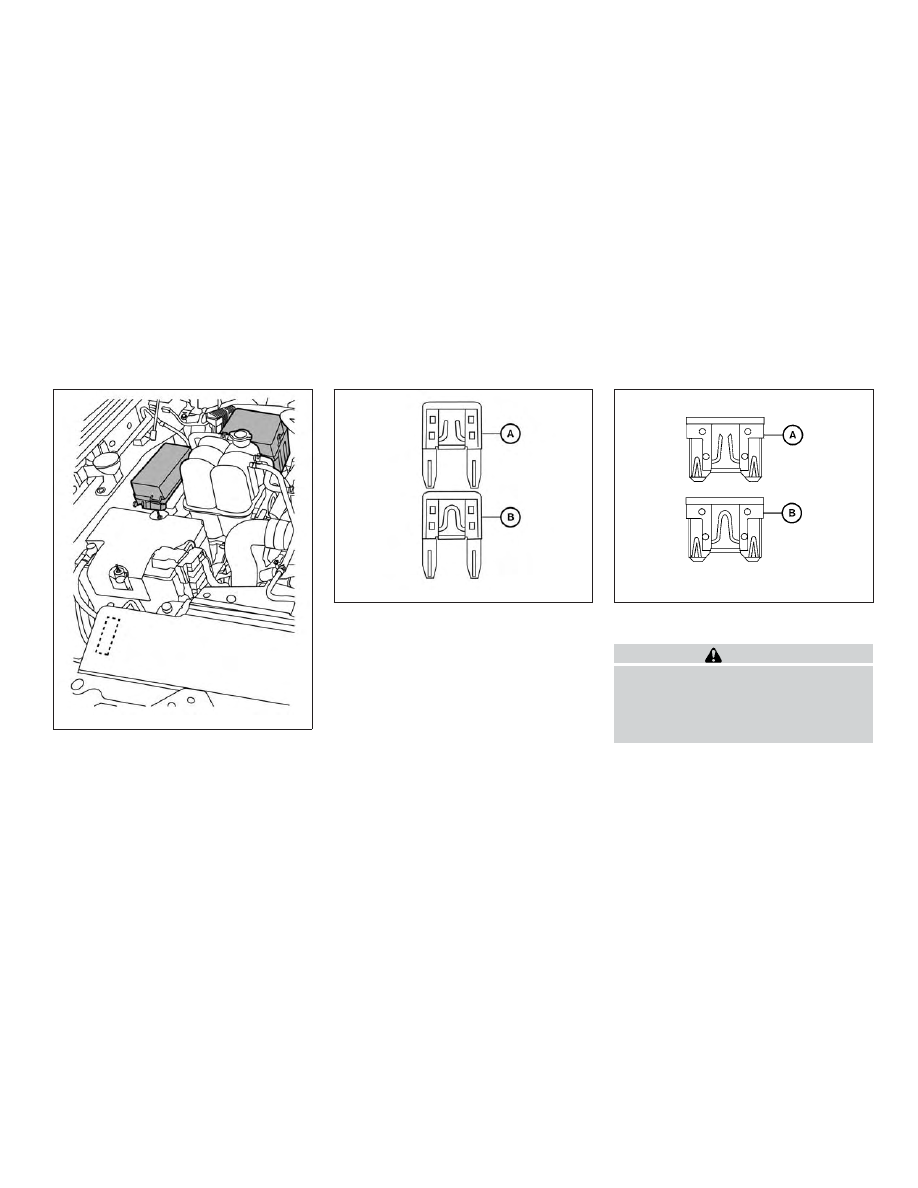

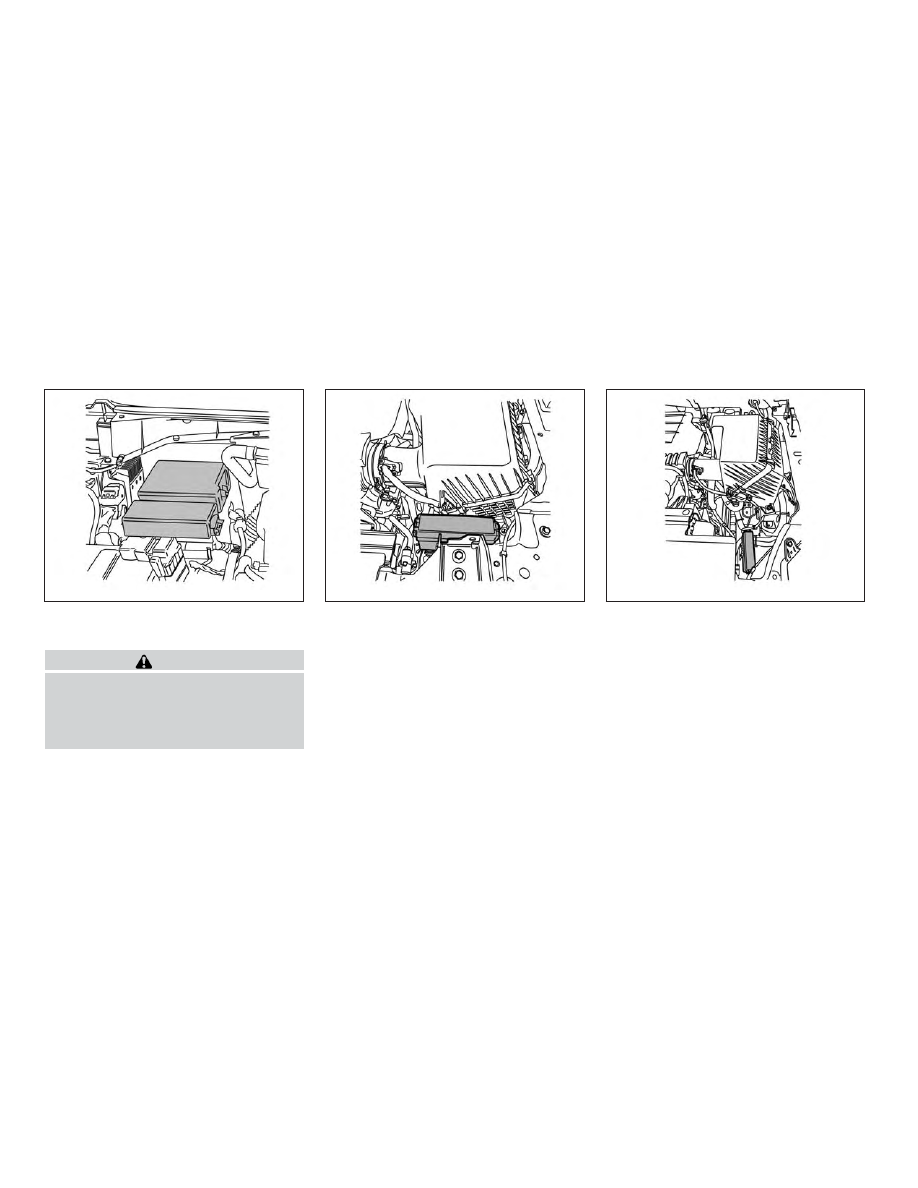

ENGINE COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.

If any electrical equipment does not come
on, check for an open fuse.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing

the tab and lifting the cover up.

4. Remove the fuse with the fuse puller.

The fuse puller is located in the center
of the fuse block in the passenger
compartment.

5. If the fuse is open

䊊

, replace it with a

new fuse

䊊

6. If a new fuse also opens, have the elec-

trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.

VK56VD engine

LDI2962

VK56VD engine (non-XD model)

LDI3073

VK56VD engine (XD model)

LDI3074

8-24

Do-it-yourself

Fusible links

If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.

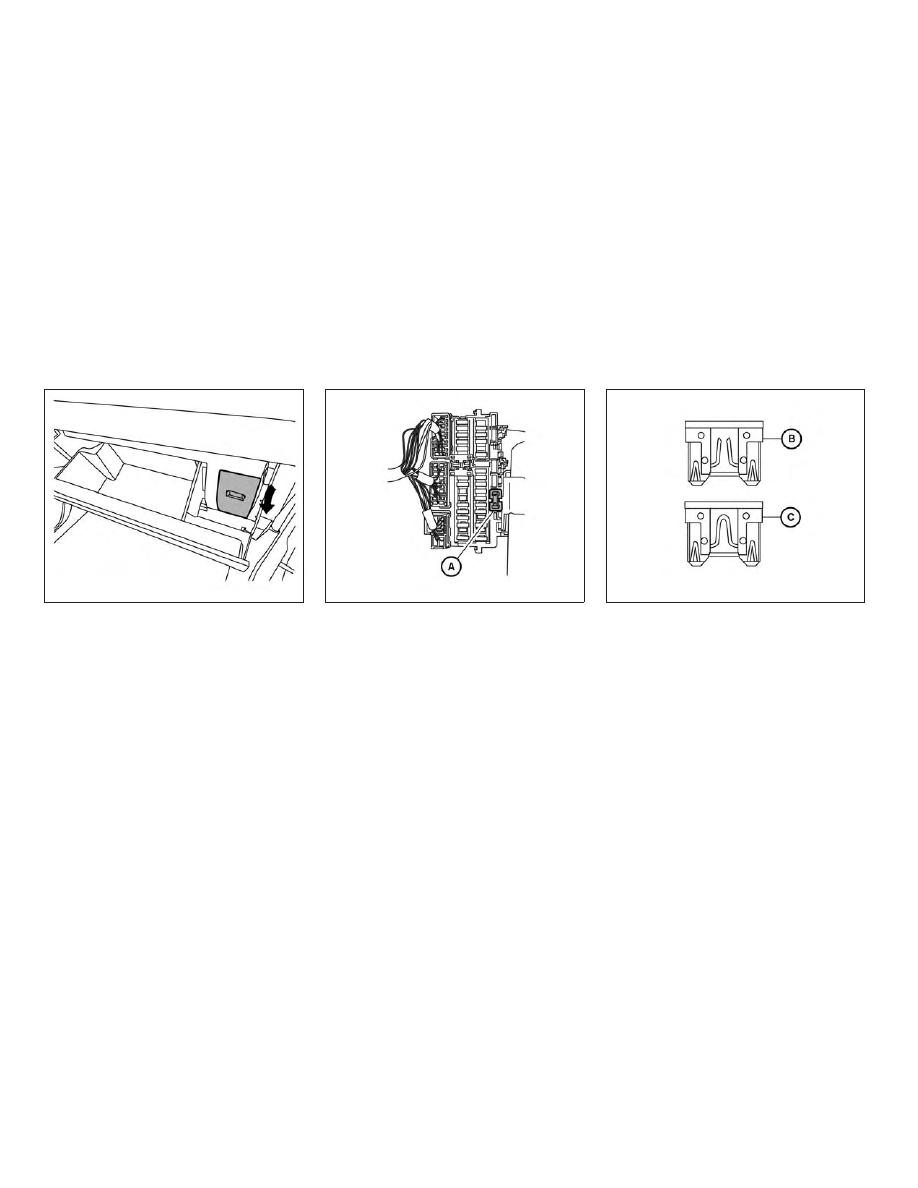

PASSENGER COMPARTMENT

WARNING

Never use a fuse of higher or lower am-
perage rating than that specified on the
fuse box cover. This could damage the
electrical system or electronic control
units or cause a fire.

If any electrical equipment does not oper-
ate, check for an open fuse.

1. Be sure the ignition switch and the

headlight switch are OFF.

2. Open the glove box.

Cummins 5.0L engine

LDI2882

LDI2826

LDI0456

Do-it-yourself

8-25

3. Remove the fuse box cover.

4. Locate the fuse that needs to be re-

placed.

5. Remove the fuse with the fuse puller

䊊

6. If the fuse is open

䊊

, replace it with an

equivalent good fuse

䊊

7. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit a NISSAN dealer for
this service.

LDI2883

LDI2884

LDI2760

8-26

Do-it-yourself

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

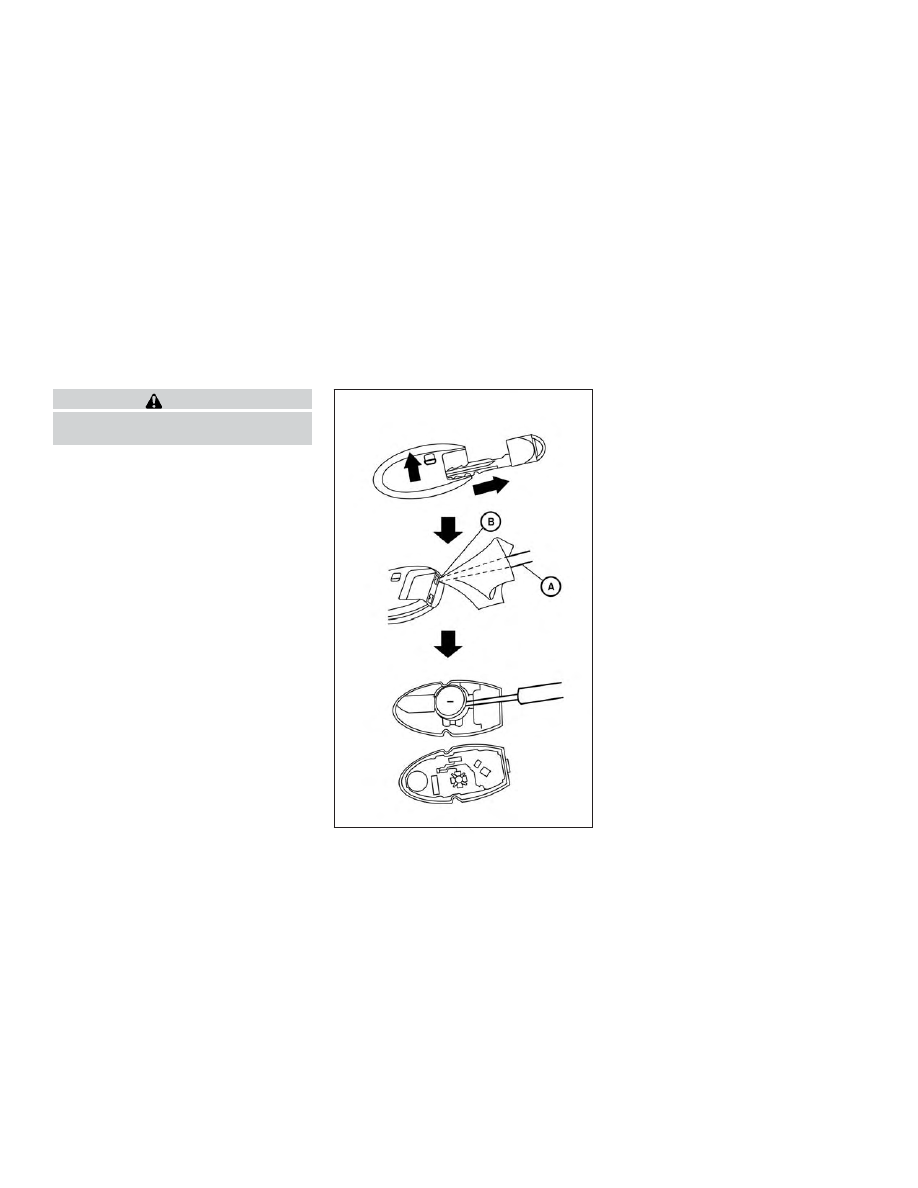

NISSAN INTELLIGENT KEY®

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small flathead screwdriver

䊊

into the slit

䊊

of the corner and twist it

to separate the upper part from the
lower part. Place a cloth over the
screwdriver to protect the casing.

LDI2001

BATTERY REPLACEMENT

Do-it-yourself

8-27

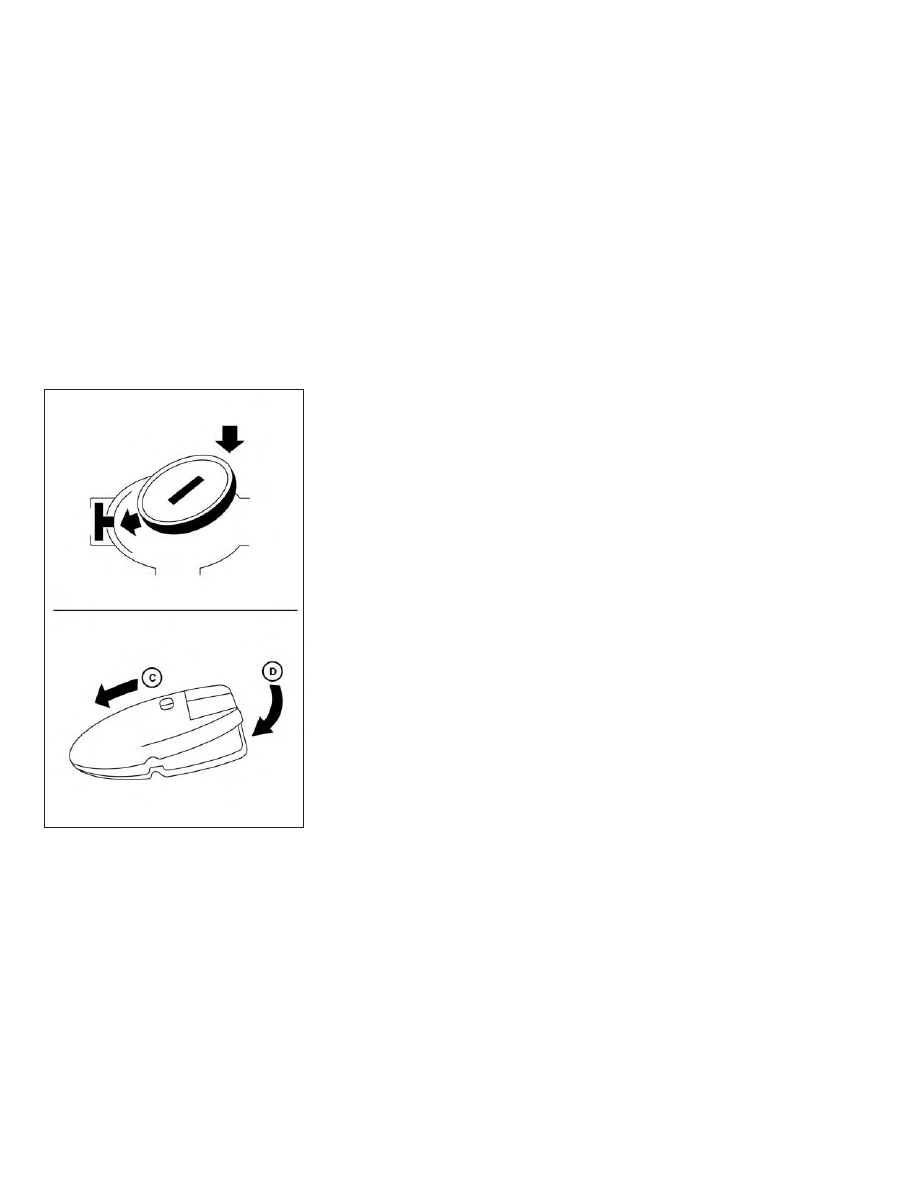

3. Replace the battery with a new one.

Recommended battery: CR2032 or
equivalent.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the stor-
age capacity.

∙ Make sure that the + side faces the

bottom of the lower part.

4. Close the lid securely as illustrated with

䊊

and

䊊

5. Operate the buttons to check the op-

eration.

If you need assistance with replacement, it
is recommended that you visit a NISSAN
dealer for this service.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

LDI2637

8-28

Do-it-yourself

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb (if so equipped)

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. Because the headlight assembly
must be removed from the vehicle for bulb
replacement, it is recommended that you
visit a NISSAN dealer for this service.

CAUTION

∙ Aiming is not necessary after replac-

ing the bulb. When aiming adjustment
is necessary, it is recommended that
you visit a NISSAN dealer for this
service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ Use the same number and wattage as

shown in the chart.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.

Replacing the LED headlight bulb
(if so equipped)

If LED headlight bulb replacement is re-
quired, it is recommended that you visit a
NISSAN dealer for this service.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

LIGHTS

Do-it-yourself

8-29

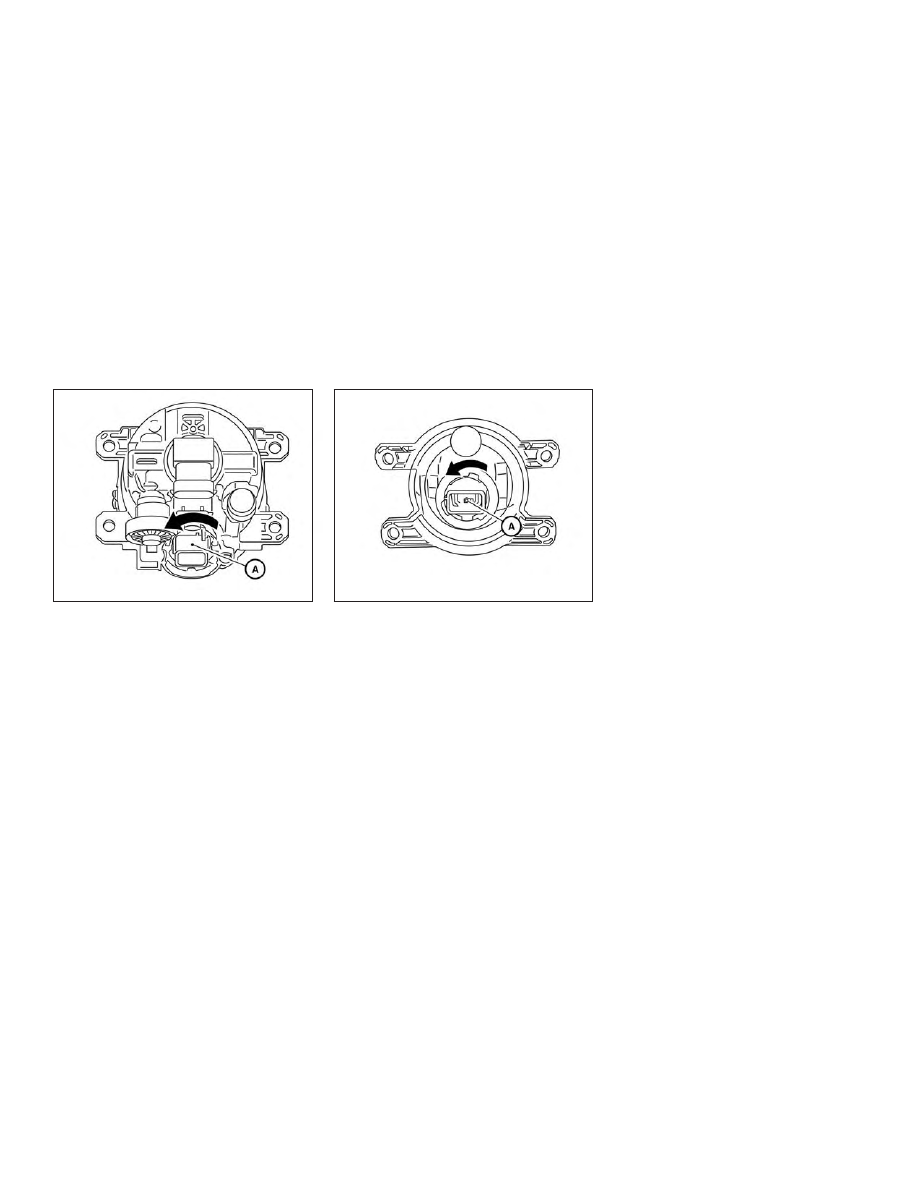

Replacing the fog light bulb

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

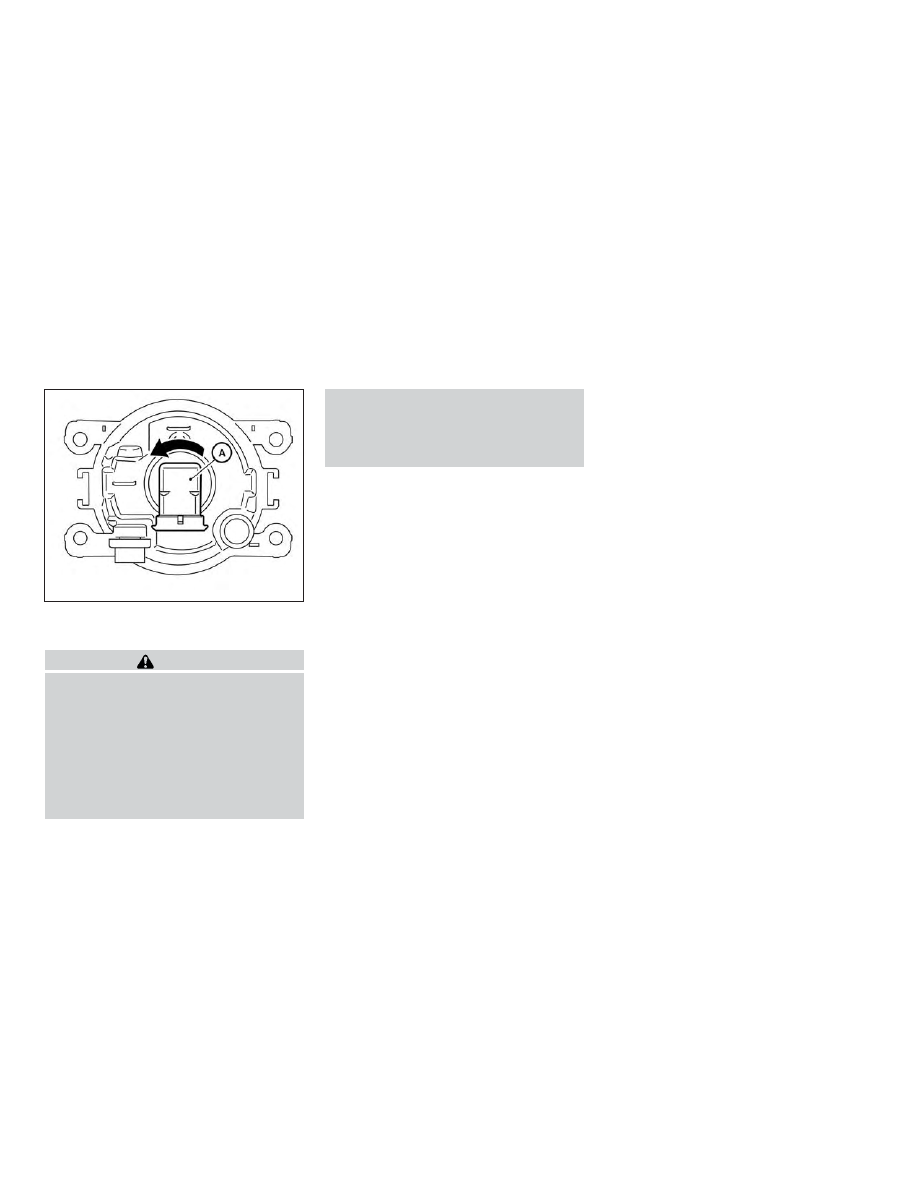

NOTE:

The fog light is accessible in front of the
front tire and behind the bumper.

1. Push the ignition switch to the OFF po-

sition and wait 2 minutes.

2. Disconnect the negative (-) battery

cable.

3. Disconnect the bulb connector.

4. Rotate the bulb

䊊

counterclockwise

and remove.

5. Remove by pulling it straight out of the

fog light assembly. Do not shake or ro-
tate the bulb when removing it. Do not
touch the glass envelope.

6. Install in the reverse order of removal.

DAYTIME RUNNING LIGHT (DRL) (if
so equipped)

For additional information on the DRL bulb
replacement, refer to the instructions out-
lined in this section.

Fog light (Type B) (if so equipped)

LDI2924

8-30

Do-it-yourself

Replacing the daytime running
light bulb (Canada only)

NOTE:

The daytime running light is accessible
in front of the front tire and behind the
bumper.

1. Push the ignition switch to the OFF po-

sition and wait 2 minutes.

2. Disconnect the negative (-) battery

cable.

3. Disconnect the daytime running light

bulb connector.

4. Rotate the daytime running light bulb

䊊

counterclockwise and remove.

5. Remove by pulling it straight out of the

fog light assembly. Do not shake or ro-
tate the bulb when removing it. Do not
touch the glass envelope.

6. Install in the reverse order of removal.

Fog light assembly (Type A)

(if so equipped) (Canada only)

LDI2925

Daytime running light (if so equipped)

(Canada only)

LDI2954

Do-it-yourself

8-31

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.*

Headlight assembly (Type A) (if so equipped)*

Low (Halogen)

H11

High (Halogen)

HB3

Turn/Park

28/8

7444NA

Side marker

W5W

Headlight assembly (Type B) (if so equipped)*

Low

—

High (Halogen)

HB3

Daytime running/Park

—

Turn

28/8

7444NA

Side marker

W5W

Fog light assembly (Type A) (if so equipped)
(Canada only)

Fog

Daytime running

P13W

Fog light (Type B) (if so equipped)

H11

Door mirror turn signal light (if so equipped)*

—

Puddle light (if so equipped)*

—

Rear combination light (Type A) (if so
equipped)*

Stop

PW16W

Backup (reversing)

921

Turn/Tail

27/7

3057K

Rear combination light (Type B) (if so
equipped)*

Stop

—

Backup (reversing)

921

Turn/Tail

27/7

3057K

Cargo (tailgate) (if so equipped)

921

High-mounted stop light*

Stop

—

Cargo (roof)

—

Under rail bed light (if so equipped)*

—

License plate light*

—

Map light (if so equipped)*

—

Room light (if so equipped)*

—

Footwell light (if so equipped)*

3.4

158

Vanity mirror light (if so equipped)*

—

Glove box light (if so equipped)*

1.4

—

* Always check with the Parts Department
at a NISSAN dealer for the latest parts infor-
mation.

* It is recommended that you visit a NISSAN
dealer for assistance.

8-32

Do-it-yourself

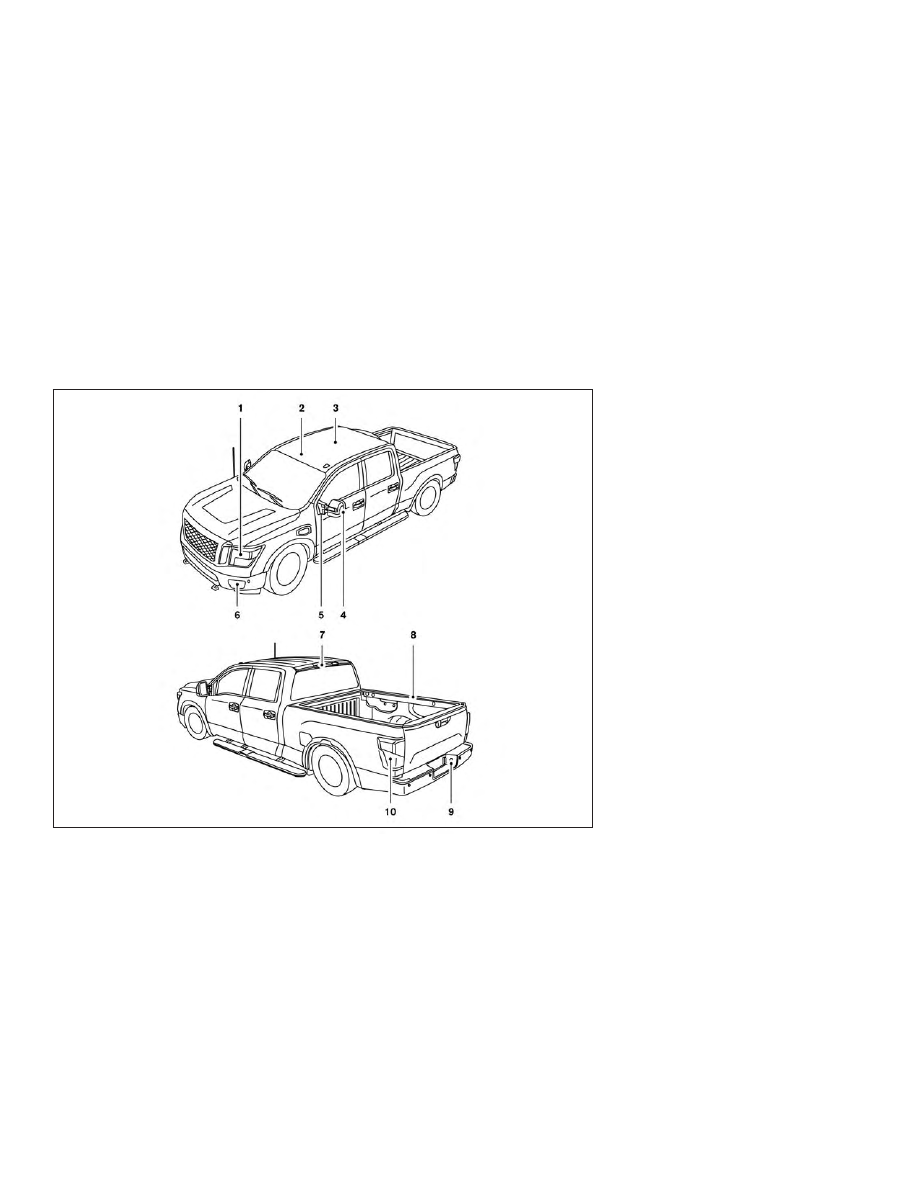

Headlight assembly

Map light (if so equipped)

Room light (if so equipped)

Door mirror turn signal light
(if so equipped)

Puddle light (if so equipped)

Fog light (if so equipped)

High-mount stop light

Under rail bed light (if so equipped)

License plate light

10.

Rear combination light

LDI2890

Do-it-yourself

8-33

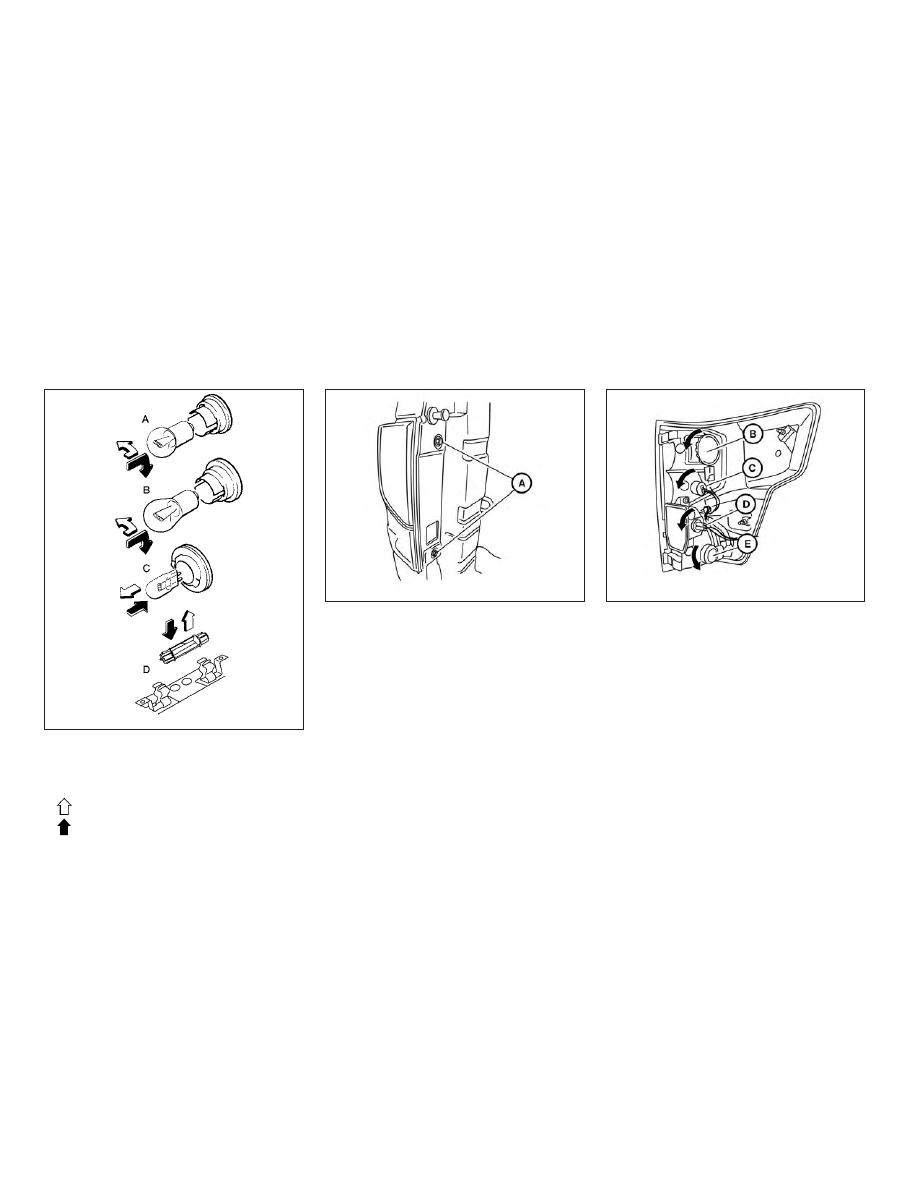

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

NOTE:

Rear combination light (Type B) (if so
equipped) bulb replacement procedure
is shown. Rear combination light (Type A)
(if so equipped) bulb replacement proce-
dure is similar.
To replace the rear combination light bulbs
perform the following procedure:

1. Remove the two fasteners

䊊

and pull

the rear combination light away from
the vehicle.

2. Remove harness connector and rotate

stop light bulb

䊊

counterclockwise to

remove. Replace bulb if necessary.

3. Rotate reverse light bulb socket

䊊

counterclockwise to remove. Replace
bulb if necessary.

4. Rotate cargo (tailgate) light bulb socket

䊊

(if so equipped) counterclockwise to

remove. Replace bulb if necessary.

5. Rotate turn/tail light bulb socket

䊊

counterclockwise to remove. Replace
bulb if necessary.

Reverse steps to install bulbs and rear
combination light.

WDI0263

Rear combination light

LDI2951

Rear combination light

LDI2952

8-34

Do-it-yourself

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely af-
fect electric medical equipment.
Those who use a pacemaker
should contact the electric medi-
cal equipment manufacturer for
the possible influences before
use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all four
tires except the spare. When the low
tire pressure warning light is lit and
the “Tire Pressure Low - Add Air”
warning appears in the vehicle infor-
mation display, one or more of your
tires is significantly under-inflated. If
equipped, the system also displays
pressure of all tires (except the spare

tire) on the display screen by send-
ing a signal from a sensor that is
installed in each wheel.

The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, refer to
“Warning lights, indicator lights and
audible reminders” in the “Instru-
ments and controls” section, “Tire
Pressure Monitoring System (TPMS)”
in the “Starting and driving” section,
and “Flat tire” in the “In case of emer-
gency” section of this manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the

“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert
provides visual and audible signals
outside the vehicle for inflating tires
to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Easy-Fill Tire
Alert” in the “Starting and driving”
section of this manual.

WHEELS AND TIRES

Do-it-yourself

8-35

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR)

located

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight
capacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capac-
ity may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

8-36

Do-it-yourself

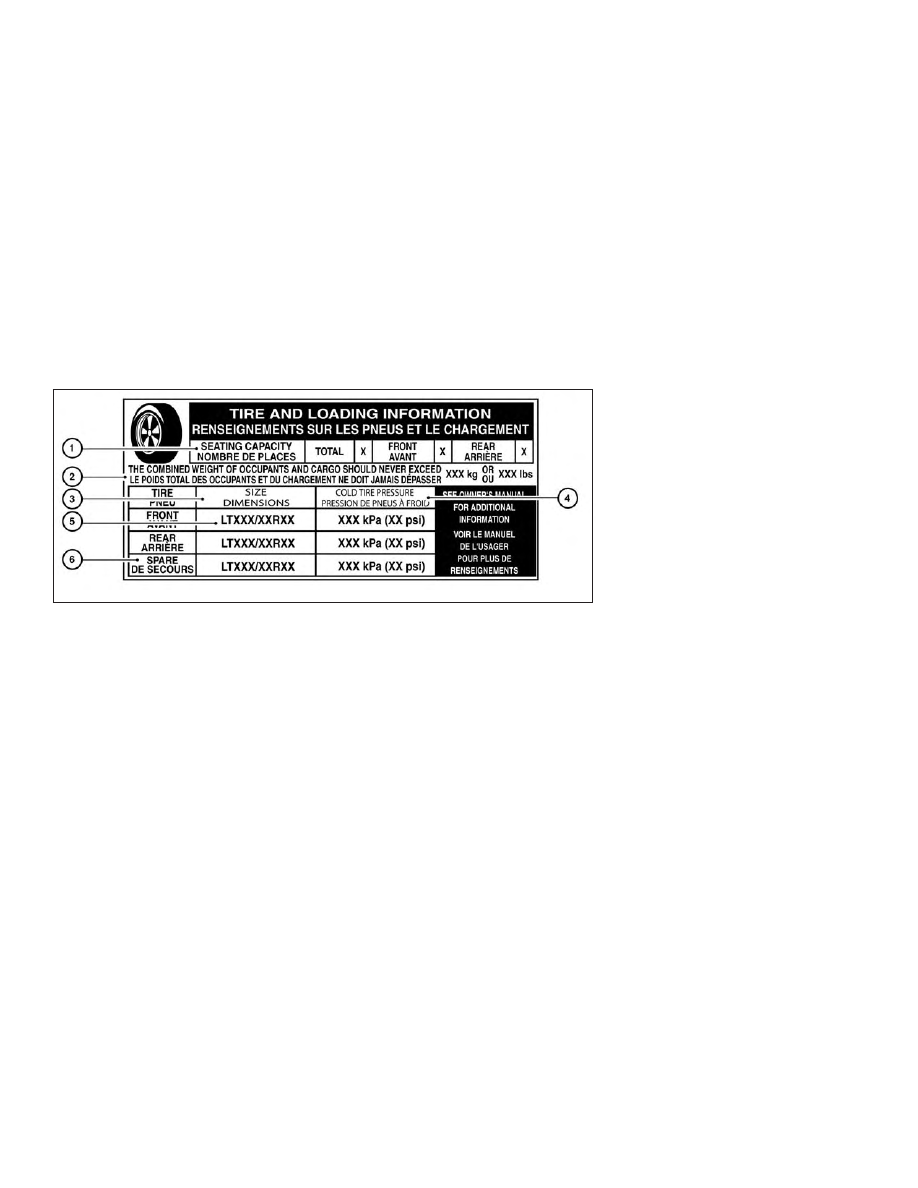

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: For additional
information, refer

“Vehicle

information”

the

“Technical and consumer infor-
mation” section of this manual.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Tire size - refer to “Tire labeling” in
this section.

䊊

Spare tire size.

LDI2926

Do-it-yourself

8-37

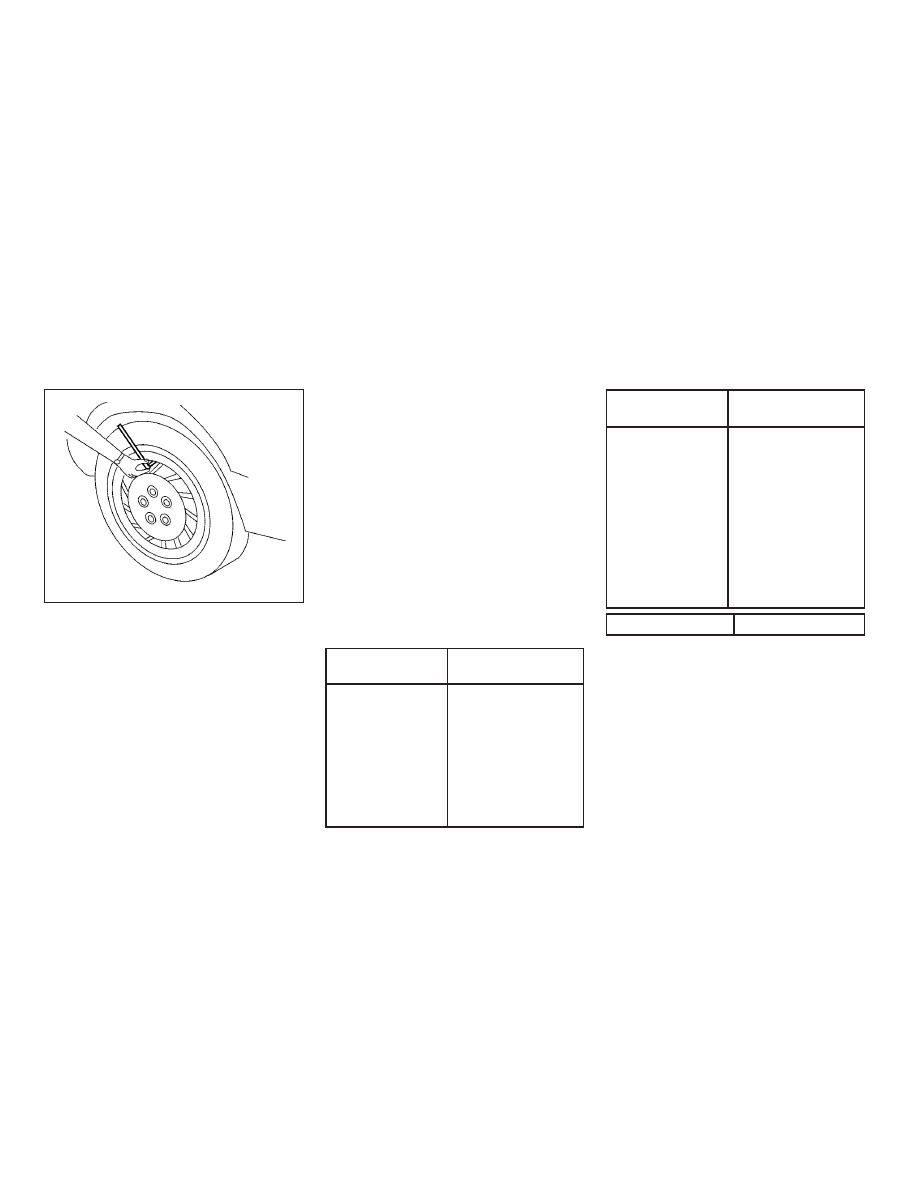

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press

the

pressure

gauge

squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If too

much air is added, press the core
of the valve stem briefly with the
tip of the gauge stem to release
pressure. Recheck the pressure
and add or release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

Size

Cold Tire Inflation
Pressure

Front Original
Tire:
265/70R18

270 kPa, 39 psi

P265/70R18

250 kPa, 36 psi

P275/60R20

250 kPa, 36 psi

P275/70R18

240 kPa, 35 psi

LT245/75R17

450 kPa, 65 psi

LT275/65R18

450 kPa, 65 psi

LT265/60R20

450 kPa, 65 psi

Size

Cold Tire Inflation
Pressure

Rear Original
Tire:

265/70R18

270 kPa, 39 psi

P265/70R18

250 kPa, 36 psi

P275/60R20

250 kPa, 36 psi

P275/70R18

240 kPa, 35 psi

LT245/75R17

500 kPa, 73 psi

LT275/65R18

450 kPa, 65 psi

LT265/60R20

480 kPa, 70 psi

Spare Tire:

Full size

LDI0393

8-38

Do-it-yourself

Nissan Titan (2019 year). Manual - part 29
