NOTE:

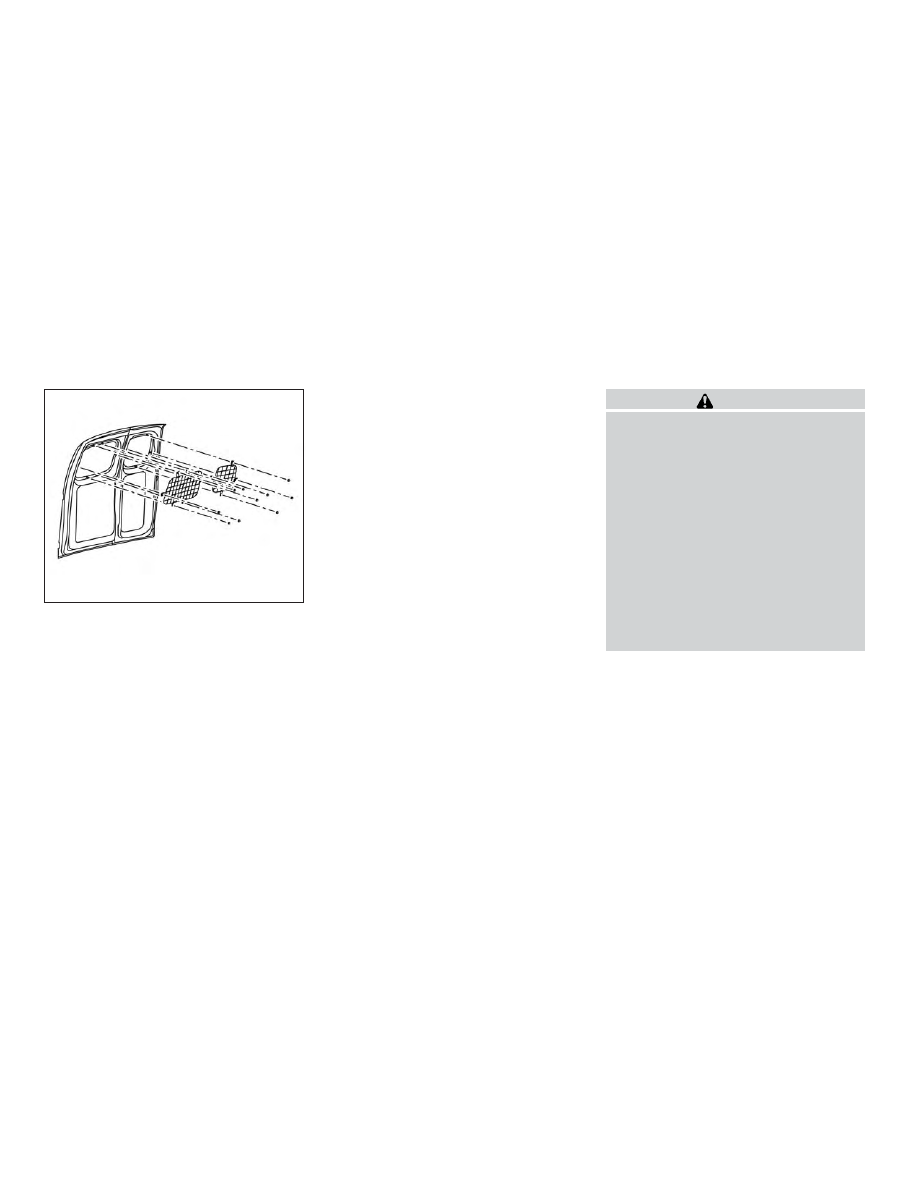

The back door wire mesh (if so equipped)
is not designed as either an ejection
mitigation feature or an anti-theft fea-
ture. Do not hang items on the back door
wire mesh. Any damage or failure caused
by misuse is not covered under the
NISSAN New Vehicle Limited Warranty.

AUTOMATIC DOOR LOCKS

∙ All doors lock automatically when the

vehicle

speed

reaches

mph

(24 km/h).

∙ All doors unlock automatically when the

transmission is placed in the P (Park)
position, when the ignition is turned to
the OFF position, or when the key is re-
moved from the ignition.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ The remote keyless entry key fob

transmits radio waves when the but-
tons are pressed. The FAA advises ra-
dio waves may affect aircraft naviga-
tion and communication systems. Do
not operate the remote keyless entry
key fob while on an airplane. Make
sure the buttons are not operated un-
intentionally when the unit is stored
for a flight.

It is possible to lock/unlock all doors, turn
the interior lights on, and activate the panic
alarm by using the key fob from outside the
vehicle.

Be sure to remove the key from the ve-
hicle before locking the doors.

The key fob can operate at a distance of
approximately 33 ft (10 m) from the vehicle.
The effective distance depends on the
conditions around the vehicle.

LCE2281

REMOTE KEYLESS ENTRY SYSTEM (if
so equipped)

3-10

Pre-driving checks and adjustments

As many as four key fobs can be used with
one vehicle. For information concerning
the purchase and use of additional key
fobs, it is recommended that you visit a
NISSAN dealer.

The key fob will not function when:

∙ The battery is discharged.

∙ The distance between the vehicle and

the key fob is over 33 ft (10 m).

The panic alarm will not activate when
the key is in the ignition switch.

CAUTION

Listed below are conditions or occur-
rences which will damage the key fob:

∙ Do not allow the key fob, which con-

tains electrical components, to come
into contact with water or salt water.
This could affect the system function.

∙ Do not drop the key fob.

∙ Do not strike the key fob sharply

against another object.

∙ Do not change or modify the key fob.

∙ Wetting may damage the key fob. If

the key fob gets wet, immediately
wipe until it is completely dry.

∙ Do not place the key fob for an ex-

tended period in an area where tem-
peratures exceed 140°F (60°C).

∙ Do not attach the key fob with a key

holder that contains a magnet.

∙ Do not place the key fob near equip-

ment that produces a magnetic field,
such as a TV, audio equipment and
personal computers.

If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that
key fob. This will prevent the key fob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, it is recommended
that you visit a NISSAN dealer.

HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM

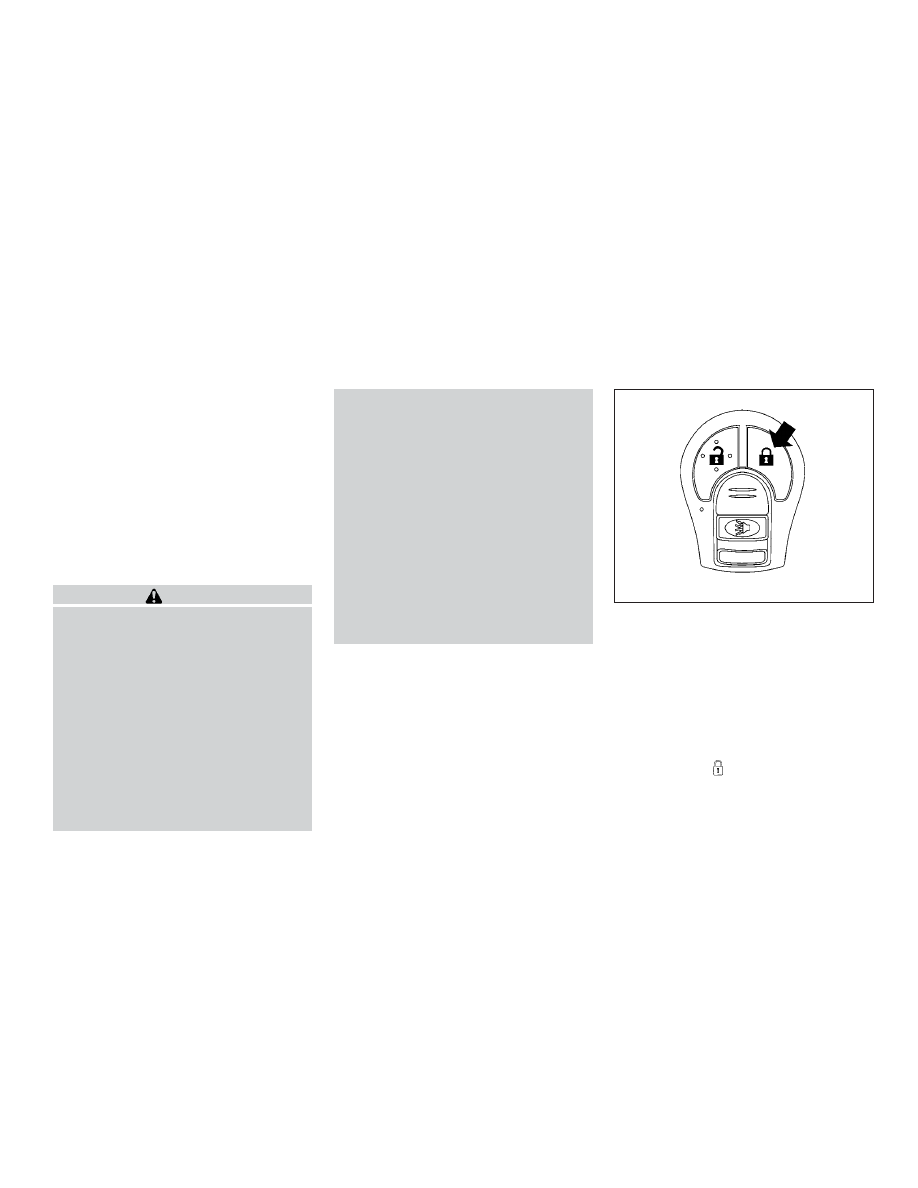

Locking doors

1. Close all windows.

2. Remove the key from the ignition

switch.

3. Close all doors.

4. Press the

button on the key fob.

All the doors lock. The hazard warning
lights flash twice and the horn beeps
once to indicate all doors are locked.

LPD2039

Pre-driving checks and adjustments

3-11

∙ When the

button is pressed

with all doors locked, the hazard
warning lights flash twice and the
horn beeps once as a reminder that
the doors are already locked.

∙ If a door is open and you press

the

button, the doors will lock

but the horn will not beep and the
hazard lights will not flash.

The horn may or may not beep. For addi-
tional information, refer to “Silencing the
horn beep feature” in this section.

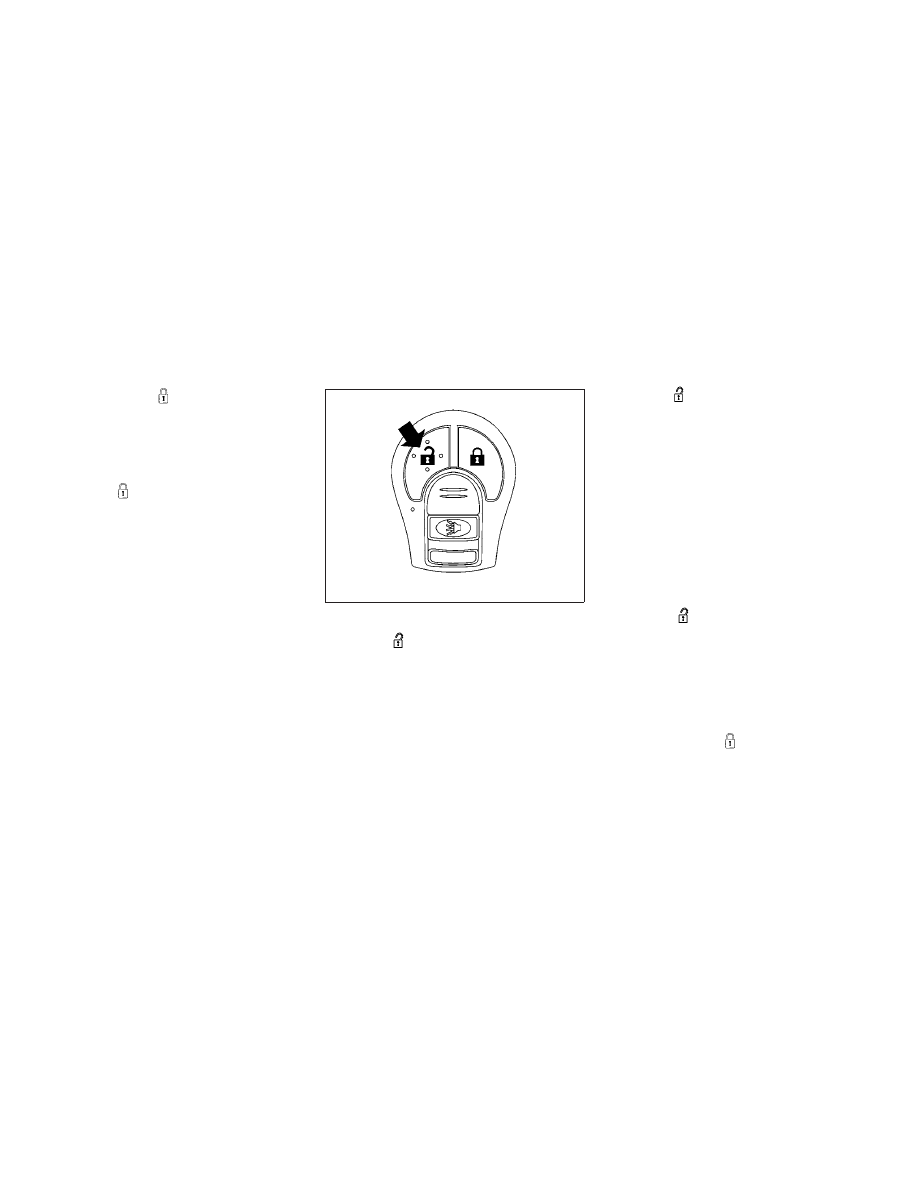

Unlocking doors

Press the

button on the key fob once.

∙ Only the driver’s door unlocks.

∙ The hazard warning lights flash once if

all doors are completely closed with the
ignition switch in any position except
the ON position.

∙ The interior light turns on and the light

timer activates for 30 seconds when
the interior light switch is in the DOOR
position with the ignition switch in any
position except the ON position.

Press the

button on the key fob again

within five seconds.

∙ All doors unlock.

∙ The hazard warning lights flash once if

all doors are completely closed.

The interior lights can be turned off without
waiting a period of time by inserting the key
into the ignition switch and placing the ig-
nition switch in the ON or START position,
locking the doors with the key fob, power
door lock switch or pushing the interior
light switch to the off position.

Auto relock

When the

button on the key fob is

pressed, all doors will lock automatically
within one minute unless one of the follow-
ing operations is performed:

∙ Any door is opened.

∙ A key is inserted into the ignition switch

and the switch is cycled from OFF to ON.

∙ Press key fob

button.

LPD2040

3-12

Pre-driving checks and adjustments

Using the panic alarm

If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to
call attention by pressing and holding
the

button on the key fob for longer

than 0.5 seconds.
The panic alarm and headlights will stay on
for a period of time.

The panic alarm stops when:

∙ It has run for a period of time.

∙ Any button is pressed on the key fob.

Using the interior light

Press the

button on the key fob once

to turn on the interior lights.
For additional information, refer to “Interior
lights” in the “Instruments and controls”
section of this manual.

Silencing the horn beep feature

If desired, the horn beep feature can be
deactivated using the key fob.

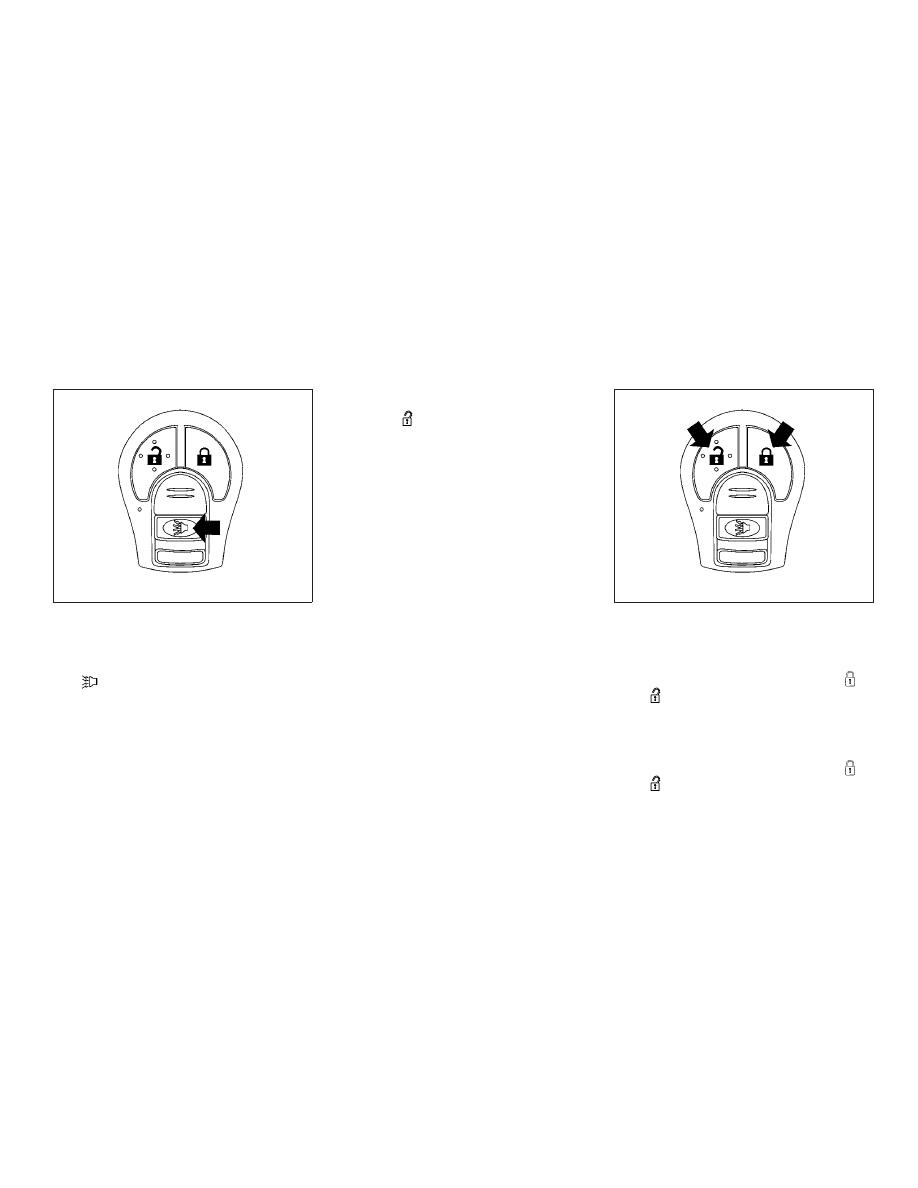

To deactivate: Press and hold the
and

buttons for at least 2 seconds.

The hazard warning lights will flash three
times to confirm that the horn beep fea-
ture has been deactivated.

To activate: Press and hold the
and

buttons for at least 2 seconds

once more.

LPD2041

LPD2044

Pre-driving checks and adjustments

3-13

The hazard warning lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.

Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.

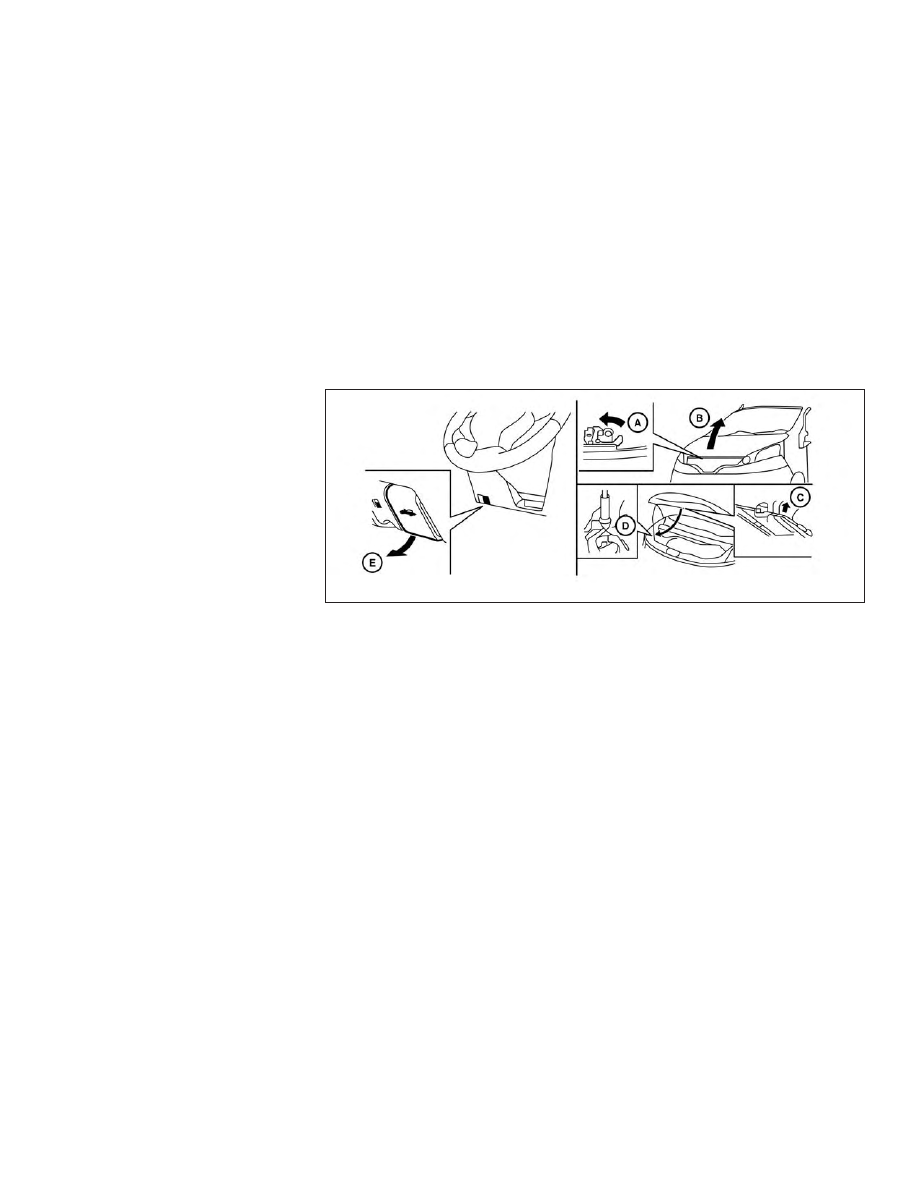

1. Pull the hood lock release handle

䊊

located below the instrument panel
until the hood springs up slightly.

2. Locate the lever

䊊

in between the

hood and grille and push the lever side-
ways with your fingertips.

3. Raise the hood

䊊

4. Remove the support rod

䊊

and insert

it into the slot

䊊

Hold the coated parts of the support rod
when removing or resetting the support
rod. Avoid direct contact with the metal
parts, as they may be hot immediately
after the engine has been stopped.

When closing the hood, return the support
rod to its original position, lower the hood
to approximately 12 in (30 cm) above the
latch and release it. This allows proper en-
gagement of the hood latch.

LPD2247

HOOD

3-14

Pre-driving checks and adjustments

WARNING

∙ Make sure the hood is completely

closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

∙ If you see steam or smoke coming

from the engine compartment, to
avoid injury do not open the hood.

OPENER OPERATION

The fuel-filler door release is located below
the instrument panel. To open the fuel-filler
door, pull the release. To lock, close the fuel-
filler door securely.

FUEL-FILLER CAP

WARNING

∙ Gasoline is extremely flammable and

highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks

near

the

vehicle

when

refueling.

∙ Do not attempt to top off the fuel tank

after the fuel pump nozzle shuts off
automatically.

Continued

refueling

may cause fuel overflow, resulting in
fuel spray and possibly a fire.

∙ Use only an original equipment type

fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the

Malfunction Indi-

cator Light (MIL) to come on.

∙ Never pour fuel into the throttle body

to attempt to start your vehicle.

LCE2355

FUEL-FILLER DOOR

Pre-driving checks and adjustments

3-15

∙ Do not fill a portable fuel container in

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:

– Always place the container on the

ground when filling.

– Do not use electronic devices when

filling.

– Keep the pump nozzle in contact

with the container while you are
filling it.

– Use only approved portable fuel

containers for flammable liquid.

CAUTION

∙ Do not use a fuel containing more

than 15% ethanol in your vehicle. For
additional information, refer to “Fuel
Recommendation” in the “Technical
and consumer information” section of
this manual.

∙ Failure to tighten the fuel-filler cap

properly may cause the

Mal-

function Indicator Light (MIL) to illumi-
nate. If the

light illuminates be-

cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue

drive

the

vehicle.

The

light should turn off after a

few driving trips. If the

light does

not turn off after a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ The LOOSE FUEL CAP warning mes-

sage will be displayed if the fuel-filler
cap is not properly tightened. It may
take a few driving trips for the mes-
sage

displayed. Failure

tighten the fuel-filler cap properly af-
ter the LOOSE FUEL CAP warning mes-
sage is displayed may cause the
Malfunction Indicator Light (MIL) to
illuminate.

∙ For additional information, refer to

the “Malfunction Indicator Light (MIL)”
in the “Instruments and Controls” sec-
tion of this manual.

∙ If fuel is spilled on the vehicle body,

flush it away with water to avoid paint
damage.

3-16

Pre-driving checks and adjustments

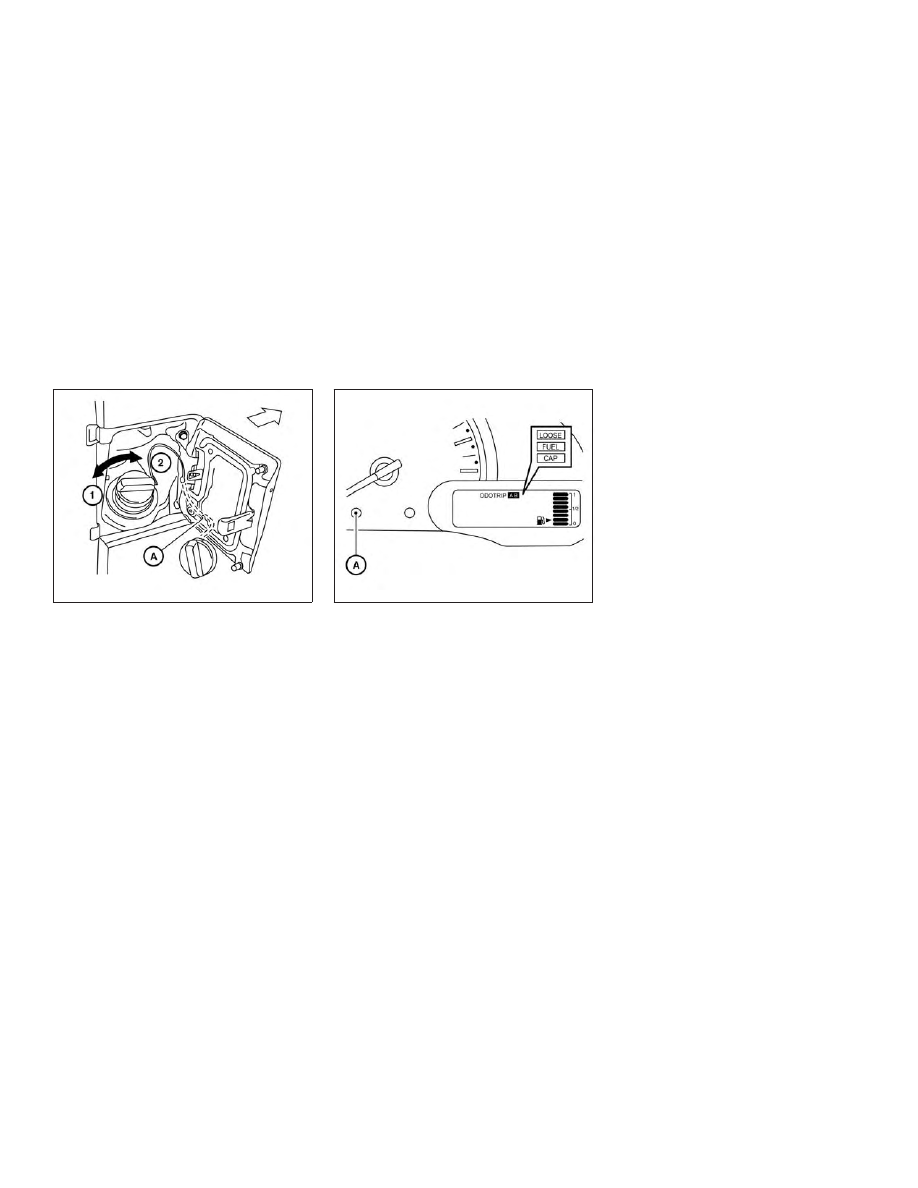

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclock-

wise

䊊

to remove.

2. Loop the tether strap around the hook

䊊

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise

䊊

un-

til a single click is heard.

LOOSE FUEL CAP warning
message

The LOOSE FUEL CAP warning message
displays in the odometer when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning message,
do the following:

1. Remove and install the fuel-filler cap as

previously described as soon as pos-
sible.

2. Tighten the fuel-filler cap until a single

click is heard.

3. Press the loose fuel cap warning reset

button

䊊

in the meter for about 1 sec-

ond to turn off the LOOSE FUEL CAP
warning message after tightening the
fuel-filler cap.

LPD2143

LIC3498

Pre-driving checks and adjustments

3-17

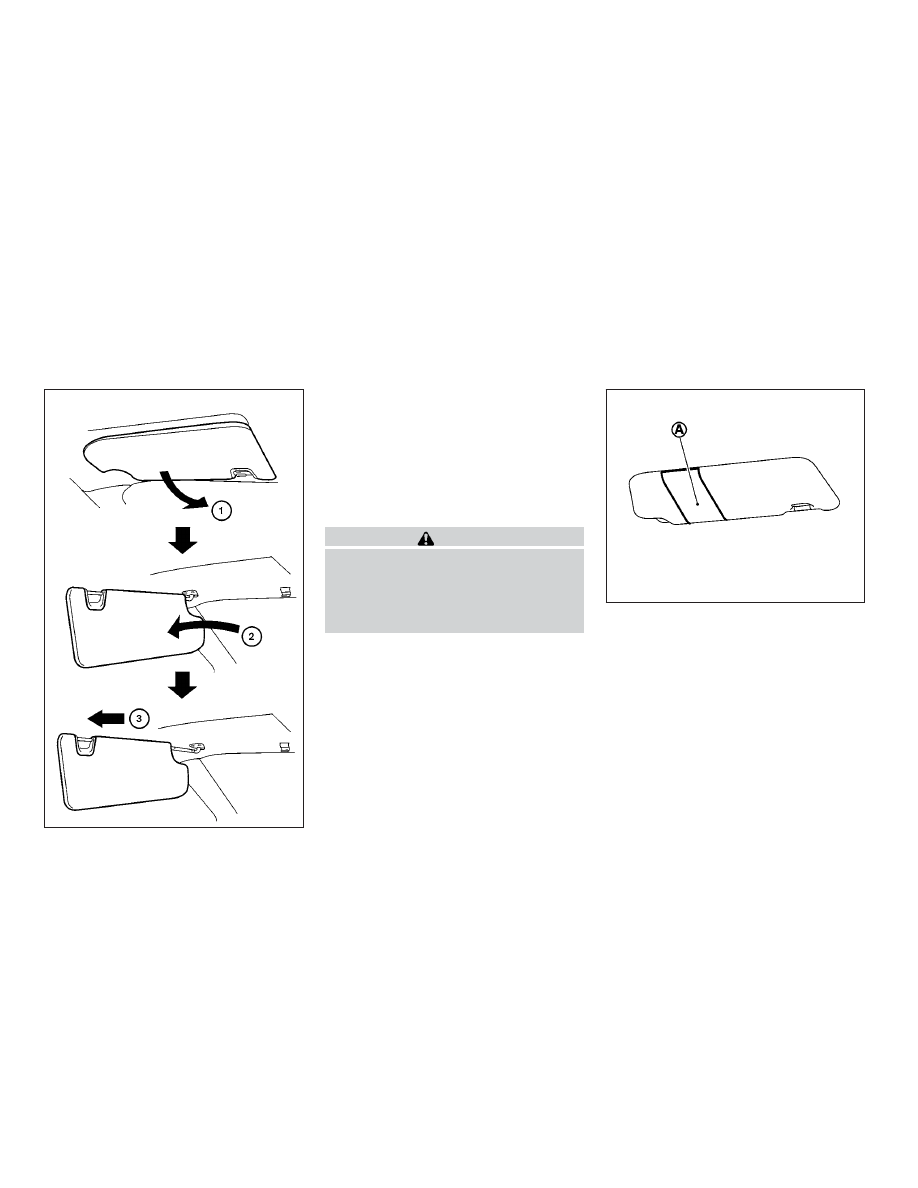

1. To block glare from the front, swing

down the main sun visor

䊊

2. To block glare from the side, remove

the main sun visor from the center
mount and swing the visor

䊊

to the

side.

3. To extend the sun visor

䊊

, slide in or

out as needed (if so equipped).

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcedly downward.

CARD HOLDER

To use the card holder, slide card in the card
holder

䊊

. Do not view information while

operating the vehicle.

WPD0344

LPD2033

SUN VISORS

3-18

Pre-driving checks and adjustments

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

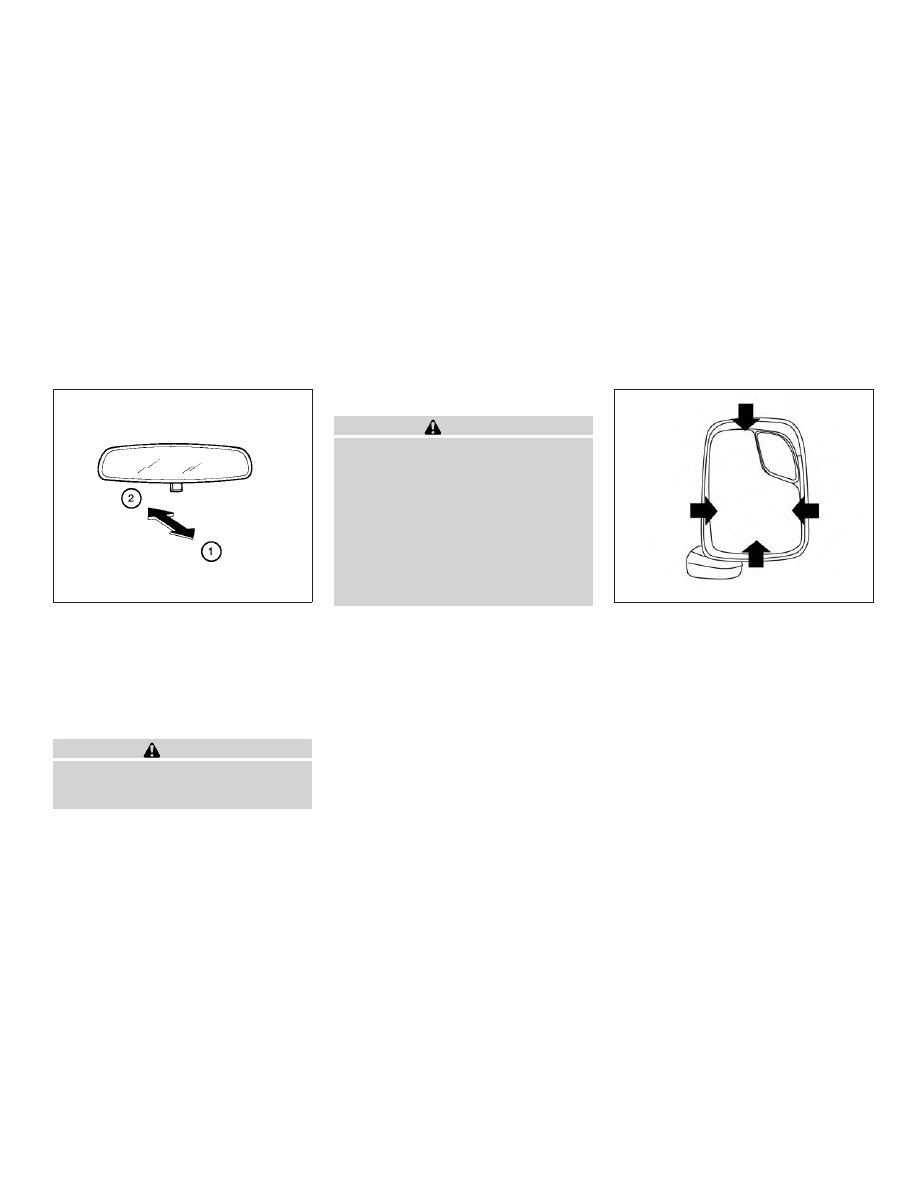

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

OUTSIDE MIRRORS

WARNING

∙ Objects viewed in the outside mirror

on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.

∙ Do not adjust the mirrors while driv-

ing. You could lose control of your ve-
hicle and cause an accident.

Manual control type (if so
equipped)

The outside mirrors can be moved in any
direction for a better rear view.

WPD0126

LPD2144

MIRRORS

Pre-driving checks and adjustments

3-19

Electric control type (if so
equipped)

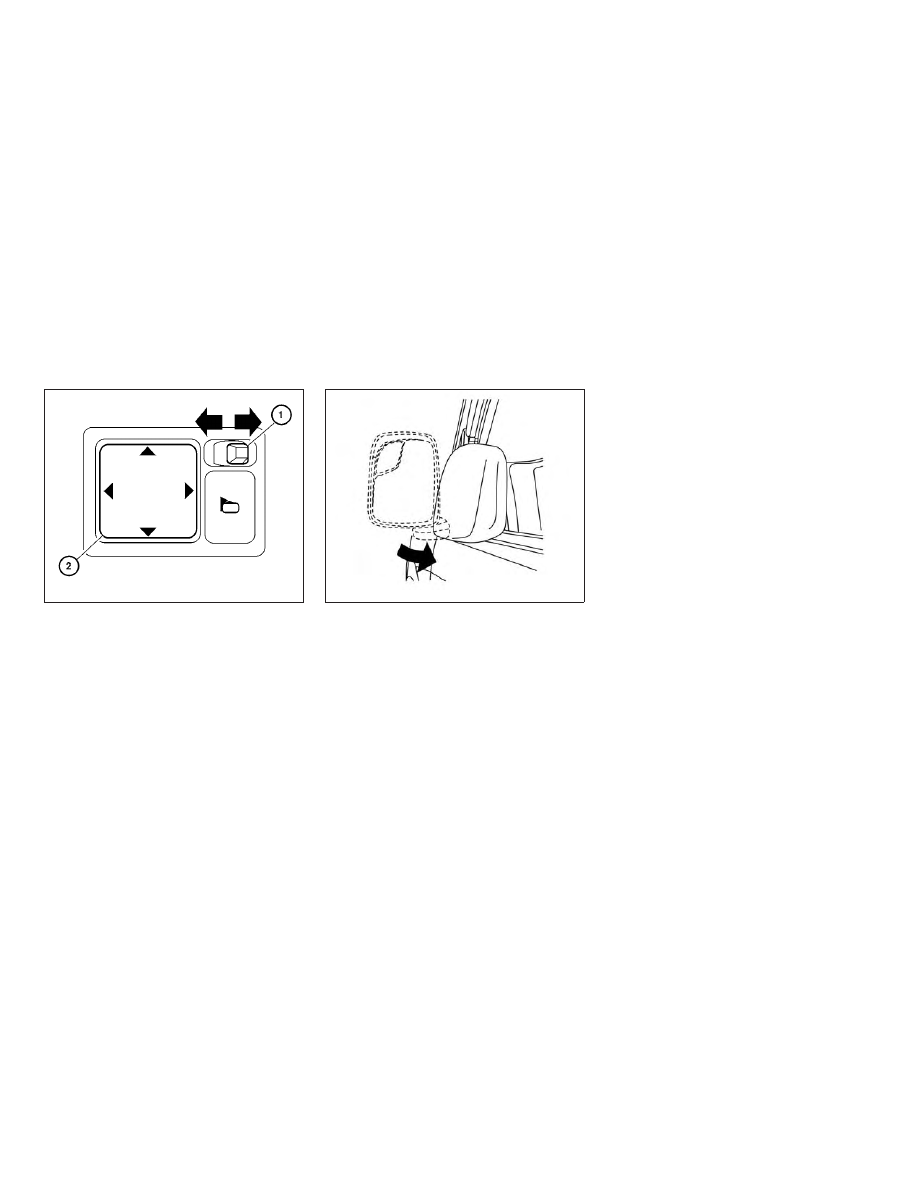

The outside mirror remote control will op-
erate only when the ignition switch is
placed in the ACC or ON position.

Move the small switch

䊊

to select the right

or left mirror. Move the large switch

䊊

adjust each mirror to the desired position.
Move the small switch

䊊

to the center

(neutral) position to prevent accidentally
moving the mirror.

Foldable outside mirrors

Pull the outside mirror toward the door to
fold it.

Heated mirrors (if so equipped)

Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and/or outside mirror de-
froster switch” in the “Instruments and con-
trols” section of this manual.

LPD0237

LPD2145

3-20

Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and
voice recognition systems

Control panel buttons — color screen with
Navigation System (if so equipped) . . . . . . . . . . . . . . 4-4

How to use the touch-screen. . . . . . . . . . . . . . . . . 4-5
How to use the BACK button . . . . . . . . . . . . . . . . . 4-7

How to use the

button. . . . . . . . . . . . . . . . . 4-7

button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

How to use the ON•OFF button/VOL
(volume) control knob . . . . . . . . . . . . . . . . . . . . . . . . 4-9
How to use the CAMERA button . . . . . . . . . . . . . . 4-9

RearView Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Heater and air conditioner (manual) . . . . . . . . . . . . 4-19

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Heater operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Air conditioner operation . . . . . . . . . . . . . . . . . . . . 4-22
Air flow charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Audio system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

NissanConnect® Mobile Apps (if so equipped). . . 4-63

Registering with NissanConnect®
Mobile Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
Connect Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Application Download . . . . . . . . . . . . . . . . . . . . . . . 4-64

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Bluetooth® Hands-Free Phone System
without Navigation System (if so equipped) . . . . . 4-65

Regulatory information . . . . . . . . . . . . . . . . . . . . . . 4-67
Using the system. . . . . . . . . . . . . . . . . . . . . . . . . . . .4-68
Control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Connecting procedure . . . . . . . . . . . . . . . . . . . . . . 4-70
Voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71

Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) . . . . . . . . . . . . . 4-76

Nissan Voice Recognition System. . . . . . . . . . . . . . .4-86

Using the system. . . . . . . . . . . . . . . . . . . . . . . . . . . .4-86

System features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-87
Bluetooth® Hands-Free Phone System
voice commands. . . . . . . . . . . . . . . . . . . . . . . . . . . .4-88
Navigation system voice commands . . . . . . . .4-89
Audio system voice commands . . . . . . . . . . . . .4-89

Information voice commands . . . . . . . . . . . . . . .4-89
My Apps voice commands . . . . . . . . . . . . . . . . . .4-89
Help voice commands. . . . . . . . . . . . . . . . . . . . . . . 4-90
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . 4-90

WARNING

∙ Positioning of the heating or air con-

ditioning controls and display con-
trols should not be done while driving
in order that full attention may be
given to the driving operation.

∙ Do not disassemble or modify this

system. If you do, it may result in acci-
dents, fire, or electrical shock.

∙ Do not use this system if you notice

any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

∙ In case you notice any foreign object

in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.

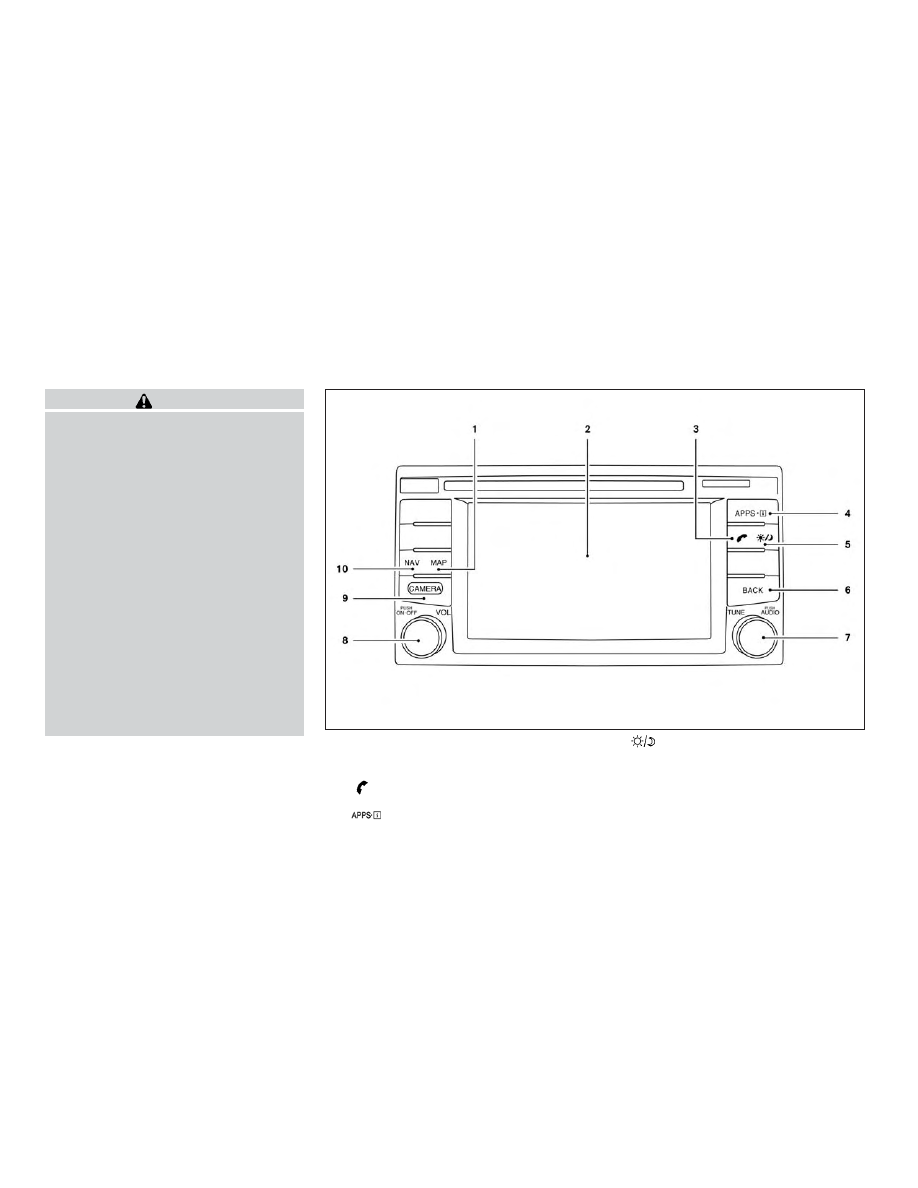

1. MAP button*

2. Display screen

button**

button

(brightness control) button

6. BACK button

7. AUDIO button / TUNE knob

8. ON•OFF button / VOL (volume) control

knob

LHA3621

CONTROL PANEL BUTTONS — COLOR
SCREEN WITH NAVIGATION SYSTEM
(if so equipped)

4-4

Monitor, climate, audio, phone and voice recognition systems

9. CAMERA button

10. NAV button*
*For additional information regarding the
navigation system control buttons, refer to
the separate NissanConnect® Owner’s
Manual.

**For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-
Free Phone System with Navigation Sys-
tem” in this section.

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and
the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.

HOW TO USE THE TOUCH-SCREEN

CAUTION

∙ The glass display screen may break if

it is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.

∙ To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

∙ Do not splash any liquid such as water

or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.

To help ensure safe driving, some functions
cannot be operated while driving.

The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.

Park the vehicle in a safe location and then
operate the navigation system.

WARNING

∙ ALWAYS give your full attention to

driving.

∙ Avoid using vehicle features that

could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.

Monitor, climate, audio, phone and voice recognition systems

4-5

Content .. 6 7 8 9 ..
