DOOR LOCK FUNCTION

DLK-31

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY : Component Description

INFOID:0000000000939043

DOOR REQUEST SWITCH

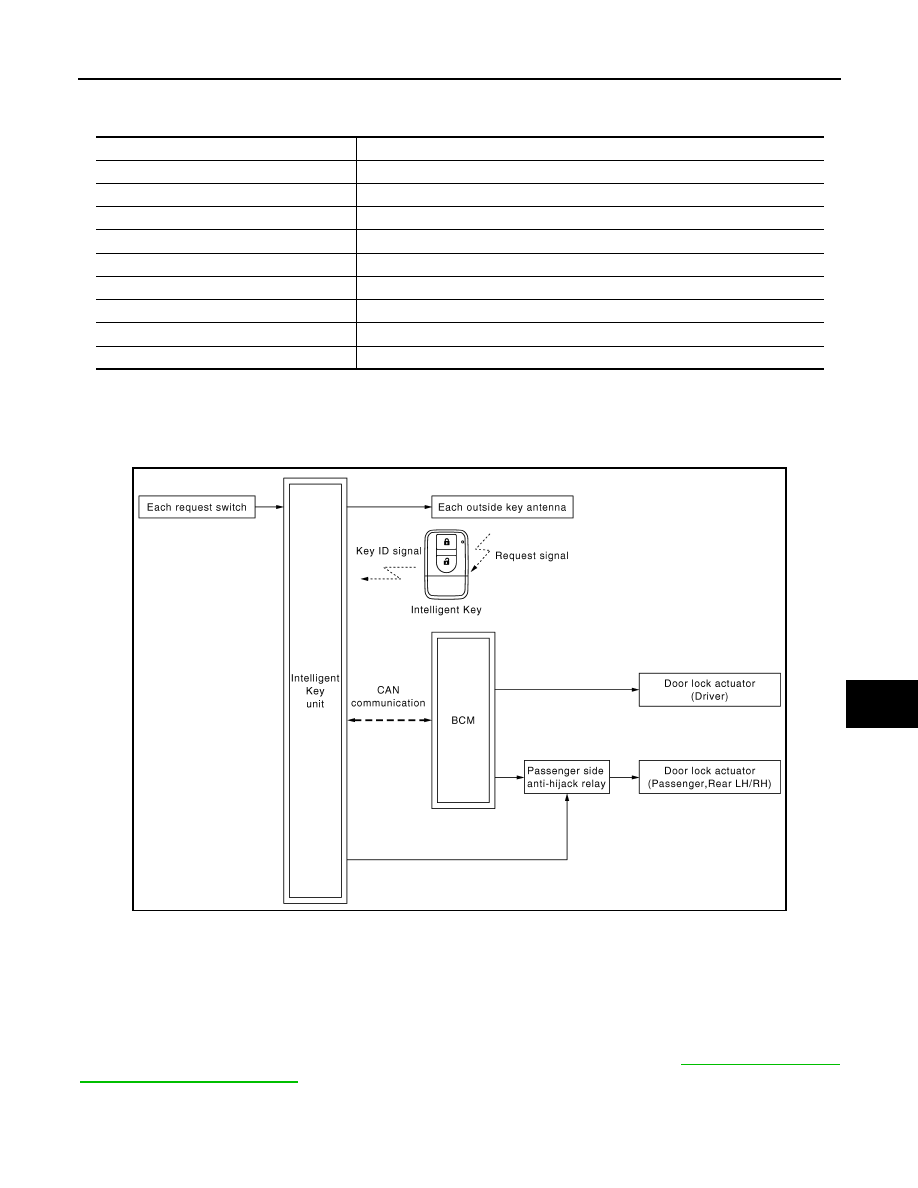

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000001078856

DOOR REQUEST SWITCH OPERATION

DOOR REQUEST SWITCH : System Description

INFOID:0000000001078857

DOOR REQUEST SWITCH OPERATION

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key. The Intelligent Key system is a system that makes it possible to lock and unlock the door by carrying the
Intelligent Key, which operates based on the results of electronic ID verification using two-way communica-
tions between the Intelligent Key and the vehicle (Intelligent Key unit).
This function can be set to OFF with CONSULT-III. For the setting information, refer to

DLK-65, "CONSULT-III

Function (INTELLIGENT KEY)"

.

CAUTION:

The driver should always carry the Intelligent Key

OPERATION CONDITION

Item

Function

Intelligent Key unit

Controls the door lock/unlock operation with BCM.

BCM

Controls the door lock/unlock operation with Intelligent Key unit.

Door switch

Detects door state (open or closed).

Key switch

Detects that mechanical key is inserted into ignition key cylinder.

Ignition knob switch

Detects ignition knob state (push or release).

Outside key antenna

Detects that Intelligent Key is in detection area of outside key antenna.

Intelligent Key

Transmits key ID to Intelligent Key unit when lock/unlock button is pressed.

Passenger side anti-hijack relay

Controls the circuit of door lock actuator (passenger side, rear LH/RH).

Door lock actuator

Receives lock/unlock signal from BCM and locks and unlocks each door.

JMKIA0400GB

DLK-32

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

If the following conditions are not satisfied, door lock and unlock operation is not performed even if the request
switch is operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

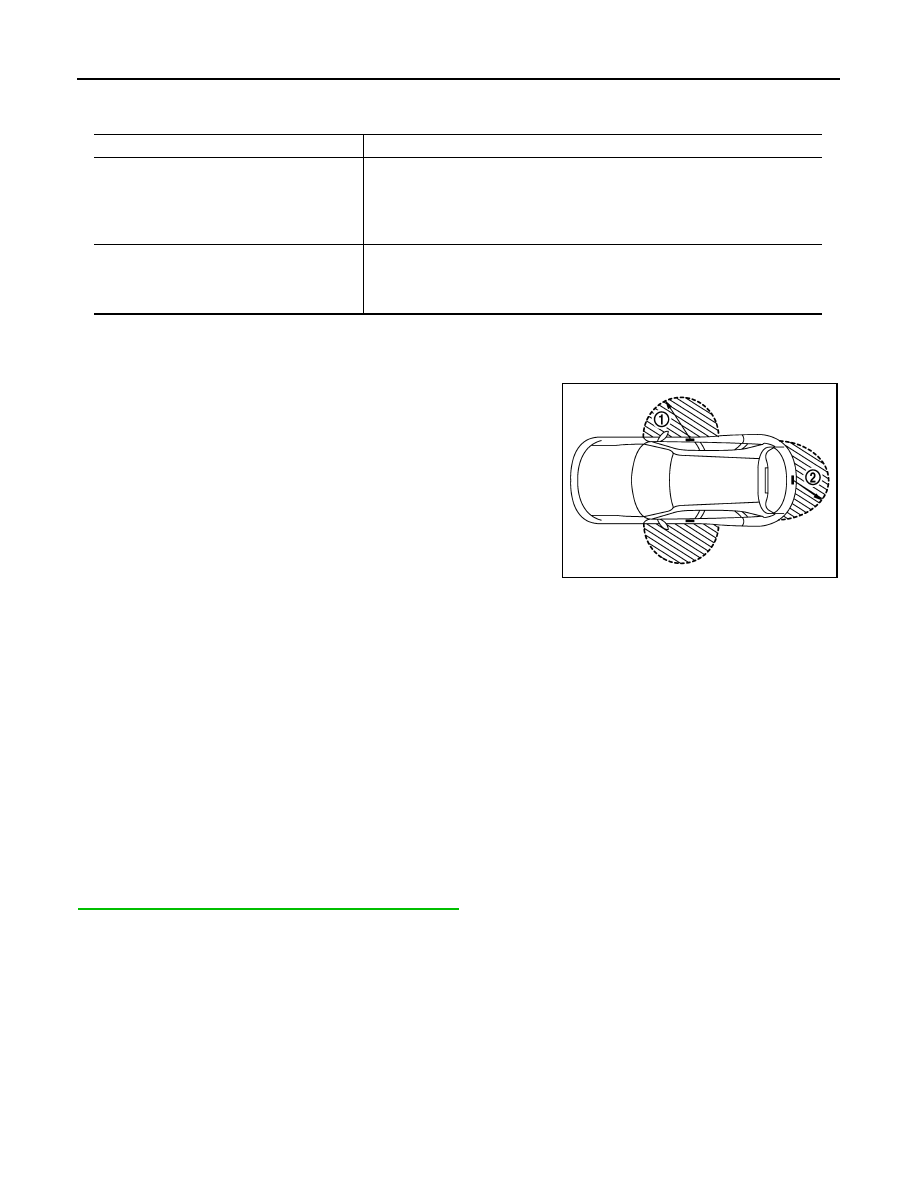

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock and unlock
function is in the range of approximately 80 cm (31.50 in) surround-
ing the driver and passenger door handles (1) and the back door
request switch (2). However, this operating range depends on the
ambient conditions.

DOOR LOCK AND UNLOCK CONTROL

When the Intelligent Key detects that door request switch is pressed, it starts corresponding with outside key
antenna (door of request switch pressed side). Then, the Intelligent Key is checked to be near the door.
If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and trans-
mits the key ID signal to the Intelligent Key unit. Intelligent Key unit receives the key ID signal and compares it
with the registered key ID. Intelligent Key unit sends the door lock and unlock signal to BCM via CAN commu-
nication.

ANTI-HIJACK MODE

• When door is unlocked, pressing door request switch (driver or passenger) once will lock all doors. When

door is locked, pressing door request switch (driver or passenger) once will unlock operated door. Pressing
the door request switch door a second time within 5 seconds from the first time will unlock all doors and back
door can be opened with back door opener switch.

• When door is unlocked, pressing door request switch (back door) will lock all doors. When door lock is

locked, pressing door request switch (back door) will unlock all doors and back door can be opened with
back door opener switch.

NOTE:
Anti-hijack mode can be set to OFF with CONSULT-III and Intelligent Key. For the setting information, refer to

DLK-65, "CONSULT-III Function (INTELLIGENT KEY)"

.

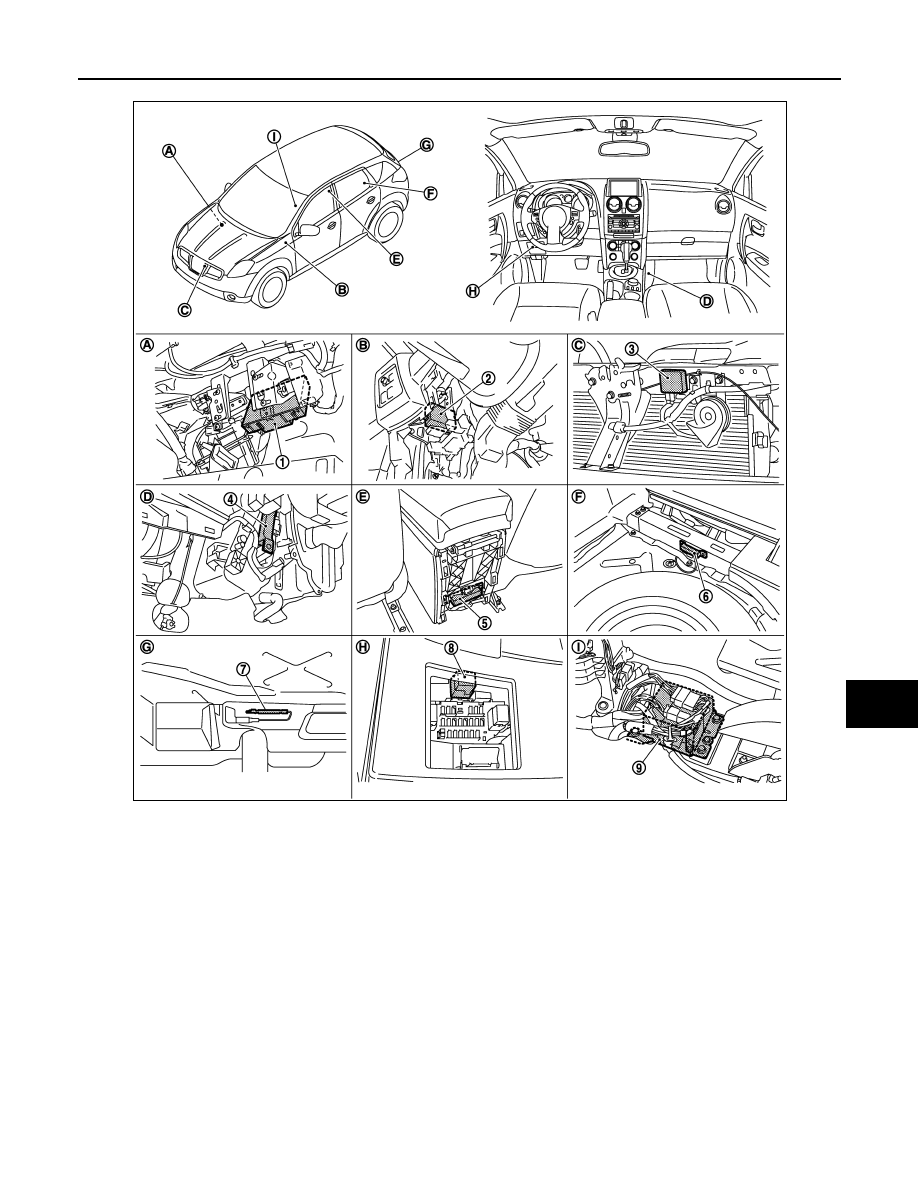

DOOR REQUEST SWITCH : Component Parts Location

INFOID:0000000001116983

Each request switch operation

Operation condition

Lock operation

• All doors are closed.
• Key switch is OFF. (Key is removed from ignition key cylinder.)
• Ignition knob switch is OFF. (Ignition switch is not pushed.)
• Any Intelligent Key is not inside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Key switch is OFF. (Key is removed from ignition key cylinder.)
• Ignition knob switch is OFF. (Ignition switch is not pushed.)
• Intelligent Key is not inside the vehicle.*
• Intelligent Key is within outside key antenna detection area.

PIIB4602E

DOOR LOCK FUNCTION

DLK-33

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JMKIA0485ZZ

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel
(driver side)

C. View with front bumper removed

D.

View with lower instrument cover
removed

E.

View with center console rear finisher
removed

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed

DLK-34

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

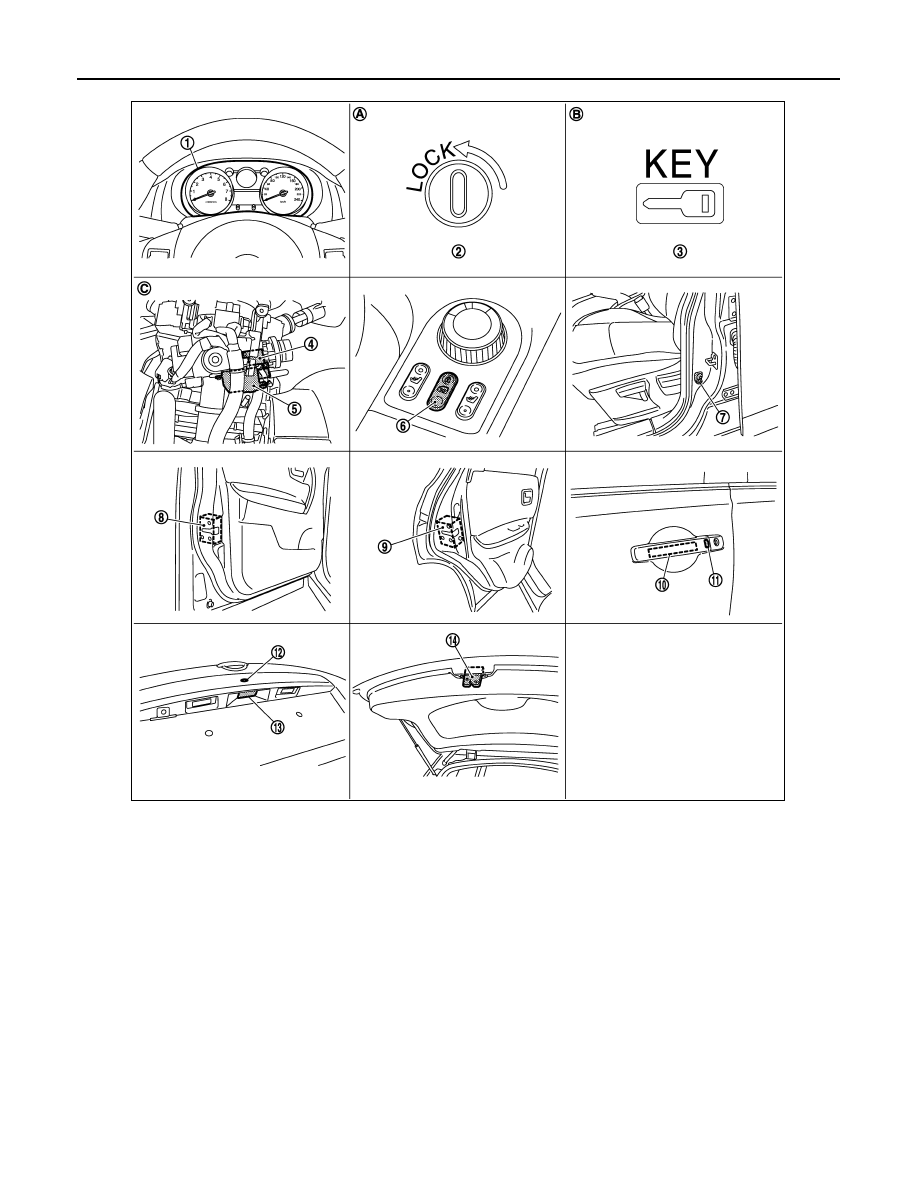

DOOR REQUEST SWITCH : Component Description

INFOID:0000000001078859

1.

Combination meter
M34

2.

Lock warning lamp
M34

3.

Key warning lamp
M34

4.

Ignition knob switch, key switch and key
lock solenoid (key switch)
M25

5.

Ignition knob switch, key switch and key
lock solenoid (key lock solenoid)
M25

6.

Door lock and unlock switch
M89

7.

Front door switch (driver side)
B34

8.

Front door lock actuator (driver side)
D9

9.

Rear door lock actuator LH
D85

10. Front door request switch (driver side)

D10

11. Outside key antenna (driver side)

D11

12. Back door request switch

D187

13. Back door opener switch

D186

14. Back door lock assembly

D152

A.

Inside the combination meter

B.

Inside the combination meter

C.

View with steering column cover
removed

JMKIA0486ZZ
