INSPECTION AND ADJUSTMENT

DLK-23

< BASIC INSPECTION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000000939034

Perform the system initialization when replacing Intelligent Key unit, replacing Intelligent Key or registering an
additional Intelligent Key.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000000939035

Refer to the CONSULT-III Operation Manual-NATS.

DLK-24

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

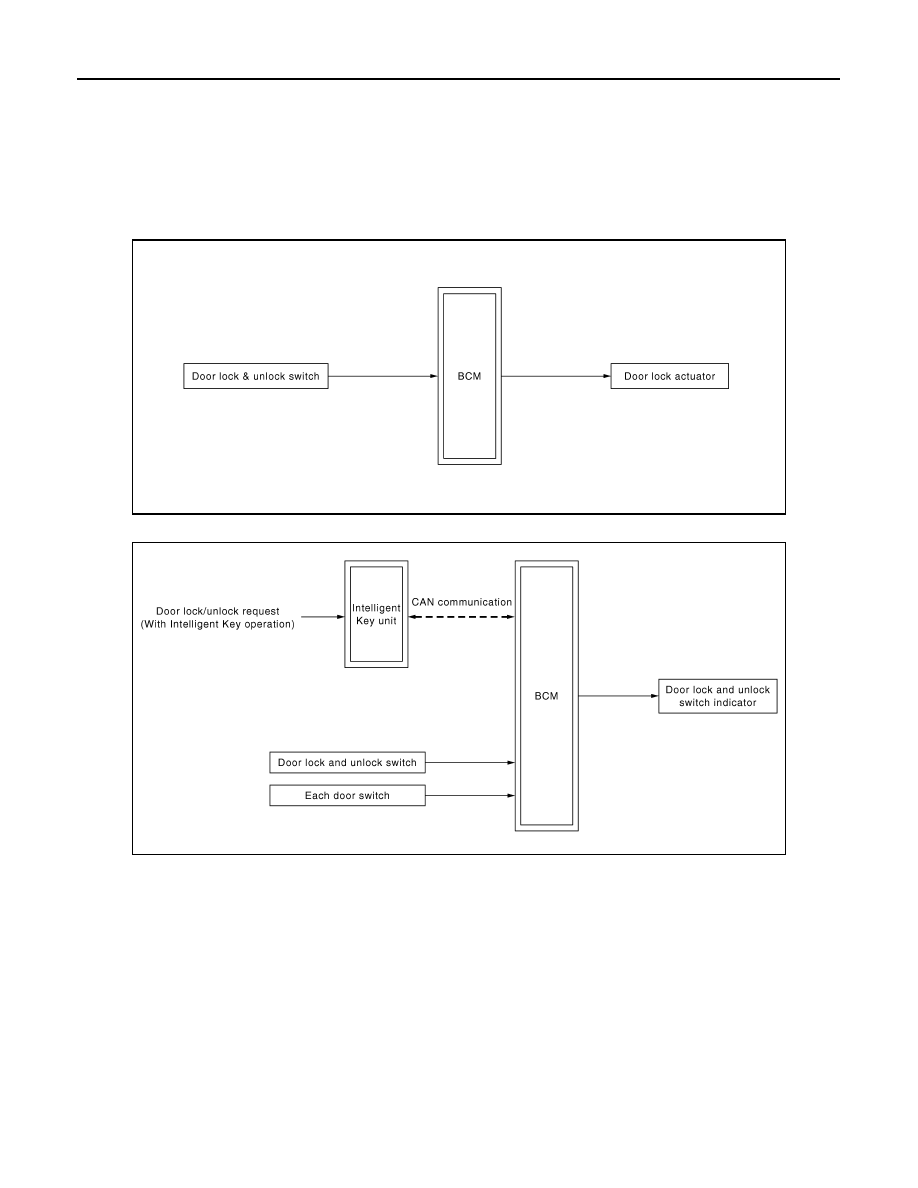

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000000939036

DOOR LOCK AND UNLOCK SWITCH OPERATION

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000000939037

DOOR LOCK AND UNLOCK SWITCH OPERATION

Functions are available by operating the door lock and unlock switch on center console. Interlocked with the
lock/unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.

Operation Condition

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.

JMKIA0399GB

JMKIA0408GB

DOOR LOCK FUNCTION

DLK-25

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NOTE:
When the door lock is locked with Intelligent Key or door request switch, door lock and unlock switch operation
will be invalid until either of the following conditions is satisfied.
• Turn ignition switch ON.
• Unlock with Intelligent Key or door request switch.

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

Door lock and unlock switch indicator indicates door lock status. The indicator turns ON while ignition switch is
ON and each door lock is locked. If any door is opened, the indicator will turn OFF.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer will run for 1 minute after locking with Intelligent
Key, door request switch or auto door lock.

30 Minutes Timer

A timer must be running to turn OFF the indicator. The timer will run for 30 minutes after locking with door lock
and unlock switch.
NOTE:
1minute timer condition is satisfied while the 30 minutes timer is active, however the 30 minutes timer does not
change to 1 minute timer condition.

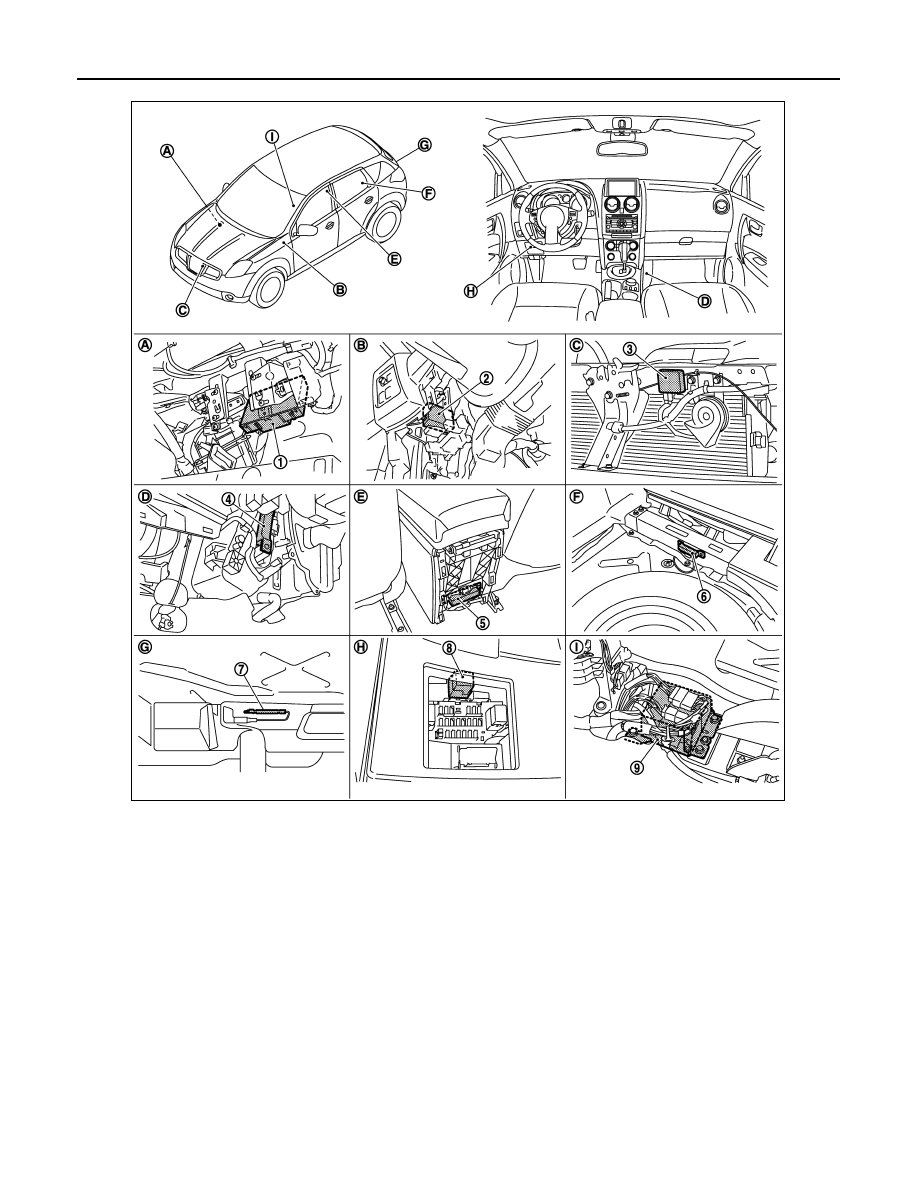

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000000939038

Door lock and unlock switch

Operation condition

Lock operation

All of the following conditions are satisfied.
• Except driver side doors are closed.
• Doors are not locked with Intelligent Key or door request switch.

Unlock operation

All of the following conditions are satisfied.
• Doors are not locked with Intelligent Key or door request switch.

DLK-26

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

JMKIA0485ZZ

1.

BCM
M65, M66, M67

2.

Intelligent Key unit
M40

3.

Intelligent Key warning buzzer
E25

4.

Inside key antenna (instrument center)
M70

5.

Inside key antenna (center console)
M61

6.

Inside key antenna (rear seat)
B45

7.

Inside key antenna (rear bumper)
B81

8.

Passenger side anti-hijack relay
M90

9.

Air bag diagnosis sensor unit
M59

A.

Over the glove box

B.

Over the instrument lower panel
(driver side)

C. View with front bumper removed

D.

View with lower instrument cover
removed

E.

View with center console rear finisher
removed

F.

View with luggage floor spacer (LH)
removed

G.

View with rear bumper fascia removed

H.

View with fuse box lid removed

I.

View with center console removed
