REAR SEAT

REAR SEAT

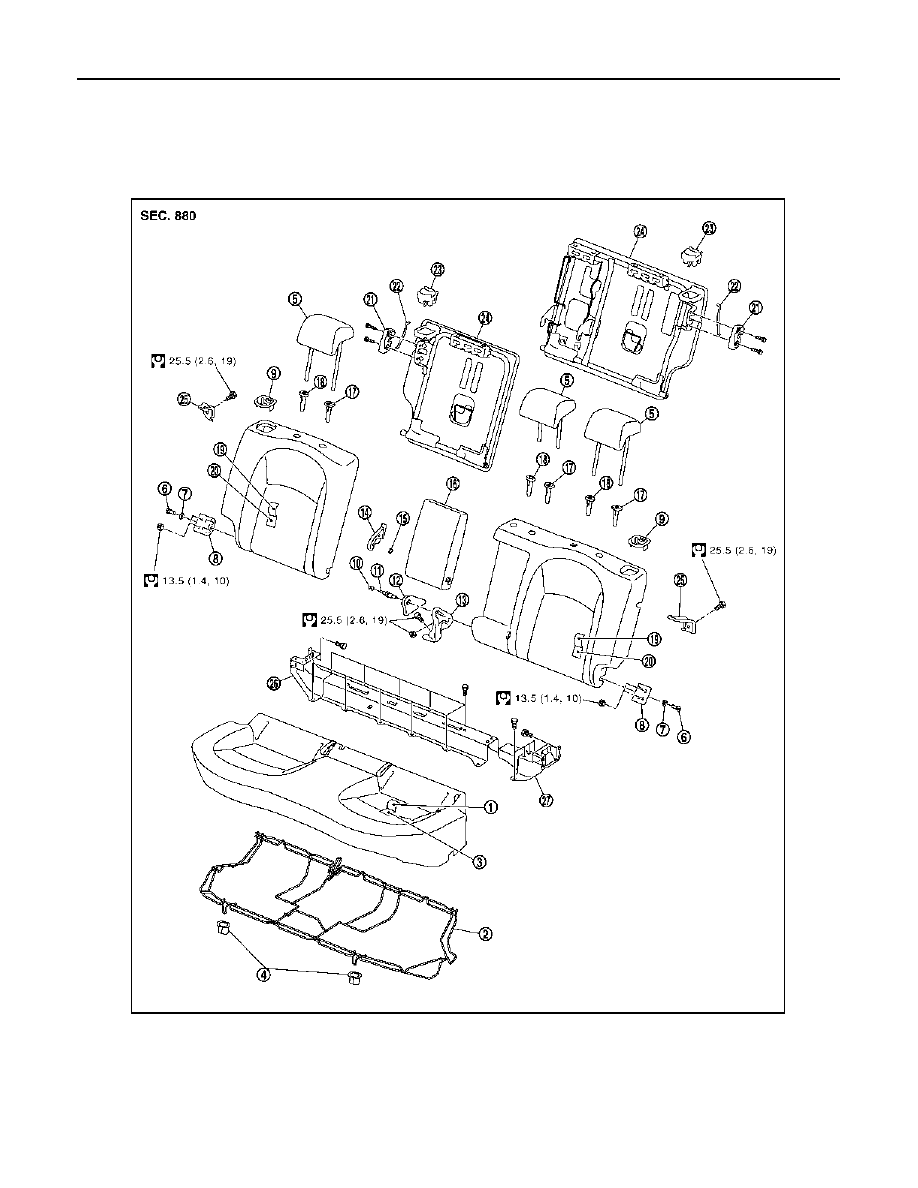

Exploded View

INFOID:0000000001025094

REAR SEAT

1.

Seat cushion trim

2.

Seat cushion frame

3.

Seat cushion pad

4.

Seat cushion hook

5.

Headrest

6.

TORX bolt (T55)

7.

Bushing

8.

Seatback side bracket

9.

Seatback lock knob finisher

10. Bushing

11.

Special bolt

12. Seatback center bracket cover

13. Seatback center bracket

14. Armrest bracket cover

15. Clip

JMJIA0373GB

REAR SEAT

SE-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000001025095

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat cushion.
Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook.

2.

Remove the seatback.
• Remove the luggage side lower finisher (front). Refer to

INT-14, "Removal and Installation"

.

• Remove the seatback side bracket (RH) mounting nuts.
• Remove the seatback assembly (RH) from the vehicle.
• Remove the seatback side bracket (LH) mounting nuts.
• Remove the center seatback bracket mounting bolt and nut.
• Remove the seatback assembly (LH) from the vehicle.

3.

Remove the seat striker.
• Remove the seat striker mounting bolt.
• Remove the seat striker from the vehicle.

4.

Remove the seatback lower support.
• Remove the seatback lower support mounting bolt.
• Remove the seatback lower support from the vehicle.

5.

Remove the seatback mounting outer bracket.
• Remove the seatback mounting outer bracket mounting bolt.
• Remove the seatback mounting outer bracket from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Disassembly and Assembly

INFOID:0000000001025096

SEATBACK

Disassembly

1.

Remove the seatback side bracket.

16. Armrest assembly

17. Headrest holder (locked)

18. Headrest holder (free)

19. Seatback trim

20. Seatback pad

21. Seatback lock assembly

22. Seatback lock rod

23. Seatback lock knob

24. Seatback frame

25. Seat striker

26. Seatback lower support

27. Seatback mounting outer bracket

Refer to

GI-3, "Contents"

 for symbols in the figure.

PIIB8352J

SE-32

< ON-VEHICLE REPAIR >

REAR SEAT

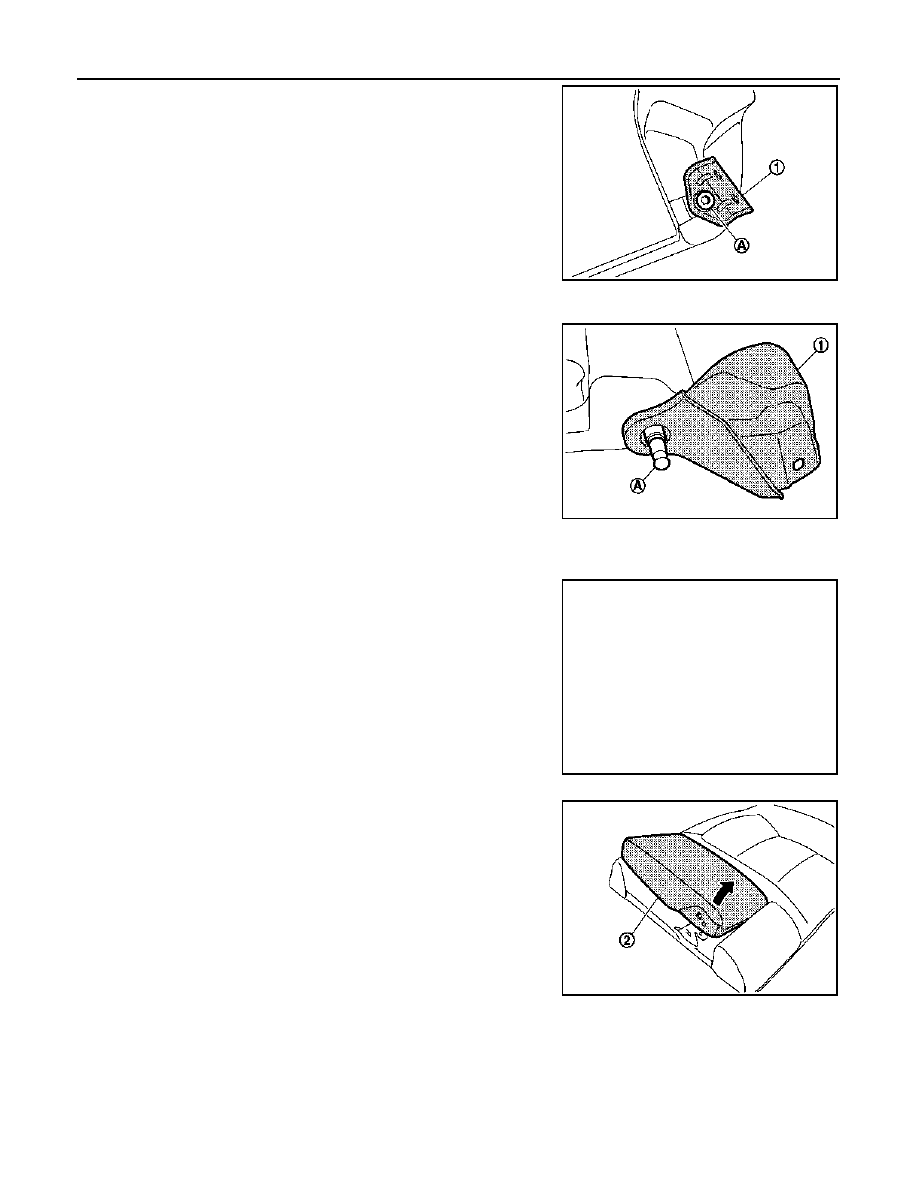

Remove the TORX bolt (T55) (A), and then seatback side
bracket (1).

2.

Remove the seatback center bracket.
Remove the special bolt (A), and then seatback center bracket
(1).

3.

Remove the armrest assembly.
• Remove the armrest bracket cover.
• Remove the clip (1).Using a driver (A).

• Remove the pins while pushing the armrest assembly (2)

toward the seat side. Remove the armrest assembly.

4.

Remove the seatback trim and seatback pad.

JMJIA0374ZZ

JMJIA0375ZZ

JMJIA0376ZZ

JMJIA0377ZZ

REAR SEAT

SE-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

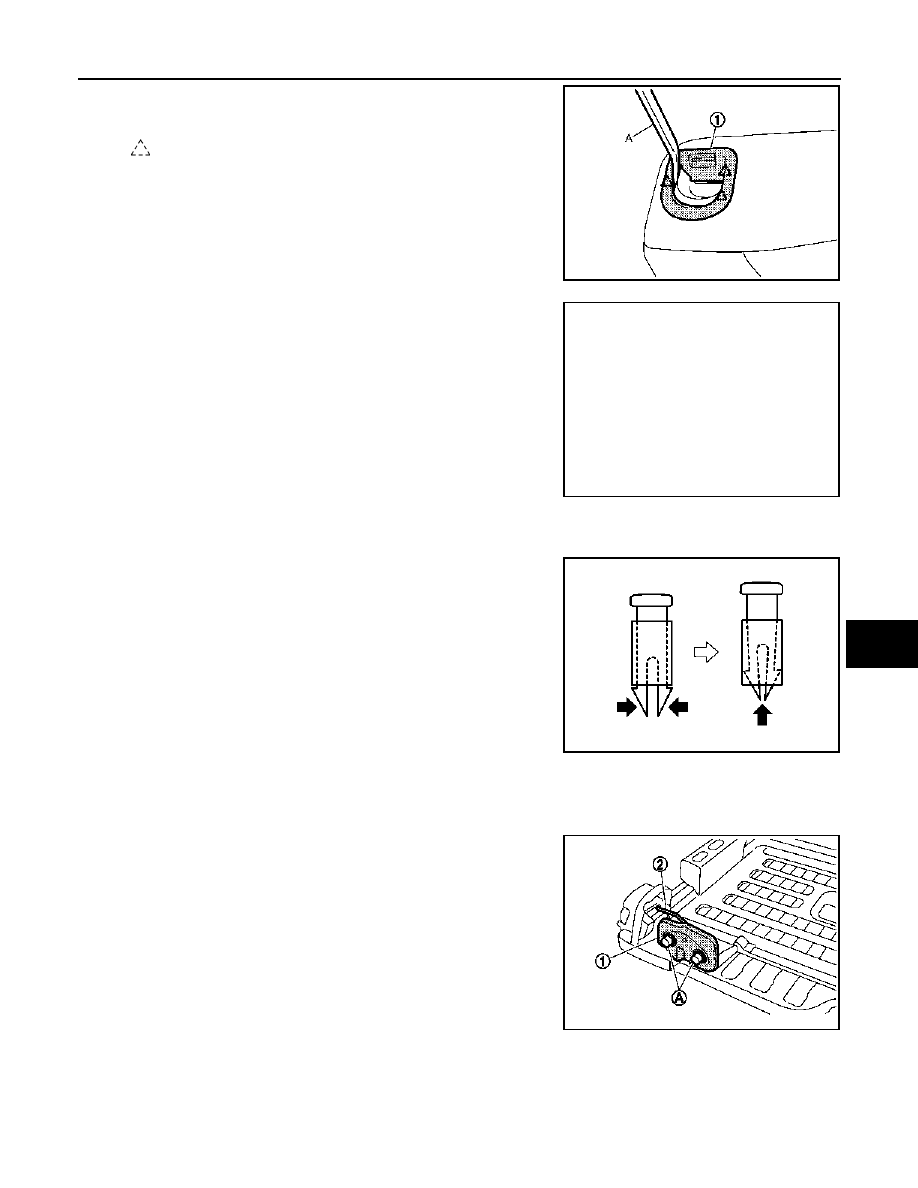

• Remove the seatback lock knob finisher (1).Using a remover

tool (A).

• Remove the seatback retainer (2) on the back side of the seat-

back.

• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orien-
taion.(front/rear and right/left)

• Remove the clip, and then remove seatback trim and seatback pad from the seatback frame.
• Remove the hog rings to separate the seatback trim and seatback pad.

5.

Remove the seatback lock assembly.
• Remove the mounting bolt (A) and remove seatback lock

assembly (1).

• Remove the seatback lock knob rod (2).

6.

Remove the seatback lock knob.
While pressing pawls, remove the seatback lock knob (1) from the seatback frame.

: Pawl

JMJIA0378ZZ

JMJIA0379ZZ

PIIB4084J

JMJIA0380ZZ
