SE-22

< ON-VEHICLE MAINTENANCE >

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001059483

BASIC INSPECTION

1.

INSPECTION START

1.

Check the service history.

2.

Check the following parts.

• Fuse/circuit breaker blown.
• Poor connection, open or short circuit of harness connector.
• Battery voltage.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Repair or replace the malfunctioning parts.

FRONT SEAT

SE-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

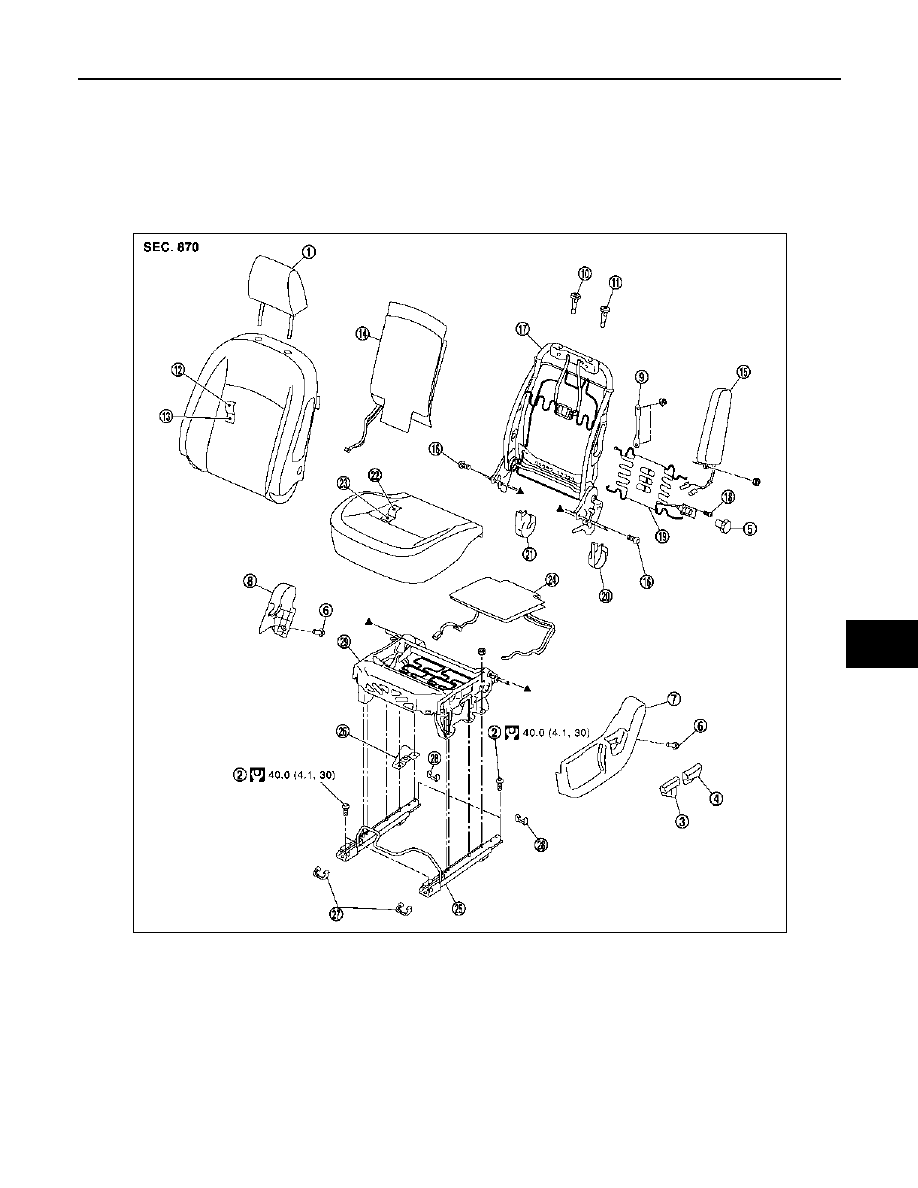

Exploded View

INFOID:0000000001025091

DRIVER'S SEAT

1.

Headrest

2.

TORX bolt (T50)

3.

Lifter lever knob

4.

Reclining lever knob

5.

Lumbar support knob

6.

TORX bolt (T25)

7.

Seat cushion outer finisher

8.

Seat cushion inner finisher

9.

Side air bag rod

10. Headrest holder (free)

11.

Headrest holder (locked)

12. Seatback trim

13. Seatback pad

14. Seatback heater unit

15. Side air bag module

16. TORX bolt (T50)

17. Seatback frame

18. TORX bolt (T20)

19. Lumbar support unit

20. Reclining device outer cover

21. Reclining device inner cover

22. Seat cushion trim

23. Seat cushion pad

24. Seat cushion heater unit

25. Seat slide assembly

26. Seat slide reinforce

27. Front slide cover

JMJIA0348GB

SE-24

< ON-VEHICLE REPAIR >

FRONT SEAT

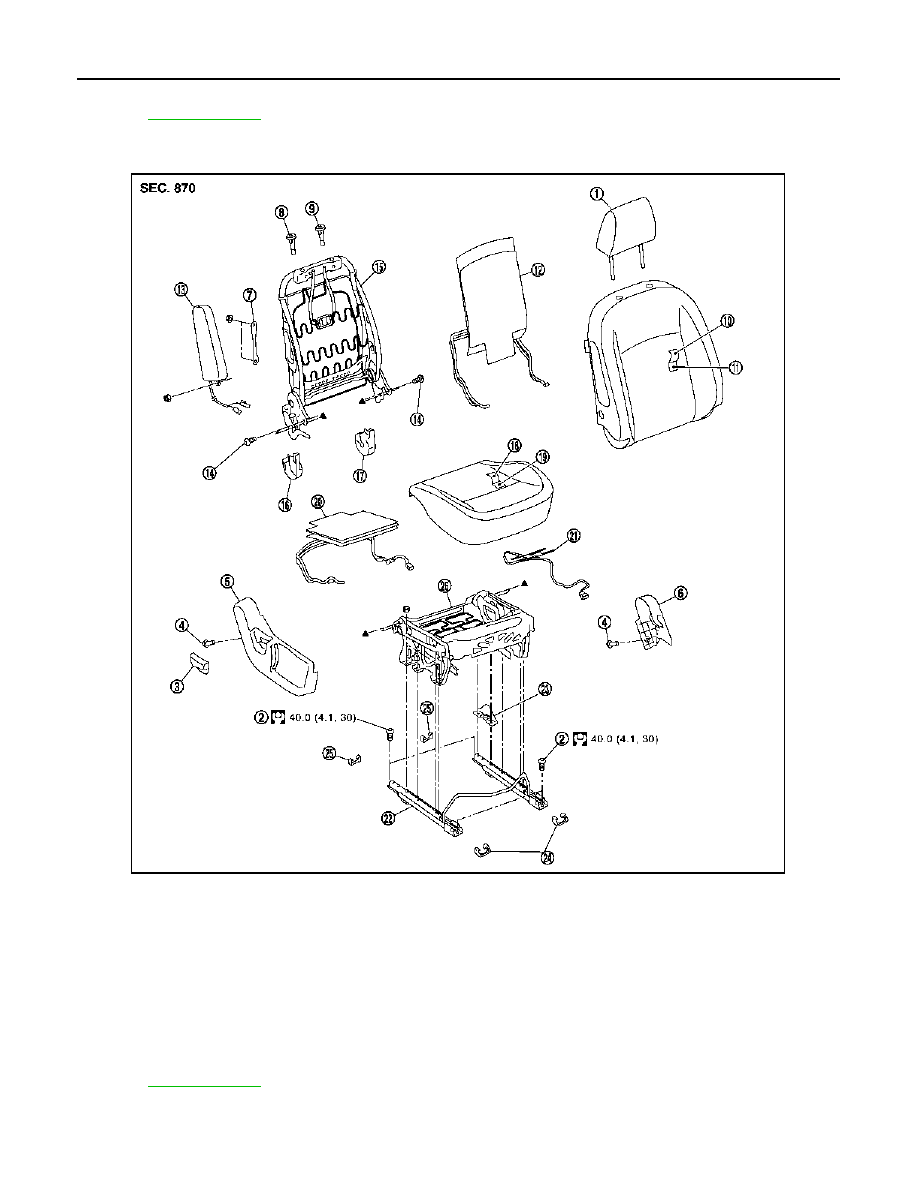

PASSENGER'S SEAT

Removal and Installation

INFOID:0000000001025092

28. Rear slide cover

29. Seat cushion adjuster assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

Headrest

2.

TORX bolt (T50)

3.

Reclining lever Knob

4.

TORX bolt (T25)

5.

Seat cushion outer finisher

6.

Seat cushion inner finisher

7.

Side air bag rod

8.

Headrest holder (free)

9.

Headrest holder (locked)

10. Seatback trim

11.

Seatback pad

12. Seatback heater unit

13. Side air bag module

14. TORX bolt (T50)

15. Seatback frame

16. Reclining device outer cover

17. Reclining device inner cover

18. Seat cushion trim

19. Seat cushion pad

20. Seat cushion heater unit

21. Occupant detection unit

22. Seat slide assembly

23. Seat slide reinforce

24. Front slide cover

25. Rear slide cover

26. Seat cushion adjuster assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA0349GB

FRONT SEAT

SE-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Before removal, turn ignition switch OFF, disconnect both battery cables, and then wait for at least 3

minutes.

1.

Remove the headrest.

2.

Remove the mounting TORX bolts (T50) on the front side of the front seat.

3.

Remove the mounting TORX bolts (T50) on the rear side of the front seat.

4.

Set seatback in a standing position.

5.

Disconnect harness connector under the seat and remove harness securing clips.

6.

Remove seat from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect both battery cables, and then wait for at

least 3 minutes.

• Clamp the harness in position.

Disassembly and Assembly

INFOID:0000000001025093

SEATBACK

Disassembly

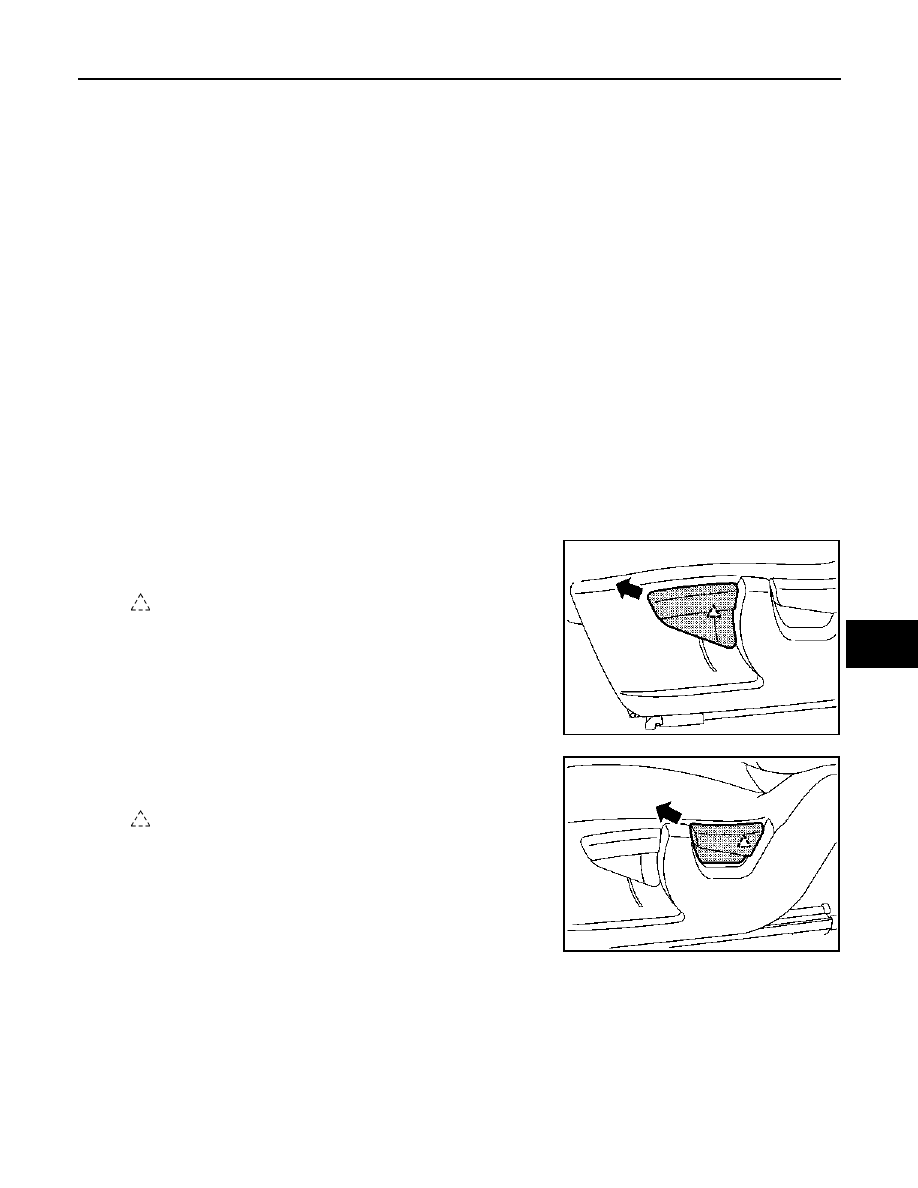

1.

Remove the seat cushion outer finisher.
• Pull out the lifter lever knob while holding and raising the

pawls.

• Pull out the reclining lever knob while holding and raising the

pawls.

: Pawl

JMJIA0350ZZ

: Pawl

JMJIA0351ZZ
