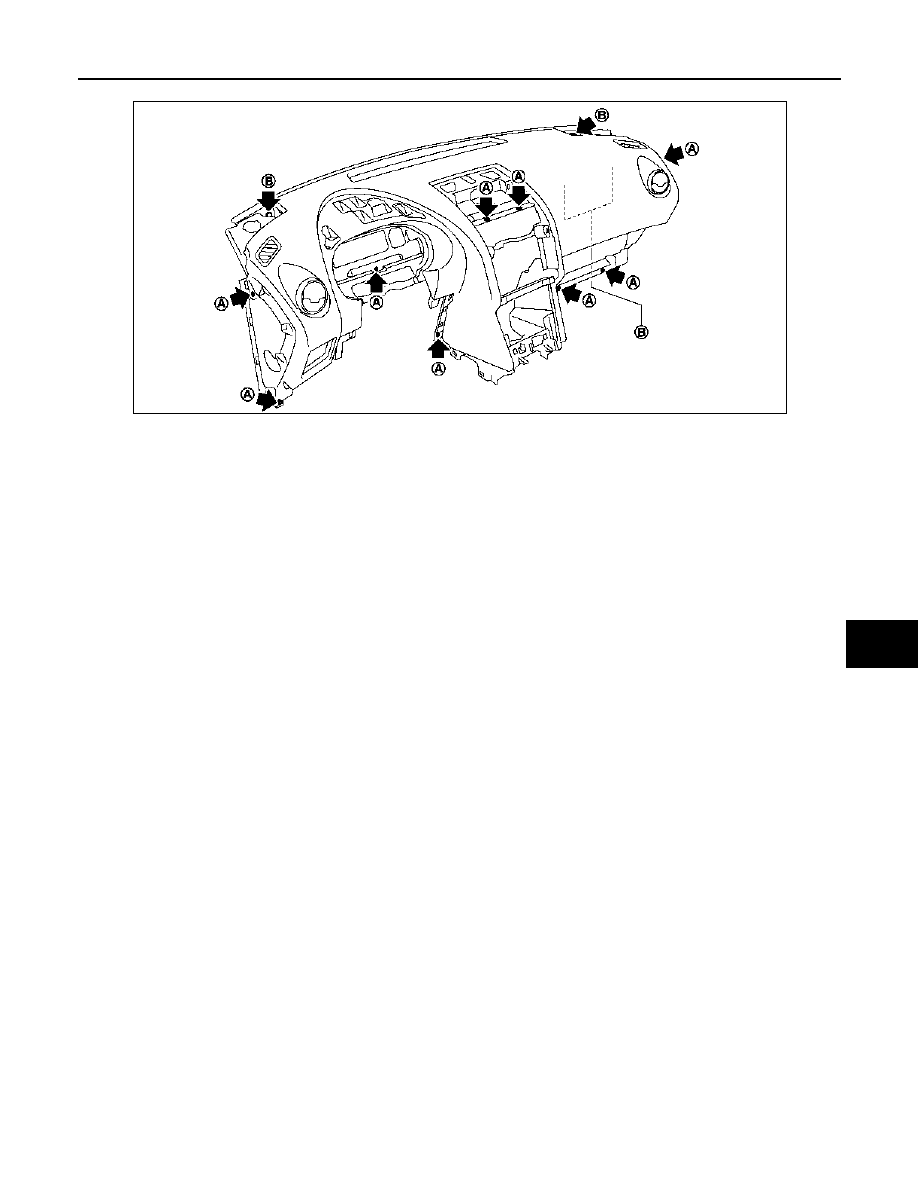

• Remove screws (A) and bolts (B), and then remove instrument panel & pad.

CAUTION:

When removing instrument panel, 2 workers are required so as to prevent it from dropping.

47. Remove the following parts after removing instrument panel & pad.

• Side ventilator grilles
• Center ventilator grilles
• Side defroster grilles
• Side defroster nozzles
• Side ventilator ducts

INSTALLATION

Install in the reverse order of removal.

E1JIA0008ZZ

IP-18

< ON-VEHICLE REPAIR >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

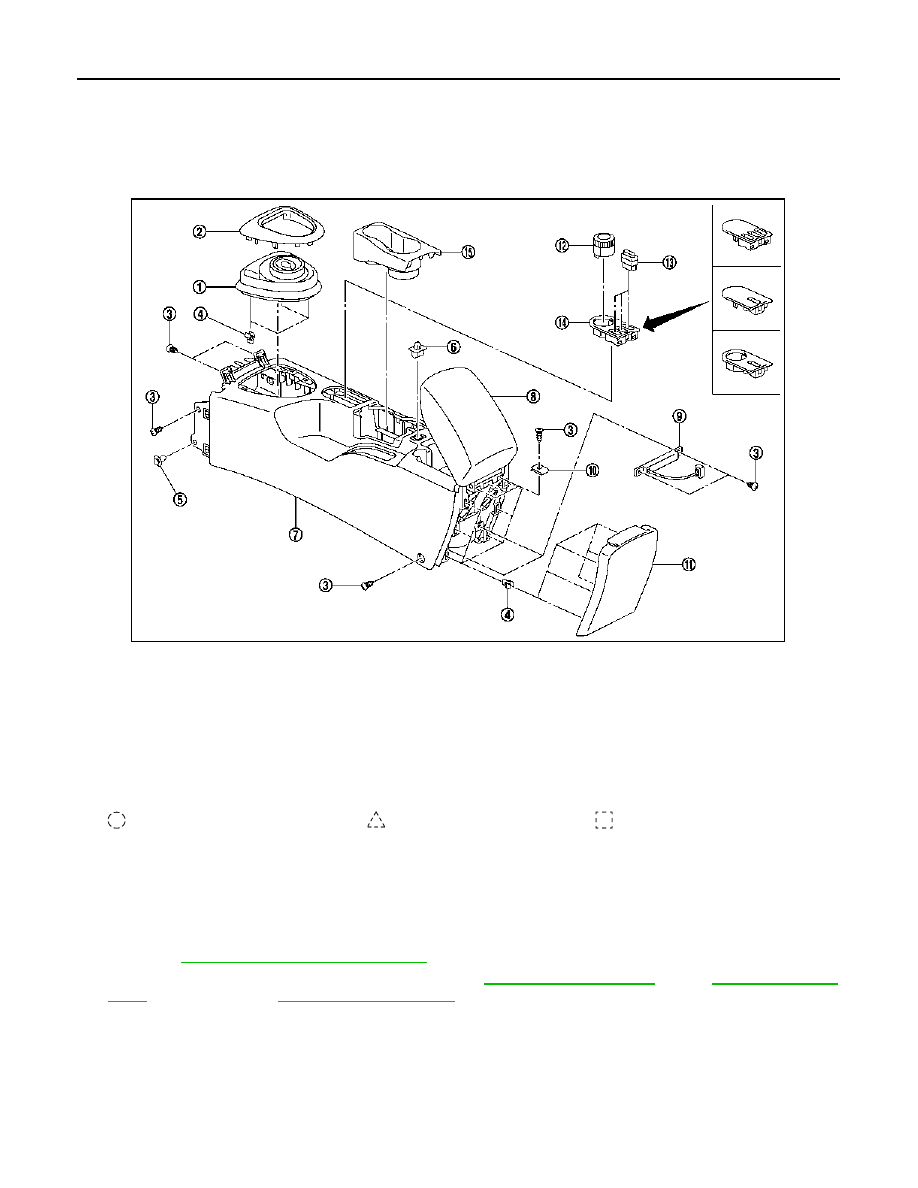

Exploded View

INFOID:0000000001093680

CENTER CONSOLE

Removal and Installation

INFOID:0000000001093681

REMOVAL

1.

Put selector lever in drive position. (CVT Models only)

2.

Remove selector lever knob. (CVT Models only)
• Refer  to

TM-326, "Removal and Installation"

.

3.

Remove shift lever knob. (M/T Models only) Refer to

TM-19, "Exploded View"

 (5MT),

TM-63, "Exploded

View"

 (6MT: RS6F94R),

TM-118, "Exploded View"

 (6MT: RS6F52A).

4.

Remove console finisher.

5.

Disconnect antenna harness connector.

6.

Remove antenna fixing screws.

7.

Remove antenna harness fixing clip.

8.

Remove center console.

INSTALLATION

1.

Console finisher assembly (M/T mod-
els)

2.

Console finisher assembly (CVT
models)

3.

Center console fixing screw

4.

Center console boot assembly fixing
clip

5.

Center console fixing clip

6.

Center console lid latch assem-
bly

7.

Center console assembly

8.

Center console lid

9.

Antenna

10. U-nut

11. Center console rear finisher as-

sembly

12. 4WD switch assembly

13. Switch (hazard, door lock, heated seat) 14. Switch panel

15. Cup holder

Clip

Pawl

Metal clip

E1JIA0017ZZ

CENTER CONSOLE ASSEMBLY

IP-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001093682

Disassembly

1.

Pull upwards and then remove console rear finisher assembly.

2.

Remove GPS antenna and connector (models with Navigation). Refer to

AV-40, "Harness Layout"

.

3.

Remove cup holder.

4.

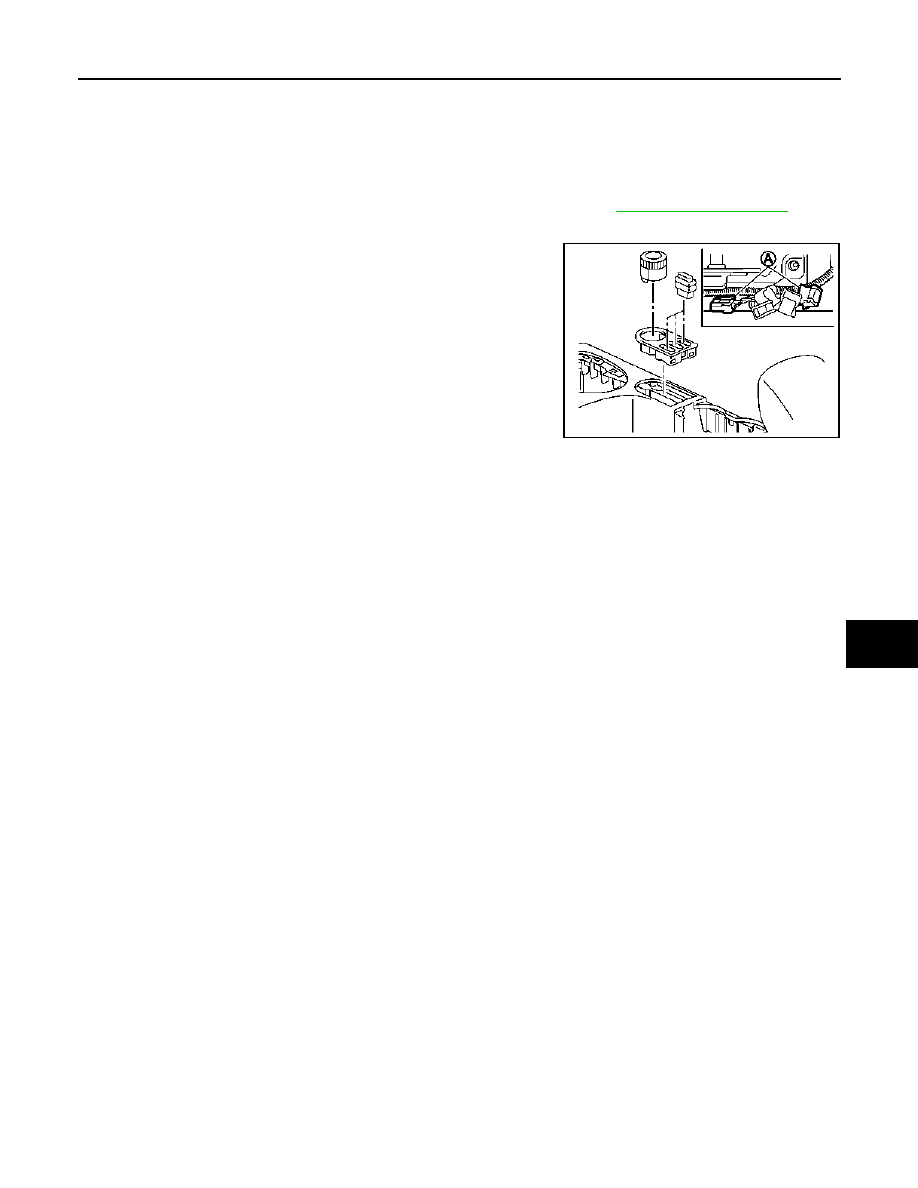

Remove 4WD switch assembly and switches, then disconnect
connector (A) and remove switch panel.

5.

Remove console mask.

6.

Remove console lid.

7.

Remove metal clip and remove console rear finisher.

Assembly

Assemble in the reverse order of disassembly.

E1JIA0013ZZ

SE-1
