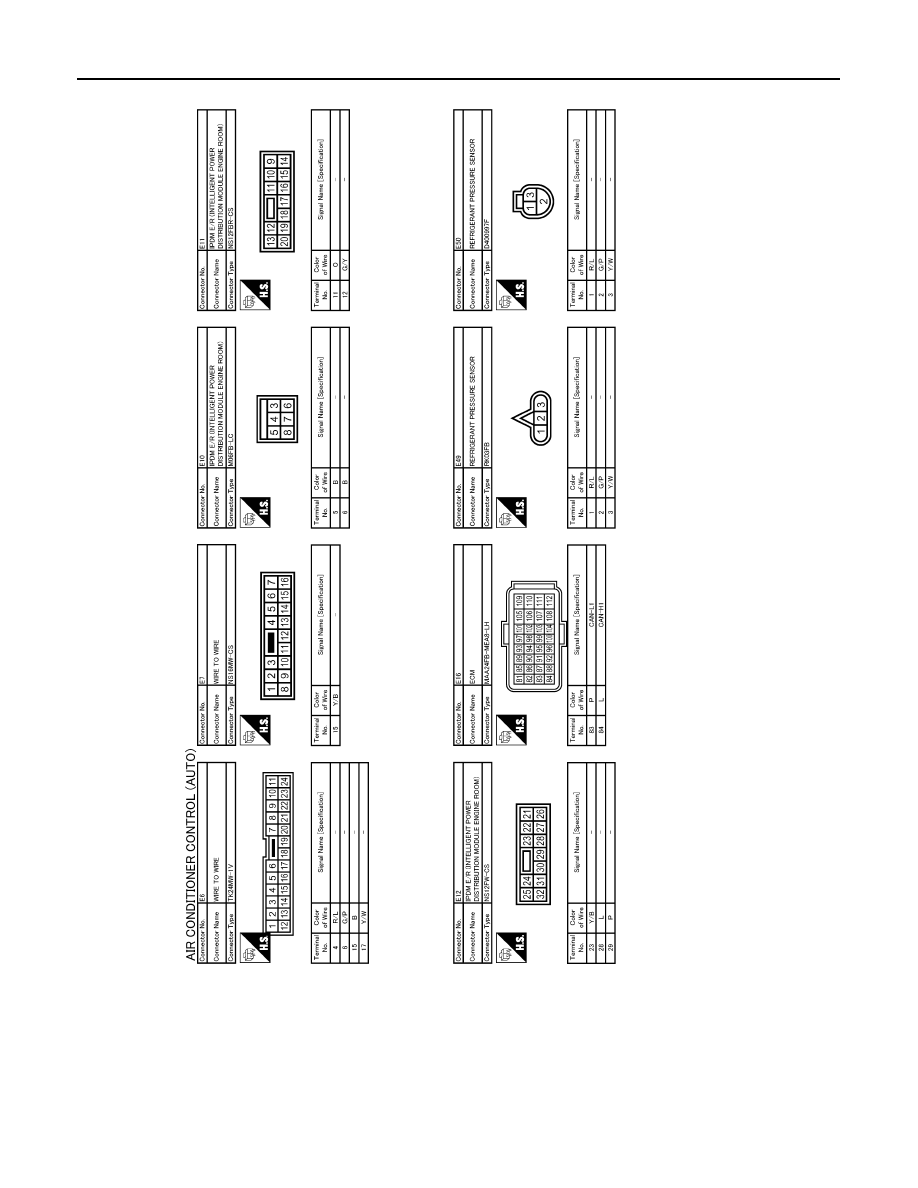

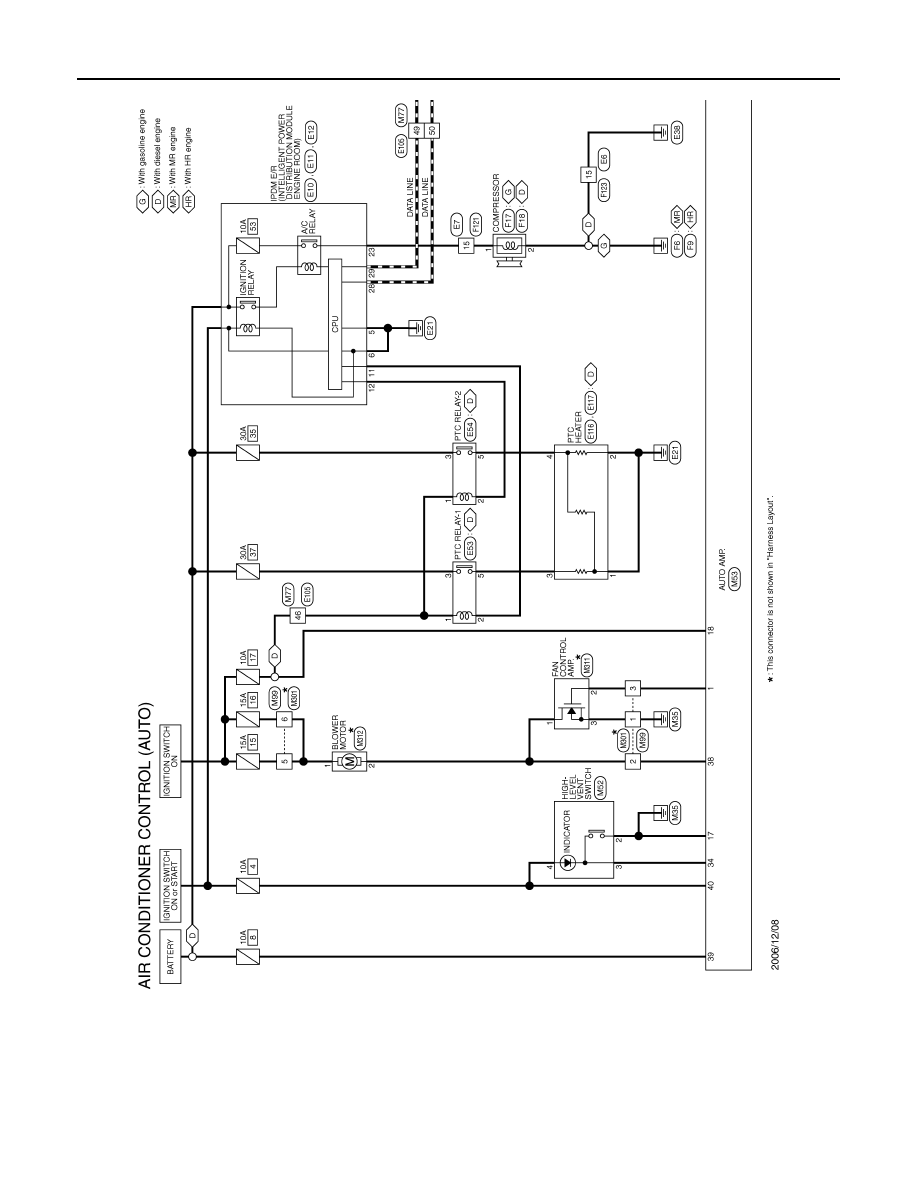

Wiring Diagram — AIR CONDITIONER CONTROL SYSTEM —

INFOID:0000000000954680

JCIWA0034GB

AUTO AMP.

HAC-101

< ECU DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

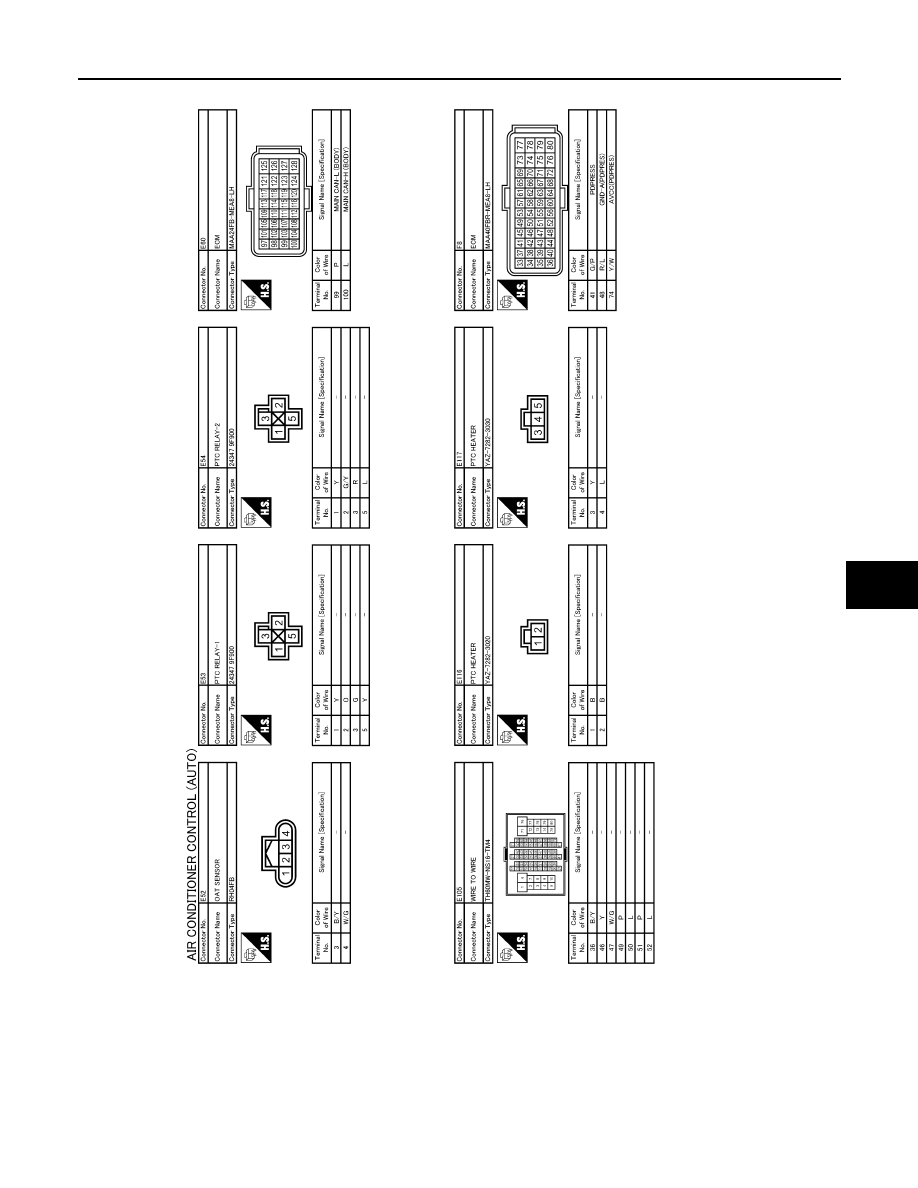

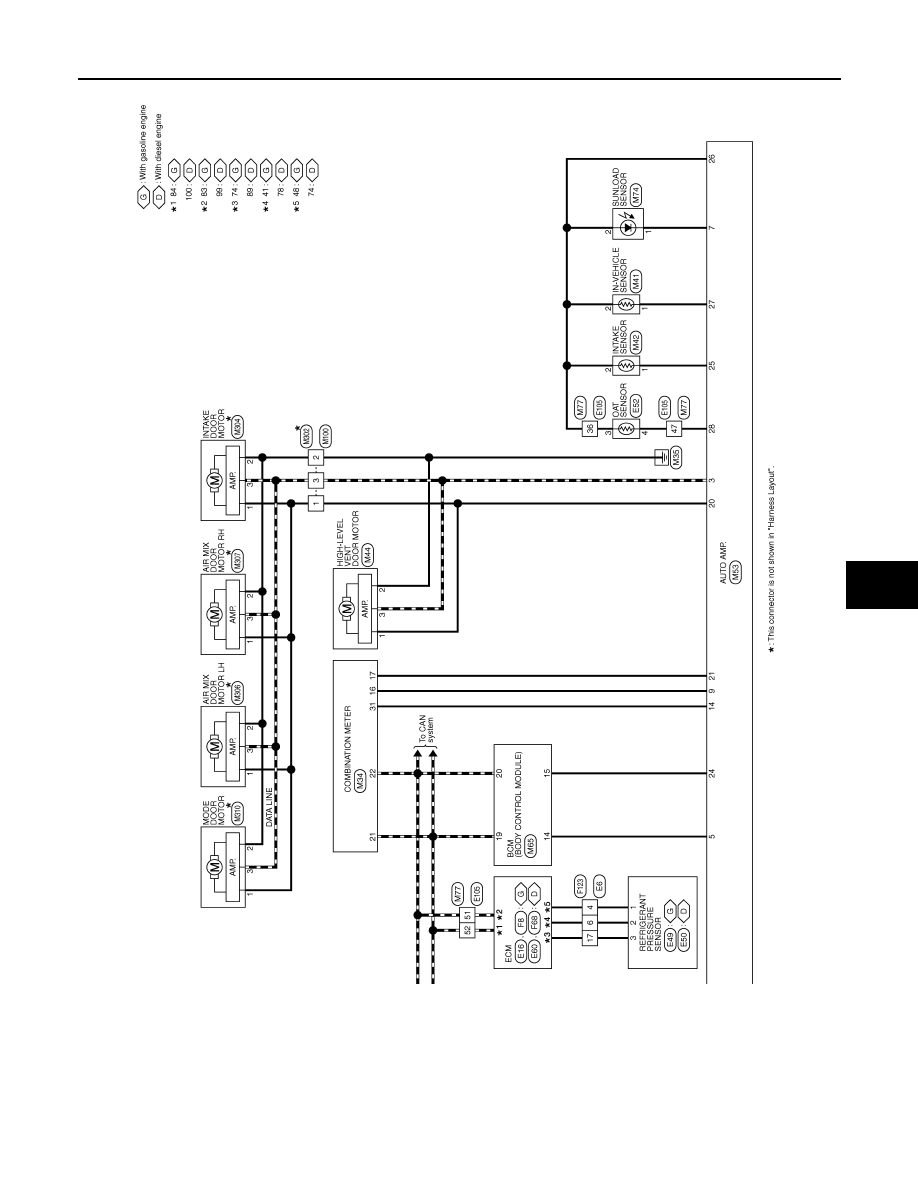

JCIWA0035GB
