Nissan Qashqai (2007-2010). Manual - part 901

HA-174

< PRECAUTION >

[MANUAL AIR CONDITIONER (K9K)]

PRECAUTIONS

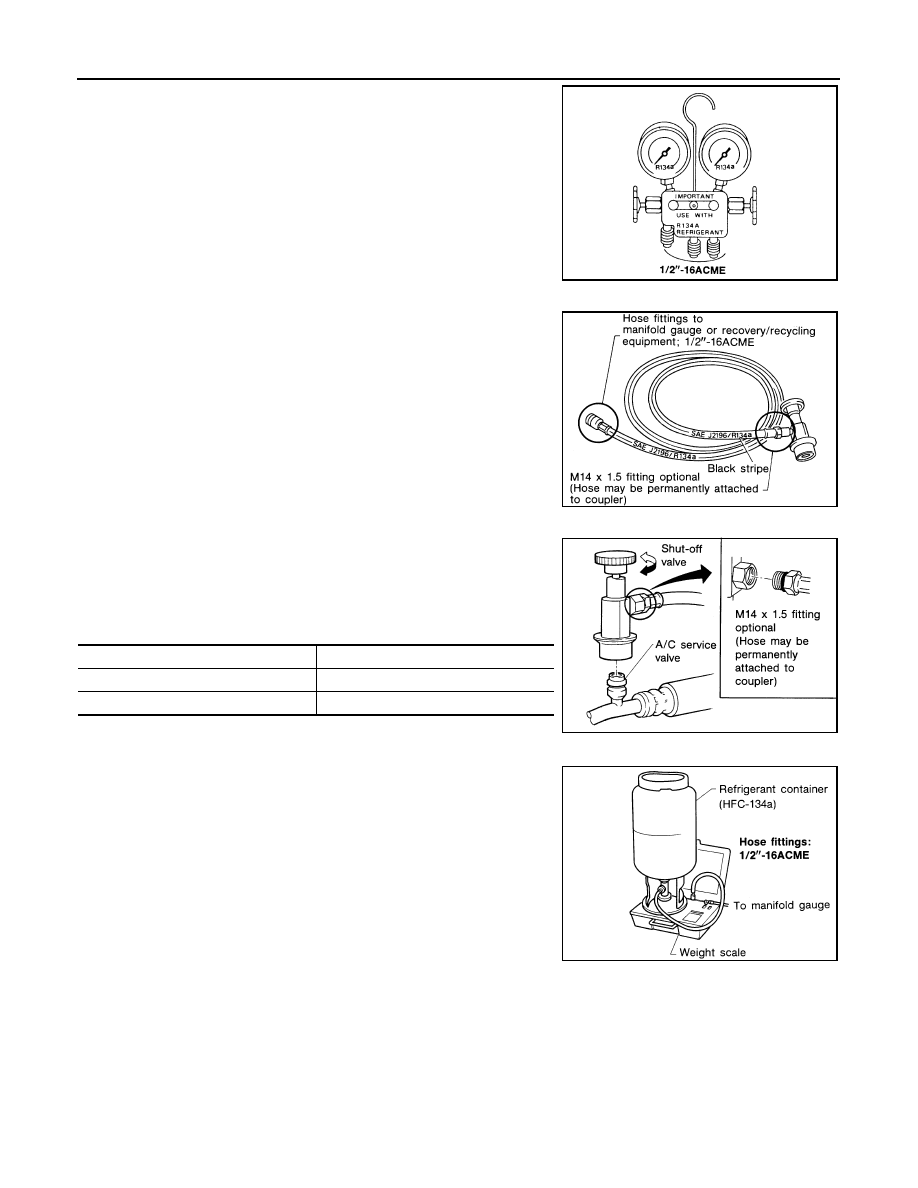

Be certain that the gauge face indicates HFC-134a or R-134a. Be
sure the gauge set has 1/2

″

-16 ACME threaded connections for ser-

vice hoses. Confirm the set has been used only with refrigerant
HFC-134a (R-134a) and specified lubricants.

SERVICE HOSES

Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite to the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2

″

-16

ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electronic scale or of quality recycle/recharge equipment.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

RHA273D

RHA274D

COMPRESSOR

HA-175

< PRECAUTION >

[MANUAL AIR CONDITIONER (K9K)]

COMPRESSOR

General Precautions

INFOID:0000000001098276

CAUTION:

• Plug all openings to prevent moisture and foreign matter from entering.
• When the compressor is removed, store it in the same way at it is when mounted on the car.
• When replacing or repairing compressor, follow “Maintenance of Lubricant Quantity in Compressor”

exactly. Refer to

HA-180, "Adjustment"

• Keep friction surfaces between clutch and pulley clean. If the surface is contaminated with lubricant,

wipe it off by using a clean waste cloth moistened with thinner.

• After compressor service operation, turn the compressor shaft by hand more than five turns in both

directions. This will equally distribute lubricant inside the compressor. After the compressor is
installed, let the engine idle and operate the compressor for one hour.

• After replacing the compressor magnet clutch, apply voltage to the new one and check for normal

operation.

HA-176

< PRECAUTION >

[MANUAL AIR CONDITIONER (K9K)]

LEAK DETECTION DYE

LEAK DETECTION DYE

General Precautions

INFOID:0000000001098277

CAUTION:

• The A/C system contains a fluorescent leak detection dye used for locating refrigerant leaks. An

ultraviolet (UV) lamp is required to illuminate the dye when inspecting for leaks.

• Always wear fluorescence enhancing UV safety goggles to protect your eyes and enhance the visi-

bility of the fluorescent dye.

• The fluorescent dye leak detector is not a replacement for an electrical leak detector (SST: J-41995).

The fluorescent dye leak detector should be used in conjunction with an electrical leak detector
(SST: J-41995) to pin-point refrigerant leaks.

• For the purpose of safety and customer’s satisfaction, read and follow all manufacture’s operating

manuals and precautions prior to performing the work.

• A compressor shaft seal should not necessarily be repaired because of dye seepage. The compres-

sor shaft seal should only be repaired after confirming the leak with an electrical leak detector (SST:
J-41995).

• Always remove any remaining dye from the leak area after repairs are completed to avoid a misdiag-

nosis during a future service.

• Never allow dye to come into contact with painted body panels or interior components. If dye is

spilled, clean immediately with the approved dye cleaner. Fluorescent dye left on a surface for an
extended period of time cannot be removed.

• Never spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).
• Never use more than one refrigerant dye bottle (1/4 ounce /7.4 cc) per A/C system.
• Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Never use

HFC-134a (R-134a) leak detection dye in CFC-12 (R-12) A/C system, or CFC-12 (R-12) leak detection
dye in HFC-134a (R-134a) A/C system, or A/C system damage may result.

• The fluorescent properties of the dye will remain for three years or a little over unless a compressor

malfunction occurs.

IDENTIFICATION

NOTE:
Vehicles with factory installed fluorescent dye have a green label.
Vehicles without factory installed fluorescent dye have a blue label.

IDENTIFICATION LABEL FOR VEHICLE

Vehicles with factory installed fluorescent dye have the identification label on the front side of hood.

PREPARATION

HA-177

< PREPARATION >

[MANUAL AIR CONDITIONER (K9K)]

PREPARATION

HFC-134a (R-134a) Service Tools and Equipment

INFOID:0000000001116273

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used: refrigerant/lubricant contamination will
occur and compressor malfunction will result.

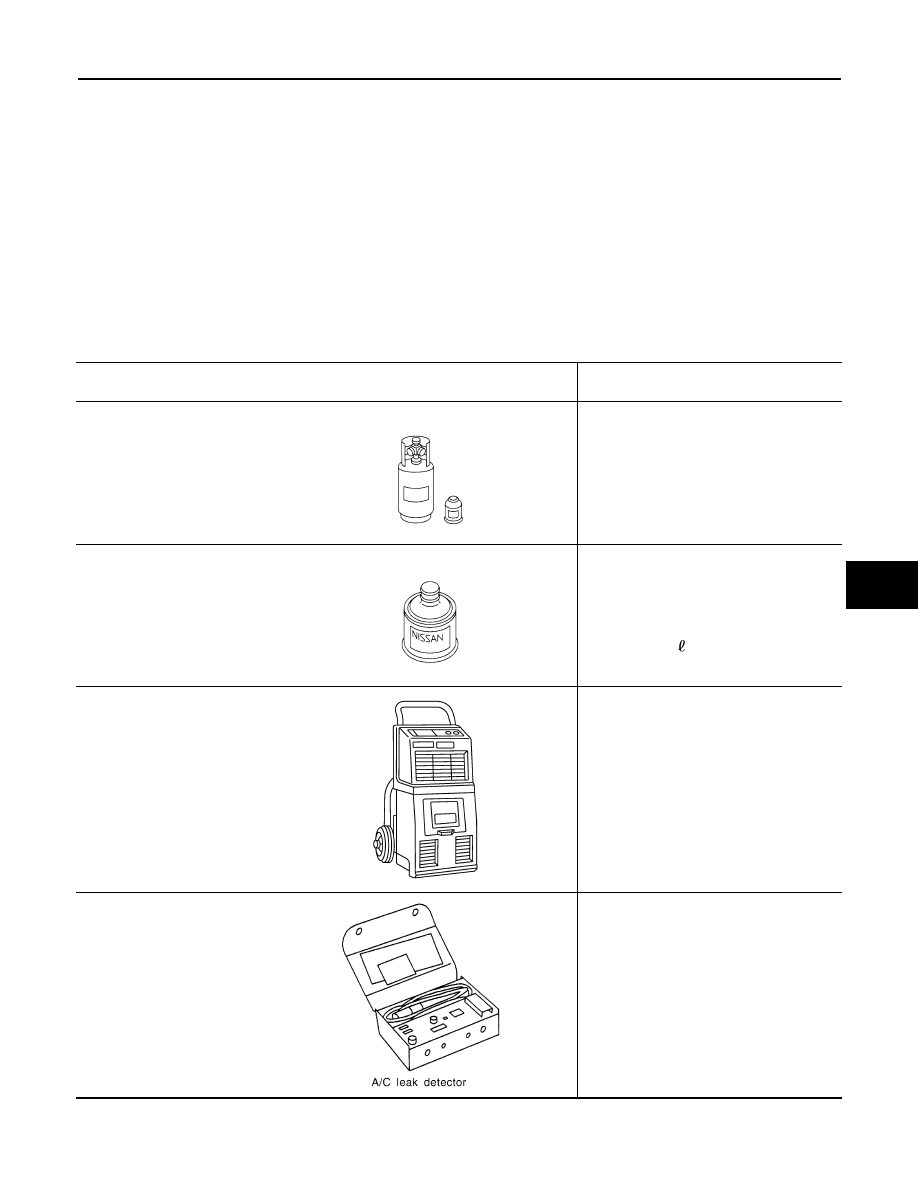

Tool number
Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-134a)
Fitting size: Thread size
• Large container 1/2

″

-16 ACME

KLH00-PAGS0
Nissan A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG), type S
(DH-PS)
Application: HFC-134a (R-134a) wobble
(swash) plate compressors (Nissan only)

Lubricity: 40 m

(1.4 Imp fl oz.)

Recovery/Recycling/
Recharging equipment (ACR4)

Function: Refrigerant recovery and recy-
cling and recharging

Electrical leak detector

Power supply:
DC 12V (Cigarette lighter)

S-NT196

S-NT197

RJIA0195E

SHA705EB
