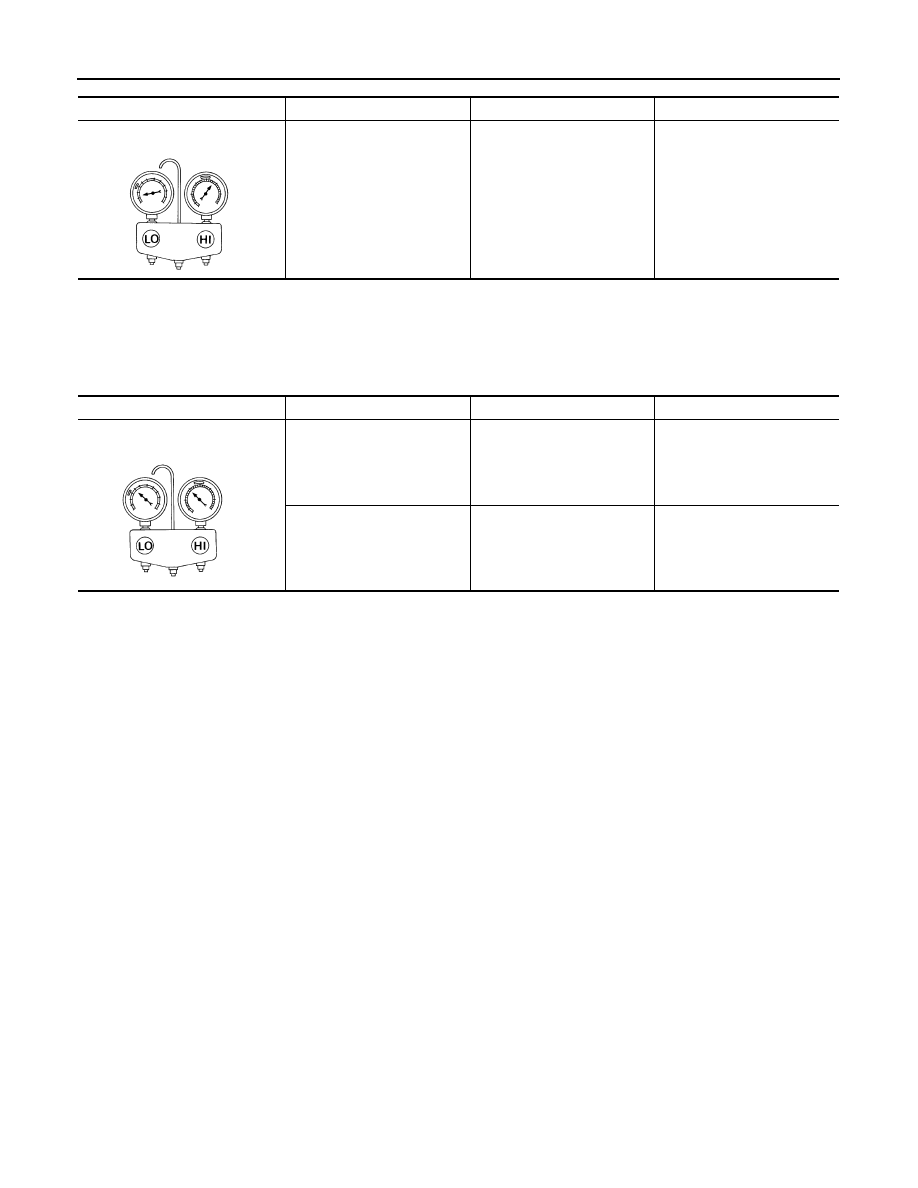

HA-166

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER (K9K)]

REFRIGERATION SYSTEM SYMPTOMS

HIGH-PRESSURE SIDE IS TOO LOW AND LOW-PRESSURE SIDE IS TOO HIGH

HIGH-PRESSURE SIDE IS TOO LOW AND LOW-PRESSURE SIDE IS TOO HIGH :
Symptom Table

INFOID:0000000001098264

BOTH HIGH- AND LOW-PRESSURE SIDES ARE TOO LOW

BOTH HIGH- AND LOW-PRESSURE SIDES ARE TOO LOW : Symptom Table

INFOID:0000000001098265

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too high and
low-pressure side is too low.

Upper side of condenser and
high-pressure side are hot,
however, liquid tank is not so
hot.

High-pressure tube or parts lo-
cated between compressor
and condenser are clogged or
crushed.

• Check and repair or replace

malfunctioning parts.

• Check lubricant for contami-

nation.

AC360A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too low and
low-pressure side is too high.

High- and low-pressure sides
become equal soon after com-
pressor operation stops.

Compressor pressure opera-
tion is improper.

↓

Damaged inside compressor
packings.

Replace compressor.

No temperature difference be-
tween high- and low-pressure
sides.

Compressor pressure opera-
tion is improper.

↓

Damaged inside compressor
packings.

Replace compressor.

AC356A

REFRIGERATION SYSTEM SYMPTOMS

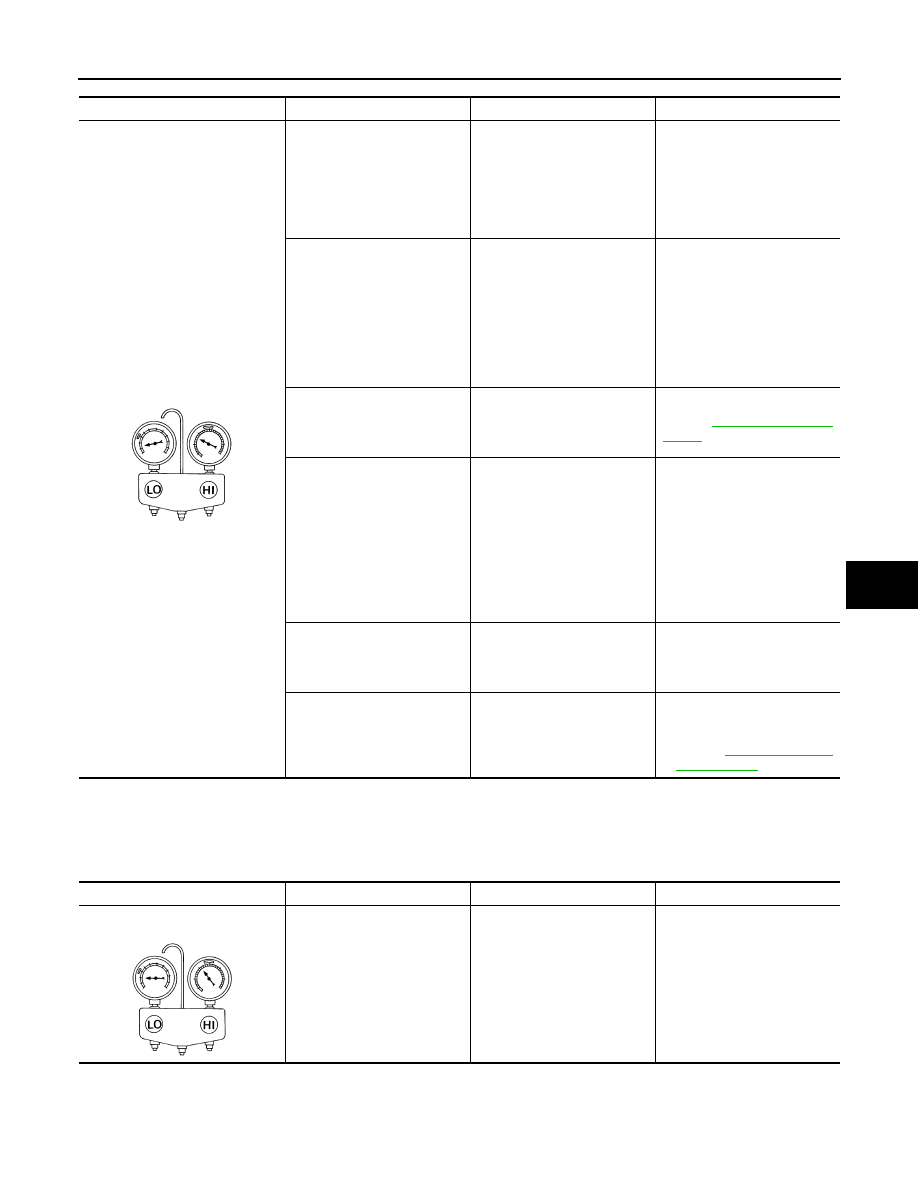

HA-167

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

LOW-PRESSURE SIDE SOMETIMES BECOMES NEGATIVE

LOW-PRESSURE SIDE SOMETIMES BECOMES NEGATIVE : Symptom Table

INFOID:0000000001098266

LOW-PRESSURE SIDE BECOMES NEGATIVE

LOW-PRESSURE SIDE BECOMES NEGATIVE : Symptom Table

INFOID:0000000001098267

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure sides
are too low.

• There is a big temperature

difference between liquid
tank outlet and inlet. Outlet
temperature is extremely
low.

• Liquid tank inlet and expan-

sion valve are frosted.

Liquid tank inside is slightly
clogged.

• Replace liquid tank.
• Check lubricant for contami-

nation.

• Temperature of expansion

valve inlet is extremely low
as compared with areas
near liquid tank.

• Expansion valve inlet is

frosted.

• Temperature difference oc-

curs somewhere in high-
pressure side.

High-pressure pipe located be-
tween liquid tank and expan-
sion valve is clogged.

• Check and repair malfunc-

tioning parts.

• Check lubricant for contami-

nation.

Expansion valve and liquid
tank are warm or slightly cool
when touched.

Low refrigerant charge.

↓

Leaking fittings or compo-
nents.

Check refrigerant for leaks.
Refer to

HA-183, "Refrigerant

Leaks"

.

There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted.

Expansion valve closes a little
compared with the specifica-
tion.

↓

1.

Improper expansion
valve adjustment.

2.

Malfunctioning expansion
valve.

3.

Outlet and inlet may be
clogged.

• Remove foreign particles by

using compressed air.

• Replace expansion valve.
• Check lubricant for contami-

nation.

An area of the low-pressure
pipe is colder than areas near
the evaporator outlet.

Low-pressure pipe is clogged
or crushed.

• Check and repair malfunc-

tioning parts.

• Check lubricant for contami-

nation.

Air flow volume is not enough
or is too low.

Evaporator is frozen.

• Replace compressor.
• Repair evaporator fins.
• Replace evaporator.
• Refer to

HAC-153, "Diagno-

sis Procedure"

.

AC353A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side sometimes be-
comes negative.

• Air conditioning system does

not function and does not cy-
clically cool the compart-
ment air.

• The system constantly func-

tions for a certain period of
time after compressor is
stopped and restarted.

Refrigerant does not discharge
cyclically.

↓

Moisture is frozen at expan-
sion valve outlet and inlet.

↓

Water is mixed with refrigerant.

• Drain water from refrigerant

or replace refrigerant.

• Replace liquid tank.

AC354A

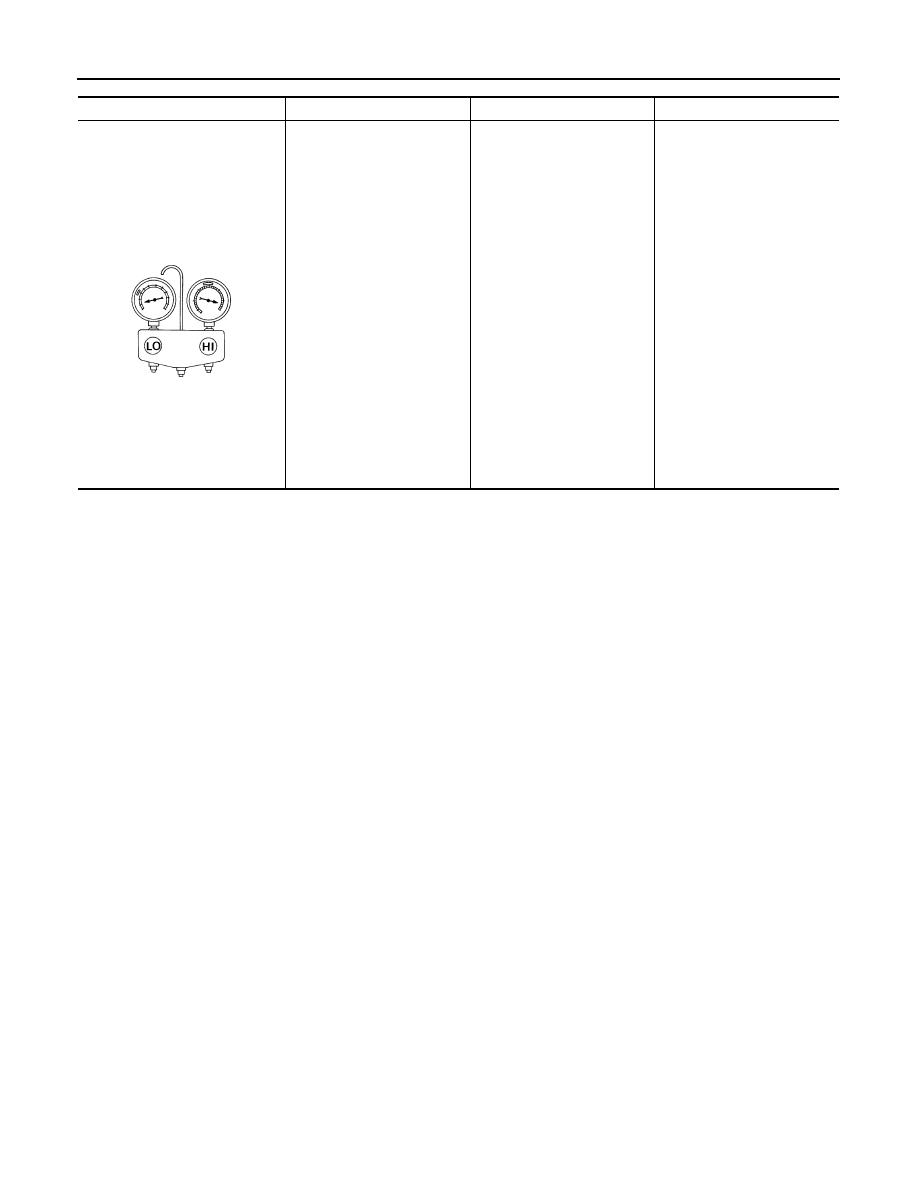

HA-168

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER (K9K)]

REFRIGERATION SYSTEM SYMPTOMS

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side becomes nega-
tive.

Liquid tank or front/rear side of
expansion valve’s pipe is frost-
ed or wet with dew.

High-pressure side is closed
and refrigerant does not flow.

↓

Expansion valve or liquid tank
is frosted.

Leave the system at rest until
no frost is present. Start it
again to check whether or not
the malfunction is caused by
water or foreign particles.
• If water is the cause, initially

cooling is okay. Then the wa-
ter freezes causing a block-
age. Drain water from
refrigerant or replace refrig-
erant.

• If due to foreign particles, re-

move expansion valve and
remove the particles with dry
and compressed air (not
shop air).

• If either of the above meth-

ods cannot correct the mal-
function, replace expansion
valve.

• Replace liquid tank.
• Check lubricant for contami-

nation.

AC362A

PRECAUTIONS

HA-169

< PRECAUTION >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001115389

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000001115393

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001115397
