DUCTS AND GRILLES
VTL-49
< ON-VEHICLE REPAIR >
[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
M
A
B
VTL
N
O
P
4.

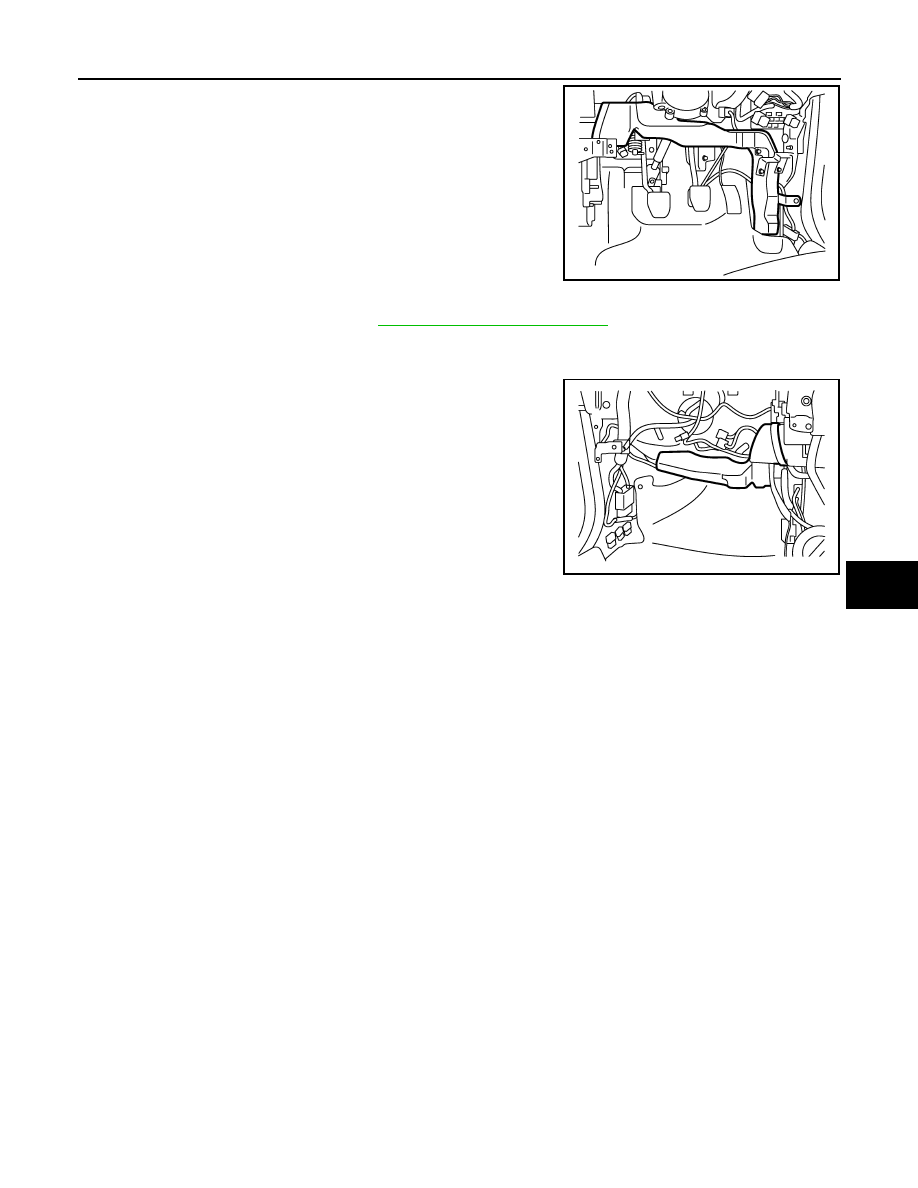

Remove lower fixing clip from driver side foot duct.
5.
Pull duct center side to release it from heater and cooling
assembly
6.
Release foot duct from floor duct (if equipped)
7.
Handle to remove foot duct.
Passenger Side
1.
Remove glove box assembly. Refer to
IP-12, "Removal and Installation"
2.
Remove lower IP finisher.
3.
Remove outer fixing screw from bracket.
4.
Release foot duct center side from heater and cooling assembly.
CAUTION:
Be careful not to damage upper fixing clip.
5.
Release foot duct from floor duct.
6.
Handle to remove foot duct.
INSTALLATION
Installation is basically the reverse of removal.
FLOOR DUCTS

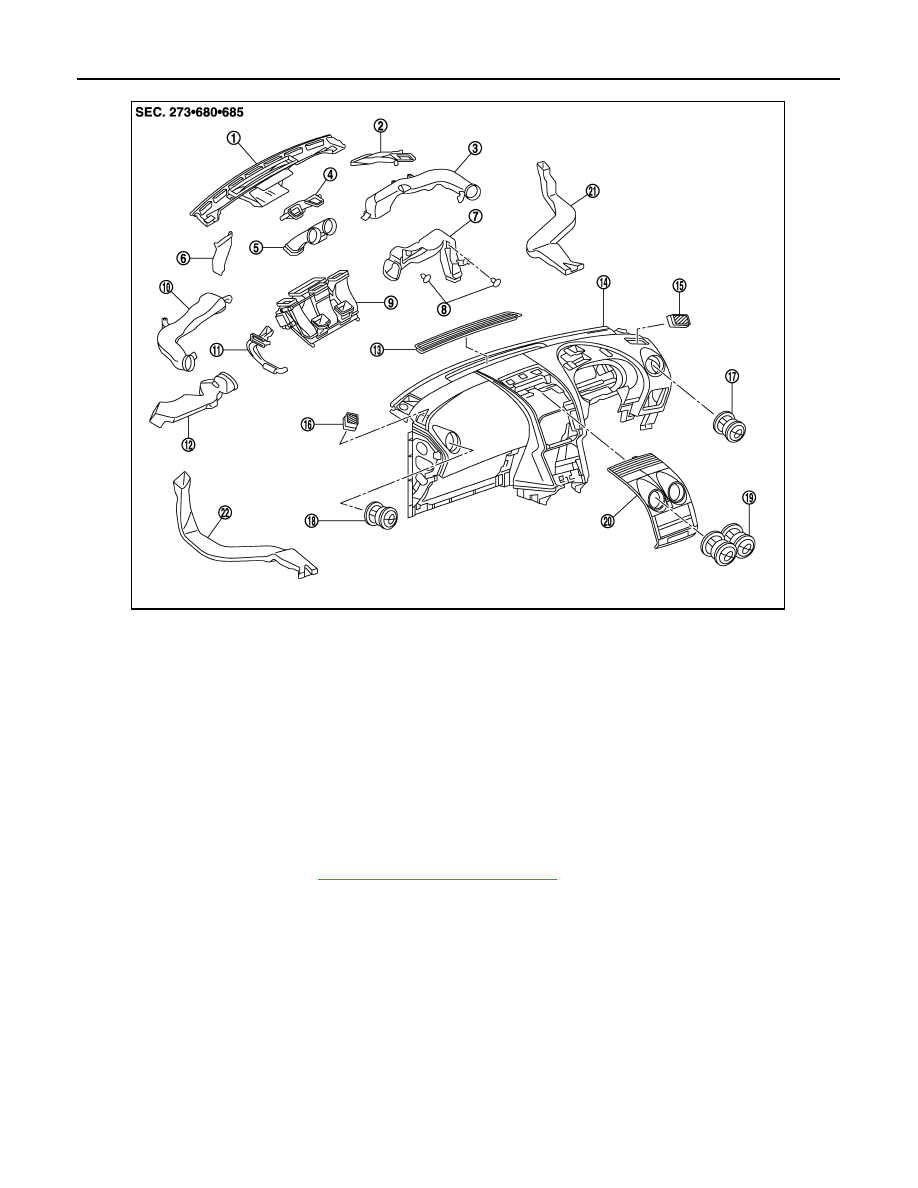

FLOOR DUCTS : Exploded View
INFOID:0000000001115925
E1IIA0031ZZ
E1IIA0036ZZ
