DUCTS AND GRILLES

VTL-45

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

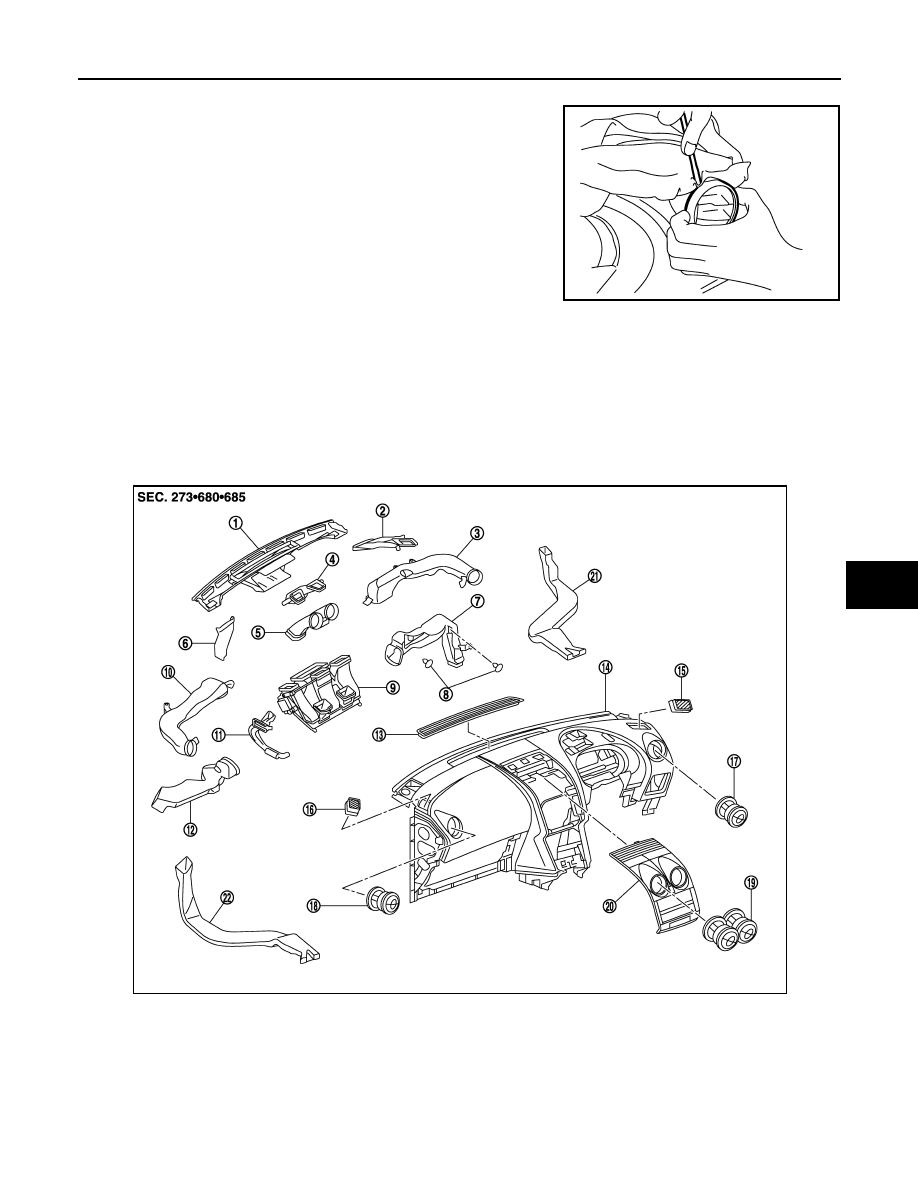

REMOVAL

Remove side ventilator grilles as shown.

CAUTION:

Use shop cloth and all other protection necessaries to avoid
damage.

INSTALLATION

Installation is basically the reverse order of removal.

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILA-
TOR DUCT

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILATOR
DUCT : Exploded View

INFOID:0000000001093732

E1IIA0026ZZ

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

E1IIA0023ZZ

VTL-46

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

DUCTS AND GRILLES

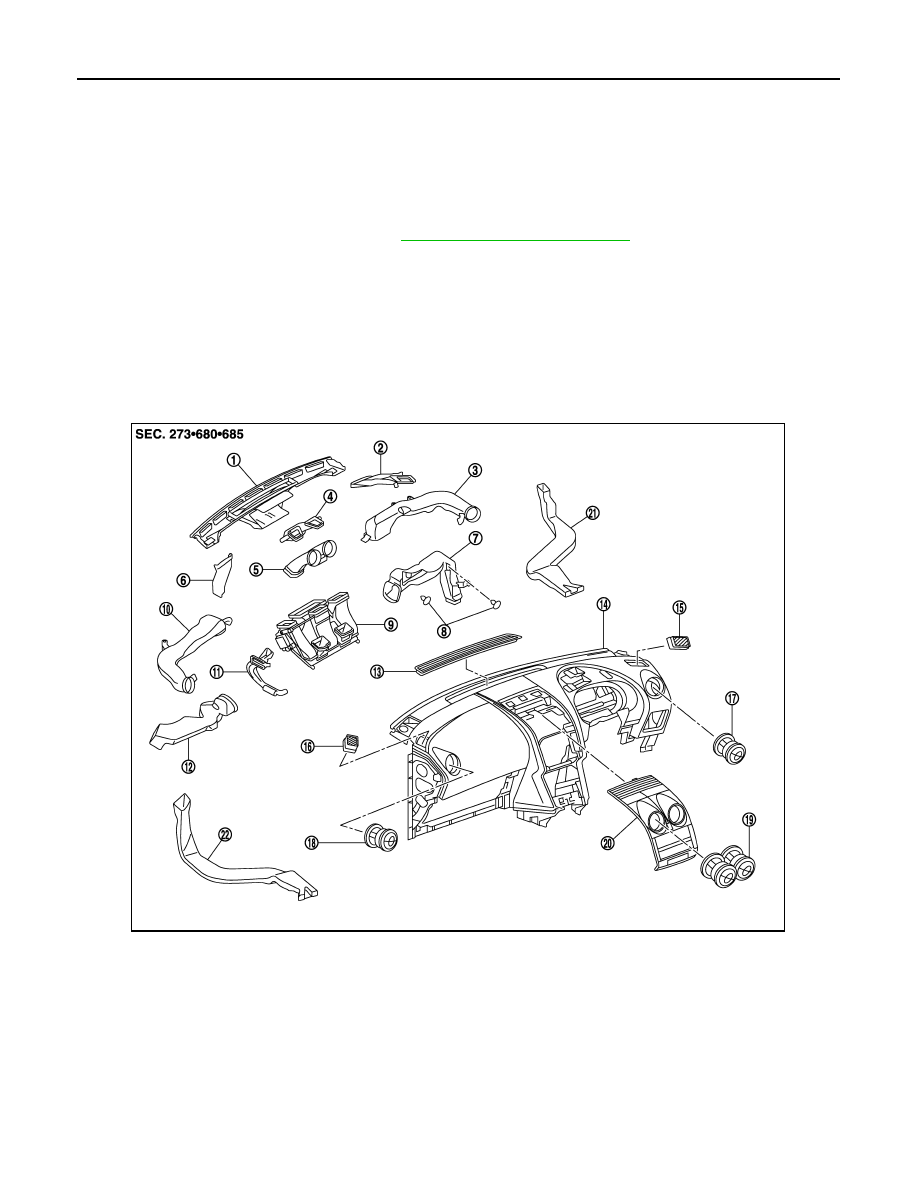

FRONT DEFROSTER NOZZLE, SIDE DEFROSTER NOZZLES AND VENTILATOR
DUCT : Removal and Installation

INFOID:0000000001093733

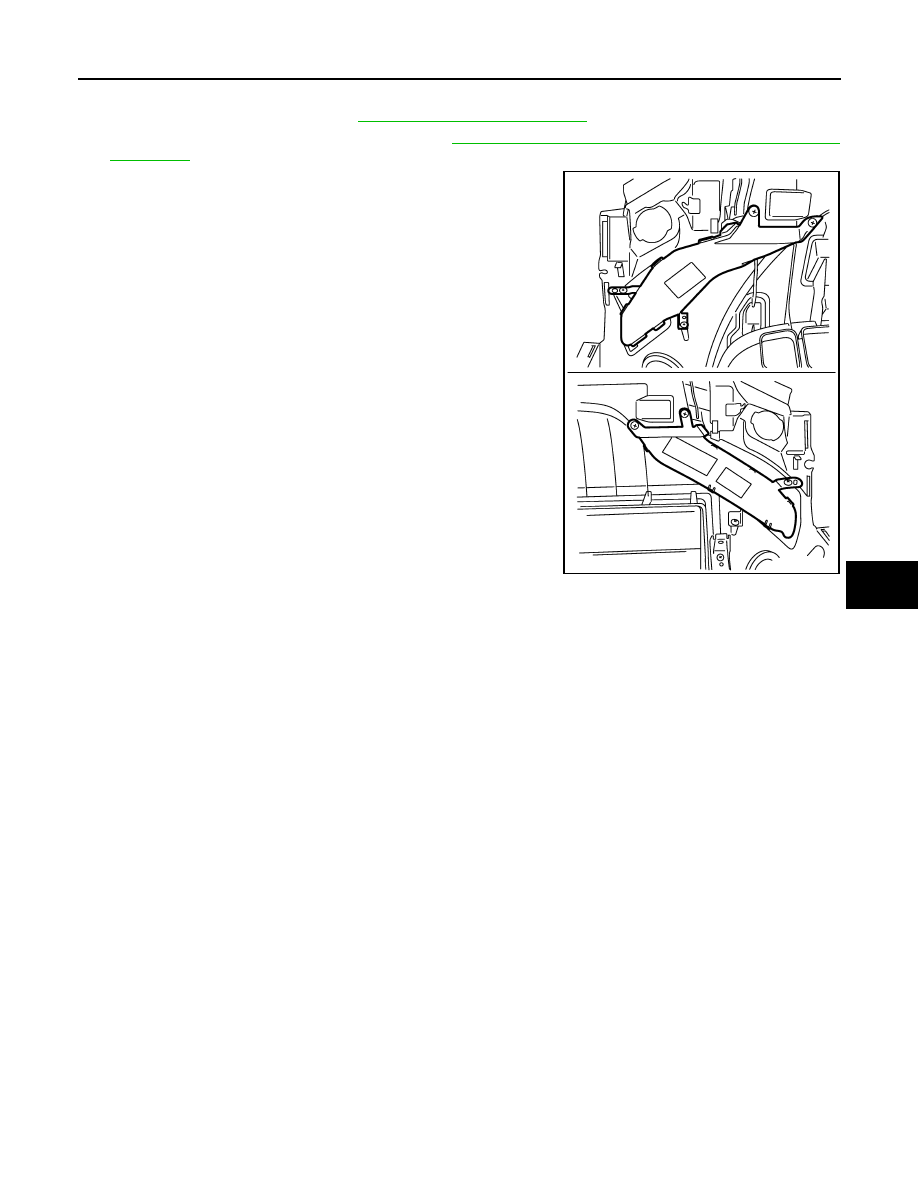

REMOVAL

1.

Remove instrument panel & pad. Refer to

IP-12, "Removal and Installation"

.

2.

Remove mounting screws.

3.

Remove clips, and then remove defroster nozzle, side defroster nozzle and ventilator duct.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER DUCTS

SIDE DEFROSTER DUCTS : Exploded View

INFOID:0000000001093734

SIDE DEFROSTER DUCTS : Removal and Installation

INFOID:0000000001093735

19. Center ventilation grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11. Glove box duct

12. Side foot duct - LH

13. Front defroster grille - center

14. Instrument panel

15. Side defroster grille - RH

16. Side defroster grille - LH

17. Side ventilation grille - RH

18. Side ventilation grille - LH

19. Center ventilation grille

20. Cluster lid C

21. Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ

DUCTS AND GRILLES

VTL-47

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REMOVAL

1.

Remove instrument panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove side ventilator ducts (RH/LH). Refer to

VTL-44, "SIDE VENTILATOR GRILLES : Removal and

Installation"

.

3.

Remove side defroster ducts (RH/LH) fixing screws.

4.

Pull to release from center defroster duct.

5.

Remove side defroster ducts.

INSTALLATION

Installation is basically the reverse order of removal.

FOOT DUCTS

FOOT DUCTS : Exploded View

INFOID:0000000001093742

E1IIA0028ZZ

VTL-48

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

DUCTS AND GRILLES

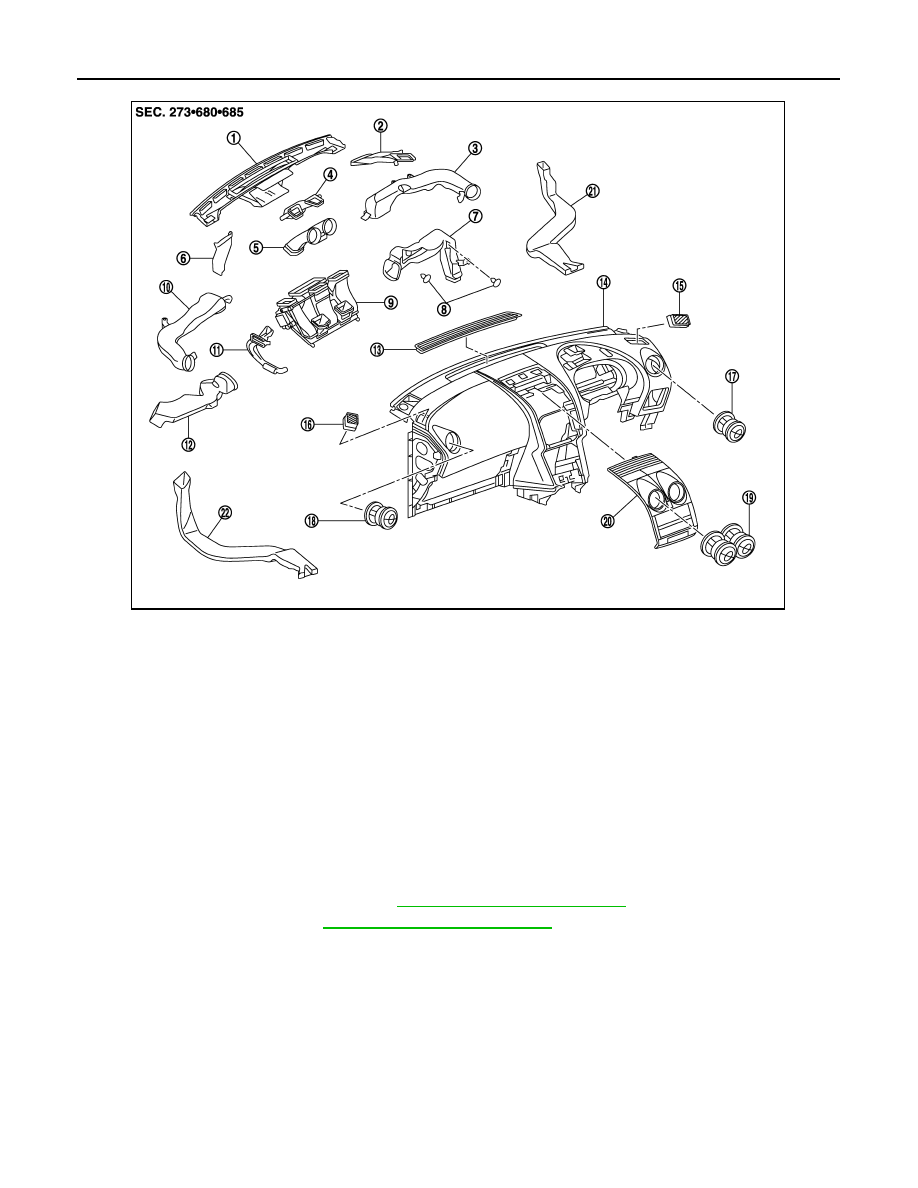

FOOT DUCTS : Removal and Installation

INFOID:0000000001093743

REMOVAL

Driver Side

1.

Remove driver side lower panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove side finisher. Refer to

IP-12, "Removal and Installation"

.

3.

Remove duct fixing bolt from lid and hood opener bracket.

1.

Center defroster duct

2.

Defroster duct - RH

3.

Side ventilator duct - RH

4.

Front upper ventilator duct

5.

Front ventilator duct

6.

Defroster duct - LH

7.

Side foot duct - RH

8.

Clip

9.

Air mix duct

10. Side ventilator duct - LH

11.

Glove box duct

12.

Side foot duct - LH

13. Front defroster grille - center

14.

Instrument panel

15.

Side defroster grille - RH

16. Side defroster grille - LH

17.

Side ventilation grille - RH

18.

Side ventilation grille - LH

19. Center ventilation grille

20.

Cluster lid C

21.

Floor duct - RH

22. Floor duct - LH

E1IIA0023ZZ
