REAR SEAT BELT

SB-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

CENTER SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000001109220

REMOVAL

1.

Remove seat belt retractor finisher.
• Release rear pawls from the roof.
• Release pawls from seat belt retractor.
• Slide down and pull backward.

2.

Remove upper back trim (LH/RH). Refer EI.

3.

Remove holder (RH/LH). Refer EI.

4.

Remove rear headlining.

CAUTION:

Use safety glove to avoid the damage of headlining.

5.

Remove center seat belt retractor.

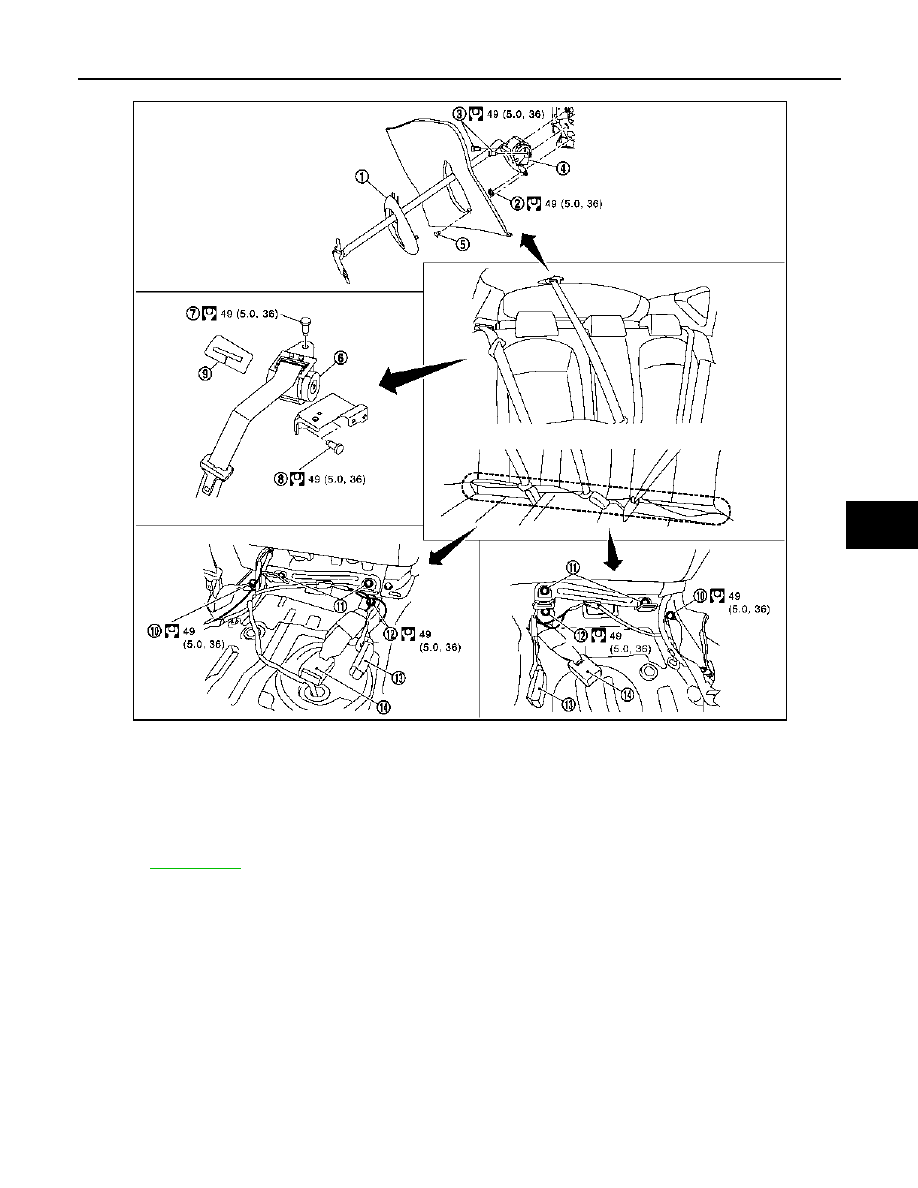

1.

Center seat belt retractor finisher

2.

Center seat belt retractor fixing nut

3.

Center seat belt retractor fixing bolts

4.

Center seat belt retractor

5.

Clip

6.

Side seat belt retractor

7.

Side seat belt retractor fixing bolt

8.

Side seat belt retractor bracket fixing
bolt

9.

Side seat belt retractor cover

10. Anchor bolt

11.

Latch fixing bolts

12. Seat belt buckle fixing bolt

13. Outer seat belt buckle

14. Center seat belt buckle

Refer to

GI-3, "Contents"

 for symbols in the figure.

E1HIA0002GB

SB-16

< ON-VEHICLE REPAIR >

REAR SEAT BELT

•  Remove fixing bolts and fixing nut.

INSTALLATION

Installation is basically the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000001093950

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

2.

Repeat step above as necessary to check the other seat belts.

SEAT BELT BUCKLE : Exploded View

INFOID:0000000001093951

REAR SEAT BELT

SB-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000001093952

REMOVAL

Remove the seat belt buckle.
• Remove the rear seat cushion. Refer to

SE-31, "Removal and Installation"

.

• Remove the center anchor fixing bolt.

INSTALLATION

Installation is basically in the reverse order of removal.

1.

Center seat belt retractor finisher

2.

Center seat belt retractor fixing nut

3.

Center seat belt retractor fixing bolts

4.

Center seat belt retractor

5.

Clip

6.

Side seat belt retractor

7.

Side seat belt retractor fixing bolt

8.

Side seat belt retractor bracket fixing
bolt

9.

Side seat belt retractor cover

10. Anchor bolt

11.

Latch fixing bolts

12. Seat belt buckle fixing bolt

13. Outer seat belt buckle

14. Center seat belt buckle

Refer to

GI-3, "Contents"

 for symbols in the figure.

E1HIA0002GB

SB-18

< ON-VEHICLE REPAIR >

LATCH SYSTEM FOR CHILDREN

LATCH SYSTEM FOR CHILDREN

Exploded View

INFOID:0000000001093953

Removal and Installation

INFOID:0000000001093954

REMOVAL

CAUTION:

Replace anchor bolts if they are deformed or worn out.
1.

Remove the rear seat cushion. Refer to

SE-31, "Removal and Installation"

.

2.

Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION

Install in the reverse order of removal.

1.

LATCH system

Refer to

GI-3, "Contents"

 for symbols in the figure.

E1HIA0003GB
