FRONT SEAT BELT

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

REMOVAL OF DRIVER SEAT BELT RETRACTOR

1.

Remove rear kicking plate. Refer to

INT-14, "Removal and Installation"

.

2.

Remove upper and lower center pillar garnish. Refer to

INT-14, "Removal and Installation"

.

3.

Remove lower anchor.
• Pull floor carpet.
• Disconnect front seat belt pre-tensionner connector.
• Remove pre-tensionner fixing bolt.
• Push lower anchor through center pillar garnish.

4.

Remove shoulder anchor.
• Remove anchor fixing bolt.

5.

Remove seat belt shoulder adjuster.
• Remove upper fixing bolt.
• Pull upward to release seat belt shoulder adjuster from center pillar.

6.

Remove seat belt retractor.
• Remove retractor fixing bolts.
• Disconnect retractor connector.
• Remove seat belt retractor.

REMOVAL OF PASSENGER SEAT BELT RETRACTOR

1.

Remove rear kicking plate. Refer to

INT-14, "Removal and Installation"

.

2.

Remove upper and lower center pillar garnish. Refer to

INT-14, "Removal and Installation"

.

3.

Remove lower anchor.
• Pull floor carpet.
• Remove anchor plate finisher.
• Remove anchor plate fixing bolt.

4.

Remove shoulder anchor.
• Remove anchor fixing bolt.

5.

Remove seat belt shoulder adjuster.
• Remove upper fixing bolt.
• Pull upward to release seat belt shoulder adjuster from center pillar.

6.

Remove seat belt retractor.
• Remove retractor fixing bolts.
• Disconnect retractor connector.
• Remove seat belt retractor.

CAUTION:

• For installing/removing seat belt pre-tensioner connector, insert thin screwdriver wrapped in tape

into notch, lift lock and remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000001093944

PHIA0953J

SB-8

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime
should sound for about six seconds.

b.

Fasten driver seat belt. The seat belt warning lamp should turn off and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-III and air bag warning
lamp. Refer to

SRC-10, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Repeat steps above as necessary to check the other seat belts.

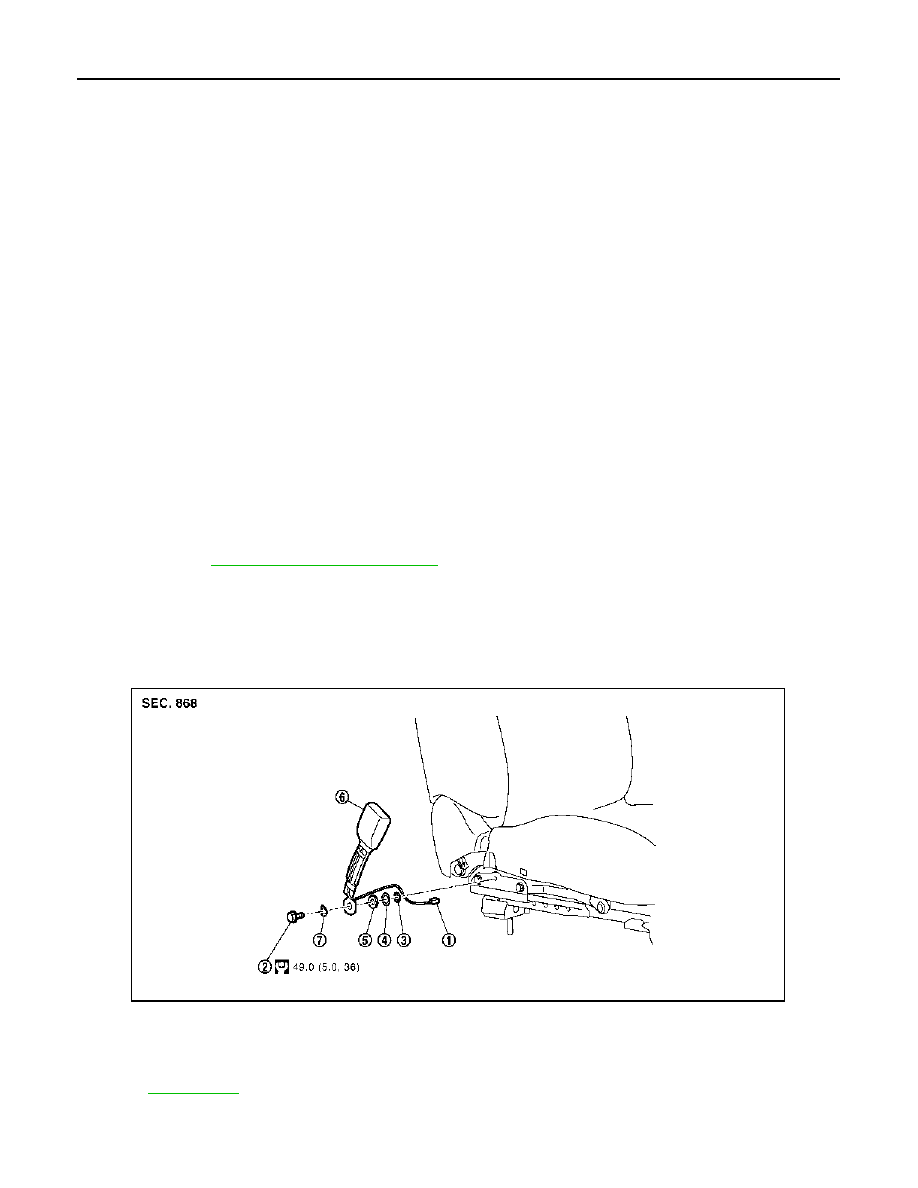

SEAT BELT BUCKLE : Exploded View

INFOID:0000000001093945

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000001093946

1.

Seat belt buckle harness connector

2.

Anchor bolt

3.

Retaining washer

4.

Washer

5.

Spacer

6.

Seat belt buckle

7.

Wave washer

Refer to

GI-3, "Contents"

 for symbols in the figure.

JMHIA0029GB

FRONT SEAT BELT

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REMOVAL

Remove the seat belt buckle.
• Remove the front seat from vehicle. Refer to

SE-24, "Removal and Installation"

.

• Remove front seat inner finisher. Refer to

SE-25, "Disassembly and Assembly"

.

• Disconnect the seat belt buckle harness connector and harness clamp.
• Remove the seat belt buckle anchor fixing bolt.

INSTALLATION

Installation is basically the reverse order of removal.

SB-10

< ON-VEHICLE REPAIR >

REAR SEAT BELT

REAR SEAT BELT

OUTER SEAT BELT RETRACTOR

OUTER SEAT BELT RETRACTOR : Inspection

INFOID:0000000001093947

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime
should sound for about six seconds.

b.

Fasten driver seat belt. The seat belt warning lamp should turn off and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis with CONSULT-III and air bag warning lamp.
Refer to

SRC-10, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Ensure that webbing returns smoothly and completely into the retractor. If
the seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Because dirt
build-up in the loops of that upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

5.

Repeat steps above as necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check
