FRONT SEAT BELT

SB-3

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000001093941

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags are deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1.

Check the seat belt warning lamp/chime for proper operation as follows:

a.

Turn ignition switch ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime
should sound for about six seconds.

b.

Fasten driver seat belt. The seat belt warning lamp should turn off and the chime (if sounding) should
stop.

2.

If the air bag warning lamp is blinking, conduct self-diagnosis with CONSULT-III and air bag warning lamp.
Refer to

SRC-10, "Diagnosis Description"

.

3.

Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

4.

Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Ensure guide swivels
freely and that webbing lays flat and does not bind in guide. Ensure height adjuster operates properly and
holds securely.

5.

Check retractor operation:

a.

Fully extend the seat belt webbing and check for twists, tears or other damage.

b.

Allow the seat belt to retract. Ensure that webbing returns smoothly and completely into the retractor. If
the seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Because dirt
build-up in the loops of the upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

Inspect the front seat belt through-anchor

1.

Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2.

Fix the seat belt at the center pillar webbing opening with a clip or other device.

3.

Pass a thin wire through the through-anchor webbing opening. Hold both ends of the wire and pull it
tauntly while moving it up and down several times along the webbing opening surface to remove dirt
stuck there.

4.

Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean
cloth.

5.

Apply tape at the point where the webbing contacts the through-anchor webbing opening.
NOTE:
Apply the tape so that there is no looseness or wrinkling.

SB-4

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

6.

Remove the clip fixing the seat belt and check that the webbing returns smoothly.

6.

Repeat steps above as necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

1.

Pull out the entire length of seat belt from retractor until a click is heard.

2.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.

3.

Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If
NG, replace the retractor assembly.

4.

Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a
large, empty parking lot). Road surface must be paved and dry. DO NOT perform the following test on
wet or gravel roads or on public streets and highways. This could result in an accident and serious
personal injury. The driver and passenger must be prepared to brace themselves in the event that the
retractor does not lock.

1.

Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2.

Proceed to the designated safe area.

3.

Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop
and the driver and passenger must be prepared to brace themselves in the event that the retractor does
not lock, apply brakes firmly and make a very hard stop.

During stop, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, per-
form the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1.

Remove the seat belt retractor.
Remove the front seat belt assembly, refer to

SB-5, "SEAT BELT RETRACTOR : Exploded View"

.

2.

Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without
twisting the retractor assembly as shown in the illustration.

FRONT SEAT BELT

SB-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

A : The webbing can be pulled out in case the retractor is tilted
15

°

 degrees or less.

B : The webbing cannot be pulled out in case the retractor is
tilted 27

°

 degrees or more.

• A and B show tilting angles.
•

 : Vehicle front.

Replace the seat belt assembly if it does not operate normally.

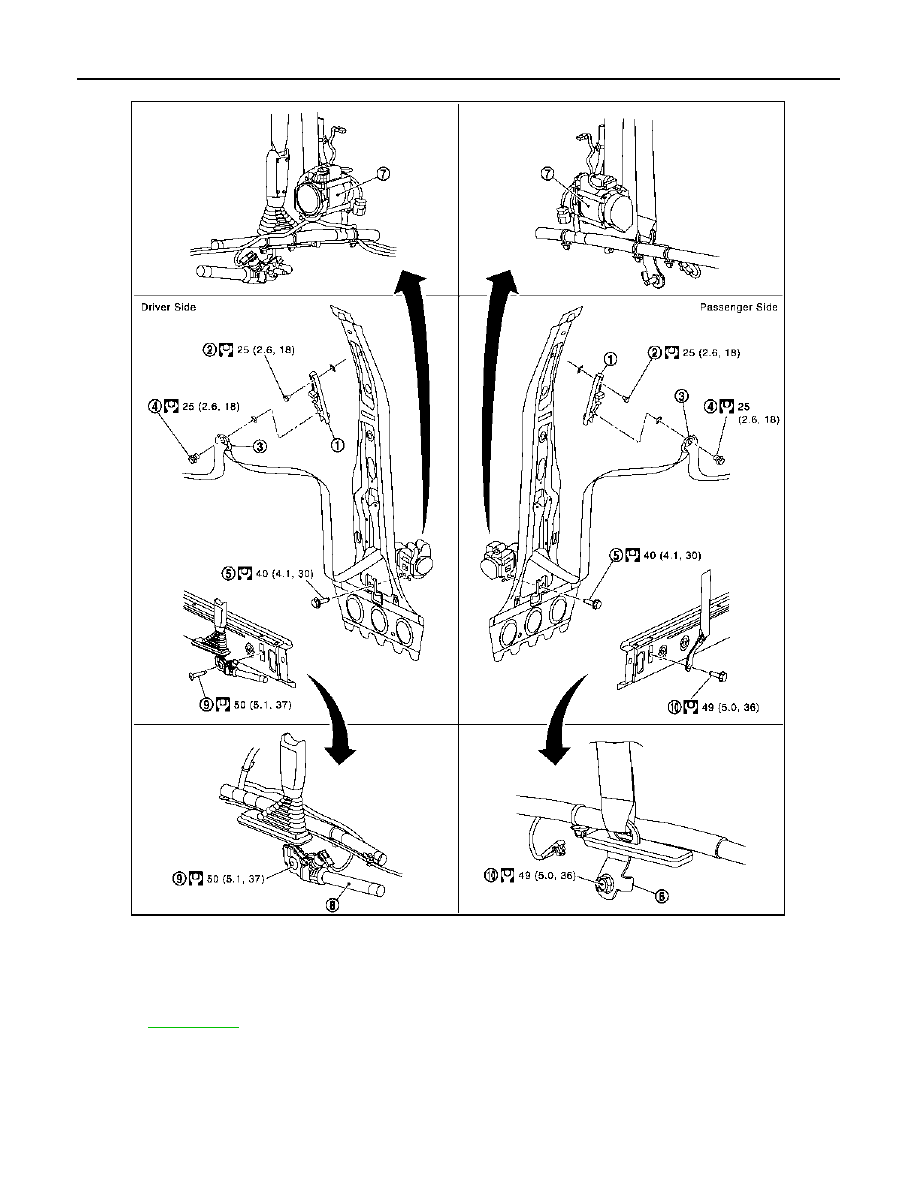

SEAT BELT RETRACTOR : Exploded View

INFOID:0000000001093942

PHIA0954J

SB-6

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000001093943

REMOVAL

CAUTION:

1.

Seat belt shoulder adjuster

2.

Seat belt shoulder adjuster fixing bolt 3.

Shoulder anchor

4.

Shoulder anchor fixing bolt

5.

Seat belt retractor fixing bolt

6.

Anchor plate

7.

Seat belt retractor

8.

Pre-tensionner

9.

Pre-tensionner fixing bolt

10. Anchor plate fixing bolt

Refer to

GI-3, "Contents"

 for symbols in the figure.
