Nissan Qashqai (2007-2010). Manual - part 740

BRC-158

< ECU DIAGNOSIS >

[ESP/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

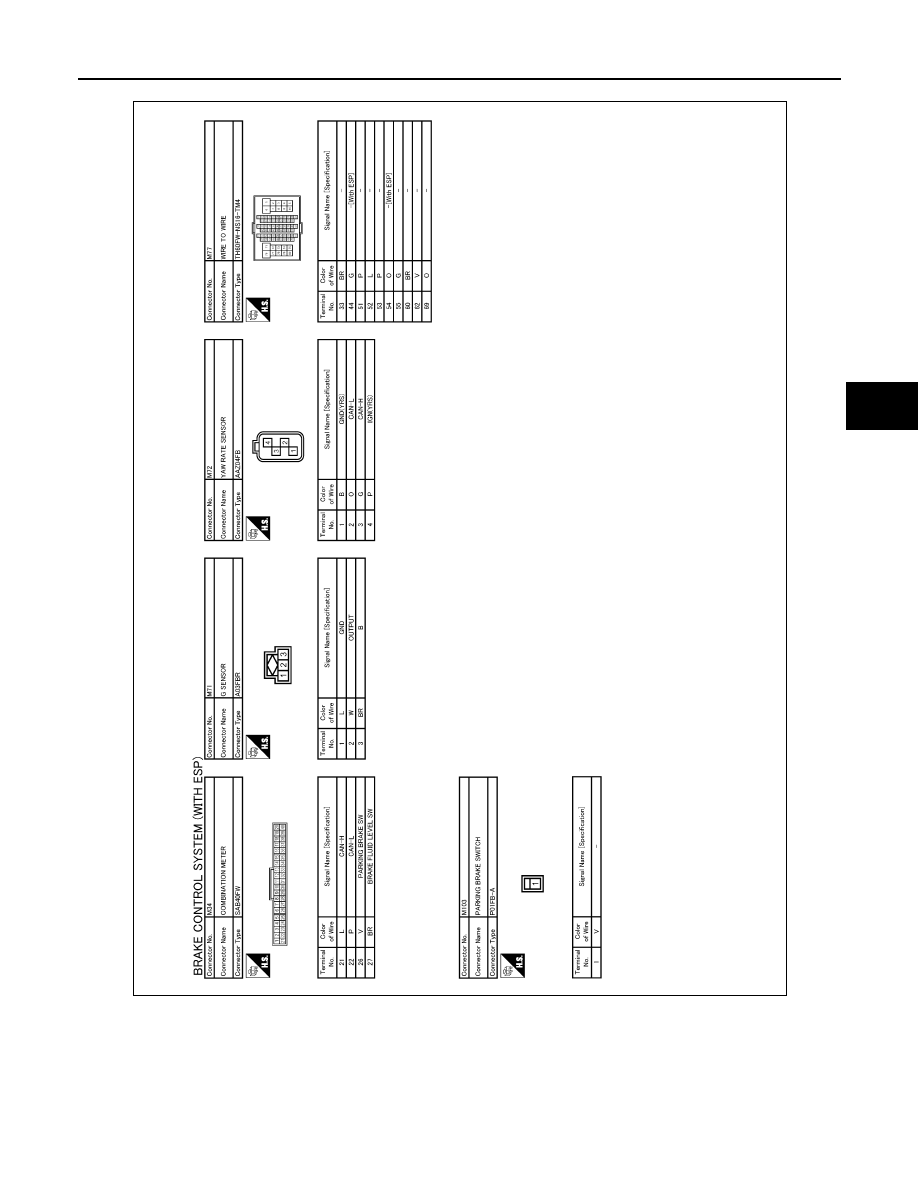

JCFWA0029GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-159

< ECU DIAGNOSIS >

[ESP/TCS/ABS]

BRC

Fail-Safe

INFOID:0000000000924918

ABS, EBD SYSTEM

In case of electrical malfunctions with the ABS, ABS warning lamp, ESP OFF indicator lamp, SLIP indicator
lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
ESP OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the ESP/TCS/ABS become one
of the following conditions of the fail-safe function.

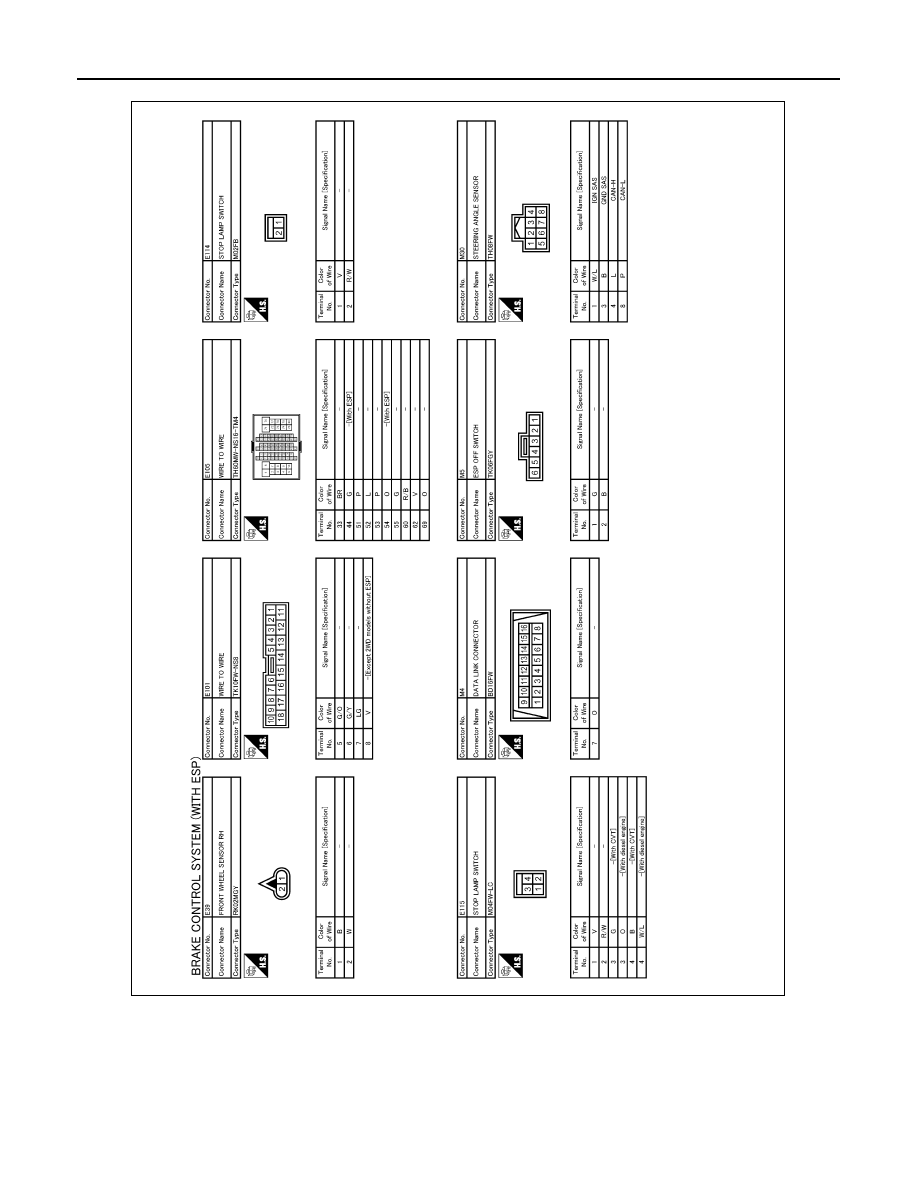

JCFWA0030GB

BRC-160

< ECU DIAGNOSIS >

[ESP/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

• For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of vehi-

cles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

• For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as the

condition of vehicles without TCS/ABS, EBD system.

ESP/TCS SYSTEM

In case of malfunction in the ESP/TCS/ABS system, ESP OFF indicator lamp, SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without ESP/TCS control.

CAUTION:

If the Fail-Safe function is activated, then perform self-diagnosis for ESP/TCS/ABS control system.

DTC No. Index

INFOID:0000000000924919

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-100, "Description"

C1102

RR LH SENSOR-1
