BRC-66

< PREPARATION >

[ABS]

PREPARATION

PREPARATION

PREPARATION

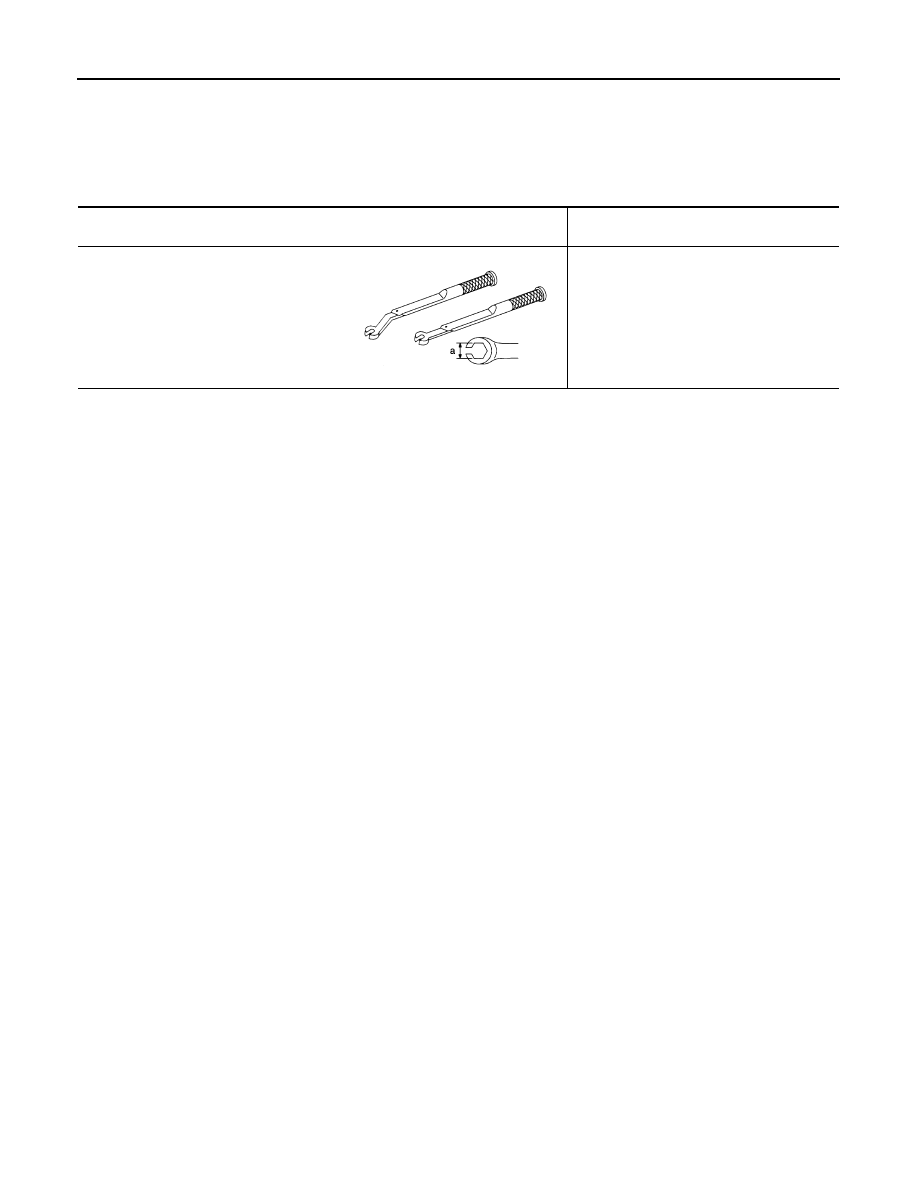

Special Service Tool

INFOID:0000000000925087

Tool number
Tool name

Description

GG94310000
Flare nut torque wrench
a: 10 mm (0.39 in)/ 12 mm (0.47 in)

Installing each brake piping

S-NT406

WHEEL SENSOR

BRC-67

< ON-VEHICLE REPAIR >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ON-VEHICLE REPAIR

WHEEL SENSOR

FRONT WHEEL SENSOR

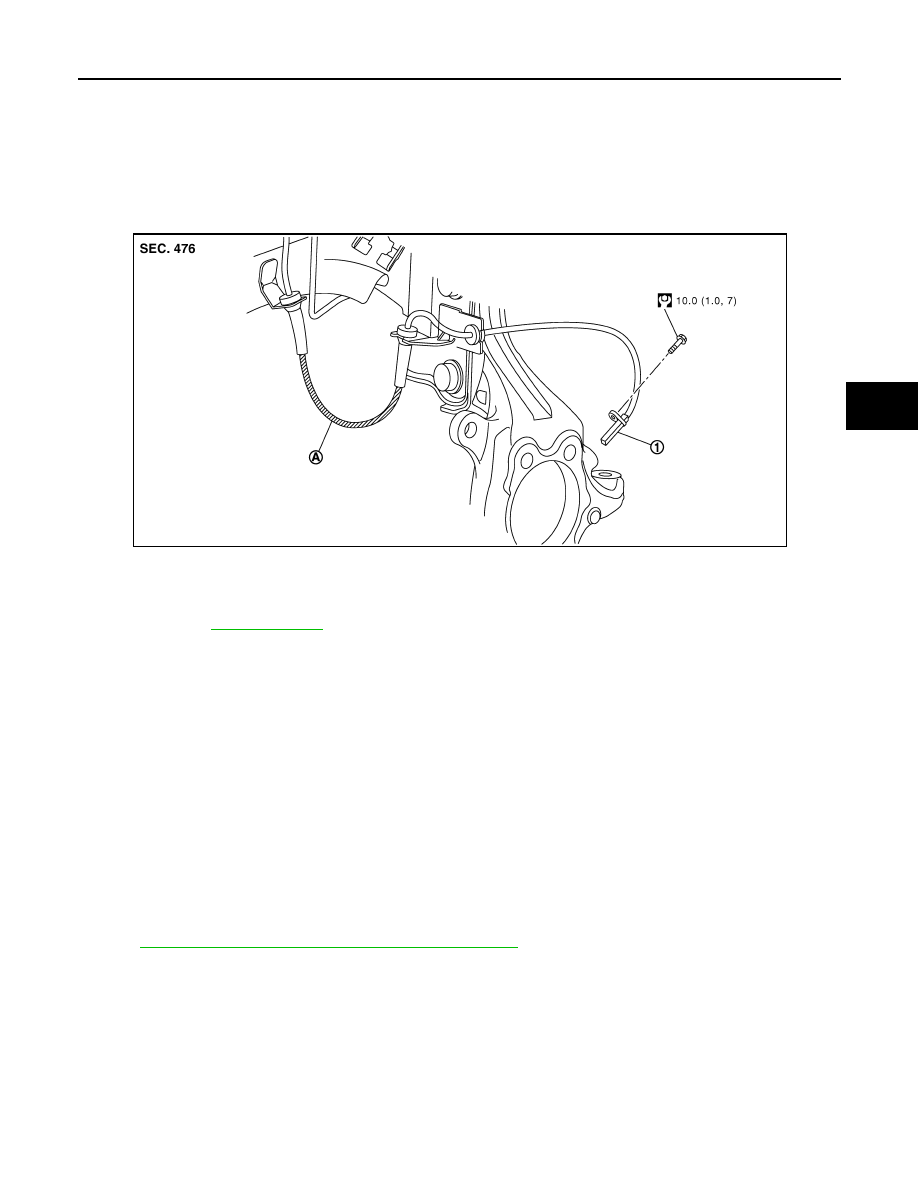

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000001115319

NOTE:
The above figure (front side) shows left side. Right side is the mirror image.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000001115320

REMOVAL

Pay attention to the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

on sensor harness.

• Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

• When you see the harness of the wheel sensor from the front side of the vehicle ensure that the

white lines (A) are not twisted.

INSTALLATION

Pay attention to the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-67, "FRONT WHEEL SENSOR : Exploded View"

.

• When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of the

wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

REAR WHEEL SENSOR

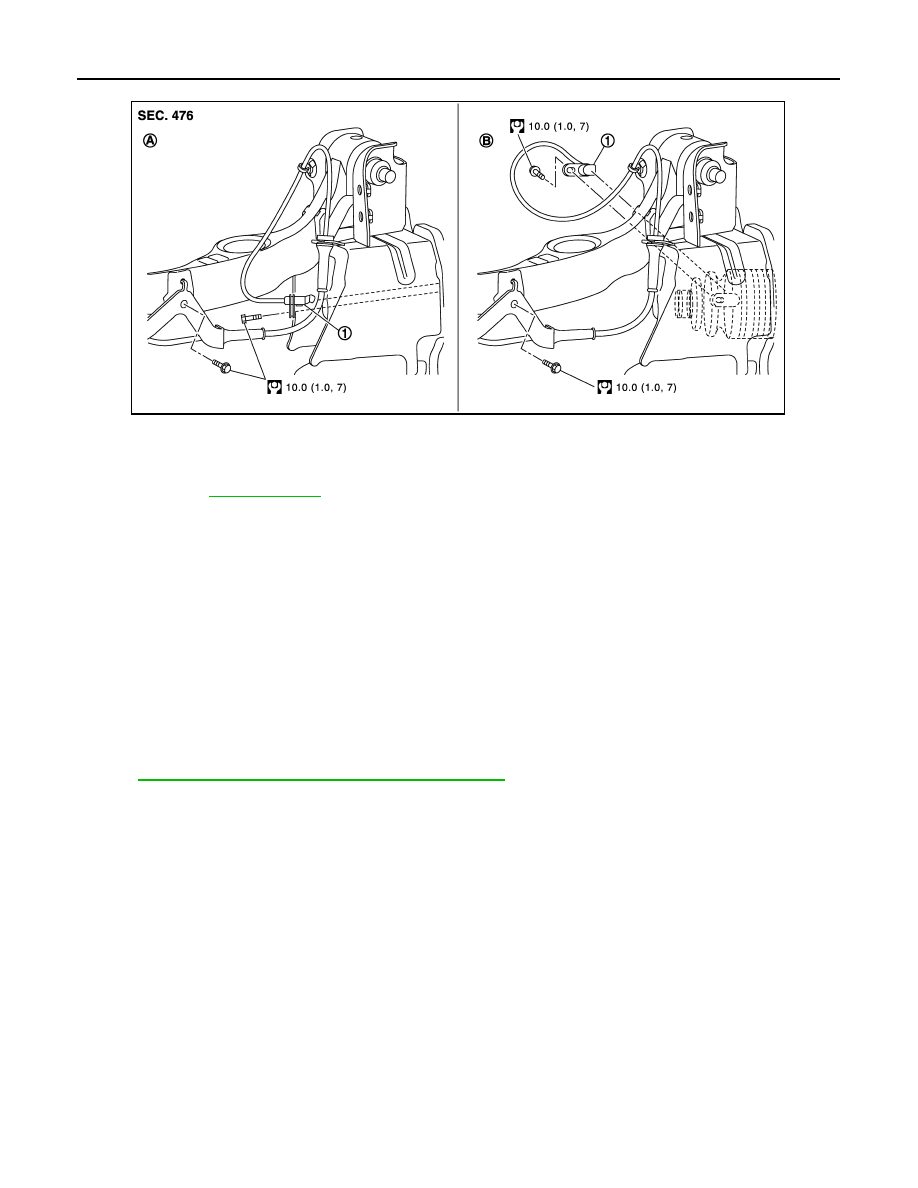

REAR WHEEL SENSOR : Exploded View

INFOID:0000000001115321

1.

Front LH wheel sensor

A.

White line (slant line)

Refer to GI section

GI-4, "Components"

 for symbols in the figure.

JSFIA0039GB

BRC-68

< ON-VEHICLE REPAIR >

[ABS]

WHEEL SENSOR

NOTE:
The above figure (front side) shows left side. Right side is the mirror image.

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000001115322

REMOVAL

Pay attention to the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

on sensor harness.

• Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Pay attention to the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-67, "REAR WHEEL SENSOR : Exploded View"

.

• When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of the

wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

1.

Rear LH wheel sensor

A.

2WD models

B.

4WD models

Refer to GI section

GI-4, "Components"

 for symbols in the figure.

JSFIA0040GB

SENSOR ROTOR

BRC-69

< ON-VEHICLE REPAIR >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Exploded View

INFOID:0000000001115323

Refer to

FAX-9, "Exploded View"

 (2WD models),

FAX-49, "Exploded View"

 (4WD models).

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000001115324

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with wheel hub and bearing assem-
bly. Refer to

FAX-9, "Removal and Installation"

 (2WD models),

FAX-49, "Removal and Installation"

 (4WD mod-

els).

INSTALLATION

Sensor rotor cannot be disassembled. Installation the sensor rotor together with wheel hub and bearing
assembly. Refer to

FAX-9, "Removal and Installation"

 (2WD models),

FAX-49, "Removal and Installation"

(4WD models).

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Exploded View

INFOID:0000000001115325

Refer to

RAX-4, "Exploded View"

 (2WD models),

RAX-13, "Exploded View"

 (4WD models).

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000001115326

2WD MODELS

Removal

Sensor rotor cannot be disassembled. Remove the sensor rotor together with wheel hub and bearing assem-
bly. Refer to

RAX-4, "Removal and Installation"

.

Installation

Sensor rotor cannot be disassembled. Installation the sensor rotor together with wheel hub and bearing
assembly. Refer to

RAX-4, "Removal and Installation"

.

4WD MODELS

For removal and installation of sensor rotor, refer to

RAX-14, "Disassembly and Assembly"

.
