PB-4

< ON-VEHICLE MAINTENANCE >

PARKING BRAKE SHOE

PARKING BRAKE SHOE

Inspection

INFOID:0000000000925853

Rotate the disc rotor and check for any drag.

PARKING BRAKE CONTROL

PB-5

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ON-VEHICLE REPAIR

PARKING BRAKE CONTROL

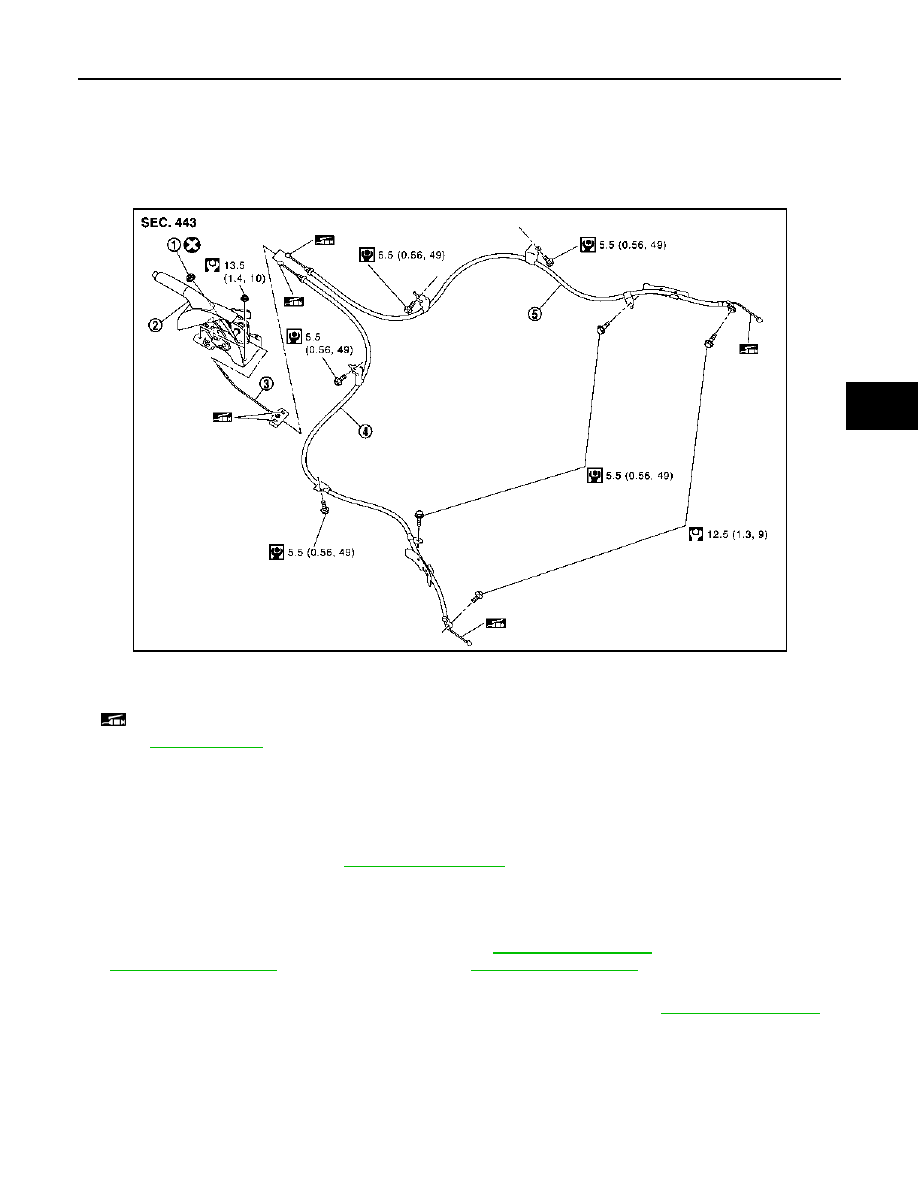

Exploded View

INFOID:0000000000925857

Removal and Installation

INFOID:0000000000925858

REMOVAL

1.

Remove rear tires.

2.

Remove center console. Refer to

IP-18, "Exploded View"

.

3.

Disconnect parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove device assembly.

6.

Remove the heat insulator and center muffler. Refer to

EX-5, "Exploded View"

 (HR16DE engine models),

EX-10, "Exploded View"

 (MR20DE engine models),

EX-15, "Exploded View"

 (K9K engine models).

7.

Separate front cable from rear cable, and remove front cable.

8.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-7, "Exploded View"

.

9.

Remove rear cable mounting bolts pull out rear cable from vehicle.

INSTALLATION

Install in the reverse order of the removal.

Adjustment

INFOID:0000000000925859

1.

Adjusting nut

2.

Device assembly

3.

Front cable

4.

Rear cable (LH)

5.

Rear cable (RH)

 : Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0012GB

PB-6

< ON-VEHICLE REPAIR >

PARKING BRAKE CONTROL

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-2, "Inspection and Adjustment"

.

PARKING BRAKE SHOE

PB-7

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SHOE

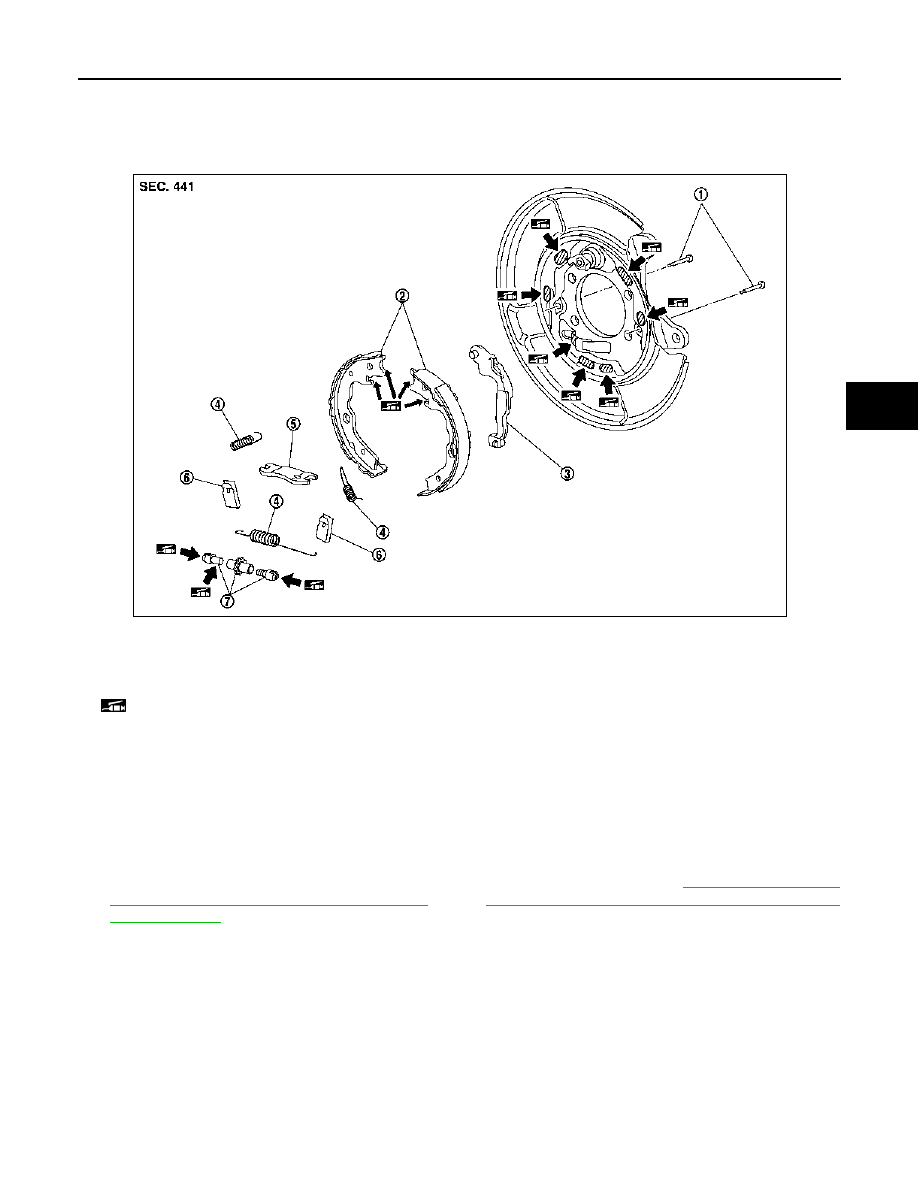

Exploded View

INFOID:0000000000925860

Removal and Installation

INFOID:0000000000925861

REMOVAL

WARNING:

Clean any dust from the parking brake shoes and brake plates with a vacuum dust collector. Never
blow with compressed air.

1.

Remove rear tires.

2.

Remove disc rotor with parking brake completely in the released position. Refer to

BR-43, "BRAKE CALI-

PER ASSEMBLY : Removal and Installation"

 (LHD),

BR-87, "BRAKE CALIPER ASSEMBLY : Removal

and Installation"

 (RHD).

CAUTION:

• Put matching marks on the disc rotor and the wheel hub and bearing assembly when reusing the

disc rotor.

• Never drop disc rotor.

3.

If disc rotor cannot be removed, remove as follows:

a.

Fix the disc rotor with wheel nuts and remove the adjusting hole plug.

1.

Anti-rattle pin

2.

Parking brake shoe

3.

Toggle lever

4.

Return spring

5.

Brake strut

6.

Spring

7.

Adjuster

: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.

JPFIB0019ZZ
