DRIVE PINION

DLN-93

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

7.

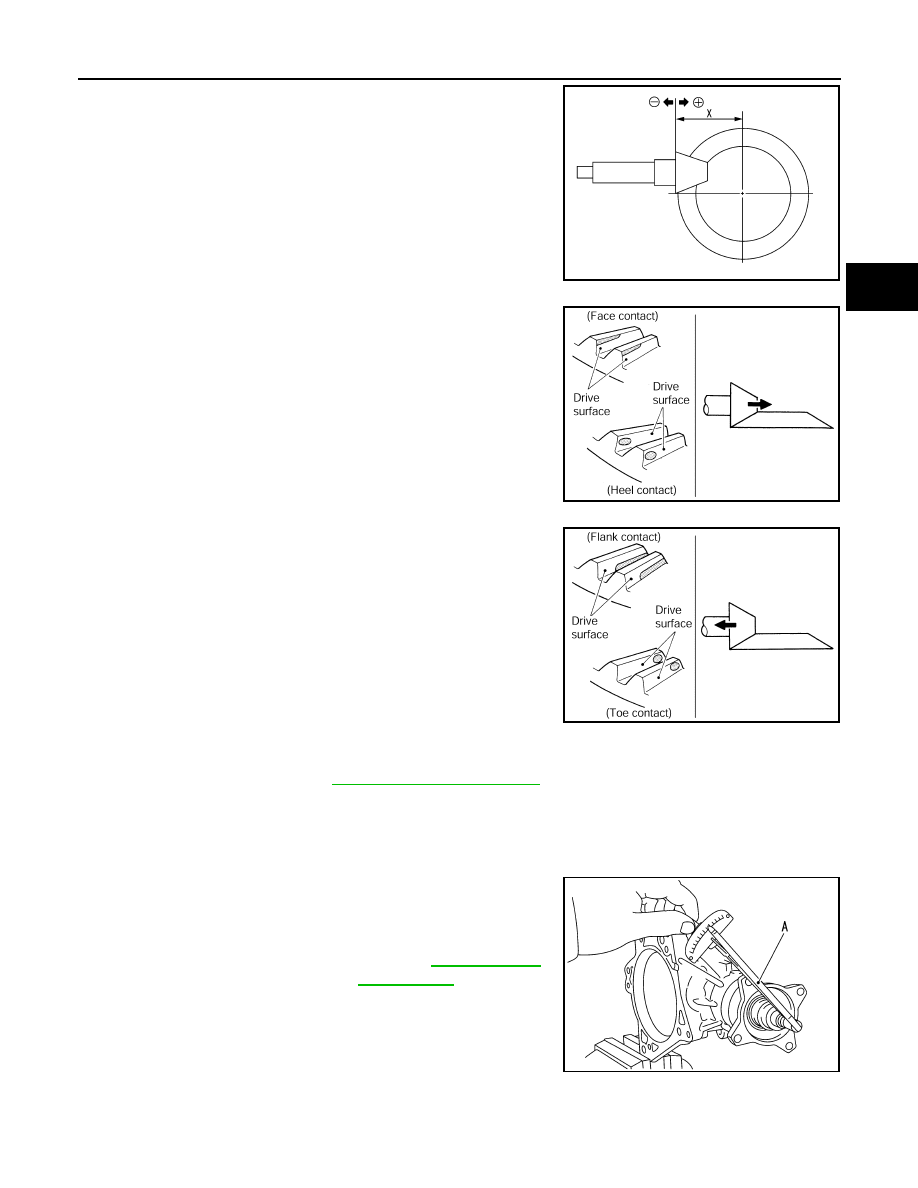

Follow the procedure below to adjust pinion height (dimension
X) if tooth contact is improper.

CAUTION:

If no adjusting shim with the calculated value is available,
select the thicker and closest one.

• Thicken the drive pinion adjusting shim to move the drive pin-

ion closer to the ring gear in case of face contact or heel con-
tact.

CAUTION:

Only one adjusting shim can be selected.

• Thin the drive pinion adjusting shim to move the drive pinion

farther from the ring gear in case of flank contact or toe con-
tact.

CAUTION:

Only one adjusting shim can be selected.

8.

Assemble the plug to the transfer case.

CAUTION:

• Remove old gasket on mounting surface, then remove

any moisture, oil, and foreign material on the application
and mounting surfaces.

• Apply liquid gasket to the thread, and tighten to the speci-

fied torque when installing plug.

DRIVE PINION BEARING PRELOAD

1.

Remove adapter case. Refer to

DLN-64, "CVT : Disassembly"

.

2.

Remove ring gear shaft assembly from the transfer case.

3.

Rotate the companion flange back and forth from 2 to 3 times to check for unusual noise, binding, sticking,
and so on.

4.

Rotate the companion flange at least 20 times to check for smooth operation of the bearing.

5.

Measure the drive pinion bearing preload with a preload gauge
(A) (SST: ST3127S000).

CAUTION:

Each rotational part should rotate smoothly with the speci-
fied gear oil.
• Disassemble the drive pinion assembly to check and adjust

each part if outside the standard.

TOTAL PRELOAD

1.

Measure drive pinion bearing preload (P

1

). Refer to “DRIVE PINION BEARING PRELOAD”.

SDIA3158J

PDIA0440E

PDIA0441E

Standard

Drive pinion bearing preload

: Refer to

DLN-107, "Pre-

load Torque"

.

SDIA3072J

DLN-94

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

DRIVE PINION

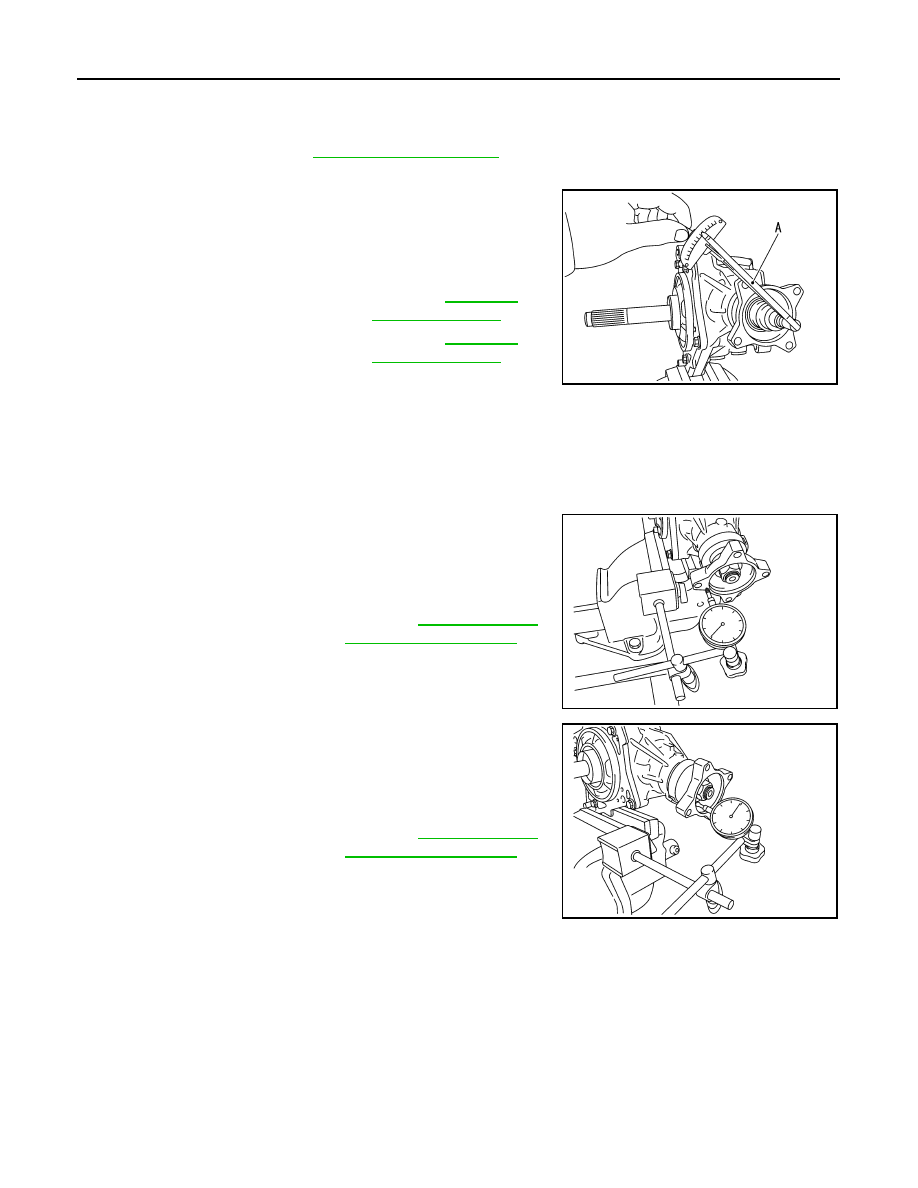

CAUTION:

Check that the drive pinion bearing preload is within the standard.

2.

Assemble the ring gear shaft assembly to the transfer case.

3.

Install adapter case. Refer to

DLN-65, "CVT : Assembly"

.

4.

Rotate the companion flange at least 20 times to check for smooth operation of the bearing.

5.

Measure the total preload with a preload gauge (A) (SST:
ST3127S000).

CAUTION:

• Each rotational part should rotate smoothly with the spec-

ified gear oil.

• Disassemble the transfer assembly to check and adjust each part if outside the standard. Mea-

sure it with the adapter case oil seals removed when measuring total preload after disassembly.
Then install adapter case oil seals.

COMPANION FLANGE RUNOUT

1.

Fit a dial indicator onto the companion flange face (inner side of
the propeller shaft bolt holes).

2.

Rotate the companion flange to check for runout.

3.

Fit a test indicator to the inner side of the companion flange
(socket diameter).

4.

Rotate the companion flange to check for runout.

5.

Follow the procedure below to adjust if runout value is outside
the repair limit.

CAUTION:

Replace collapsible spacer to check and adjust each part
when companion flange is adjusted or replaced.

a.

Check for runout while changing the phase between companion flange and drive pinion in 90

°

 steps. Then

search for the minimum point.

b.

Replace companion flange if runout value is still outside the limit after the phase has been changed.

c.

Adjust assembly status of the drive pinion bearings and drive pinion, or replace drive pinion bearings if
runout is outside the standard after the companion flange is replaced.

ADJUSTING SHIM SELECTION

Measuring Point

Standard

Total preload

All oil seals are installed

: Refer to

DLN-107,

"Preload Torque"

.

Without adapter case oil seal

: Refer to

DLN-107,

"Preload Torque"

.

SDIA3073J

Limit

Companion flange runout

: Refer to

DLN-107, "Com-

panion Flange Runout"

.

SDIA3074J

Limit

Companion flange runout

: Refer to

DLN-107, "Com-

panion Flange Runout"

.

SDIA3075J

DRIVE PINION

DLN-95

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

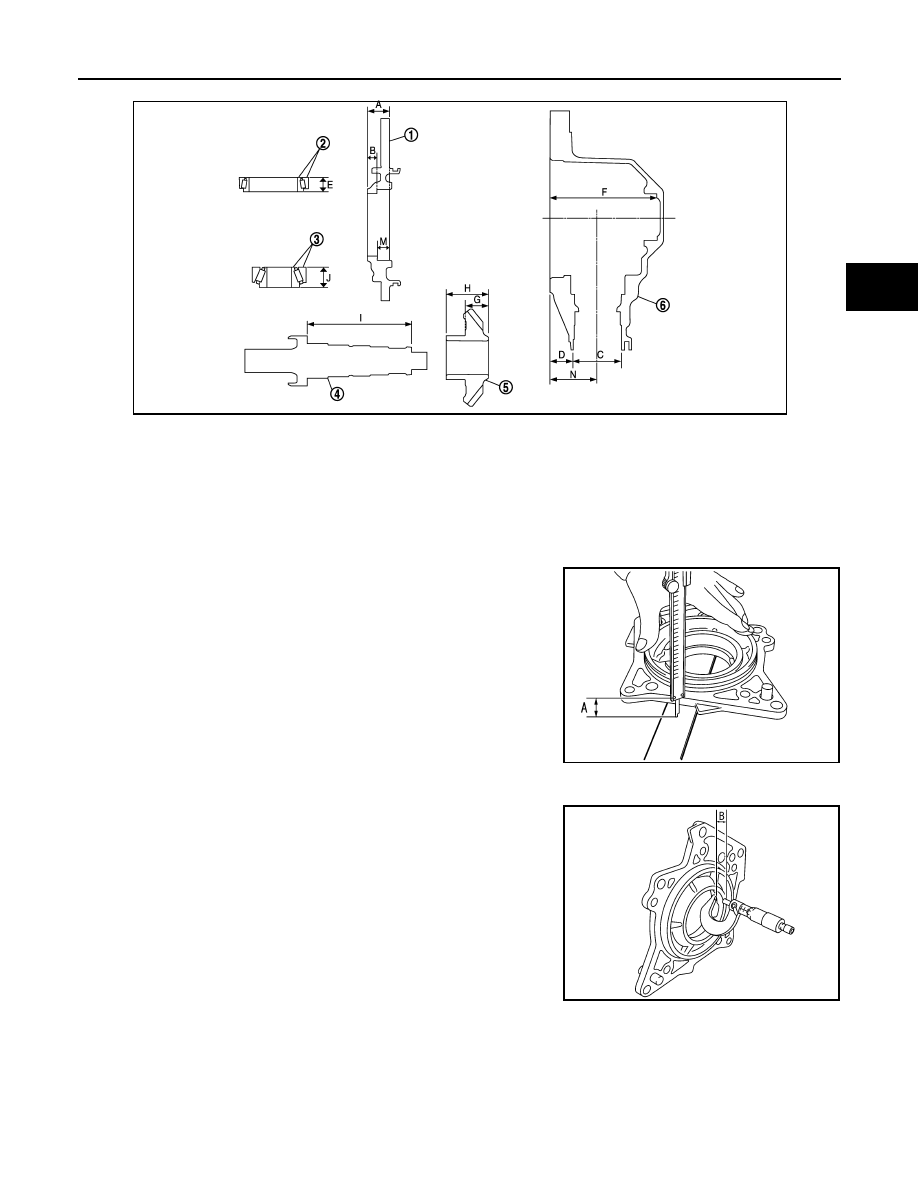

Ring Gear Adjusting Shim (Adapter Case Side)

1.

Measure the dimensions of each measuring point with the following procedure:

Dimension “A” measurement

• Measure dimension from transfer case mounting surface of

adapter case to adapter case edge surface with a pair of ver-
nier calipers and straightedge. Refer to “Measuring point”.

Dimension “B” measurement

• Measure dimension from ring gear adjusting shim mounting

surface of adapter case to adapter case edge surface with a
micrometer. Refer to “Measuring point”.

Dimension “C” measurement

1.

Adapter case

2.

Ring gear shaft bearing
(Adapter case side)

3.

Ring gear shaft bearing
(Transfer case side)

4.

Ring gear shaft

5.

Ring gear

6.

Transfer case

JSDIA0263ZZ

SDIA3105J

SDIA3114J

DLN-96

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

DRIVE PINION

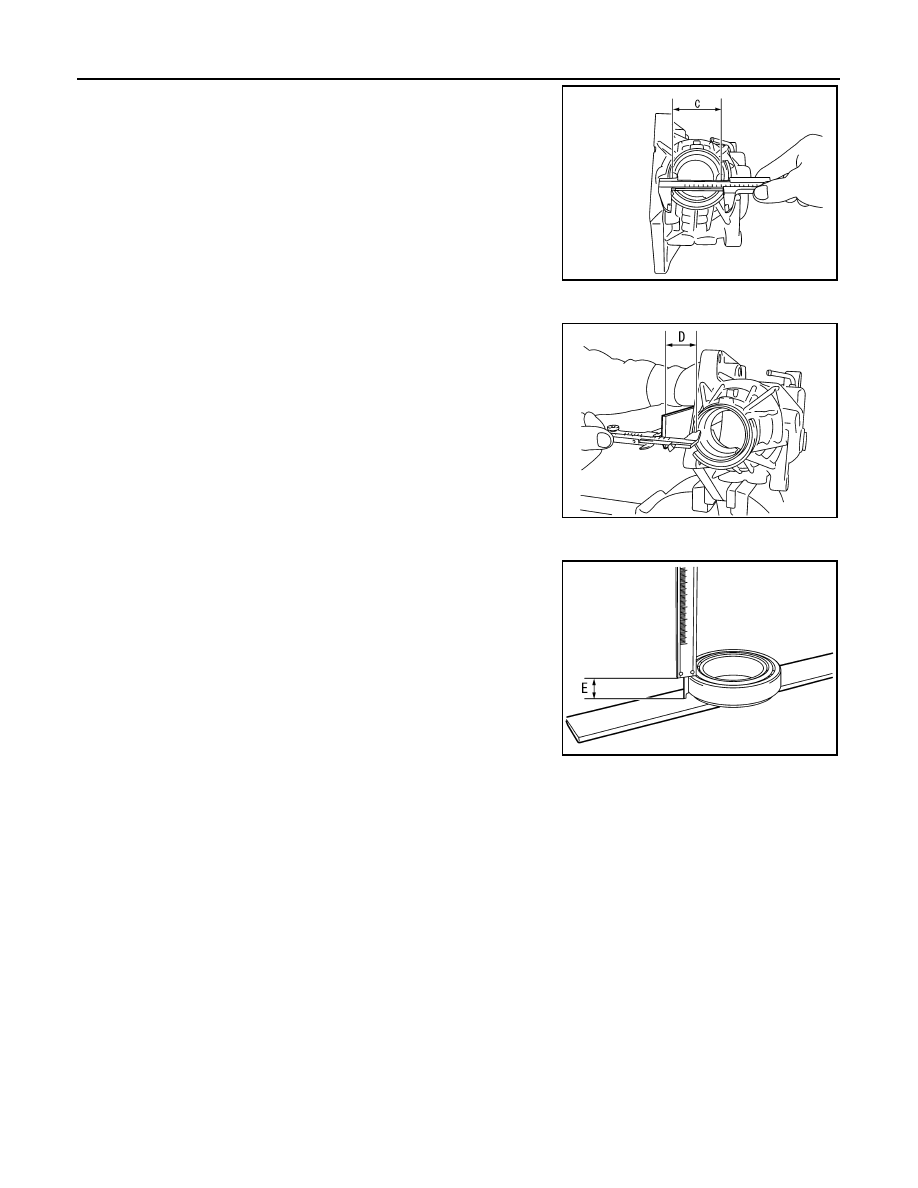

• Measure the diameter of drive pinion bearing (rear side)

mounting area of transfer case with a pair of vernier calipers.
Refer to “Measuring point”.

CAUTION:

Never damage transfer case.

Dimension “D” measurement

• Measure dimension from adapter case mounting surface of

transfer case to drive pinion bearing (rear side) mounting sur-
face with a pair of vernier calipers and straightedge. Refer to
“Measuring point”.

CAUTION:

• Never damage transfer case.
• Consider the thickness of a straightedge.

Dimension “E” measurement

• Measure dimension from outer race edge surface of ring gear

shaft bearing (adapter case side) to inner race edge surface
with a pair of vernier calipers. Refer to “Measuring point”.

2.

Calculate dimensions “M” and “N” by the formula below.

3.

Convert the dimensions “E”, “M” and “N” according to the standards below.

SDIA3107J

SDIA3108J

SDIA3109J

Dimension “M” = “A” – “B”

Dimension “N” = “C”

×

 0.5 mm (0.020 in) + “D”

“E”

: Actual value regarding 20.00 mm (0.7874 in) as 0 in increments of 0.01 mm (0.0004 in).

“M”

: Actual value regarding 13.90 mm (0.5472 in) as 0 in increments of 0.01 mm (0.0004 in).

“N”

: Actual value regarding 55.00 mm (2.1654 in) as 0 in increments of 0.01 mm (0.0004 in).
