MAINSHAFT AND GEAR

TM-167

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

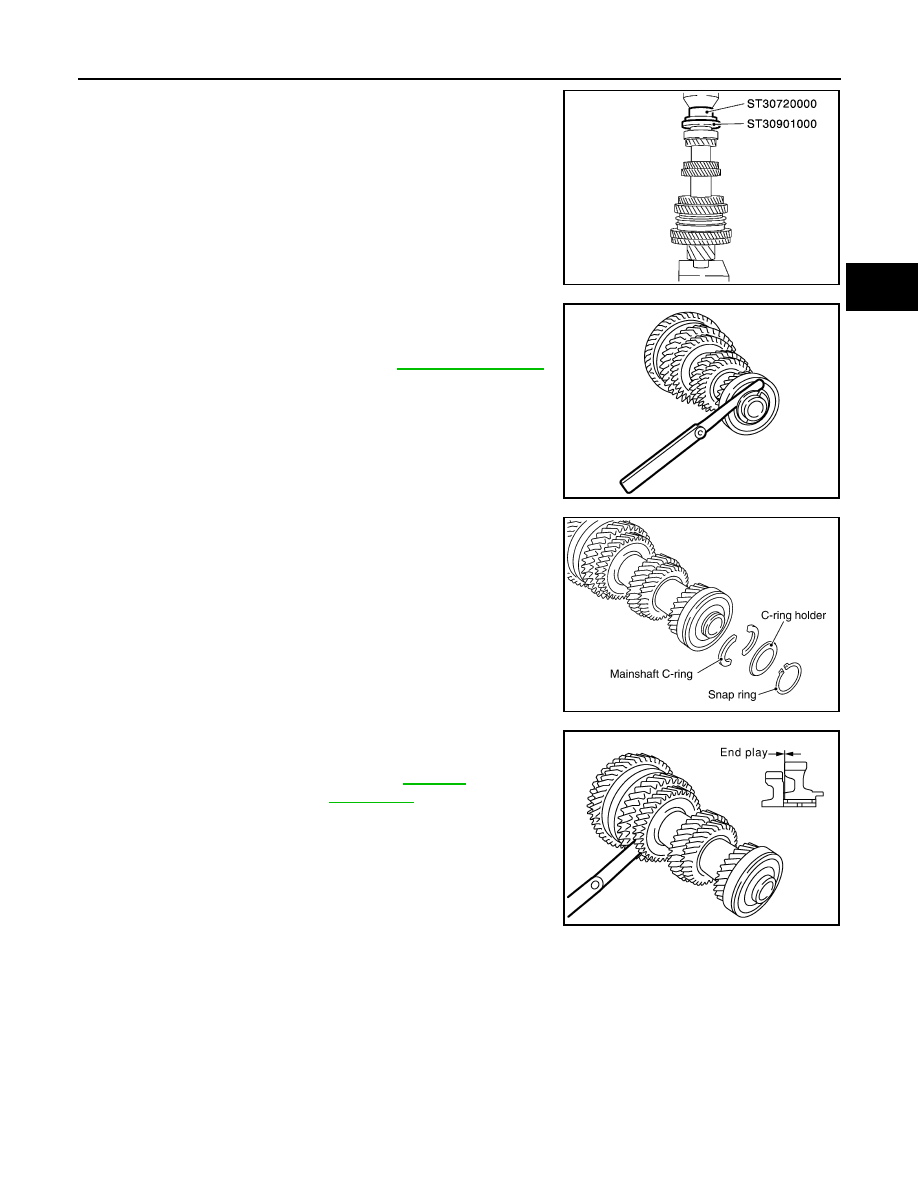

17. Press in mainshaft rear bearing using the drifts.

18. Install mainshaft C-rings onto mainshaft and check that end play

of mainshaft rear bearing satisfies the standard value.

• If measurement is outside the standard range, reselect main-

shaft C-rings.

19. Install C-ring holder and then install snap ring.

CAUTION:

Never reuse snap ring.

20. Check end play of 1st and 2nd main gears.

Inspection

INFOID:0000000001034962

MAINSHAFT AND GEAR

SCIA0978E

End play standard value

: Refer to

TM-184, "End Play"

SCIA0979E

PCIB0805E

End play standard value

: Refer to

TM-184,

"End Play"

SCIA0973E

TM-168

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

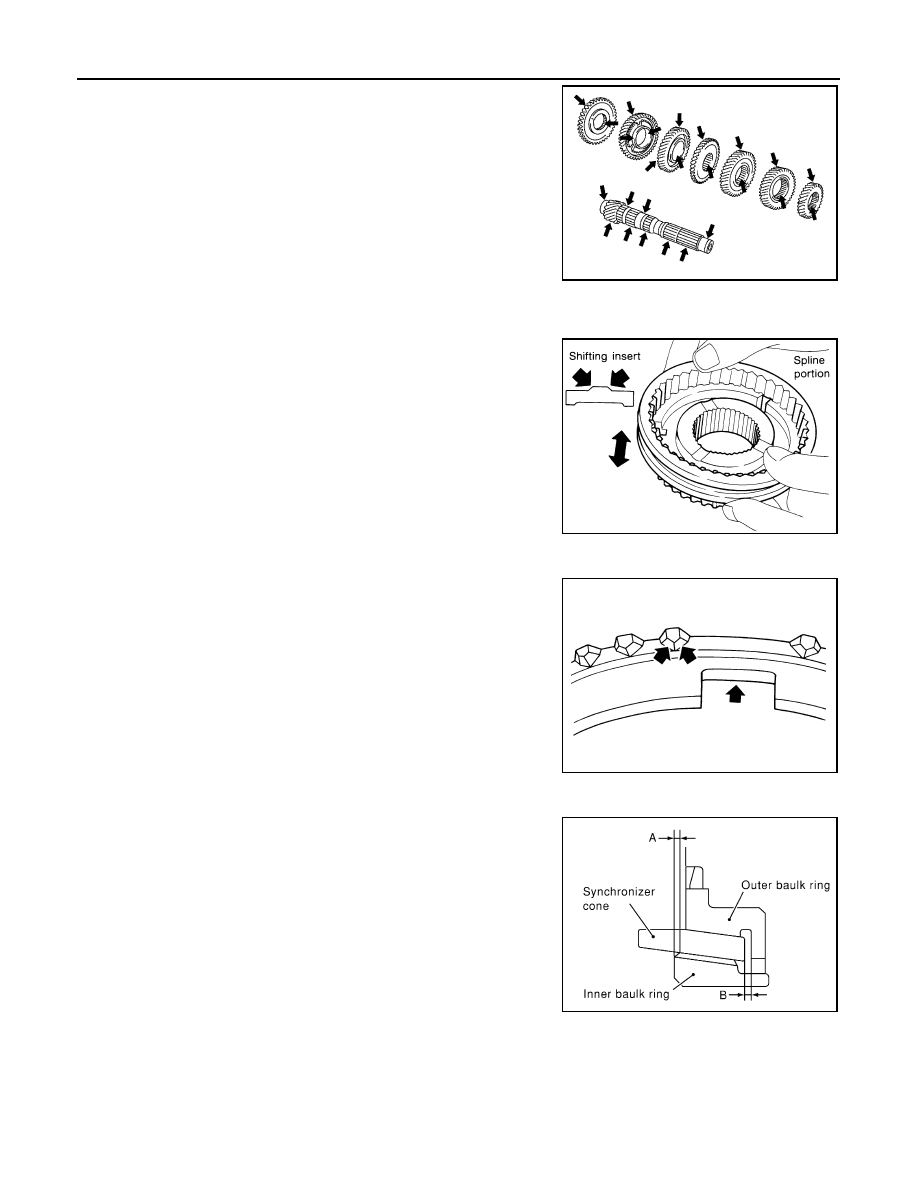

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, and other non-

standard conditions of the shaft.

• Excessive wear, damage, peeling, and other non-standard condi-

tions of the gears.

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.
• Damage and unusual wear on contact surfaces of coupling sleeve,

synchronizer hub and shifting insert.

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

Check items below. If necessary, replace them with new ones.
• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Double Cone Synchronizer (1st)

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set. Replace
them as a set if the clearances are outside the limit value.

SCIA1076J

SMT387A

SMT867D

SCIA0950E

MAINSHAFT AND GEAR

TM-169

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

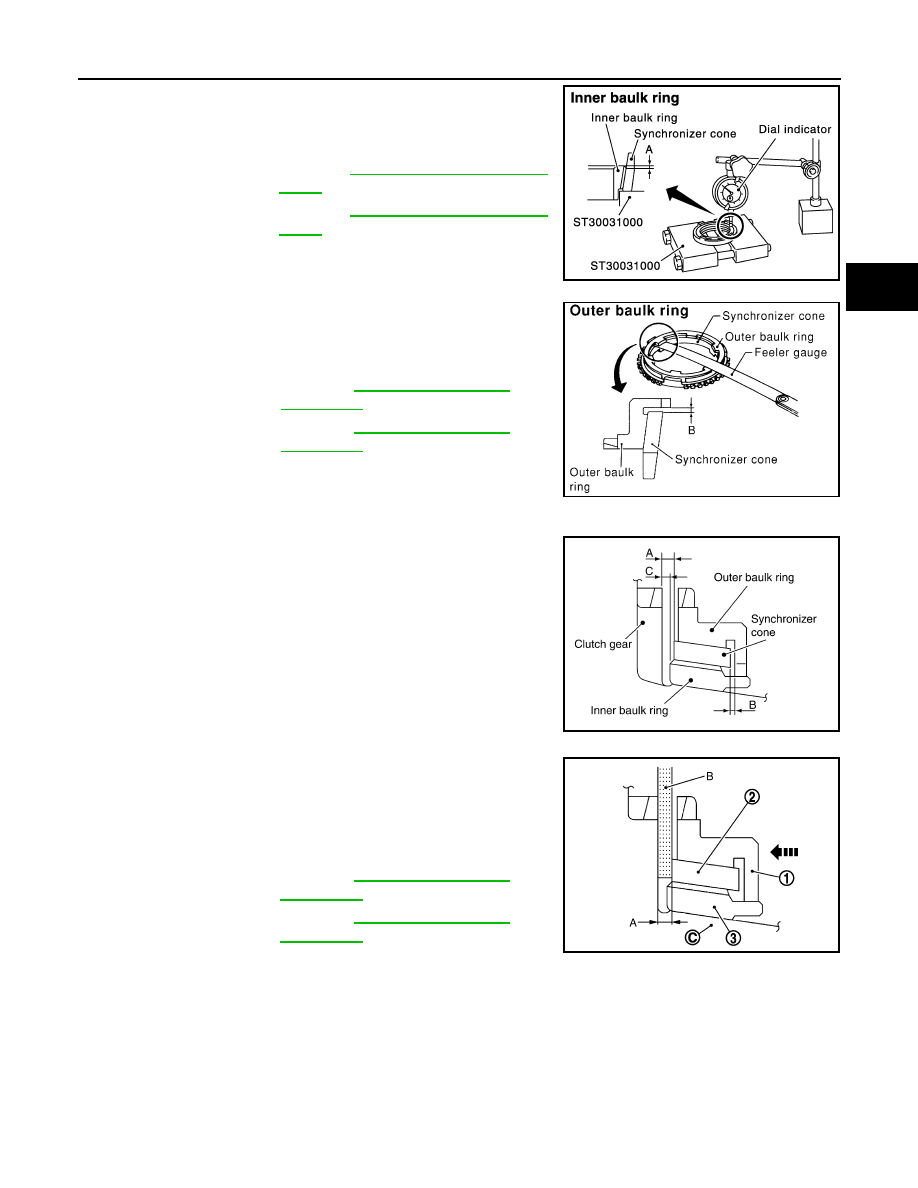

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

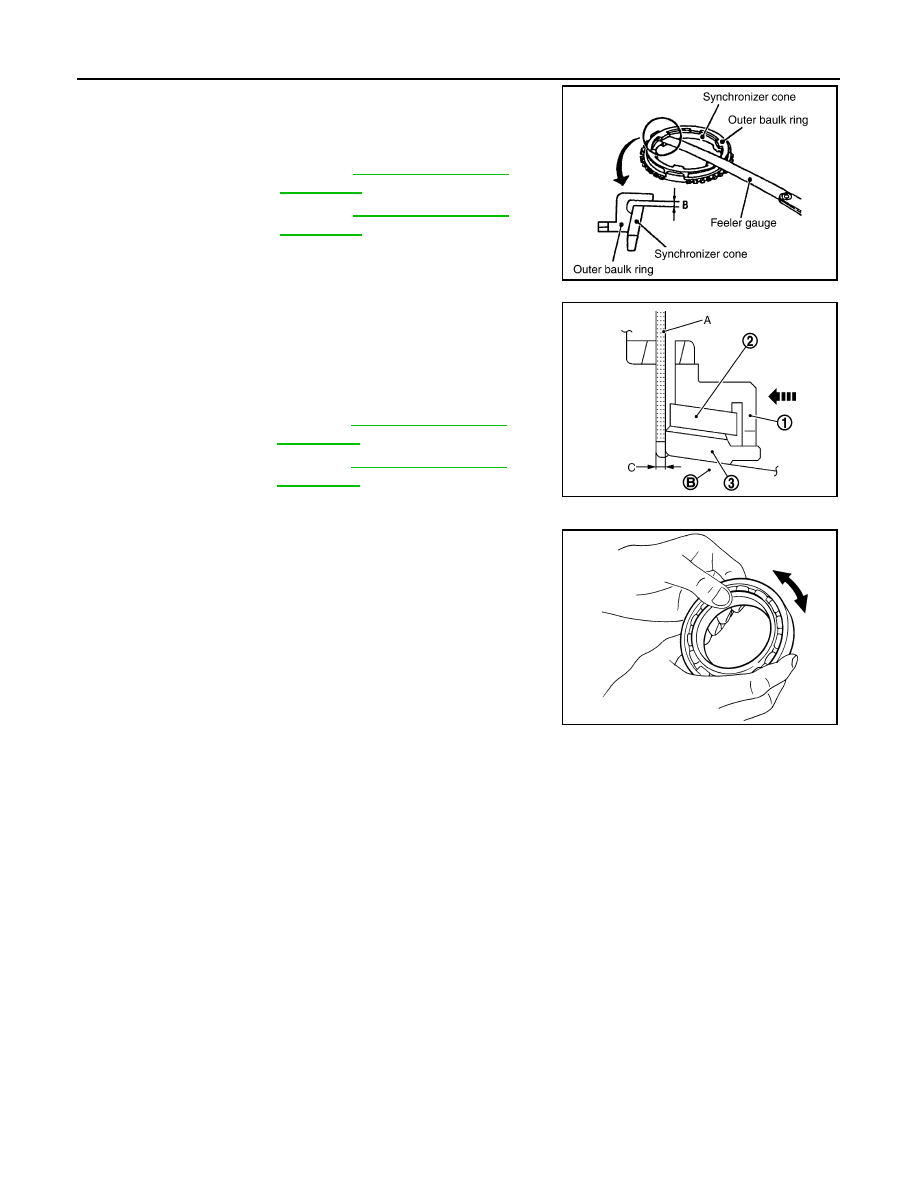

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

Baulk Ring Clearance for Triple Cone Synchronizer (2nd)

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A”, “B”, and “C” are controlled with outer
baulk ring, synchronizer cone, and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a feeler gauge (B) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (C). And then calculate mean value.

Clearance “A”

Standard value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

Limit value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

SCIA0951E

Clearance “B”

Standard value

: Refer to

TM-184, "Baulk Ring

Clearance"

Limit value

: Refer to

TM-184, "Baulk Ring

Clearance"

SCIA1084E

PCIB1358E

Clearance “A”

Standard value

: Refer to

TM-184, "Baulk Ring

Clearance"

Limit value

: Refer to

TM-184, "Baulk Ring

Clearance"

JPDIC0034ZZ

TM-170

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

Measure the clearance “C” at 2 points or more diagonally oppo-
site using a feeler gauge (A) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (B). And then calculate mean value.

BEARING

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing

Clearance “B”

Standard value

: Refer to

TM-184, "Baulk Ring

Clearance"

Limit value

: Refer to

TM-184, "Baulk Ring

Clearance"

PCIB1360E
