INPUT SHAFT AND GEAR

TM-159

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

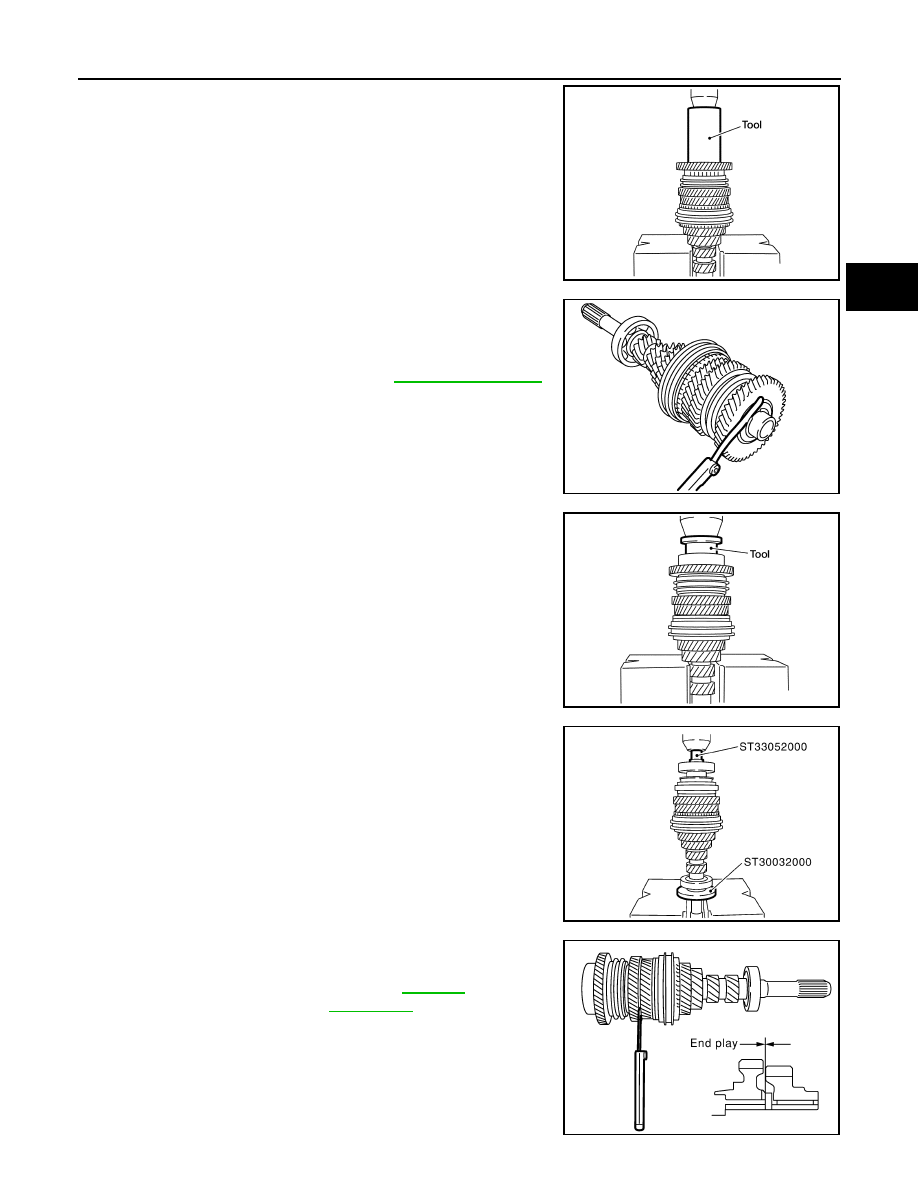

14. Install 6th needle bearing, 6th input gear, 6th baulk ring onto 6th

input gear bushing and then press in 6th input gear bushing onto
input shaft using the drift [SST: ST33200000].

15. Install snap ring onto input shaft and make sure that end play

(gap between snap ring and groove) of 6th input gear bushing
satisfies the standard value.

• If measurement is outside the standard range, select snap

ring.

CAUTION:

Never reuse snap ring.

16. Press in input shaft rear bearing using the drift [SST:

ST30901000].

CAUTION:

Install input shaft rear bearing with its brown surface facing
the 6th input gear side.

17. Press in input shaft front bearing using the drifts.

18. Install oil channel onto input shaft.

19. Check end play of 3rd, 4th, 5th, and 6th input gears.

WCIA0309E

End play standard value

:Refer to

TM-184, "End Play"

.

SCIA0970E

WCIA0310E

PCIB0825E

End play standard value

: Refer to

TM-184,

"End Play"

.

SCIA0966E

TM-160

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

INPUT SHAFT AND GEAR

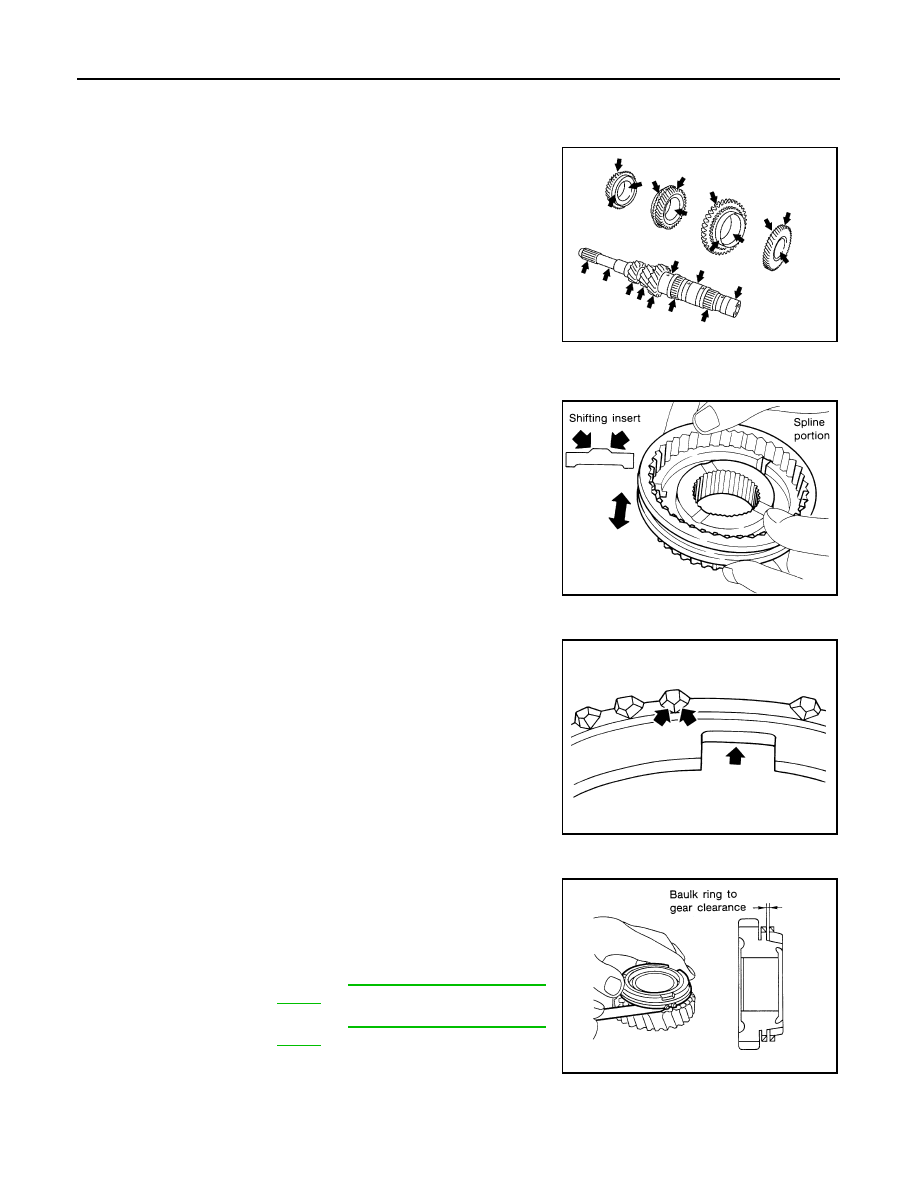

Inspection

INFOID:0000000001034958

INPUT SHAFT AND GEAR

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.
• Damage and excessive wear of contact surfaces of coupling

sleeve, synchronizer hub and shifting insert

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

Check items below. If necessary, replace them with new ones.
• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Single Cone Synchronizer (4th, 5th, and 6th)

Push baulk ring on the cone and measure the clearance between
baulk ring and cone. If measurement is below limit, replace it with a
new one.

Baulk Ring Clearance for Double Cone Synchronizer (3rd)

SCIA1074J

SMT387A

SMT867D

Clearance

Standard value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

.

SMT140

INPUT SHAFT AND GEAR

TM-161

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

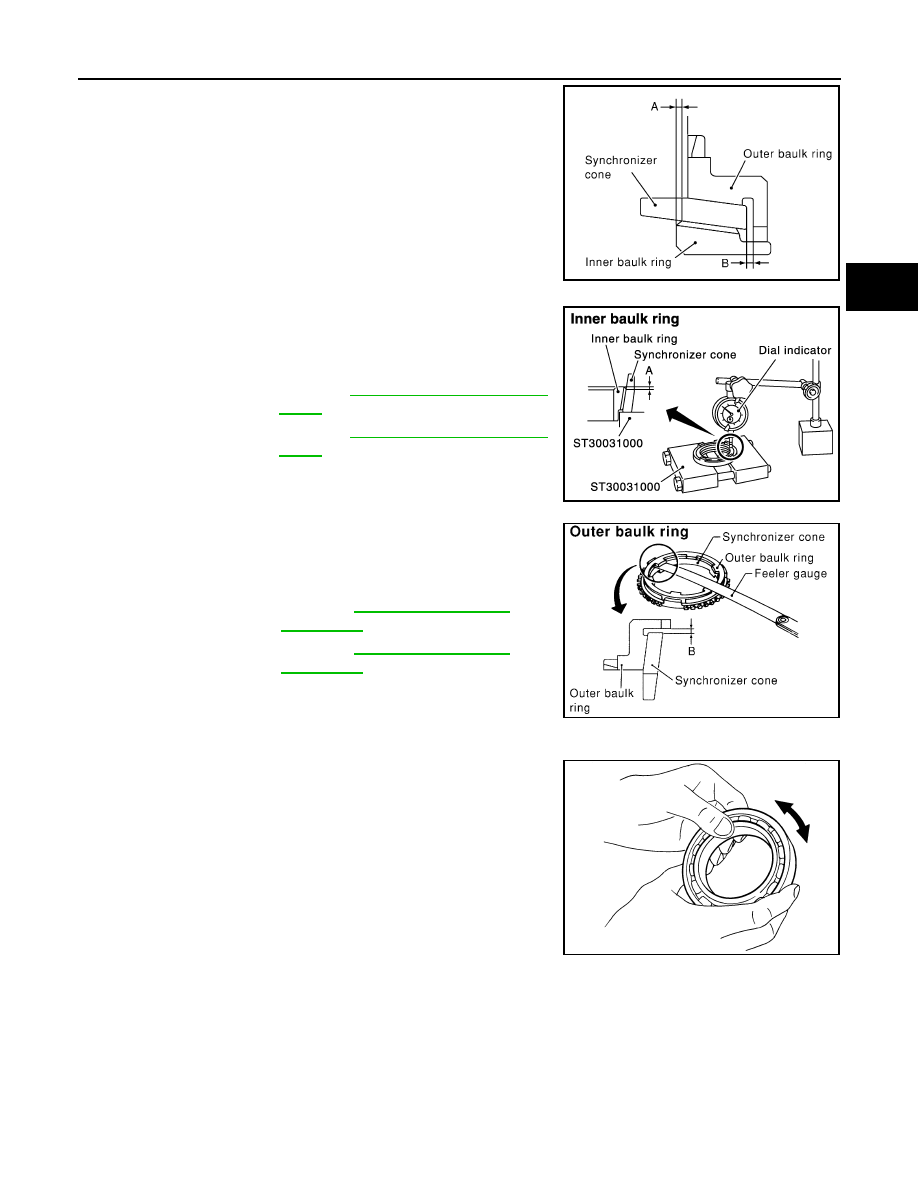

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set. Replace
them as a set if the clearances are outside the limit value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

BEARING

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing

SCIA0950E

Clearance “A”

Standard value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-184, "Baulk Ring Clear-

ance"

.

SCIA0951E

Clearance “B”

Standard value

: Refer to

TM-184, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-184, "Baulk Ring

Clearance"

.

SCIA1084E

MTF0041D

TM-162

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

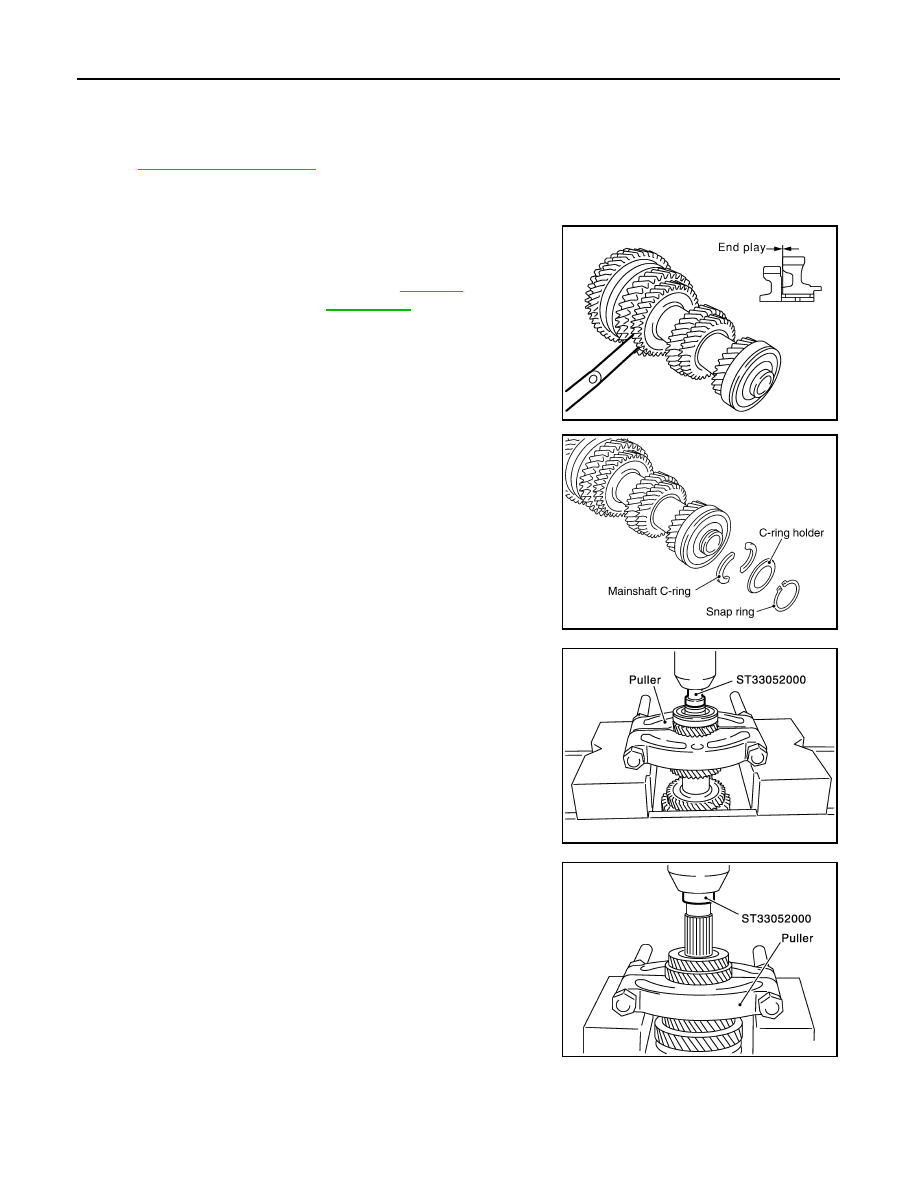

MAINSHAFT AND GEAR

MAINSHAFT AND GEAR

Exploded View

INFOID:0000000001034959

Refer to

TM-125, "Exploded View"

.

Disassembly

INFOID:0000000001034960

1.

Before disassembling, measure the end play of 1st and 2nd
main gears.

2.

Remove snap ring.

3.

Remove C-ring holder and then remove mainshaft C-rings.

4.

Press out mainshaft rear bearing, 6th main gear adjusting shim,
and 6th main gear using the drift and a puller.

5.

Remove 5th-6th mainshaft spacer.

6.

Press out 4th main gear and 5th main gear using the drift and a
puller.

7.

Remove 4th main gear adjusting shim.

8.

Remove 3rd-4th mainshaft spacer.

End play standard value

: Refer to

TM-184,

"End Play"

.

SCIA0973E

PCIB0805E

SCIA0976E

SCIA0937E
