TRANSAXLE ASSEMBLY

TM-151

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

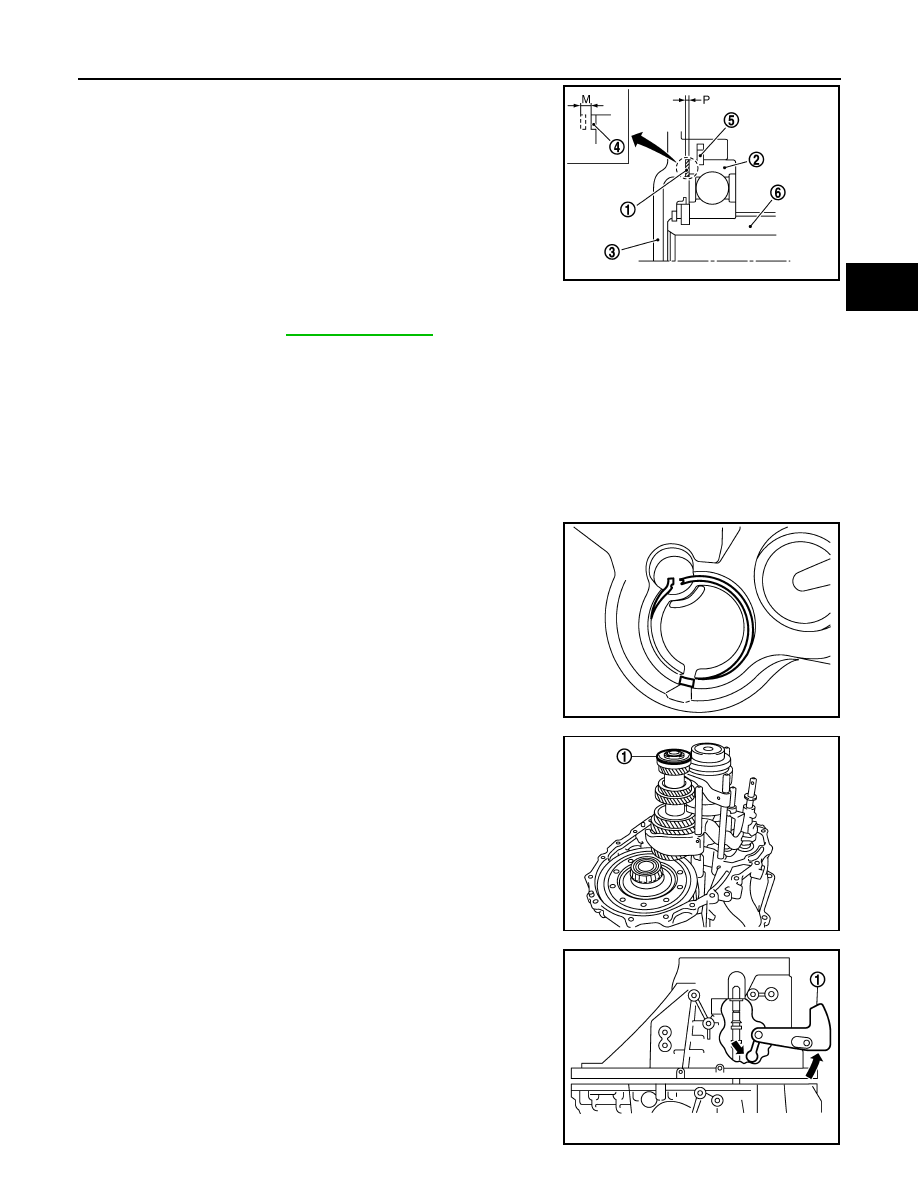

• When adjusting mainshaft end play, select adjusting shim (1) for

mainshaft rear bearing (2). To select adjusting shim, measure
clearance “M” between transaxle case (3) and dummy adjusting
shim (4) on mainshaft rear bearing.

CAUTION:

Only 1 adjusting shim can be selected.

• Calculate dimension “P” (thickness of adjusting shim) using the fol-

lowing procedure to satisfy specification of end play for mainshaft
rear bearing.

*: Refer to the latest parts information to use a dummy adjusting shim of which part number is the thinnest in thickness.

1.

Install transaxle case following the procedures below.

a.

Temporarily install snap ring of mainshaft rear bearing into tran-
saxle case.

CAUTION:

Do not reuse snap ring.

b.

Install dummy adjusting shim (1) to mainshaft assembly.

c.

With shifter lever A (1) held in the position shown in the figure,
temporarily assemble transaxle case to clutch housing.

CAUTION:

Be careful not to damage striking rod oil seal.
NOTE:
Make sure to hold shifter lever A in the position shown in the fig-
ure. Otherwise transaxle case cannot be installed to clutch
housing.

5

:  Snap  ring

6

:  Mainshaft

End play

: Refer to

TM-184, "End Play"

.

Dimension “P” = (M + N) - End play

P

: Thickness of adjusting shim

M

: Distance between dummy adjusting shim on
mainshaft rear bearing end face and transaxle
case end face

N*

: Thickness of dummy adjusting shim

PCIB1880E

PCIB1842E

PCIB1826E

PCIB1808E

TM-152

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

d.

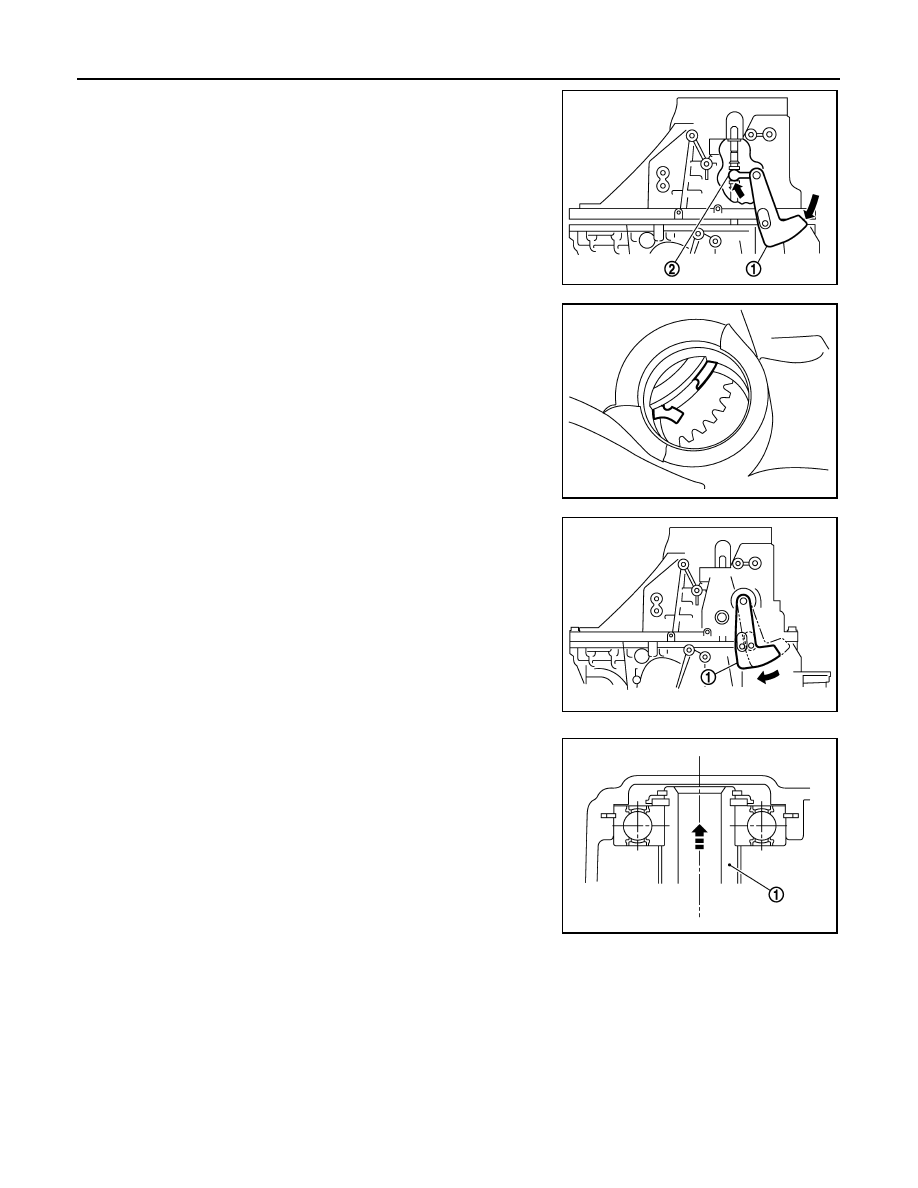

While rotating shifter lever A (1) in the direction of the arrow
shown in the figure, assemble transaxle case to clutch housing.

e.

Accessing from the bore plug hole, expand snap ring at main-
shaft rear bearing so that the ring catches the periphery of main-
shaft rear bearing.

f.

Temporarily tighten transaxle case mounting bolts.

2.

Shift the shifter lever A (1) to 2nd gear position.
NOTE:
• The 2nd gear position is attained when shifter lever A is in the

position shown in the figure.

• When transaxle is shifted to the 2nd gear position, mainshaft

assembly (1) is lifted.

3.

Seat snap ring in the groove on mainshaft rear bearing. If snap ring is not seated in the groove on main-
shaft rear bearing, remove transaxle case and repeat the procedure 1 from step c.

4.

Shift the shifter lever A to 1st gear position, and then shift it to 2nd gear position. Repeat 3 times.
NOTE:
• The mainshaft rear bearing position will be stabilized by shifting between 1st gear position and 2nd gear

position alternately.

2

: Shifter lever B

PCIB1929E

PCIB1840E

PCIB1809E

PCIB1923E

TRANSAXLE ASSEMBLY

TM-153

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

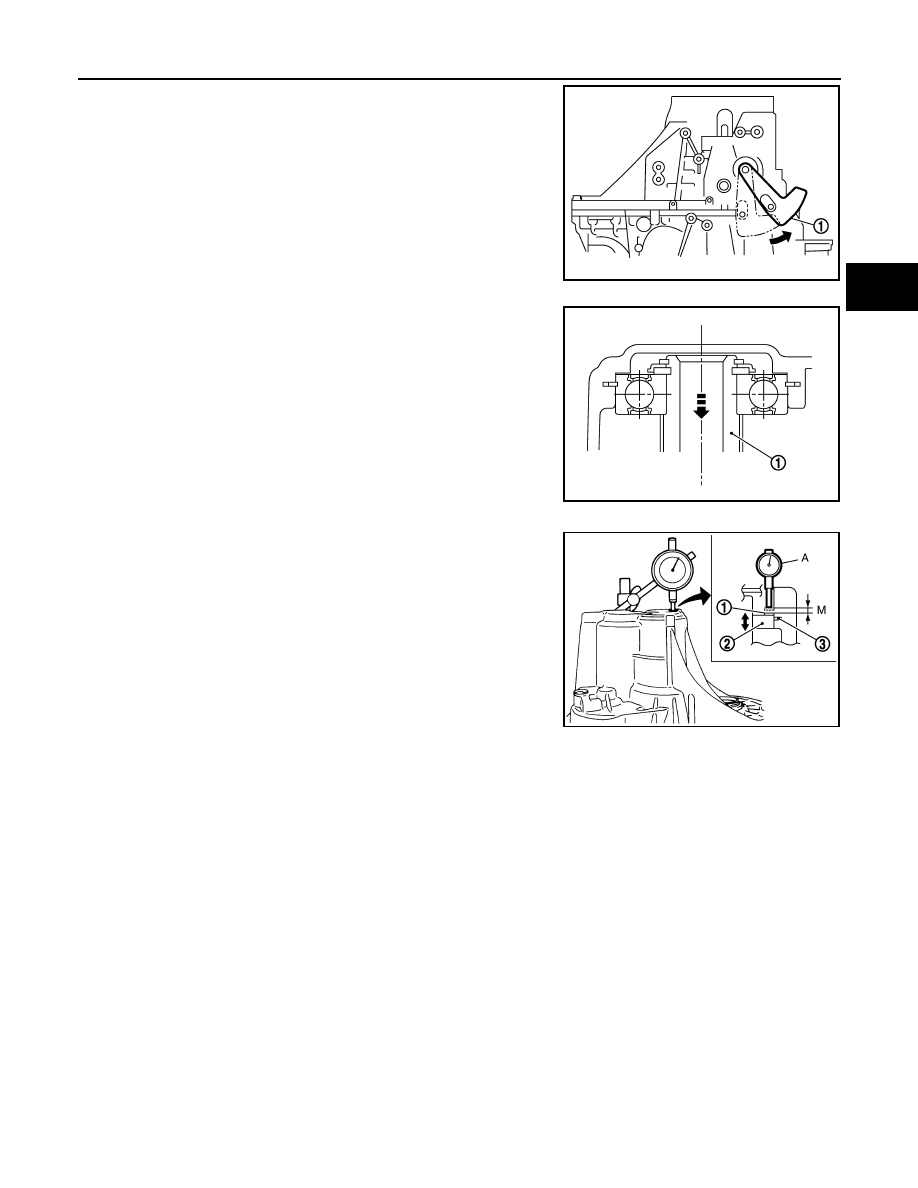

• The 1st gear position is attained when shifter lever A (1) is in

the position shown in the figure.

• When transaxle is shifted to the 1st gear position, mainshaft

assembly (1) is declined.

5.

Set the dial indicator (A) to dummy adjusting shim (1) through
the bore plug mounting hole.

PCIB1881E

PCIB1934E

2

: Mainshaft rear bearing

3

:  Snap  ring

PCIB1827E

TM-154

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

6.

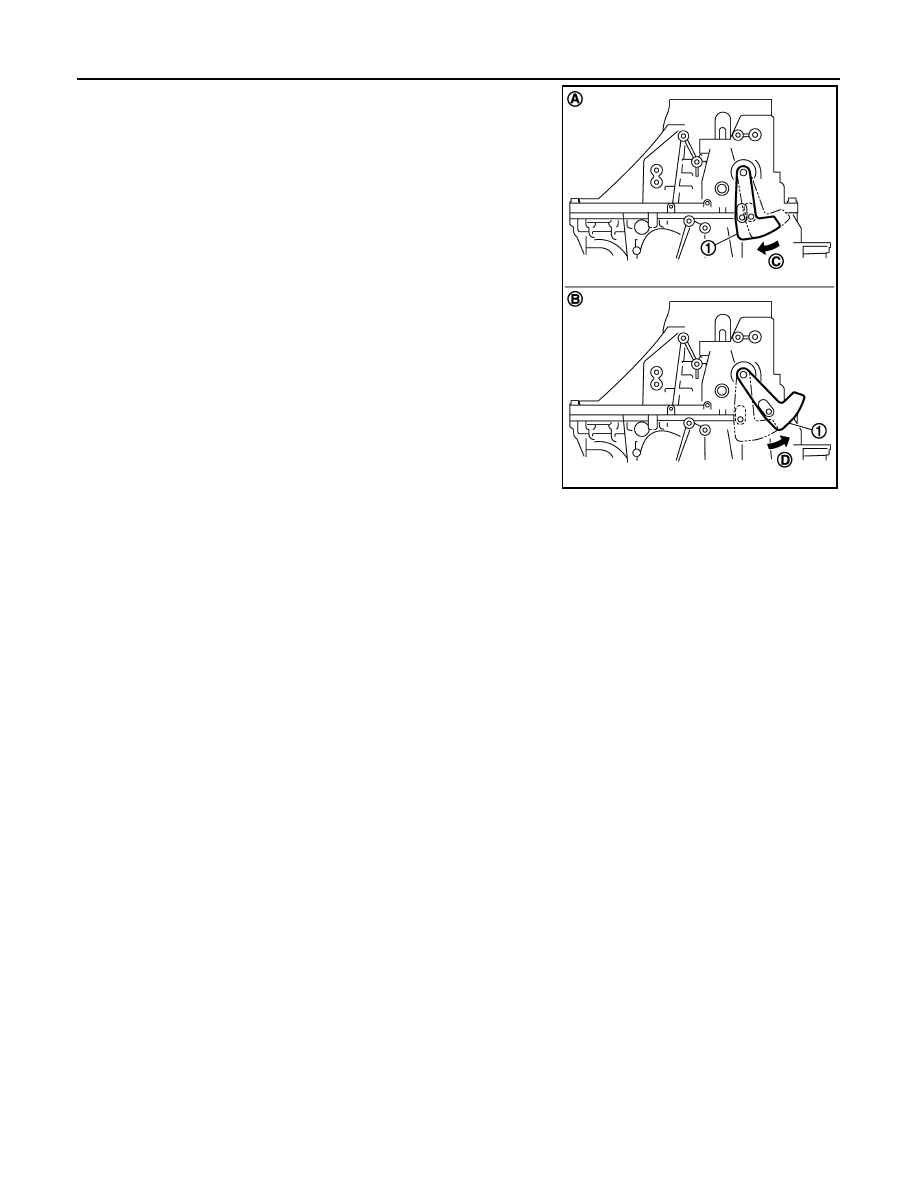

Shift the shifter lever A (1) to 2nd gear position (A), and then
rotate it in the direction of the arrow (C) in the figure until it stops.
Using this position as the reference point, measure the amount
of movement when shifting shifter lever A to 1st gear position (B)
and rotating it in the direction of the arrow (D) in the figure until it
stops. This measurement is the "M" dimension.

7.

When measurement "M" is 0 - 0.06 mm (0 - 0.0024 in), adjust-
ment terminates, and the dummy adjusting shim becomes regu-
lar adjusting shim. Select adjusting shim from the computed
expressions when measurement "M" is over 0.06 mm (0.0024
in).

PCIB1935E
