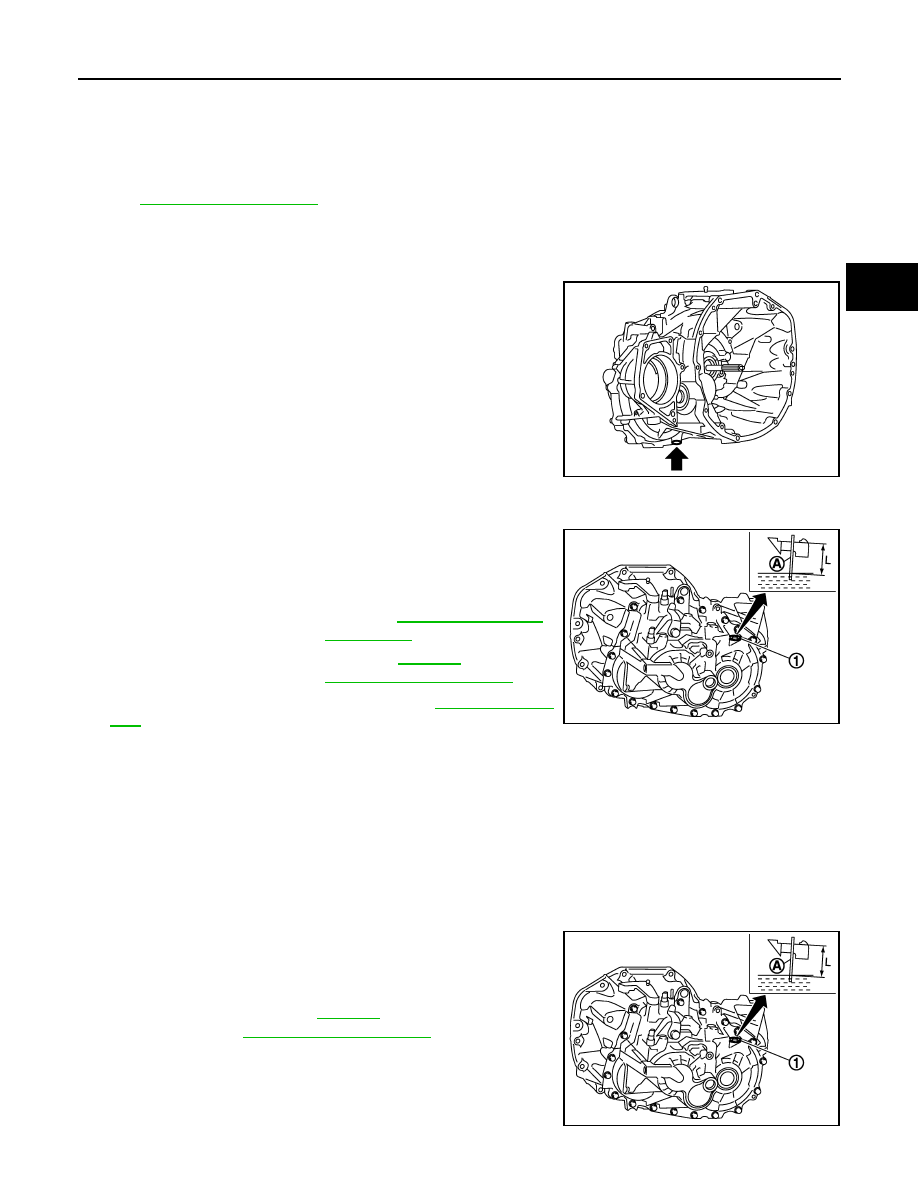

GEAR OIL

TM-115

< ON-VEHICLE MAINTENANCE >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000001066147

Refer to

TM-125, "Exploded View"

.

Draining

INFOID:0000000001034936

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug and then drain gear oil.

3.

Set a new gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

Refilling

INFOID:0000000001034937

1.

Remove filler plug (1). Fill with new gear oil to transaxle.

2.

After refilling gear oil, check oil level. Refer to

TM-115, "Inspec-

tion"

.

3.

Set a new gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

Inspection

INFOID:0000000001034938

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1).

2.

Measure oil level using a suitable gauge (A) as shown in the fig-
ure and then check if it is within the specifications.

CAUTION:

Never start engine while checking oil level.

3.

Set a new gasket on filler plug (1) and then install it to transaxle
case.

CAUTION:

JPDIC0073ZZ

A

: Suitable gauge

Oil grade and viscosity

: Refer to

MA-21, "Fluids and

Lubricants"

.

Oil capacity (reference)

: Refer to

TM-183,

"General Specifications"

.

JPDIC0048ZZ

Oil level “L”

: Refer to

TM-183,

"General Specifications"

.

JPDIC0048ZZ

TM-116

< ON-VEHICLE MAINTENANCE >

[6MT: RS6F52A]

GEAR OIL

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

SIDE OIL SEAL

TM-117

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

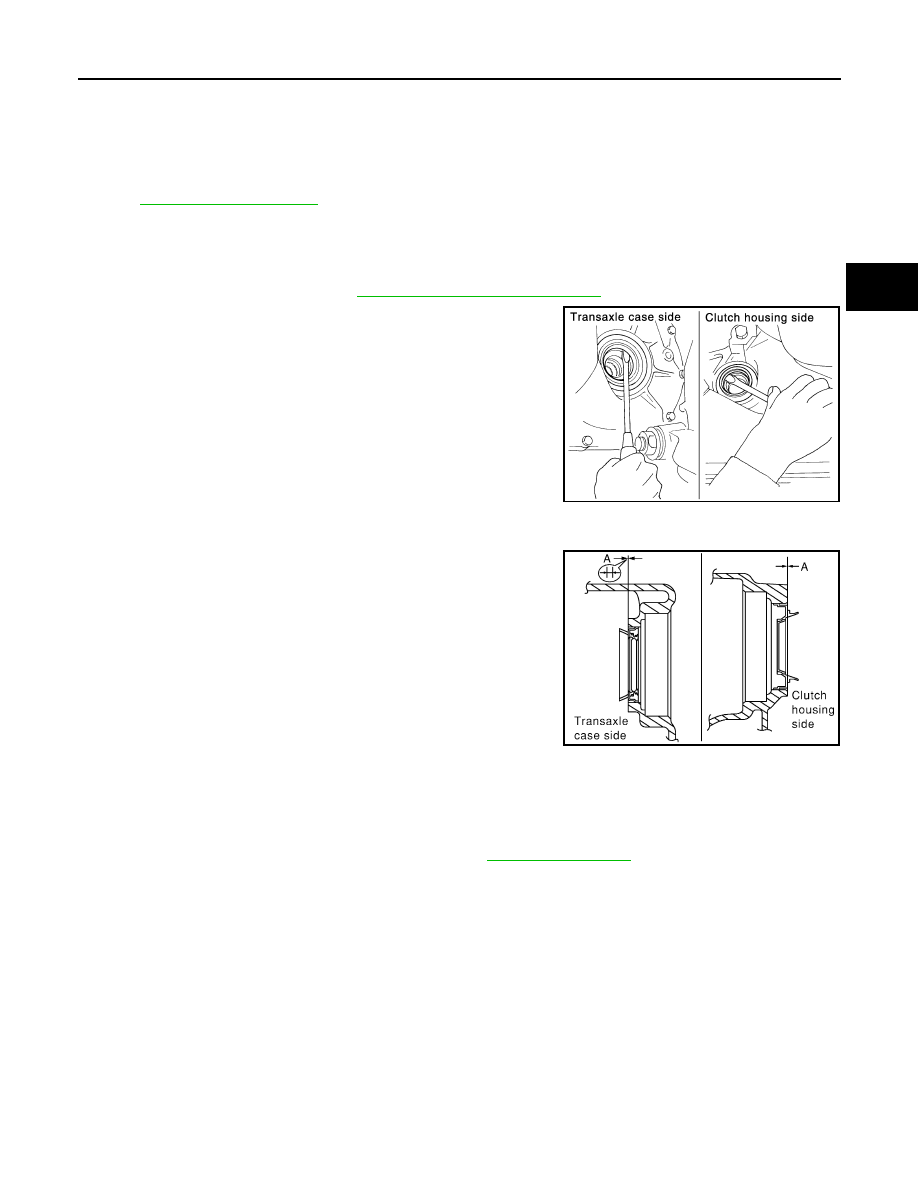

SIDE OIL SEAL

Exploded View

INFOID:0000000001066148

Refer to

TM-125, "Exploded View"

.

Removal and Installation

INFOID:0000000001034939

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-56, "Removal and Installation"

.

2.

Remove differential side oil seals using a suitable tool.

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install differential side oil seal to clutch housing using the drift [SST:

ST33400001].

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Never damage clutch housing.

• Install differential side oil seal to transaxle case using the drift

[SST: ST30720000].

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Never damage transaxle case.

• Check oil level and oil leakage after installation. Refer to

TM-115, "Inspection"

.

SCIA0824E

Dimension “A”

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

Dimension “A”

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

SCIA1010E

TM-118

< ON-VEHICLE REPAIR >

[6MT: RS6F52A]

CONTROL LINKAGE

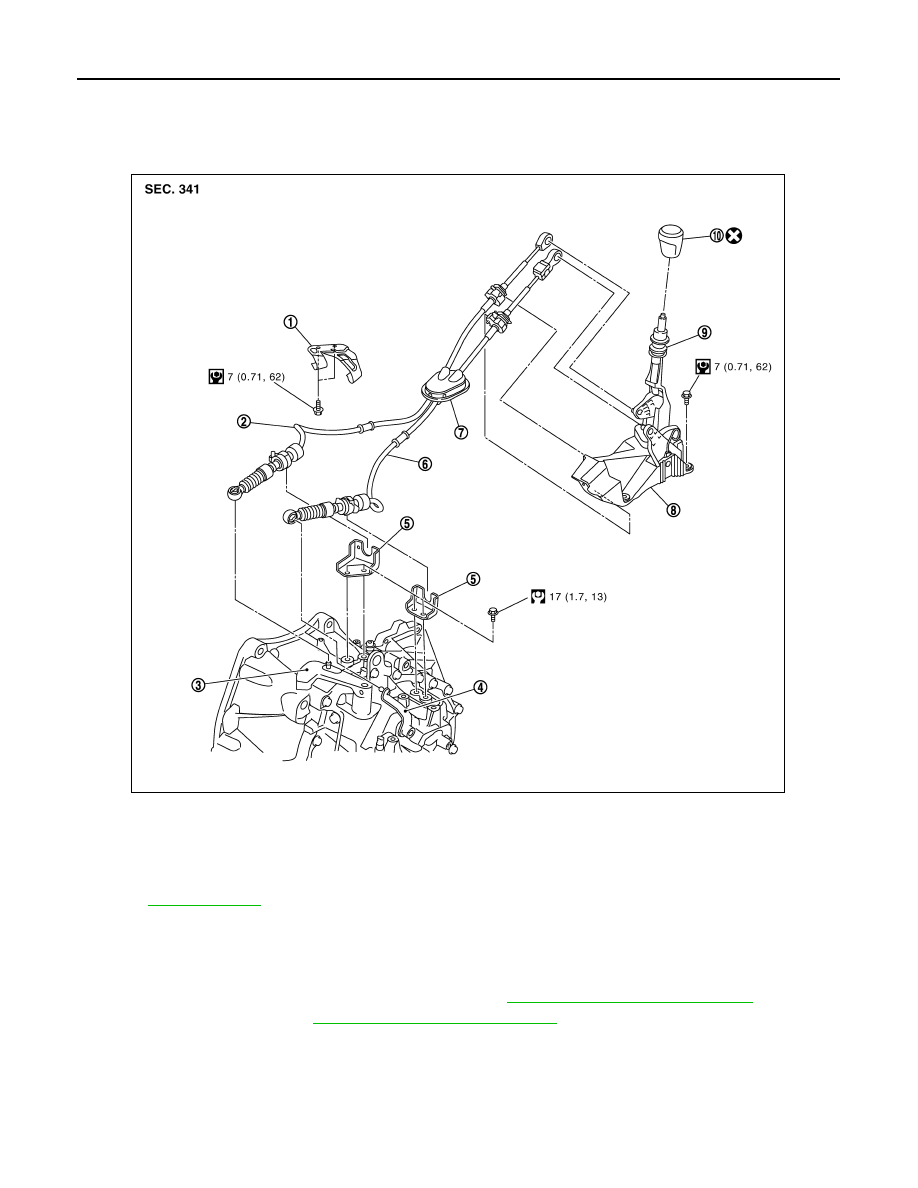

CONTROL LINKAGE

Exploded View

INFOID:0000000001034944

Removal and Installation

INFOID:0000000001034945

REMOVAL

1.

Remove the air cleaner case and air duct (inlet). Refer to

EM-144, "Removal and Installation"

.

2.

Remove the battery. Refer to

PG-118, "Removal and Installation"

.

1.

Bracket

2.

Shift cable

3.

Shifter lever A

4.

Selector lever

5.

Cable mounting bracket

6.

Select cable

7.

Grommet

8.

Control device assembly

9.

Control lever

10. Control lever knob

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPDIC0056GB
