BACK-UP LAMP SWITCH

TM-107

< COMPONENT DIAGNOSIS >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

COMPONENT DIAGNOSIS

BACK-UP LAMP SWITCH

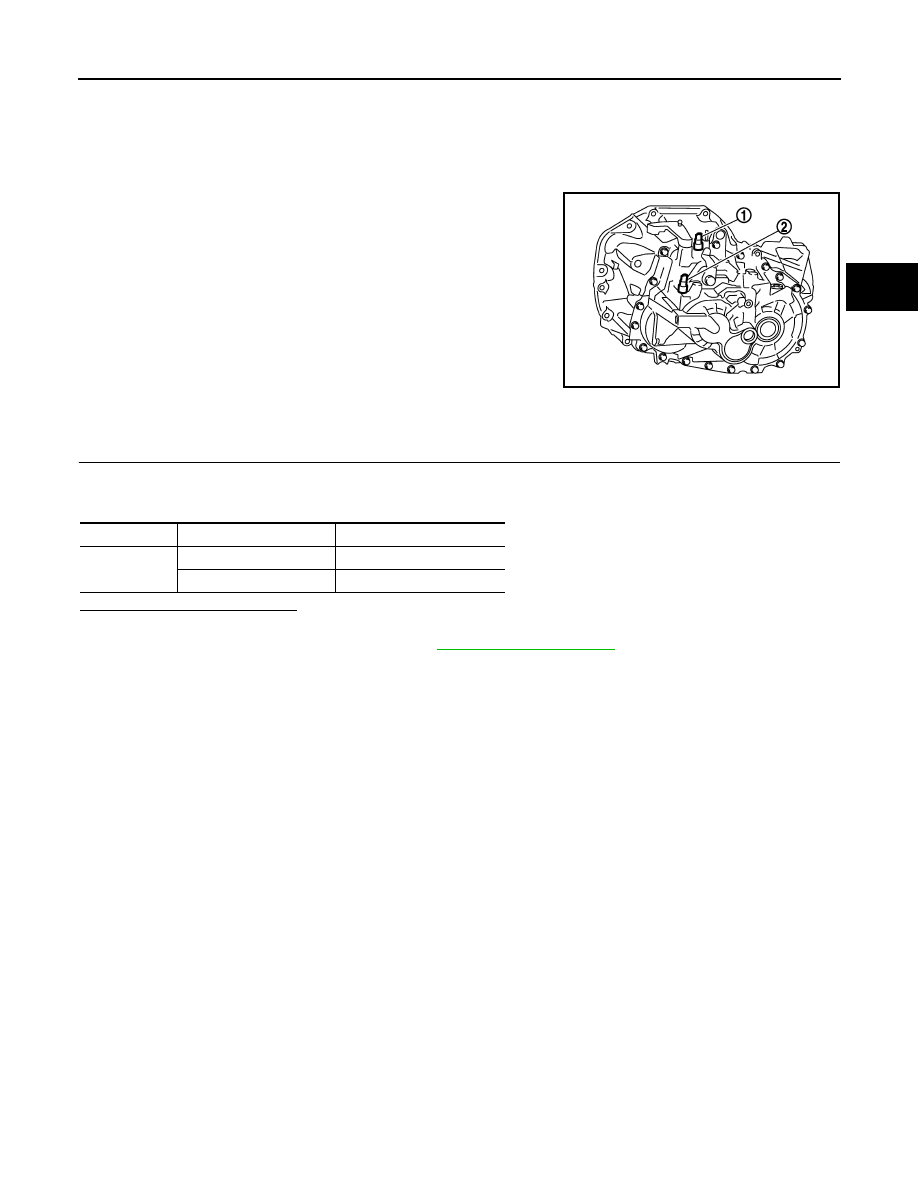

Component Parts Location

INFOID:0000000001065855

Component Inspection

INFOID:0000000001065856

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between back-up lamp switch terminals with control lever turned to 1st to 6th and reverse
position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace back up lamp switch. Refer to

TM-125, "Exploded View"

.

1

: Park/Neutral position (PNP) switch

2

: Back-up lamp switch

JPDIC0049ZZ

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed

TM-108

< COMPONENT DIAGNOSIS >

[6MT: RS6F52A]

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH

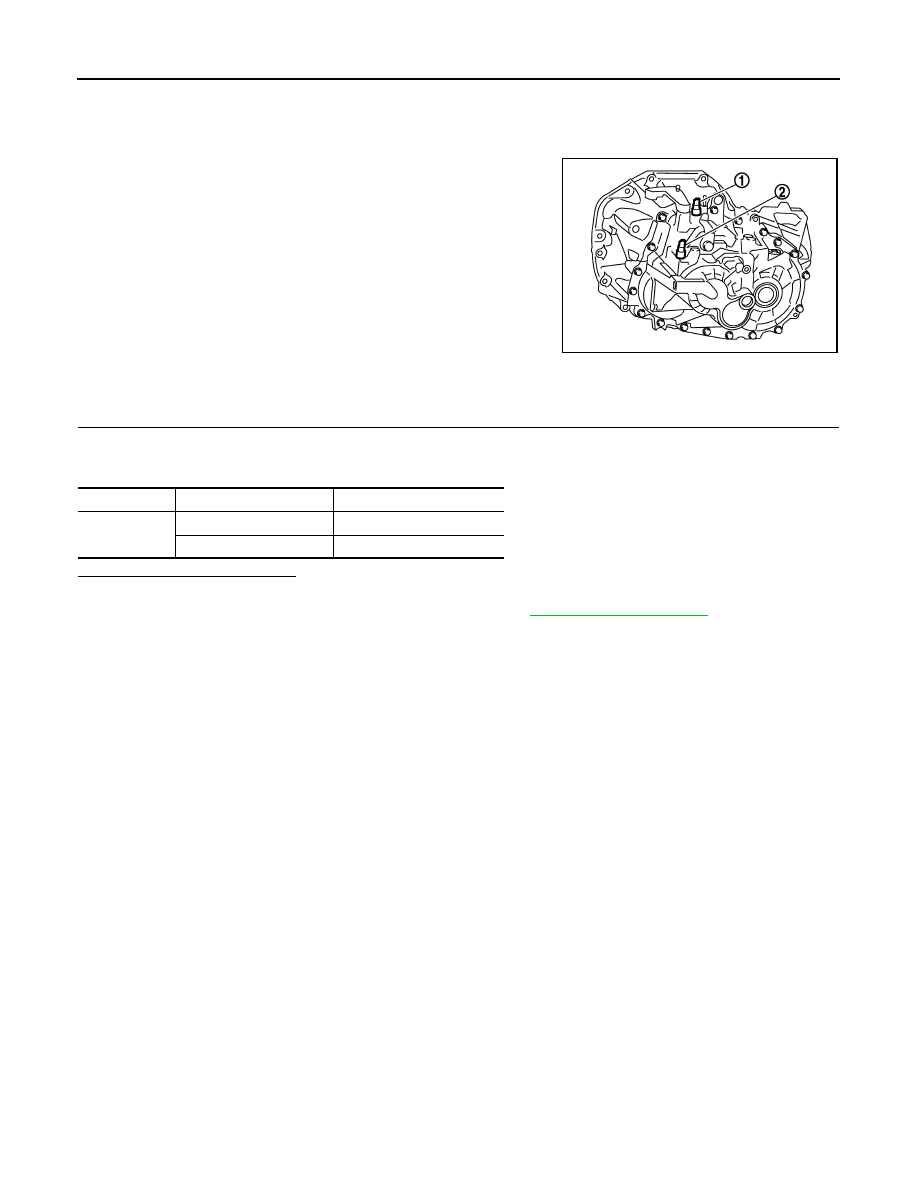

Component Parts Location

INFOID:0000000001065857

Component Inspection

INFOID:0000000001065858

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

Check continuity between park/neutral position (PNP) switch terminals with control lever turned to 1st to 6th
and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace park/neutral position (PNP) switch. Refer to

TM-125, "Exploded View"

.

1

: Park/Neutral position (PNP) switch

2

: Back-up lamp switch

JPDIC0049ZZ

Terminals

Gear position

Continuity

1 – 2

Neutral

Existed

Except neutral

Not existed

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

TM-109

< SYMPTOM DIAGNOSIS >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001034932

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference page

TM-1

15

TM-12

5

TM-1

18

TM-12

5

TM-12

5

SUSPECTED PARTS
(Possible cause)

OI

L (Oil

 le

ve

l i

s

 low

.)

OI

L (W

rong

oil.)

OI

L (Oil

 le

ve

l i

s

 hig

h

.)

GASKET

 (Dam

ag

ed

)

OI

L SE

AL (W

o

rn o

r da

m

a

g

ed)

S

H

IFT CONTROL LIN

K

AGE (W

orn)

S

T

RIKING ROD AS

SEMB

L

Y (W

orn

 or

da

ma

ge

d)

S

H

IFT F

O

RK

 (W

orn)

GEAR

 (W

orn

 o

r

da

ma

ge

d)

B

EARING (W

orn

 or

da

ma

ge

d)

BAUL

K R

ING

 (W

orn

 o

r

da

ma

ge

d)

IN

SER

T

 SPRING (Damaged)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

3

3

TM-110

< PRECAUTION >

[6MT: RS6F52A]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Service Notice or Precautions for Manual Transaxle

INFOID:0000000001066146

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage seal of CSC and may cause clutch fluid leakage.

• Never reuse transaxle gear oil, once it has been drained.
• Check oil level or replace gear oil with vehicle on level surface.
• During removal or installation, keep inside of transaxle clear of dust or dirt.
• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts they are applied.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Never damage sliding surfaces and mating surfaces.
