SERVICE DATA AND SPECIFICATIONS (SDS)

TM-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Engine type

HR16DE

Transaxle model

RS5F92R

Model code number

JD00A

Final gear ratio

4.5000

Number of teeth

Final gear/Pinion

63/14

Side gear/Pinion mate gear

13/9

TM-52

< FUNCTION DIAGNOSIS >

[6MT: RS6F94R]

M/T SYSTEM

FUNCTION DIAGNOSIS

M/T SYSTEM

System Diagram

INFOID:0000000001070314

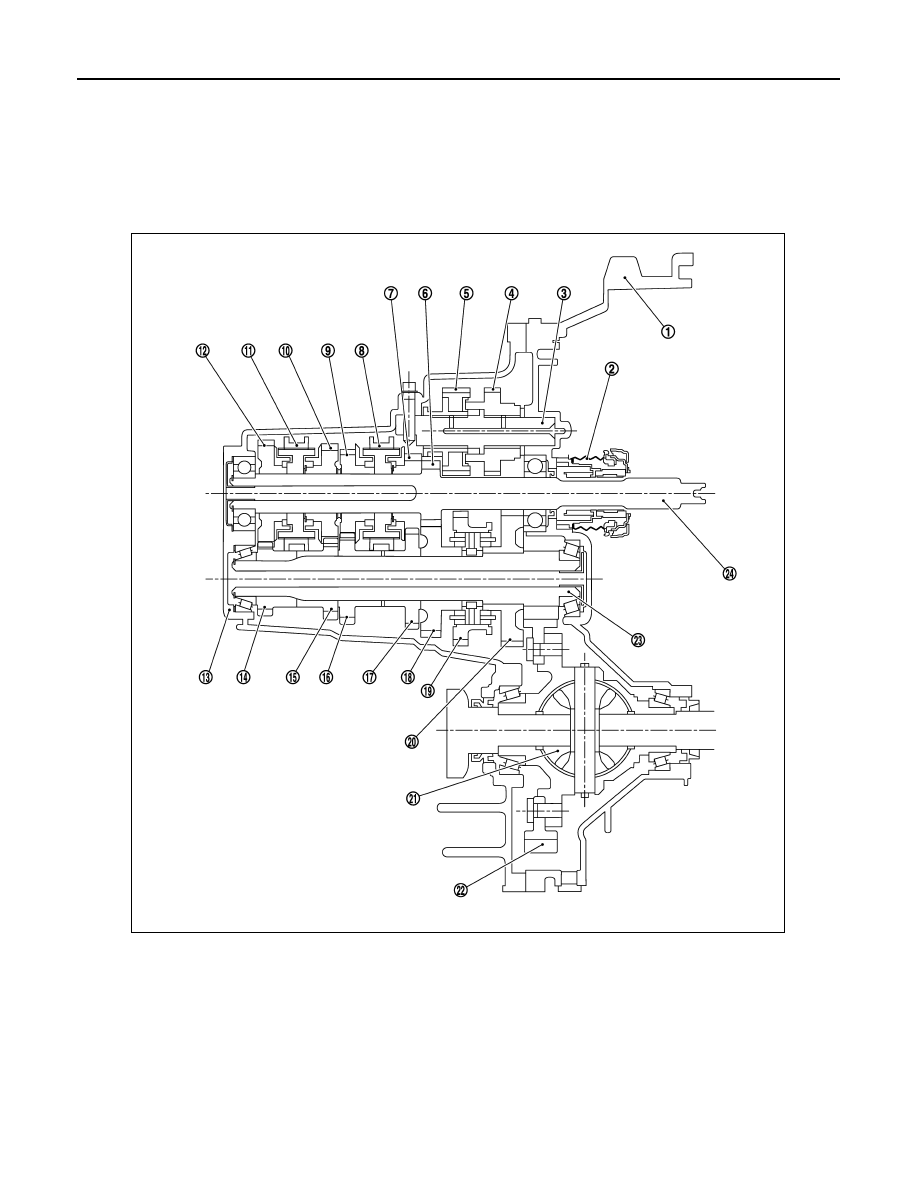

CROSS-SECTIONAL VIEW

System Description

INFOID:0000000001070315

1.

Clutch housing

2.

CSC (Concentric Slave Cylinder)

3.

Reverse idler shaft

4.

Reverse input gear

5.

Reverse output gear

6.

2nd input gear

7.

3rd input gear

8.

3rd-4th synchronizer assembly

9.

4th input gear

10. 5th input gear

11.

5th-6th synchronizer assembly

12. 6th input gear

13. Transaxle case

14. 6th main gear

15. 5th main gear

16. 4th main gear

17. 3rd main gear

18. 2nd main gear

19. 1st-2nd synchronizer assembly

20. 1st main gear

21. Differential assembly

22. Final gear

23. Mainshaft

24. Input shaft

SCIA7618E

M/T SYSTEM

TM-53

< FUNCTION DIAGNOSIS >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

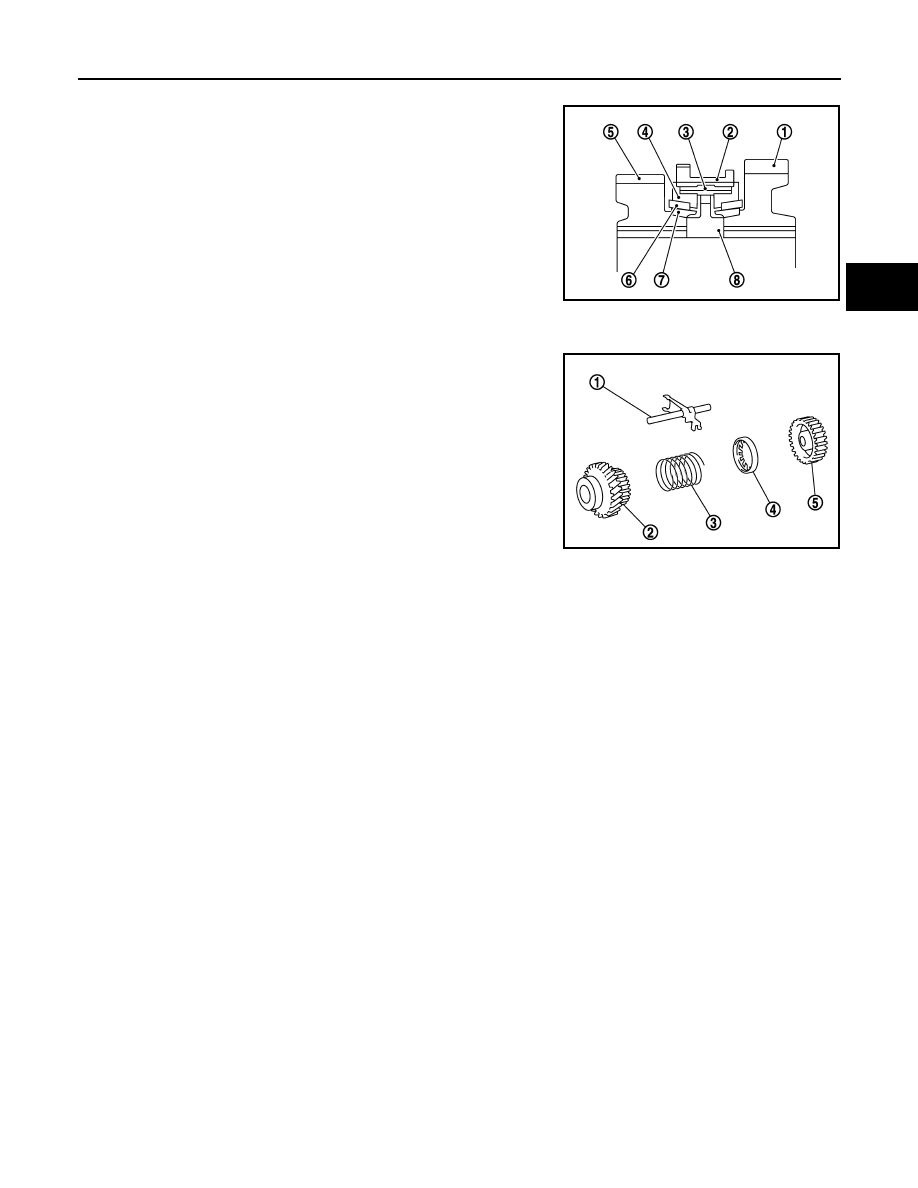

TRIPLE-CONE SYNCHRONIZER

Triple-cone synchronizer is used for the 1st and the 2nd gears to
reduce operating force of the control lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

Reverse gear assembly consists of reverse input gear, return spring,
reverse baulk ring and reverse output gear. When the control lever is
shifted to the reverse position, the construction allows smooth shift
operation by stopping the reverse idler shaft rotation by frictional
force of synchronizer.

1

: 1st main gear

2

: 1st-2nd coupling sleeve

3

: Insert key

4

: Outer baulk ring

5

: 2nd main gear

6

: Synchronizer cone

7

: Inner baulk ring

8

: 1st-2nd synchronizer hub

SCIA7636E

1

: Reverse fork rod

2

: Reverse output gear

3

: Return spring

4

: Reverse baulk ring

5

: Reverse input gear

SCIA7621E

TM-54

< COMPONENT DIAGNOSIS >

[6MT: RS6F94R]

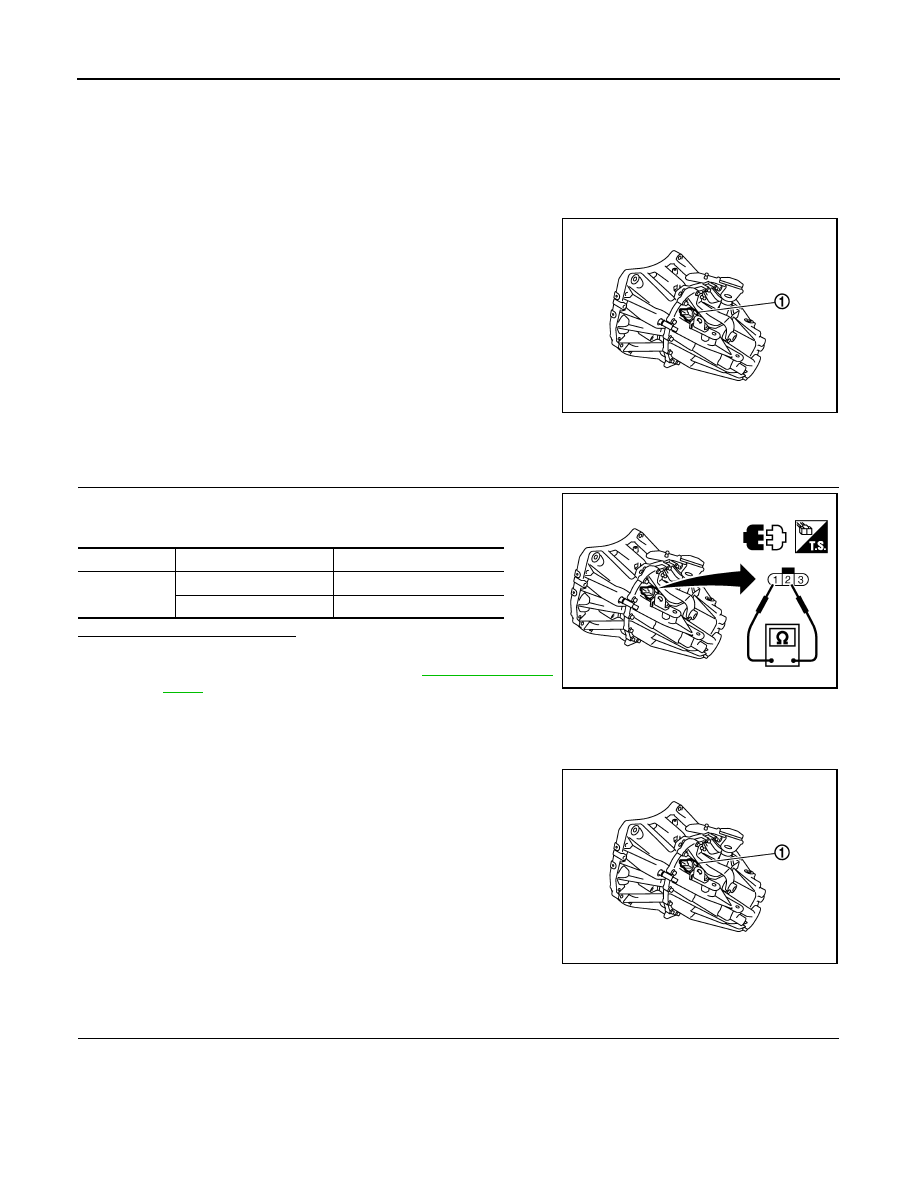

POSITION SWITCH

COMPONENT DIAGNOSIS

POSITION SWITCH

BACK-UP LAMP SWITCH

BACK-UP LAMP SWITCH : Component Parts Location

INFOID:0000000001070316

BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000001070317

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between position switch terminals with control lever
turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-71, "Exploded

View"

.

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Parts Location

INFOID:0000000001070318

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000001070319

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1

: Position switch

JPDIC0070ZZ

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed

PCIB1781E

1

: Position switch

JPDIC0070ZZ
