FINAL DRIVE

TM-47

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

Exploded View

INFOID:0000000001070460

Refer to

TM-25, "Exploded View"

.

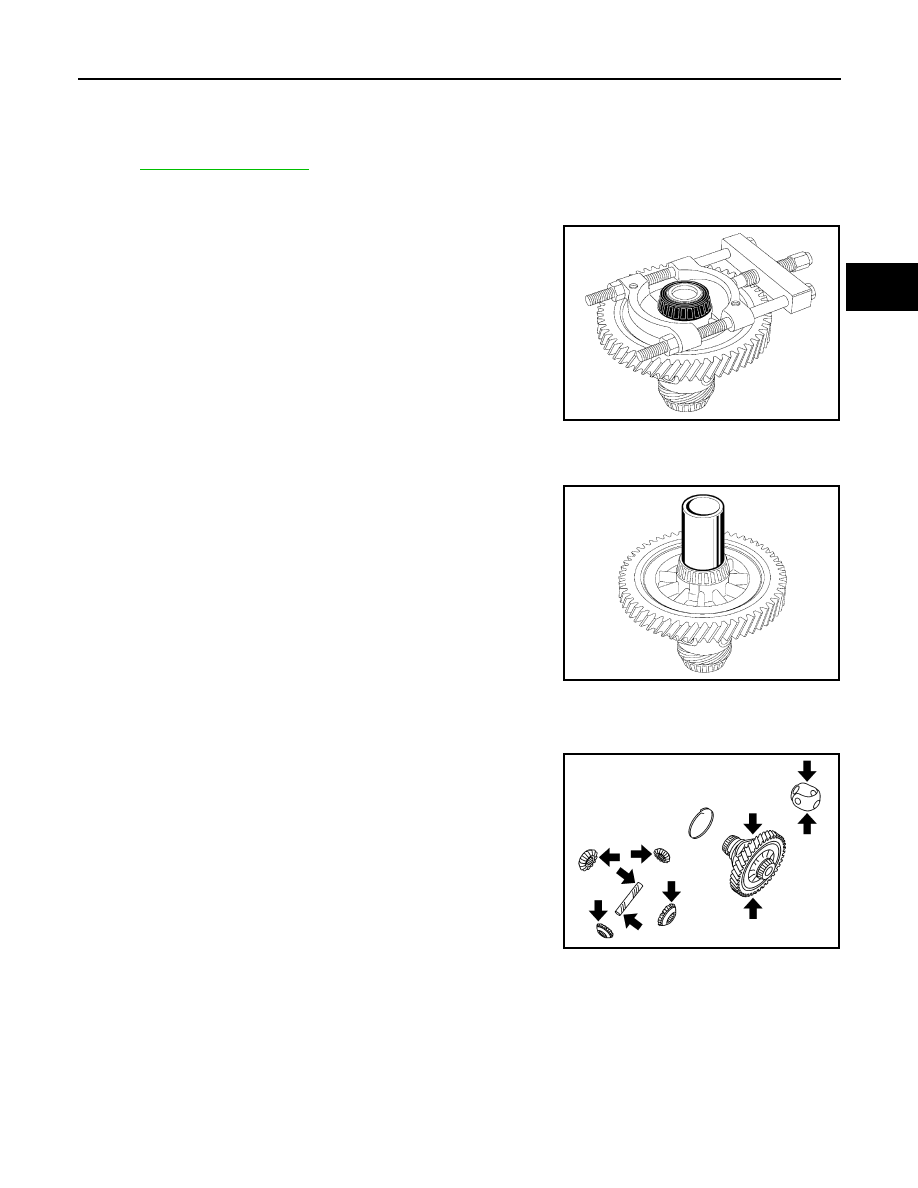

Disassembly

INFOID:0000000001070461

1.

Remove differential side bearing inner races using a suitable
puller.

2.

Remove lock ring to differential case.

3.

Remove pinion mate shaft, pinion mate gears, side gears, and
thrust washer to differential case.

Assembly

INFOID:0000000001070462

Note the following, and assemble in the reverse order of disassembly.
• Install differential side bearing inner races using a suitable tube.

Inspection

INFOID:0000000001070463

GEAR, WASHER, SHAFT AND CASE

Check side gears, thrust washer, pinion mate shaft, pinion mate
gears, lock ring and differential case. If necessary, replace with new
one.

BEARING

MCIB0048E

MCIB0049E

PCIB0977J

TM-48

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F92R]

FINAL DRIVE

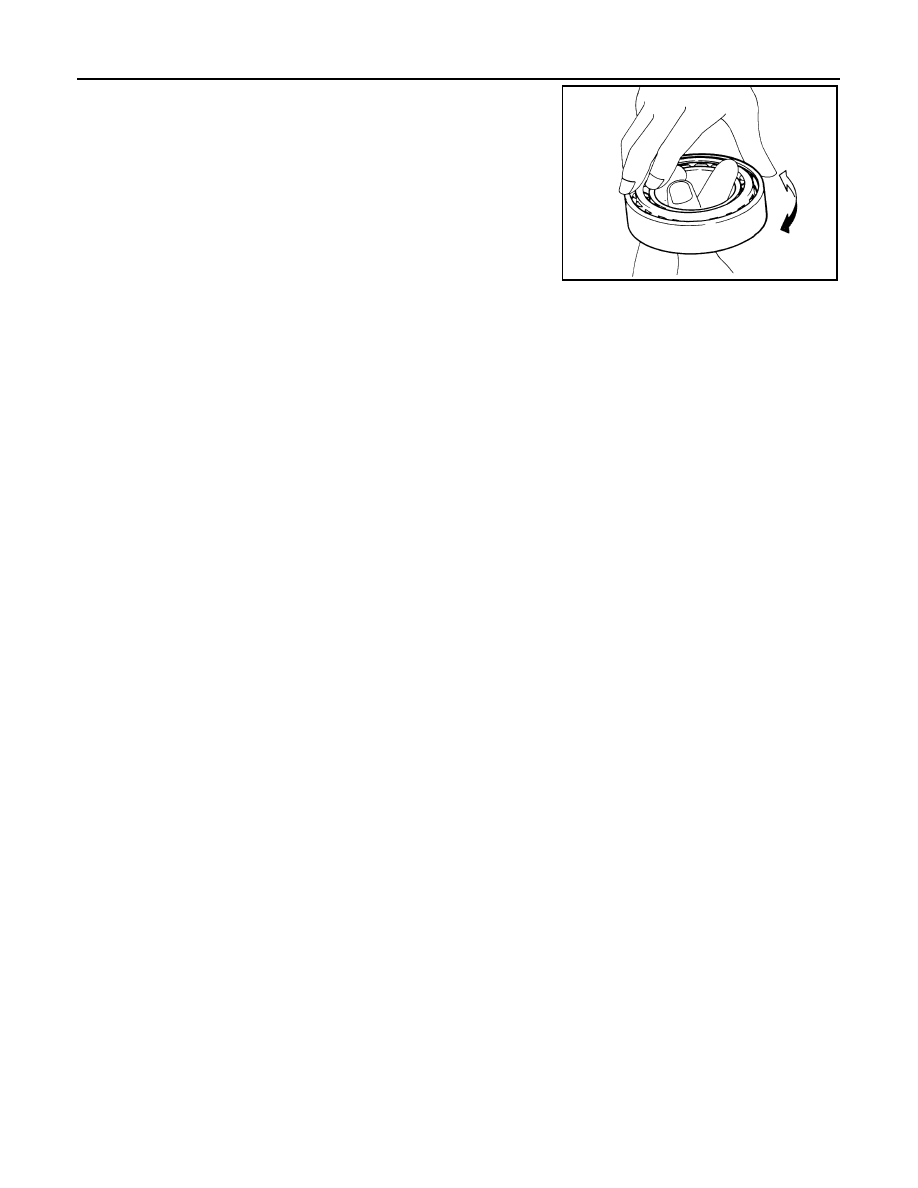

Check for bearing damage and rough rotation. If necessary, replace
with new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

SPD715

SHIFT FORK AND FORK ROD

TM-49

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000001070464

Refer to

TM-25, "Exploded View"

.

Disassembly

INFOID:0000000001070465

Refer to

TM-29, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000001070466

Refer to

TM-34, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000001070467

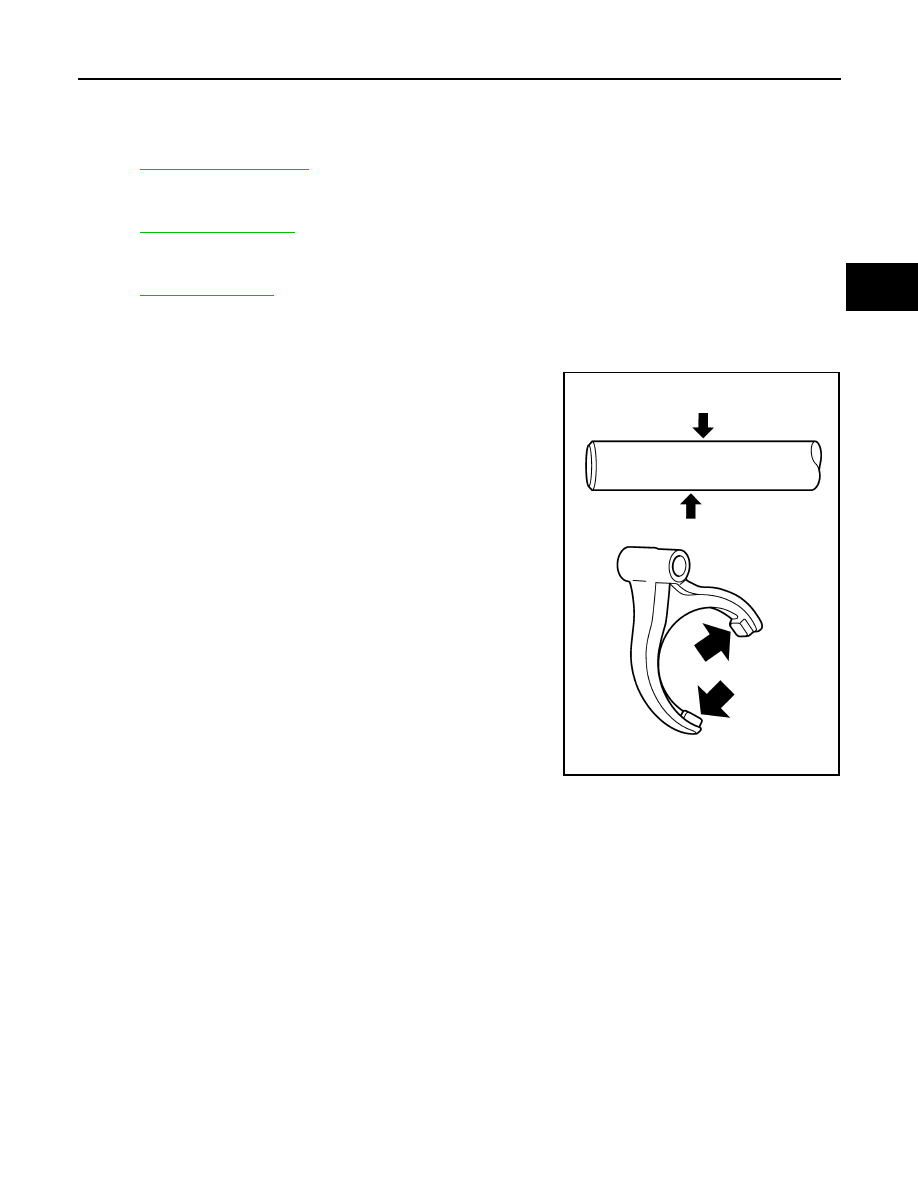

FORK ROD AND SHIFT FORK

Check contact surface and sliding surface of fork rod and shift fork
for wear, damage, and bend. Replace if necessary.

SCIA7785E

TM-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F92R]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001042519

TRANSAXLE

FINAL GEAR

Engine type

HR16DE

Transaxle model

RS5F92R

Model code number

JD00A

Number of speeds

5

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.7273

2nd

2.0476

3rd

1.3929

4th

1.0968

5th

0.8919

Reverse

3.5455

Final gear

4.5000

Number of teeth

Input gear

1st

11

2nd

21

3rd

28

4th

31

5th

37

Reverse

11

Main gear

1st

41

2nd

43

3rd

39

4th

34

5th

33

Reverse

39

Reverse idler gear

26

Oil capacity

 (Imp pt)

Approx. 2.3 (4)

Remarks

Reverse synchronizer

Installed

Double-cone synchronizer

1st and 2nd

SCIA0821E
