FUEL FILTER

1.

Prime the circuit using the priming bulb (1).

2.

Perform engine cranking with repeating several times until
engine starting.

3.

If the engine does not start, use a flat bladed screwdriver to lift
up the button on the fuel return pipe and perform engine crank-
ing.

4.

When the bleeding is completed, push the button, and check
absence of leakage.

 : Bleeding position
 : Normal position

Inspection

INFOID:0000000001062561

INSPECTION AFTER REPLACEMENT

Check fuel filter for fuel leakage, damage and other abnormal signs.

E1BIA0031ZZ

MBIB9038E

FUEL LEVEL SENSOR UNIT

FL-25

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

ON-VEHICLE REPAIR

FUEL LEVEL SENSOR UNIT

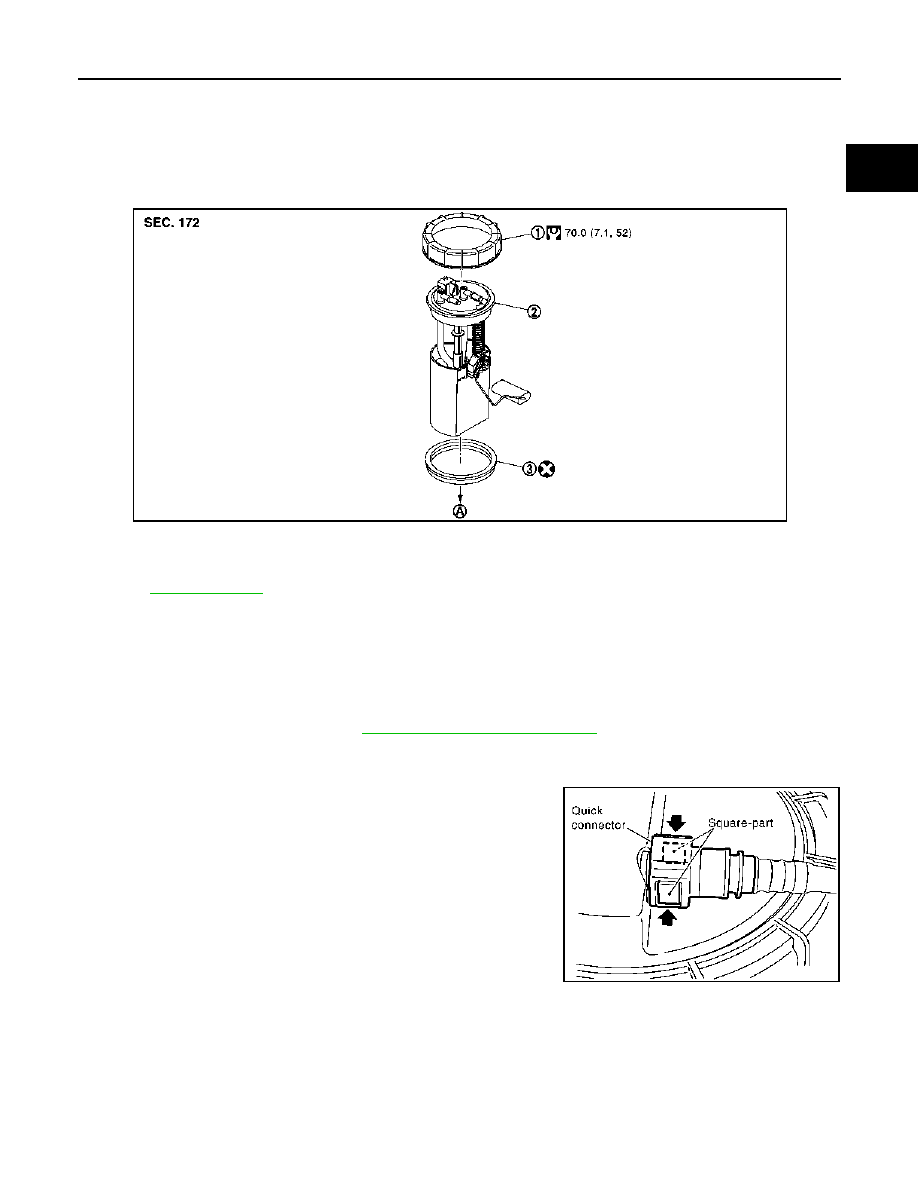

Exploded View

INFOID:0000000001062537

Removal and Installation

INFOID:0000000001062569

REMOVAL

1.

Disconnect battery ground cable.

2.

Open fuel filler lid and filler cap to release the pressure inside the fuel tank.

3.

Remove rear seat cushion. Refer to

SE-31, "Removal and Installation"

.

4.

Remove inspection hole cover under the rear seat.

5.

Disconnect electrical connector.

6.

Disconnect the quick connectors.
• Hold the connector while pushing in tabs, and pull out the

tube.

1.

Rock ring

2.

Fuel level sensor unit

3.

Seal packing

A.

To fuel tank

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1BIA0015GB

MBIB1052E

FL-26

< ON-VEHICLE REPAIR >

[K9K]

FUEL LEVEL SENSOR UNIT

CAUTION:

• The tube can be removed when the tabs are completely depressed. Do not twist it more than

necessary.

• Do not use any tools to remove the quick connector.
• Keep the resin tube away from heat. Be especially careful when welding near the tube.
• Prevent acid liquid such as battery electrolyte etc. from getting on the resin tube.
• Do not bend or twist the tube during installation and removal.
• Only when the tube is replaced, remove the remaining retainer.
• When the tube is replaced, also replace the retainer with a new one.

7.

Using lock ring wrench [SST: KV993G0010], remove lock ring
(2).

CAUTION:

Rotate SST while pressing fuel level sensor unit as spring
reaction force is applied from fuel tank inside to up ward.

8.

Remove fuel level sensor unit(1).

CAUTION:

• Be careful not to bend the float arm when removing.
• Handle them carefully without subjecting them to impacts

such as dropping.

INSTALLATION

Install in the reverse order of removal.

JFE628A

E1BIA0033ZZ

FUEL TANK

FL-27

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

FUEL TANK

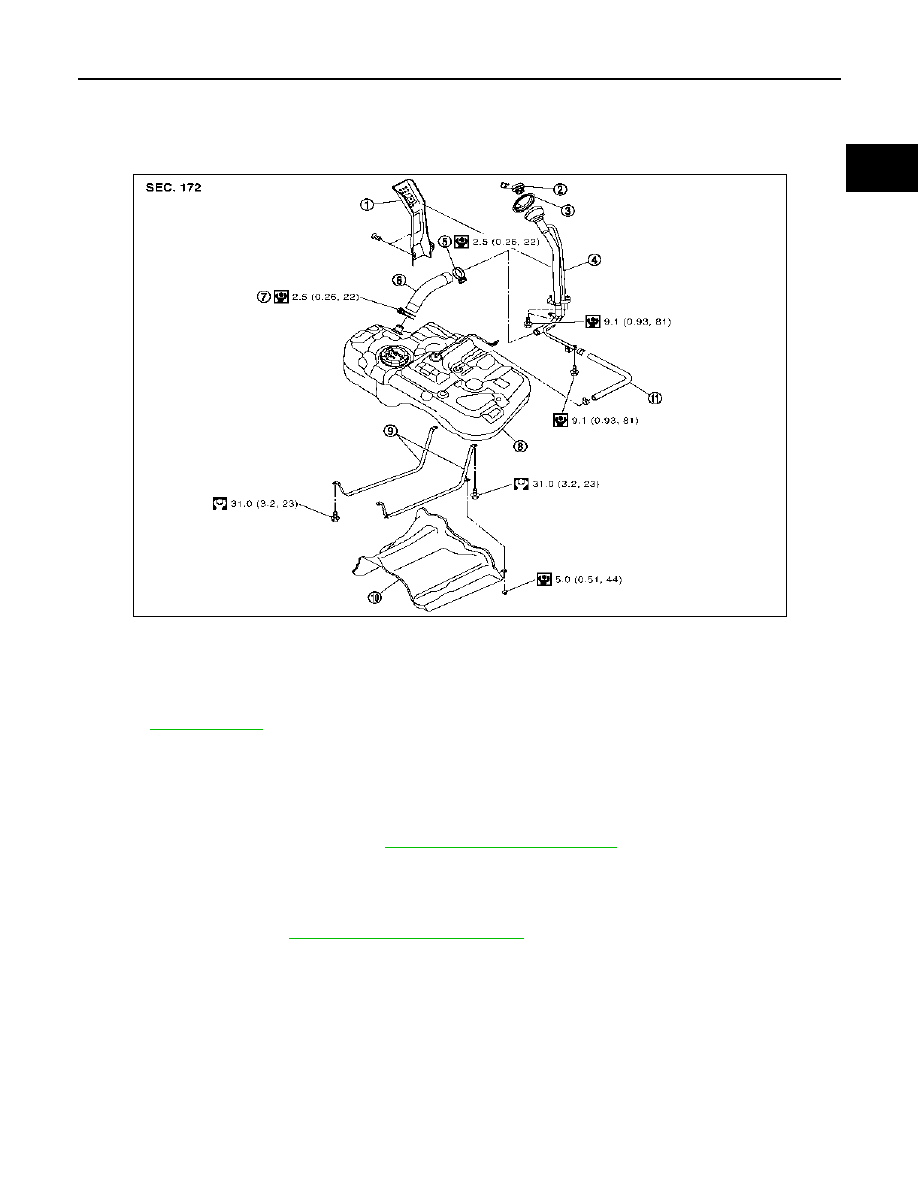

Exploded View

INFOID:0000000001062540

Removal and Installation

INFOID:0000000001062571

REMOVAL

1.

Remove RH rear wheel.

2.

Remove fuel level sensor unit. Refer to

FL-25, "Removal and Installation"

.

CAUTION:

If fuel tank bottom face is not level, and remaining fuel level is high, tank position becomes unsta-
ble, causing a danger. Drain fuel further than that in step 1 of the referenced procedure until tank
can be held by hand even if the balance is lost.

3.

Remove muffler. Refer to

EX-15, "Removal and Installation"

.

4.

Remove vehicle side insulator on upper center muffler and main muffler.

5.

Move parking brake cable from the lower face of fuel tank. Then remove clips for parking brake cable.

1.

Fuel filler tube protector

2.

Fuel filler cap

3.

Fuel filler cap protector

4.

Fuel filler tube

5.

Clamp

6.

Fuel filler hose

7.

Clamp

8.

Fuel tank

9.

Fuel tank mounting band

10. Fuel tank protector

11.

Vent hose

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1BIA0014GB
