Fuel Tank

INFOID:0000000000905660

Standard and Limit

Fuel tank capacity

Approximate 65   (14-1/2 Imp gal)

Fuel recommendation

Refer to

GI-32

PREPARATION

FL-21

< PREPARATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000001062547

Tool number
(RENAULT tool number)
Tool name

Description

KV993G0010
(Mot. 1397)
Lock ring wrench

Removing and Installing lock ring

PBIC1627E

FL-22

< ON-VEHICLE MAINTENANCE >

[K9K]

FUEL SYSTEM

ON-VEHICLE MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000001062535

Inspect fuel lines and tank for improper attachment, leaks, cracks,
damage, chafing and deterioration.If necessary, repair or replace.

SMA803A

FUEL FILTER

FL-23

< ON-VEHICLE MAINTENANCE >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

FUEL FILTER

Exploded View

INFOID:0000000001062549

Replacement

INFOID:0000000001062550

1.

Remove priming bulb from priming bulb bracket.

2.

Remove fuel filter from fuel filter bracket.

3.

Remove quick connectors as above.

CAUTION:

Put a shop cloth under the drain valve, to avoid the water and fuel spill on ABS actuator. Be espe-
cially careful to prevent any damage.

4.

Install in the reverse order of removal.
• After installation, operate the priming bulb vertically, if it is possible, to perform air bleeding.

Refer to

FL-23, "Air Bleeding"

.

CAUTION:

Do not bend or twist the tube during installation and removal.

Water Draining

INFOID:0000000001062551

Open drain valve (1) at the bottom of fuel filter.

CAUTION:

Put a shop cloth under the drain valve, to avoid the water and
fuel spill on ABS actuator.

Air Bleeding

INFOID:0000000001062552

1.

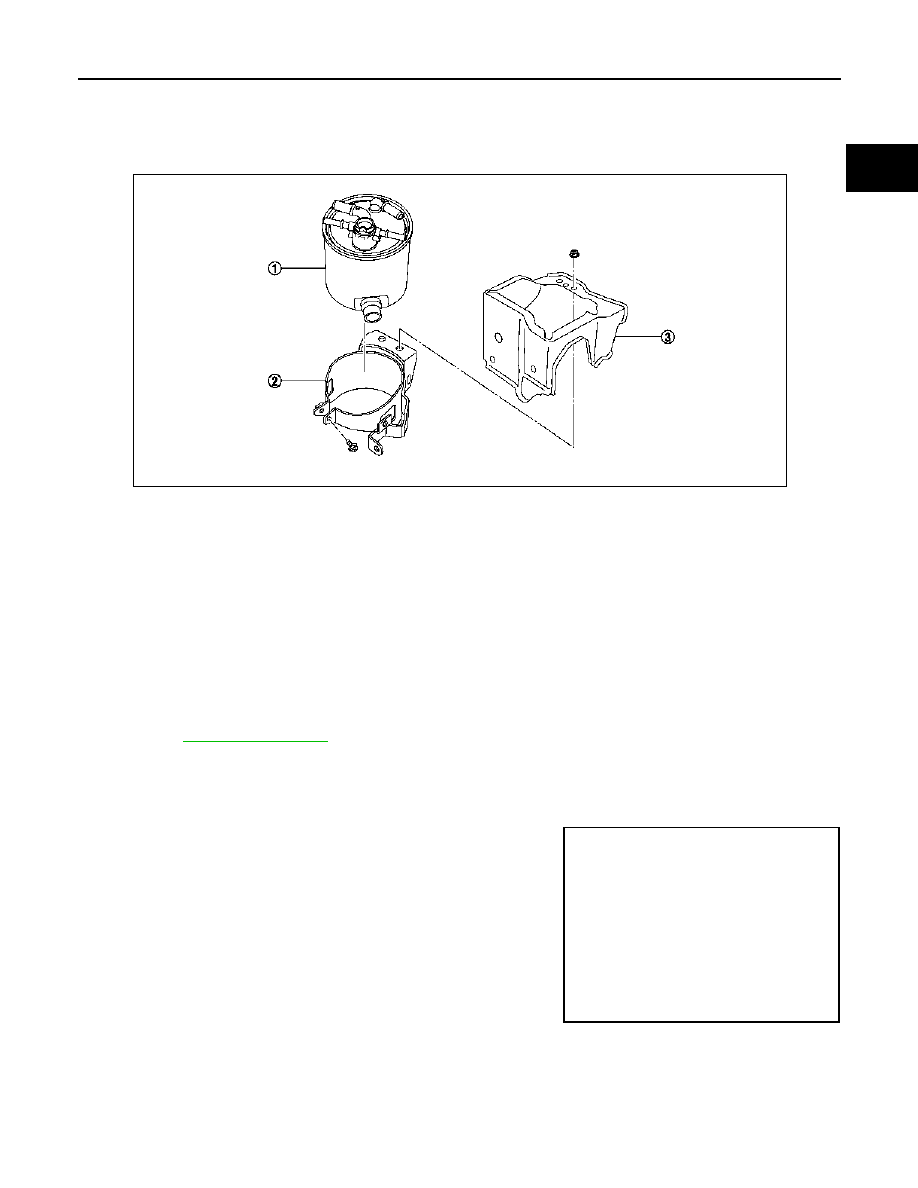

Fuel filter

2.

Fuel filter bracket

3.

Fuel filter protector

E1BIA0030ZZ

E1BIA0032ZZ
