COOLING FAN CONTROL

EC-1307

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

 : Vehicle front

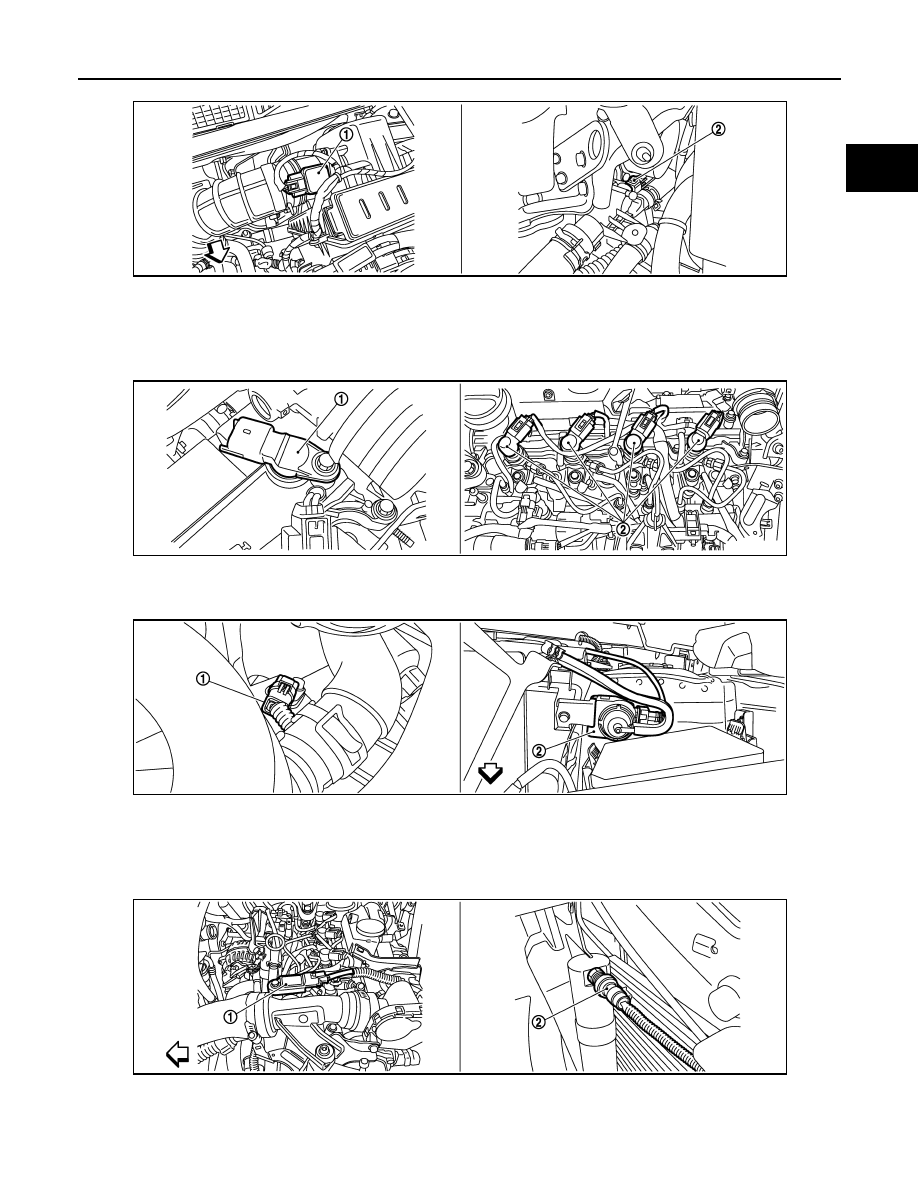

1.

Mass air flow sensor (with intake air
temperature sensor)

2.

Engine coolant temperature sensor

1.

Camshaft Position Sensor

2.

Fuel injector

 : Vehicle front

1.

Crankshaft position sensor

2.

Turbocharger boost control solenoid
valve

 : Vehicle front

1.

Turbocharger boost sensor

2.

Refrigerant pressure sensor

JMBIA0419ZZ

JMBIA0420ZZ

JMBIA0421ZZ

JMBIA0422ZZ

EC-1308

< FUNCTION DIAGNOSIS >

[K9K]

COOLING FAN CONTROL

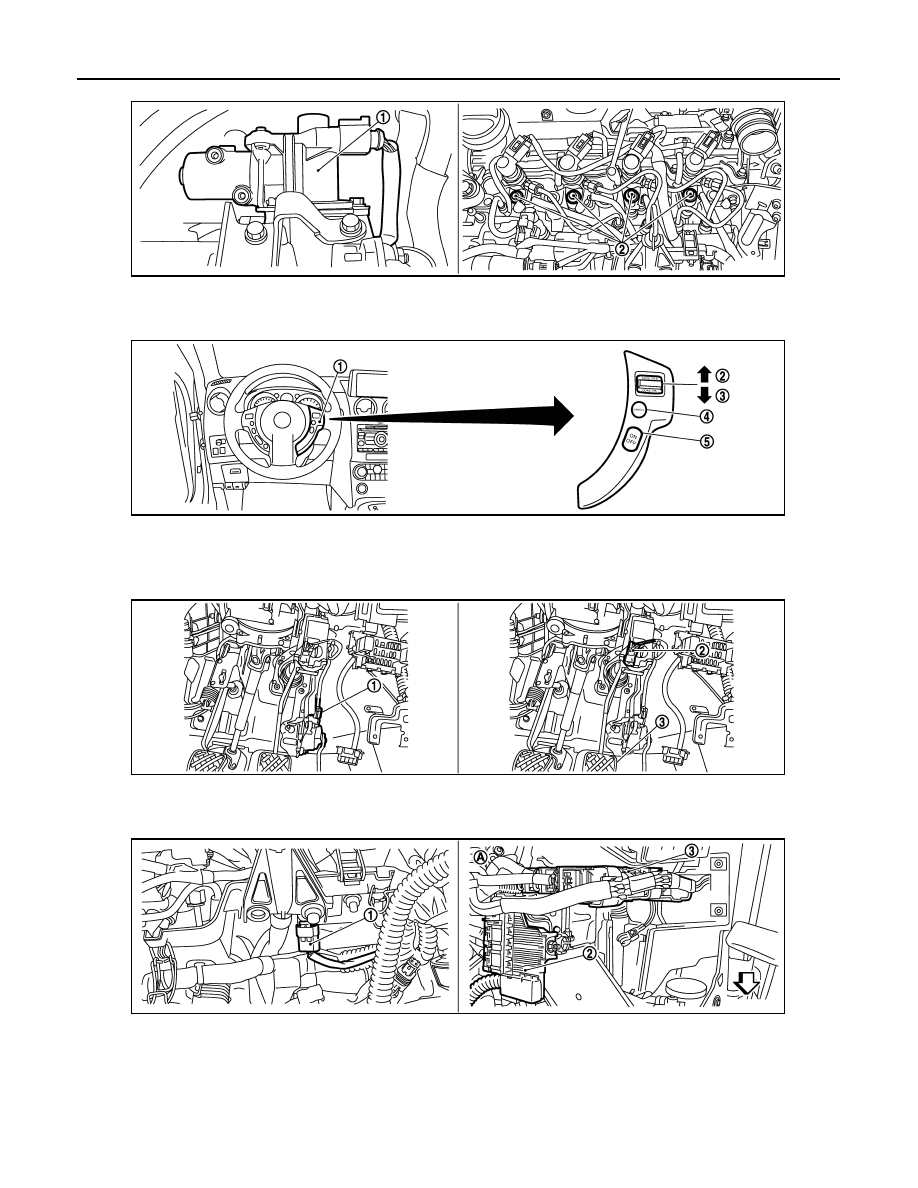

1.

EGR volume control valve

2.

Glow plug

1.

ASCD steering switch

2.

RESUME/ACCELERATE switch

3.

SET/COAST switch

4.

CANCEL switch

5.

MAIN switch

1.

Accelerator pedal position sensor

2.

Stop lamp switch

3.

Brake pedal

1.

Fuel rail pressure sensor

2.

Glow relay

3.

ECM

A.

View with battery removed

JMBIA0423ZZ

JMBIA0424ZZ

JMBIA0425ZZ

JMBIA0426ZZ

COOLING FAN CONTROL

EC-1309

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

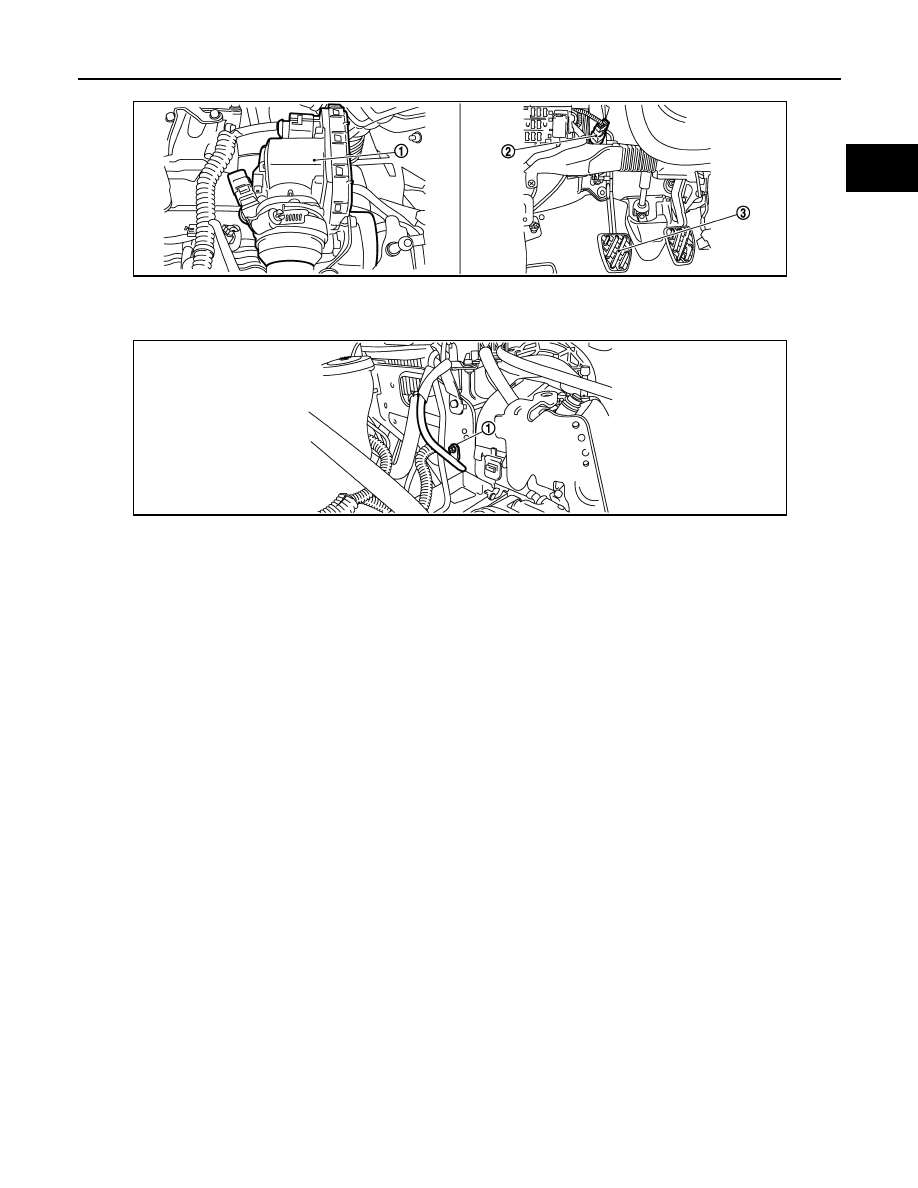

1.

Electric throttle control actuator

2.

Clutch switch

3.

Clutch pedal

1.

Body ground E17

JMBIA0427ZZ

JMBIA0428ZZ

EC-1310

< FUNCTION DIAGNOSIS >

[K9K]

CAN COMMUNICATION

CAN COMMUNICATION

System Description

INFOID:0000000000902333

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-59, "CAN Communication Signal Chart"

, about CAN communication for detail.
