GLOW CONTROL

EC-1303

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

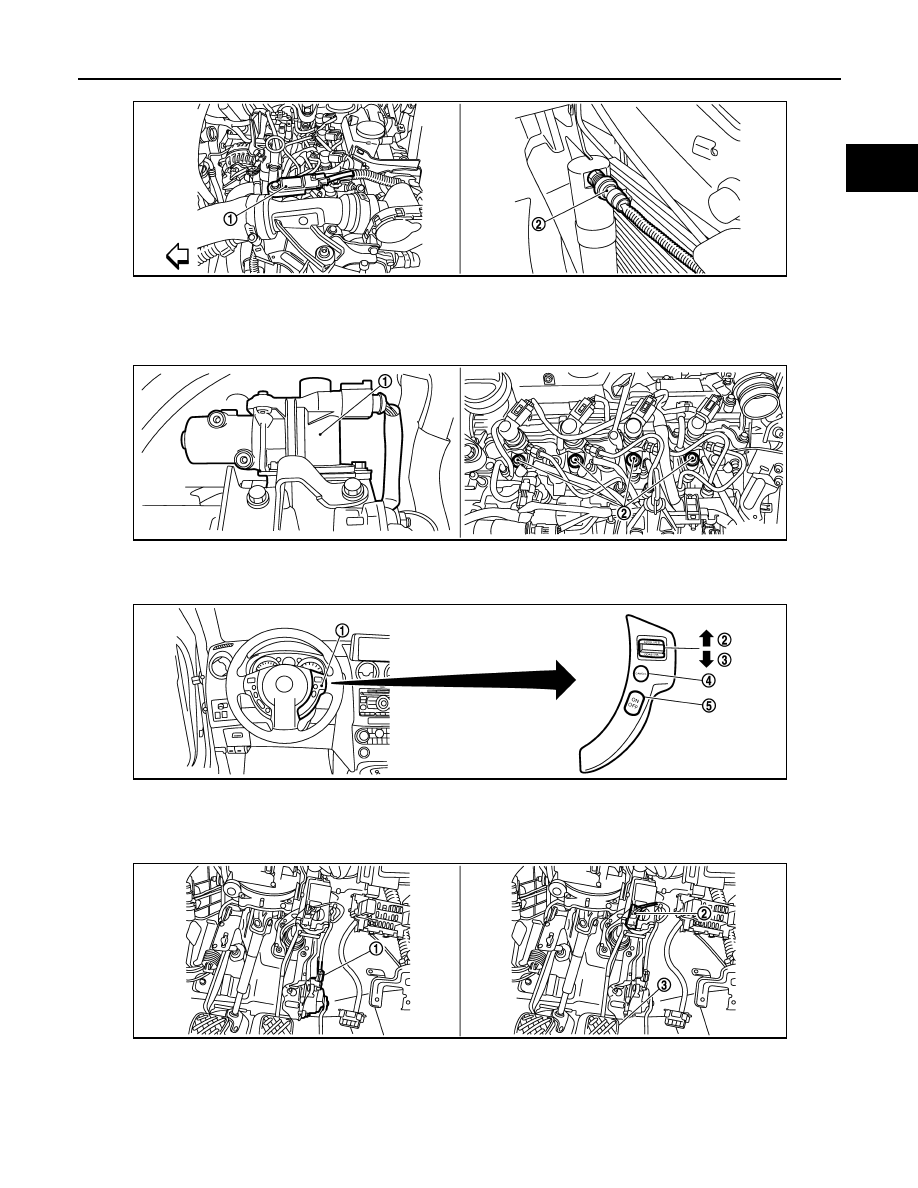

 : Vehicle front

1.

Turbocharger boost sensor

2.

Refrigerant pressure sensor

1.

EGR volume control valve

2.

Glow plug

1.

ASCD steering switch

2.

RESUME/ACCELERATE switch

3.

SET/COAST switch

4.

CANCEL switch

5.

MAIN switch

1.

Accelerator pedal position sensor

2.

Stop lamp switch

3.

Brake pedal

JMBIA0422ZZ

JMBIA0423ZZ

JMBIA0424ZZ

JMBIA0425ZZ

EC-1304

< FUNCTION DIAGNOSIS >

[K9K]

GLOW CONTROL

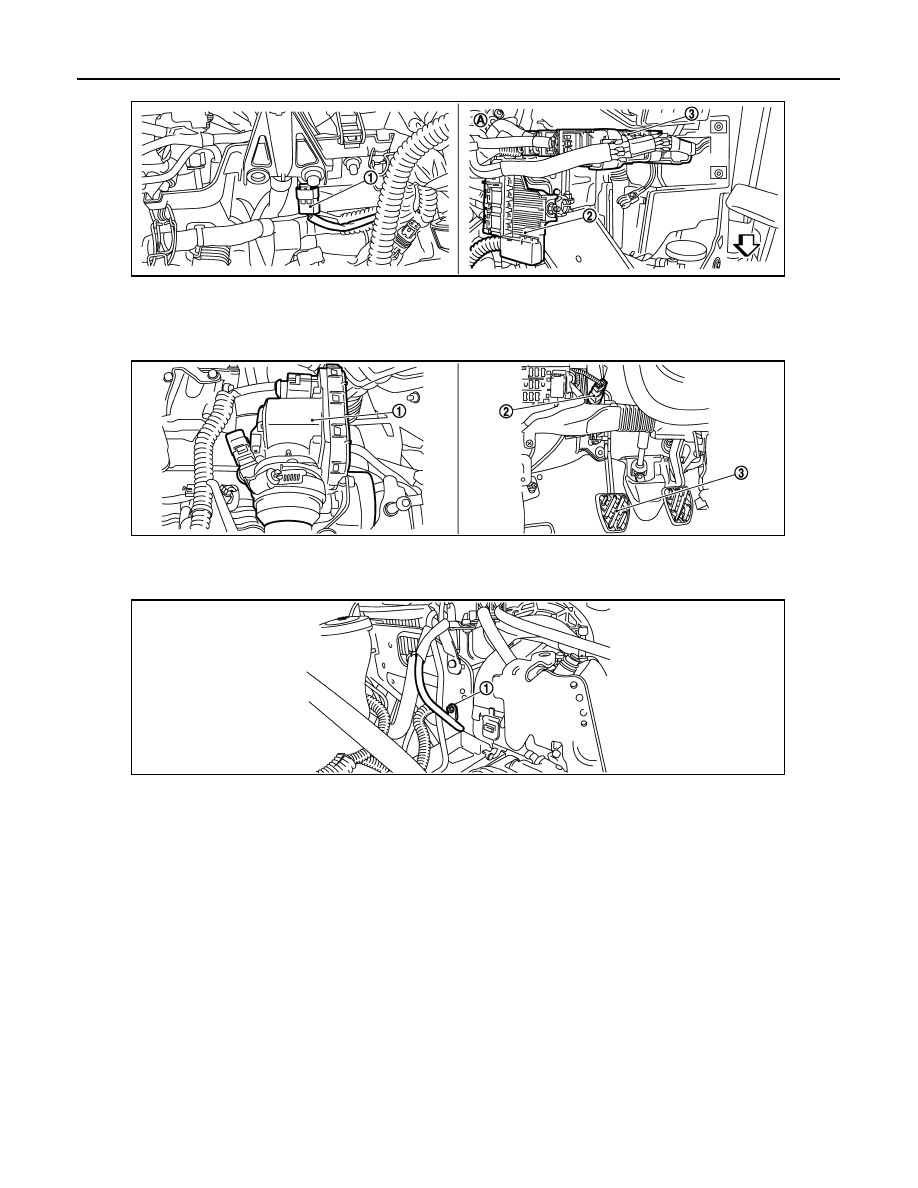

1.

Fuel rail pressure sensor

2.

Glow relay

3.

ECM

A.

View with battery removed

1.

Electric throttle control actuator

2.

Clutch switch

3.

Clutch pedal

1.

Body ground E17

JMBIA0426ZZ

JMBIA0427ZZ

JMBIA0428ZZ

COOLING FAN CONTROL

EC-1305

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

COOLING FAN CONTROL

System Description

INFOID:0000000000911871

The cooling fan motor is controlled by the ECM.

COOLING FAN OPERATION WITH THE ENGINE RUNNING

Cooling fan operate is guaranteed by a 2-speed fan assembly (LOW speed and HIGH speed).The ECM
requests the IPDM E/R to actuate them via the can communication. To provide cooling:
• Engine running
- LOW speed is actuated when the engine coolant temperature exceeds 96

°

C (205

°

F) and is deactivated

when it drops below 94

°

C (201

°

F).

- HIGH speed is actuated when the engine coolant temperature exceeds 104

°

C (219

°

F) and is deactivated

when it drops below 102

°

C (216

°

F).

• If the engine coolant temperature exceeds the threshold of 115

°

C (239

°

F), the ECM requests the IPDM E/R,

via the CAN communication, to switch off the air conditioning compressor so as to reduce the load on the
engine and attempt to limit the rise in temperature. The cut-off request is cancelled if the engine coolant tem-
perature drops below 110

°

C (230

°

F).

• If a malfunction in the engine coolant temperature sensor circuit is detected, the ECM requests that HIGH

speed operation.

• In addition to engine management, the ECM centralises the cooling requirements for the climate control and

automatic transmission/sequential gearbox functions (where fitted).

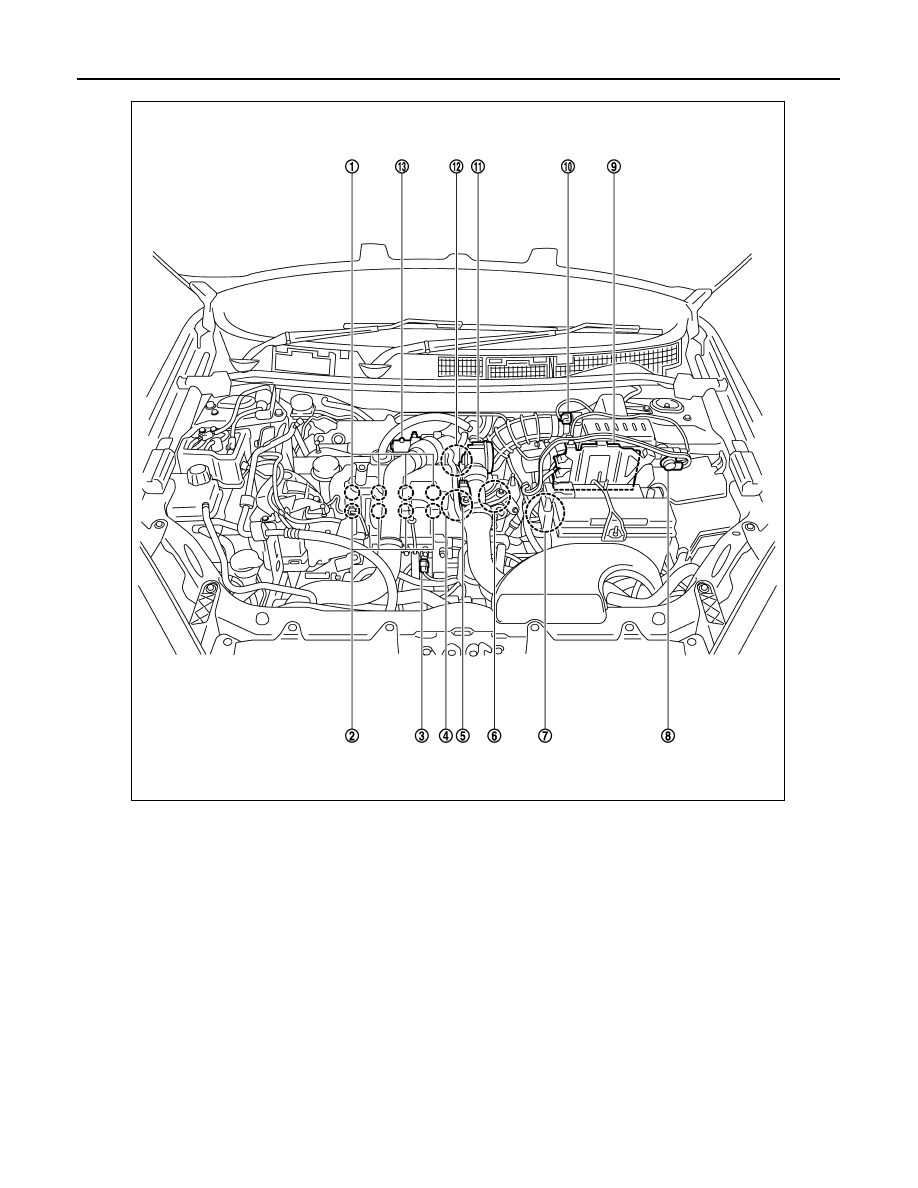

Component Parts Location

INFOID:0000000001109423

EC-1306

< FUNCTION DIAGNOSIS >

[K9K]

COOLING FAN CONTROL

1.

Fuel injector

2.

Glow plug

3.

Fuel rail pressure sensor

4.

Crankshaft position sensor

5.

Turbocharger boost sensor

6.

Engine coolant temperature sensor

7.

Glow relay

8.

Turbocharger boost control solenoid
valve

9.

ECM

10. Mass air flow sensor (with intake air

temperature sensor)

11.

Electric throttle control actuator

12. Camshaft position sensor

13. EGR volume control valve

JMBIA0429ZZ
