P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-1115
< COMPONENT DIAGNOSIS >
[MR20DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
M
A
EC
N
P
O
P1122 ELECTRIC THROTTLE CONTROL FUNCTION
Description
INFOID:0000000001094190
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
DTC Logic
INFOID:0000000001094191
DTC DETECTION LOGIC
NOTE:
If DTC P1122 is displayed with DTC P1121 or P1126, first perform the trouble diagnosis for DTC P1121
or P1126. Refer to
or
.
DTC CONFIRMATION PROCEDURE
1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
>> GO TO 2.
2.
PERFORM DTC CONFIRMATION PROCEDURE
1.
Turn ignition switch ON and wait at least 2 seconds.
2.
Start engine and let it idle for 5 seconds.
3.
Check DTC.
Is DTC detected?
YES
>> Go to
EC-1118, "Diagnosis Procedure"
.
NO
>> INSPECTION END
Diagnosis Procedure
INFOID:0000000001115766
1.
CHECK GROUND CONNECTION
1.
Turn ignition switch OFF.
2.
Check ground connection E21. Refer to Ground Inspection in
.
Is the inspection result normal?
YES
>> GO TO 2.
NO
>> Repair or replace ground connection.
2.

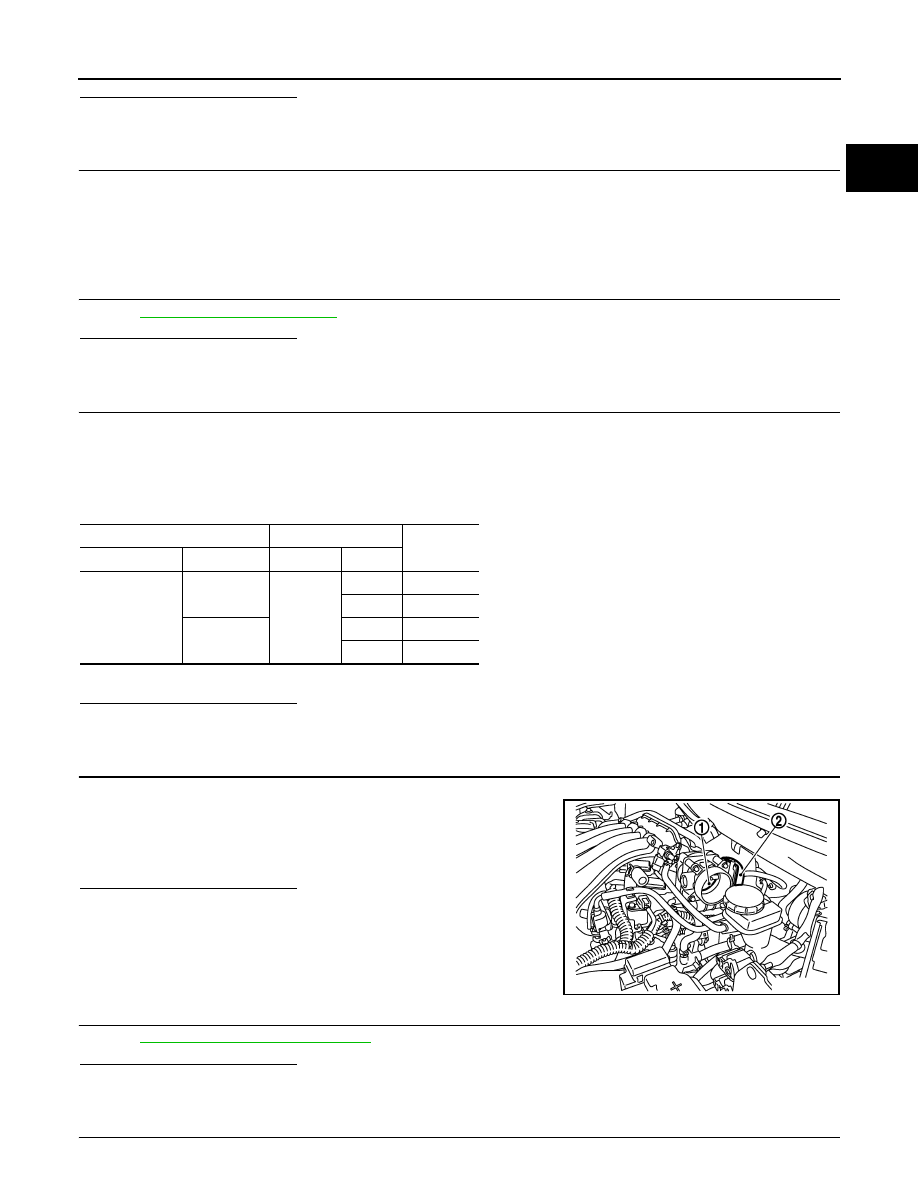

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1.
Check the voltage between ECM harness connector and ground.
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P1122
Electric throttle control
performance
Electric throttle control function does not oper-
ate properly.
• Harness or connectors
(Throttle control motor circuit is open or
shorted)
• Electric throttle control actuator
