INTAKE VALVE TIMING CONTROL

EC-1043

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

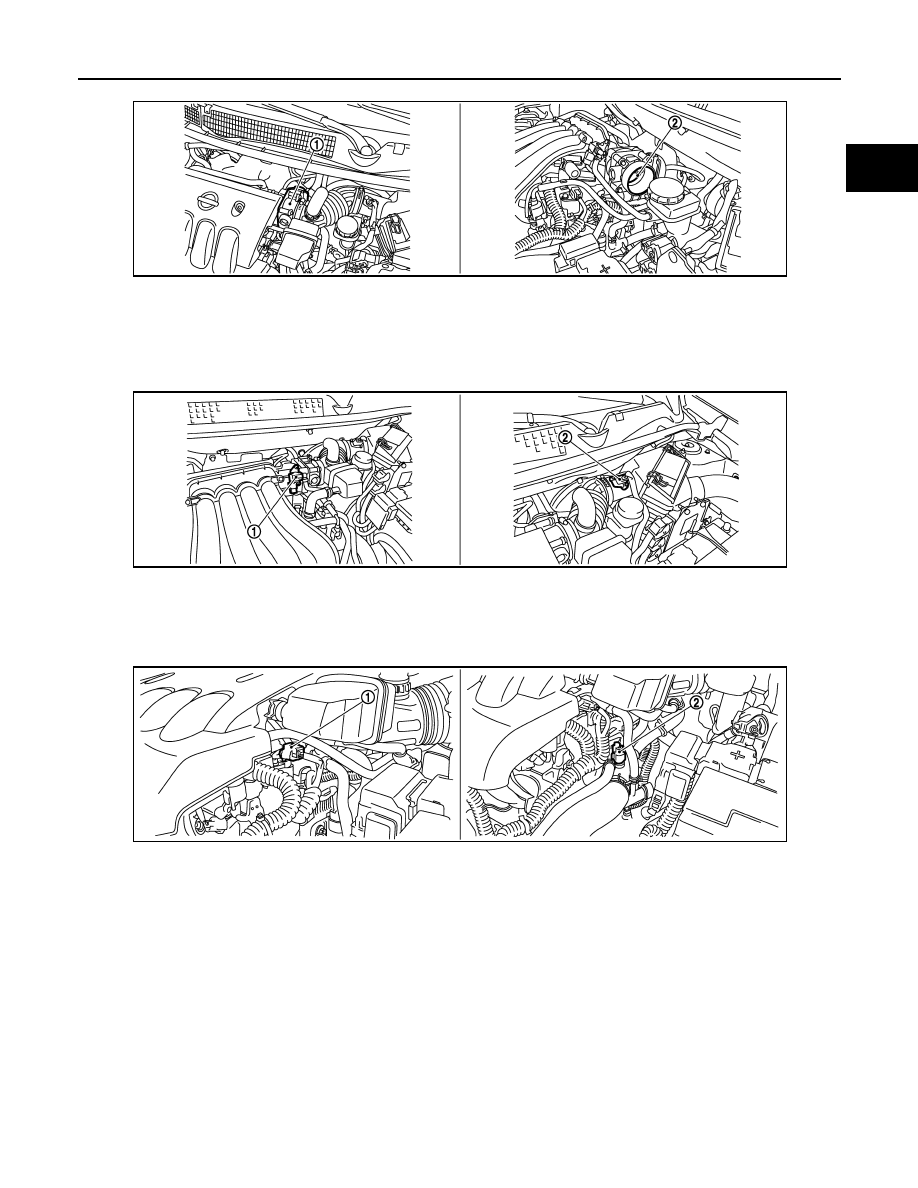

1.

Electric throttle control actuator
(with built-in position sensor, throttle
control motor)

2.

Throttle valve

1.

EVAP canister purge volume control
solenoid valve

2.

Mass air flow sensor
(with intake air temperature sensor)

1.

Camshaft position sensor

2.

Engine coolant temperature sensor

JMBIA0341ZZ

JMBIA0342ZZ

JMBIA0343ZZ

EC-1044

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

INTAKE VALVE TIMING CONTROL

PBIB2942E

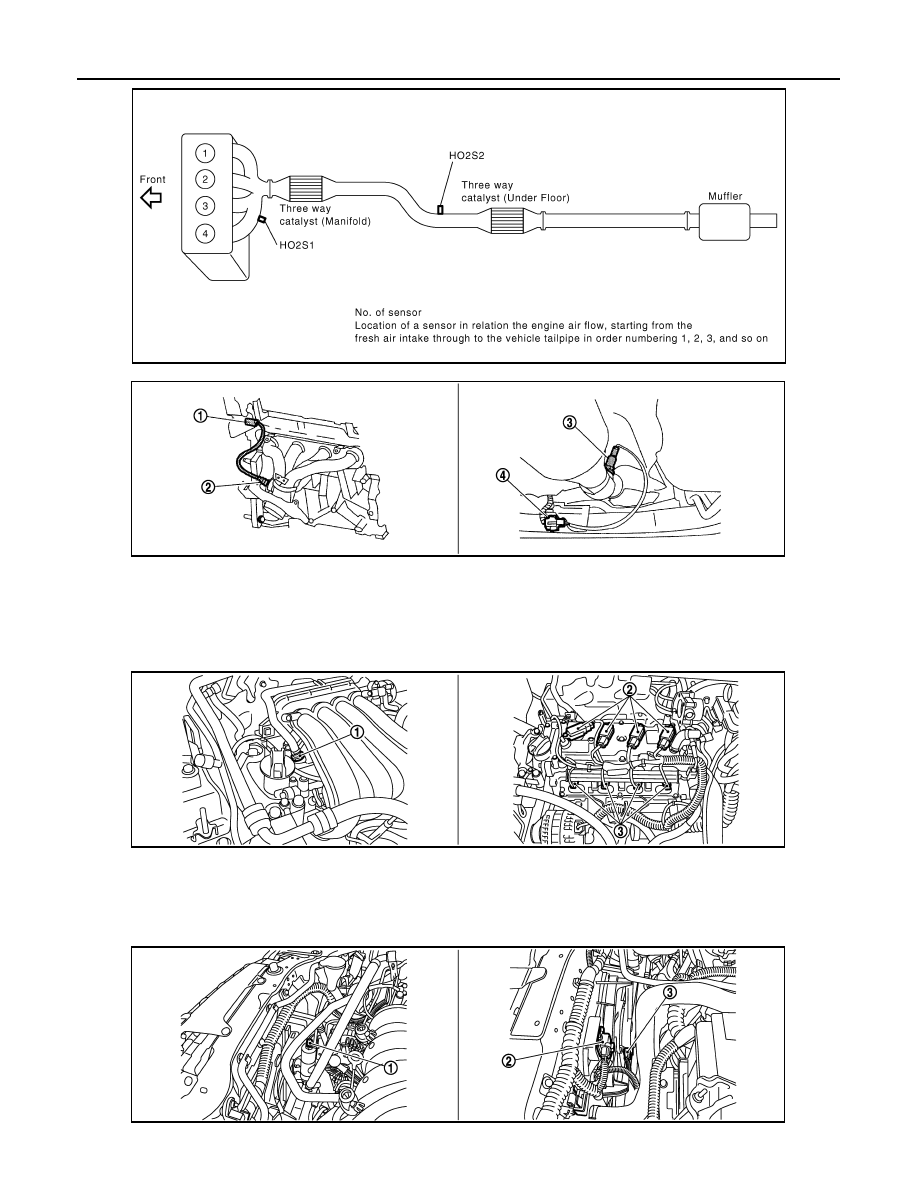

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

JMBIA0454ZZ

JMBIA0344ZZ

JMBIA0345ZZ

INTAKE VALVE TIMING CONTROL

EC-1045

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

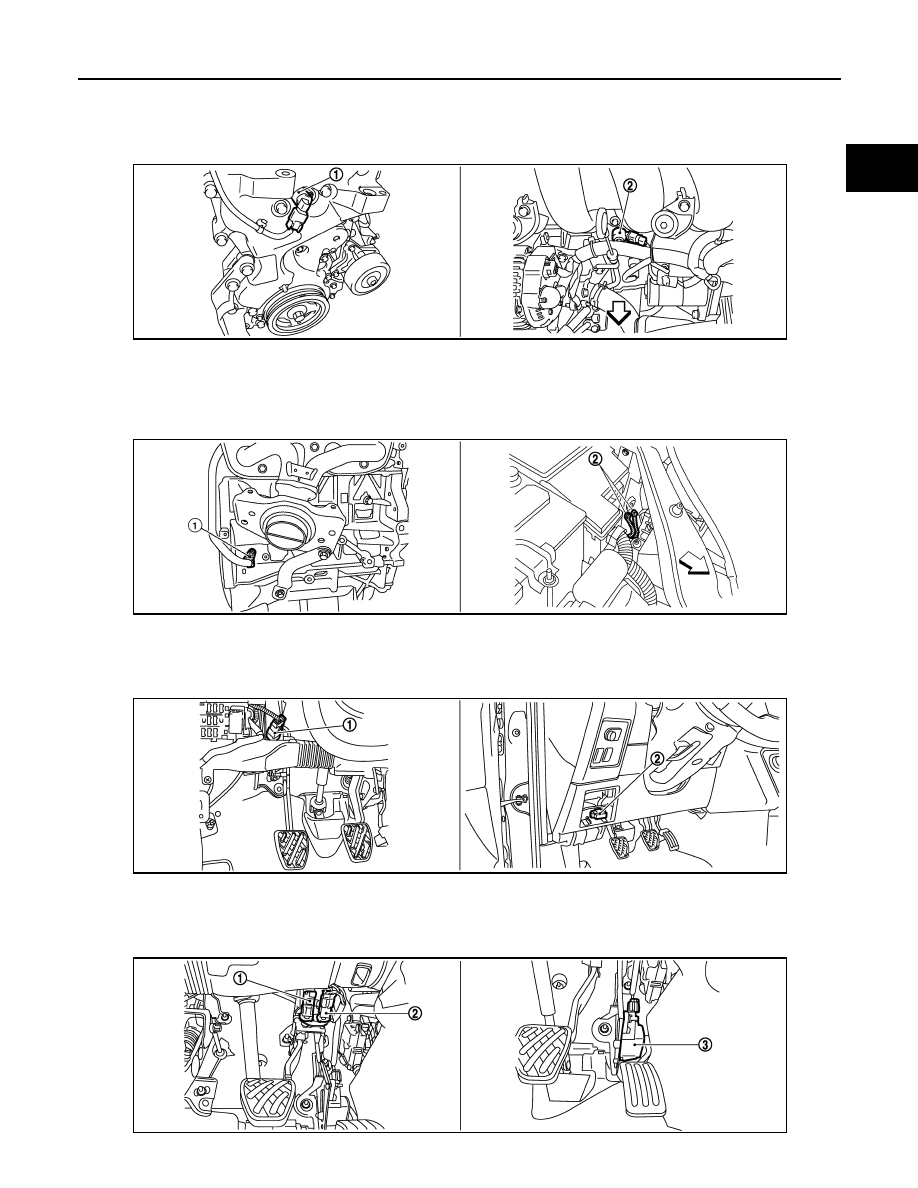

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ

EC-1046

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

INTAKE VALVE TIMING CONTROL

Component Description

INFOID:0000000001094081

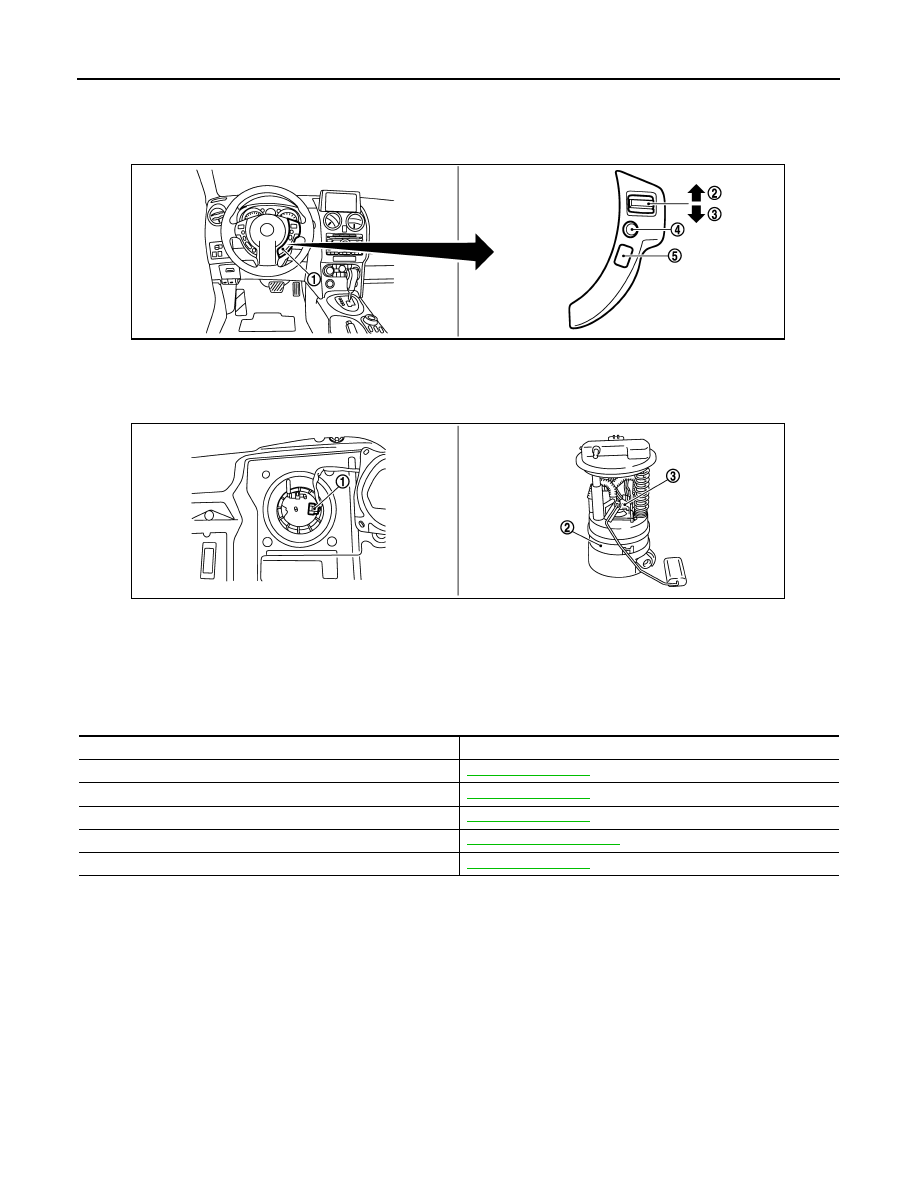

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

1.

ASDC steering switch

2.

CANSEL switch

3.

RESUME/ACCCELERATE switch

4.

SET/COAST switch

5.

MAIN SWITCH

6.

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

JMBIA0349ZZ

JMBIA0346ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-813, "Description"

Crankshaft position sensor (POS)

EC-809, "Description"

Engine coolant temperature sensor

EC-754, "Description"

Intake valve timing control solenoid valve

EC-700, "System Diagram"

Vehicle speed sensor

EC-825, "Description"
