EVAPORATIVE EMISSION SYSTEM

EC-1039

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

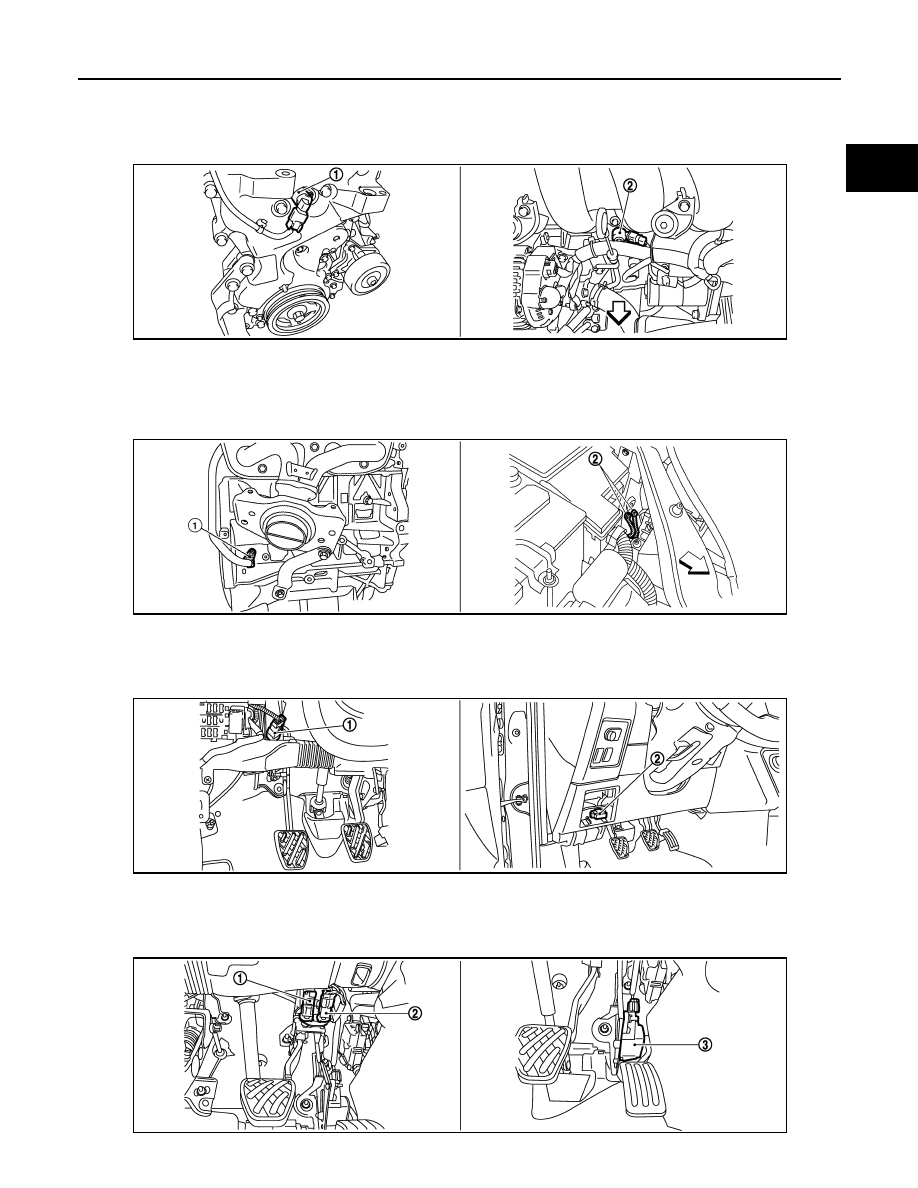

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ

EC-1040

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

EVAPORATIVE EMISSION SYSTEM

Component Description

INFOID:0000000001094077

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

1.

ASDC steering switch

2.

CANSEL switch

3.

RESUME/ACCCELERATE switch

4.

SET/COAST switch

5.

MAIN SWITCH

6.

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

JMBIA0349ZZ

JMBIA0346ZZ

Component

Reference

Accelerator pedal position sensor

EC-909, "Description"

Camshaft position sensor (PHASE)

EC-813, "Description"

Crankshaft position sensor (POS)

EC-809, "Description"

Engine coolant temperature sensor

EC-754, "Description"

EVAP canister purge volume control solenoid valve

EC-822, "Description"

Heated oxygen sensor 1

EC-760, "Description"

Mass air flow sensor

EC-746, "Description"

Throttle position sensor

EC-757, "Description"

Vehicle speed sensor

EC-825, "Description"

INTAKE VALVE TIMING CONTROL

EC-1041

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

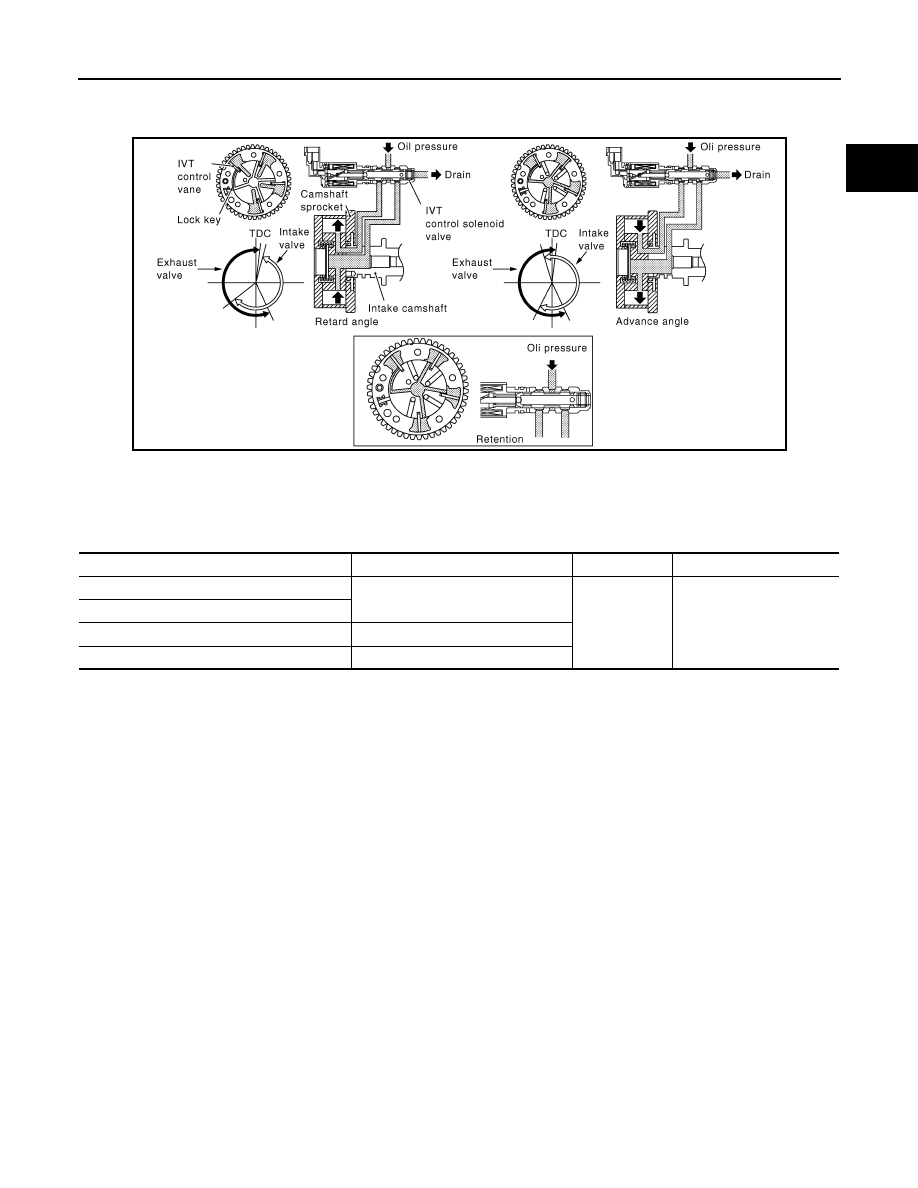

INTAKE VALVE TIMING CONTROL

System Diagram

INFOID:0000000001094078

System Description

INFOID:0000000001094079

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM through CAN communication line

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.

Component Parts Location

INFOID:0000000001115789

PBIB3333E

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Intake valve
timing control

Intake valve timing control
solenoid valve

Camshaft position sensor (PHASE)

Engine coolant temperature sensor

Engine coolant temperature

Wheel sensor*

Vehicle speed

EC-1042

< FUNCTION DIAGNOSIS >

[MR20DE (WITHOUT EURO-OBD)]

INTAKE VALVE TIMING CONTROL

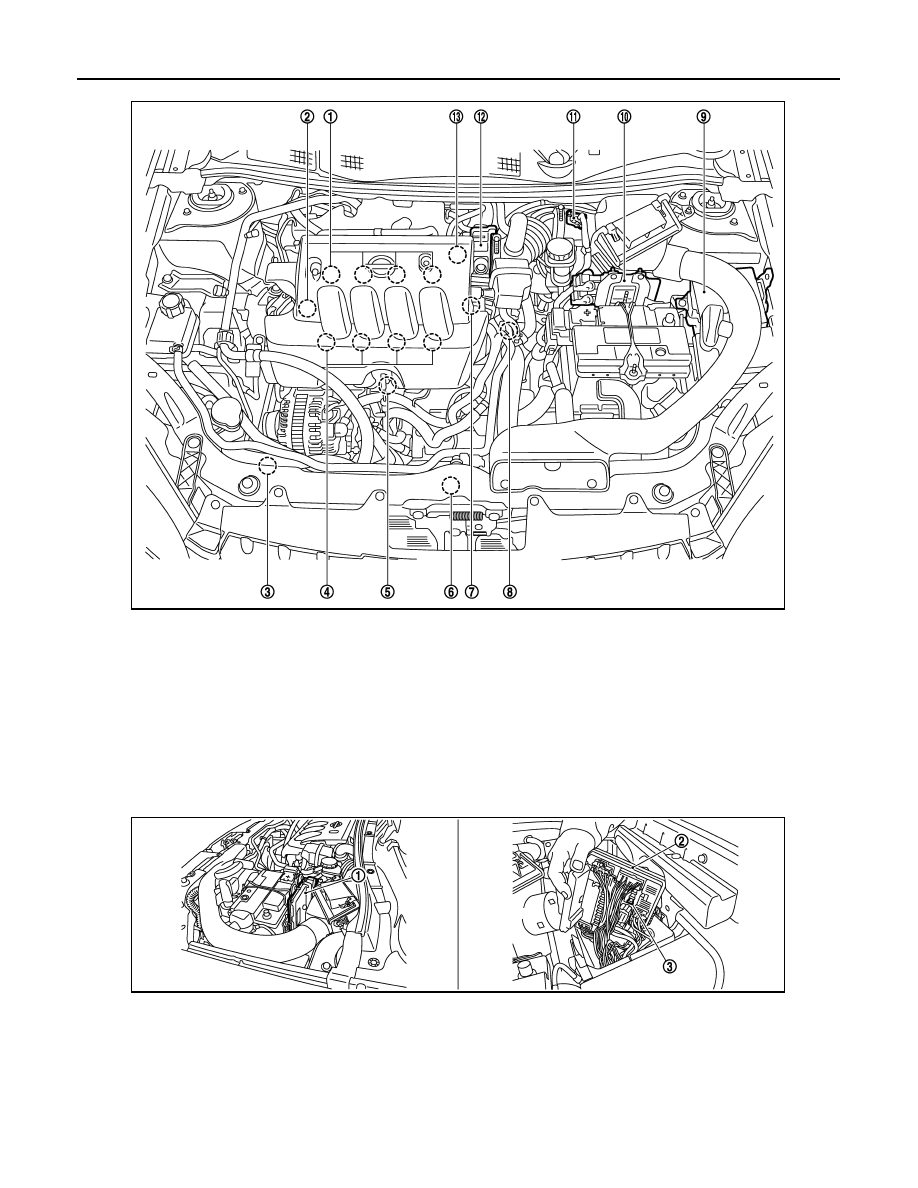

1.

Ignition coil (with power transistor)
and spark plug

2.

PCV valve

3.

Refrigerant pressure sensor

4.

Fuel injector

5.

Knock sensor

6.

Cooling fan motor

7.

Camshaft position sensor (PHASE)

8.

Engine coolant temperature sensor

9.

IPDM E/R

10. ECM

11.

Mass air flow sensor (with intake
temperature sensor)

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse (15A)

JMBIA0338ZZ

JMBIA0340ZZ
