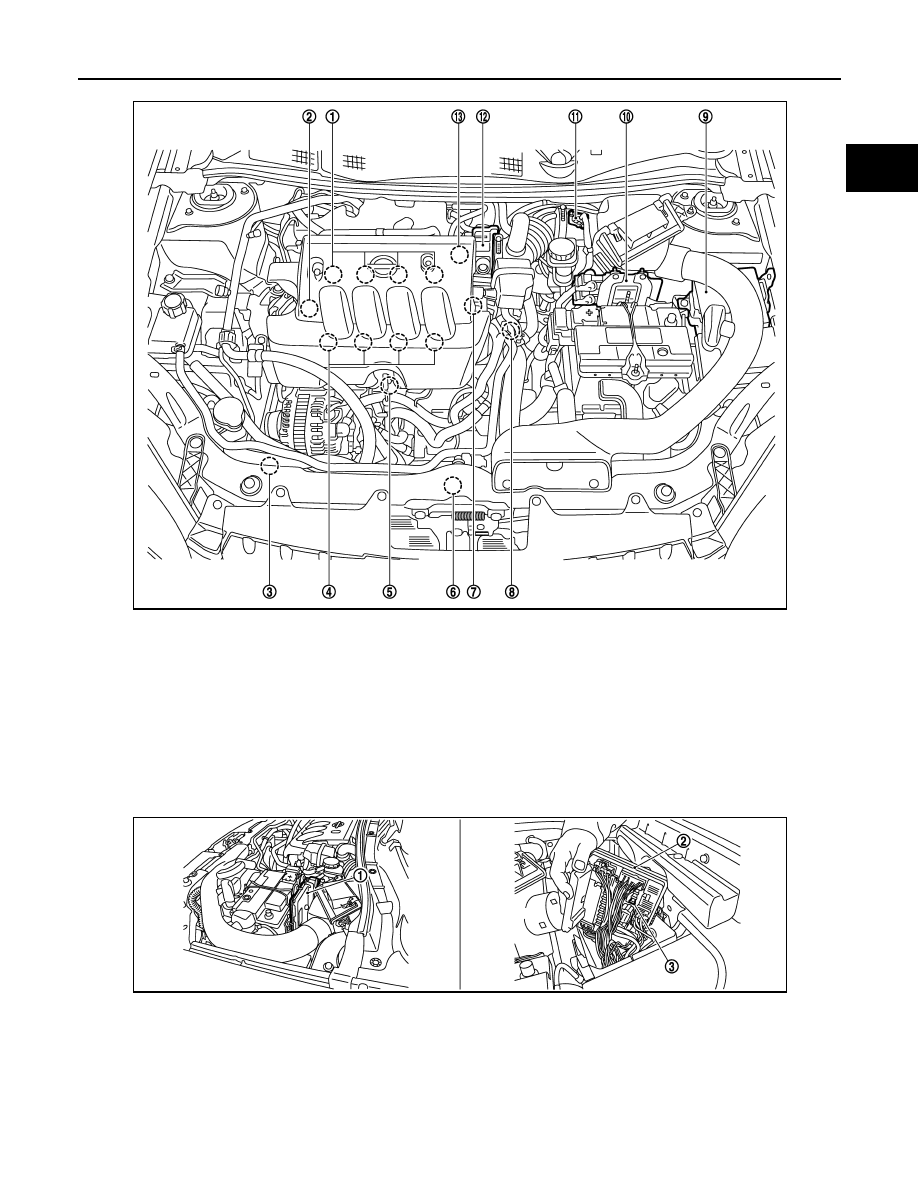

INTAKE VALVE TIMING CONTROL

EC-699

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Ignition coil (with power transistor)
and spark plug

2.

PCV valve

3.

Refrigerant pressure sensor

4.

Fuel injector

5.

Knock sensor

6.

Cooling fan motor

7.

Camshaft position sensor (PHASE)

8.

Engine coolant temperature sensor

9.

IPDM E/R

10. ECM

11.

Mass air flow sensor (with intake
temperature sensor)

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse (15A)

JMBIA0338ZZ

JMBIA0340ZZ

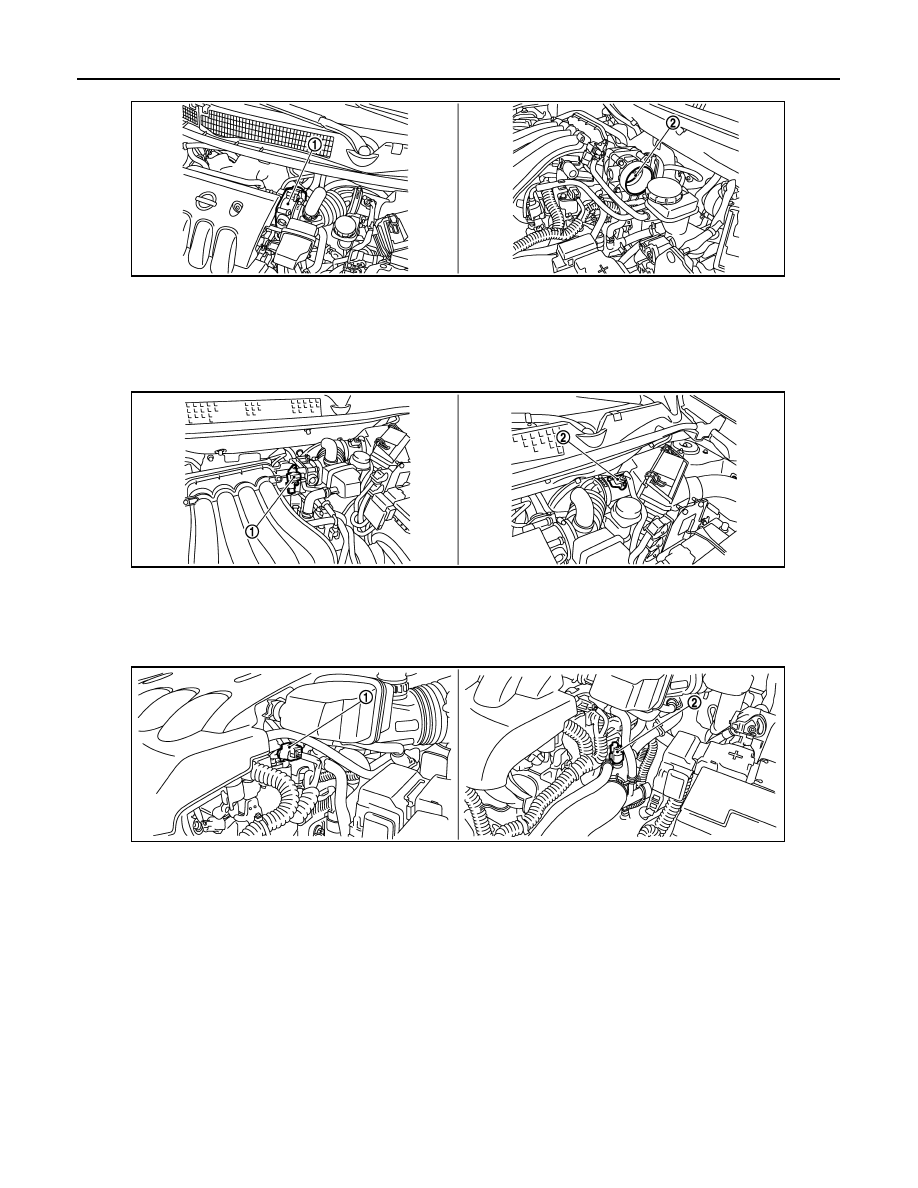

EC-700

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

INTAKE VALVE TIMING CONTROL

1.

Electric throttle control actuator
(with built-in position sensor, throttle
control motor)

2.

Throttle valve

1.

EVAP canister purge volume control
solenoid valve

2.

Mass air flow sensor
(with intake air temperature sensor)

1.

Camshaft position sensor

2.

Engine coolant temperature sensor

JMBIA0341ZZ

JMBIA0342ZZ

JMBIA0343ZZ

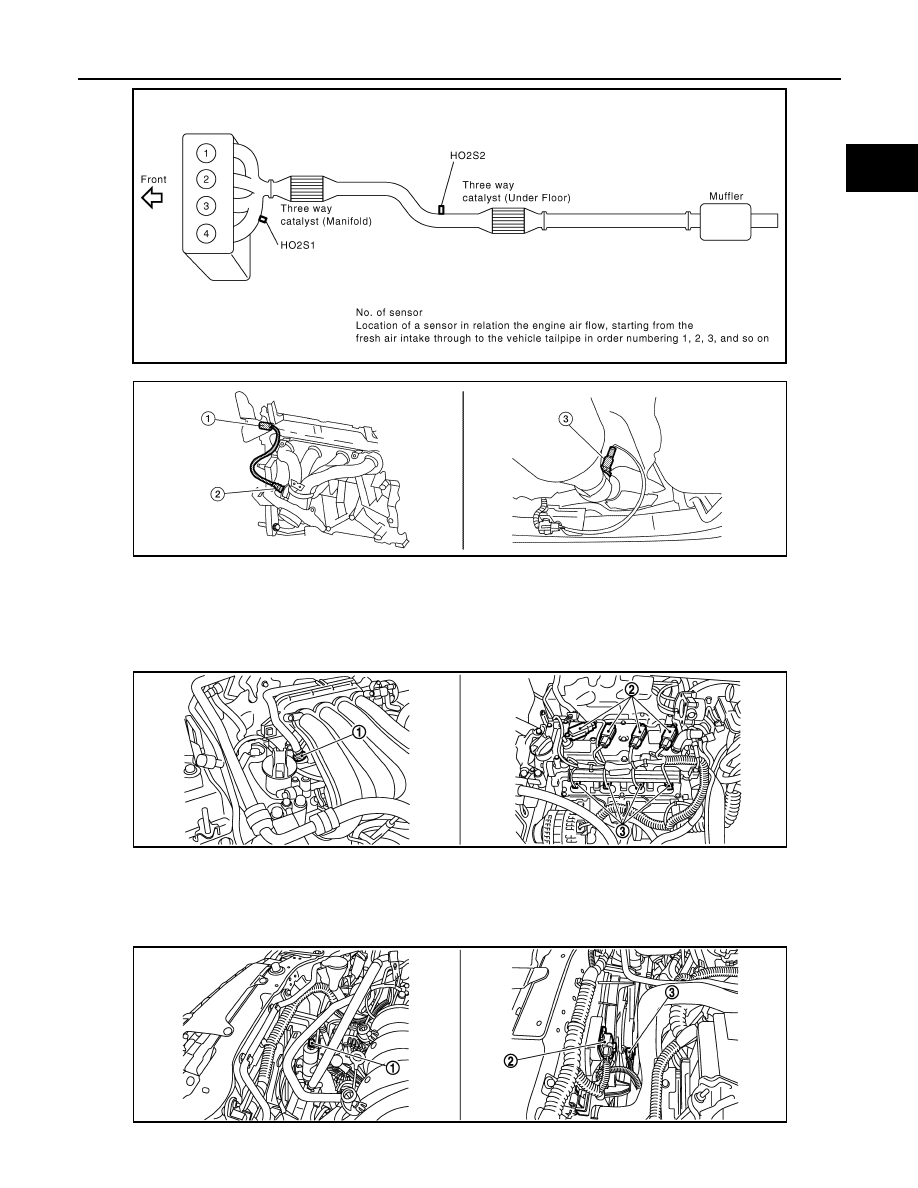

INTAKE VALVE TIMING CONTROL

EC-701

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB2942E

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

BBIA0757E

JMBIA0344ZZ

JMBIA0345ZZ

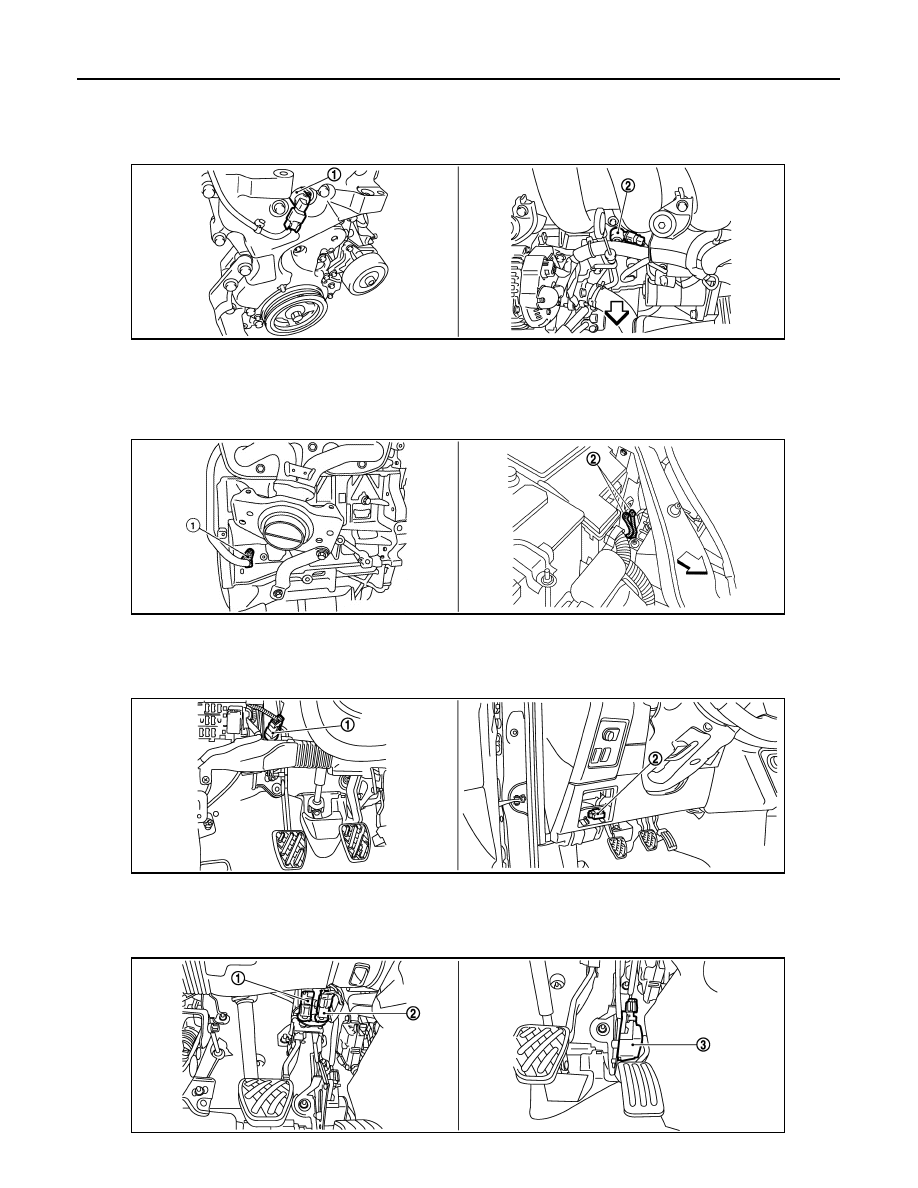

EC-702

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

INTAKE VALVE TIMING CONTROL

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ
