Nissan Qashqai (2007-2010). Manual - part 292

COOLING FAN CONTROL

EC-687

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB2942E

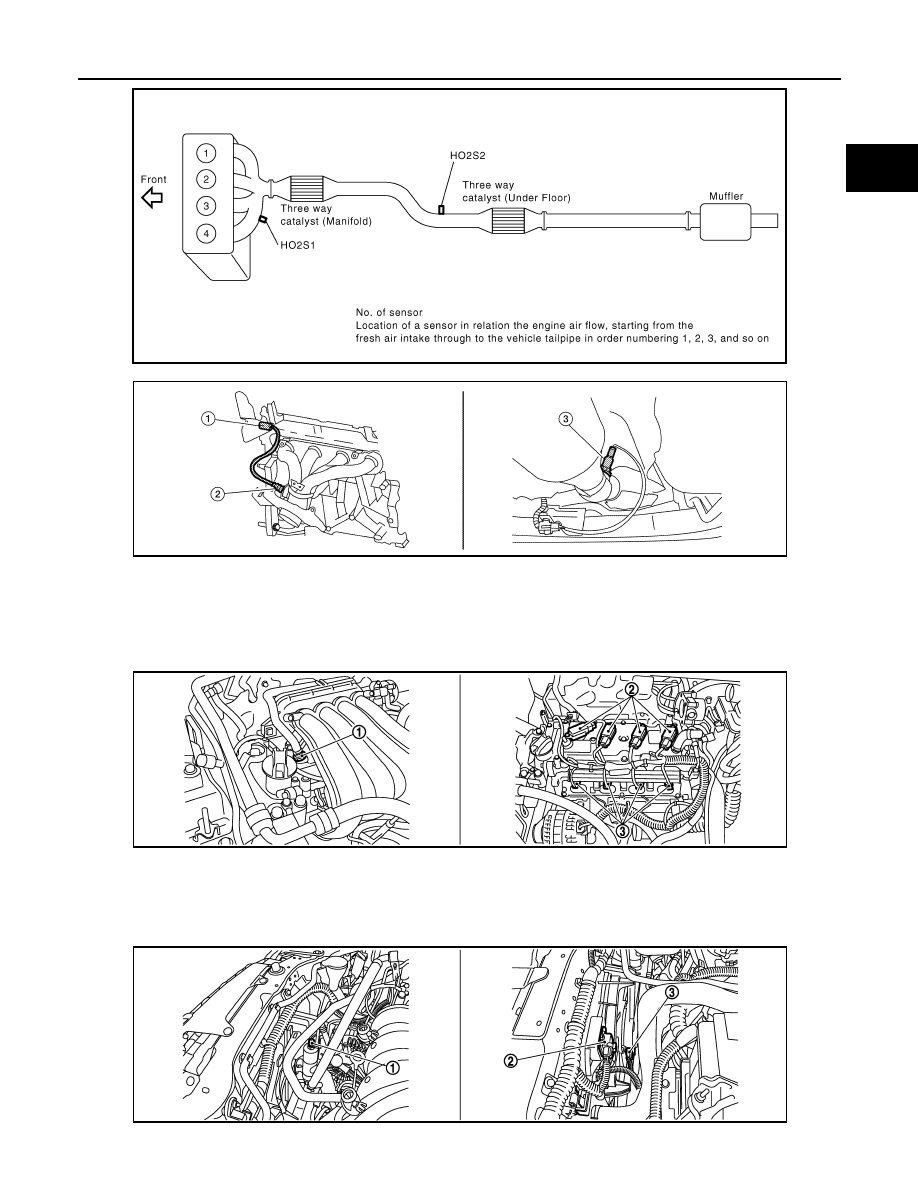

1.

Heated oxygen sensor 1 harness
connector

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injection

BBIA0757E

JMBIA0344ZZ

JMBIA0345ZZ

EC-688

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

COOLING FAN CONTROL

1.

Refrigerant pressure sensor

2.

Resister

3.

Cooling fan motor

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

1.

Crankshaft position sensor (POS)

2.

Ground

1.

ASCD clutch switch

2.

Data link connector

JMBIA0445ZZ

JMBIA0446ZZ

JMBIA0347ZZ

JMBIA0348ZZ

COOLING FAN CONTROL

EC-689

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000000936628

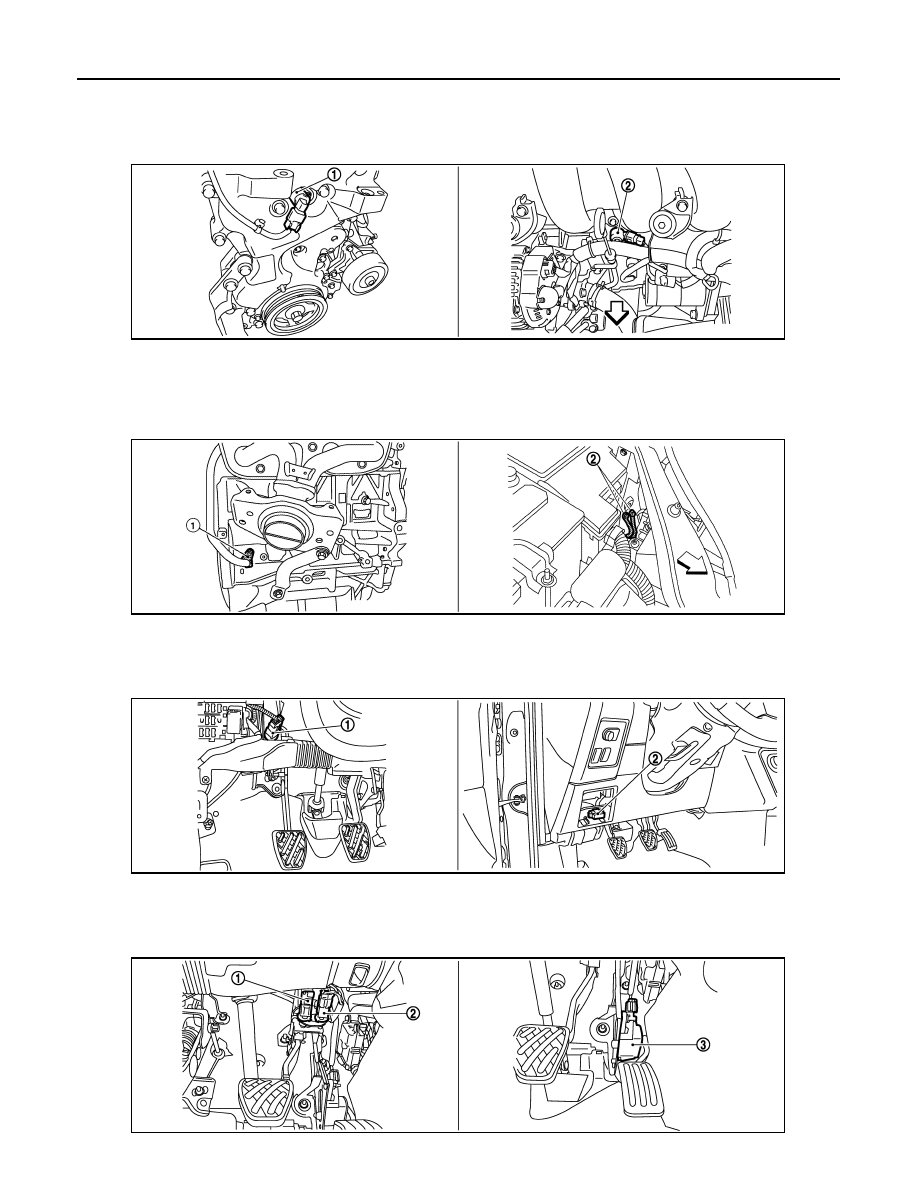

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

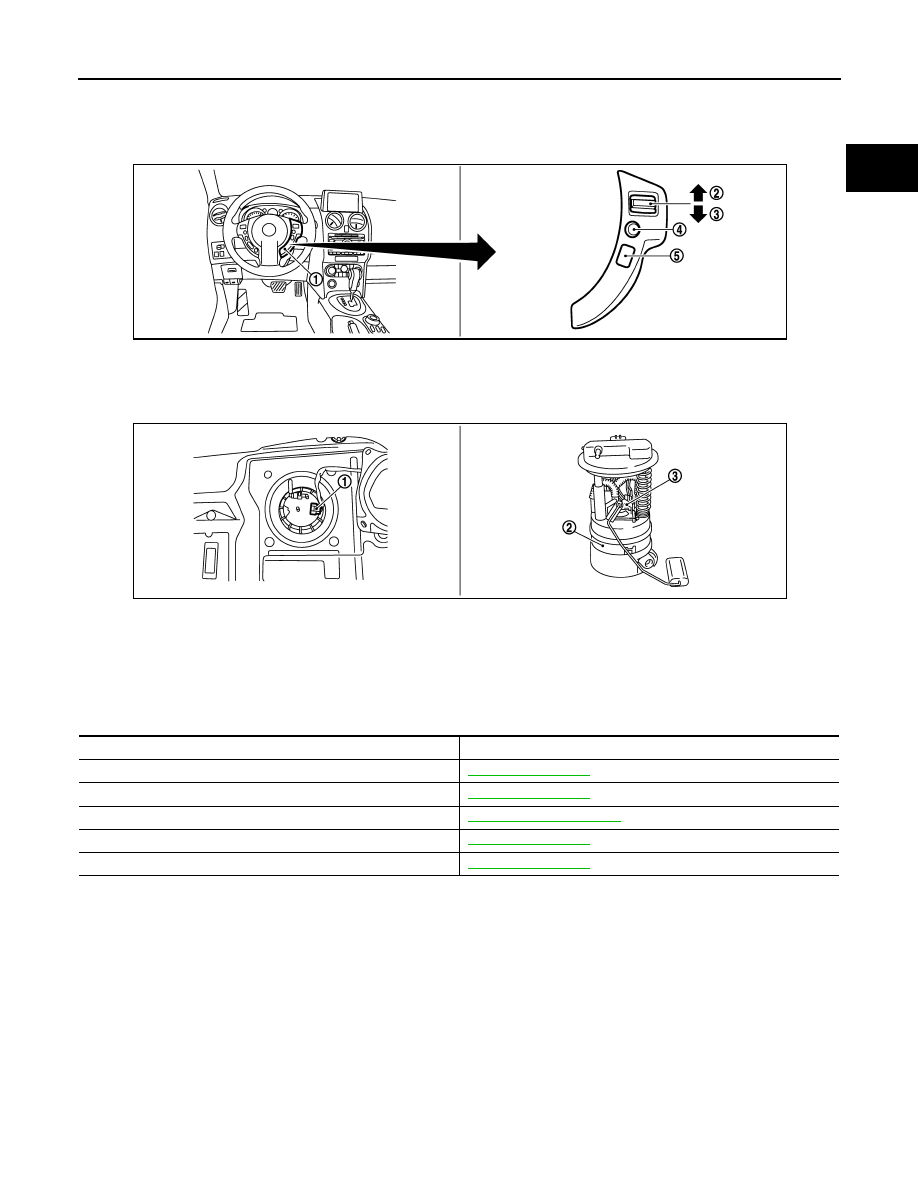

1.

ASDC steering switch

2.

CANSEL switch

3.

RESUME/ACCCELERATE switch

4.

SET/COAST switch

5.

MAIN SWITCH

6.

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

JMBIA0349ZZ

JMBIA0346ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-813, "Description"

Crankshaft position sensor (POS)

EC-809, "Description"

Cooling fan motor

EC-685, "System Diagram"

Engine coolant temperature sensor

EC-754, "Description"

Refrigerant pressure sensor

EC-936, "Description"

EC-690

< FUNCTION DIAGNOSIS >

[MR20DE (WITH EURO-OBD)]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

System Diagram

INFOID:0000000000936629

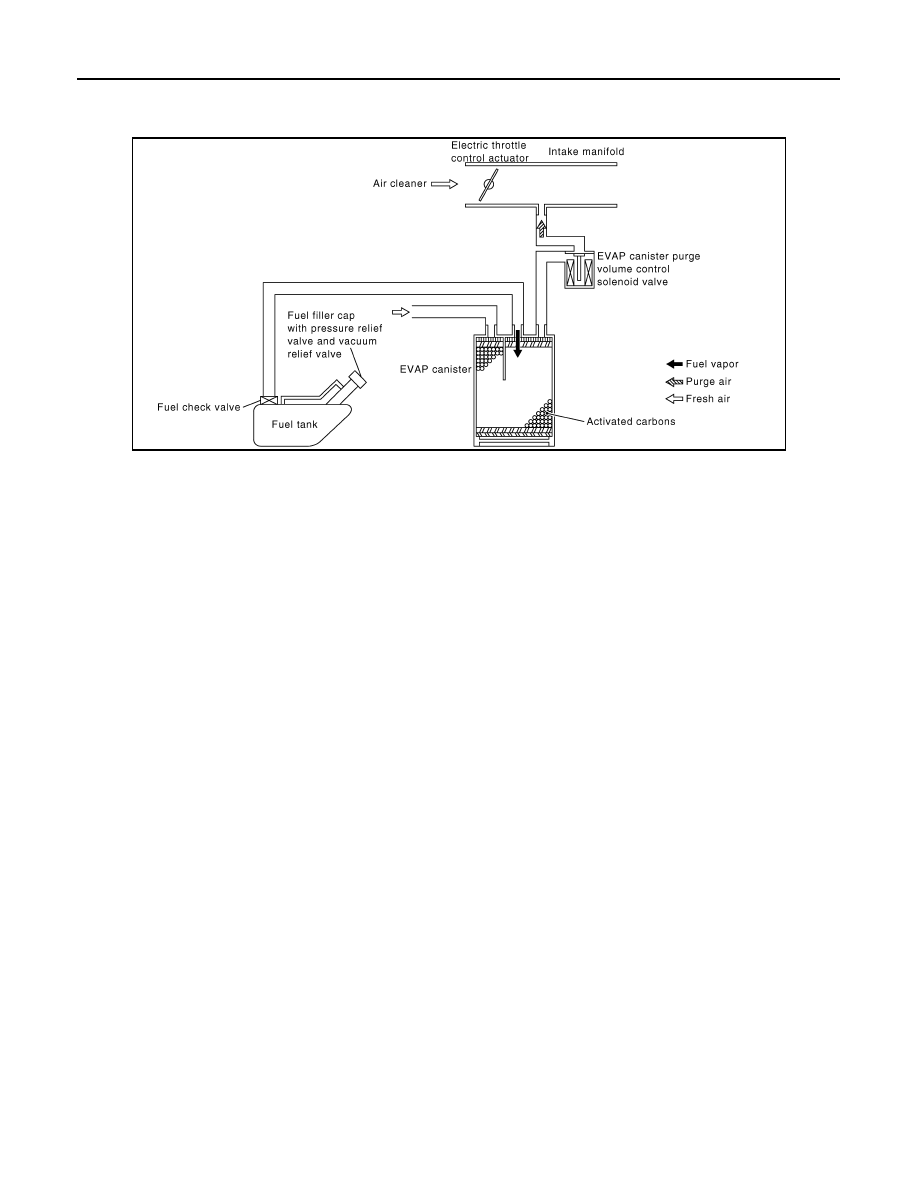

EVAPORATIVE EMISSION LINE DRAWING

PBIB3039E
