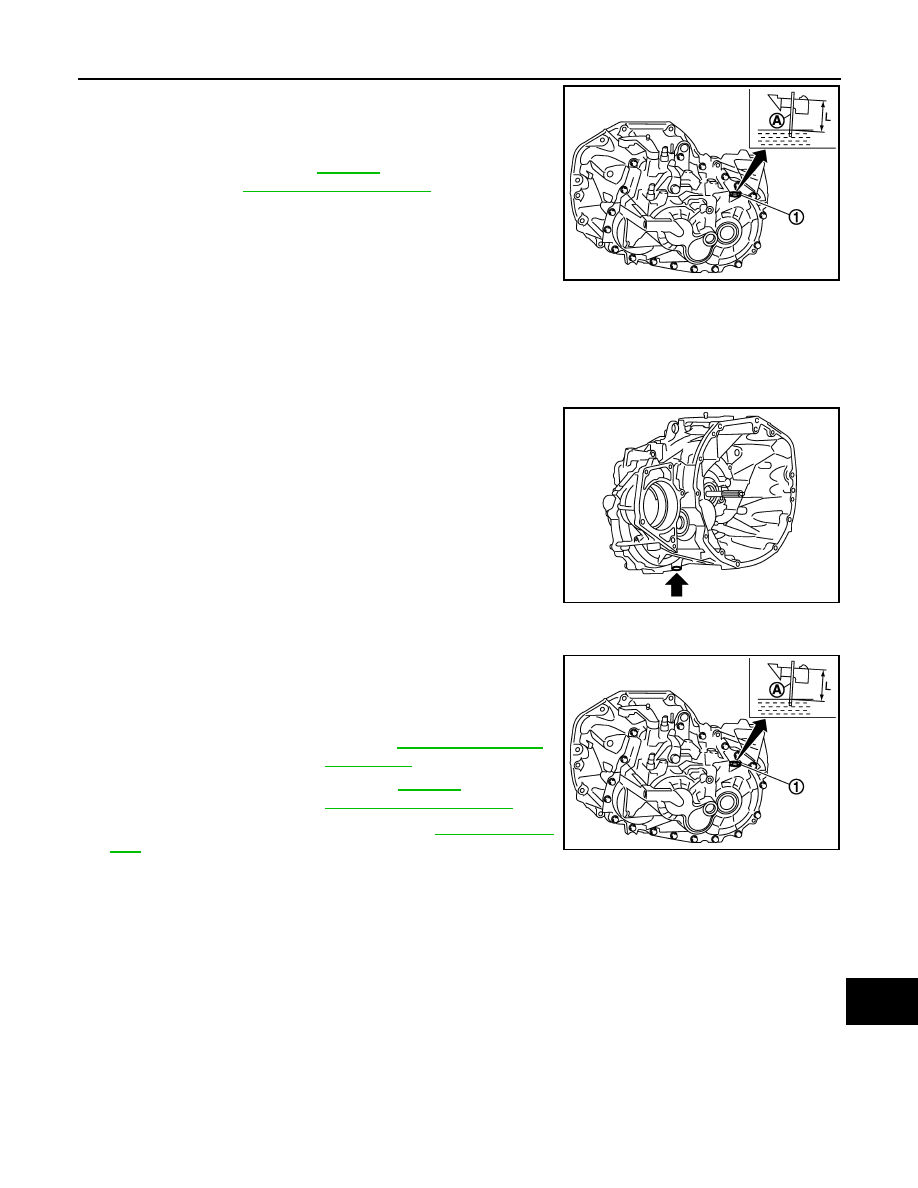

1.

Remove filler plug (1).

2.

Measure oil level using a suitable gauge (A) as shown in the fig-
ure and then check if it is within the specifications.

CAUTION:

Never start engine while checking oil level.

3.

Set a new gasket on filler plug (1) and then install it to transaxle
case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

GEAR OIL: RS6F52A : Draining

INFOID:0000000001095737

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug and then drain gear oil.

3.

Set a new gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

GEAR OIL: RS6F52A : Refilling

INFOID:0000000001095738

1.

Remove filler plug (1). Fill with new gear oil to transaxle.

2.

After refilling gear oil, check oil level. Refer to

TM-115, "Inspec-

tion"

.

3.

Set a new gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

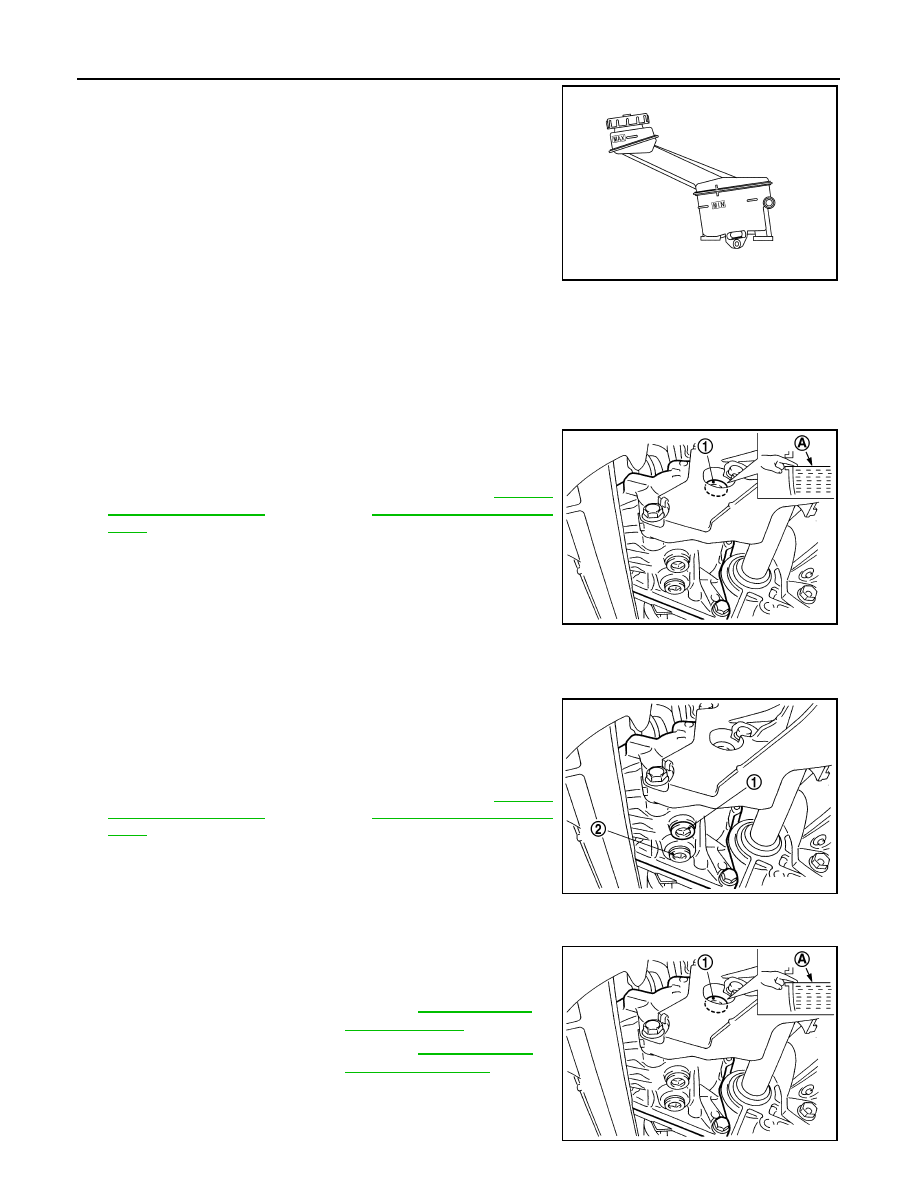

CLUTCH FLUID

CLUTCH FLUID : Inspection

INFOID:0000000001088915

Oil level “L”

: Refer to

TM-183,

"General Specifications"

.

JPDIC0048ZZ

JPDIC0073ZZ

A

: Suitable gauge

Oil grade and viscosity

: Refer to

MA-21, "Fluids and

Lubricants"

.

Oil capacity (reference)

: Refer to

TM-183,

"General Specifications"

.

JPDIC0048ZZ

MA-60

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

If fluid level is extremely low, check clutch/brake system for leaks.

TRANSFER OIL

TRANSFER OIL : Inspection

INFOID:0000000001115876

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, filler plug, and transfer case, etc.) for oil leakage.

OIL LEVEL

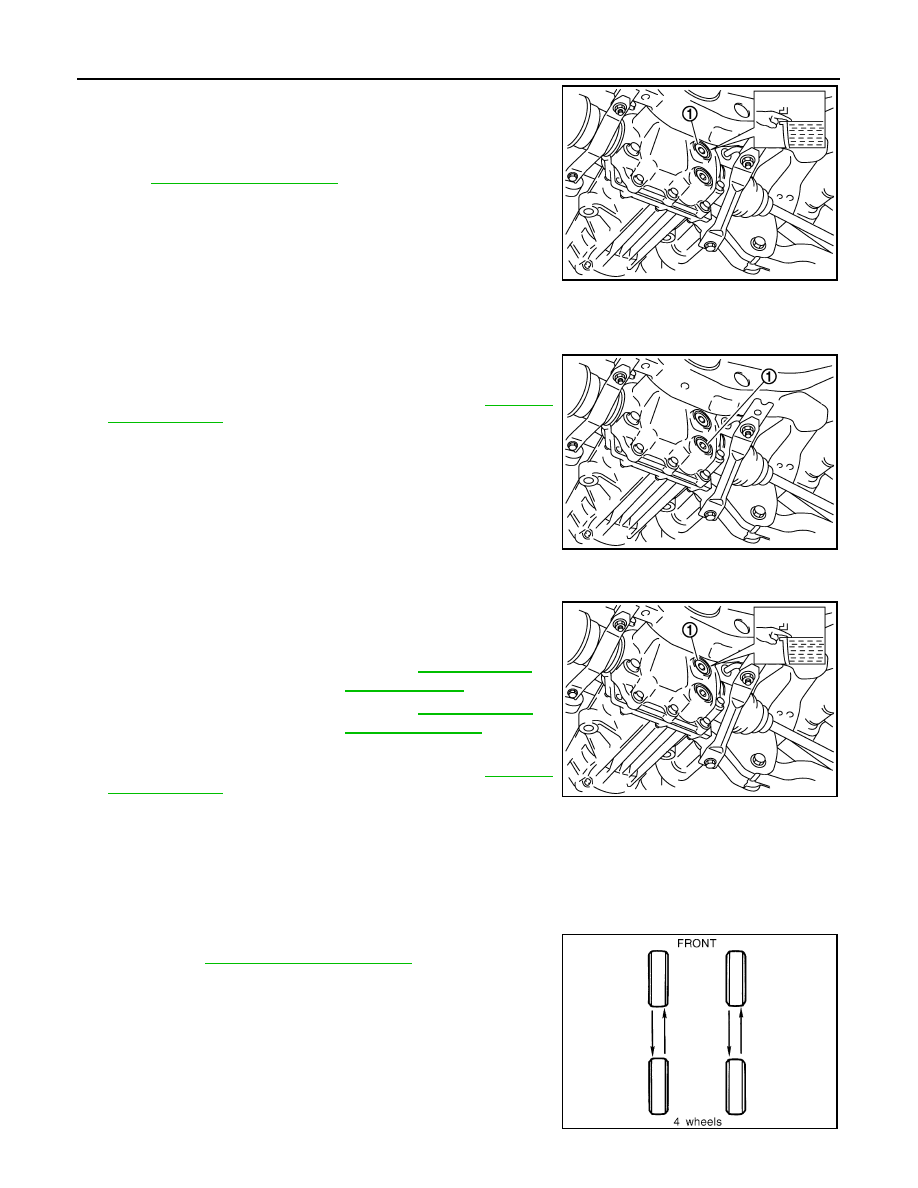

1.

Remove filler plug (1) and gasket. Then check that oil is filled up
(A) from mounting hole for the filler plug.

2.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-61,

"M/T : Exploded View"

 (M/T models),

DLN-63, "CVT : Exploded

View"

 (CVT models).

CAUTION:

Never reuse gaskets.

TRANSFER OIL : Draining

INFOID:0000000001115877

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and gaskets to drain
the transfer oil.

CAUTION:

Never remove tooth contact test hole plug (2).

3.

Before installing drain plug, set a new gasket. Install drain plug
on transfer and tighten to the specified torque. Refer to

DLN-61,

"M/T : Exploded View"

 (M/T models),

DLN-63, "CVT : Exploded

View"

 (CVT models).

CAUTION:

Never reuse gaskets.

TRANSFER OIL : Refilling

INFOID:0000000001115878

1.

Remove filler plug (1) and gasket. Then fill oil up to mounting
hole (A) for the filler plug.

CAUTION:

Carefully fill the oil. (Fill up for approximately 3 minutes.)

2.

Leave the vehicle for 3 minutes. Then check oil level again.

SFIA0066J

SDIA3060J

SDIA3059J

Oil grade and Viscosity

: Refer to

MA-21, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-107, "Gen-

eral Specifications"

.

SDIA3060J

CHASSIS MAINTENANCE

MA-61

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

3.

Before installing filler plug, set a new gasket. Install filler plug on transfer and tighten to the specified
torque. Refer to

DLN-61, "M/T : Exploded View"

 (M/T models),

DLN-63, "CVT : Exploded View"

 (CVT

models).

CAUTION:

Never reuse gasket.

REAR PROPELLER SHAFT

REAR PROPELLER SHAFT : Inspection

INFOID:0000000001095800

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
• If center bearing is noisy or damaged, replace propeller shaft assembly.

VIBRATION

If vibration is present at high speed, inspect propeller shaft runout first.

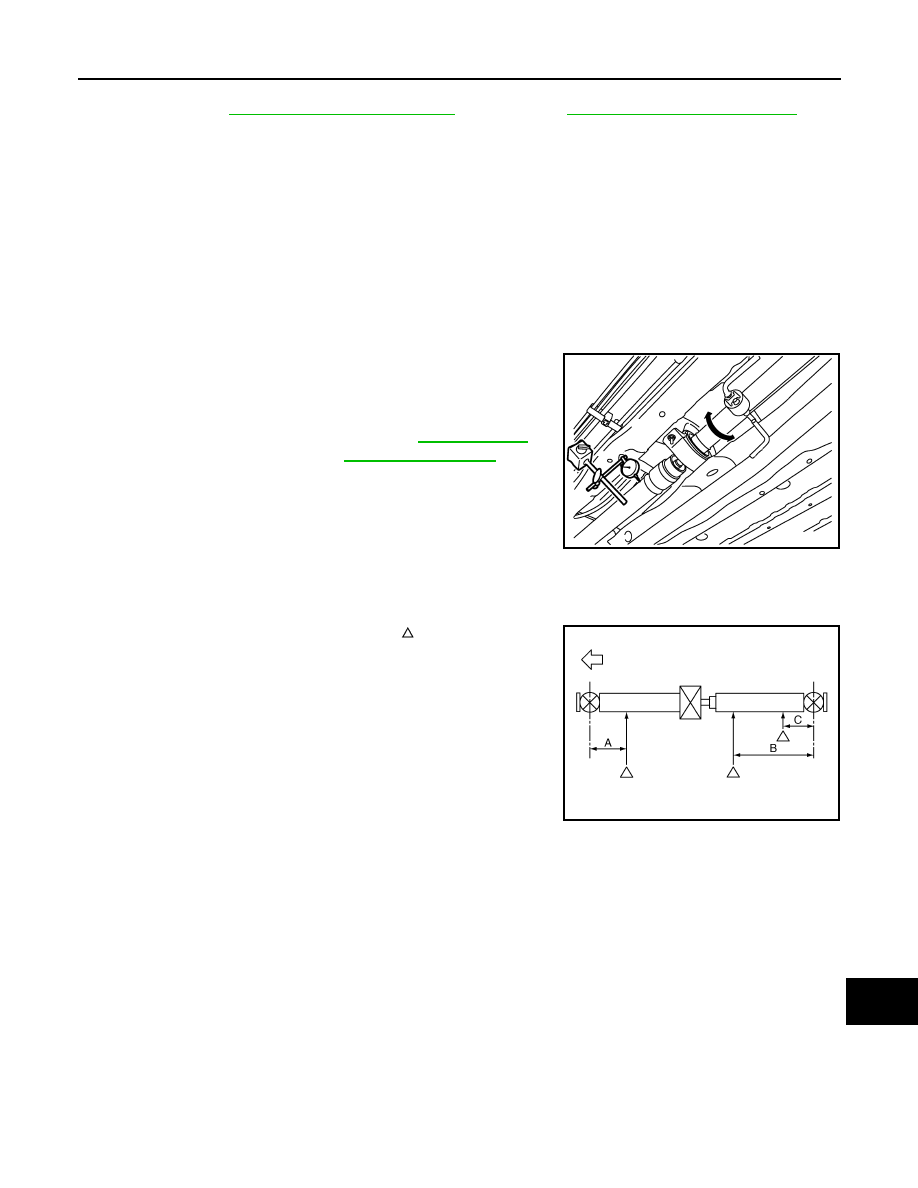

1.

Measure propeller shaft runout at runout measuring points by
rotating final drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange or transfer companion flange; then
rotate companion flange 90, 180, 270 degrees and install pro-
peller shaft.

3.

Check runout again. If runout still exceeds specifications,
replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

Propeller shaft runout measuring point (Point “ ”).

REAR DIFFERENTIAL GEAR OIL

REAR DIFFERENTIAL GEAR OIL : Inspection

INFOID:0000000001115879

OIL LEAKEGE

Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

Limit

Propeller shaft runout

: Refer to

DLN-113, "Pro-

peller Shaft Runout"

.

JSDIA0190ZZ

: Vehicle front

Dimension

A: 200 mm (7.87 in)

B: 639 mm (25.16 in)

C: 159 mm (6.26 in)

JSDIA0235ZZ

MA-62

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

• Remove filler plug (1) and check oil level from filler plug mounting

hole as shown in the figure.

CAUTION:

Never start engine while checking oil level.

• Set a new gasket on filler plug and install it on final drive assembly.

Refer to

DLN-130, "Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL : Draining

INFOID:0000000001115880

1.

Stop engine.

2.

Remove drain plug (1) and drain gear oil.

3.

Set a new gasket on drain plug and install it to final drive assem-
bly and tighten to the specified torque. Refer to

DLN-130,

"Exploded View"

.

CAUTION:

Never reuse gasket.

REAR DIFFERENTIAL GEAR OIL : Refilling

INFOID:0000000001115881

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.

2.

After refilling oil, check oil level. Set a new gasket to filler plug,
then install it to final drive assembly. Refer to

DLN-130,

"Exploded View"

.

CAUTION:

Never reuse gasket.

WHEELS (BONDING WEIGHT TYPE)

WHEELS (BONDING WEIGHT TYPE) : Adjustment

INFOID:0000000001115882

TIRE RORATION

1.

Follow the maintenance schedule for tire rotation service inter-
vals. Refer to

MA-6, "General Maintenance"

.

2.

Do not include the T-type spare tire when rotating the tires.

3.

When installing the wheel, tighten wheel nuts to the specified
torque.

CAUTION:

• When installing wheels, tighten them diagonally by divid-

ing the work two to three times in order to prevent the
wheels from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding

the criteria for preventing strain of disc rotor.

• Use NISSAN genuine wheel nuts for aluminum wheels.

JSDIA0198ZZ

JSDIA0197ZZ

Oil grade and Viscosity

: Refer to

MA-21, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-151, "Gen-

eral Specification"

.

JSDIA0198ZZ

SMA829C
