Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage, chafing or deterioration.
• If anything is found, repair or replace damaged parts.

CVT FLUID

CVT FLUID : Inspection

INFOID:0000000001115874

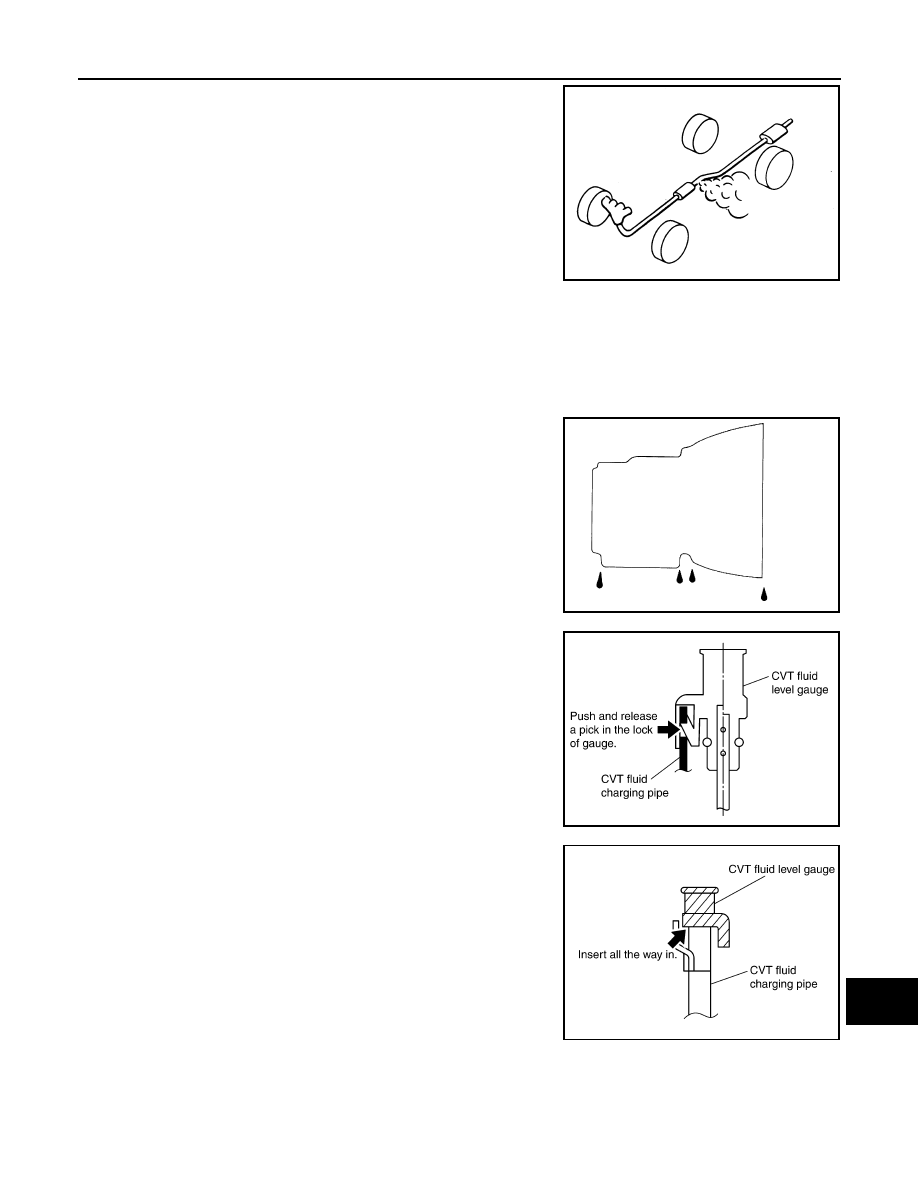

CHECKING CVT FLUID

Fluid level should be checked with the fluid warmed up to 50 to 80

°

C (122 to 176

°

F). The fluid level check pro-

cedure is as follows:

1.

Check for fluid leakage.

2.

With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20

°

C (68

°

F), it takes about 10

minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to

176

°

F).

3.

Park the vehicle on a level surface.

4.

Apply parking brake firmly.

5.

With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.

6.

Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.

7.

Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180

°

 from the originally installed position,

then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.

SMA211A

SMA146B

SCIA1933E

SCIA1931E

MA-56

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

8.

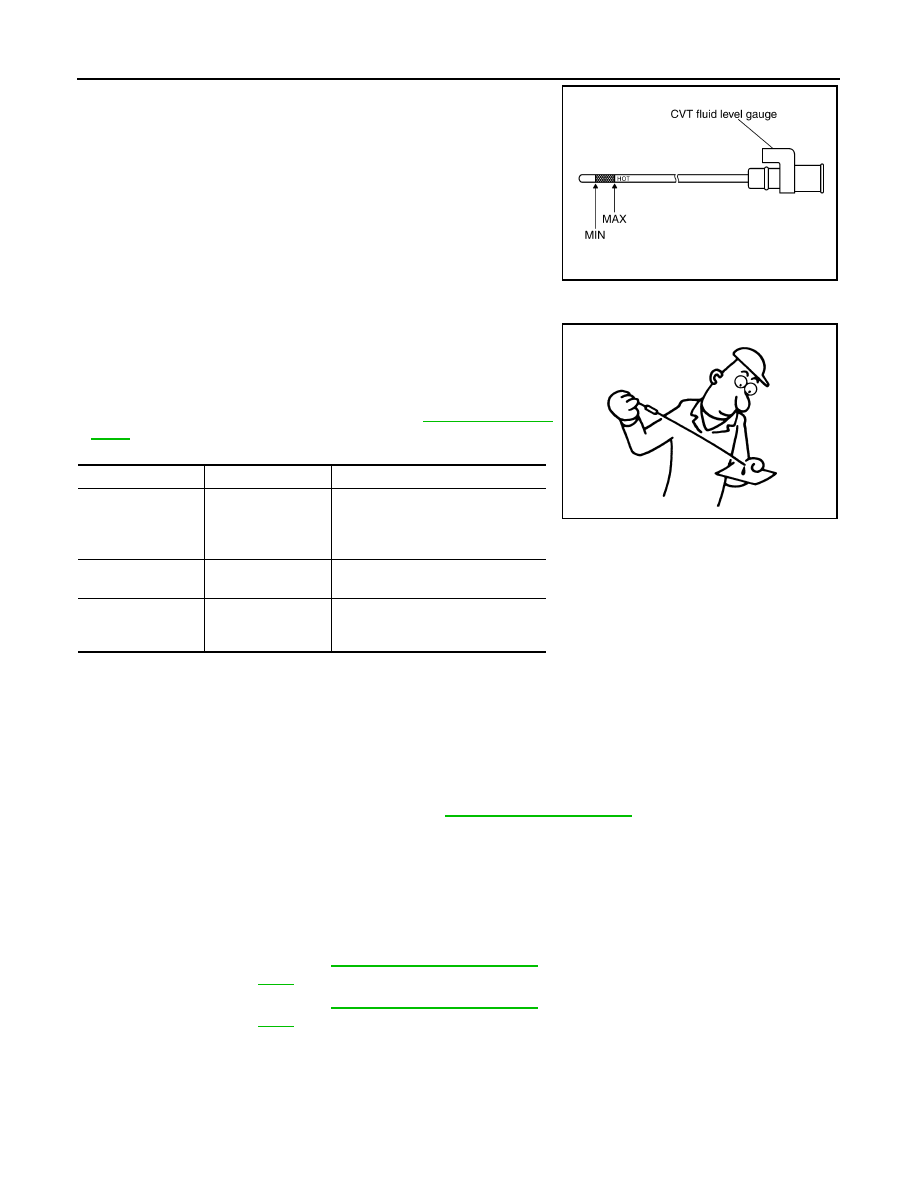

Place the selector lever in “P” or “N” and make sure the fluid
level is within the specified range.

CAUTION:

When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until securely locked.

CVT FLUID CONDITION

Check CVT fluid condition.
• If CVT fluid is very dark or smells burned, check operation of CVT.

Flush cooling system after repair of CVT.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of CVT. Refer to

CO-34, "Exploded

View"

.

CVT FLUID : Changing

INFOID:0000000001115875

1.

Remove drain plug, and then drain CVT fluid from oil pan.

2.

Install drain plug to oil pan.

CAUTION:

Never reuse drain plug gasket.

3.

Fill CVT fluid from CVT fluid charging pipe to the specified level.

4.

With the engine warmed up, drive the vehicle in an urban area. When ambient temperature is 20

°

C

(68

°

F), it takes about 10 minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to 176

°

F).

5.

Check CVT fluid level and condition.

6.

Repeat steps 1 to 5 if CVT fluid has been contaminated.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT

durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
• Sufficiently shake the container of CVT fluid before using.

SCIA1932E

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid become
degraded due to
high temperatures.

Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)

Milky white or
cloudy

Water in the fluid

Replace the CVT fluid and check for
places where water is getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
CVT

Replace the CVT fluid and check for
improper operation of the CVT.

ATA0022D

Drain plug – tightening torque

: Refer to

TM-335, "Exploded View"

.

CVT fluid

: Refer to

TM-361, "General Specifica-

tion"

.

Fluid capacity

: Refer to

TM-361, "General Specifica-

tion"

.

CHASSIS MAINTENANCE

MA-57

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid.

GEAR OIL: RS5F92R

GEAR OIL: RS5F92R : Inspection

INFOID:0000000001095729

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

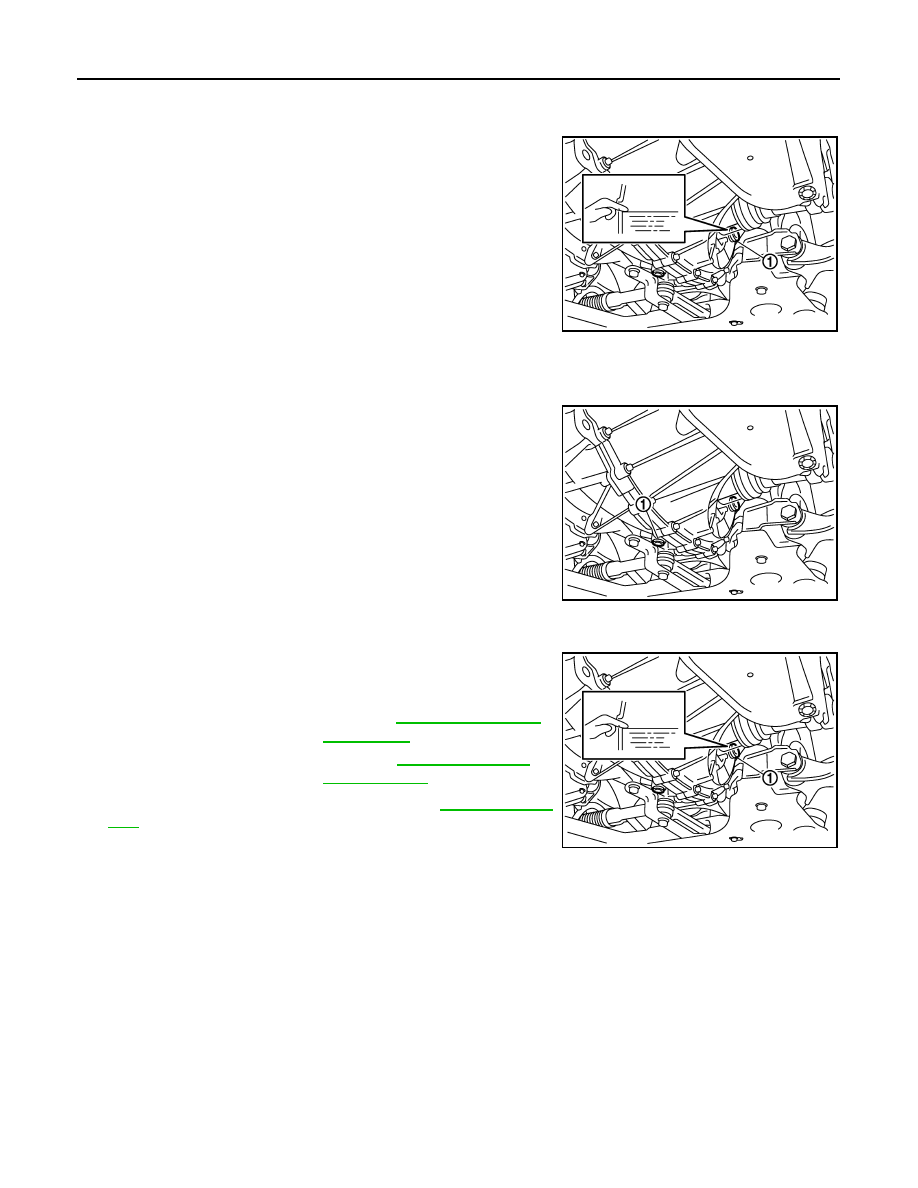

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Never start engine while checking oil level.

2.

Set a new gasket on filler plug and then install it to transaxle
case.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque.

GEAR OIL: RS5F92R : Draining

INFOID:0000000001095727

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and then drain gear oil.

3.

Set a new gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

GEAR OIL: RS5F92R : Refilling

INFOID:0000000001095728

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified limit at filler plug hole as shown.

2.

After refilling gear oil, check oil level. Refer to

TM-17, "Inspec-

tion"

.

3.

Set a new gasket on filler plug and then install it to transaxle
case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

GEAR OIL: RS6F94R

GEAR OIL: RS6F94R : Inspection

INFOID:0000000001095732

LEAKAGE

SCIA7119E

PCIB1504E

Oil grade and viscosity

: Refer to

MA-21, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

TM-50, "General

Specification"

.

SCIA7119E

MA-58

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

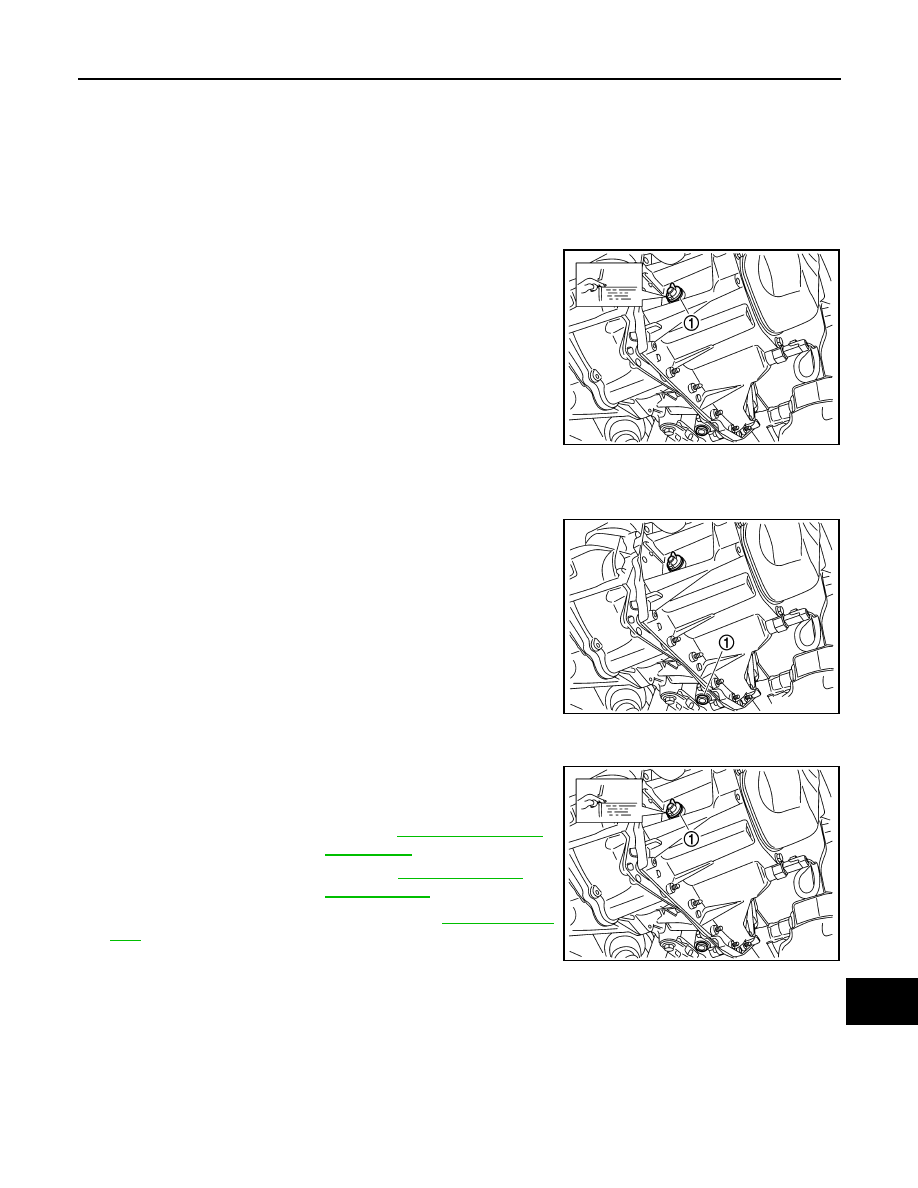

Remove filler plug (1) and check oil level at filler plug hole as
