Nissan Qashqai (2007-2010). Manual - part 1975

AV-158

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

DISPLAY UNIT

19

(W)

Ground

Communication signal
(CONT

→

DISP)

Input

Ignition

switch

ON

When adjusting display-
brightness.

20

(R)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

21

(LG)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

23

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB5039J

AV

DISPLAY UNIT

AV-159

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

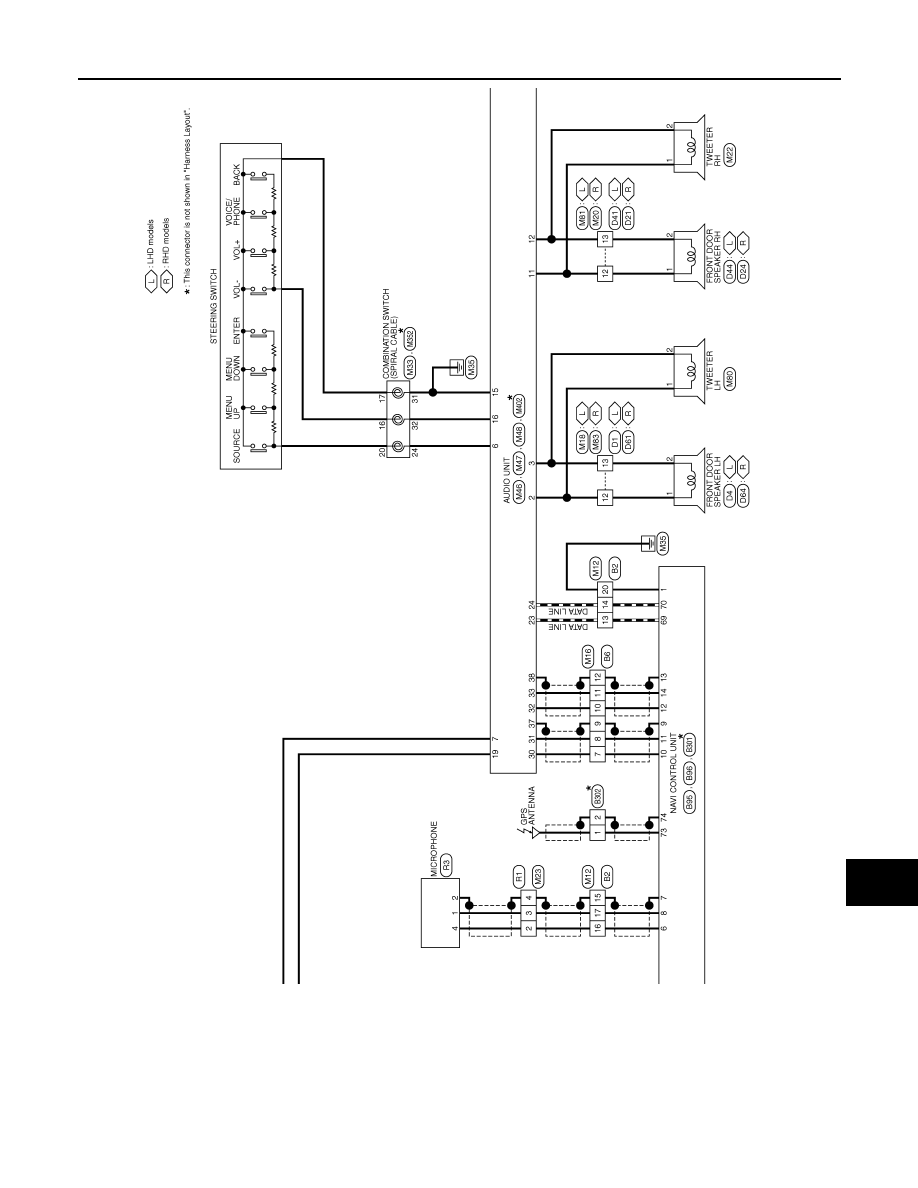

Wiring Diagram - AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000000955708

JCNWA0241GB

AV-160

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

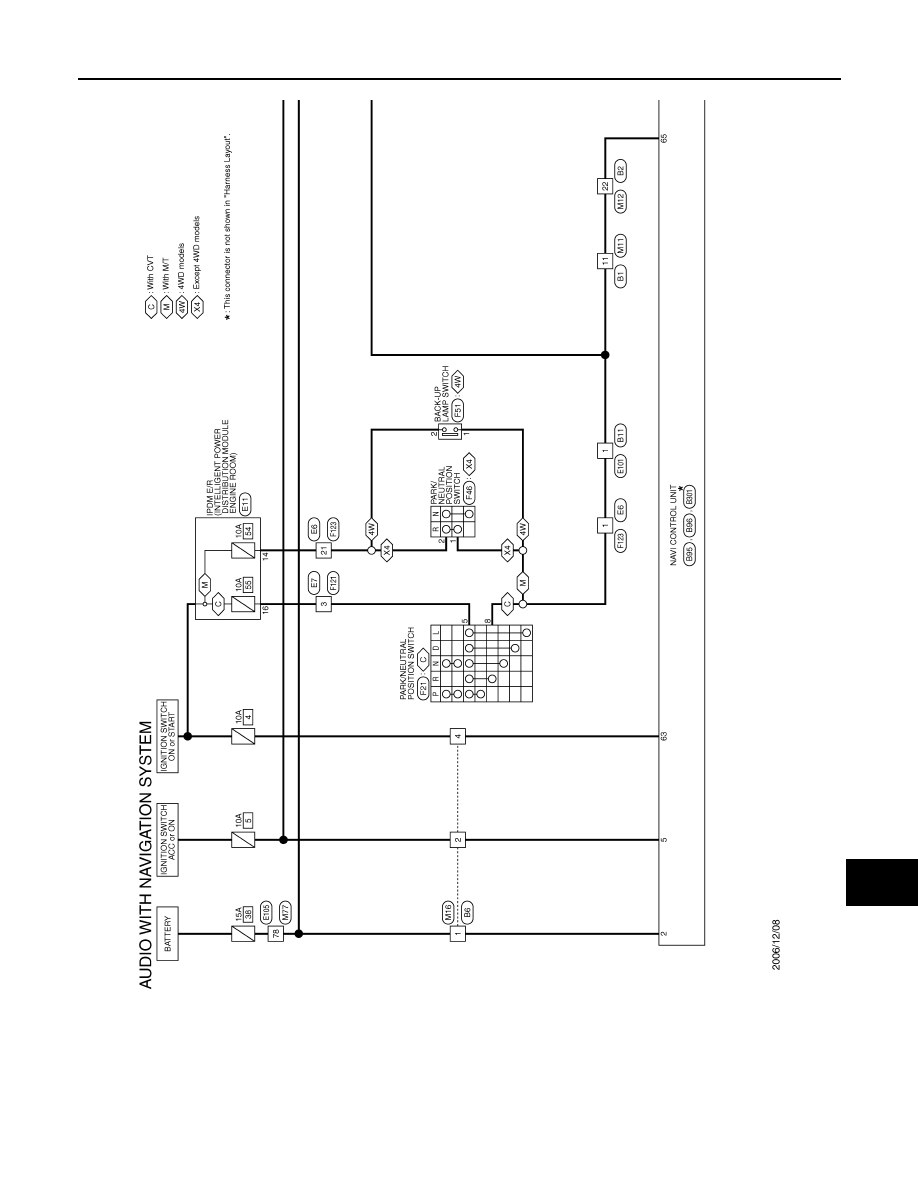

DISPLAY UNIT

JCNWA0242GB

AV

DISPLAY UNIT

AV-161

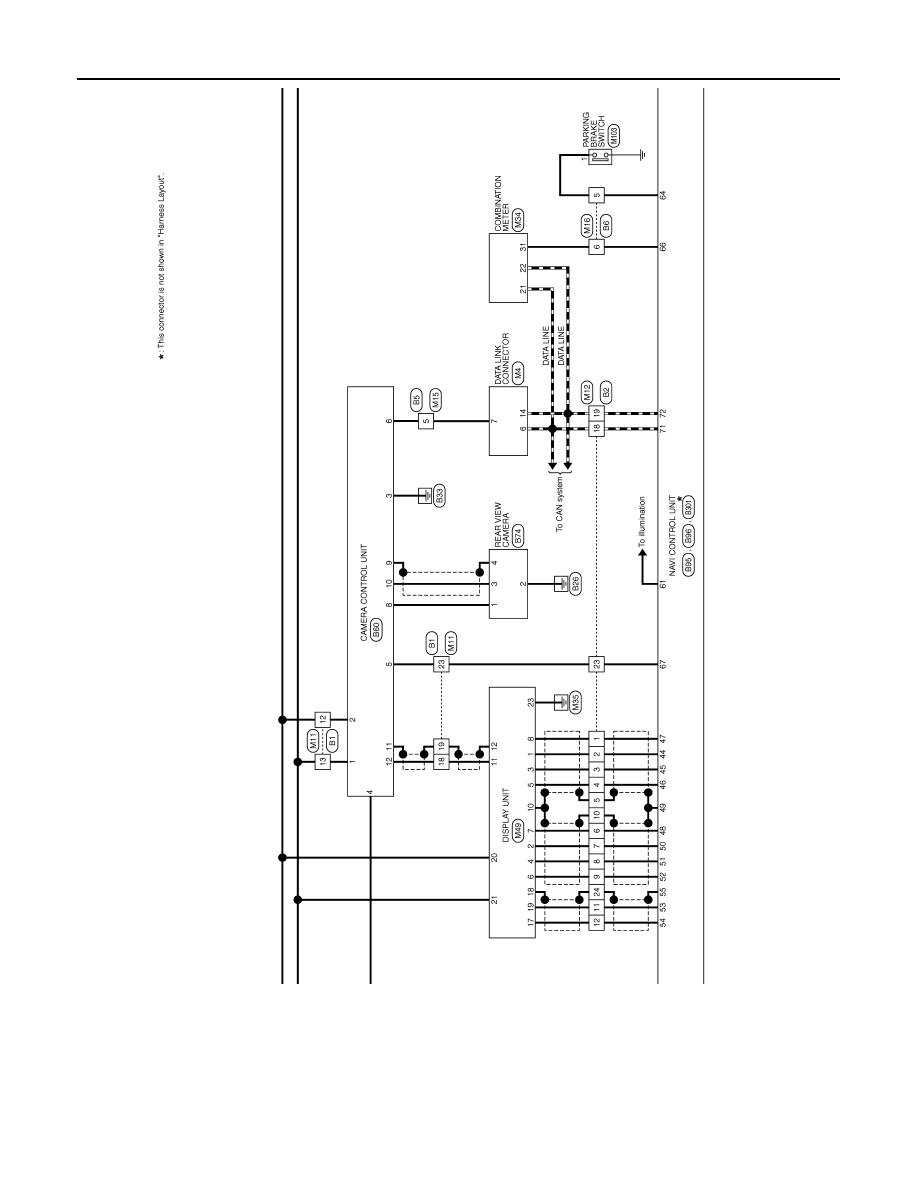

< ECU DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWA0243GB
